Payload integration made simple

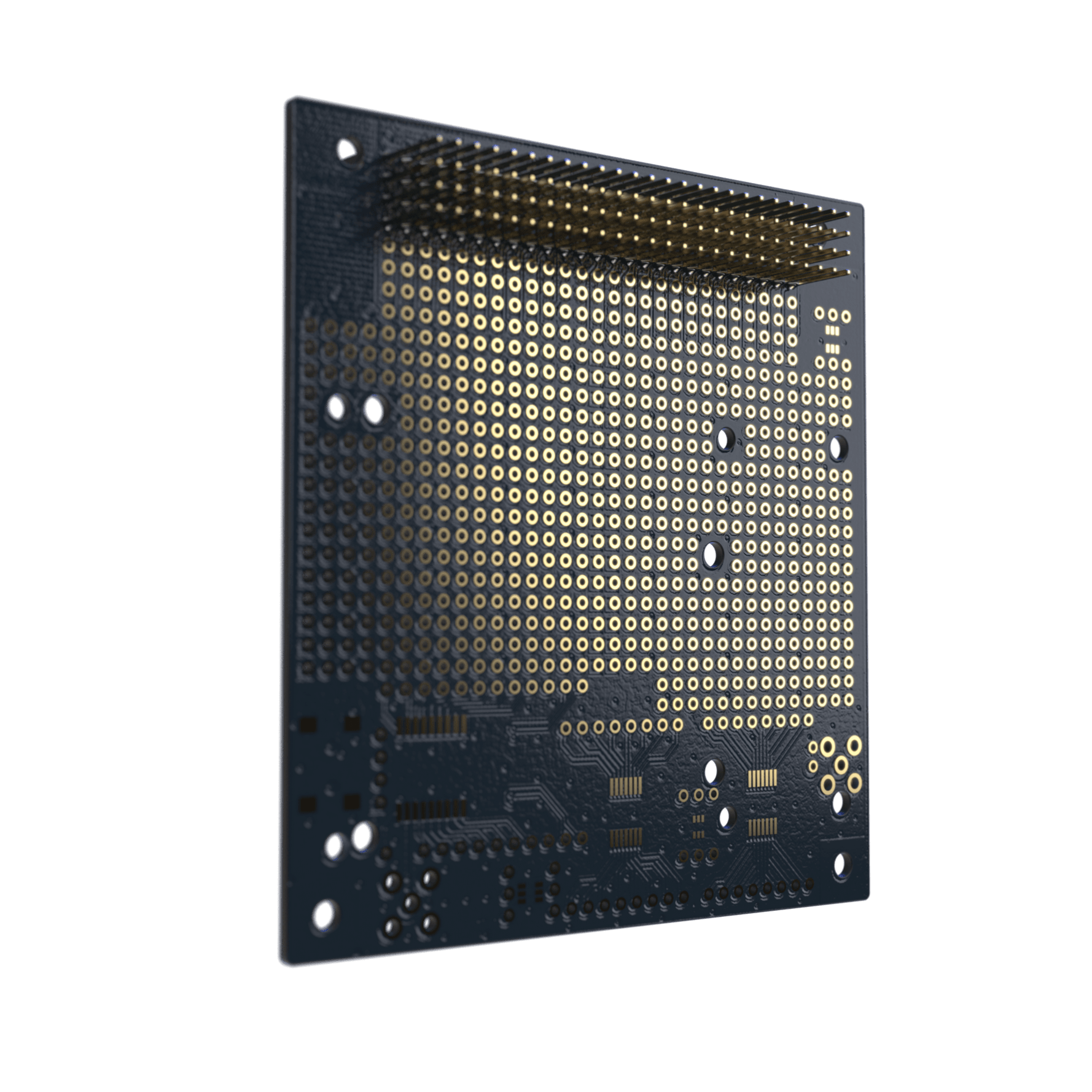

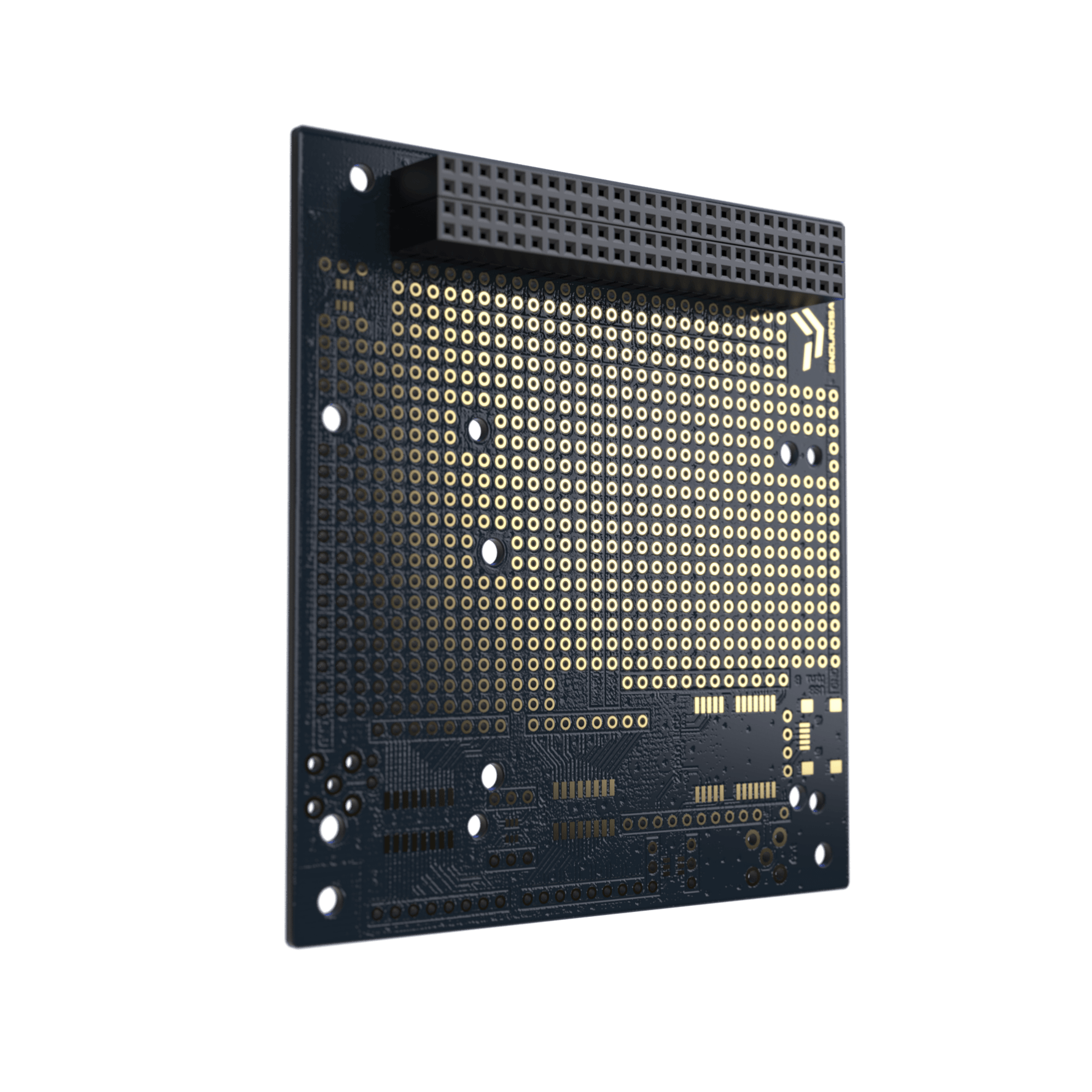

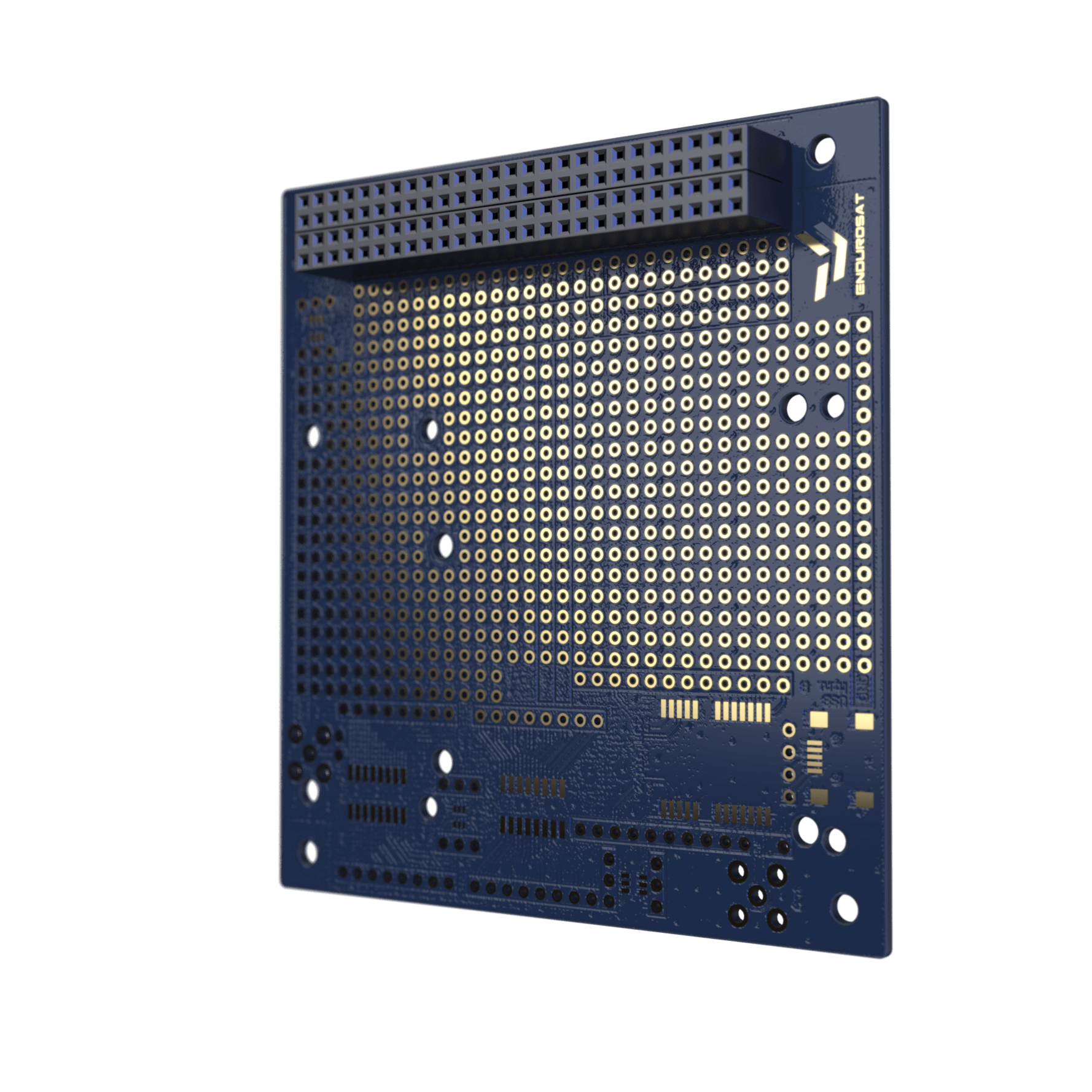

CubeSat Protoboard

A flight-proven protoboard

this cubesat module has flight heritage
cubesat-educational-modules-protoboard-endurosat

A flight-proven protoboard

Highcompatibility
Easyto integrate
Customconnectors

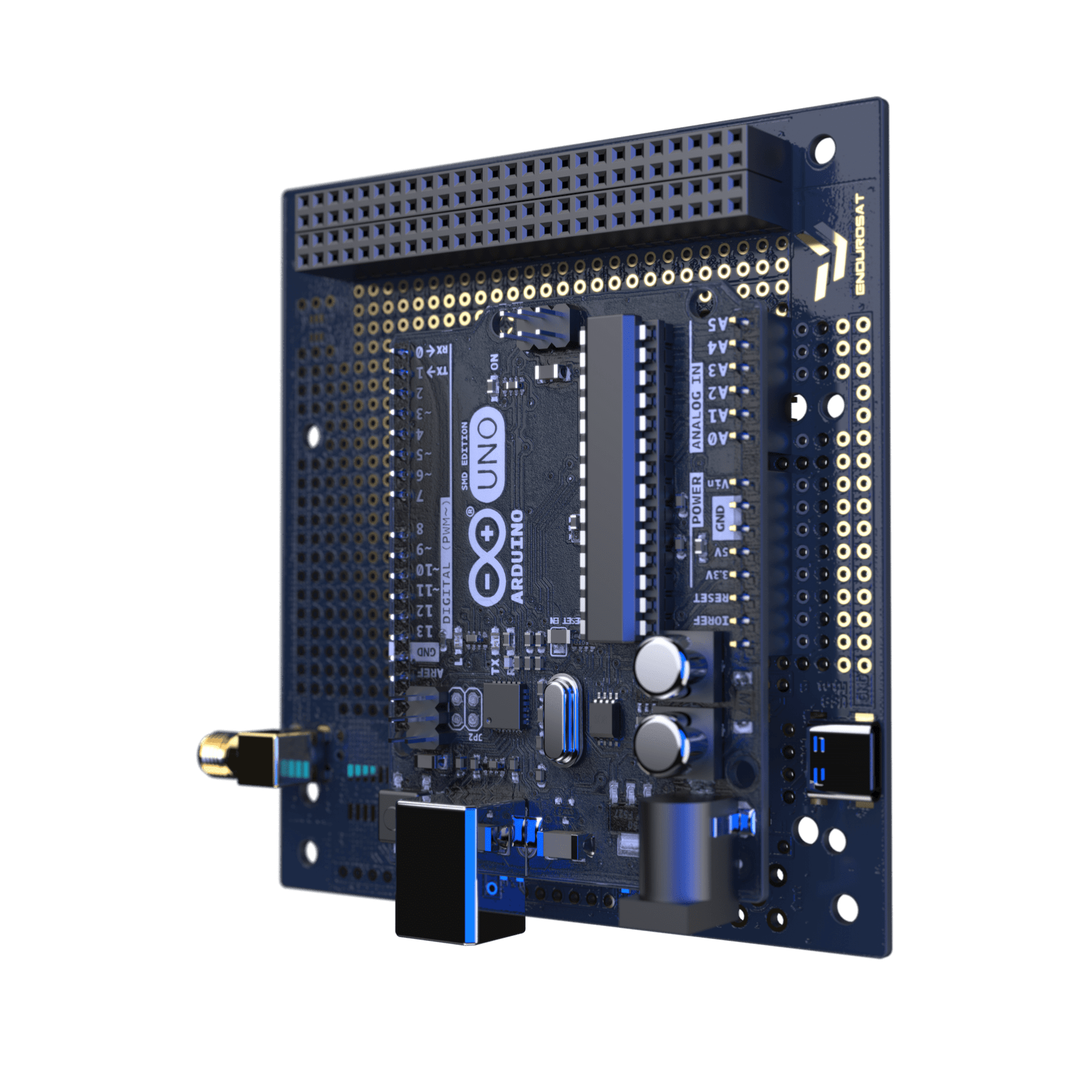

Universal footprints compatible with different RaspberryPI and Arduino versions

cubesat-educational-modules-protoboard-endurosat

Available with custom RF and data connectors

cubesat-educational-modules-protoboard-endurosat applications

Applications

Quick prototyping iconQuick Prototyping
Rapid Payload integration to CubeSat standard iconRapid Payload Integration
Interconnection board development iconInterconnection Board

Extremely lightweight and robust

cubesat-educational-modules-protoboard-endurosat featured

Features

Compatibility PC104 form-factor
Prototype area standard spacing of 2.54 mm (100 mils)
Power 3.3 V, 5 V and GND pins
Mass 28 g
PC104 type 104 Pins CubeSat Kit Connector
Other options Available with machine-soldered 104 Pins Samtec connectors

CubeSat standard compliant

cubesat-educational-modules-protoboard-endurosat included

Included

user manual book icon PC104 pinout scheme
