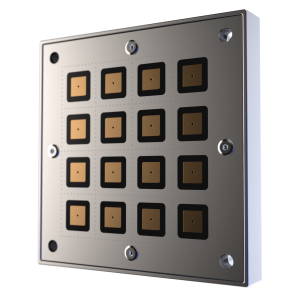

K-BAND 4×4 PATCH ARRAY

Ultra High-speed Communication
Cad file & datasheet
buy
buy
Download
Cad file & datasheet
buy
buy
30%
SMALLER FOOTPRINT
19+
DBI GAIN
RH/LH
CIRCULAR POLARIZATION

Fully qualified K-band patch antenna

FEATURES
Frequency Range
17.7 - 20.2 GHz
Half Power Beam Width (HPBW)
16 deg
Gain
18+ dBi over operational bandwidth
Polarization
Right/Left Hand Circular
Axial Ratio
< 3 dB
Mass
76 g
RF Power Handling
up to 4 W

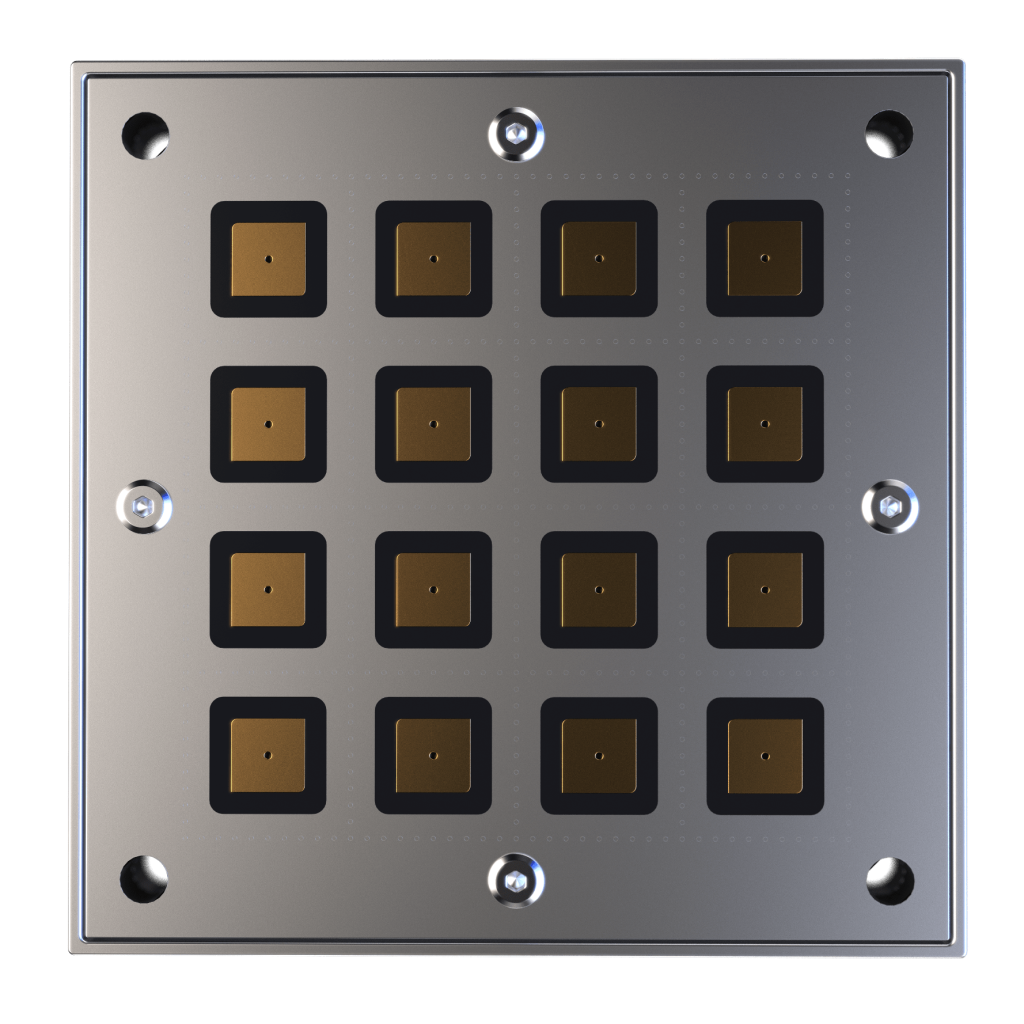

K Band 4x4 Patch Array web render 1 5
Ultra High-Speed Communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Fully qualified K-band patch antenna
K Band 4x4 Patch Array web 5
K Band 4x4 Patch Array web render 3

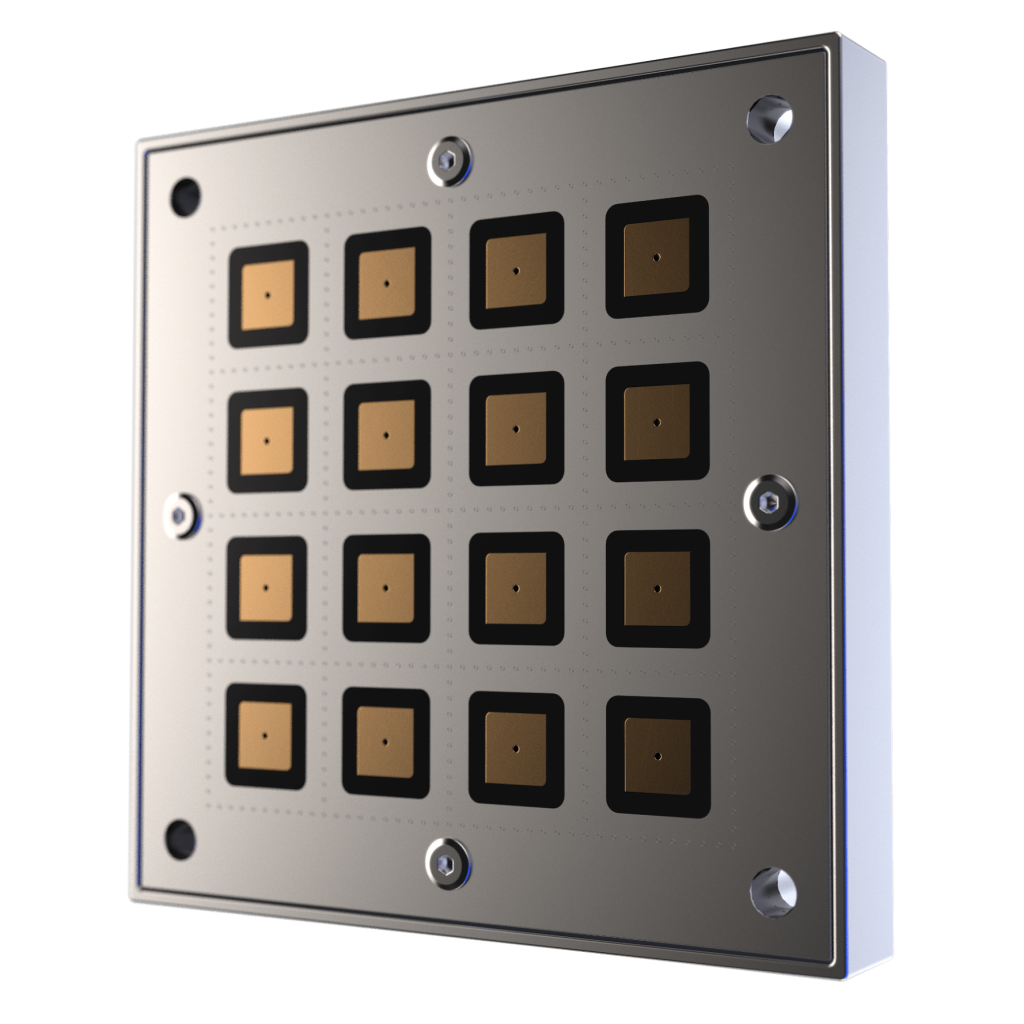

Industry-leading gain at a 30% smaller footprint

K Band 4x4 Patch Array web render 5

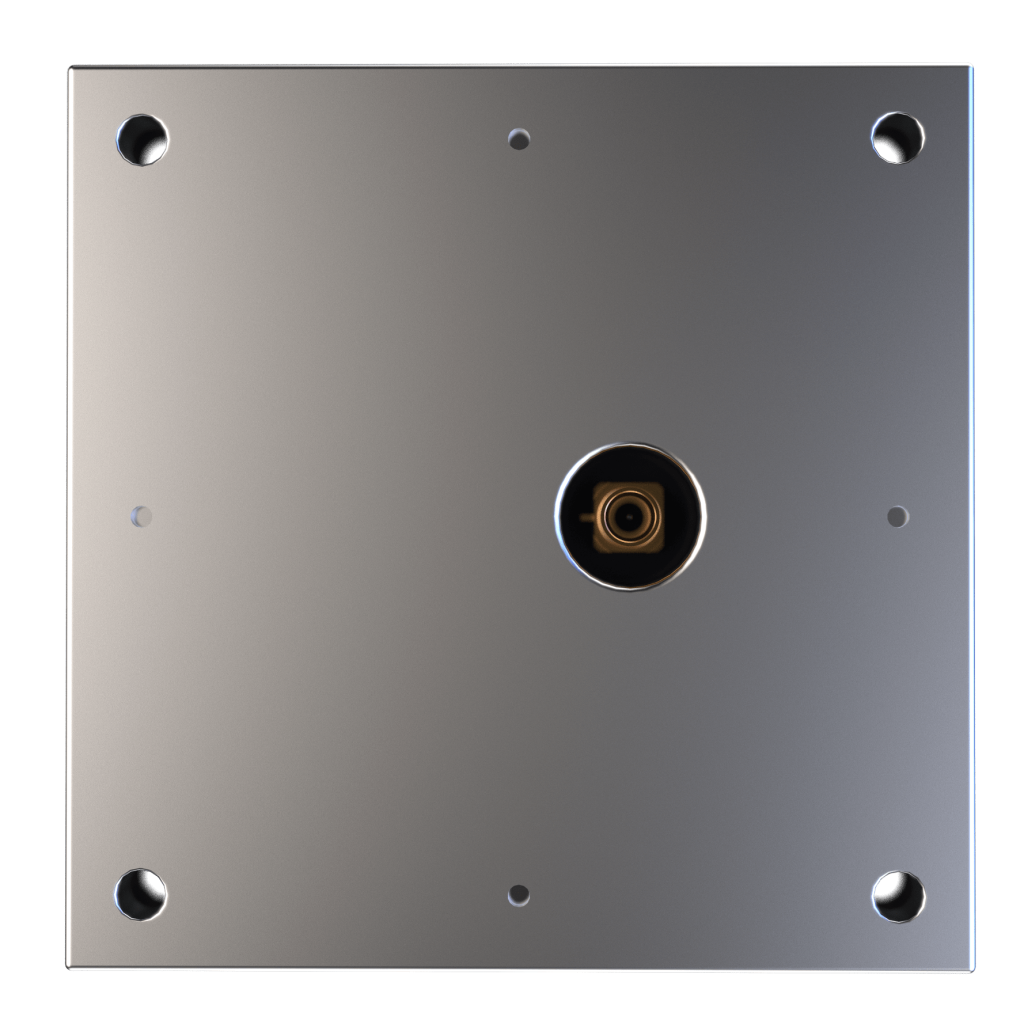

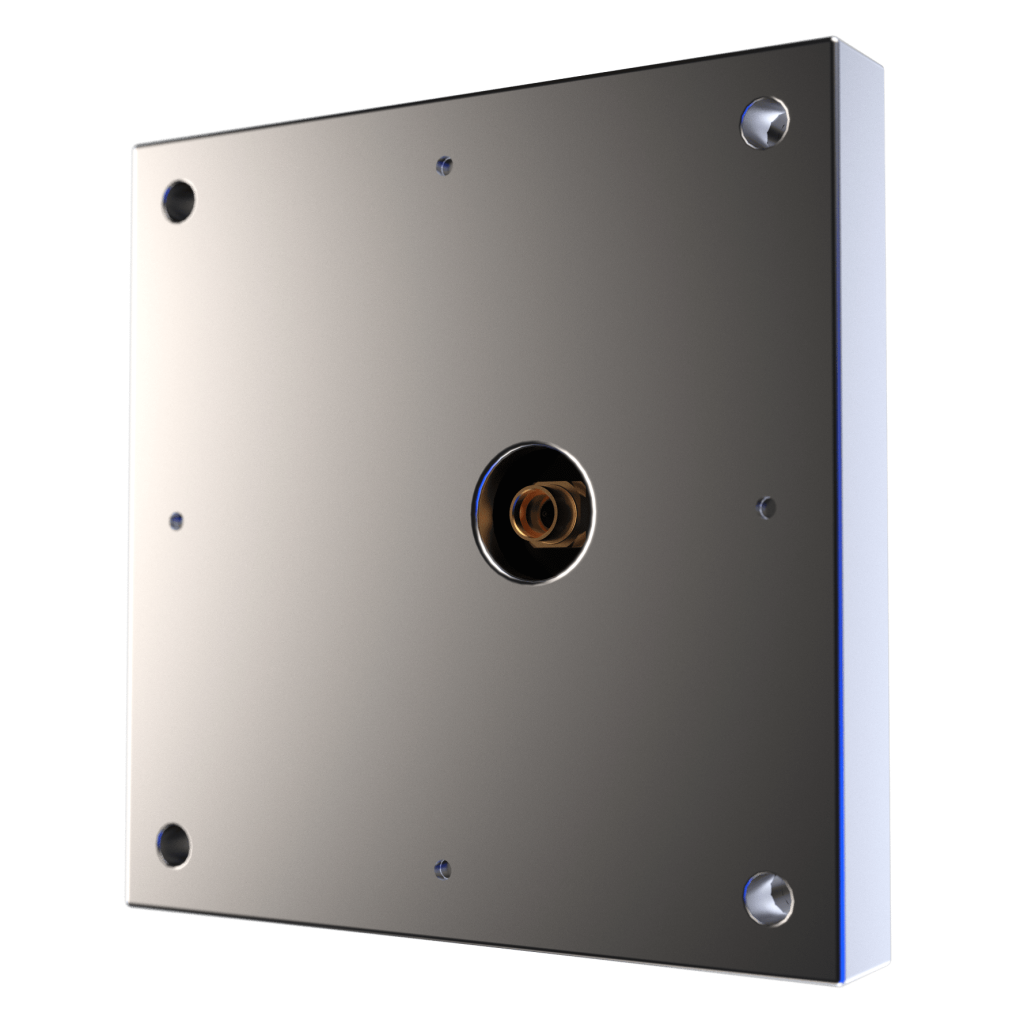

Available with SMP connector

K Band 4x4 Patch Array web render 2 e1711553953390

Circularly polarized for better reception

PRODUCT GALLERY
K Band 4x4 Patch Array web 9
K Band 4x4 Patch Array web 8
K Band 4x4 Patch Array web 7
K Band 4x4 Patch Array web 5
K Band 4x4 Patch Array web 4
K Band 4x4 Patch Array web 3
K Band 4x4 Patch Array web 2
K Band 4x4 Patch Array web 1
