X-BAND PATCH ANTENNA

Speed Matters
Cad file & datasheet
buy
buy
flight heritage badge state of the art report badge
Download
Cad file & datasheet
buy
buy
25%
SMALLER FOOTPRINT
6+
DBI GAIN
RH
CIRCULAR POLARIZATION

Space-qualified X-band patch antenna

FEATURES
Frequency Range
8025 - 8400 MHz
Half Power Beam Width (HPBW)
74 deg
Gain
6+ dBi over operational bandwidth
Polarization
Right Hand Circular
Mass
< 3 g
RF Power Handling
up to 4 W

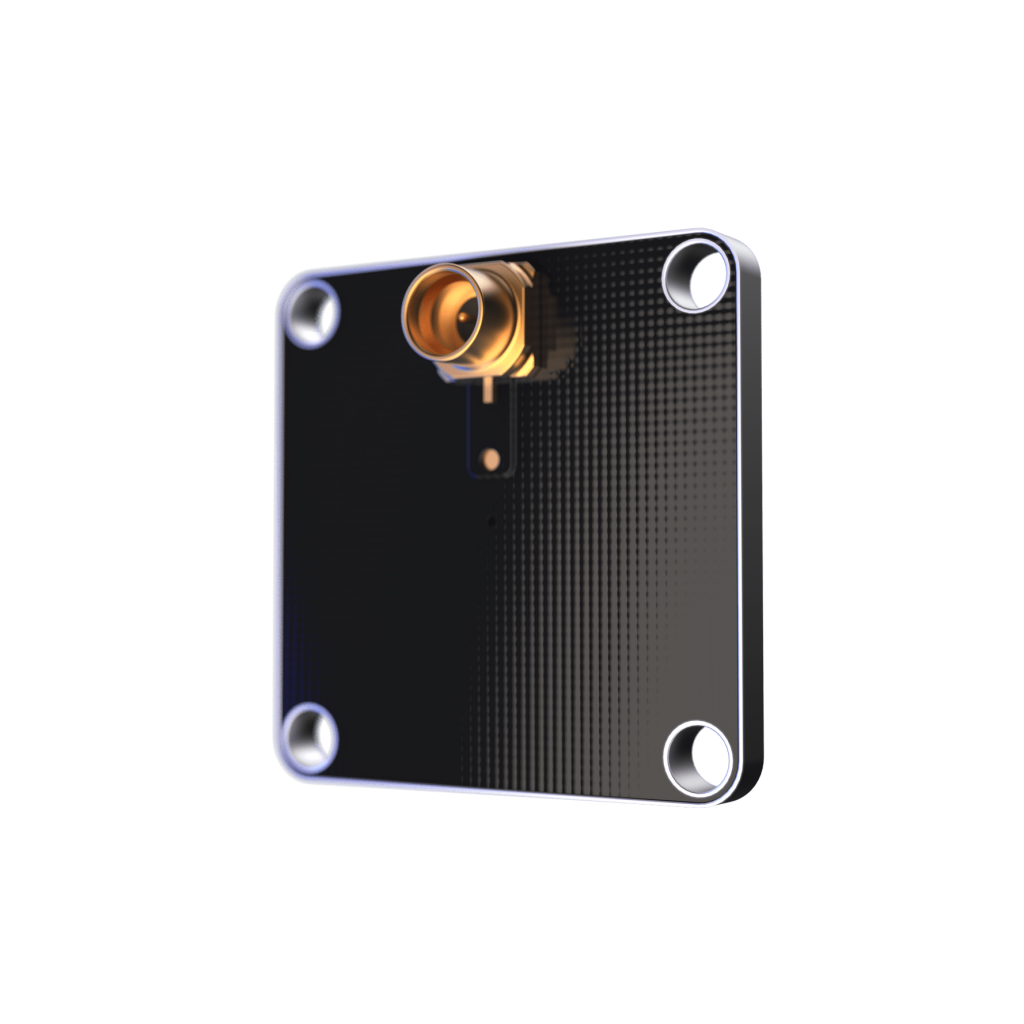

X Band Patch Antenna web render 1 4 1
Speed Matters

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Space-qualified X-band patch antenna
X Band Patch Antena web 4 1

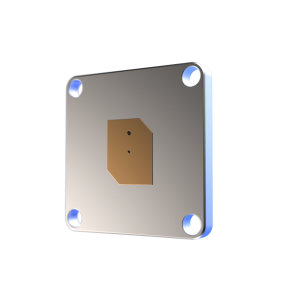

X Band Patch Antenna web render 1 2

Industry-leading gain at a 25% smaller footprint

EnduroSat antenna: 25% higher than the industry alternatives
X Band Patch Antenna web render 1 3

Circularly polarized for better reception

X Band Patch Antenna web render 1

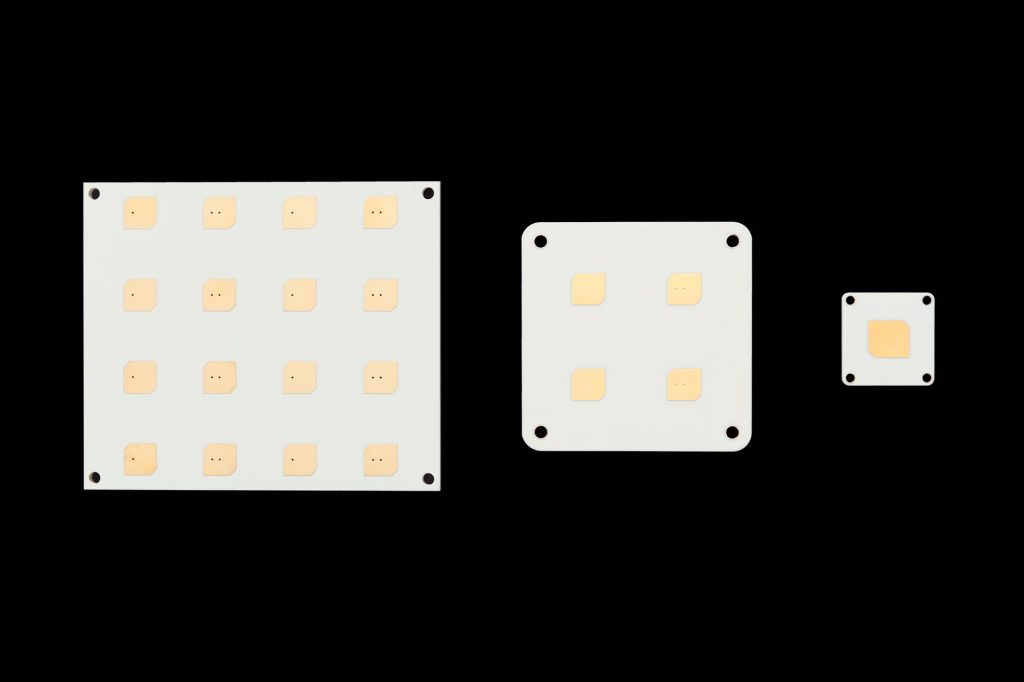

Flexible design. Available in a single, 2x2 and 4x4 configurations

PRODUCT GALLERY

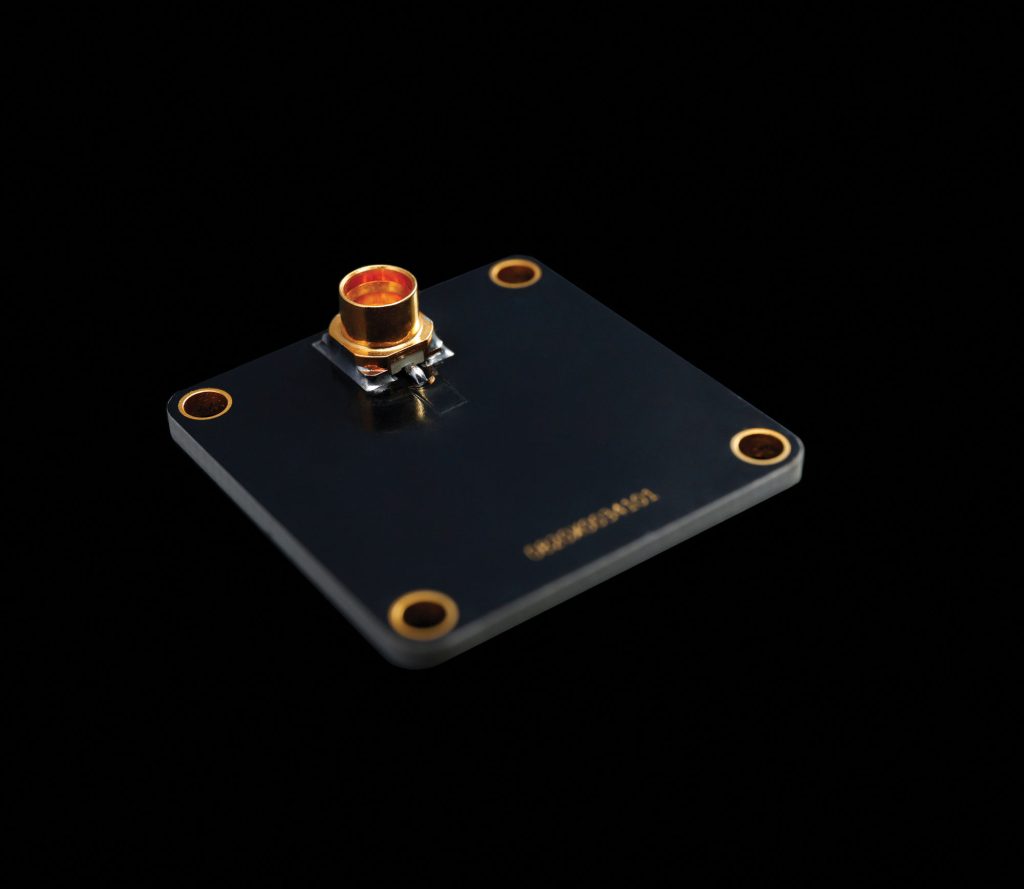

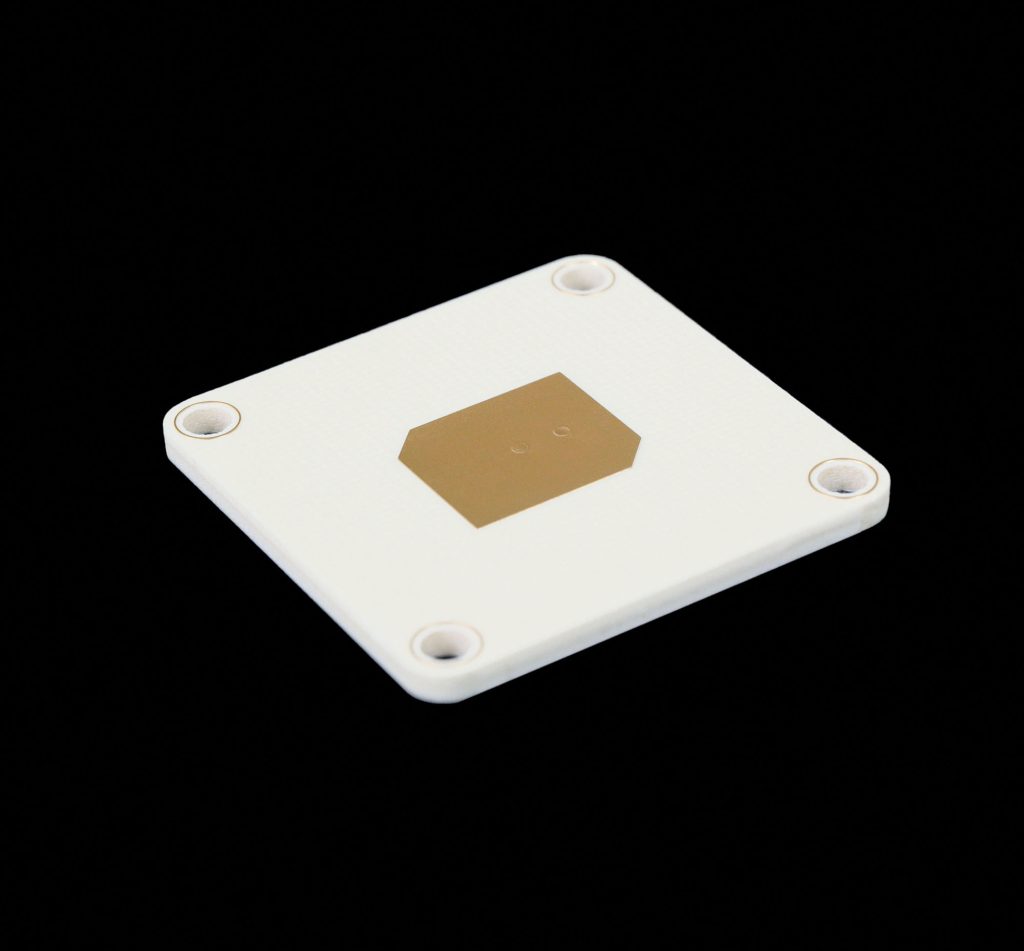

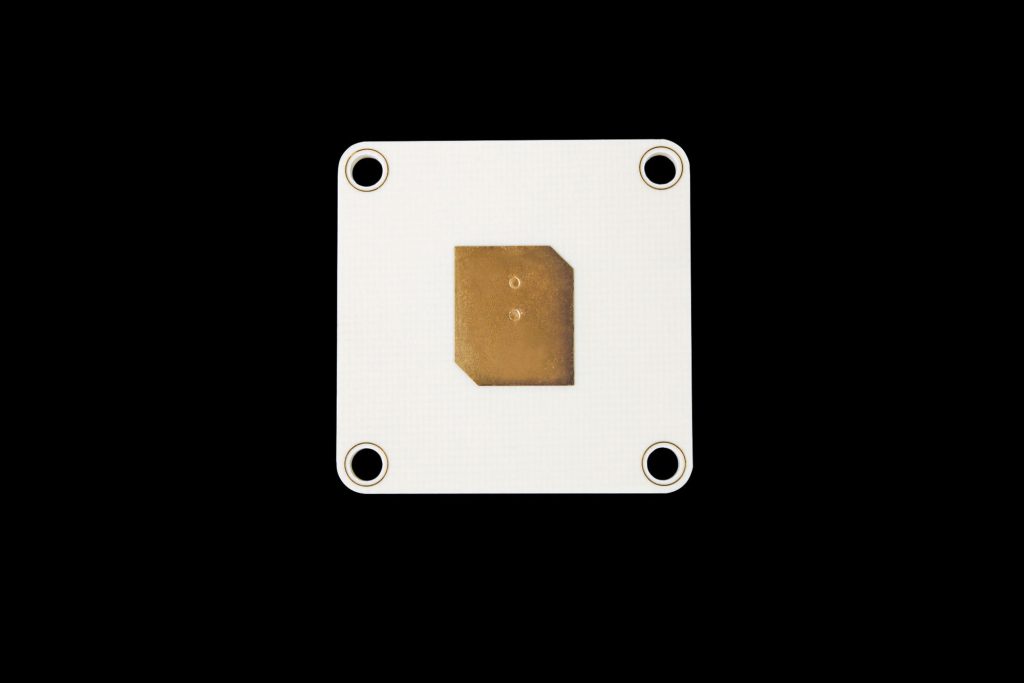

X Band Patch Antena web 2
X Band Patch Antena web 3
X Band Patch Antena web 1
X Band Patch Antena web 4
