Reliable communication

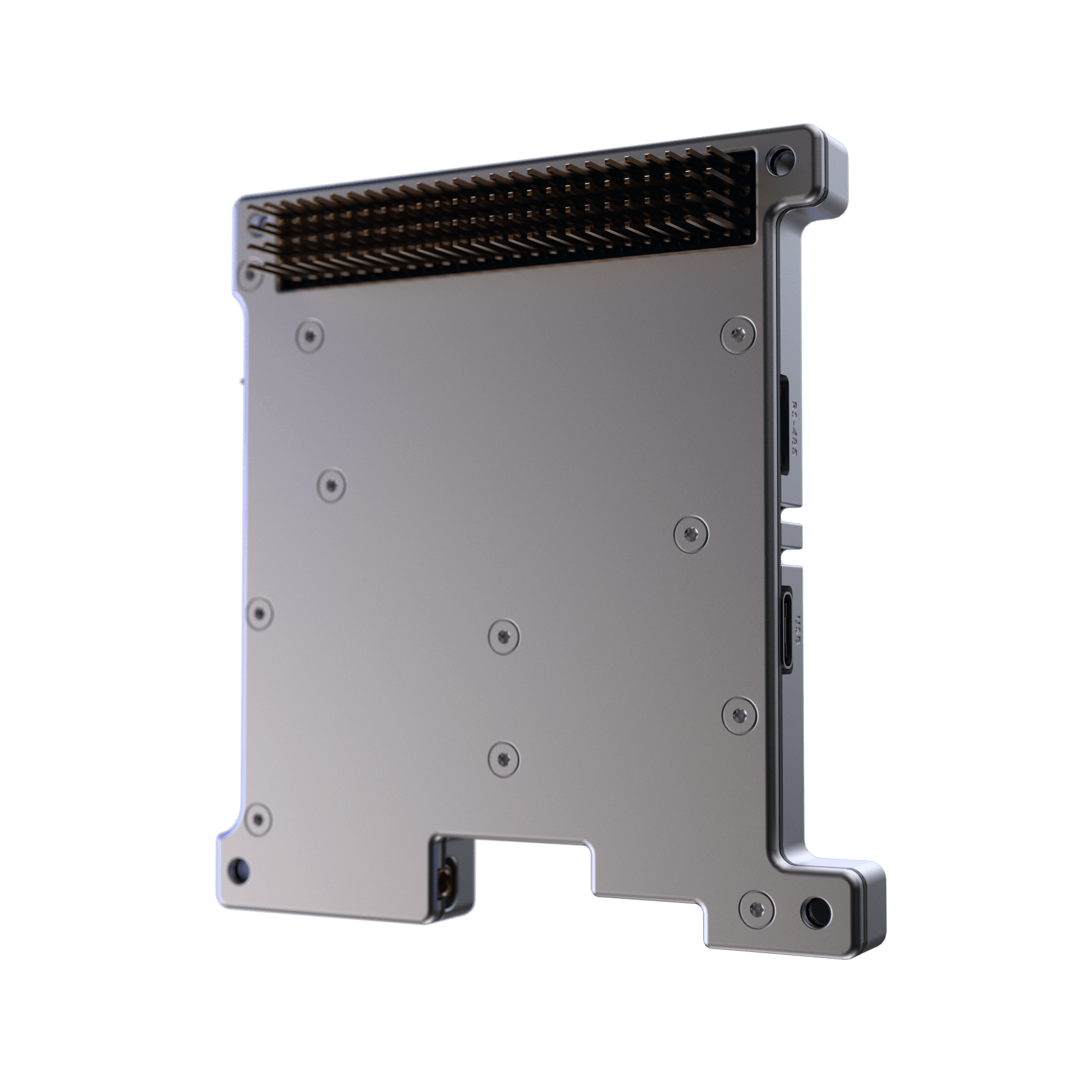

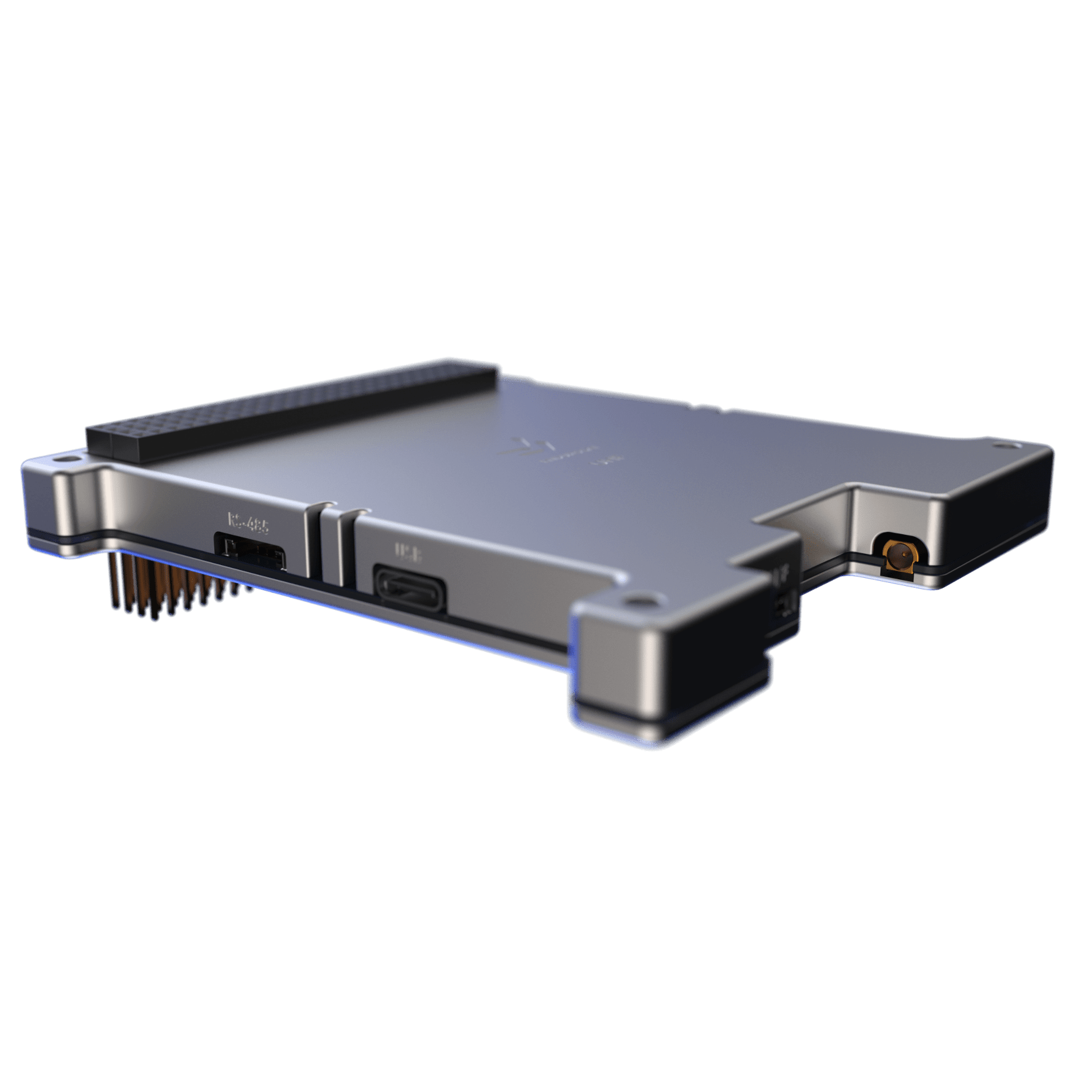

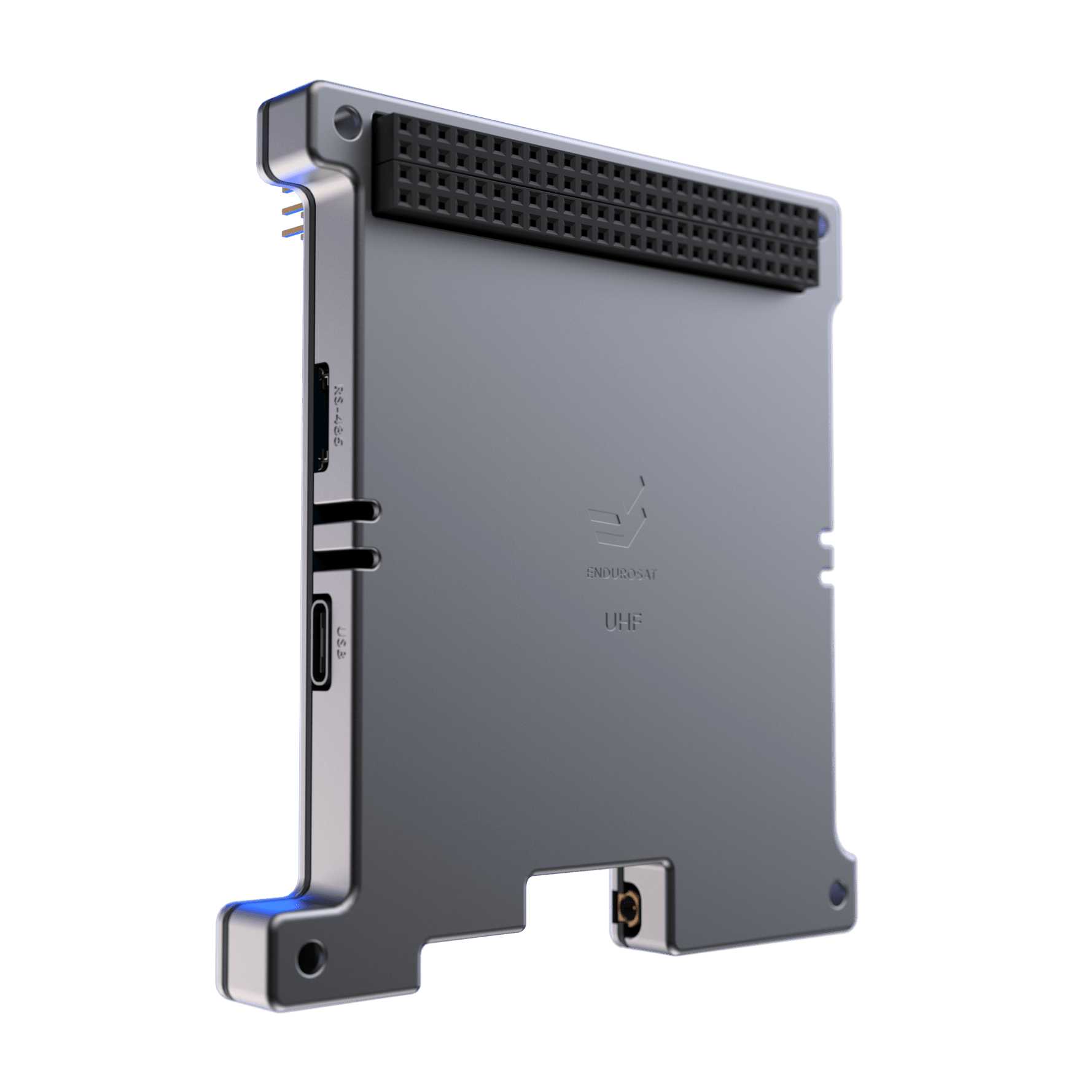

UHF Transceiver II

Flight proven communication system.
Industry-leading efficiency

this cubesat module has flight heritage
this cubesat module is featured in NASA state of the art report
uhf-transceiver-cubesat-communication-endurosat

Flight proven communication system.
Industry-leading efficiency

2.5Xhigher transmit
efficiency
4Xhigher receive
efficiency
AX.25protocol
capable

2.5x more efficient transmission. 4x more efficient receiving than existing alternatives

uhf-transceiver-cubesat-communication-endurosat-alternatives

Transmit power efficiency

Our UHF: 1.4 W

Industry: 3.5 W

Next level of security based on the Advanced Encryption Standard (AES)-128

uhf-transceiver-cubesat-communication-endurosat

Applications

Telemetry and telecommanding (TMTC) iconTelemetry and Telecommands (TMTC)
Communications backup iconCommunications Backup
Ground Station setup iconGround Station Setup

Configurable for amateur or commercial frequencies

uhf-transceiver-cubesat-communication-endurosat-features

Features

Frequency range (Tx/Rx) 400 to 403 MHz or 430 to 440 MHz
Default modulation 2GFSK
Additional supported modulations OOK, GMSK, 2FSK, 2GFSK, 4FSK, 4GFSK
Mass 94 g
Telemetry beacon configurable AX.25
Typical Tx power 1 W (up to 2 W upon request)
Firmware updates Local and remote (in-flight) secured application update
Power amplifier efficiency > 70%
Frequency stability +/- 2.5 ppm
Configurable data rate up to 19.2 kbps
Sensitivity up to -121 dBm
Interfaces RS485 / UART / I2C / USB-C

In-orbit onfigurable parameters

FEATURES IN-ORBIT FIRMWARE UPDATE CAPABILITY

uhf-transceiver-cubesat-communication-endurosat-included

Included

user manual book icon Complete User Manual
included cables icon Complete set of cables
customer support icon 5h engineering support
