VERSATILE WIDEBAND SDR

Versatility & Speed

Cad file & datasheet

Request A Quote

Cad file & datasheet

Request A Quote

200 MHZ

BANDWIDTH

DVB-S2X

AVAILABLE

1+ GBPS

GROSS DATARATE

The VW-SDR deliveries start in Q2 of 2024

Versatile Wideband Software Defined Radio (SDR) featuring two full duplex channels for demanding data-intensive payloads

FEATURES

Frequency Range

75 to 6000 MHz

Tx Modulations (DVB-S2X)

up to 256-APSK + VLSNR MODCODs

Rx Demodulations

CCSDS compliant

Custom Modulations

integration of customer protocols upon request

Maximum Gross Datarate

1+ Gbps

Modulation Interfaces

3 dBm (carrier)

RAM

4 GB DDR4 + ECC

Non-Volatile Memory

QSPI NOR Flash

Mass Storage

up to 128 GB SSD with ECC and CRC

Wide Power Supply Range

12 to 28 V

Control Interfaces

CSP over CAN, Gigabit Ethernet, ESPS over RS-485

Data Interfaces

Gigabit Ethernet, LVDS

Other Interfaces

UART, SPI, I2C

Versatility & Speed

Included

Complete User Manual

Sample applications in python3 / C

Linux API for command & control

Complete set of cables

5h engineering support

Delivery cost

Handling and administration costs

Versatile Wideband Software Defined Radio (SDR) featuring two full duplex channels for demanding data-intensive payloads

Flexible system based on Xilinx UltraScale+ System on a Chip (SoC)

Versatile Wideband SDR web render 1 1 e1711033717249

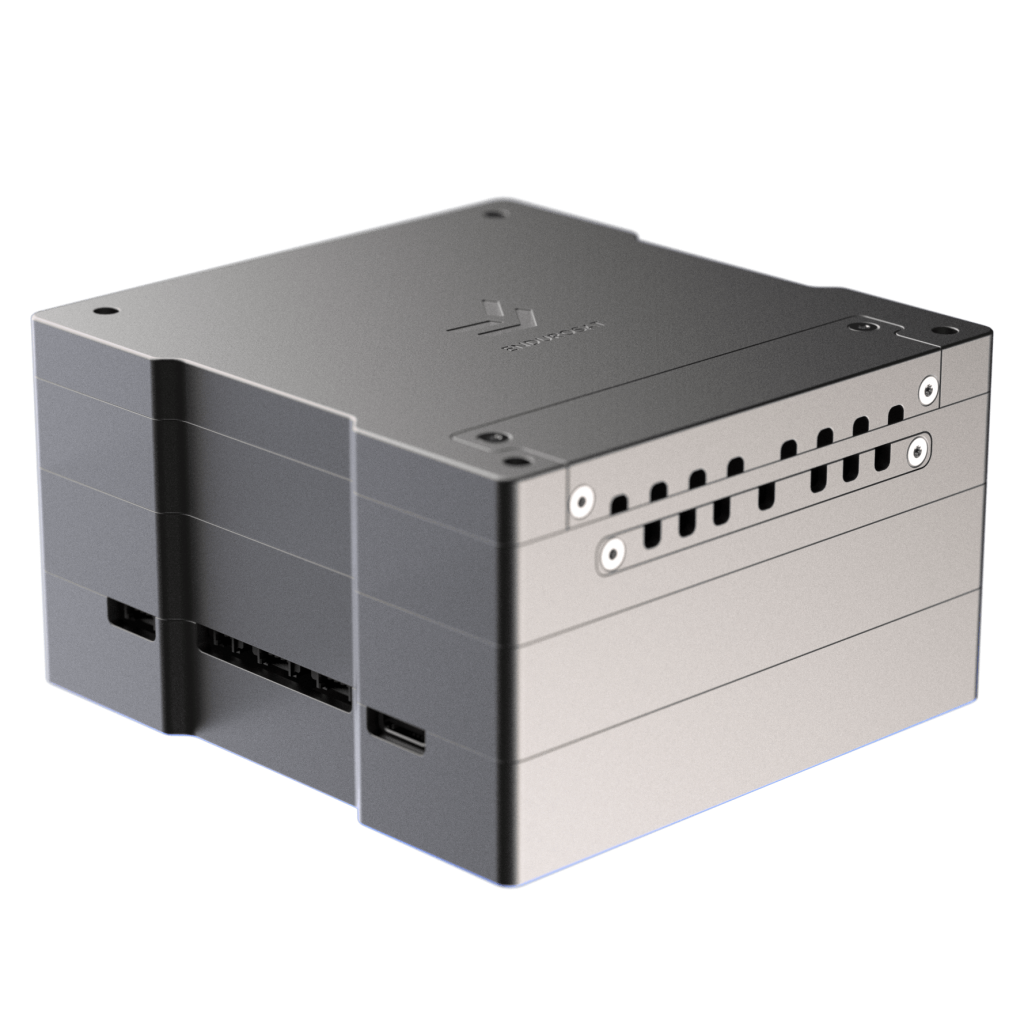

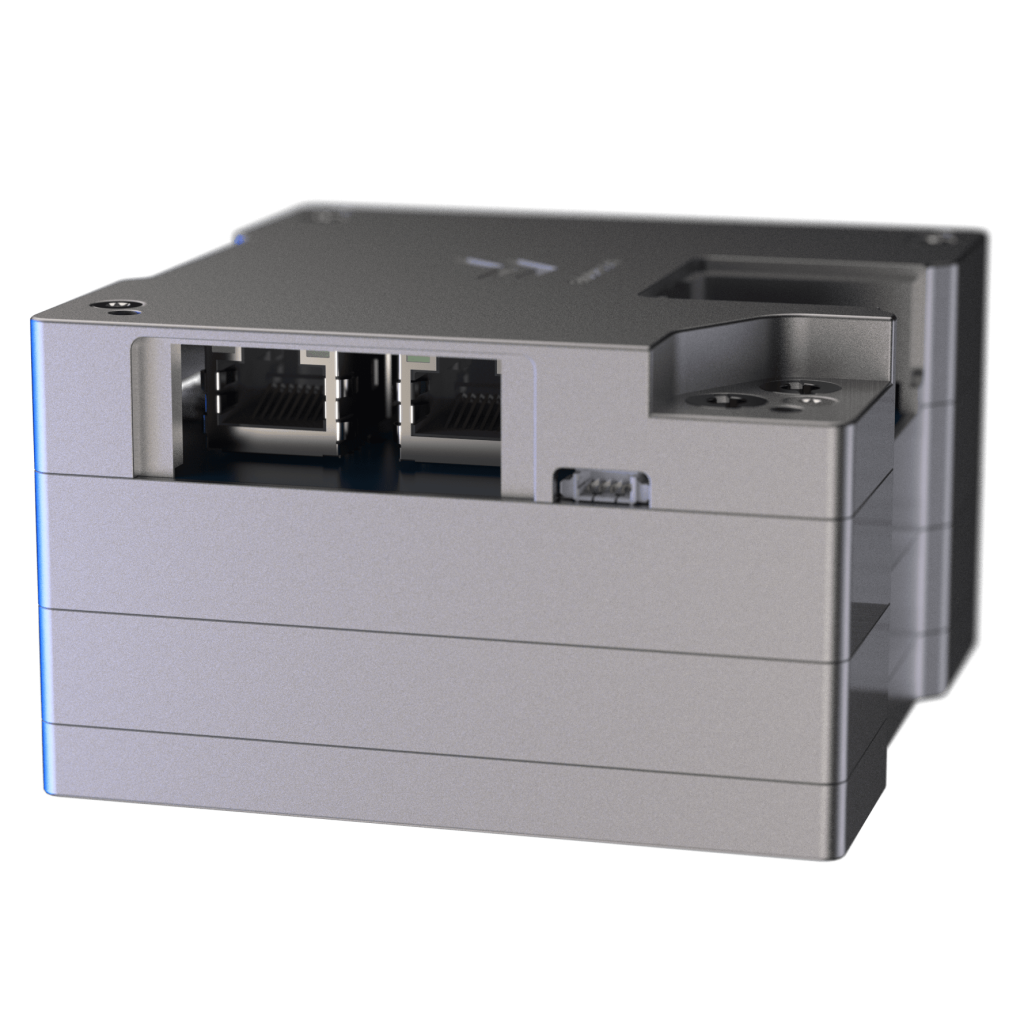

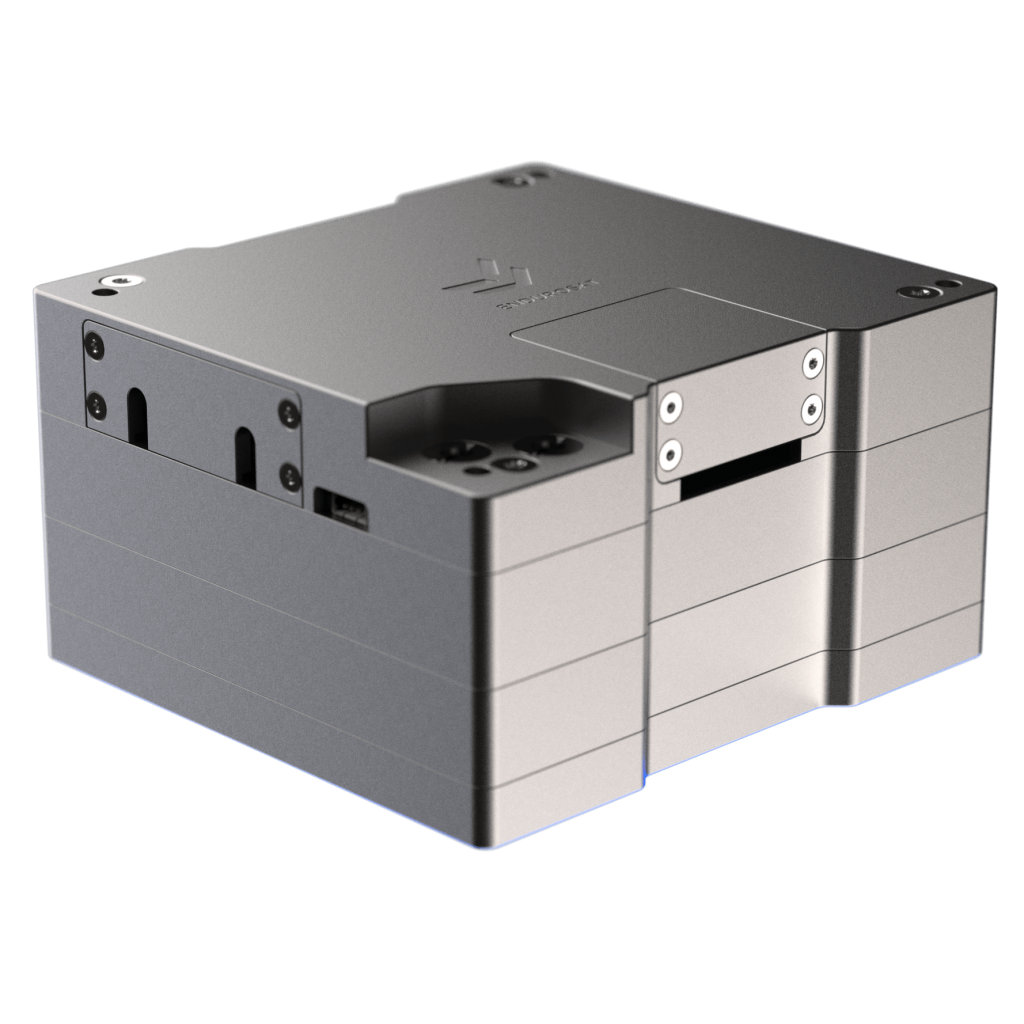

Compact design. CubeSat form factor

Versatile Wideband SDR web render 1 e1711033752690

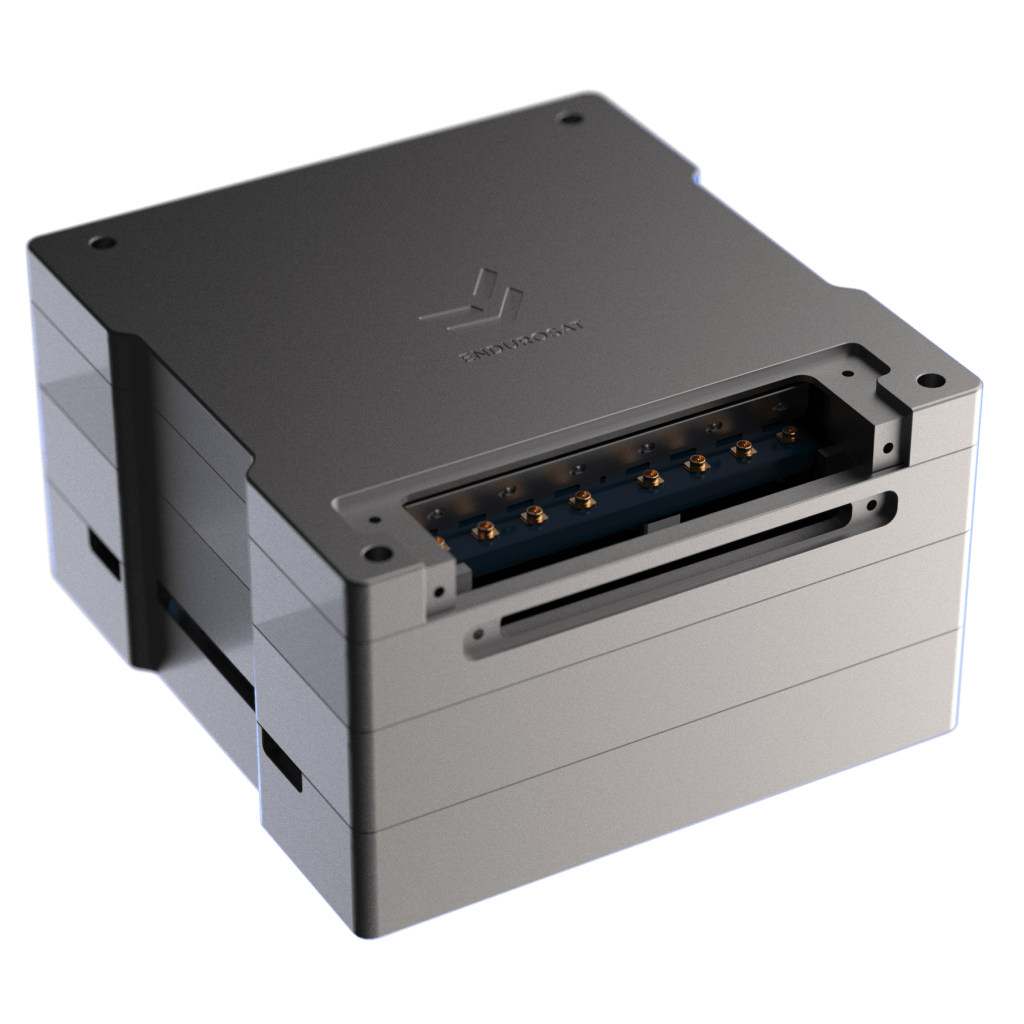

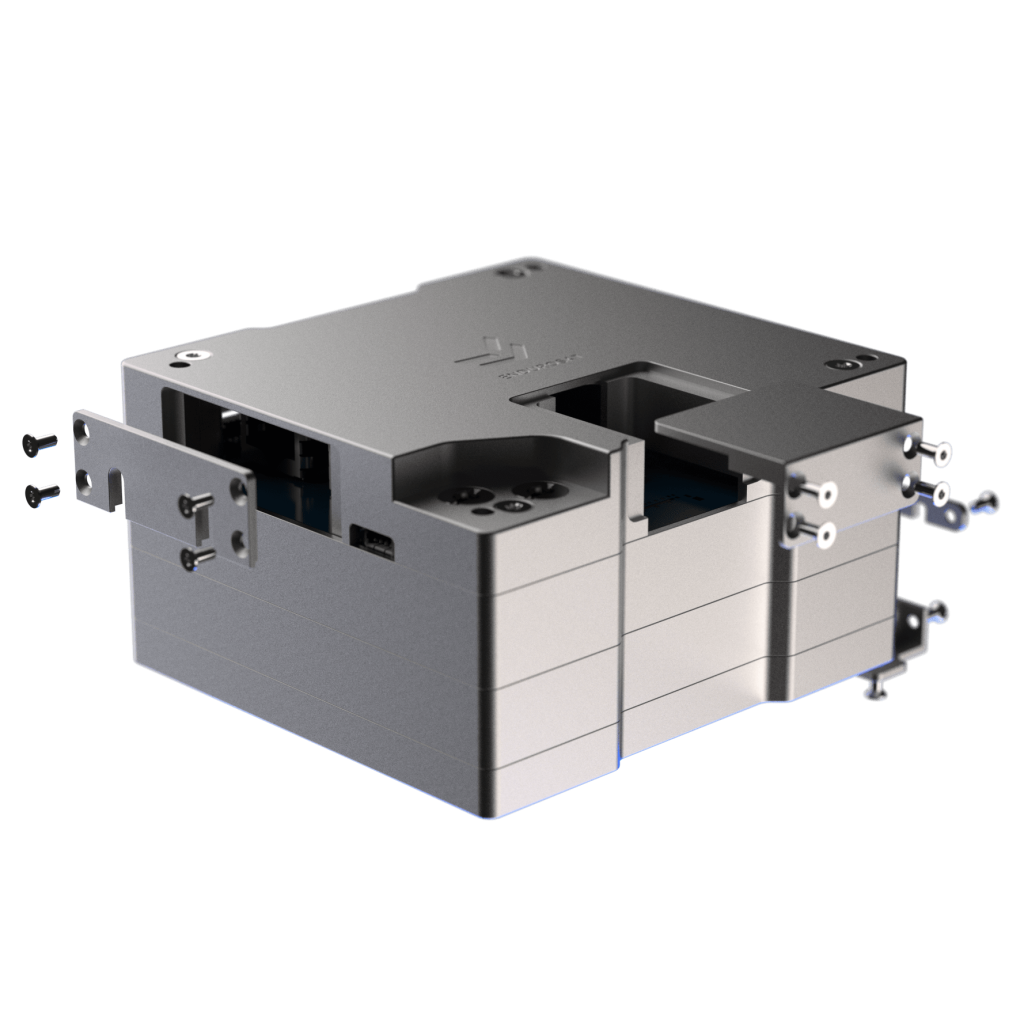

Custom enclosure with thermal strap slots for prolonged operations

In-flight reconfigurable SDR. Selectable modulation & RF parameters. FPGA reconfiguration flexibility

S-Band Transmitter

Frequency Range

2200 to 2290 MHz (commercial)

Maximum Gross Datarate

20 Mbps

Tx Power

0.5-2 W

Discover

S-band Transceiver

Frequency Range (Tx)

2200 to 2290 MHz (commercial

Configurable Data Rate

0.1-125 kbps

Tx Power

26-33 dBm configurable

Discover

UHF Transceiver II

Frequency Range (Tx/Rx)

400 to 403 MHz or 430 to 440 MHz

Configurable Data Rate

up to 19.2 kbps

Tx Power

1 W (up to 2 W upon request)

Discover

X-Band Transmitter

Frequency Range

7900 to 8400 MHz

Maximum Gross Datarate

150 Mbps

Tx Power

0.5-2 W

Discover

2500

MODULES IN ORBIT

DELIVERED SATELLITES

200

TB DATA DOWNLINKED

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance

LEARN MORE

VERSATILE WIDEBAND SDR

The VW-SDR deliveries start in Q2 of 2024

Versatile Wideband Software Defined Radio (SDR) featuring two full duplex channels for demanding data-intensive payloads

Included

Flexible system based on Xilinx UltraScale+ System on a Chip (SoC)

Compact design. CubeSat form factor

Custom enclosure with thermal strap slots for prolonged operations

In-flight reconfigurable SDR. Selectable modulation & RF parameters. FPGA reconfiguration flexibility
