Empowering Science and Education

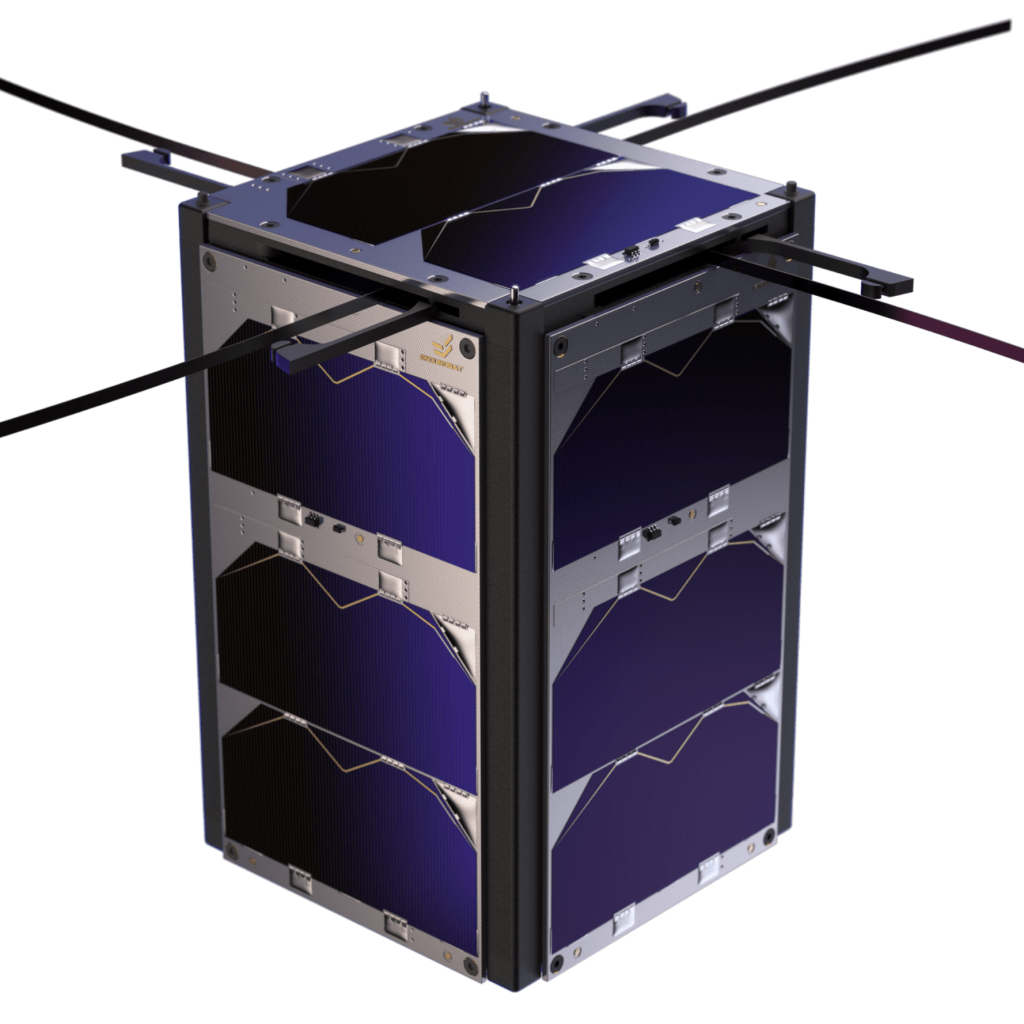

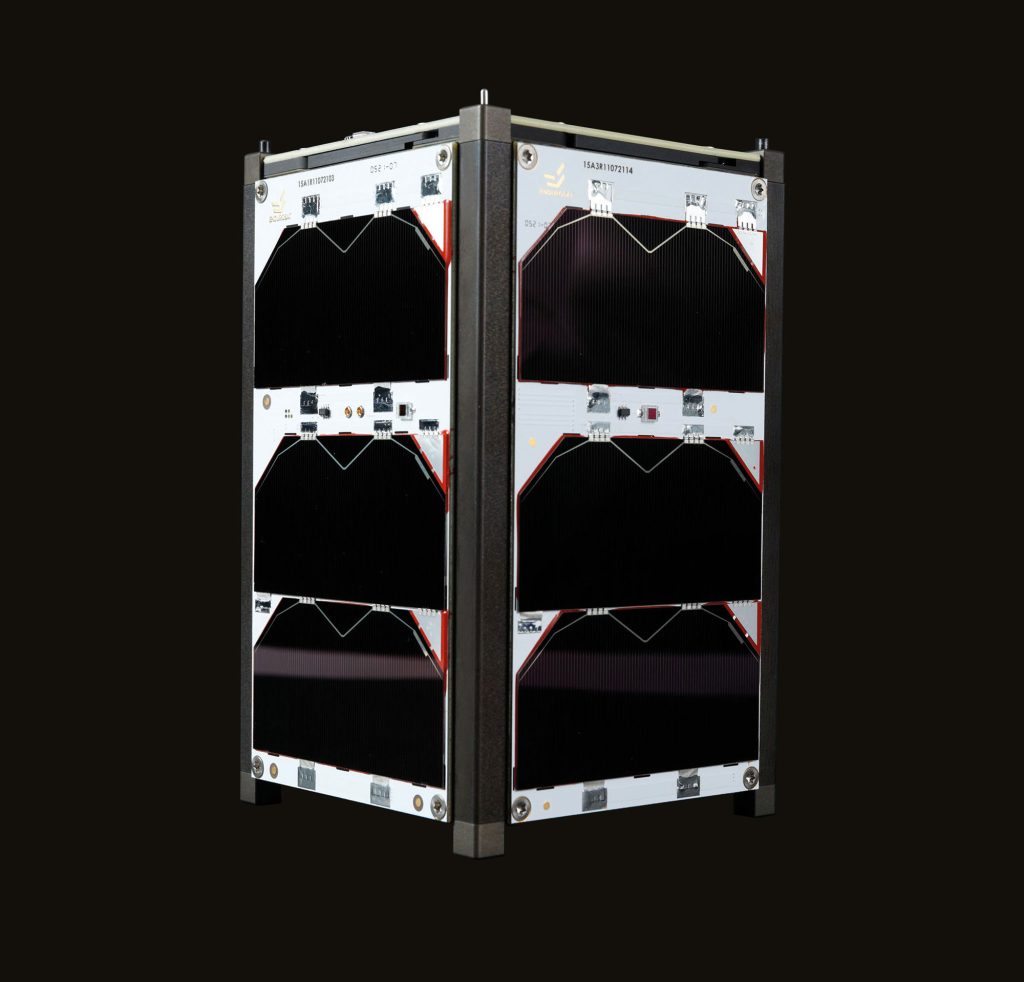

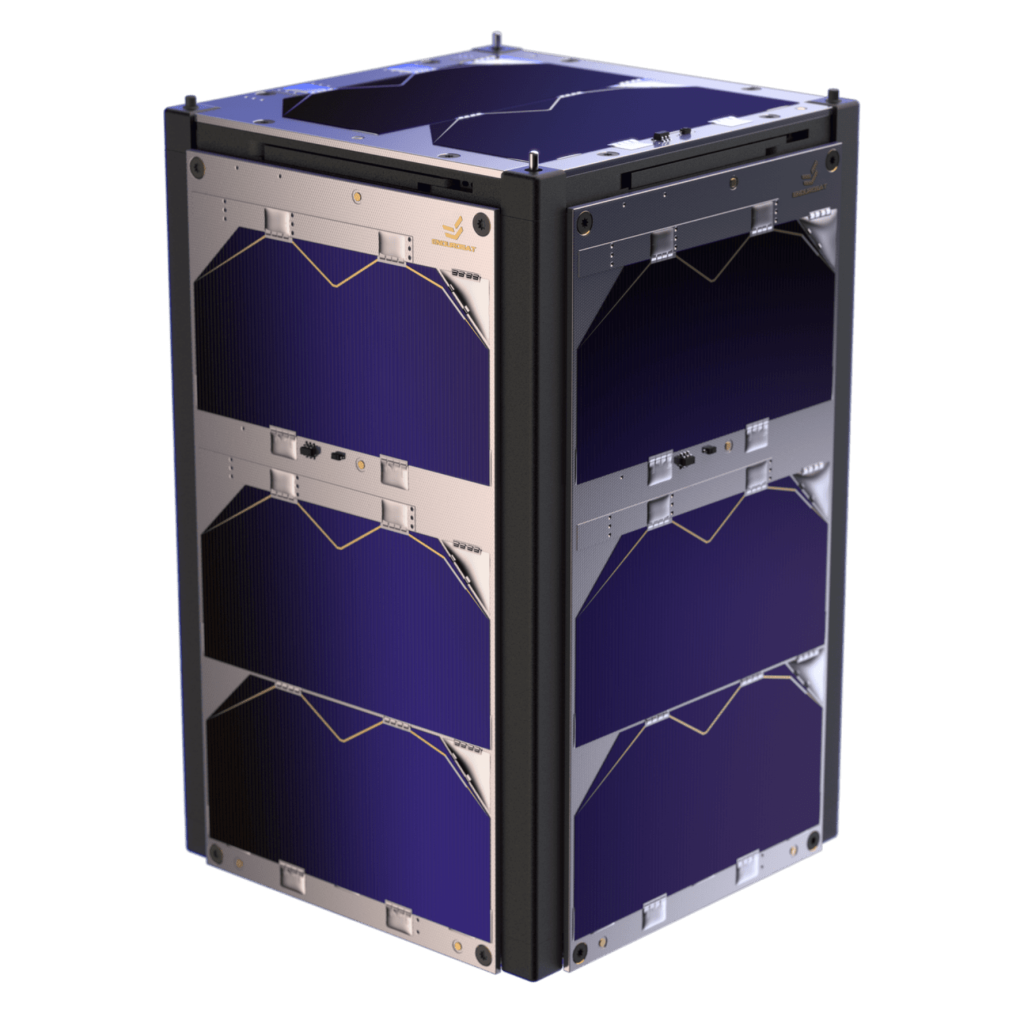

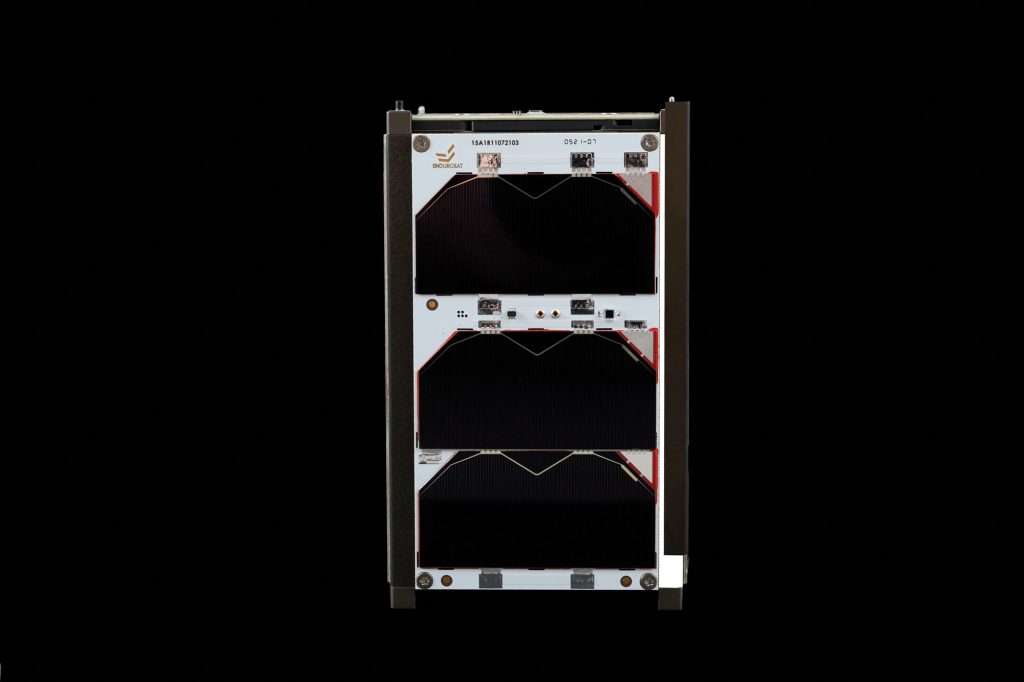

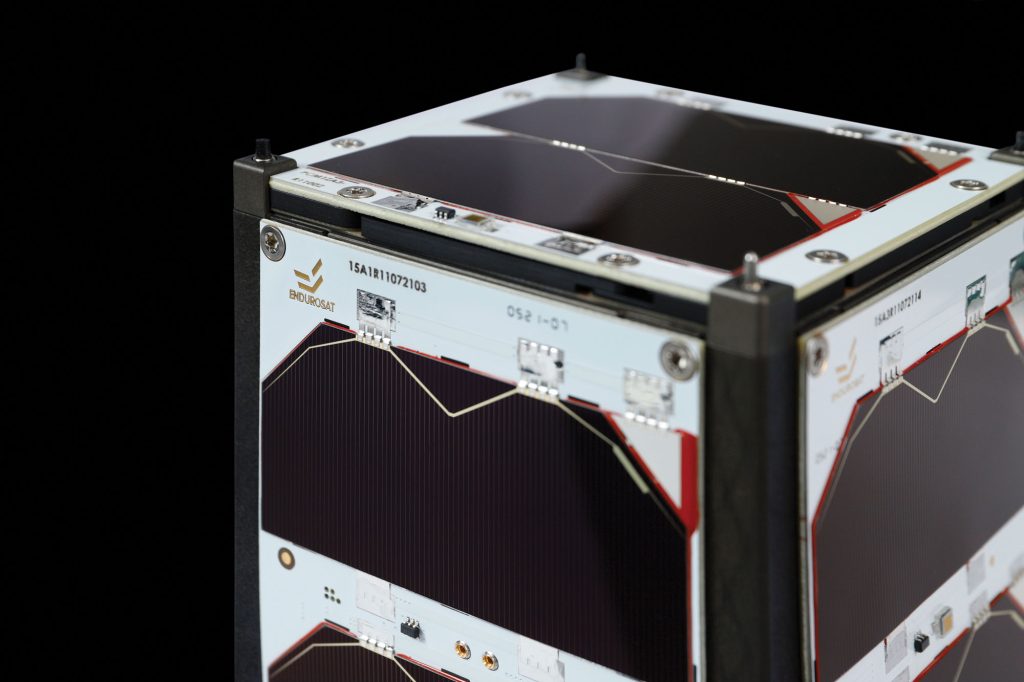

1.5U CubeSat Platform
Flight-proven fully integrated CubeSat bus
with 30% more volume
Flight-proven fully integrated CubeSat bus
with 30% more volume
30%more volume
available
available
2Xgreater
efficiency
efficiency
UHFSecure TMTC
and payload data
and payload data
Included Services
Develop, configure & test with ease
SpaceDev
Simplifies software development, configuration and testing for ground-based software-defined satellites
- Streamlined setup
- Send instant telecommand via cable or radio
- Integration with SpaceOps
- All available telecommands just a click away
- Import custom telecommand definitions
- Fully customizable dashboards
In-orbit operations suite
SpaceOps
Streamlined telecommanding and telemetry analysis
- Accessible from everywhere via web application
- API integration
- Support for EnduroSat, Leaf Space, RBC Signals and KSAT ground stations
- Automation of common operator actions
- Operations scripting for complex procedures

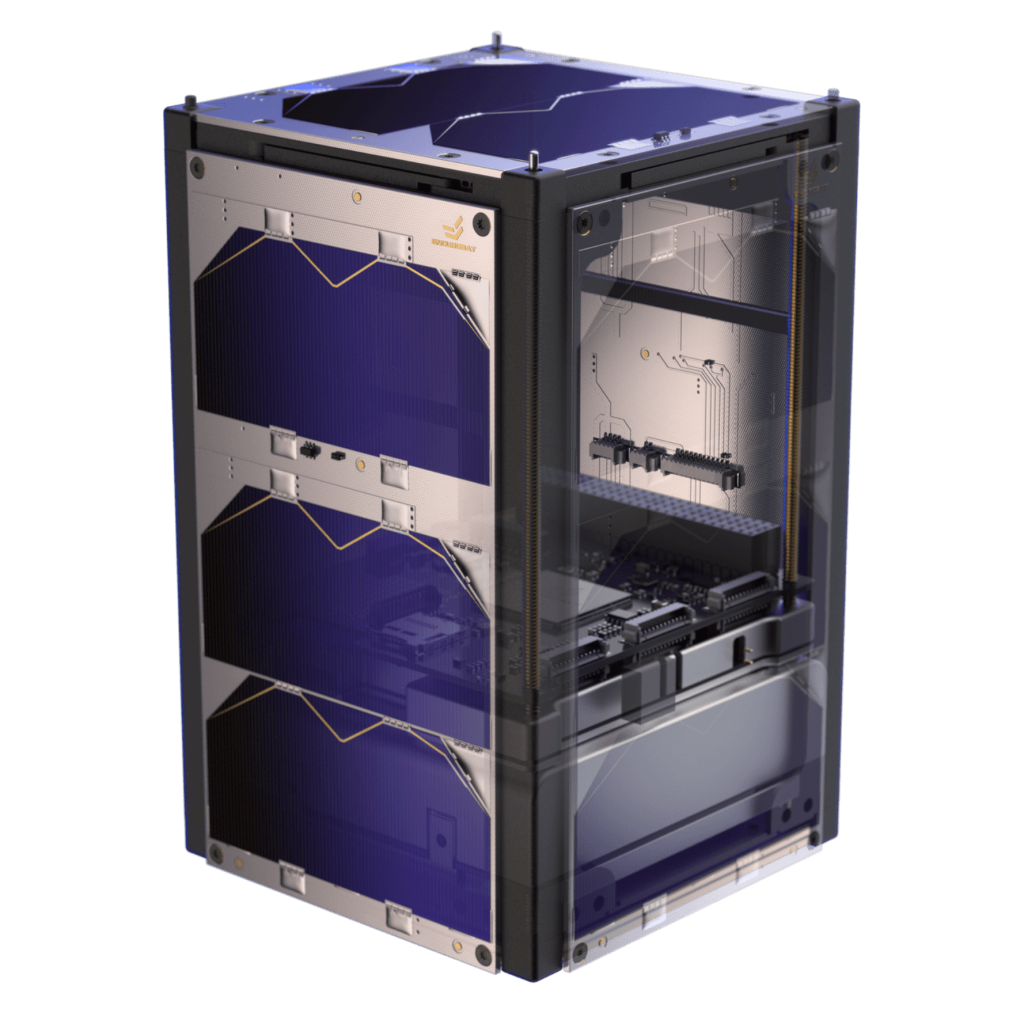

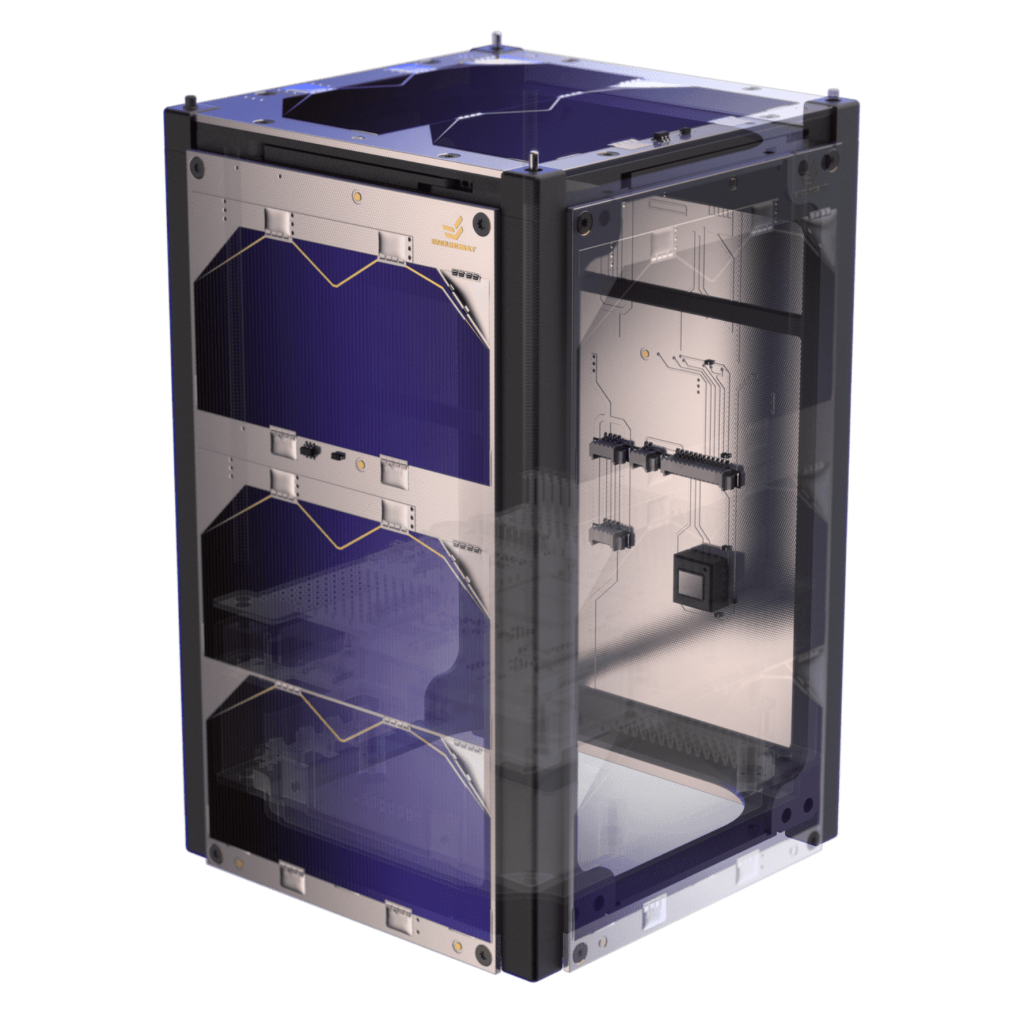

70% of the total volume - reserved for your payload
Robust data handling. Embedded operational modes framework at 2x better efficiency
Mission life: 2+ years (orbit dependent)
Applications
Science and Research
Education
Technology DemonstrationSecure UHF communications for telemetry, telecommands and payload data
Available for commercial or amateur frequencies
Features
| Bus mass | 1050 g |
| Available payload mass | 1950 g |
| Available Payload volume | 97 x 97 x 104 mm3 |
| Average Payload power available | 0.9 W |
| Available power buses | 3.3 V, 5 V and Battery raw |
| Data rate | up to 19.2 kbps |
Zero volume loss through panel mounted sensors and magnetorquers
Available with detumbling controller
Included
Integration manual
Software Development Kit (SDK)
Complete set of bus cables JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
