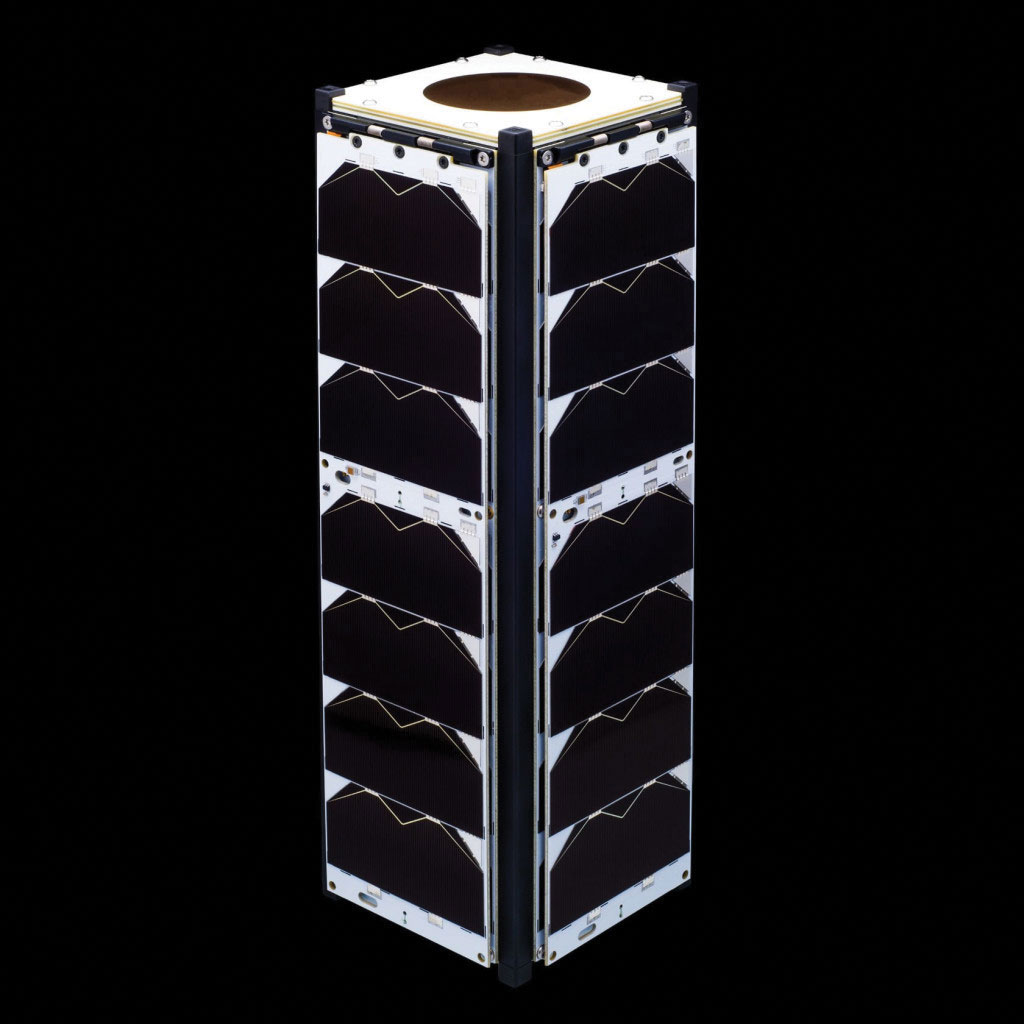

Versatile and redundant

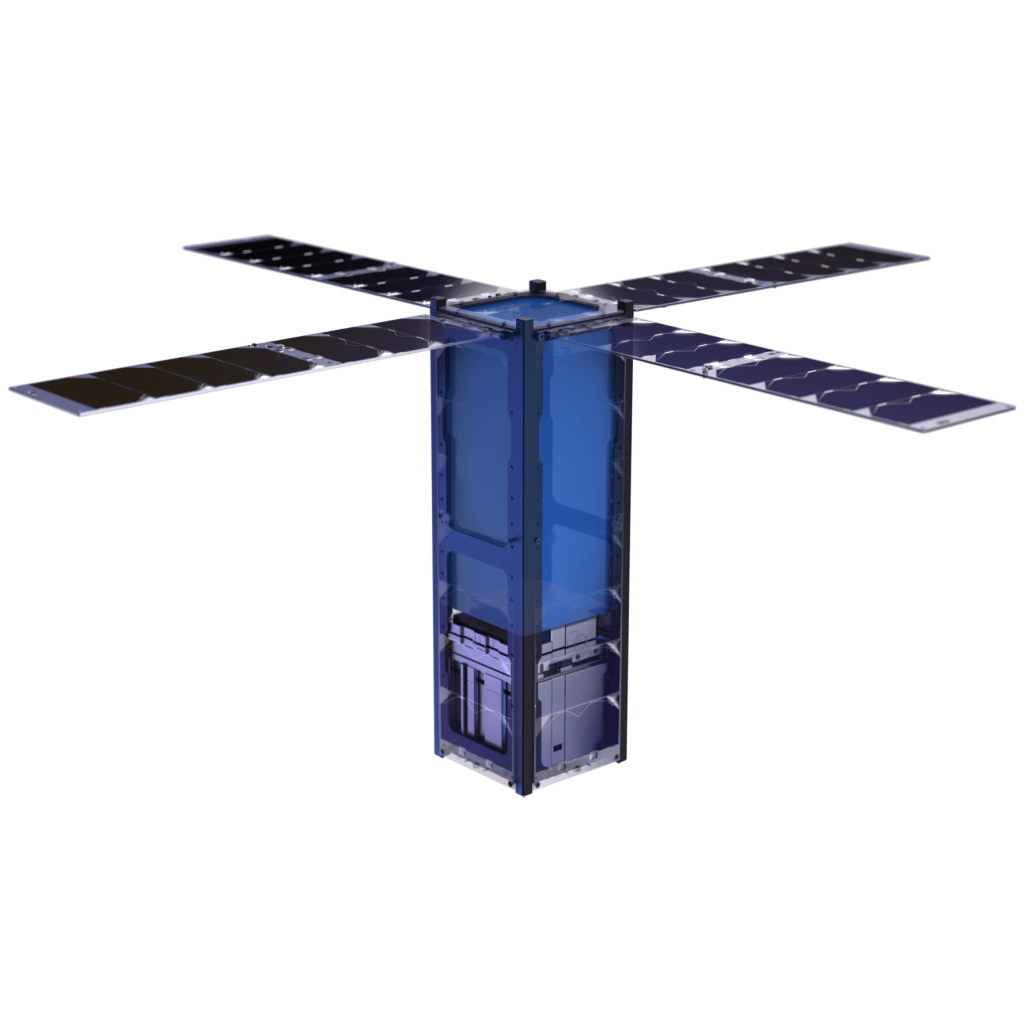

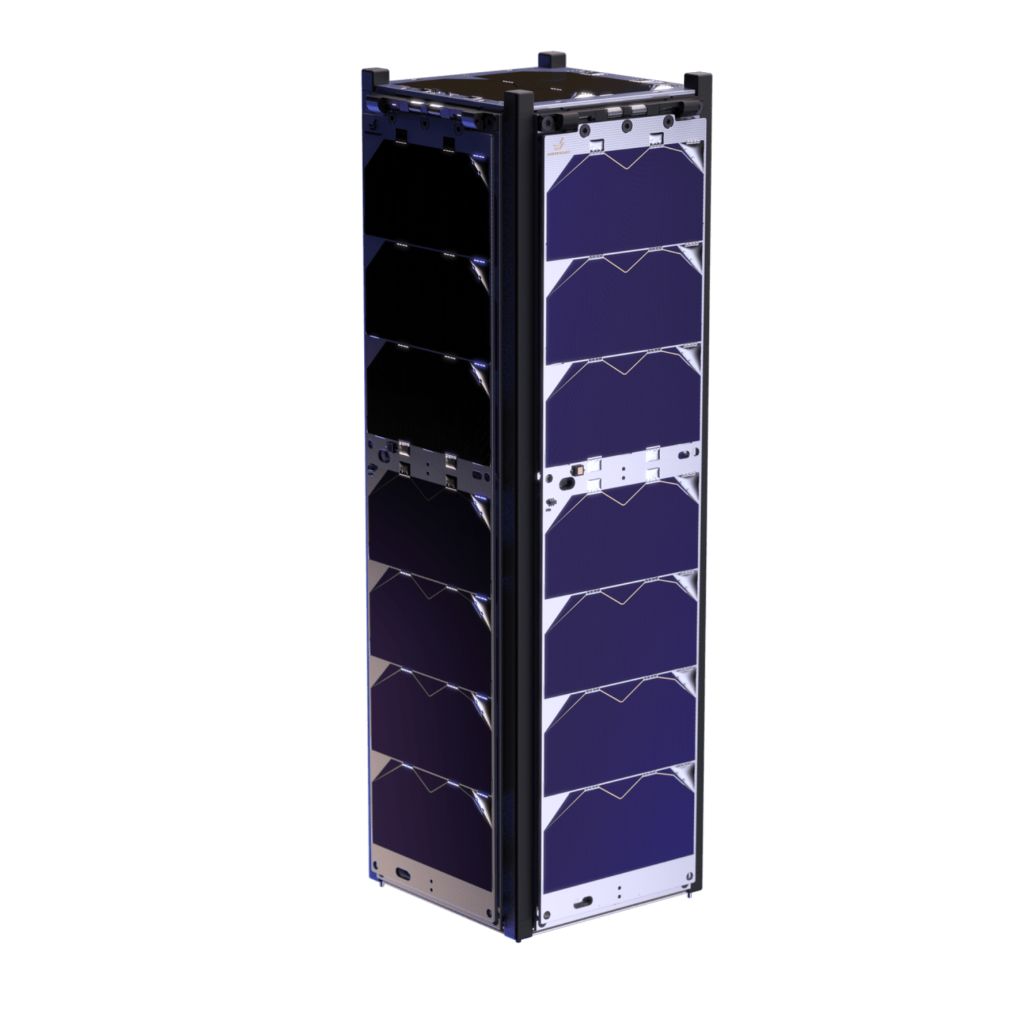

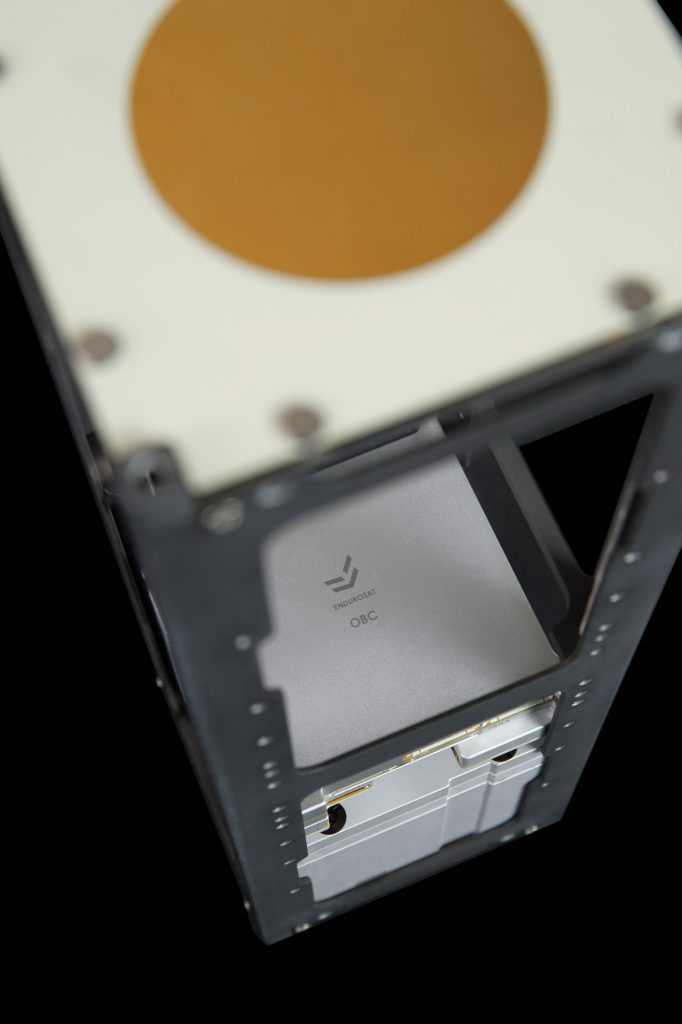

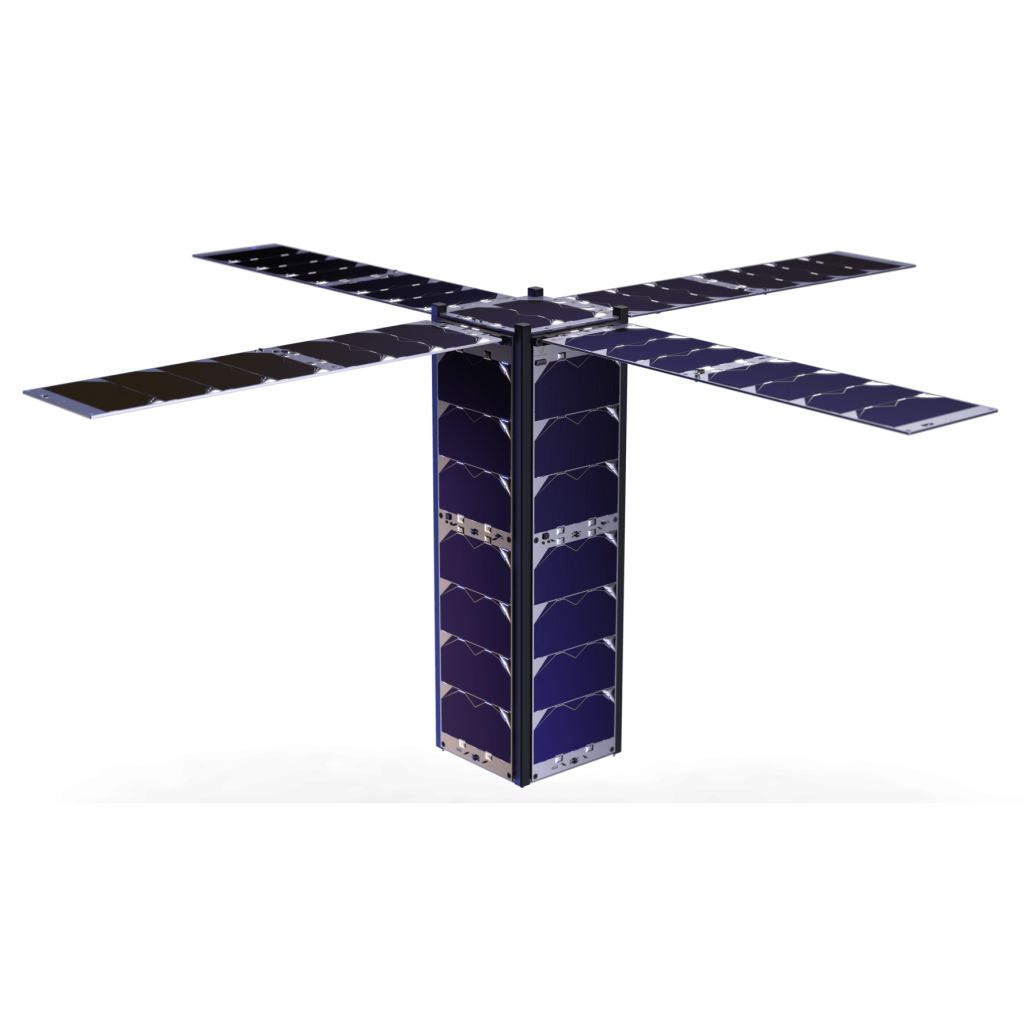

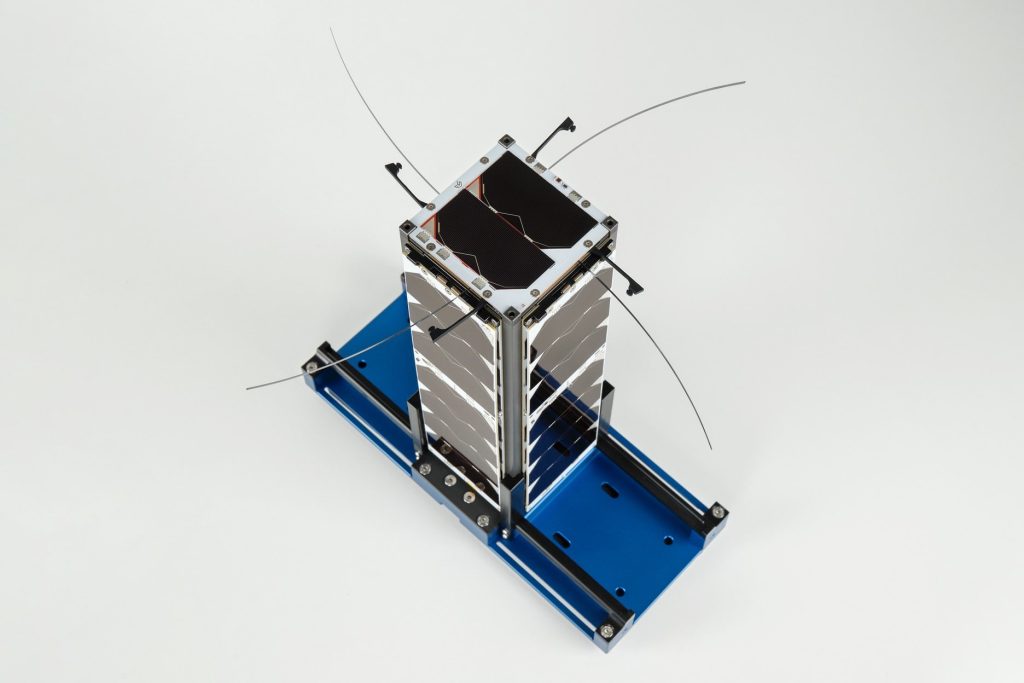

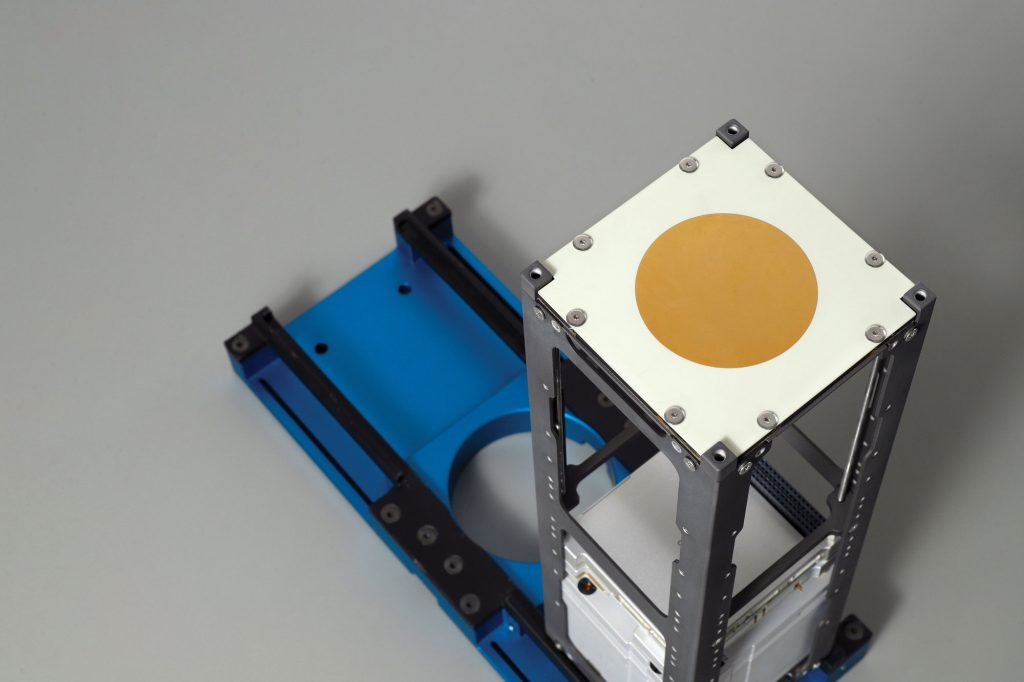

3U CubeSat Platform
Multi-purpose platform capable of supporting wide range of pointing, volume and power requirements
Multi-purpose platform capable of supporting wide range of pointing, volume and power requirements
1.7Upayload volume
4xbetter efficiency
SecureTMTC AND PAYLOAD DATA
Included Services
Develop, configure & test with ease

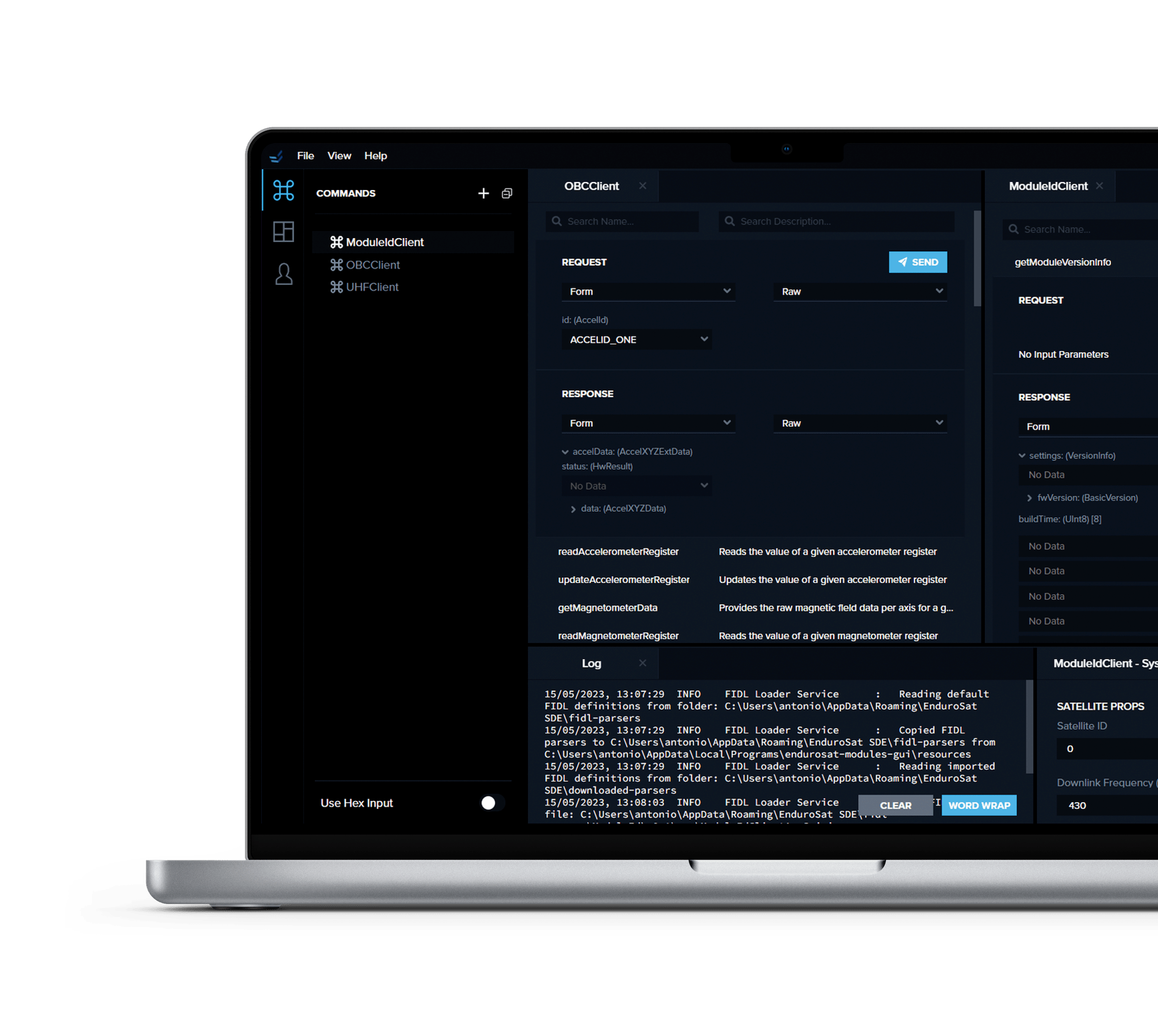

SpaceDev
Simplifies software development, configuration and testing for ground-based software-defined satellites
- Streamlined setup
- Send instant telecommand via cable or radio
- Integration with SpaceOps
- All available telecommands just a click away
- Import custom telecommand definitions
- Fully customizable dashboards
In-orbit operations suite
SpaceOps
Streamlined telecommanding and telemetry analysis
- Accessible from everywhere via web application
- API integration
- Support for EnduroSat, Leaf Space, RBC Signals and KSAT ground stations
- Automation of common operator actions
- Operations scripting for complex procedures
Preconfigured for your mission, including an option for complete payload integration provided by EnduroSat
Robust data handling of up-to 10 payloads. Embedded operational modes framework at 4x better efficiency
Mission life: 3 to 5 years (orbit dependent)
Applications
Science and Research
Earth Observation
IoT and CommunicationsSecure communication for telemetry, telecommands and payload
HIGH SPEED S-BAND AND X-BAND TRANSMITTERS FOR DATA-INTENSIVE PAYLOADS
Features
| Bus mass | 2.4-3.5 kg (configuration dependent) |
| Available payload mass | 2.5-3.6 kg (configuration dependent) |
| Available Payload volume | up to 97 x 97 x 173 mm3 |
| Average Payload power available | 10 W |
| Available power buses | 3.3 V, 5 V, customizable 6-12 V and Battery raw |
| Telemetry data rate | up to 125 kbps |
| Payload data rate | up to 125 Mbps |
| Payload Control Interfaces | RS-422/485, CAN, SPI, UART |
Available with magnetic-only and three-axis reaction wheels attitude control
Meeting diverse pointing and stability requirements
Included
Integration manual
Software Development Kit (SDK)
Complete set of bus cables JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
