EPS II + BATTERY PACK

Industry-Leading Performance
Cad file & datasheet
Select Options
Select Options
state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
4X
MORE RESILIENT TO RADIATION
2X
MORE CHANNELS
SMART
COMMAND & CONTROL CAPABILITIES

Second generation of NanoSat and MicroSat Electric Power System (EPS)

FEATURES
Input Channels
3 per battery pack
Redundancy
Fully redundant Solar Panel channels
Input Voltage (Per Solar Panel Channel)
10 to 36 V
Input Current (Per Solar Panel Channel)
up to 4 A
Stackable Battery Packs
up to 4 packs for a maximum power of 1 kW
Current Limitation
Configurable both for input and output channels
Integrated Blocking Diode
for each solar panel connector
Charge/Discharge Mode Voltage And Heater Thresholds
configurable
Standard Battery Pack Capacity
84 Wh
Standard Battery Pack Voltage
16.8 V
Mass (EPS + Battery Pack)
1373 g

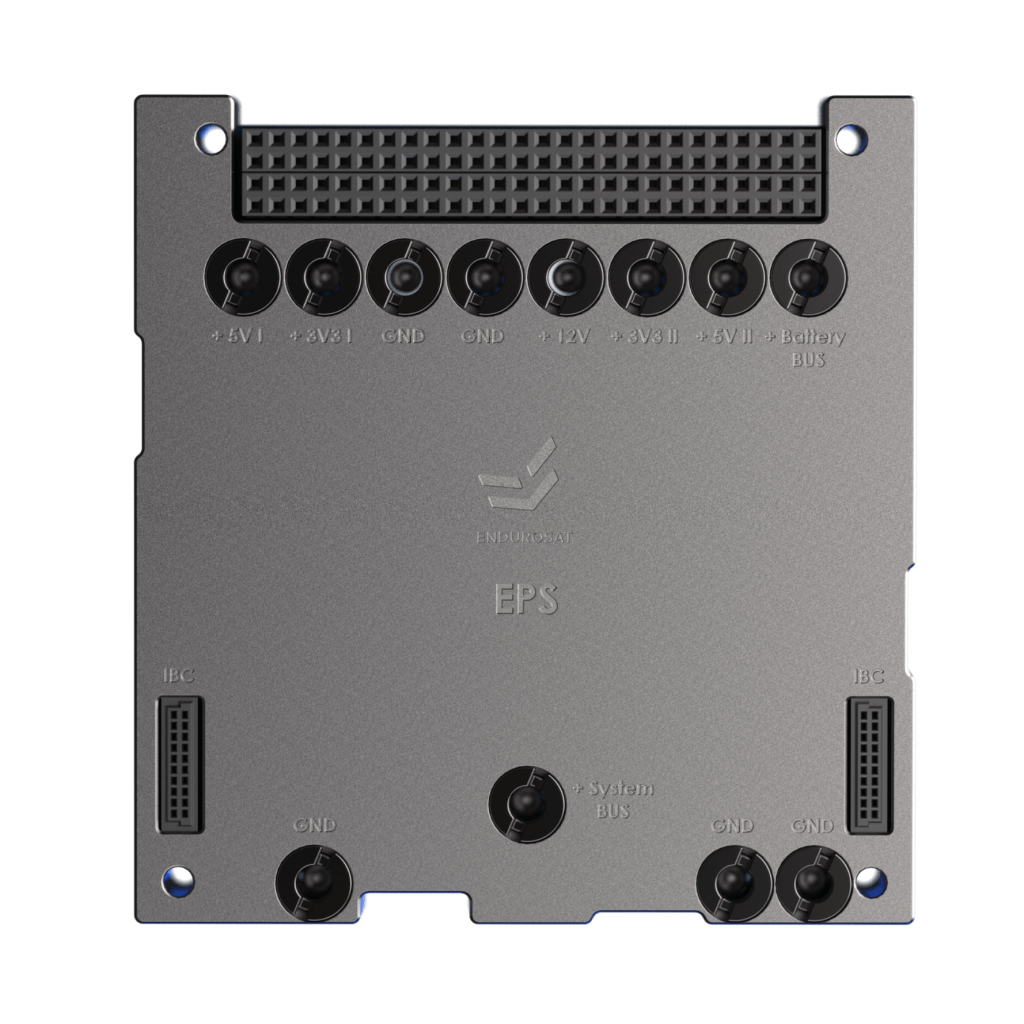

Output Power Buses
2x3.3 V, 2x5 V, 1xProgrammable (6-12 V) and Battery raw
Switches
Deployment and Remove Before Flight (RBF)
Interfaces
RS-485, USB

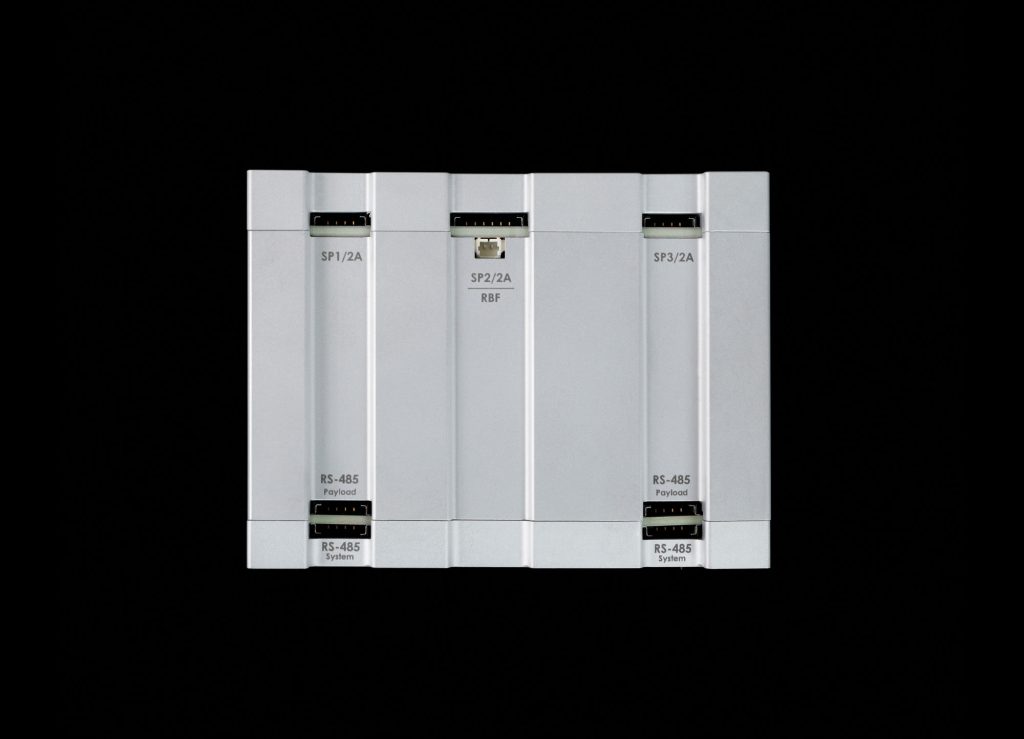

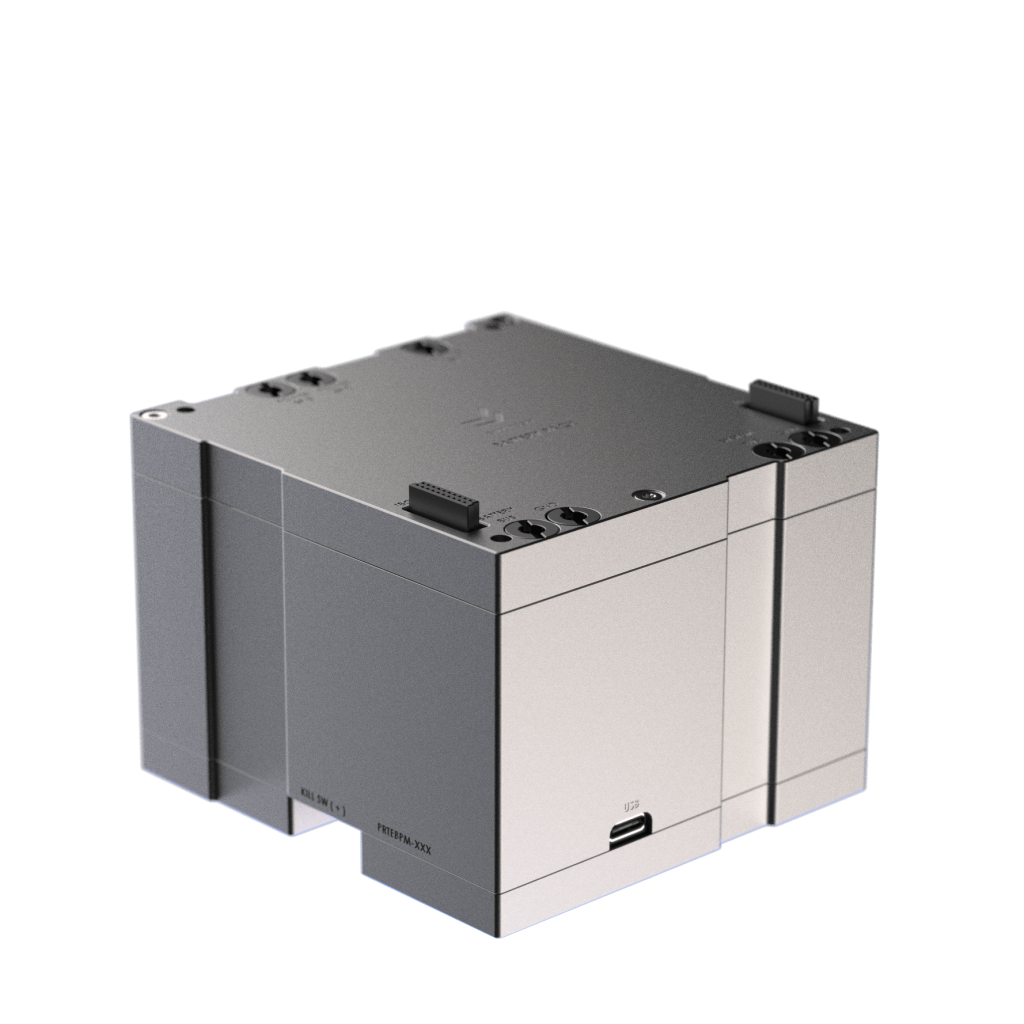

EPS II Battery pack web render 1
Speed Matters

Included

Complete User Manual
USB cable
5h engineering support
Delivery cost
Handling and administration costs
Second generation of NanoSat and MicroSat Electric Power System (EPS)

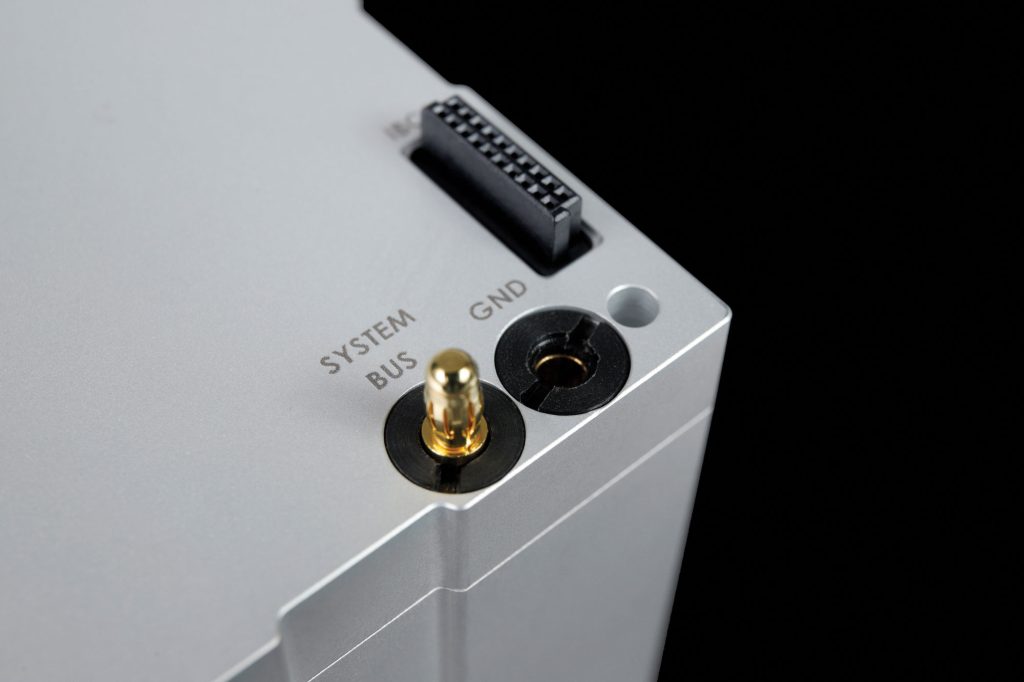

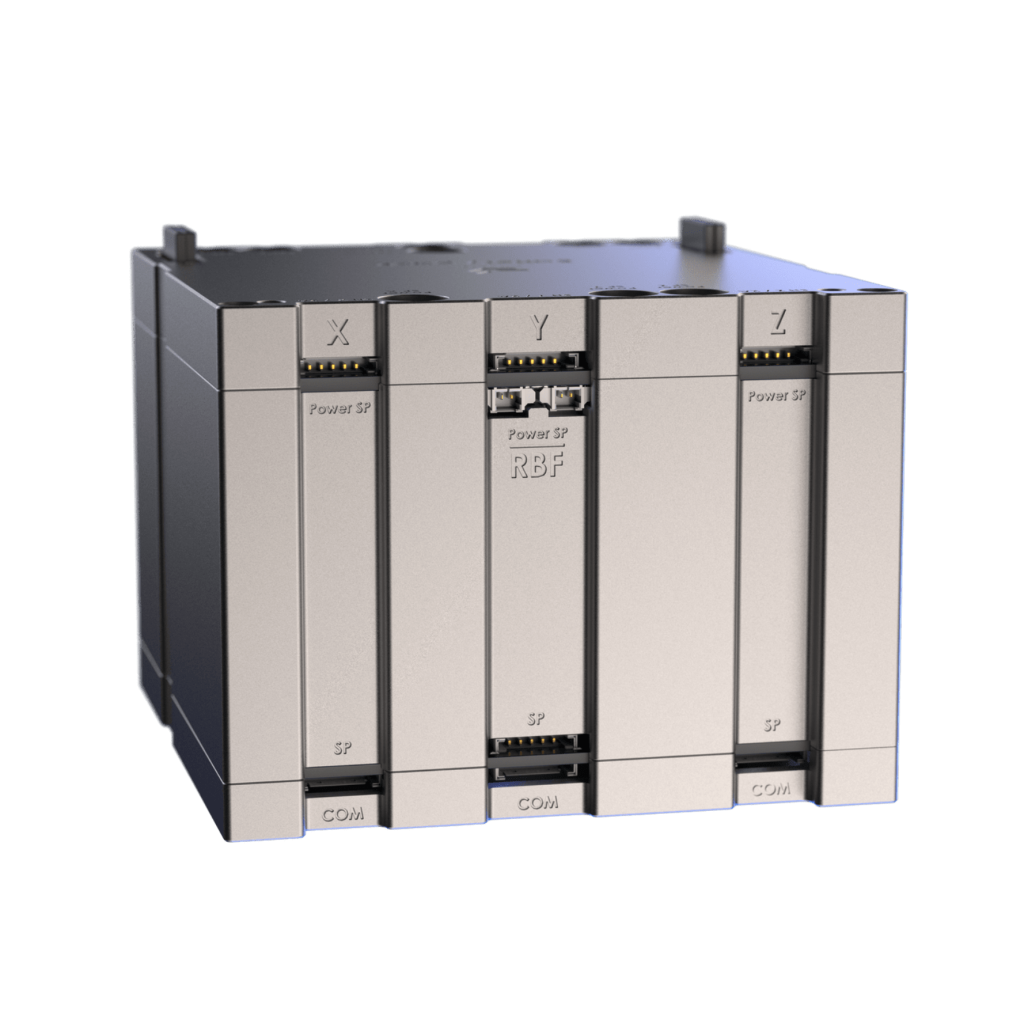

EPS II Battery pack web 26

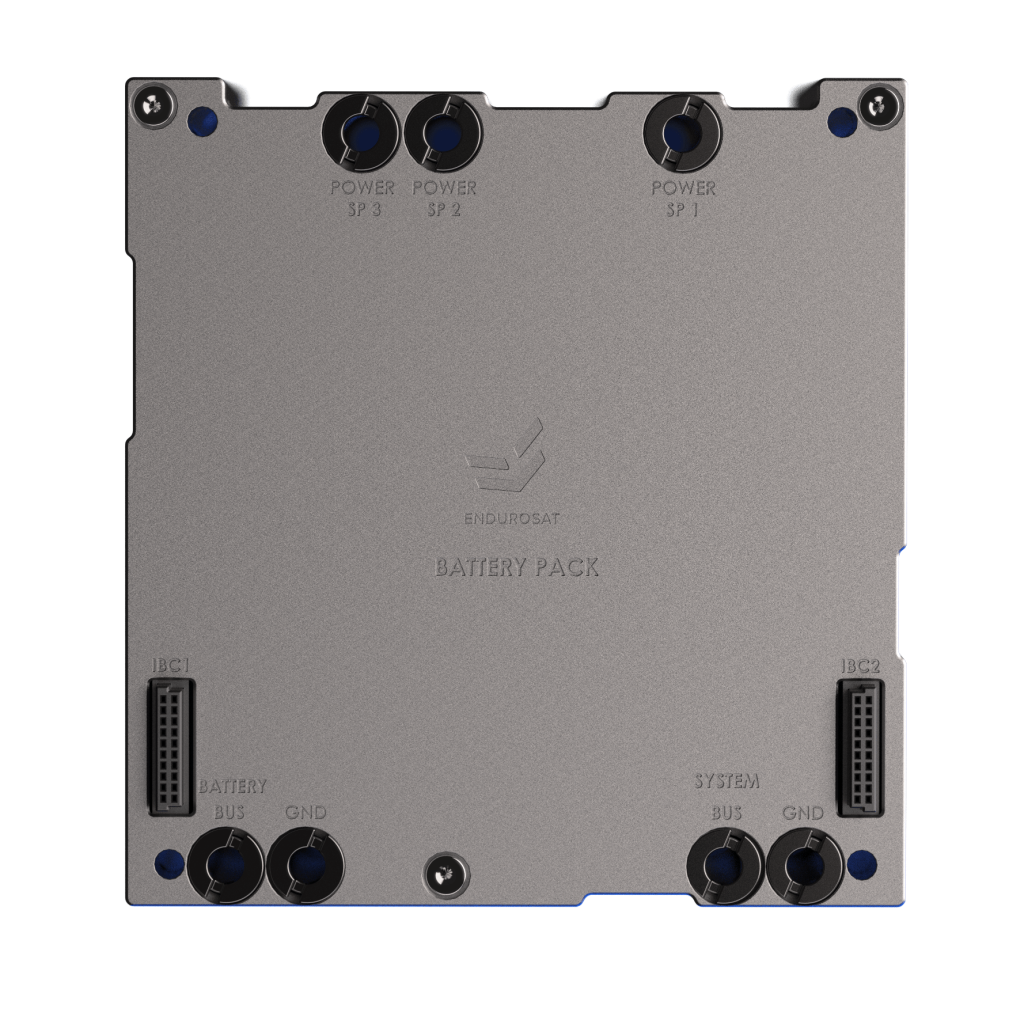

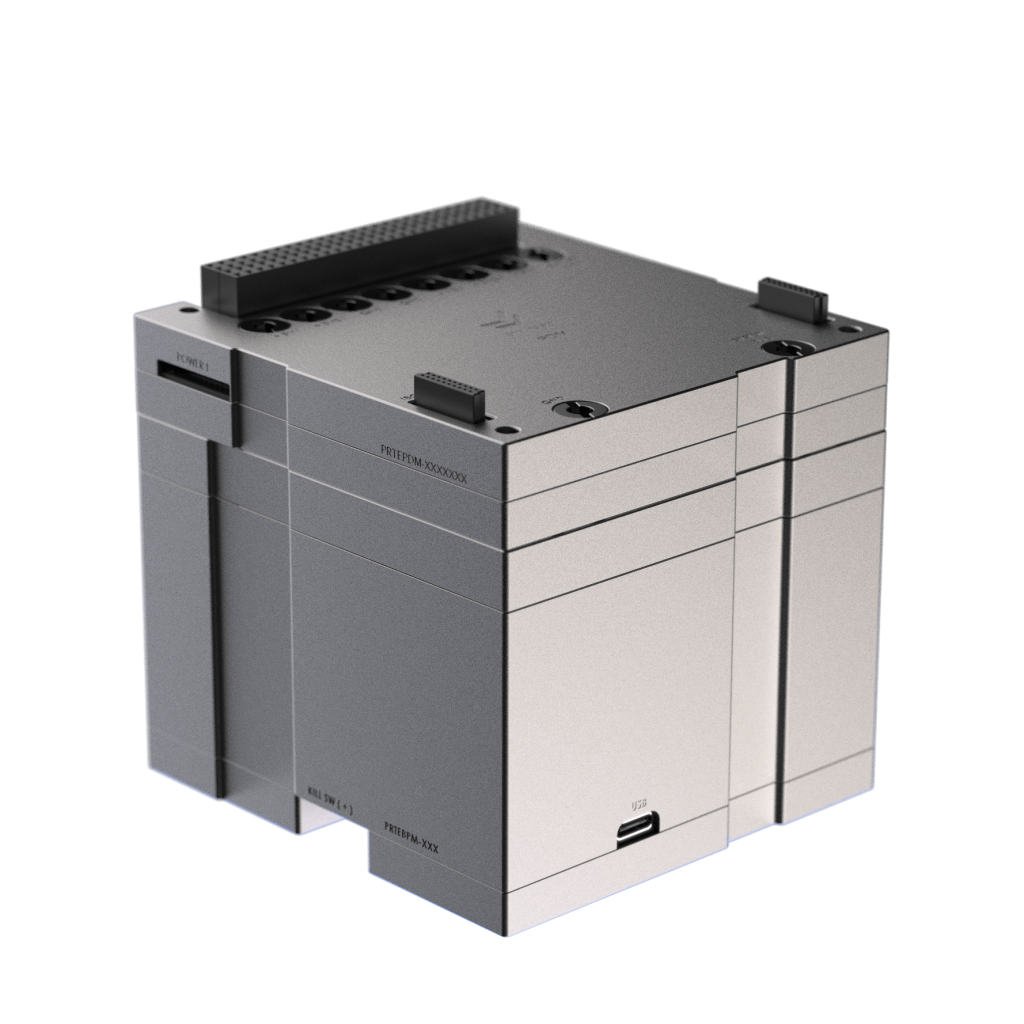

EPS II Battery pack web render 4

Extremely modular system. Configurable for NanoSats from 3U to 27U size

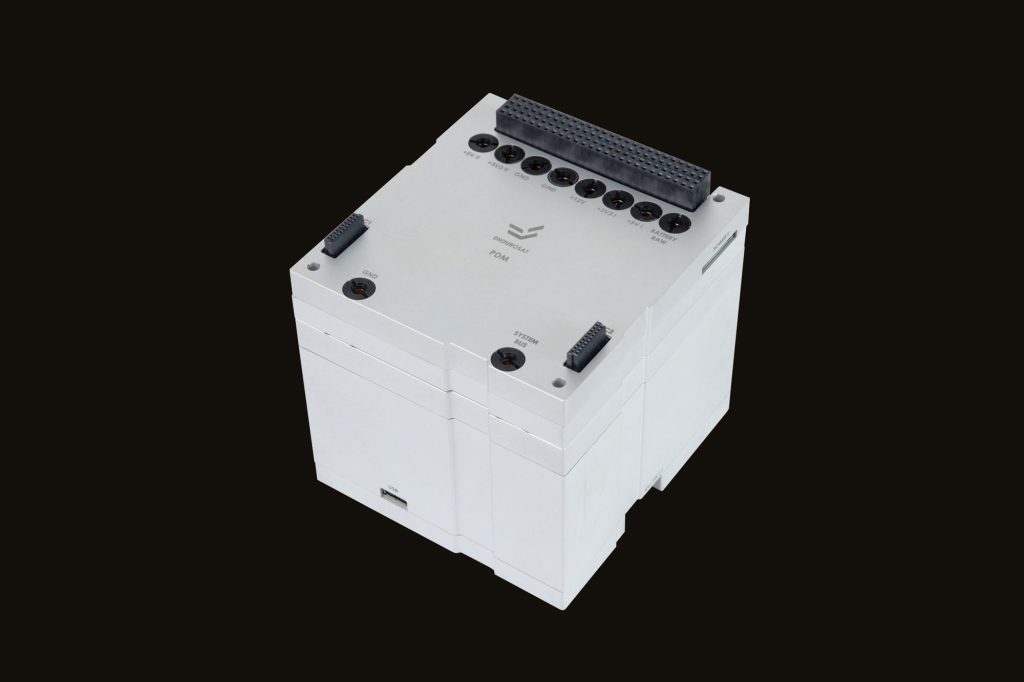

EPS II Battery pack web render 2

Hardware-redundant power buses featuring full protection

OVERVOLTAGE, OVERCURRENT, OVERPOWER & CONFIGURABLE CURRENT LIMITATION

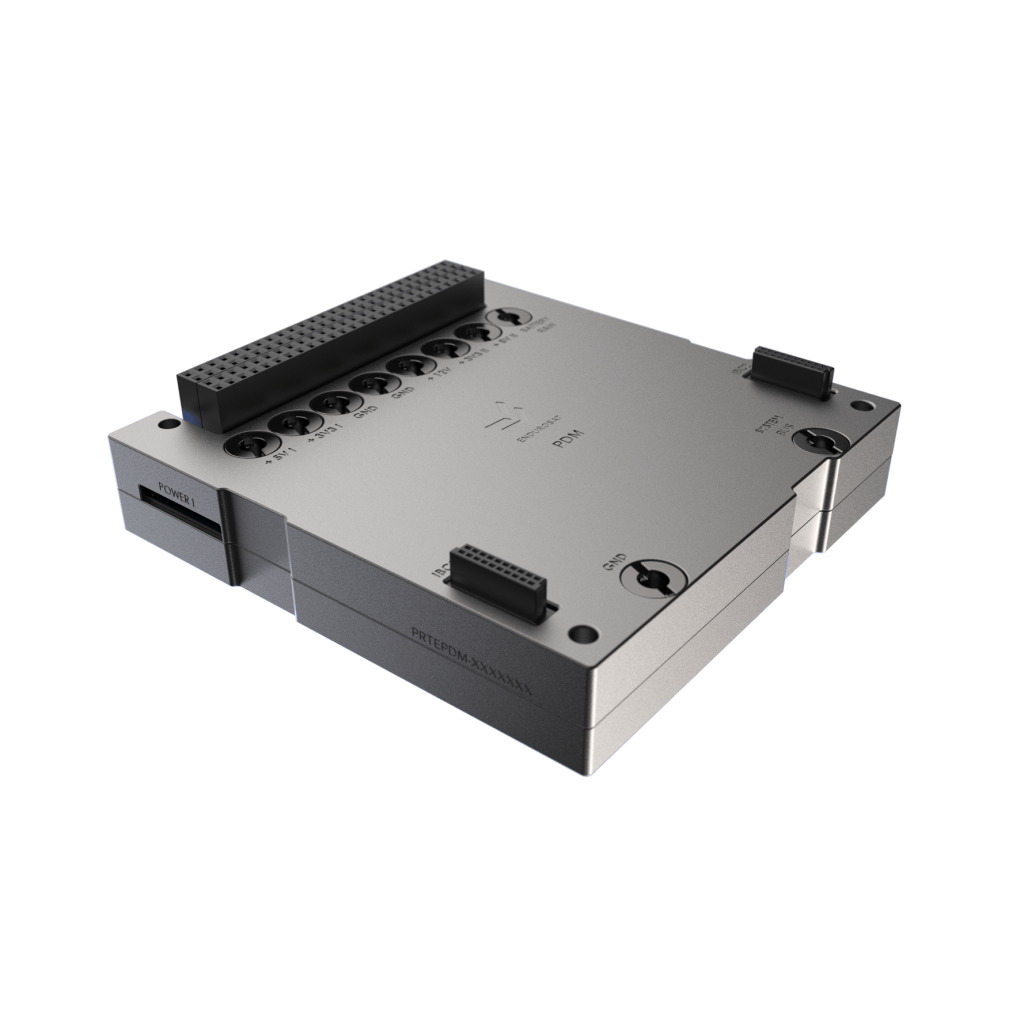

EPS II Battery pack web render 5

Hardware and Firmware Single Event Upset (SEU) mitigation

EMBEDDED RADIATION DOSE MONITORING UP-TO 100 KRAD

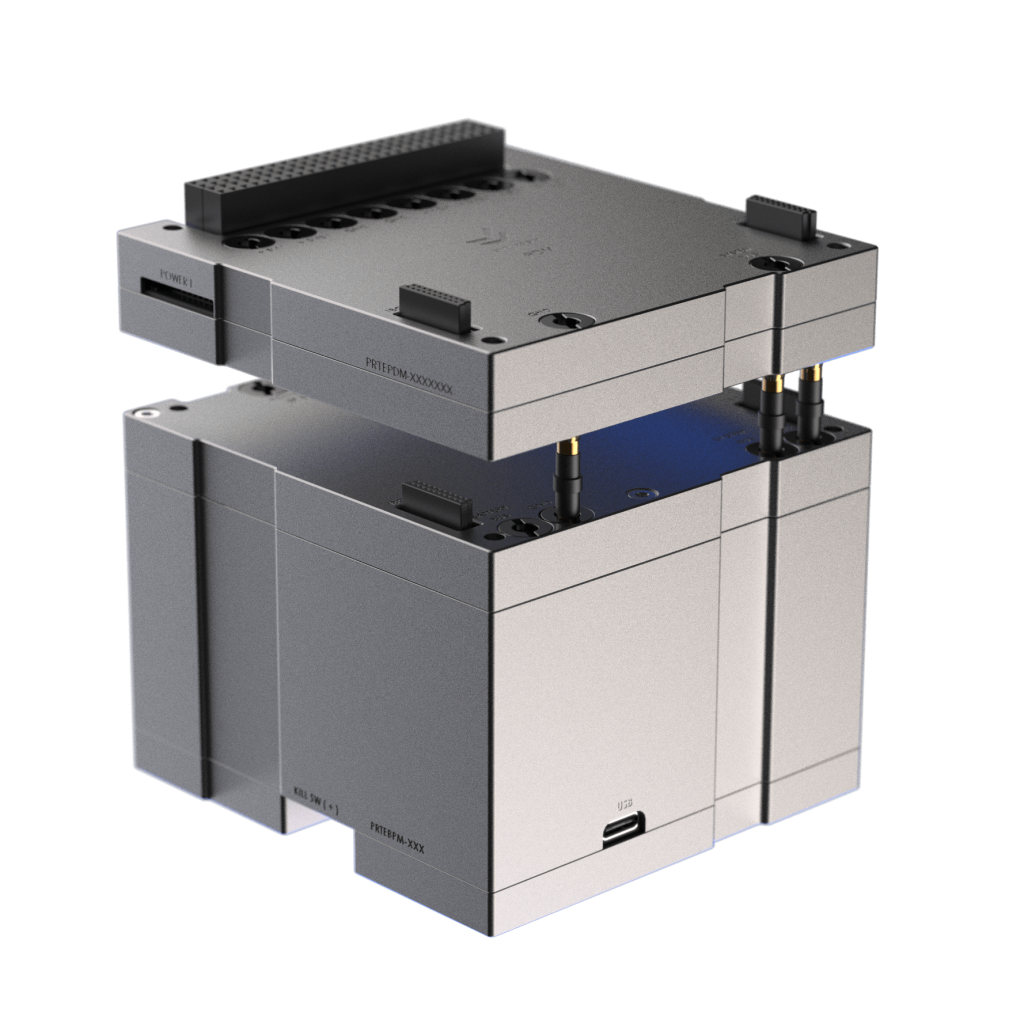

EPS II Battery pack web render 3

Passive & active thermal management for optimal battery charging

Data handling & avionics capability for continuous operations
PRODUCT GALLERY

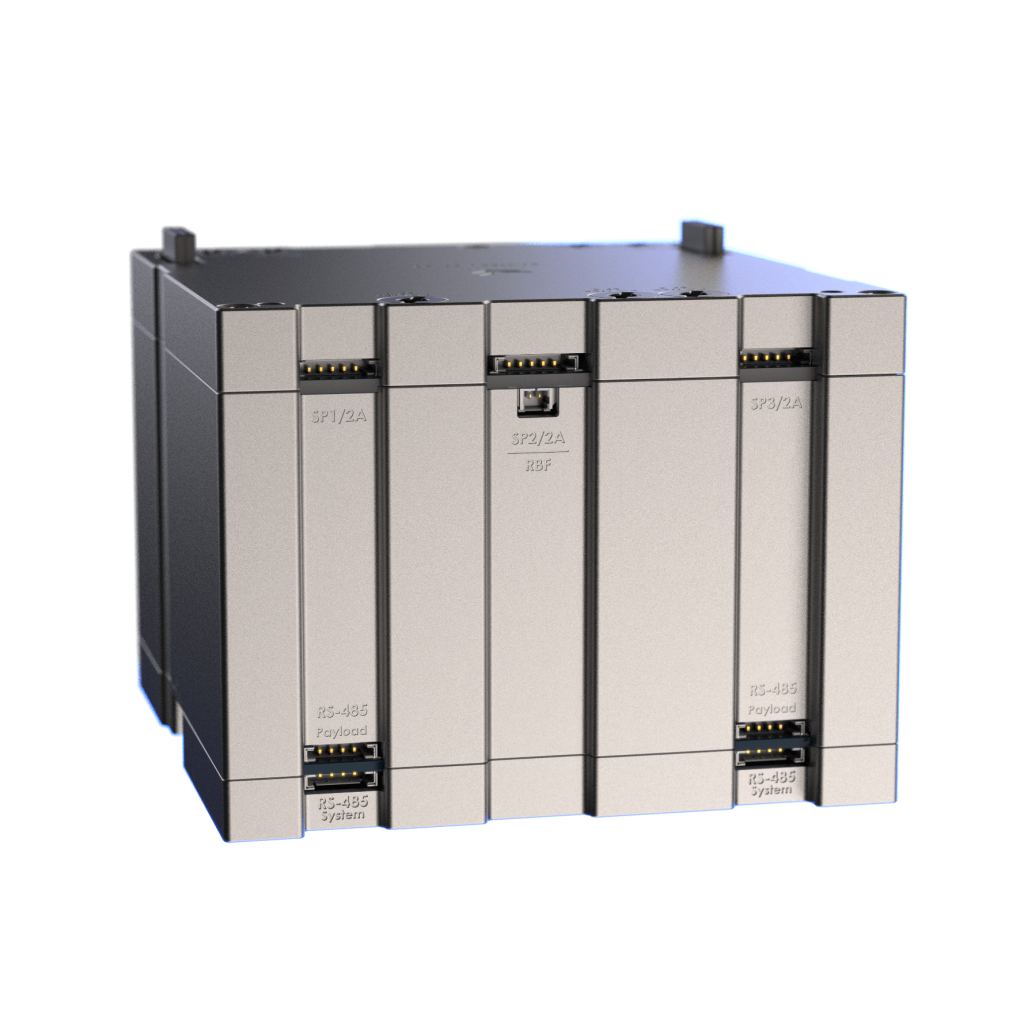

EPS II Battery pack web 19

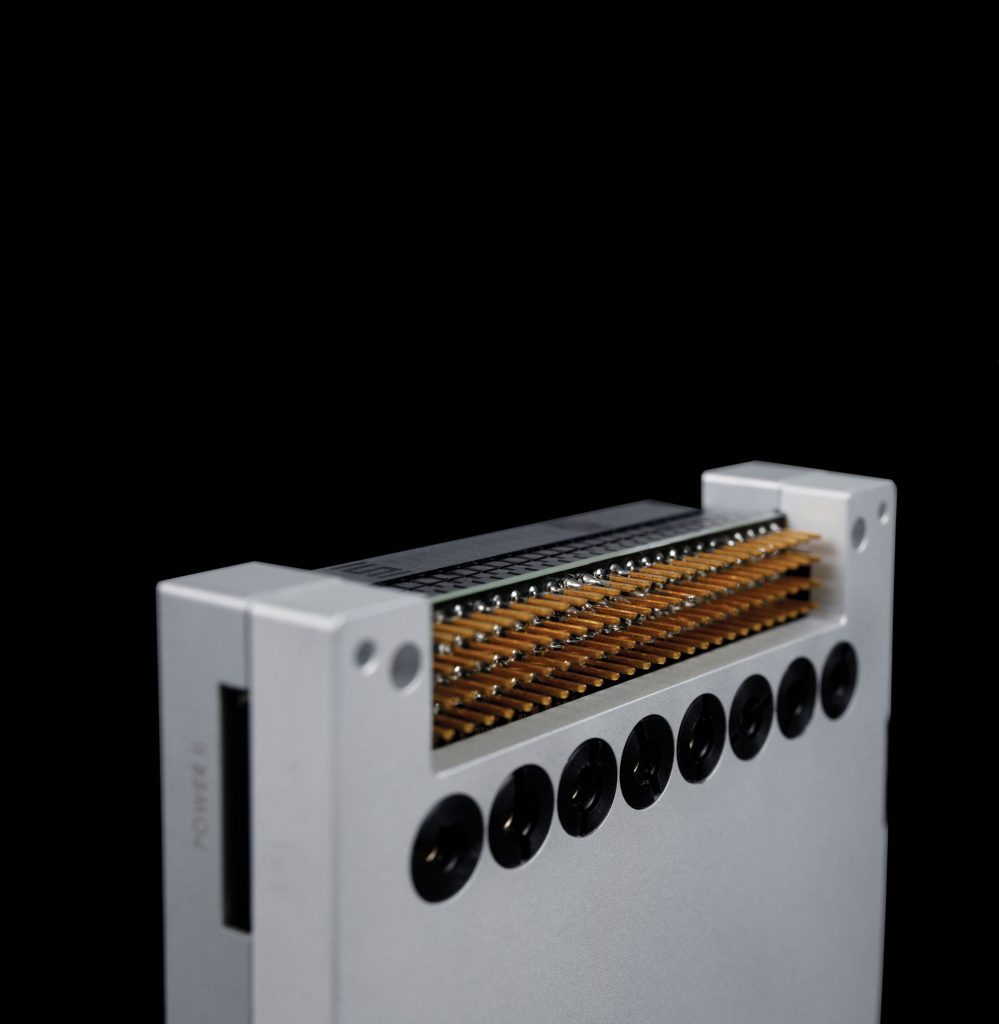

EPS II Battery pack web 15
EPS II Battery pack web 3
EPS II Battery pack web 17
EPS II Battery pack web 9
EPS II Battery pack web 12
EPS II Battery pack web 25
EPS II Battery pack web 10
EPS II Battery pack web 4
EPS II Battery pack web 1
