1.5U SOLAR PANEL

Power In Space
Cad file & datasheet
Select Options
Select Options
state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
29.5+%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
3.6+W
IN LEO

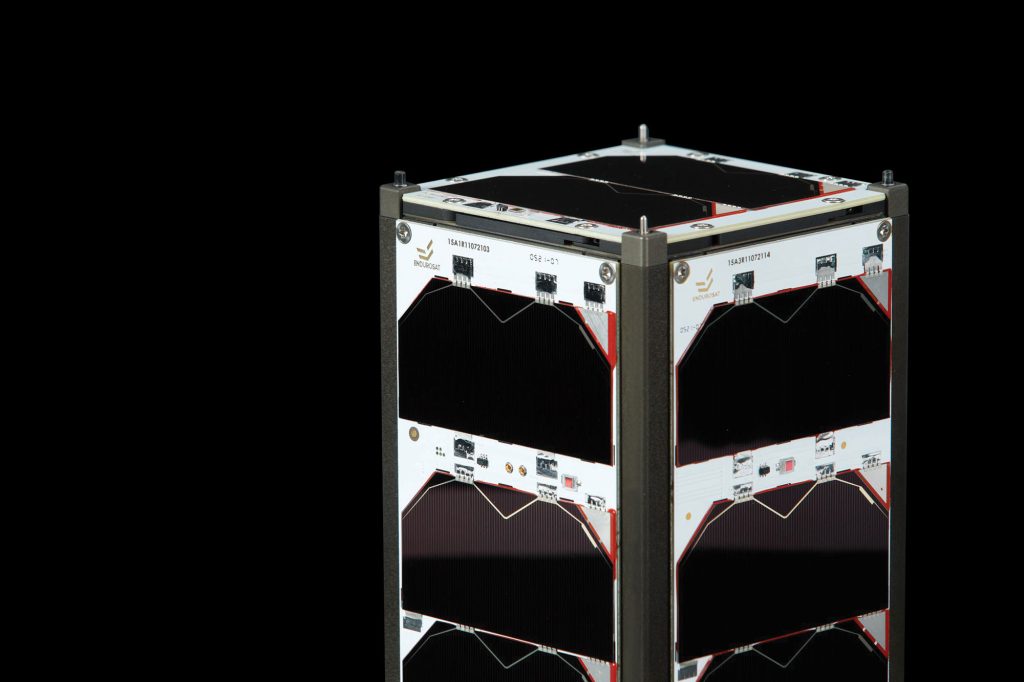

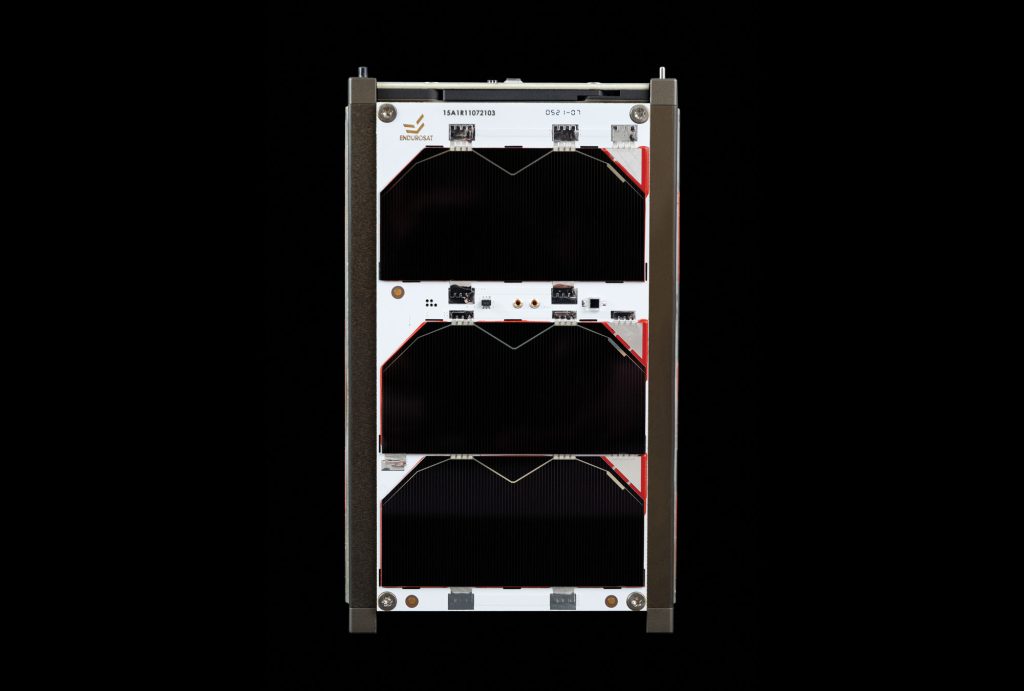

Flight-proven 1.5U Solar Panels

FEATURES
Power Efficiency At EOL
29+%
Max Power
Up to 3.6 W in LEO
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Available with integrated magnetorquer
RBF
Available with Remove Before Flight pin
Mass
65 g (79 g with MTQ)
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
6-9 V (for 3 cells)
Max Current
512 mA
PCB Thickness
1.6 mm

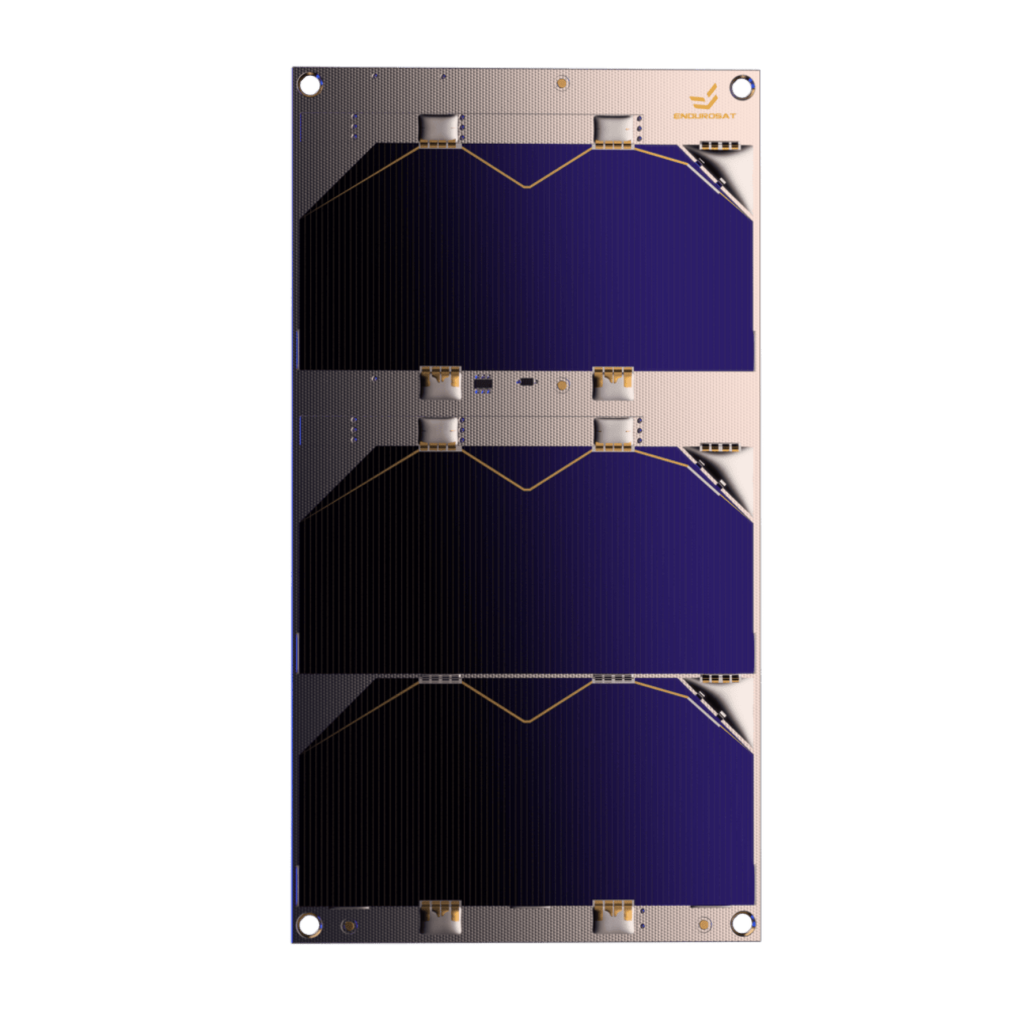

1.5U Solar Panel web render 4
Power In Space

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs

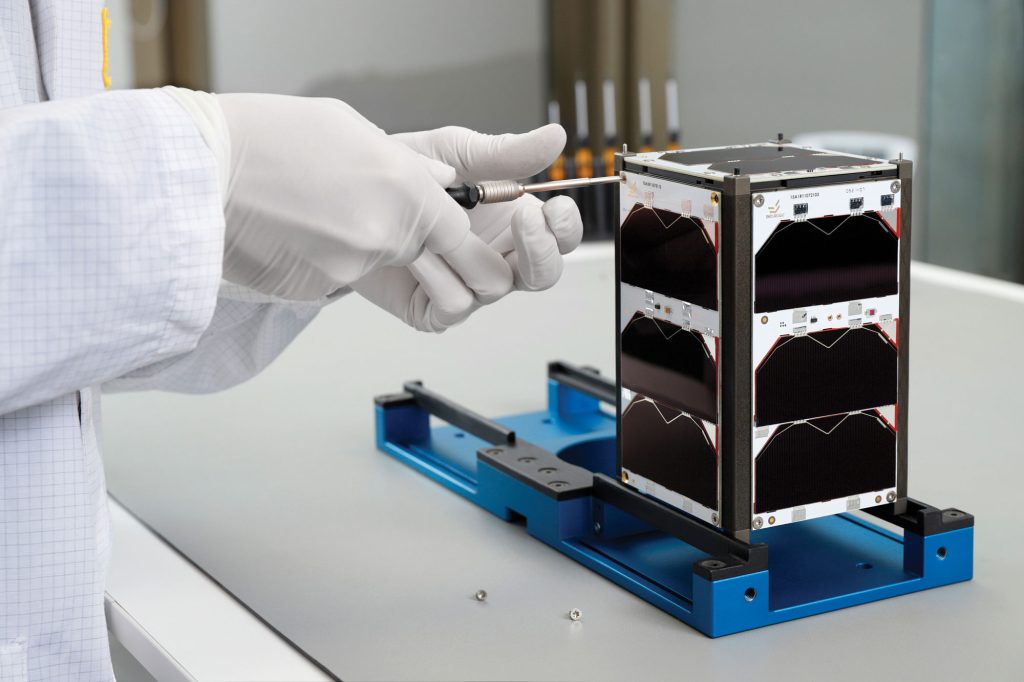

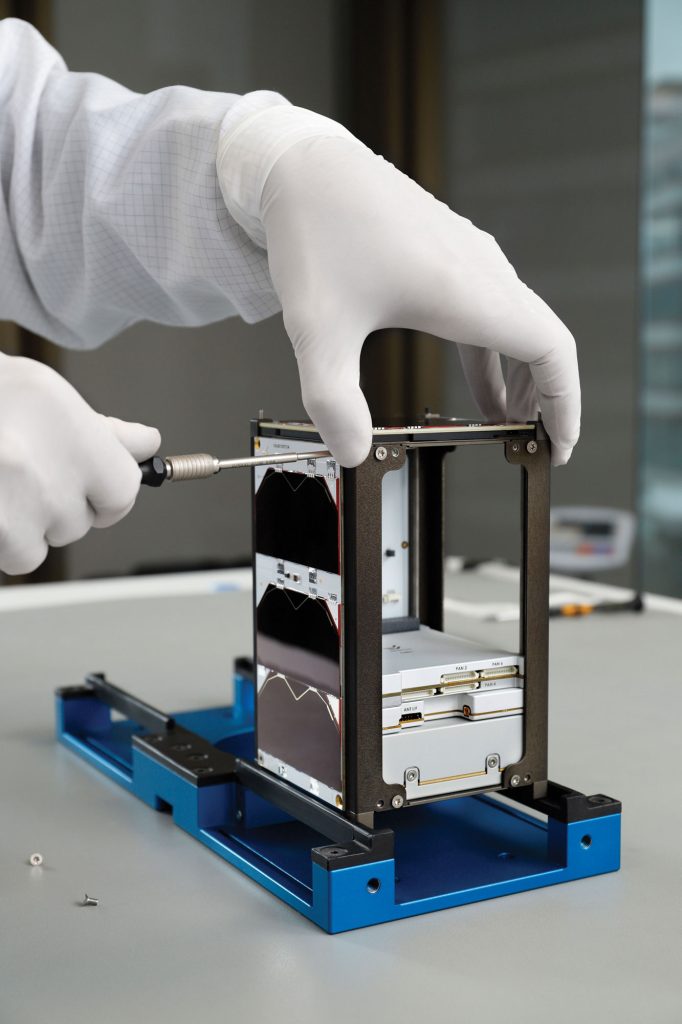

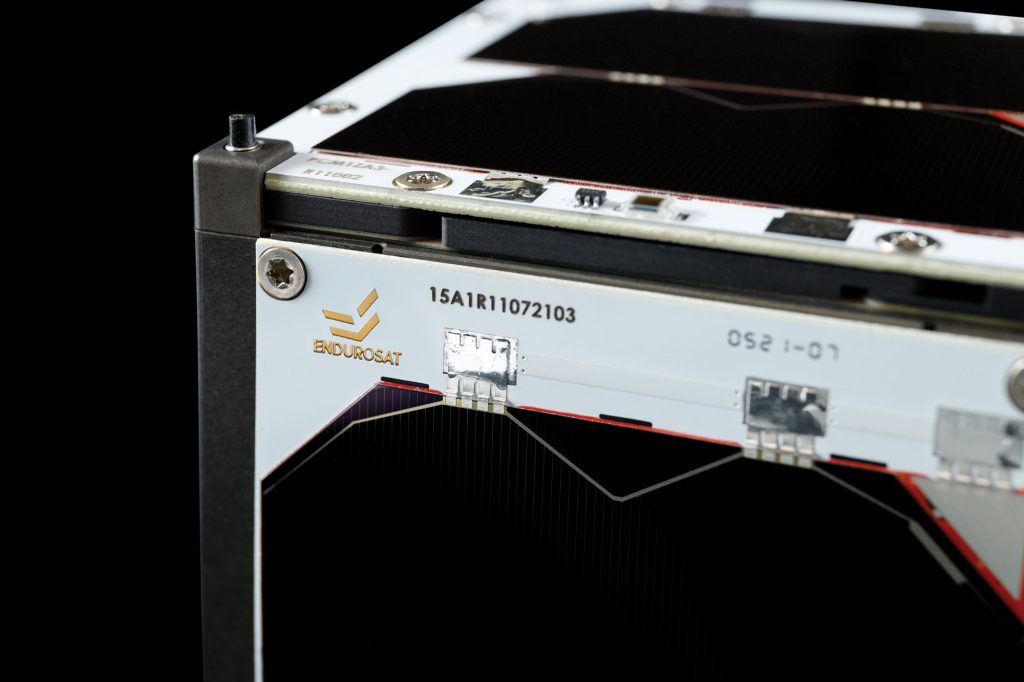

Flight-proven 1.5U Solar Panels
1.5U Solar Panel web 2
1.5U Solar Panel web render 2

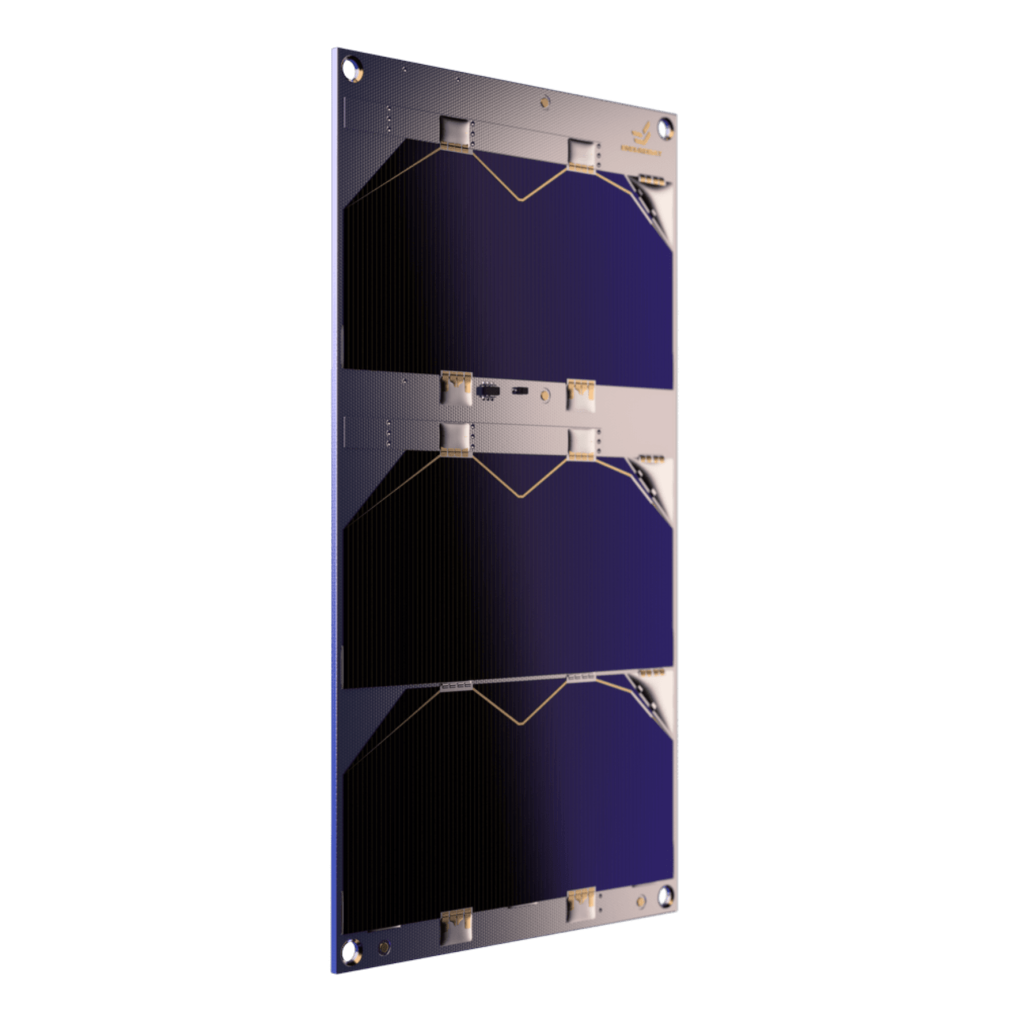

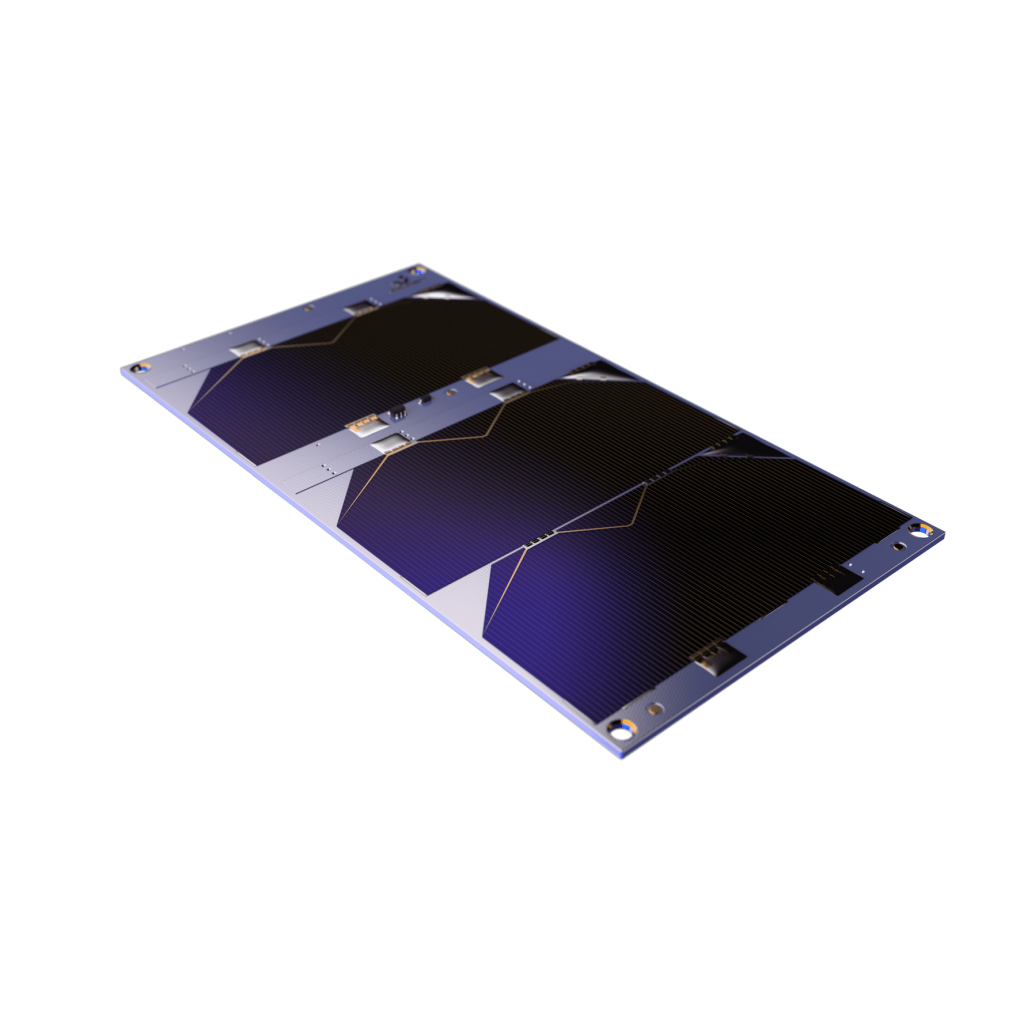

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

1.5U Solar Panel web render 5 e1711028570196

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO
1.5U Solar Panel web render 1 e1711028533892

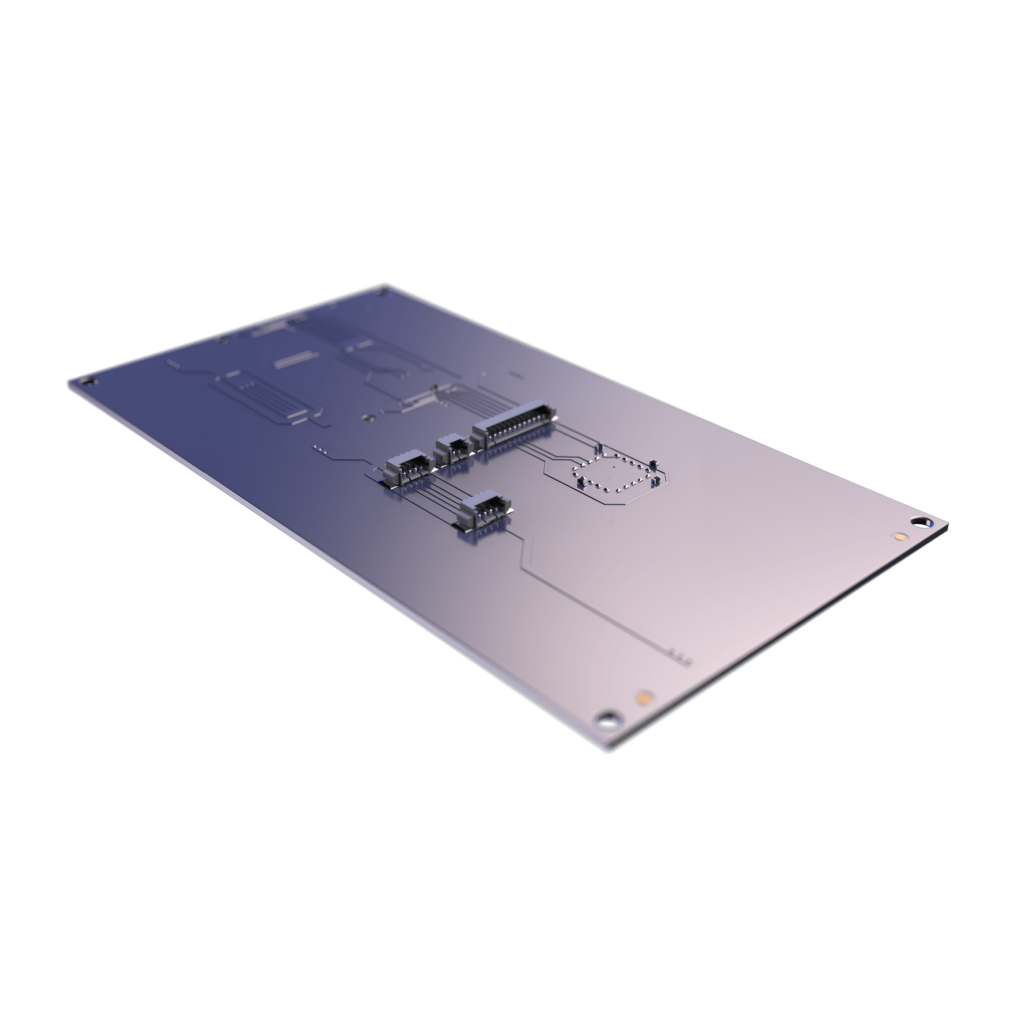

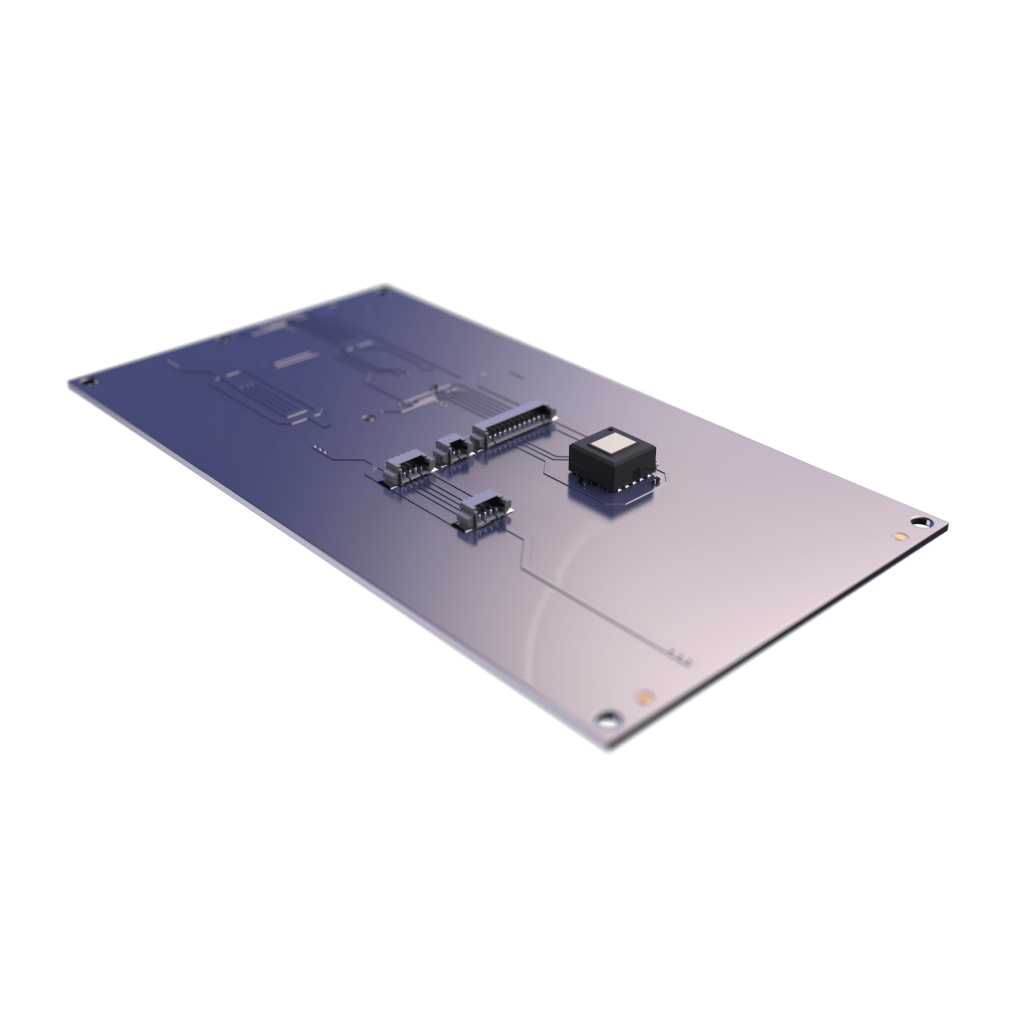

Integrated sun sensors + gyroscope + optional magnetorquer

1.5U Solar Panel web render 3

Series or parallel connection based on custom power system requirements

PRODUCT GALLERY
1.5U Solar Panel web 4
1.5U Solar Panel web 7
1.5U Solar Panel web 5
1.5U Solar Panel web 2
1.5U Solar Panel web 1
