3U SOLAR PANEL

Power In Space
Cad file & datasheet
Select Options
Select Options
flight heritage badge state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
29.5+%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
8.4+W
IN LEO

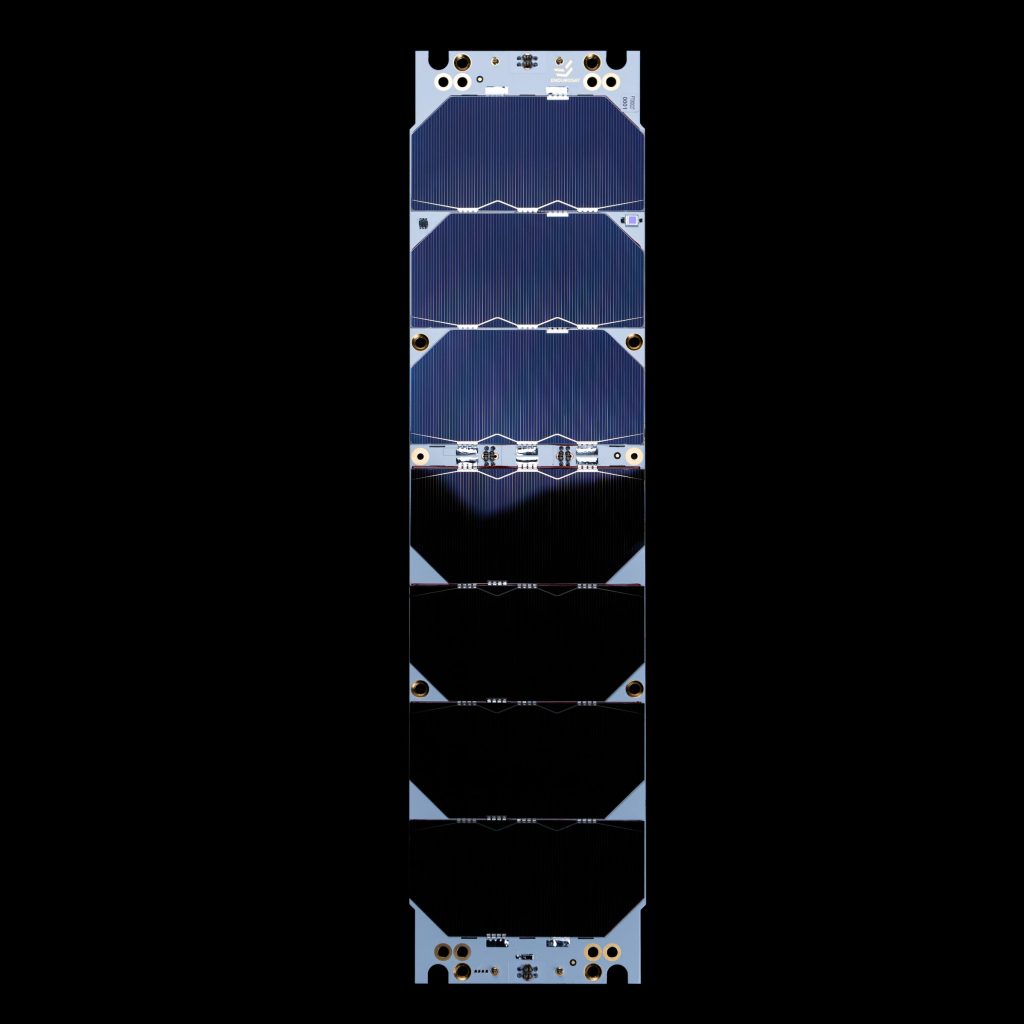

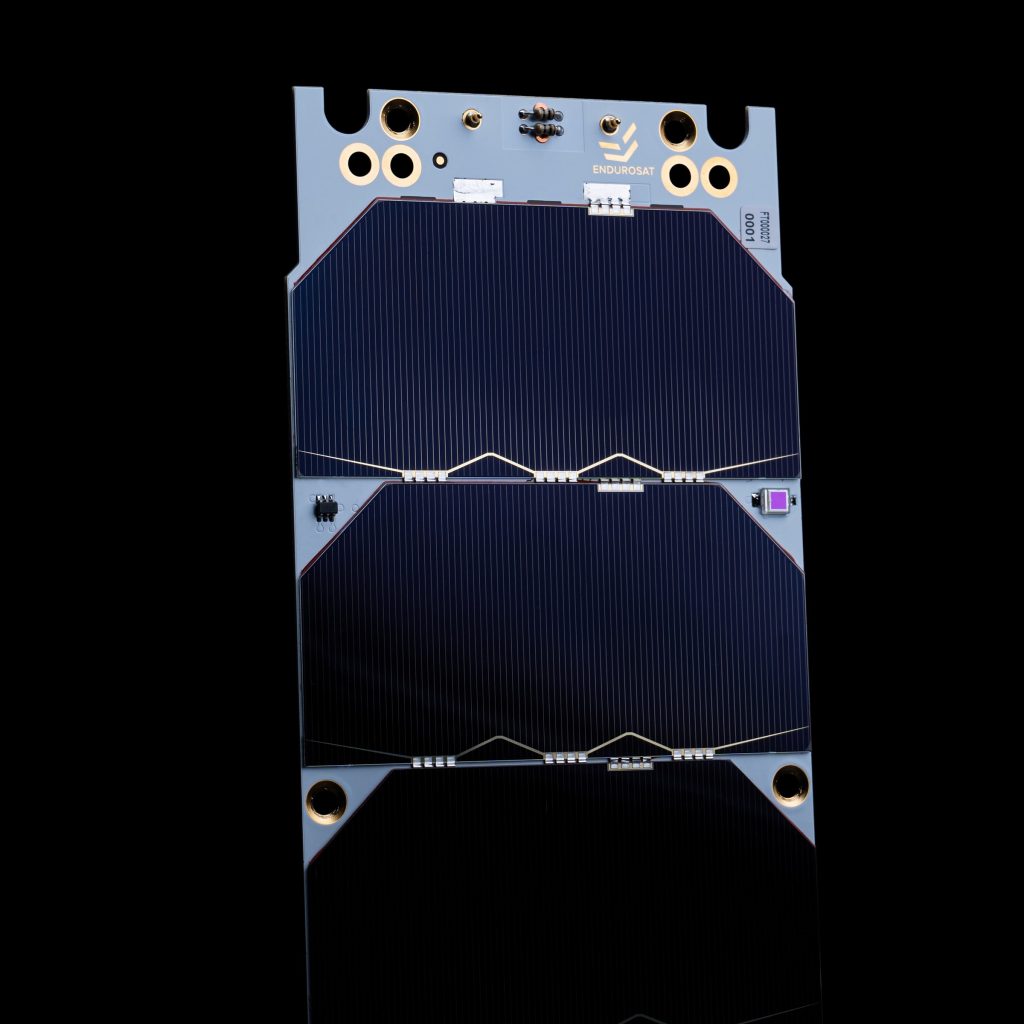

Flight-proven 3U Solar Panels

FEATURES
Power Efficiency At EOL
29+%
Max Power
8.4+W in LEO
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Connector for external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
146 g
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
21.04 V (for 7 cells)
Max Current
512 mA
PCB Thickness
1.6 mm

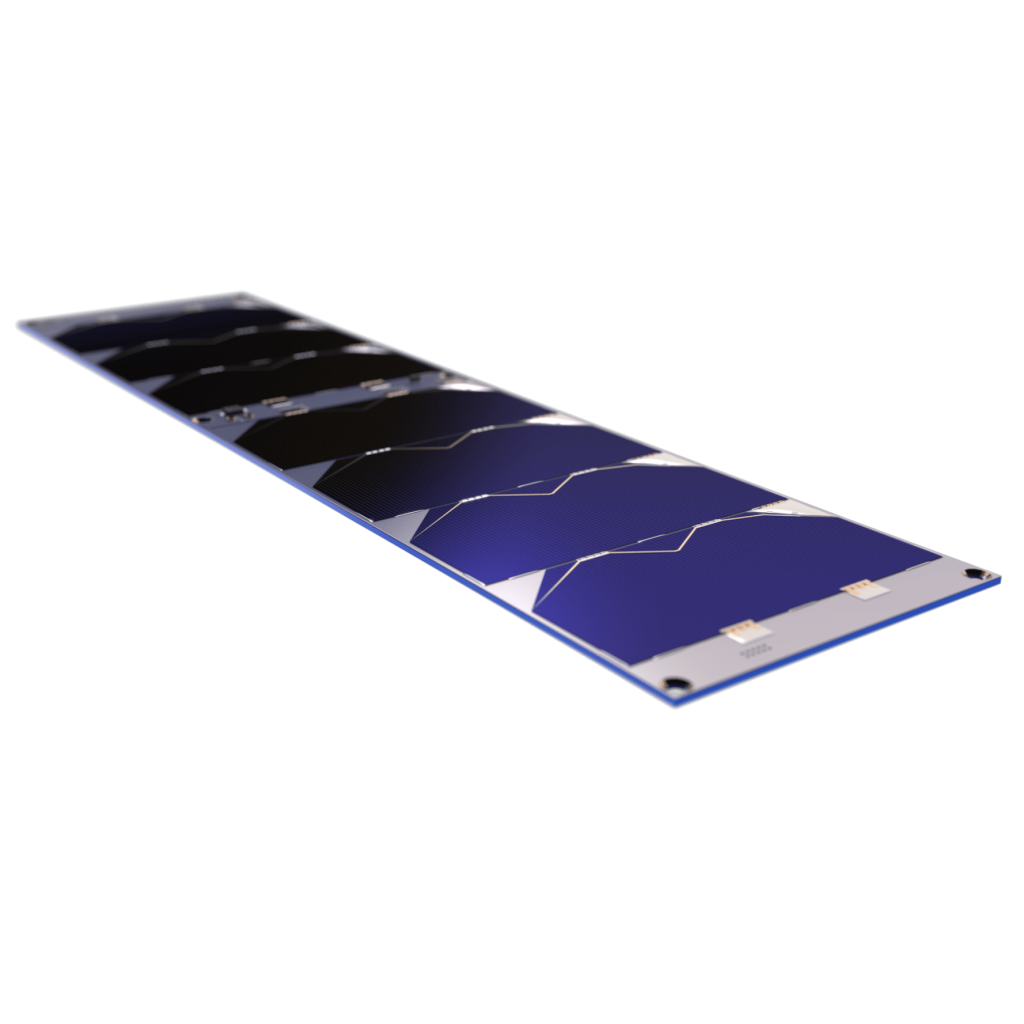

3U Solar panels web render 5
Power In Space

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Flight-proven 3U Solar Panels

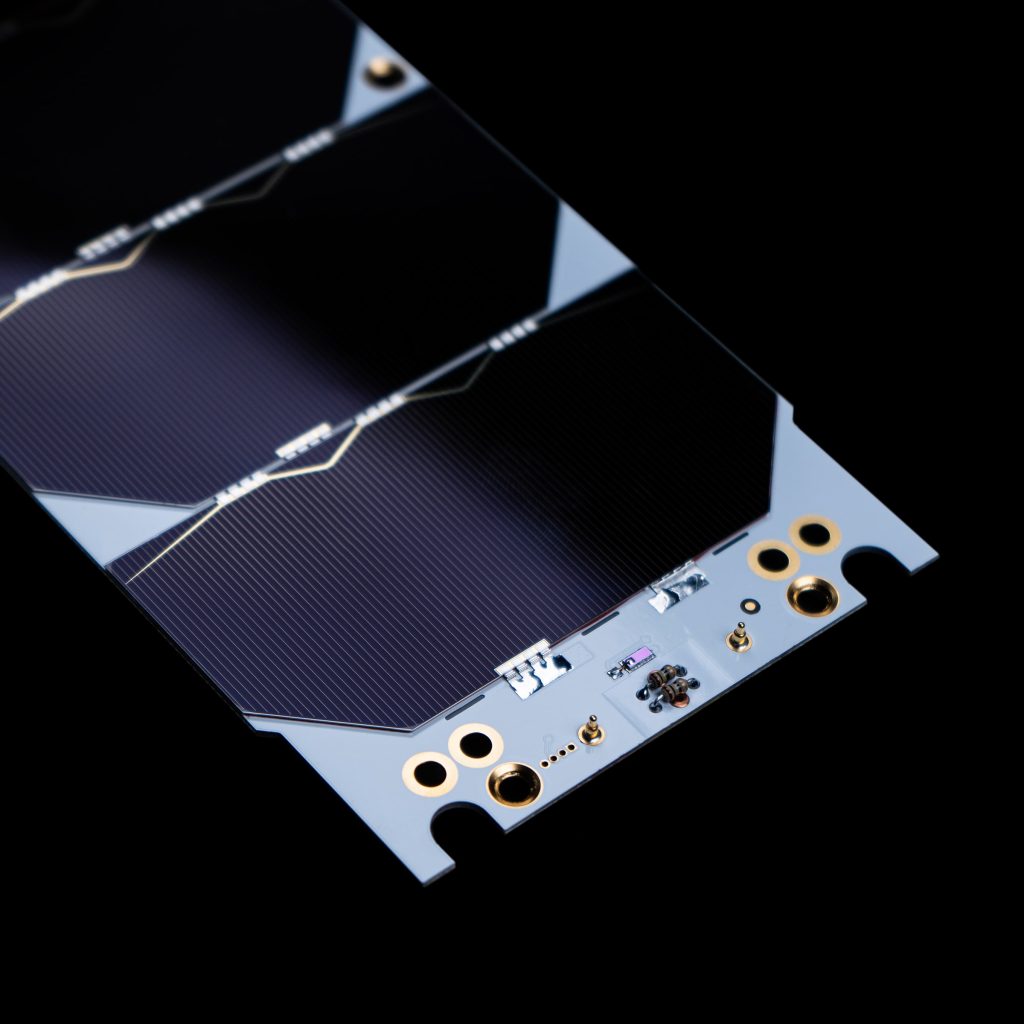

3U Solar panels web 4

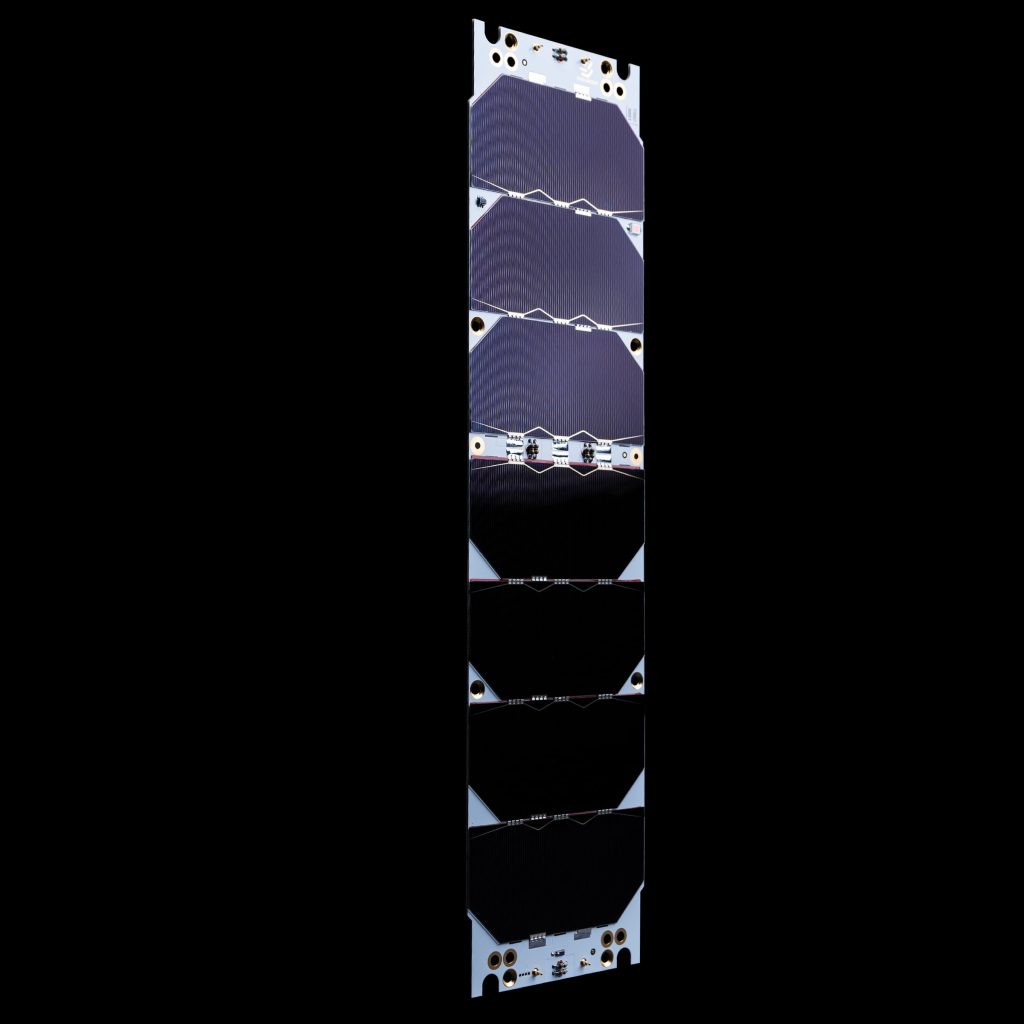

3U Solar panels web render 3

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

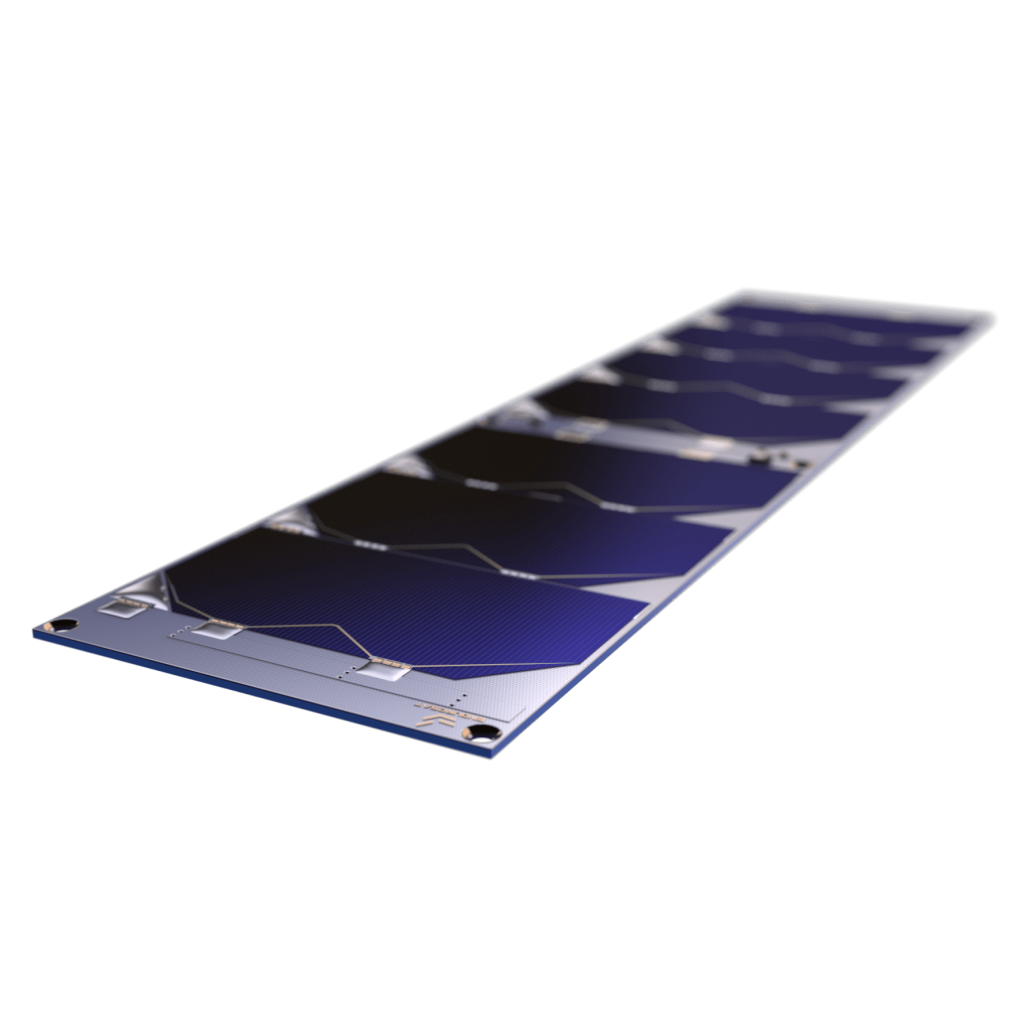

3U Solar panels web render 1

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO
3U Solar panels web render 2 e1711028100681

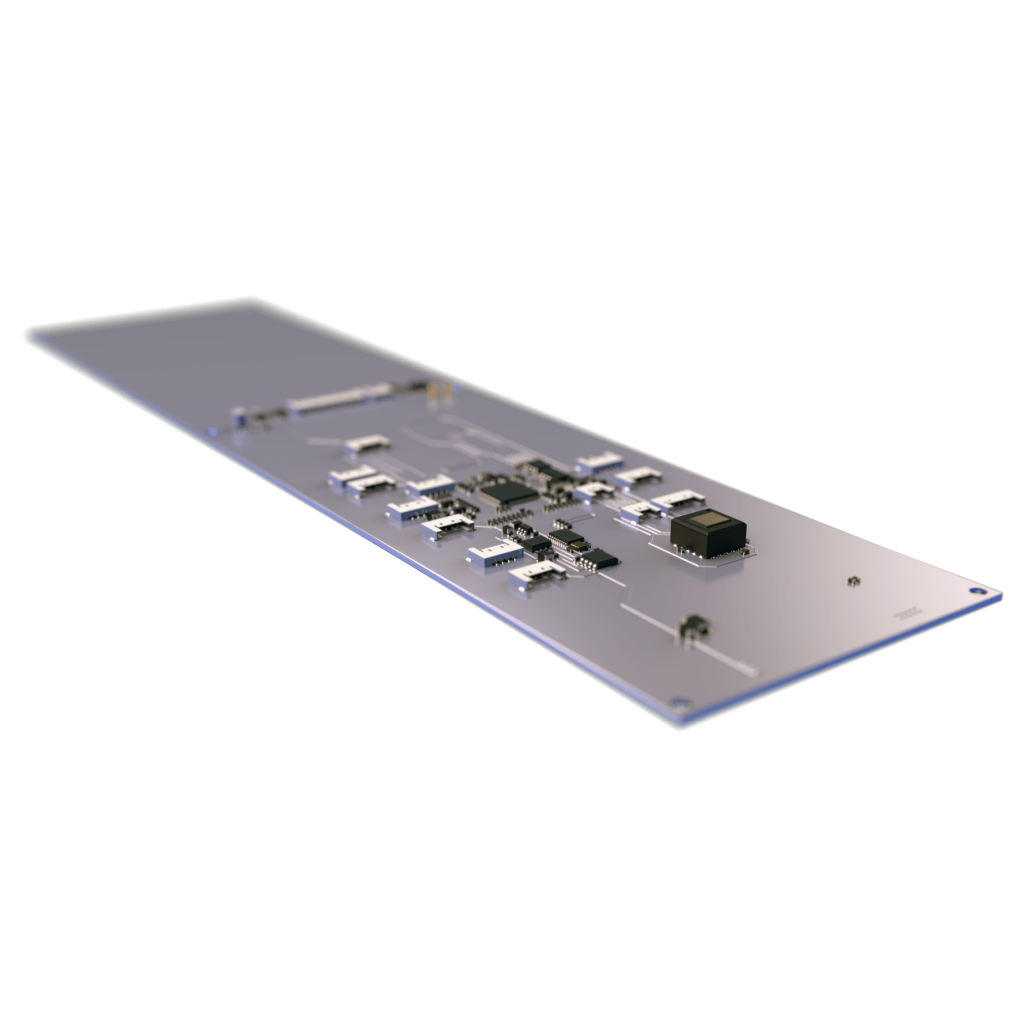

Integrated sun sensors & gyroscope, optional magnetorquer

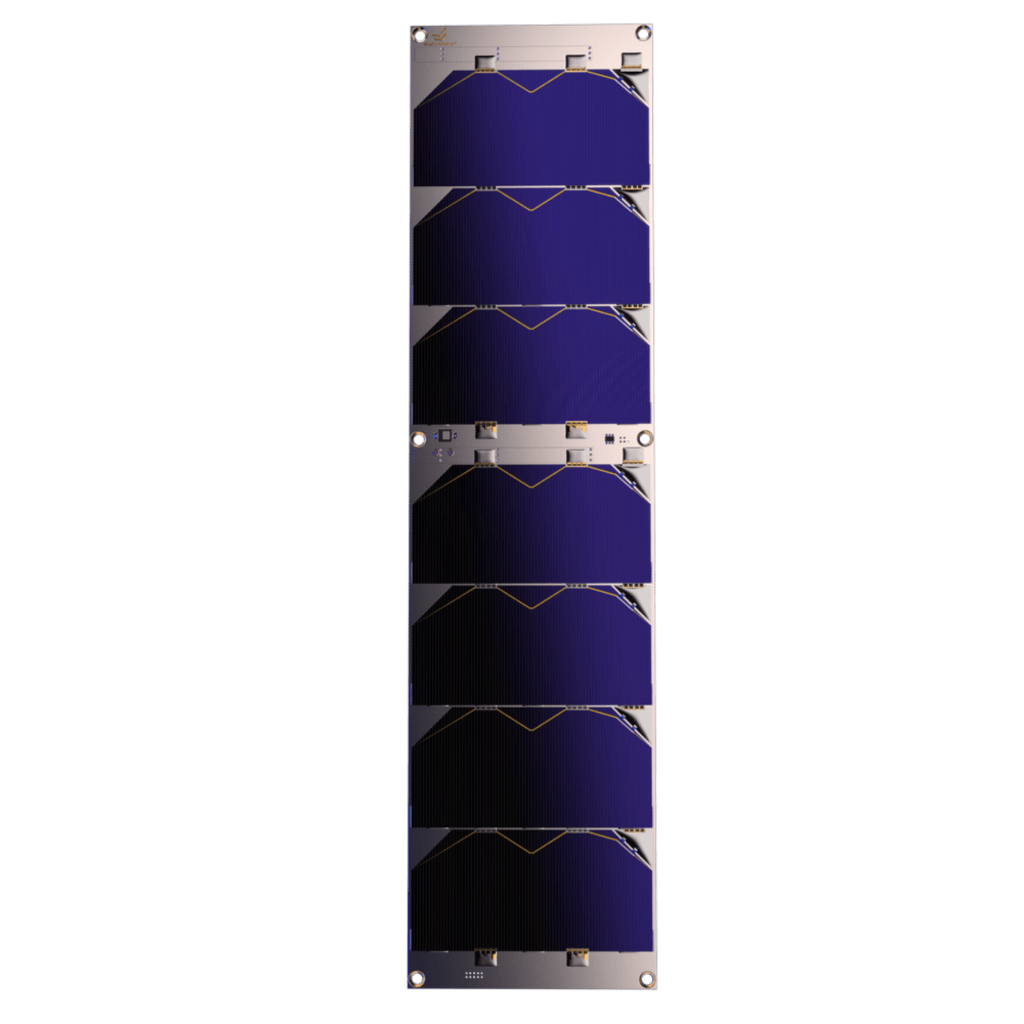

3U Solar panels web render 4

Series or parallel connection based on custom power system requirements

PRODUCT GALLERY

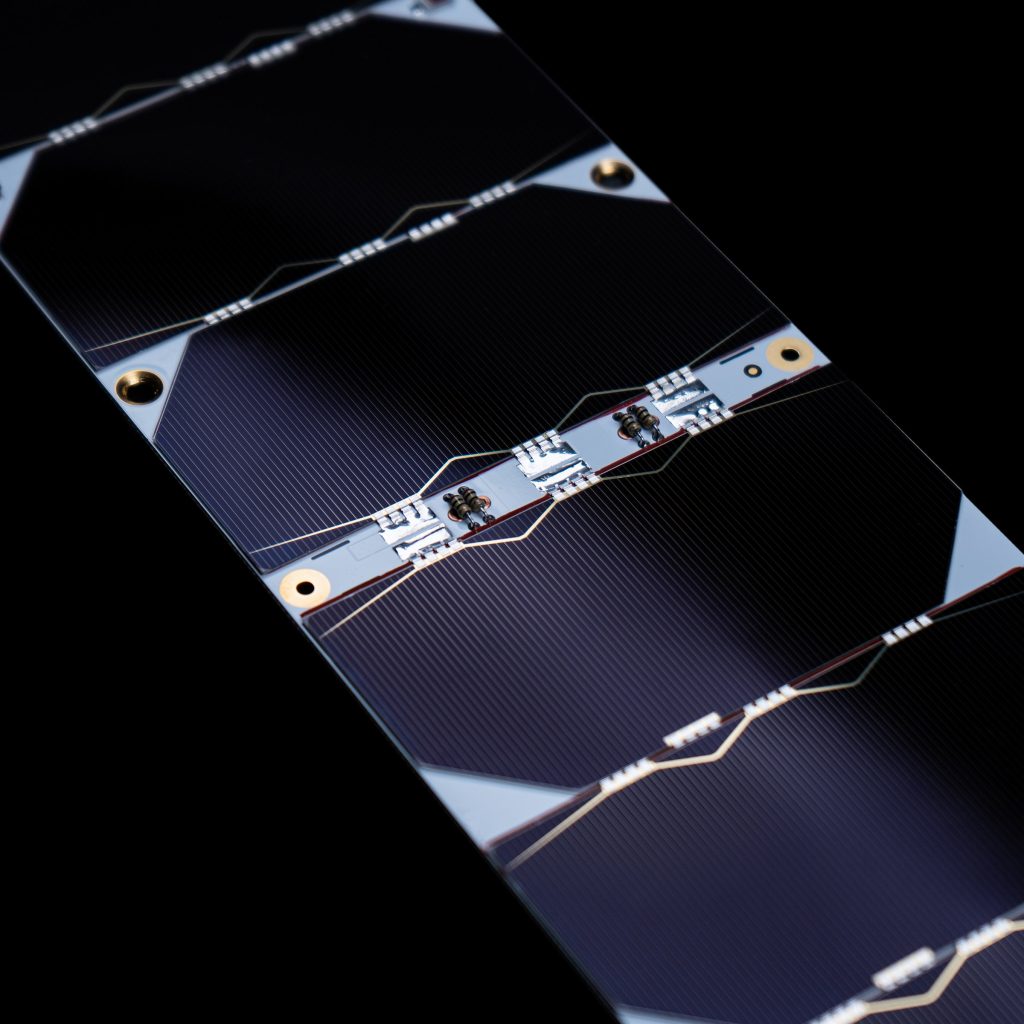

3U Solar panels web 2
3U Solar panels web 9
3U Solar panels web 7
3U Solar panels web 5
3U Solar panels web 4
3U Solar panels web 1
