3U DEPLOYABLE SOLAR ARRAY

More Power For Your Mission
Cad file & datasheet
Select Options
Select Options
state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
29.5%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
8.4 W
IN LEO PER SIDE

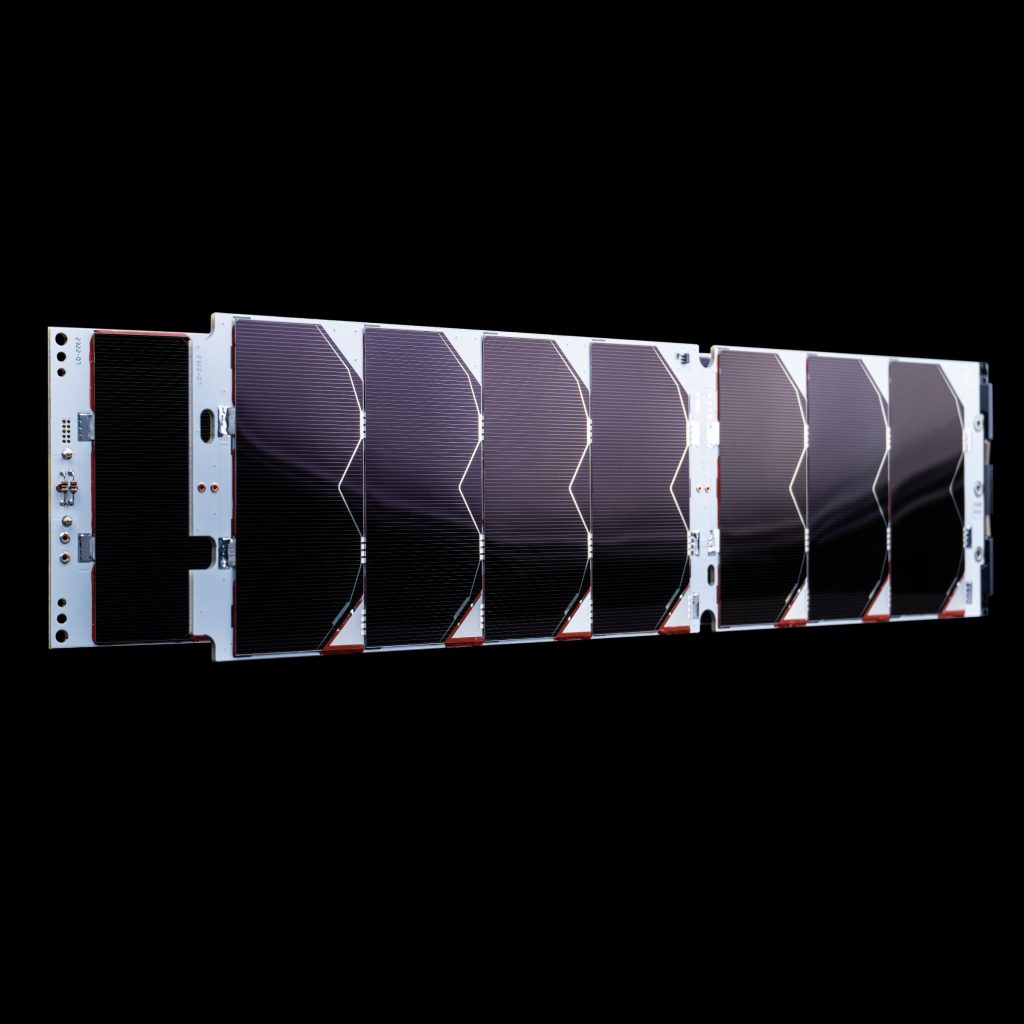

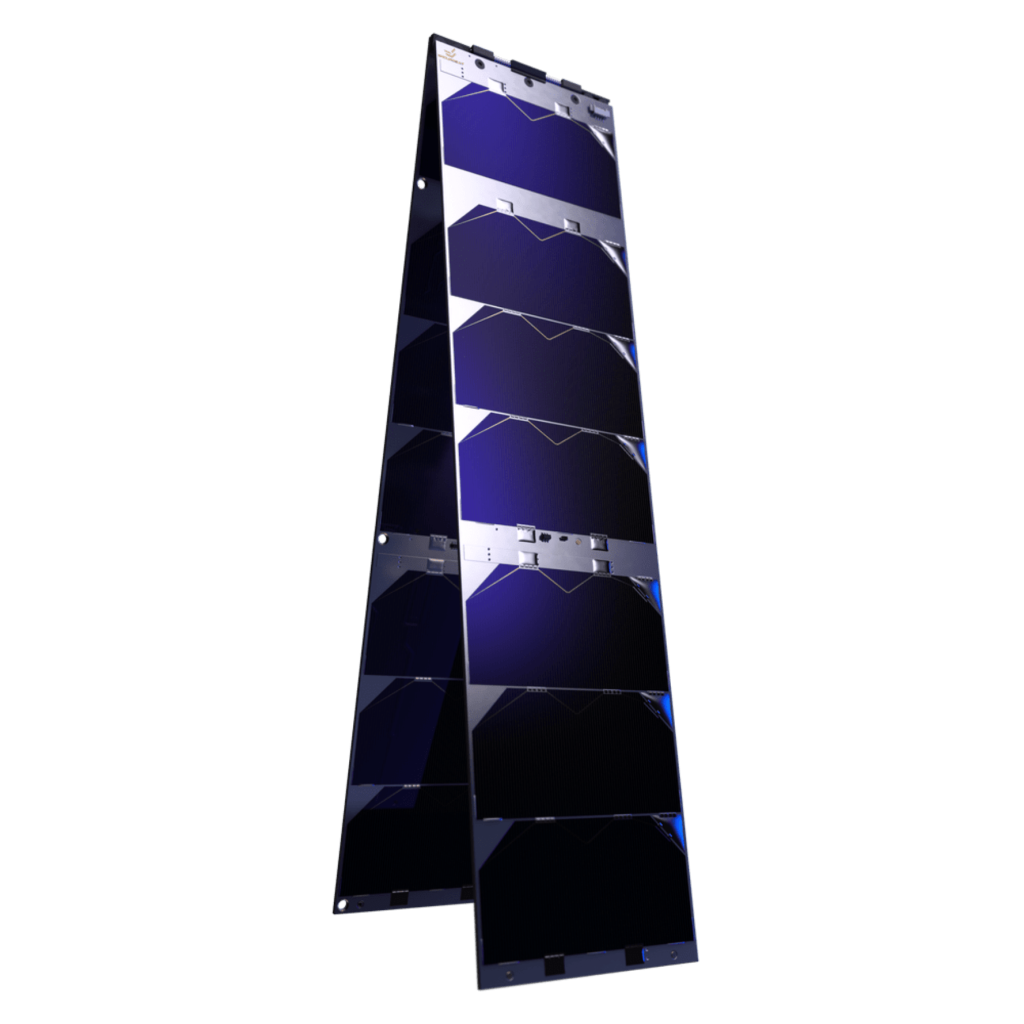

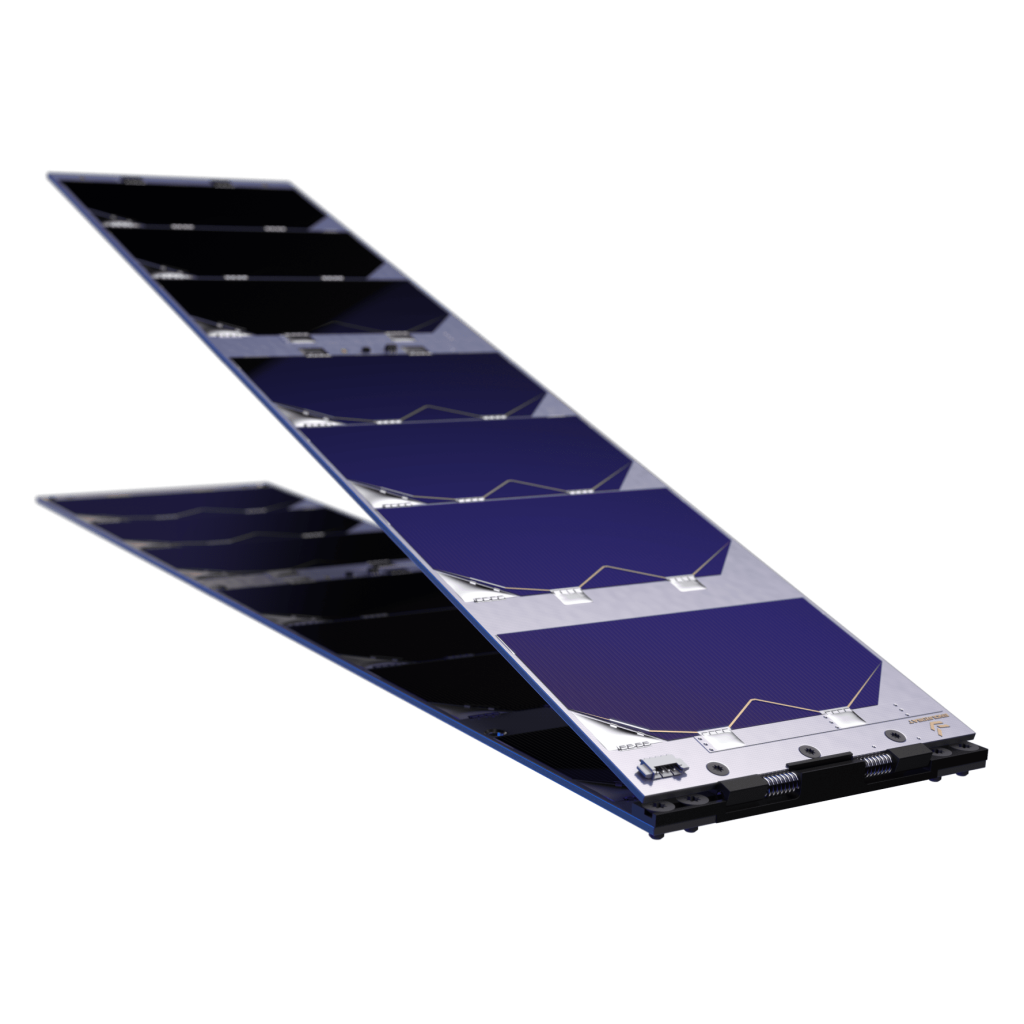

Space-qualified deployable Solar Array

FEATURES
Power Efficiency At EOL
29+%
Max Power
8.4+W in LEO per side
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Connector for external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
270 g
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
21.04 V (for 7 cells)
Max Current
512 mA
PCB Thickness
1.6 mm

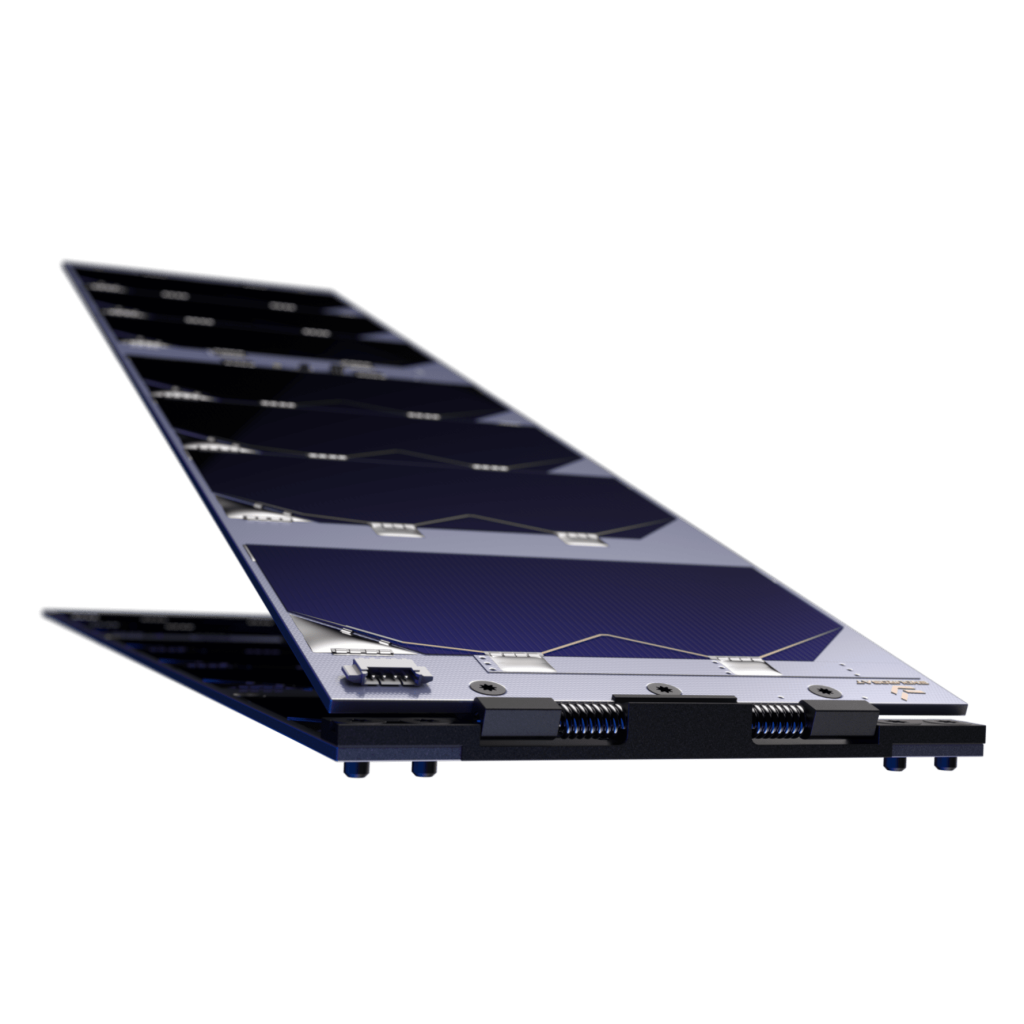

3U X Y Deployable Solar Array web render 4
More Power for Your Mission

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs

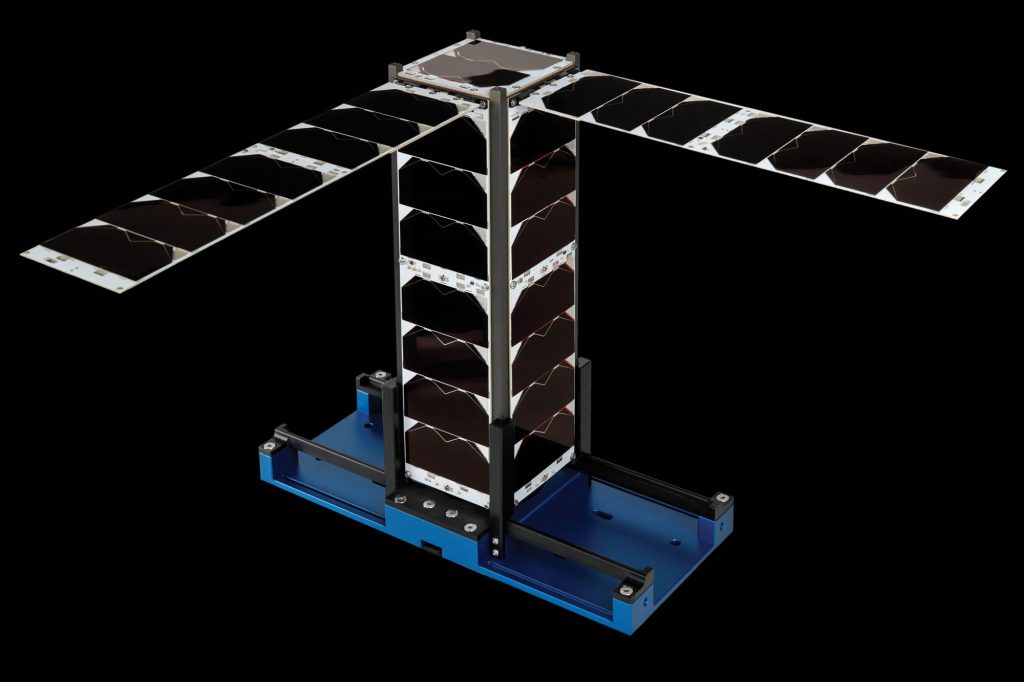

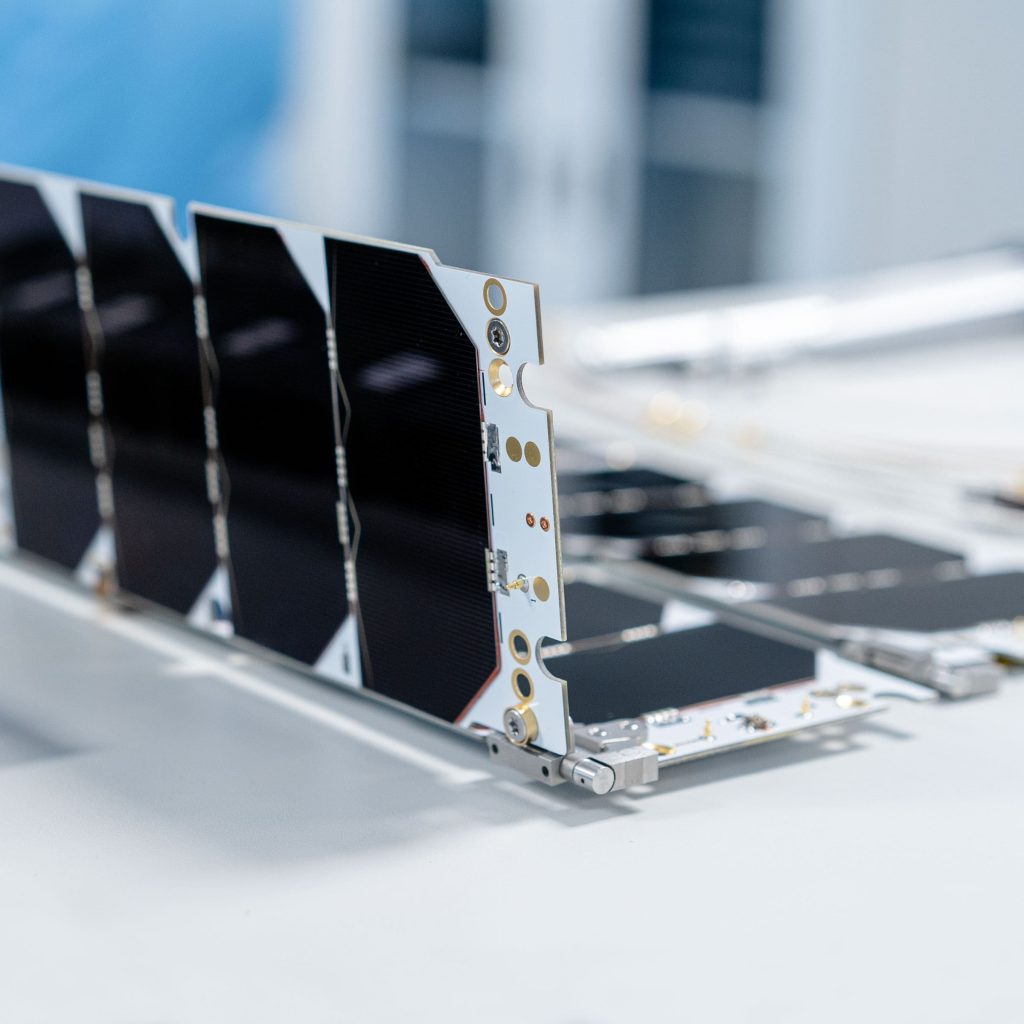

Space-qualified deployable Solar Array
3U X Y Deployable Solar Array web 9
3U X Y Deployable Solar Array web render 5

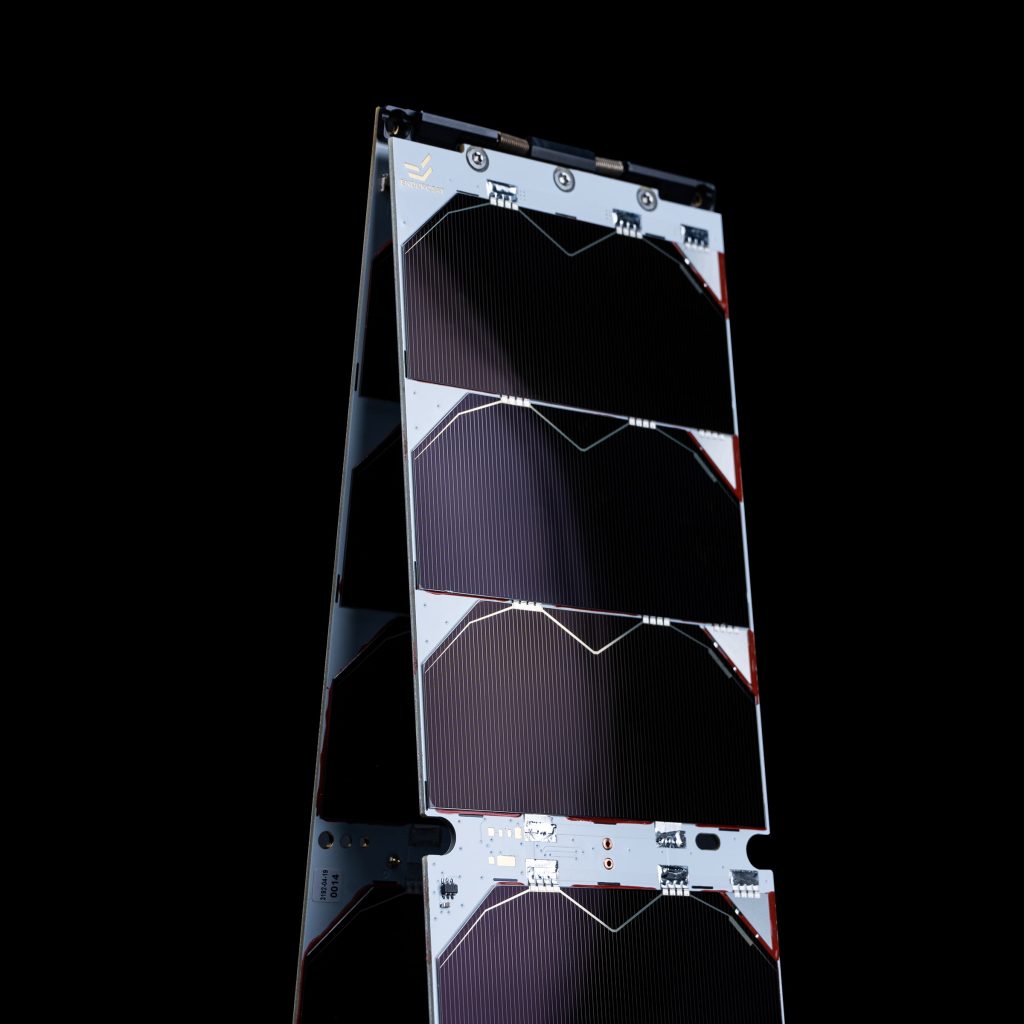

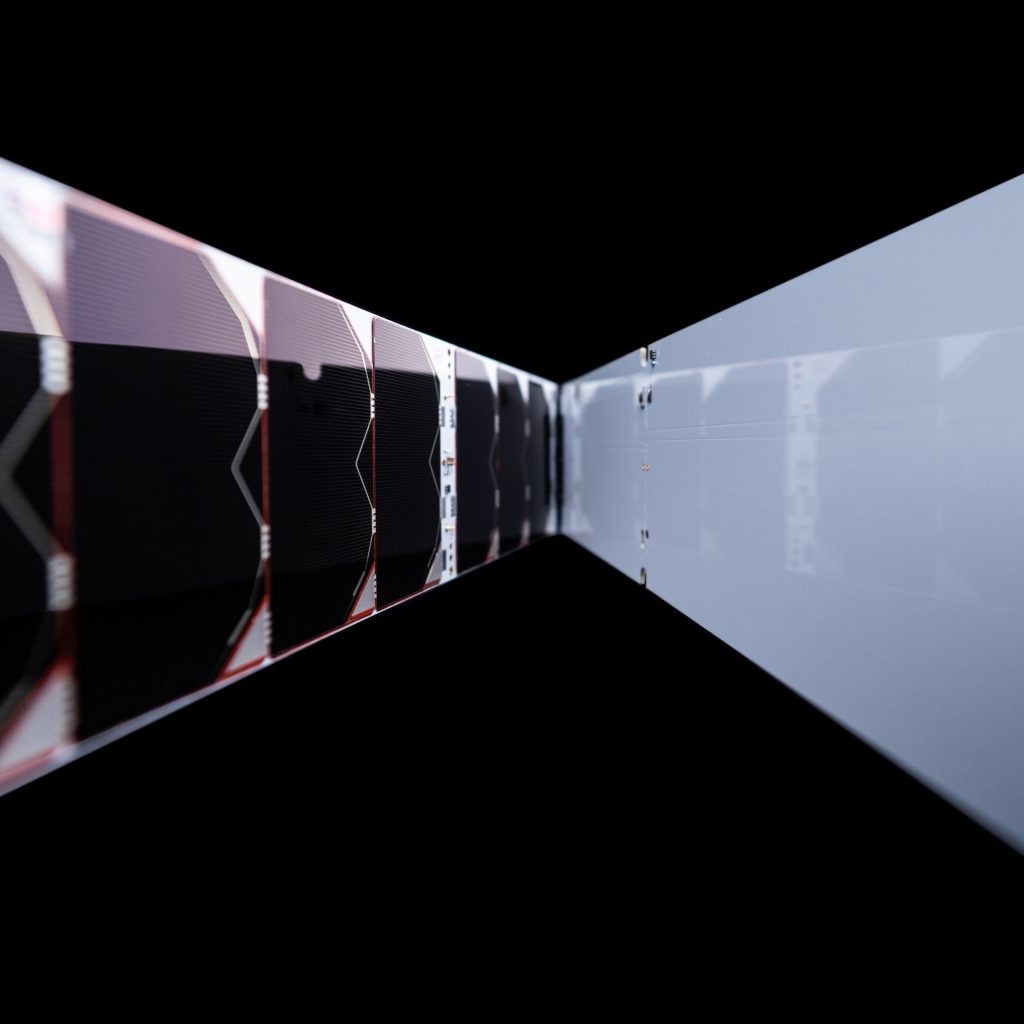

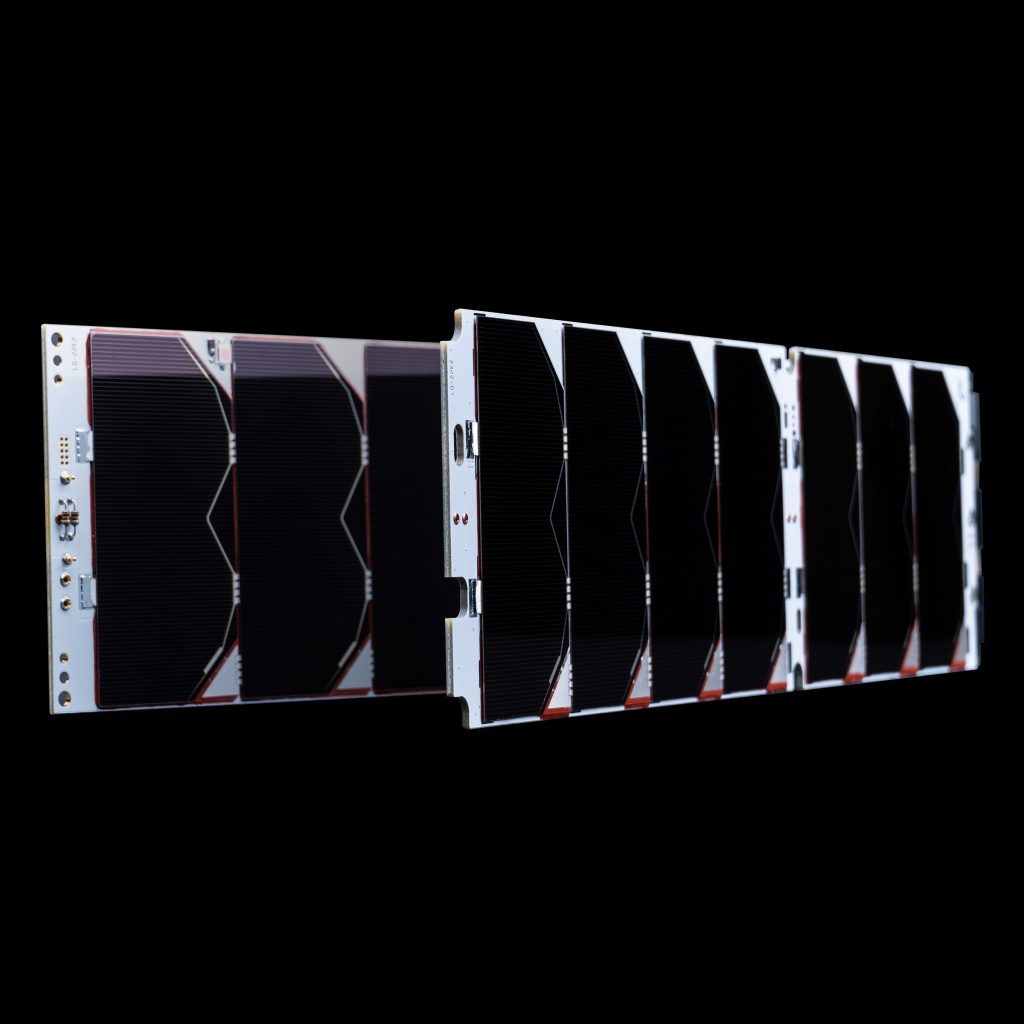

Triple Junction Solar Cells for Space Applications with efficiency higher than 29.5%

3U X Y Deployable Solar Array web render 1

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO
3U Z Depoloyable Solar Array web render 2

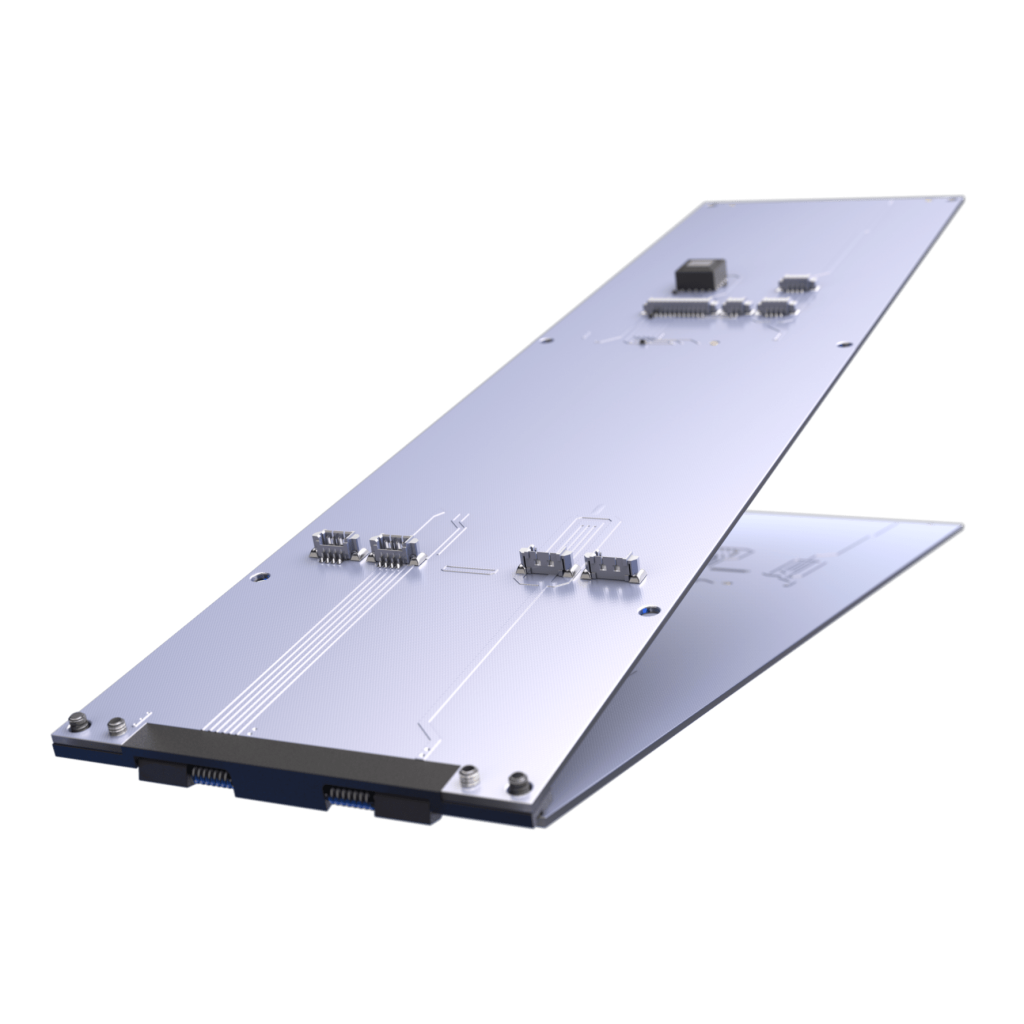

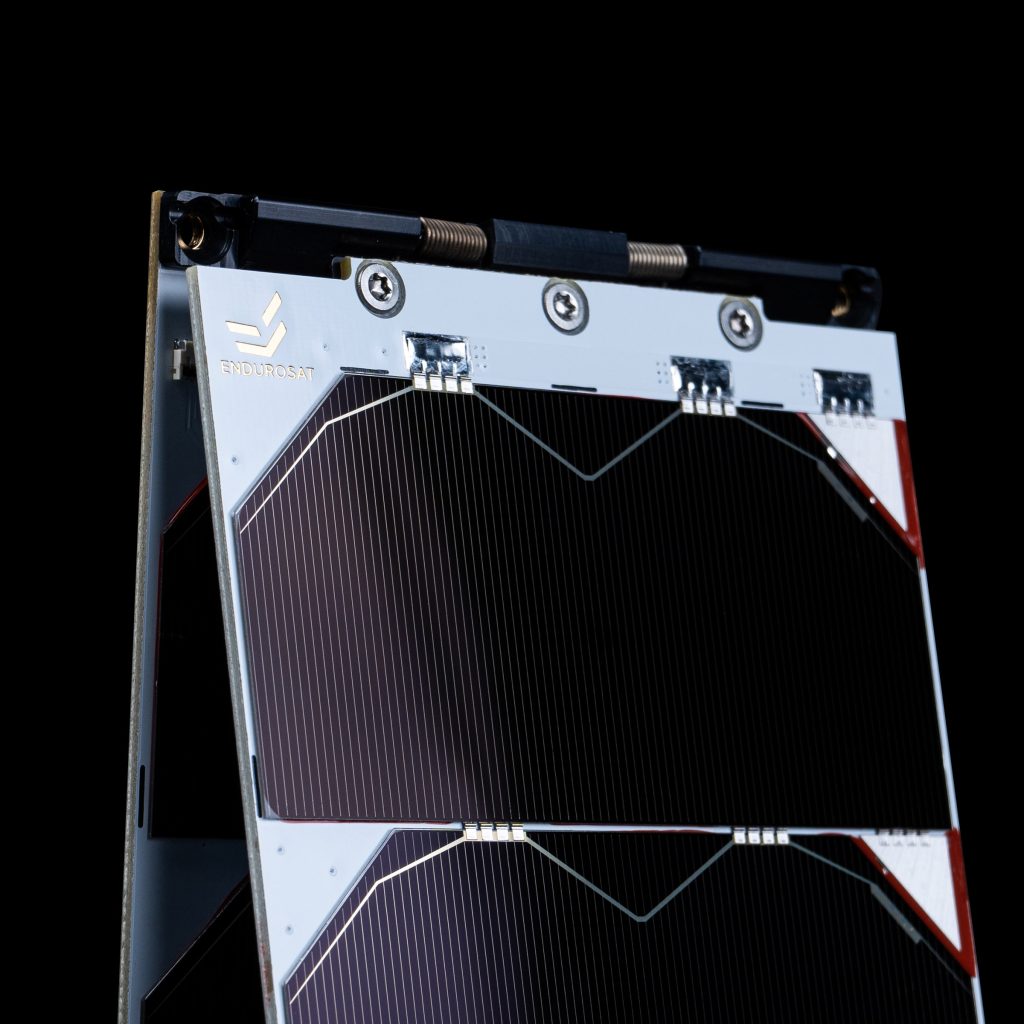

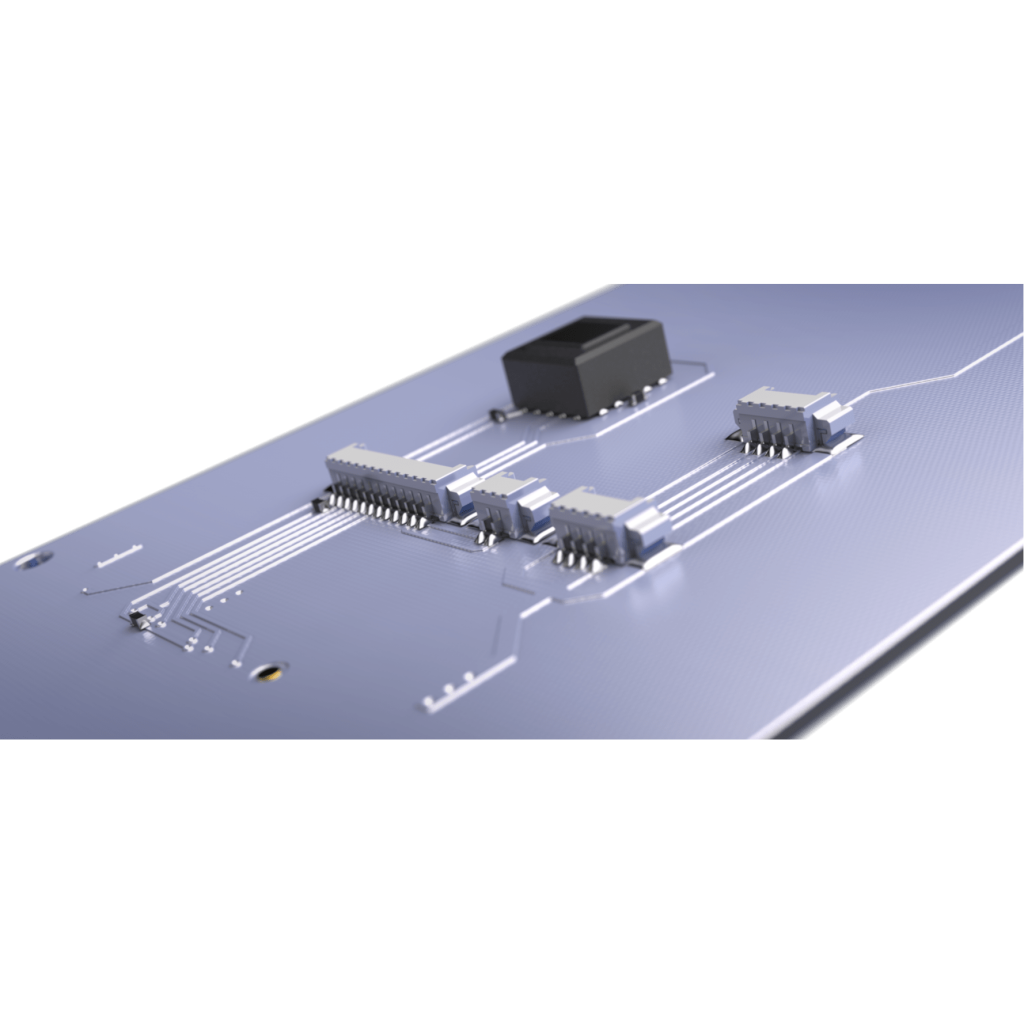

Integrated sun sensors & gyroscope option

3U X Y Deployable Solar Array web render 3

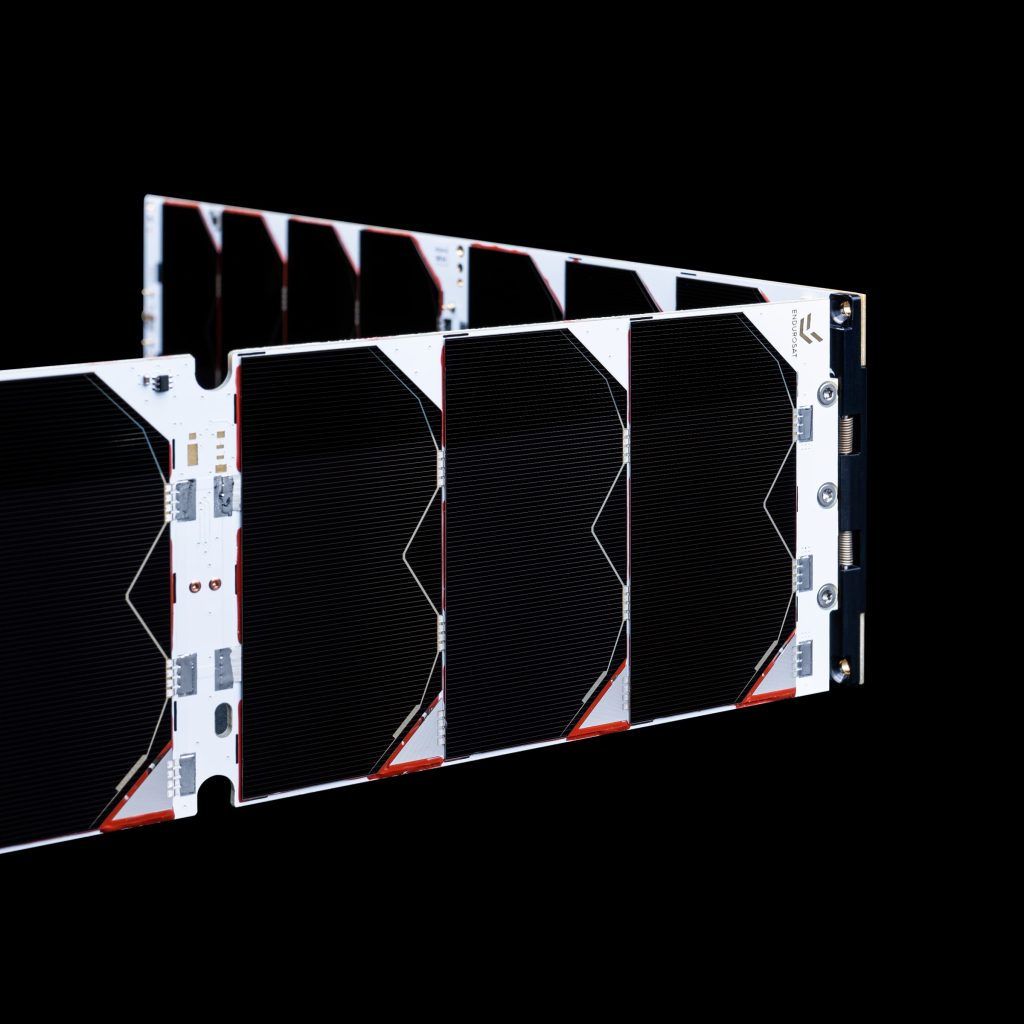

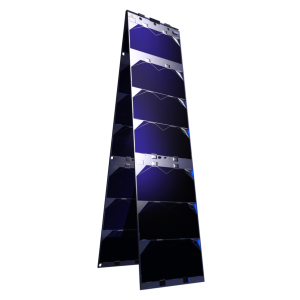

Series or parallel connection based on custom power system requirements

SERIES OR PARALLEL CONNECTIONS COMPATIBLE WITH DIVERSE POWER SYSTEM REQUIREMENTS
PRODUCT GALLERY

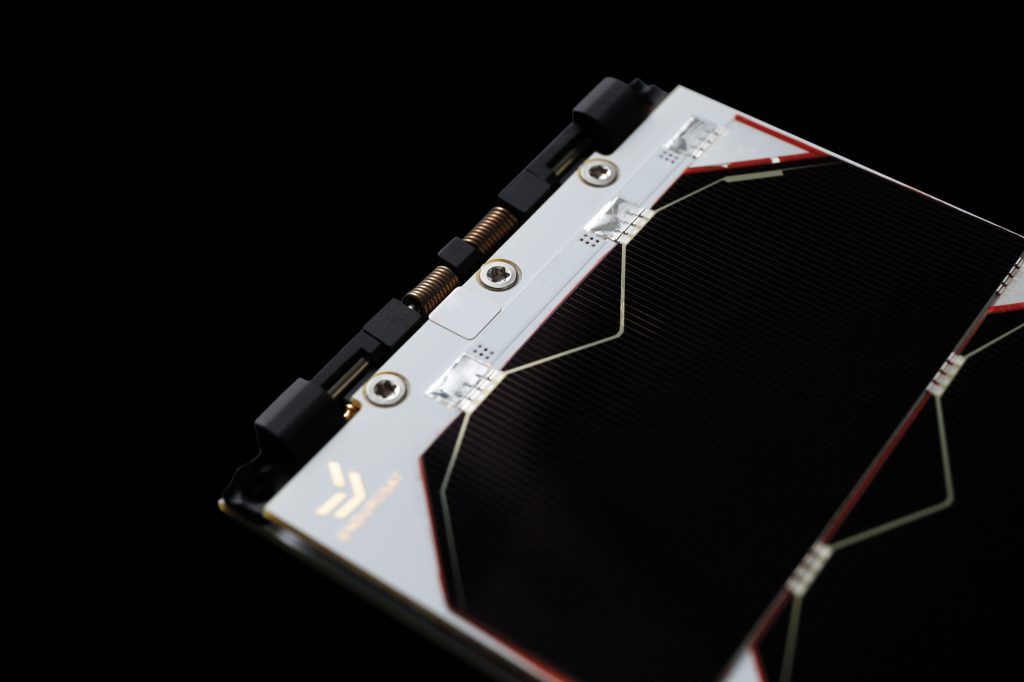

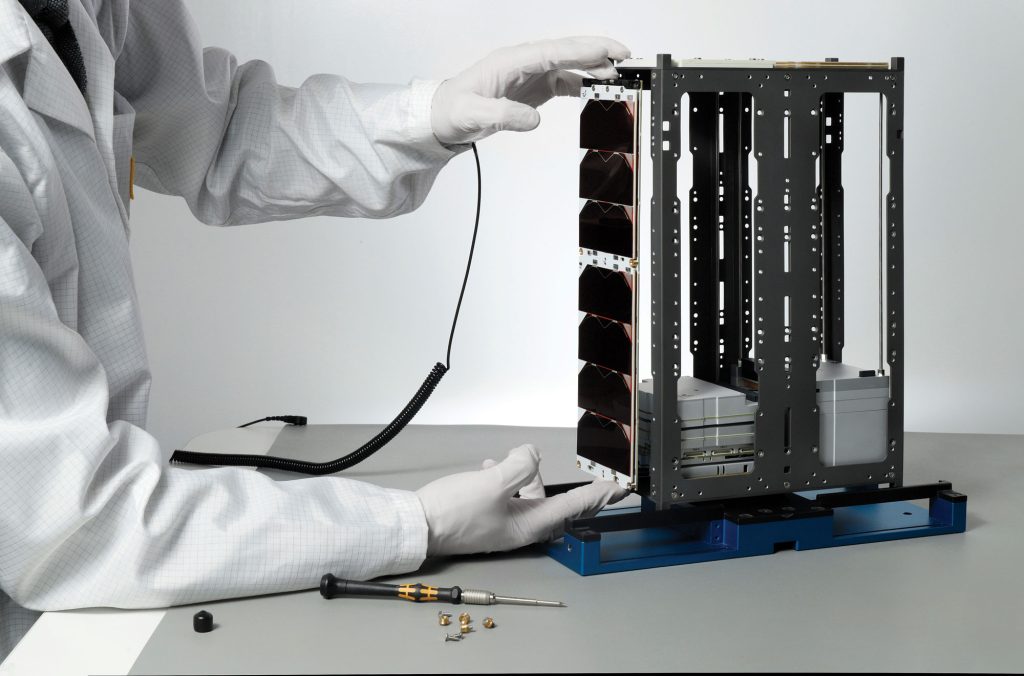

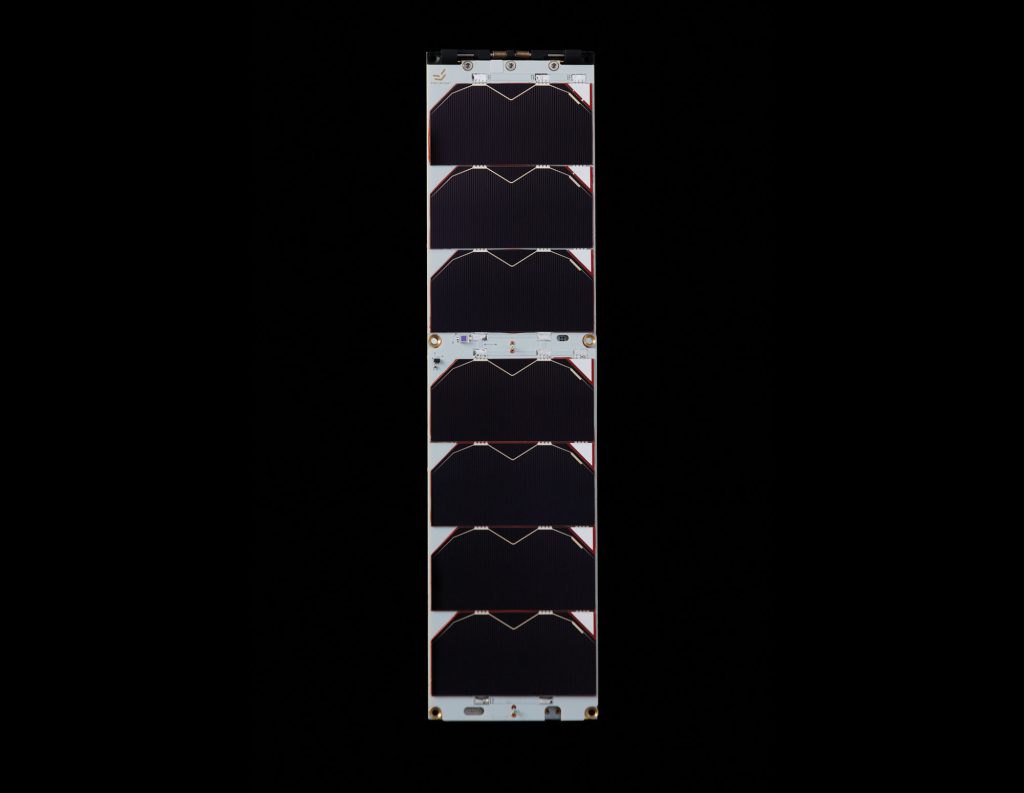

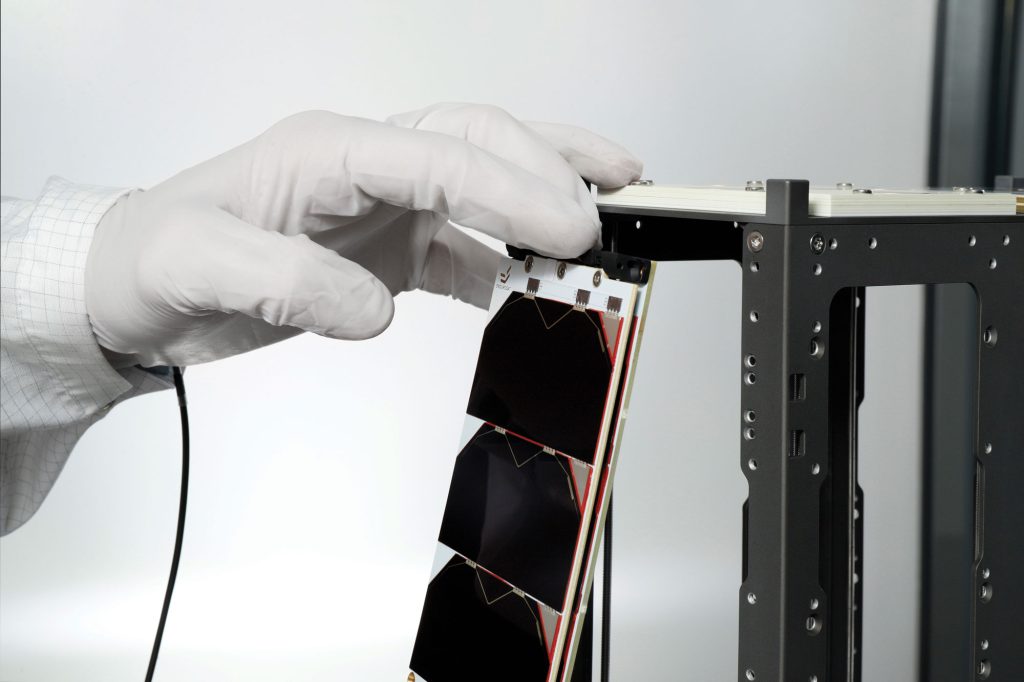

3U X Y Deployable Solar Array web 5
3U X Y Deployable Solar Array web 7
3U X Y Deployable Solar Array web 9
3U X Y Deployable Solar Array web 6
3U X Y Deployable Solar Array web 4
3U X Y Deployable Solar Array web 2
3U X Y Deployable Solar Array web 1
