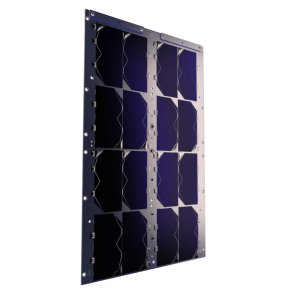

6U SOLAR PANEL

Power In Space
Cad file & datasheet
buy
buy
flight heritage badge state of the art report badge
Download
Cad file & datasheet
buy
buy
29.5+%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
19.2+W
IN LEO

Fully qualified Solar Panels

FEATURES
Power Efficiency At EOL
29+%
Max Power
19.2+W in LEO
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Integrated H-Bridge for control of external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
390 g
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
24V (8s2p), 12V (4s4p)
Max Current
1A (8s2p), 2A (4s4p)
PCB Thickness
1.6 mm
6U Solar Panel web render 1
Generating Power for Complex Missions

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Fully qualified Solar Panels
6U Solar Panel web 7
6U Solar Panel web render 4

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

6U Solar Panel web render 2

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO
6U Solar Panel web render 3 e1711027034555

Integrated sun sensors + gyroscope option

6U Solar Panel web render 5

Multiple series & parallel connection options, covering diverse power system requirements

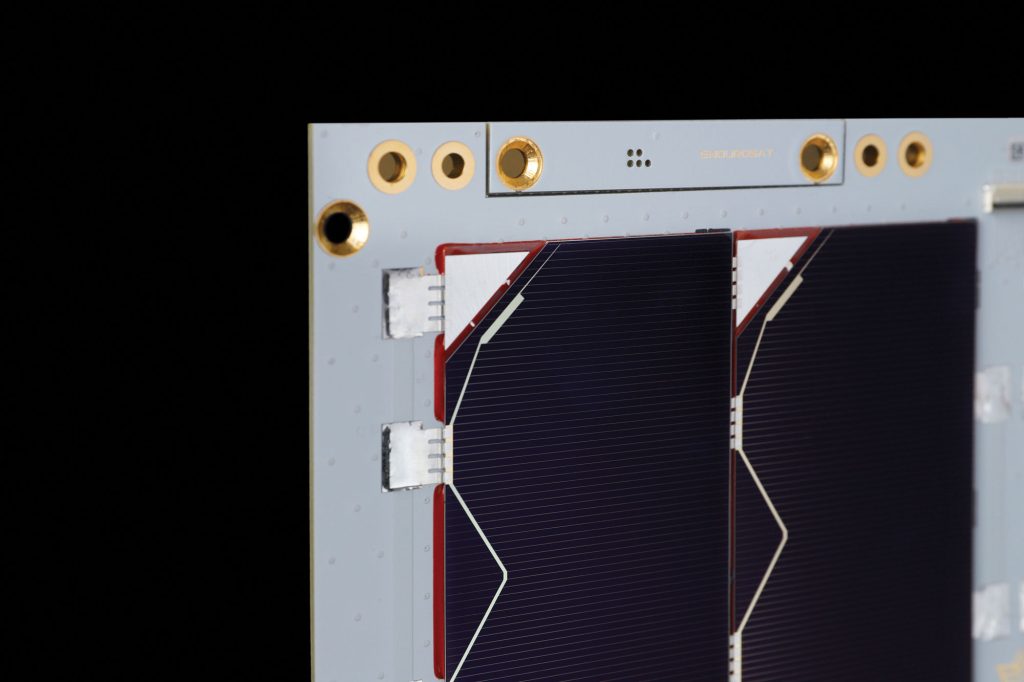

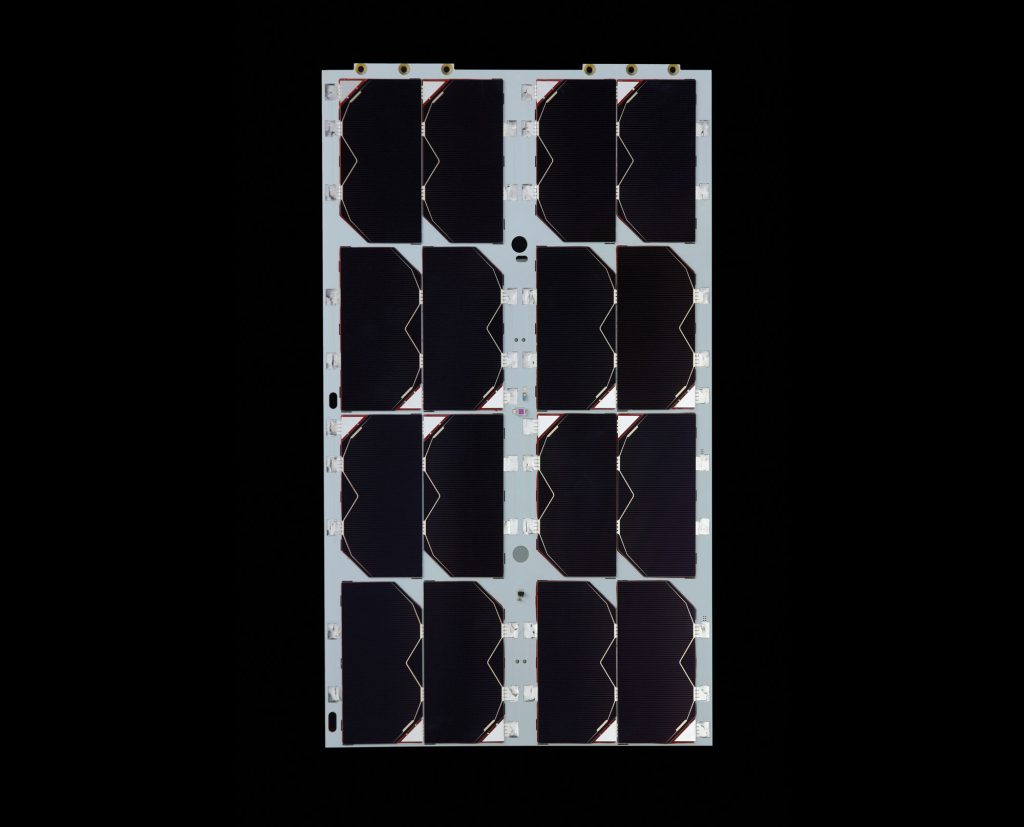

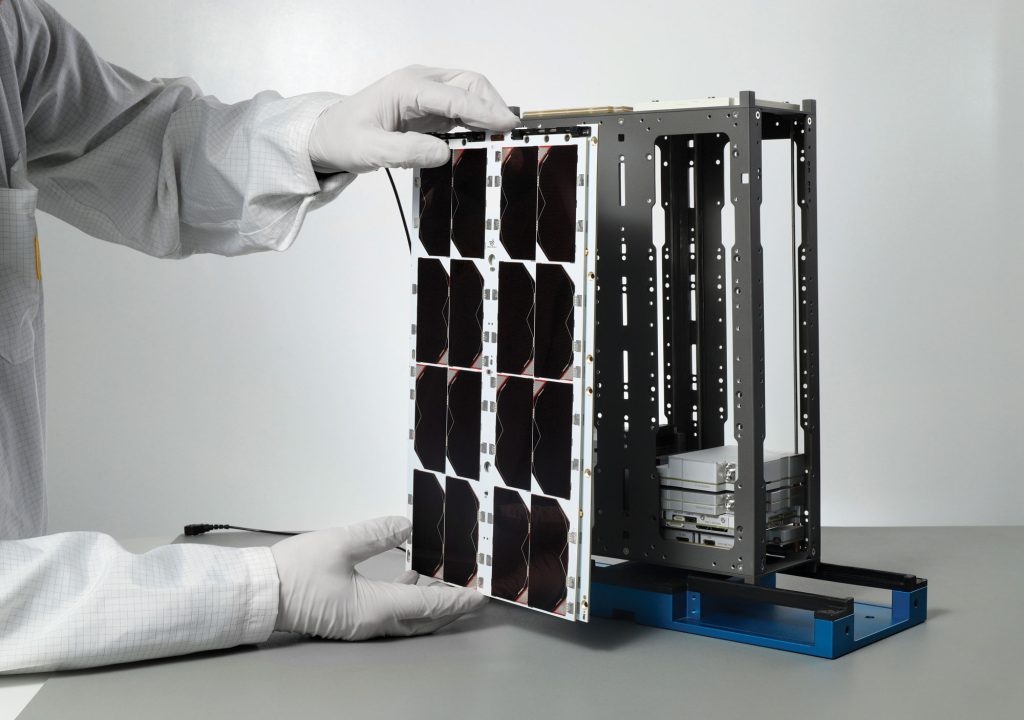

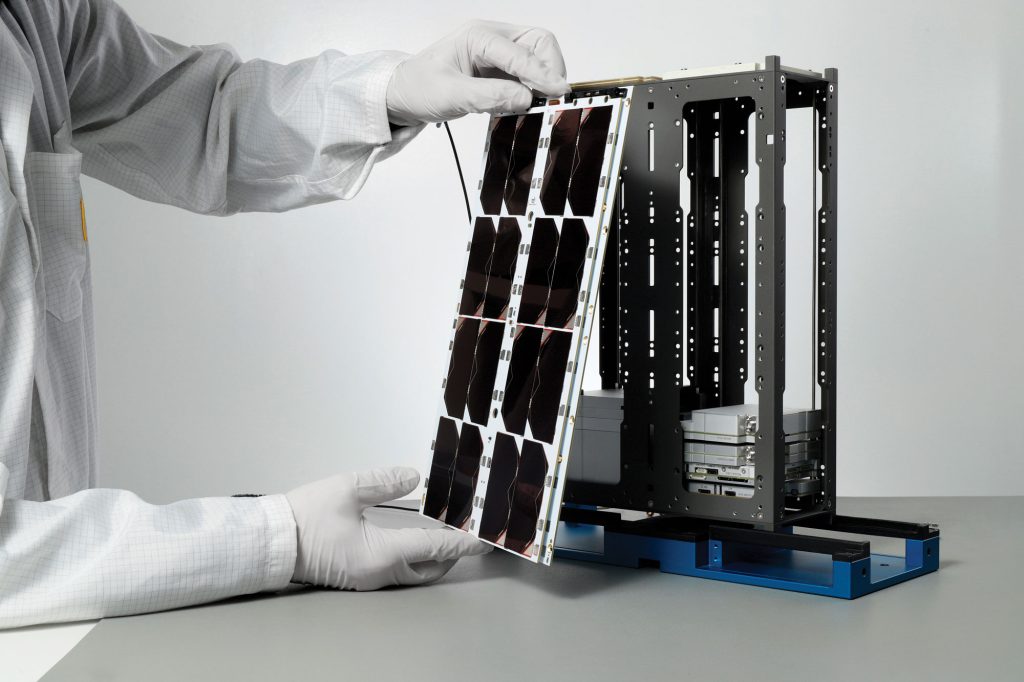

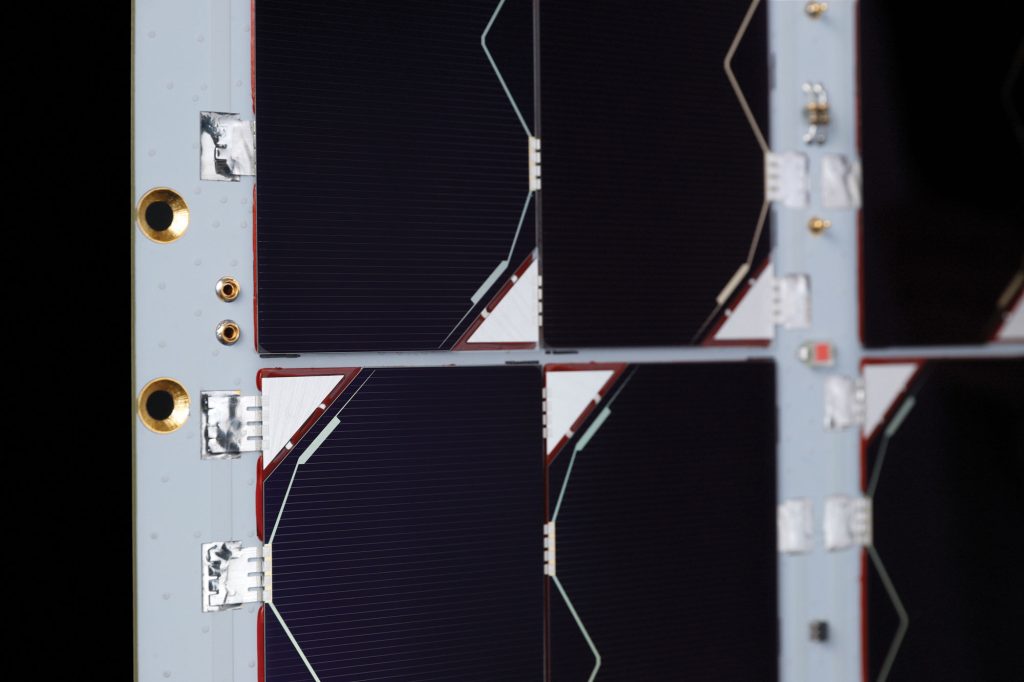

PRODUCT GALLERY
