8U SOLAR PANEL

Power in Space
Cad file & datasheet
Select Options
Select Options
Cad file & datasheet
Select Options
Select Options
29.5+%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
24+W
IN LEO

Space-qualified Solar Panels

FEATURES
Power Efficiency At EOL
29+%
Max Power
24+W in LEO
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
Control Interface
RS-485
MTQ
Integrated H-Bridge for control of external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
470 ± 20 g
Customisation
Multiple panels can be connected in series or parallel
Max Voltage
60.1V (20s1p), 30.1V (10s2p), 15V (4s5p)
Max Current
512mA (20s1p), 1024mА (8s2p), 2560mA (4s5p)
PCB Thickness
1.6 mm
8U Solar Panel web render 5
Speed Matters

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Space-qualified Solar Panels
8U Solar Panel web 22
8U Solar Panel web render 3

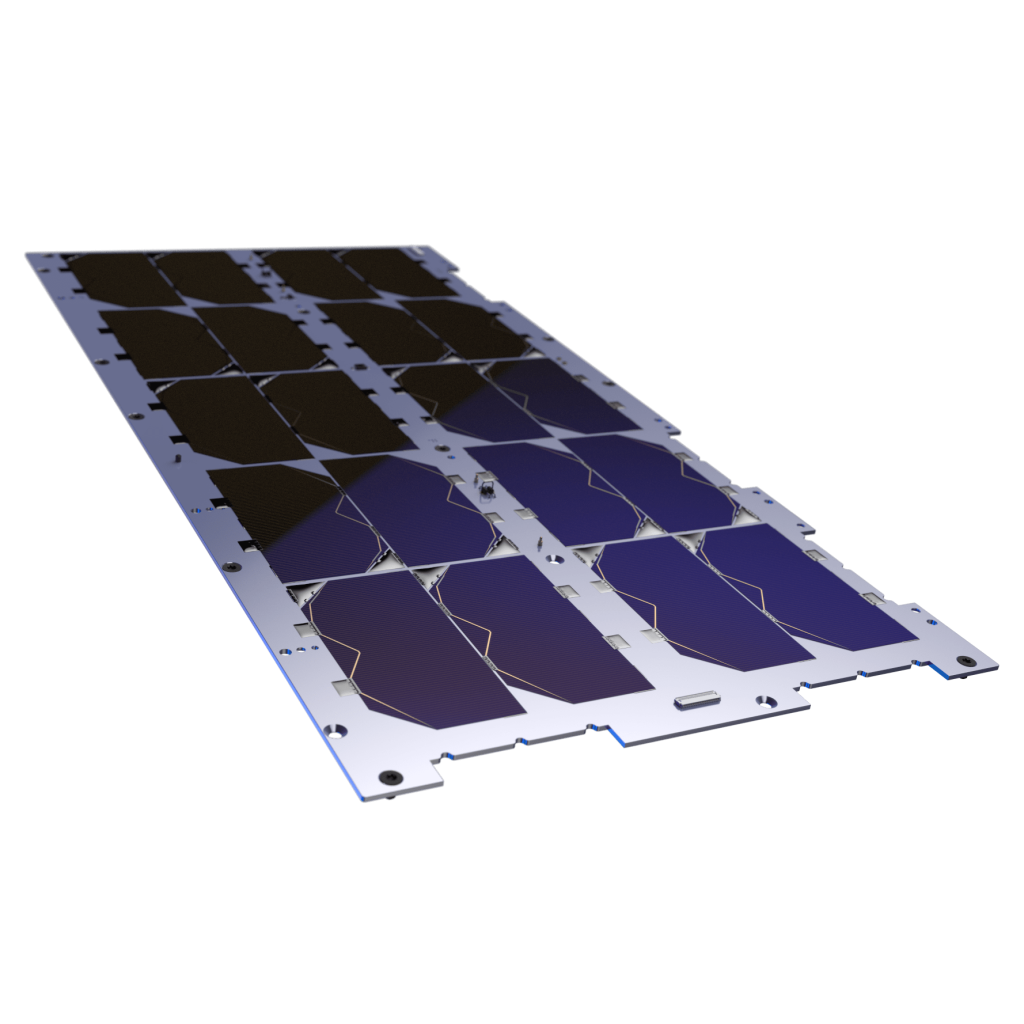

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

8U Solar Panel web render 1

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO
8U Solar Panel web render 2 e1710851481632

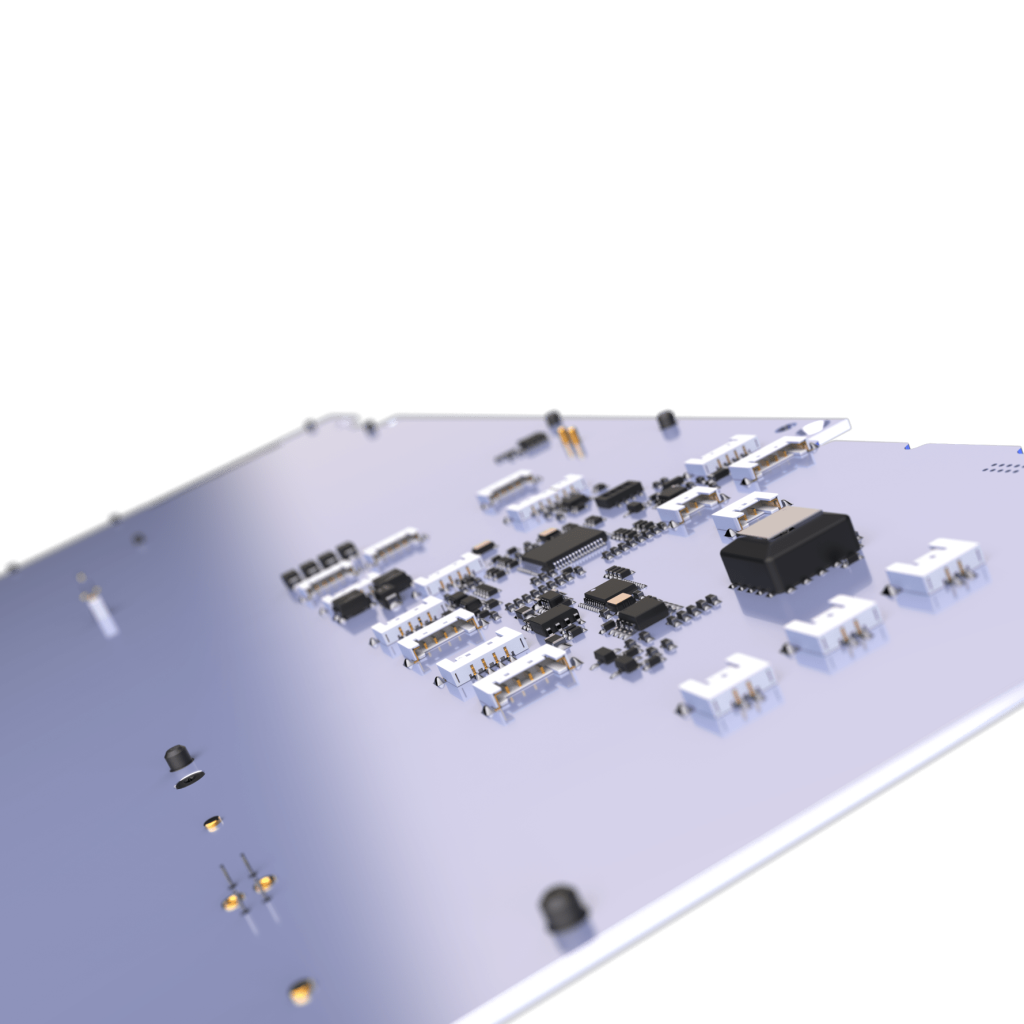

Integrated sun sensors + gyroscope option

8U Solar Panel web render 4

Multiple series and parallel connection options, covering diverse power system requirements

PRODUCT GALLERY
8U Solar Panel web 23
8U Solar Panel web 2
8U Solar Panel web 19
8U Solar Panel web 17
8U Solar Panel web 16
8U Solar Panel web 14
8U Solar Panel web 10
8U Solar Panel web 6
8U Solar Panel web 1
6U Deployable Solar panel
6U Deployable Solar Array
Power Efficiency At EOL
29+%
Max Power
Up to 19.2 W in LEO per side
Mass
757 g
Discover
6U Solar panel
6U Solar Panel
Power Efficiency At EOL
29+%
Max Power
Up to 19.2 W in LEO
Mass
390 g
Discover
1.5U Double Deployable Solar panel
3U Deployable Solar Array
29+%
triple junction solar cells
Max Power
8.4+W in LEO per side
X/Y & Z
hinge mounting options
Discover
3U Solar panel
3U Solar Panel
Power Efficiency At EOL
29+%
Max Power
8.4 W in LEO
Mass
146 g
Discover
1.5U Solar panel
1.5U Solar Panel
Power Efficiency At EOL
29+%
Max Power
3.6+W in LEO
Mass
65 g (79 g with MTQ)
Discover
1U Solar panel X Y
1U Solar Panel X/Y
Power Efficiency At EOL
29+%
Max Power
2.4+W in LEO
Mass
44 g (53 g with MTQ)
Discover
1U Solar panel Z
1U Solar Panel Z
Power Efficiency At EOL
29+%
Max Power
2.4+W in LEO
Mass
48 g (57.5 g with MTQ)
Discover
2500
MODULES IN ORBIT
50
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
