3U CUBESAT STRUCTURE

Modular and precise frame for CubeSat assembly
Cad file & datasheet
Add
Add
flight heritage badge state of the art report badge
Download
Cad file & datasheet
Add
Add
340 g
LIGHTWEIGHT DESIGN
FINISH
HARD-ANODIZED SURFACE
1/2
KILL SWITCHES

Flight-proven 3U satellite structure

FEATURES
Dimensions
100x100x340.5 mm
Material
Aluminum 6082
Mass
340 g (including fasteners, 2 kill switches and 2 separation springs)
Compliance
PC104 full compliance, CubeSat Standard

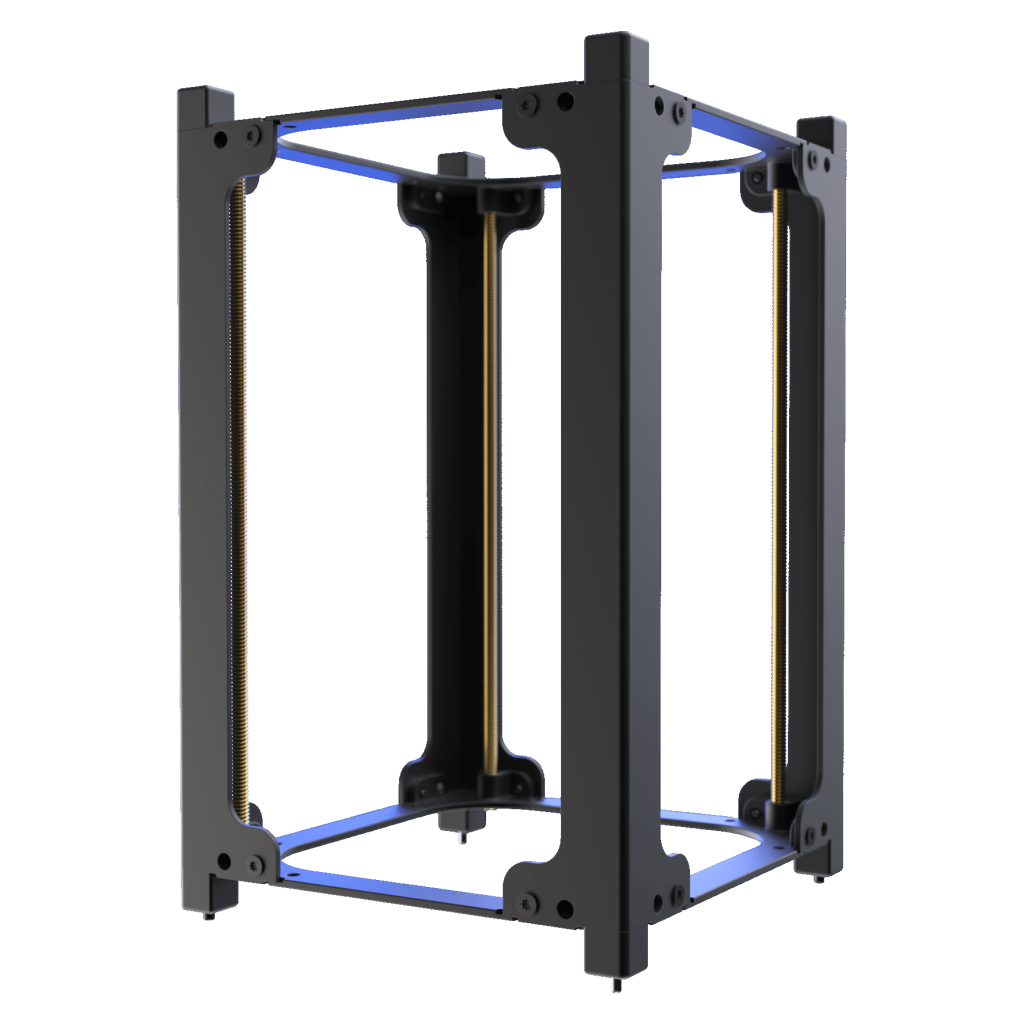

3U CubeSat Structure Front View
Modular and precise frame for CubeSat assembly

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs
Space-grade 3U CubeSat structure

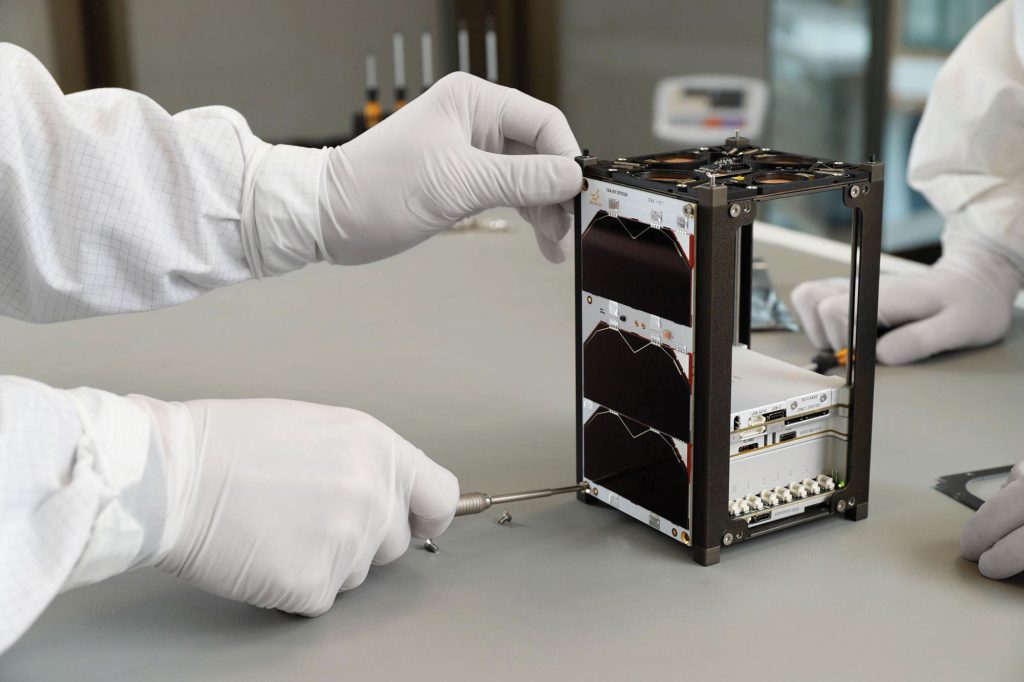

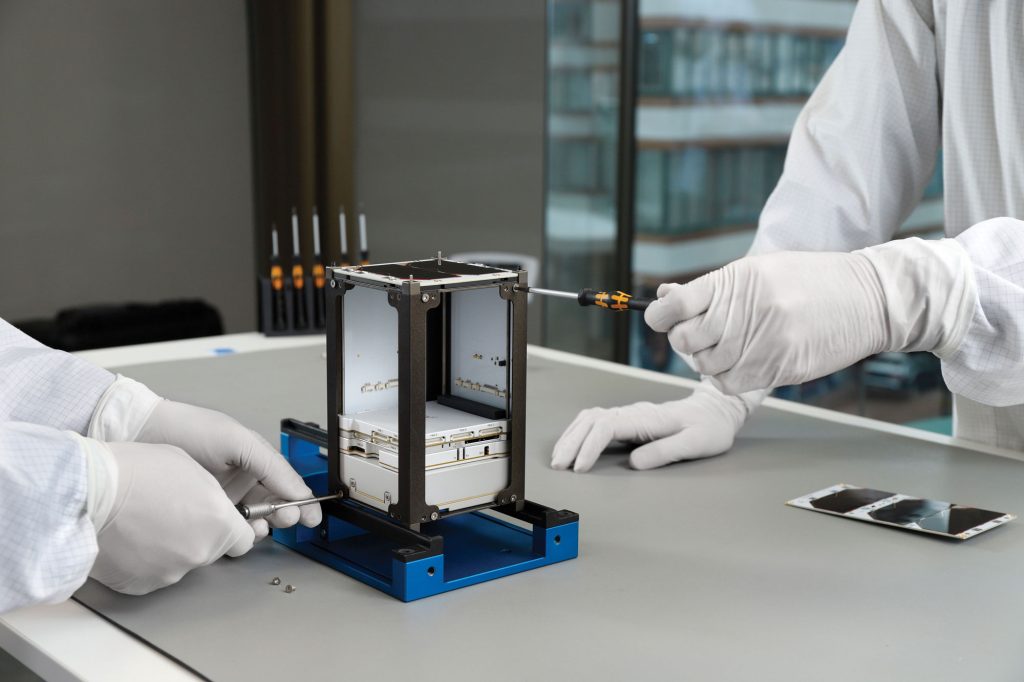

3U CubeSat Structure Lab Assembly

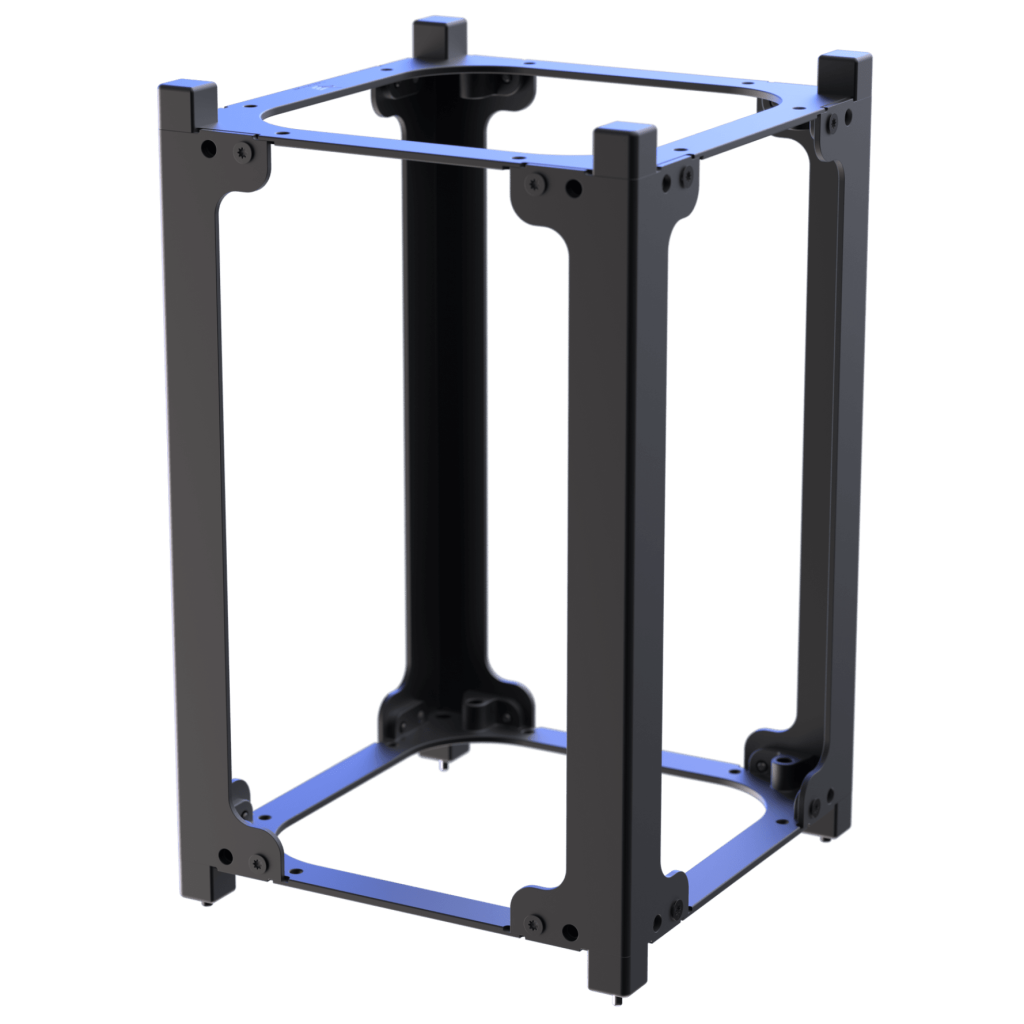

3U CubeSat Structure Side View

Simple modular design for easy assembly both vertically and horizontally

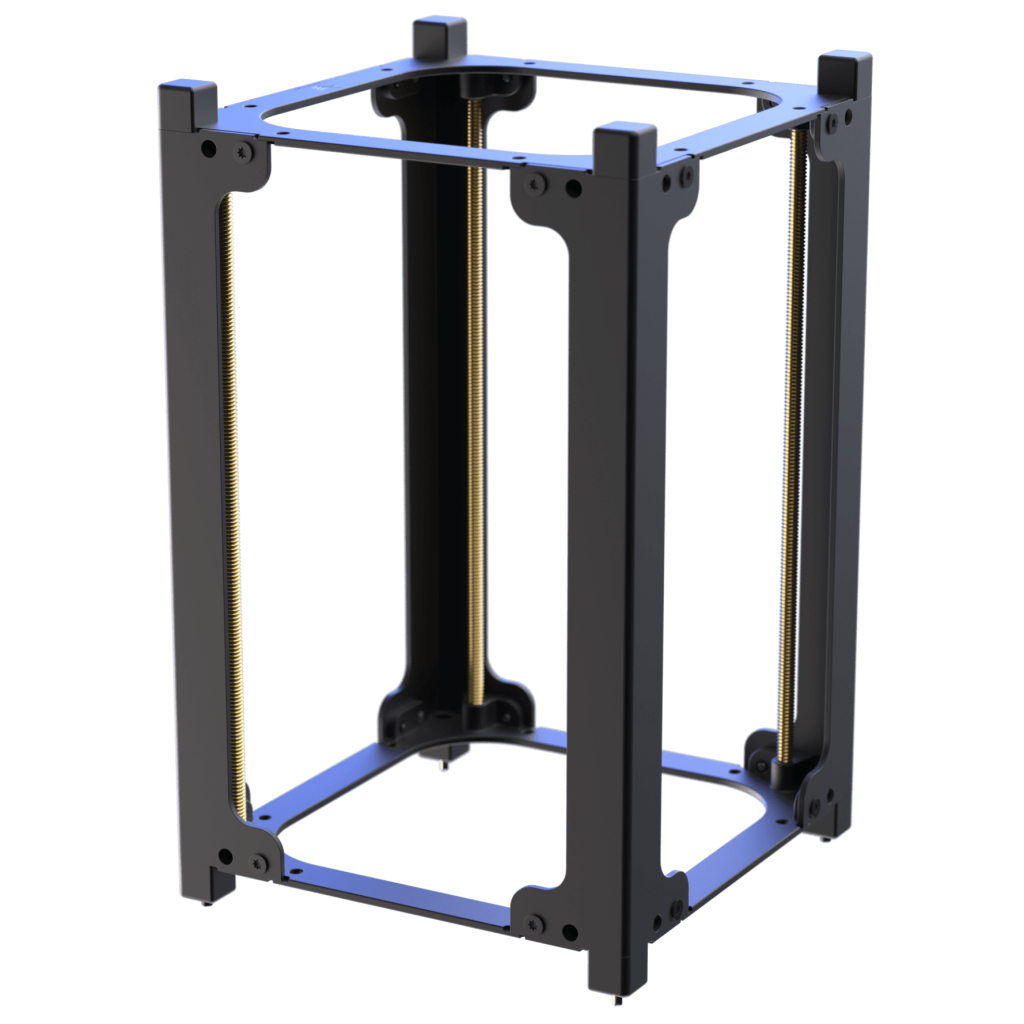

3U CubeSat Structure Frontal View

One/two kill switches option

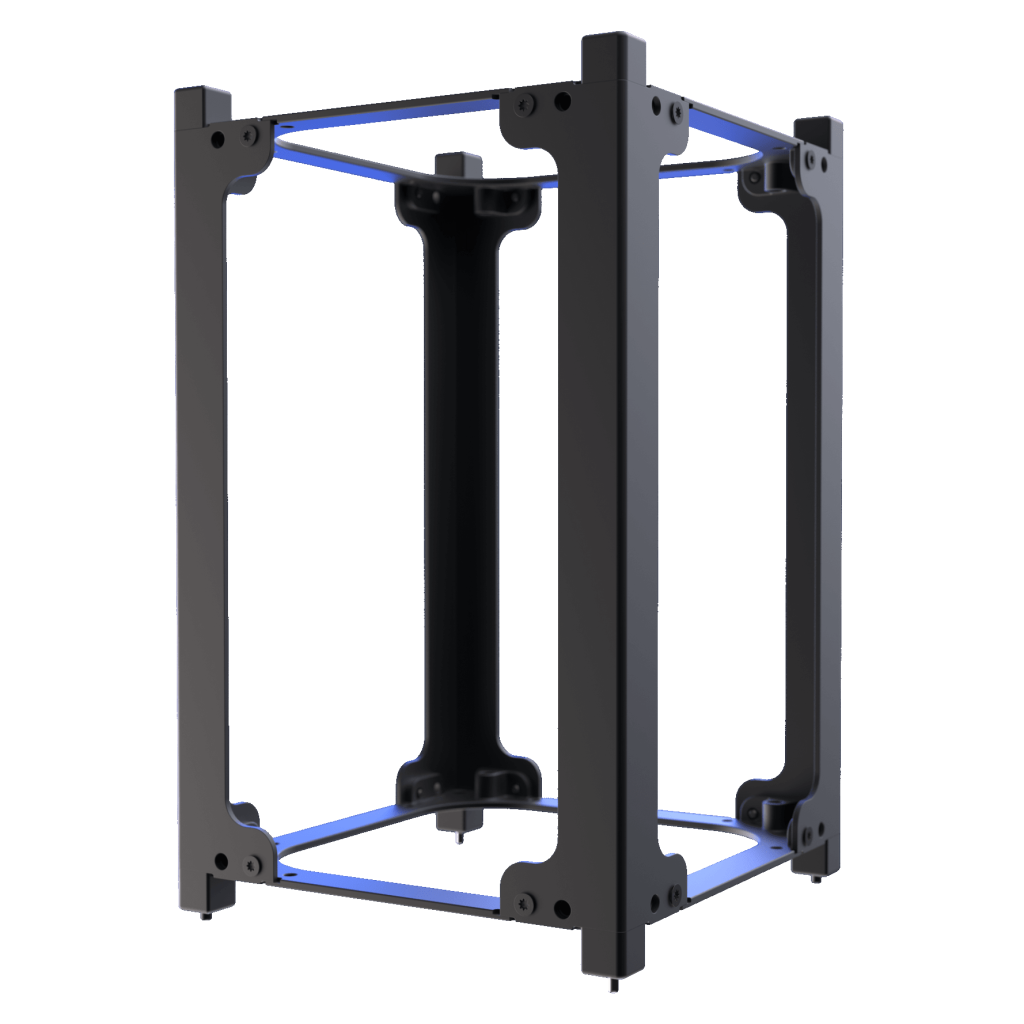

3U CubeSat Structure Side View

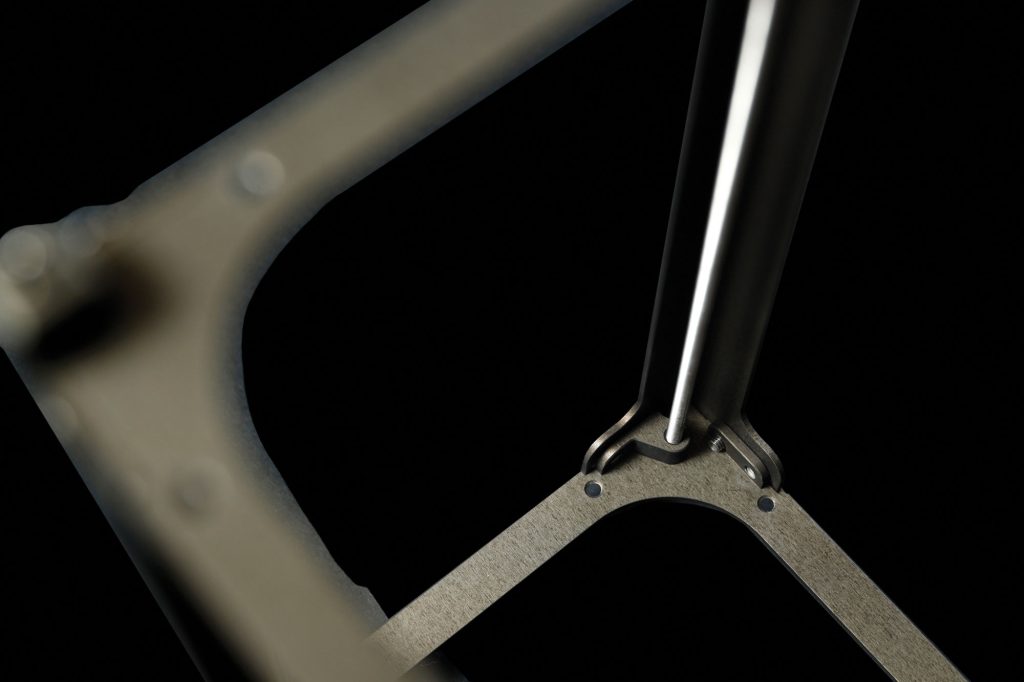

Pearl-finished & hard anodized

PRODUCT GALLERY

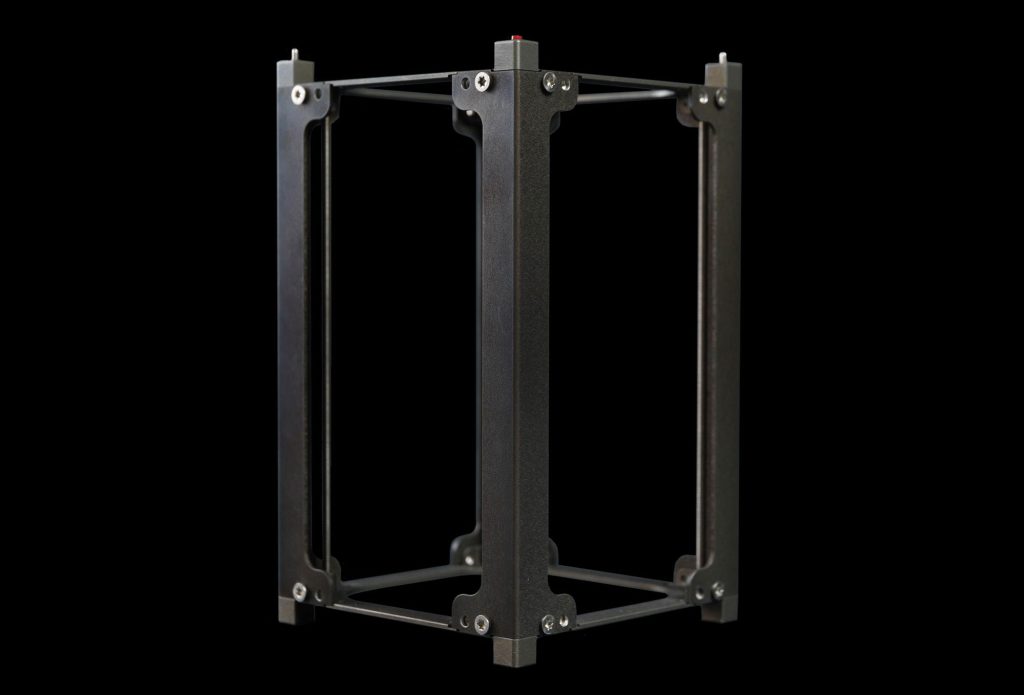

3U CubeSat Structure Front View

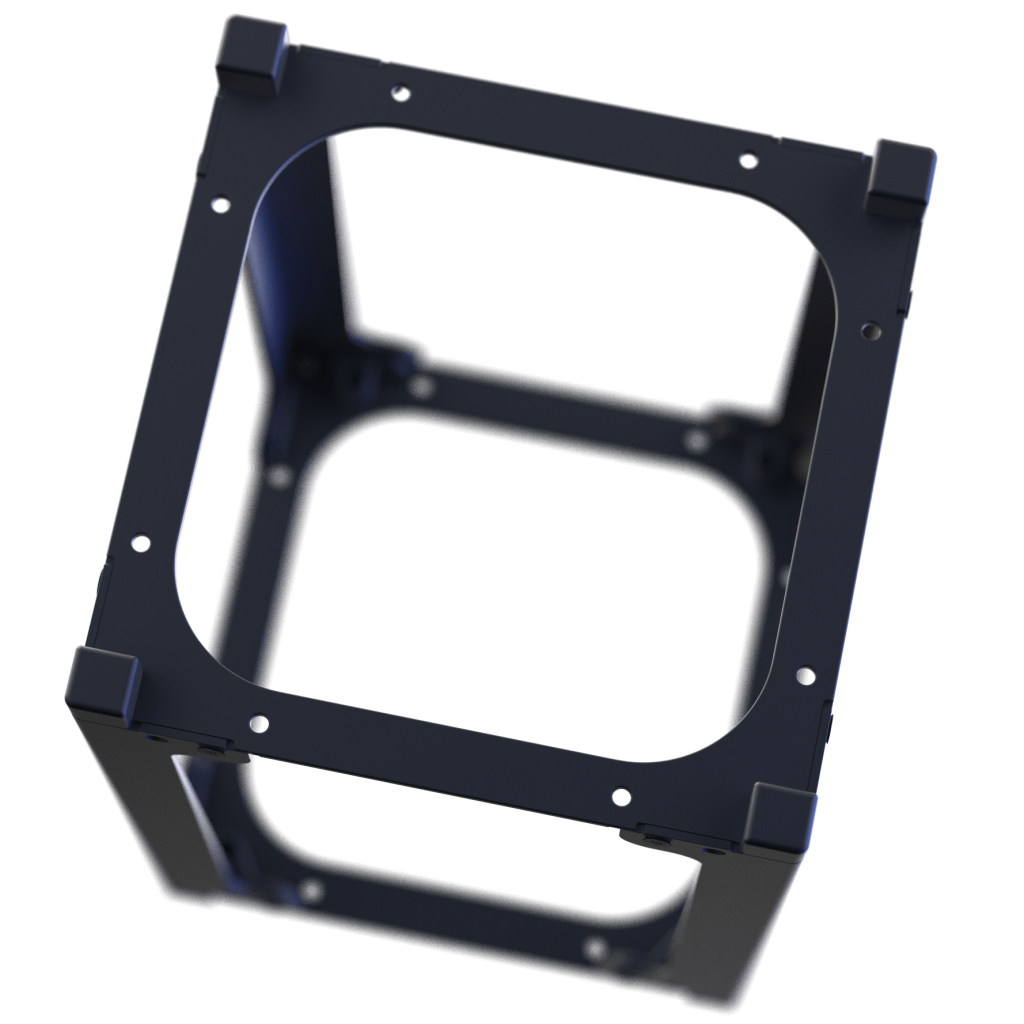

3U CubeSat Structure View from Top
3U CubeSat Structure Side View
3U CubeSat Structure Assembly in the Lab
3U CubeSat Structure Assembling
3U CubeSat Structure Lab Assembly
3U CubeSat Structure Assembling with othe CubeSat hardware
3U CubeSat Structure Assembly with CubeSat hardware
Related Products
16U Cubesat Structure
16U
Dimensions
226.3 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
2.5 kg
Discover
12U Cubesat Structure
12U
Dimensions
226.3 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
2.44 kg
Discover
8U Cubesat Structure
8U
Dimensions
100 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
973 g
Discover
6U Cubesat Structure
6U
Dimensions
100 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
850 g
Discover
3000
MODULES IN ORBIT
120
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
LEARN MORE

Datasheet & CAD File

3U Cubesat Structure

Awesome, I want to receive news and product updates (optional)
I give my consent to EnduroSat EAD to store and administrate my personal data with the purpose of responding to my request.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

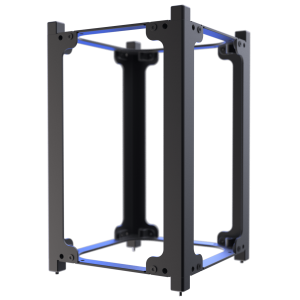

3U Cubesat Structure Frame
