endurosat-educational-communicational-modules-innospacecomm

UHF(physical), S-band and X-band link simulations

Free space losses and additional (atmospheric, polarization etc.) losses

External interference and jamming

Different modulation schemes, transmission speeds and packet parameters

Educational Comm System


Learn by doing

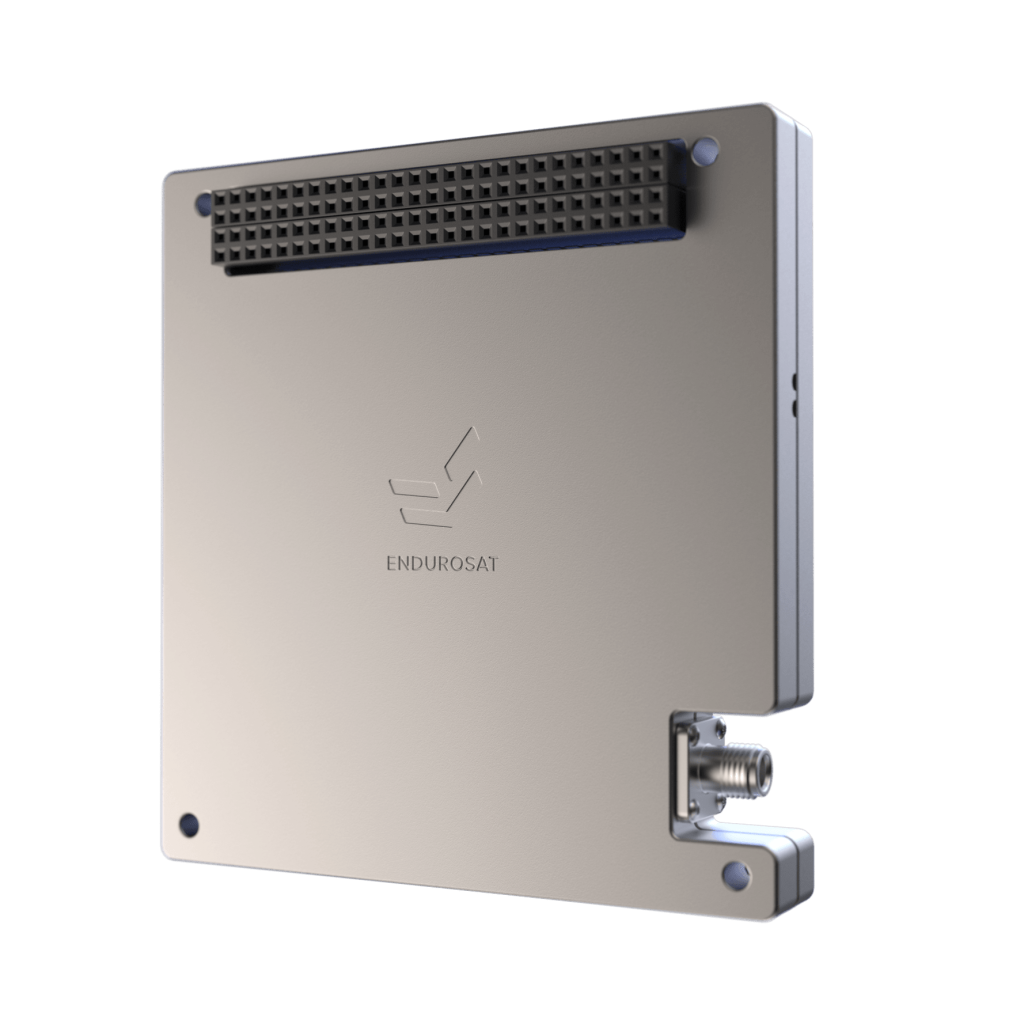

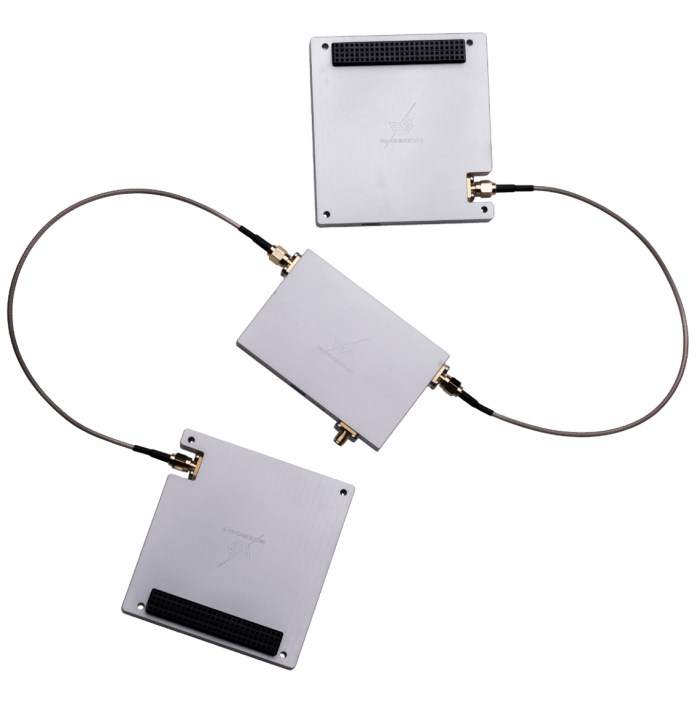

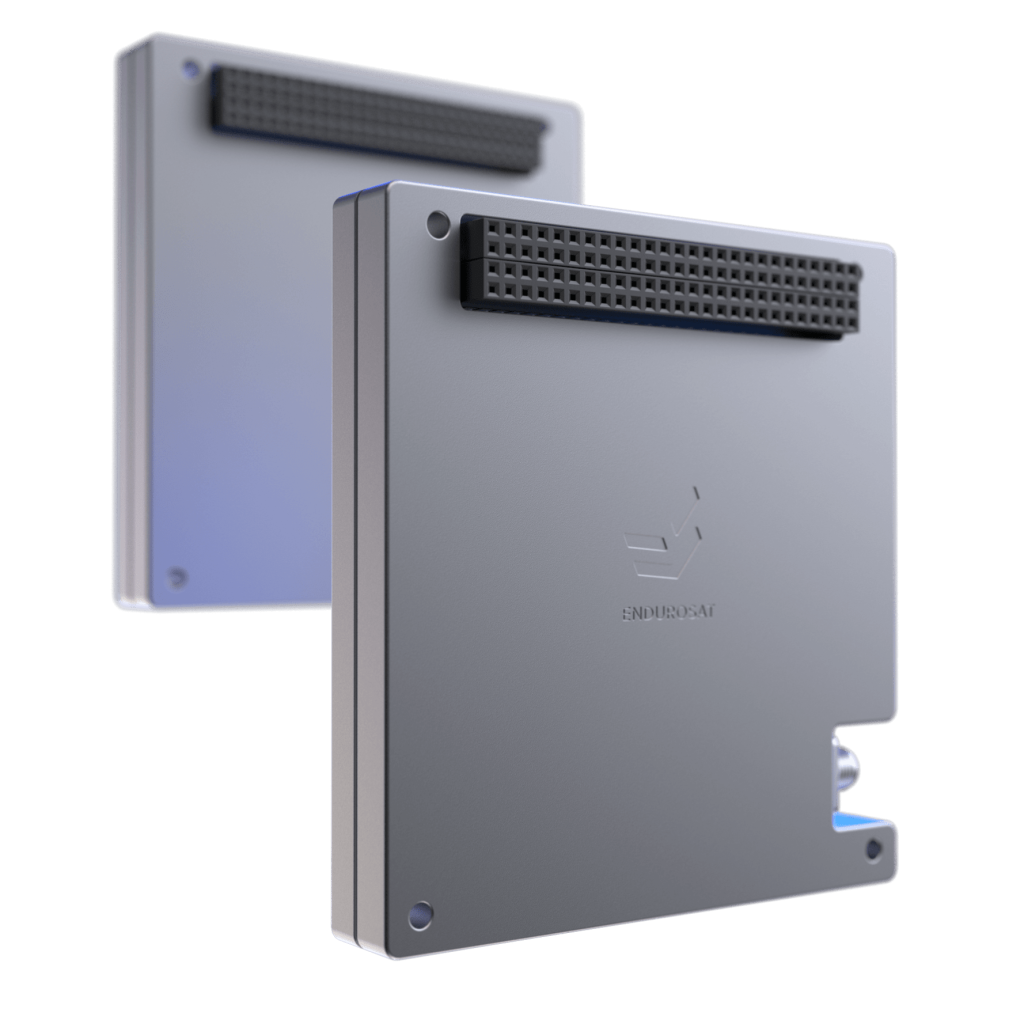

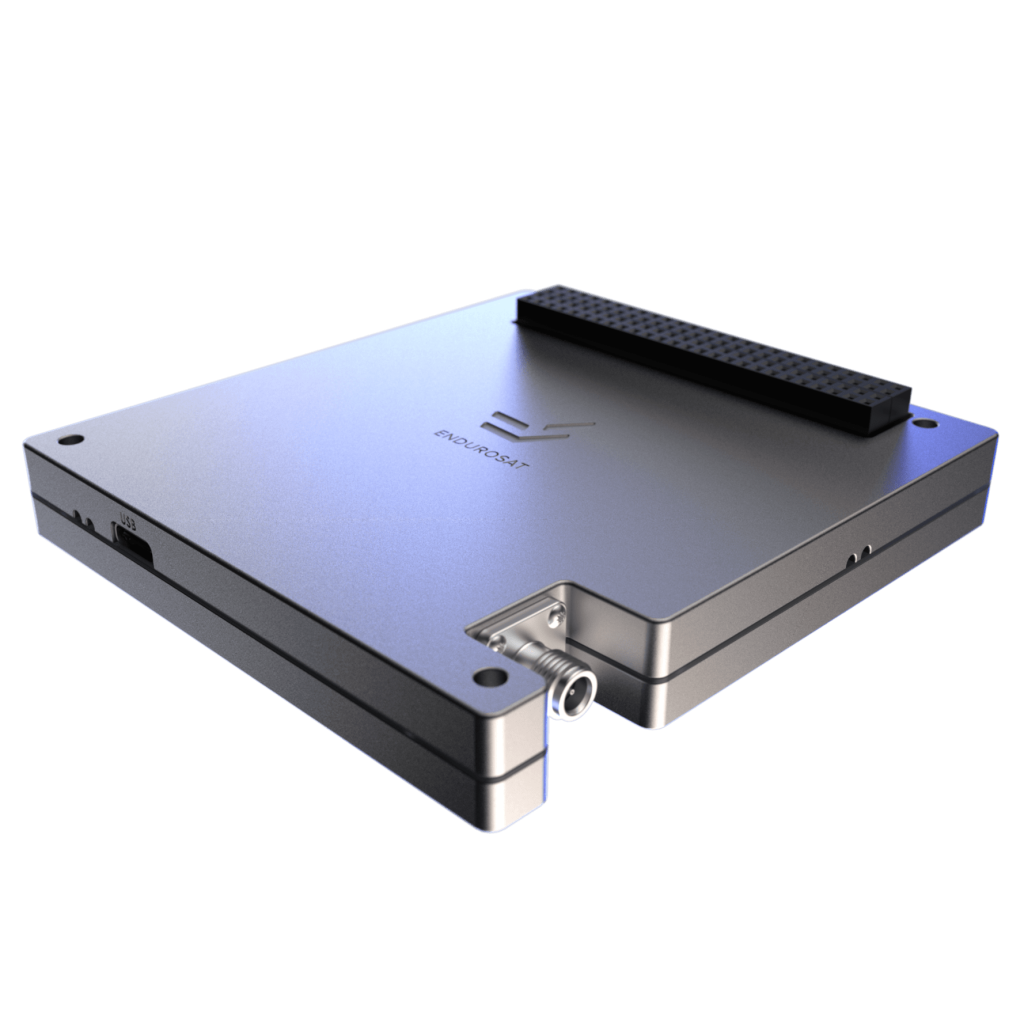

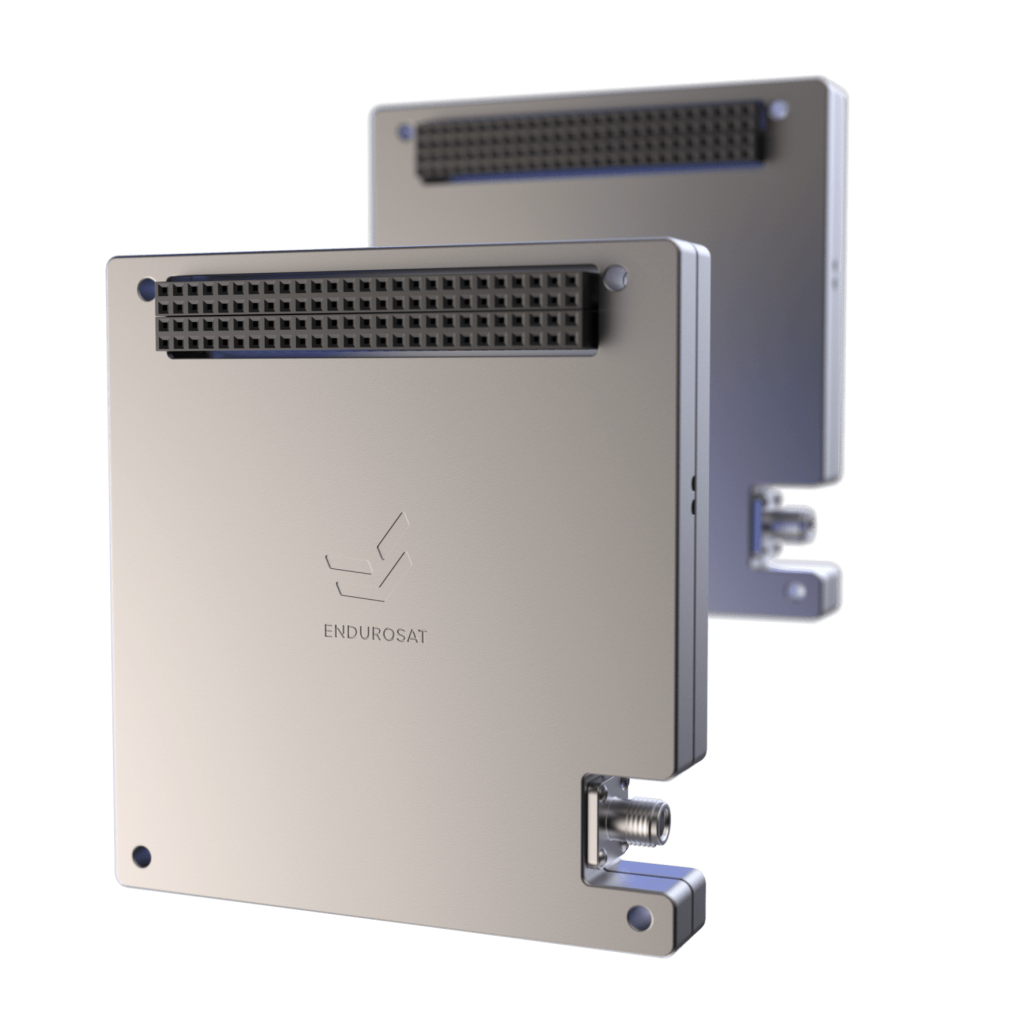

The EnduroSat Educational Communications System consists of two low-power transceivers and a free space simulator board. It is capable of physically simulating a complete satellite downlink with all of its relevant aspects in the UHF range and supports software simulation of S-band and X-band ranges. Key parameters such as antenna gains, transmit power, polarization, attenuations and even Doppler effect make it a cutting-edge realistic RF educational system.

Included with this product

  • 1 hour of engineering support
  • Packed in a custom box
  • Full warranty
  • Technical information (Datasheet)

Technical Specifications

  • Operating frequency bandwidth: 430-450 MHz (physical)
  • UHF(physical), S-band and X-band links
  • Simulation of free space losses and additional (atmospheric, polarization etc.) losses
  • External interference and jamming
  • Doppler effect
  • Different modulation schemes, transmission speeds and packet parameters
Show more

In addition

10 hours of free educational content available via the InnoSpaceTool:http://innospacecomm.com/project/innospacetool/
