1U CUBESAT STRUCTURE

Simplicity and Precision
Cad file & datasheet
Select Options
Select Options
flight heritage badge state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
120 g
LIGHTWEIGHT DESIGN
FINISH
HARD-ANODIZED SURFACE
1/2
KILL SWITCHES

Flight-proven robust 1U structure

FEATURES
Dimensions
100x100x113.5 mm
Material
Aluminum 6082
Mass
120 g (including fasteners, 2x kill switches and 2x separation springs)
Compliance
PC104 full compliance, CubeSat Standard

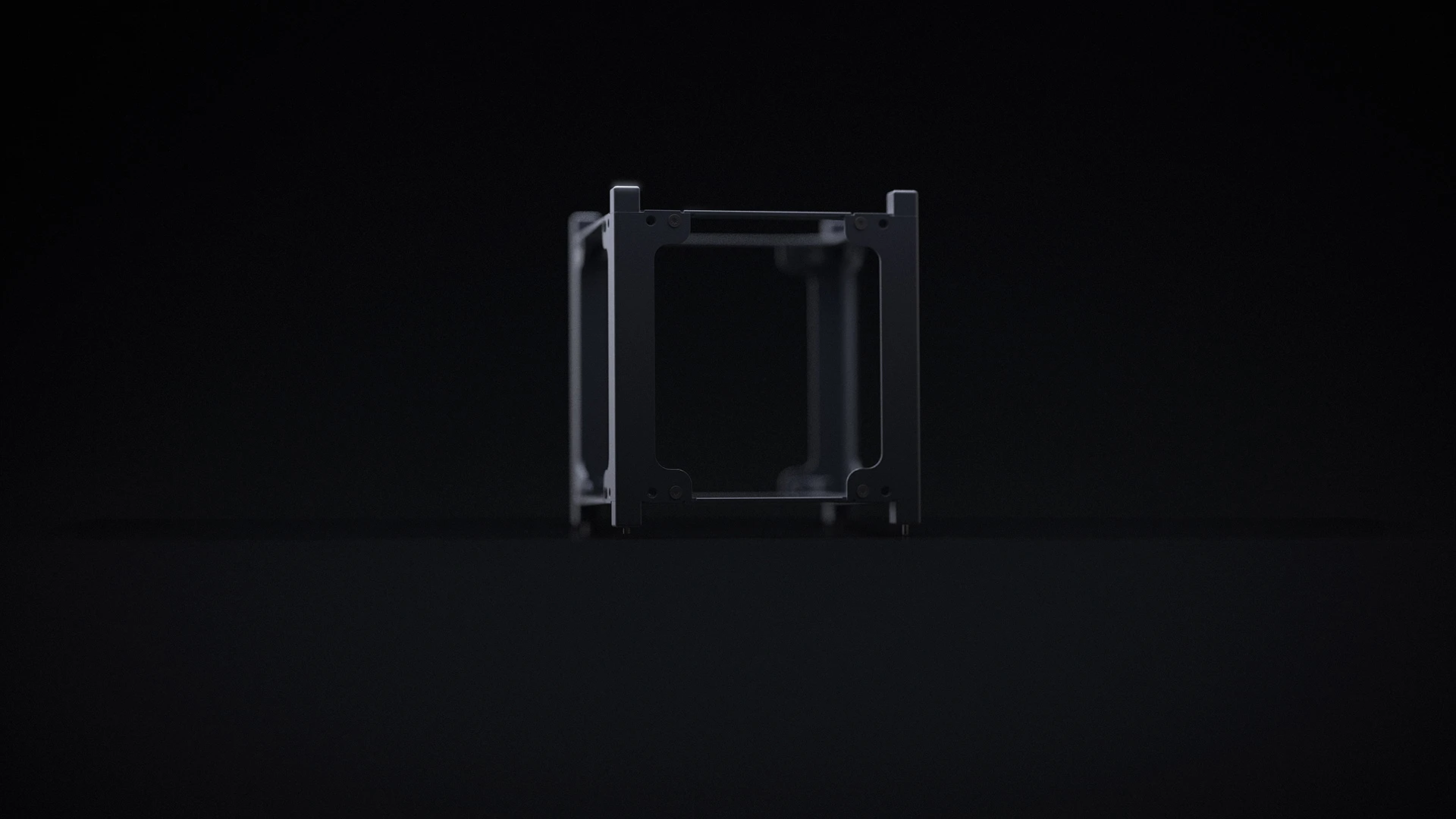

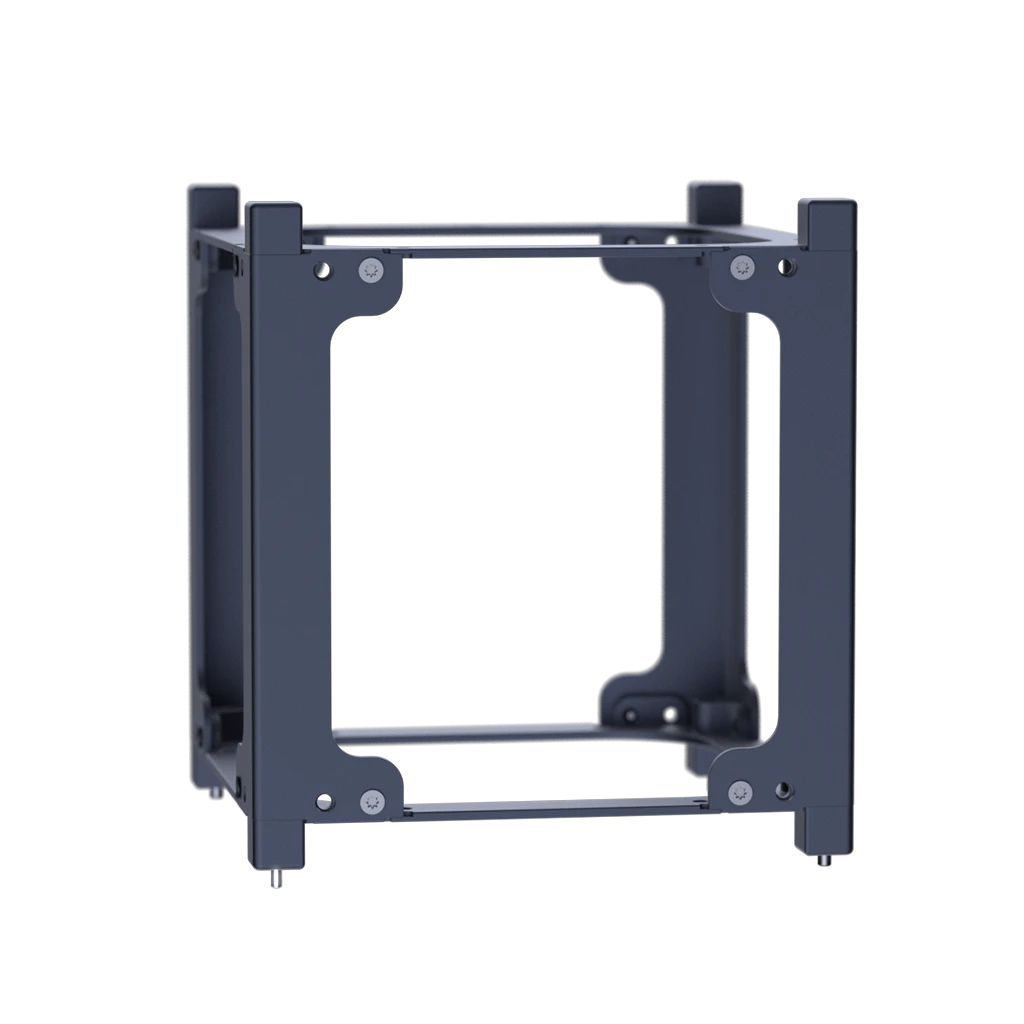

1U CubeSat Structure Web render 1
Simplicity and Precision

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs
Flight-proven robust 1U structure

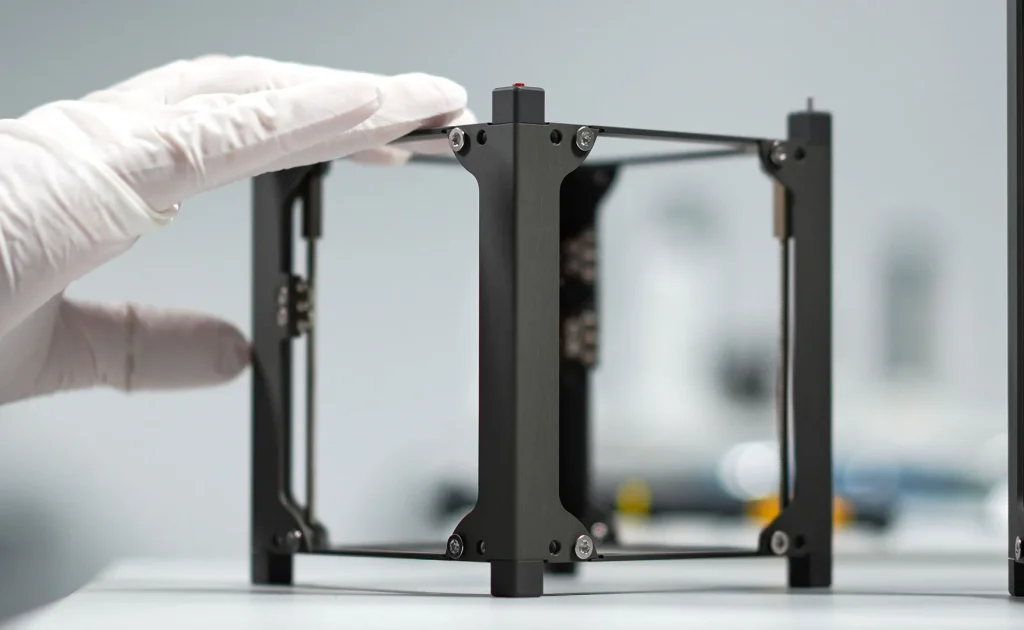

1U CubeSat Structure Web 4

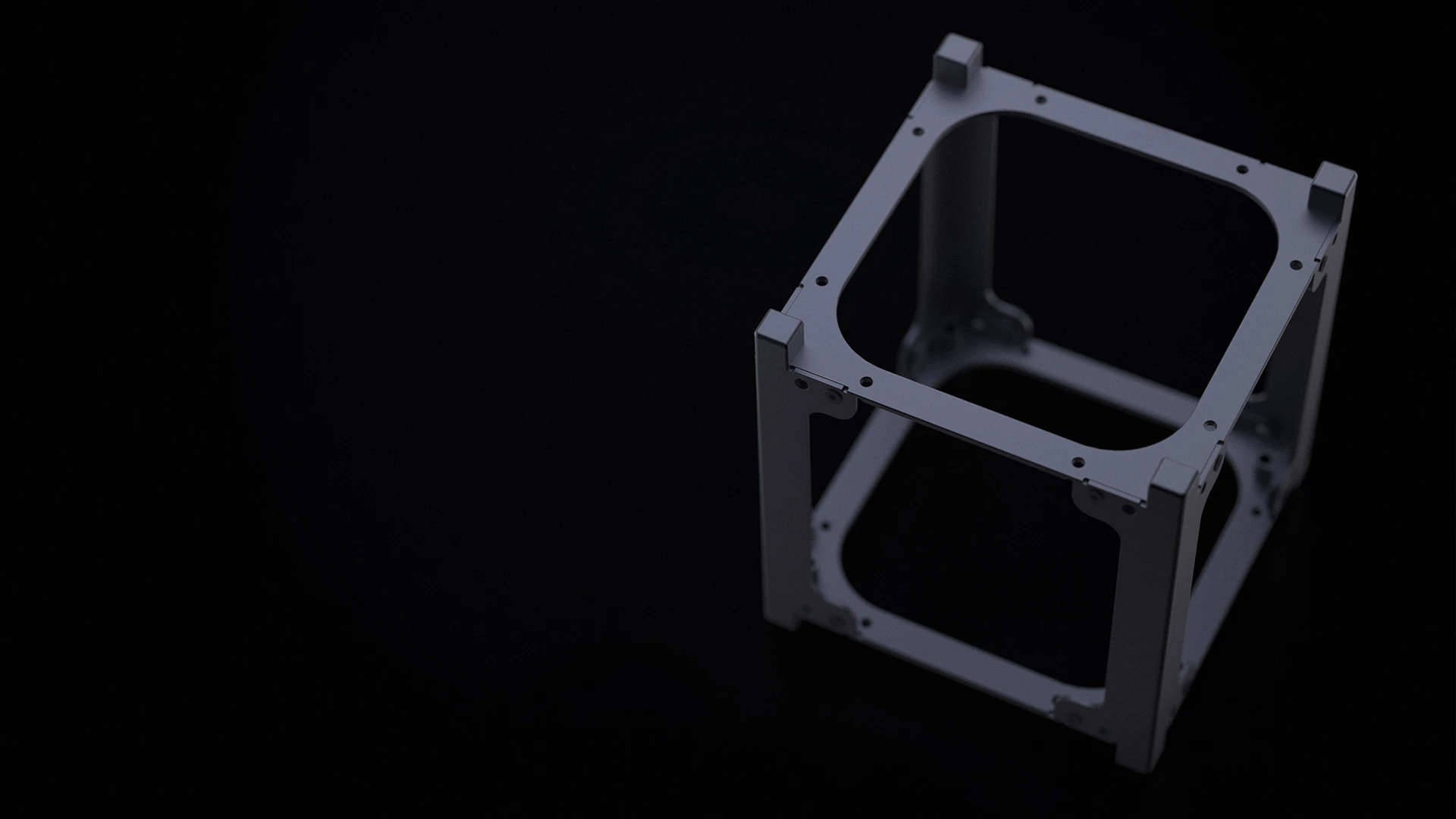

1U CubeSat Structure Web render 4

Simple modular design for easy assembly

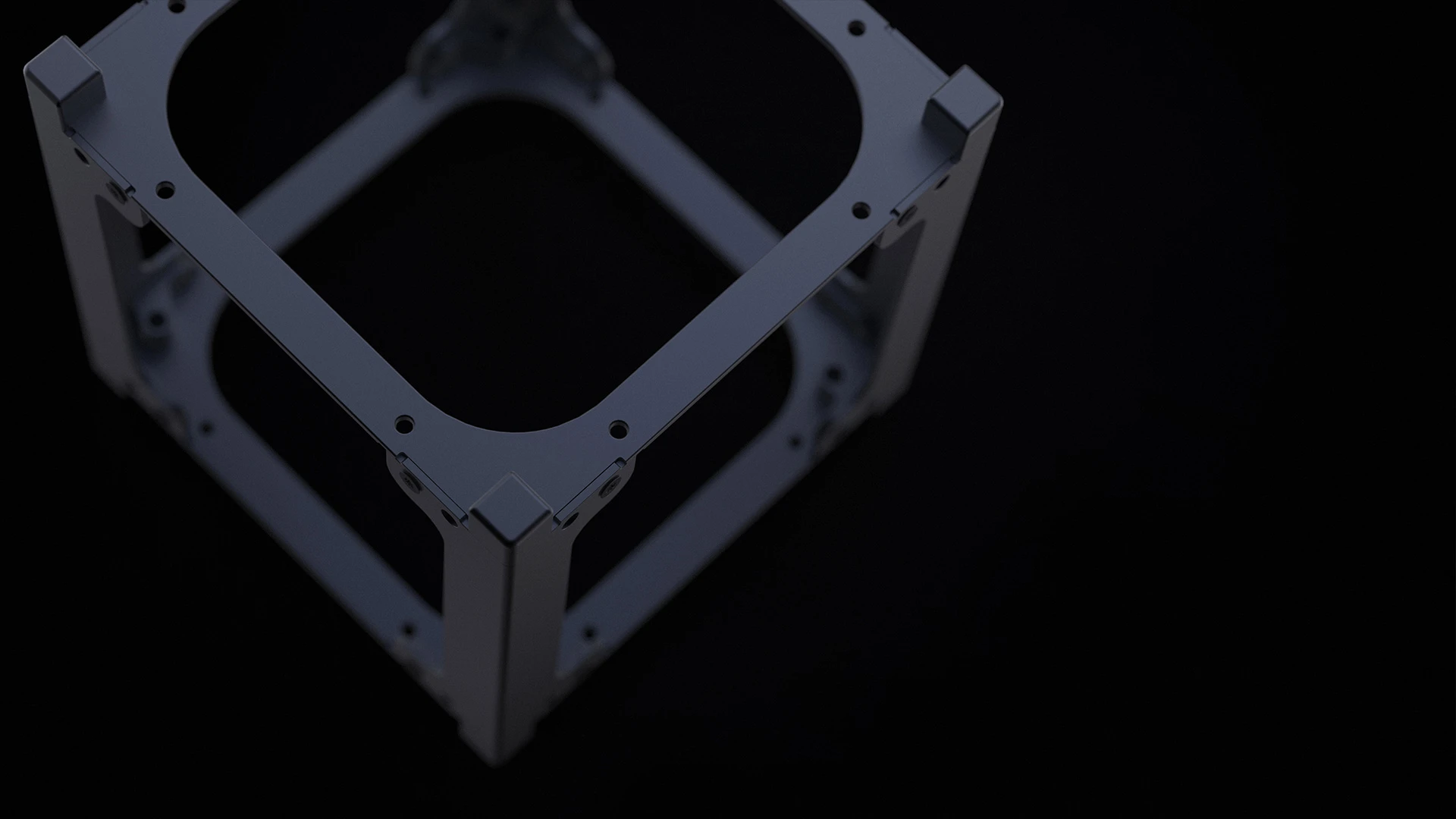

1U CubeSat Structure Web render 2

Optional 1 or 2 kill switches

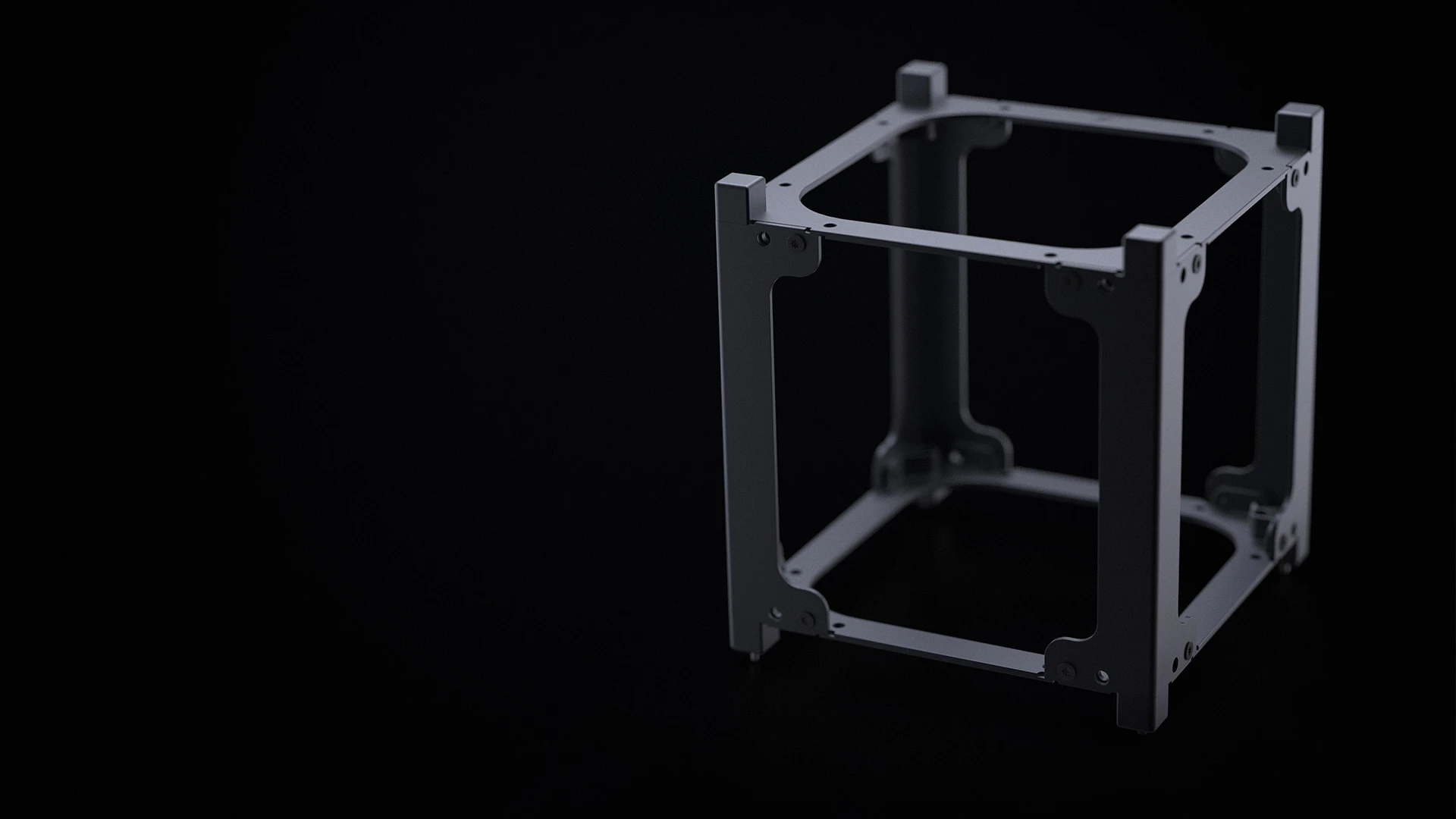

1U CubeSat Structure Web render 5

Pearl-finished & hard anodized

PRODUCT GALLERY

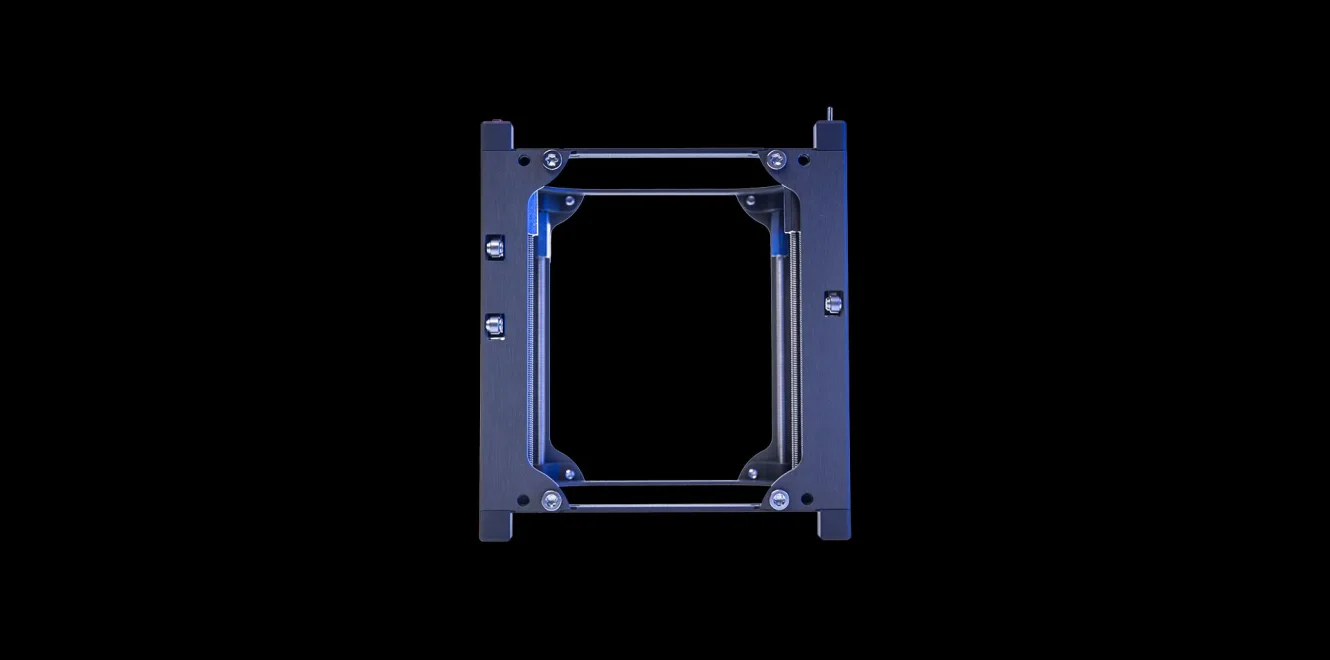

1U CubeSat Structure Web 7

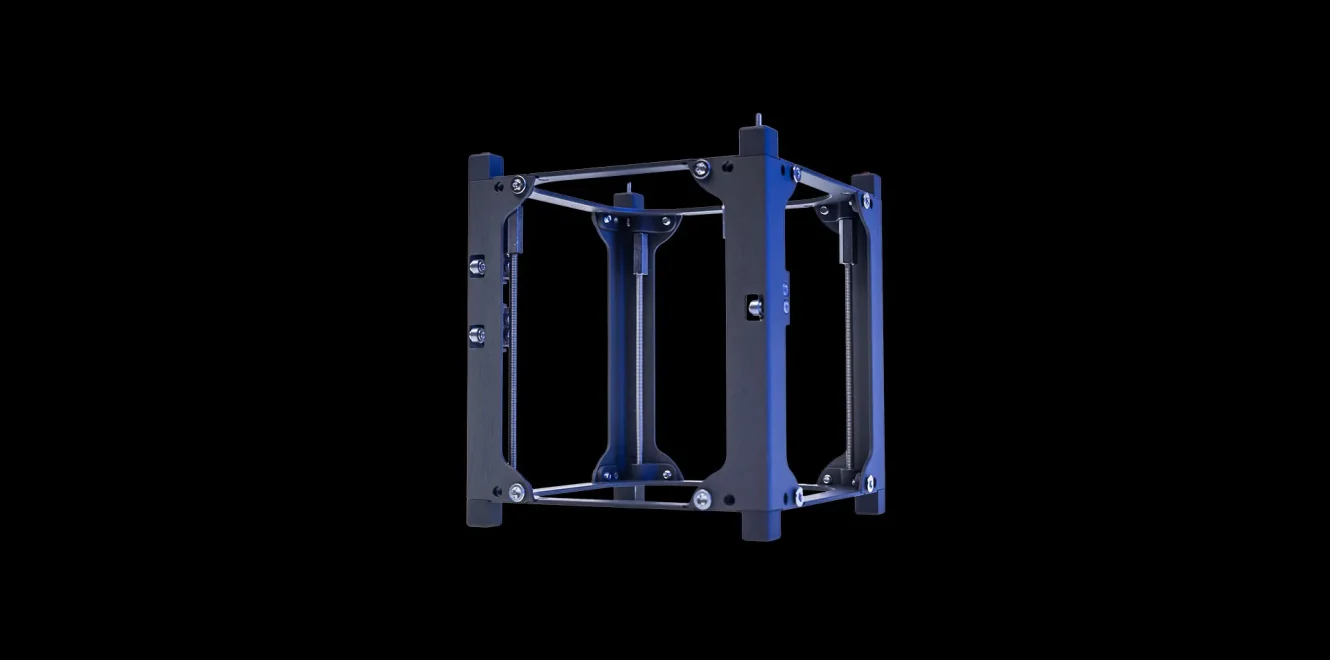

1U CubeSat Structure Web 5

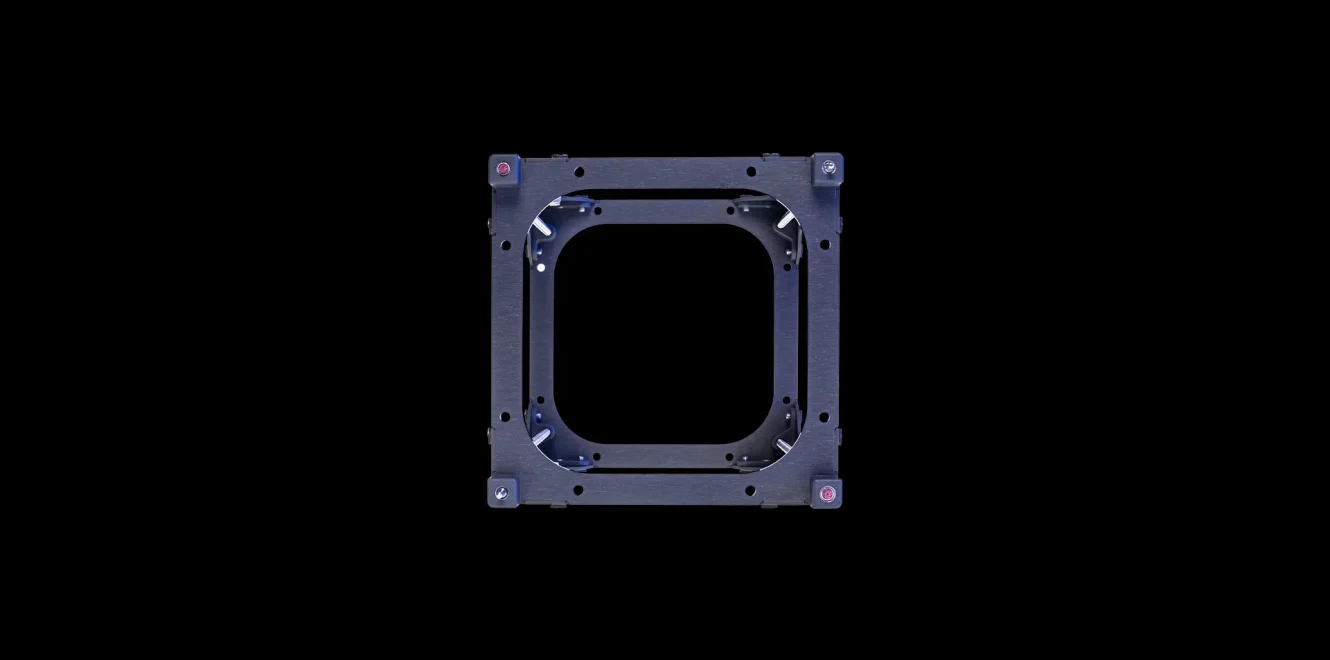

1U CubeSat Structure Web 3

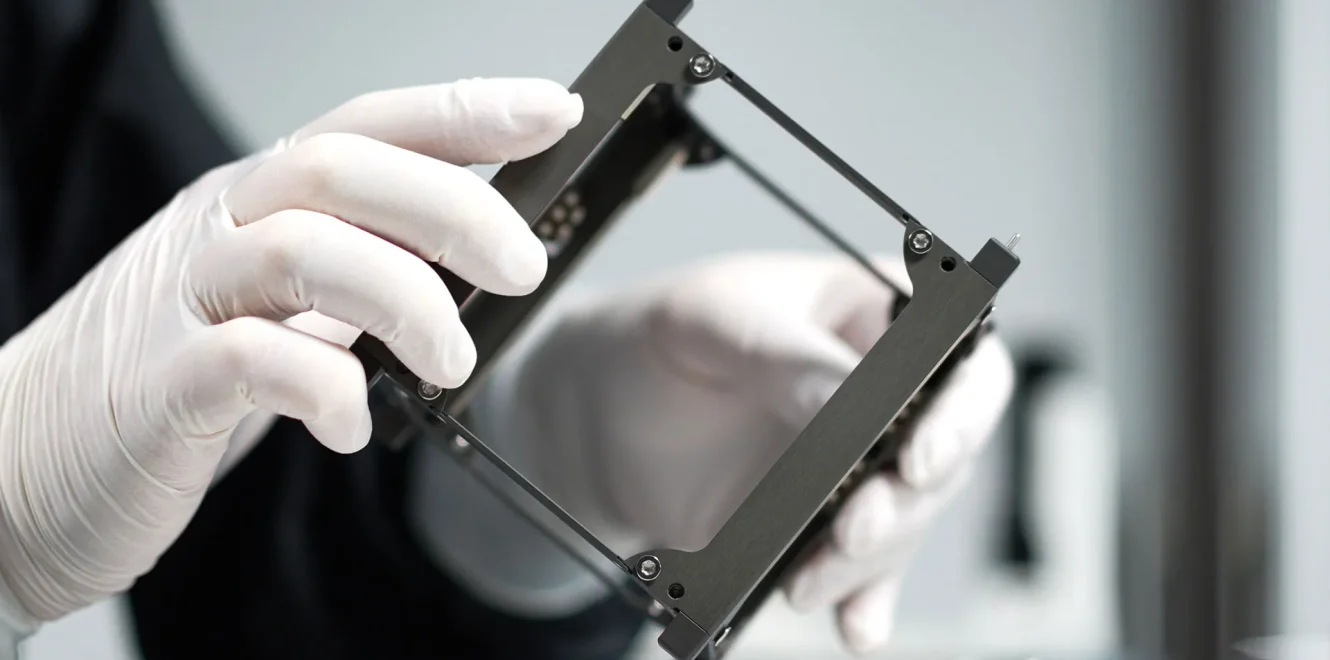

1U CubeSat Structure Web 1

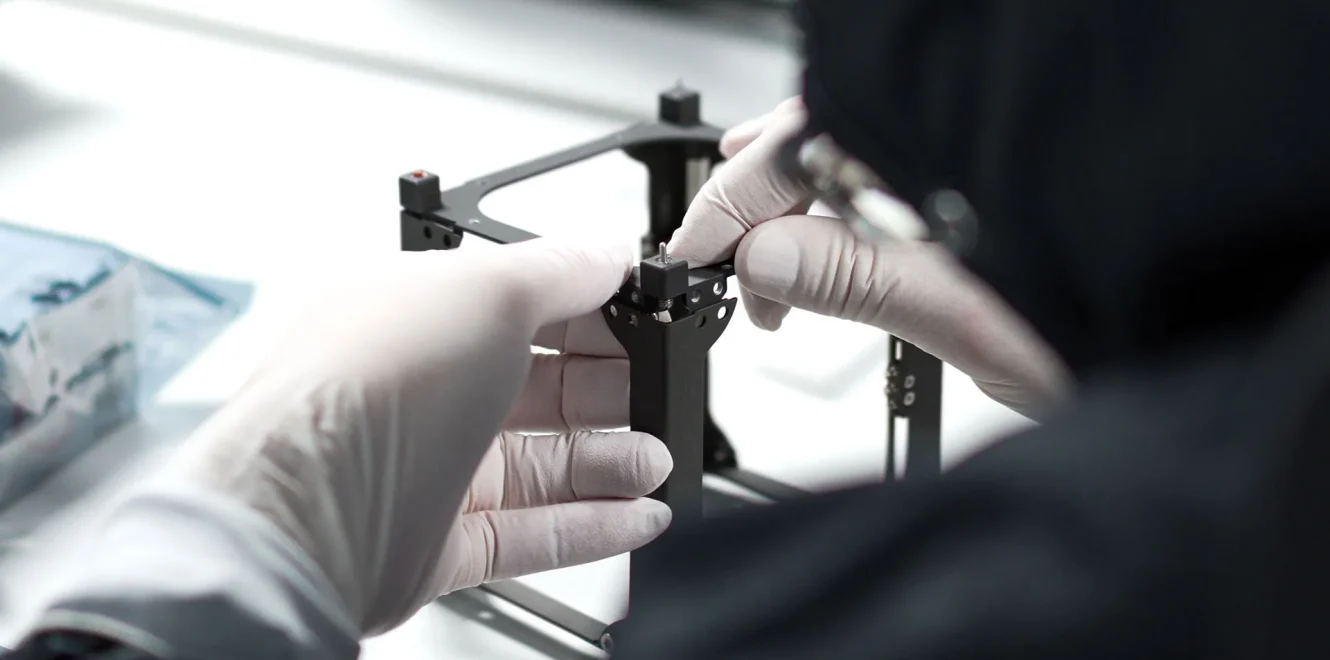

1U CubeSat Structure Web 11

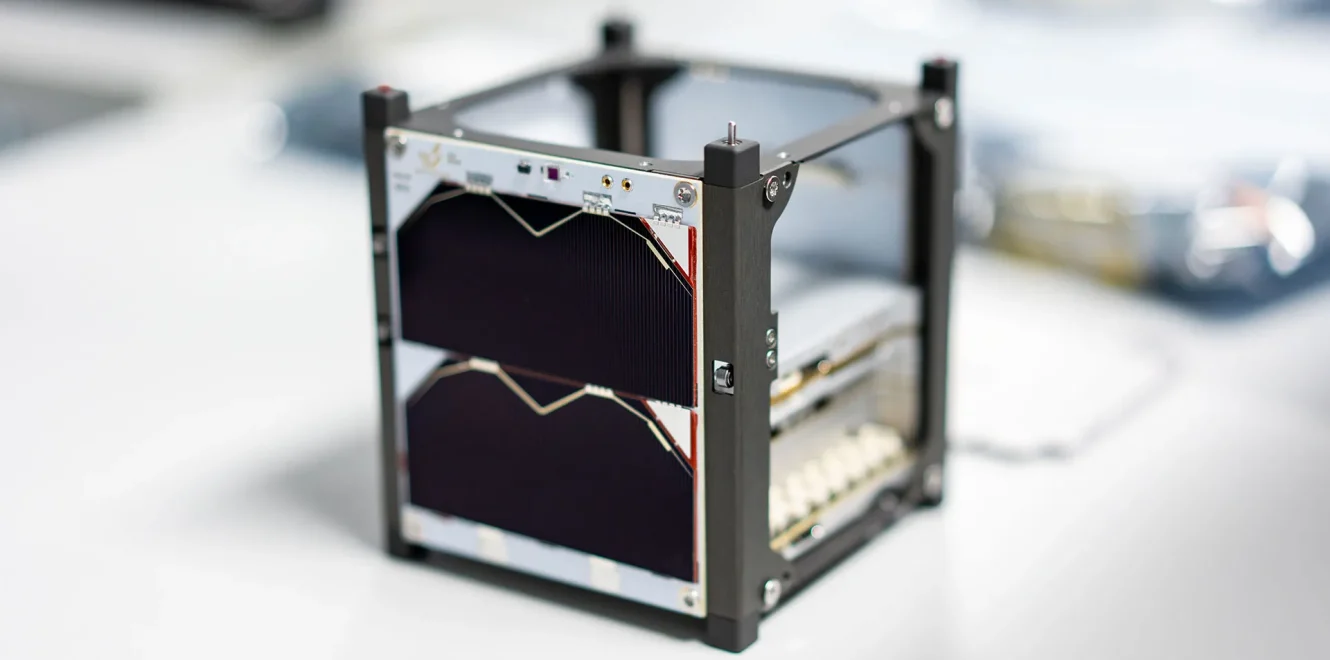

1U CubeSat Structure Web 10

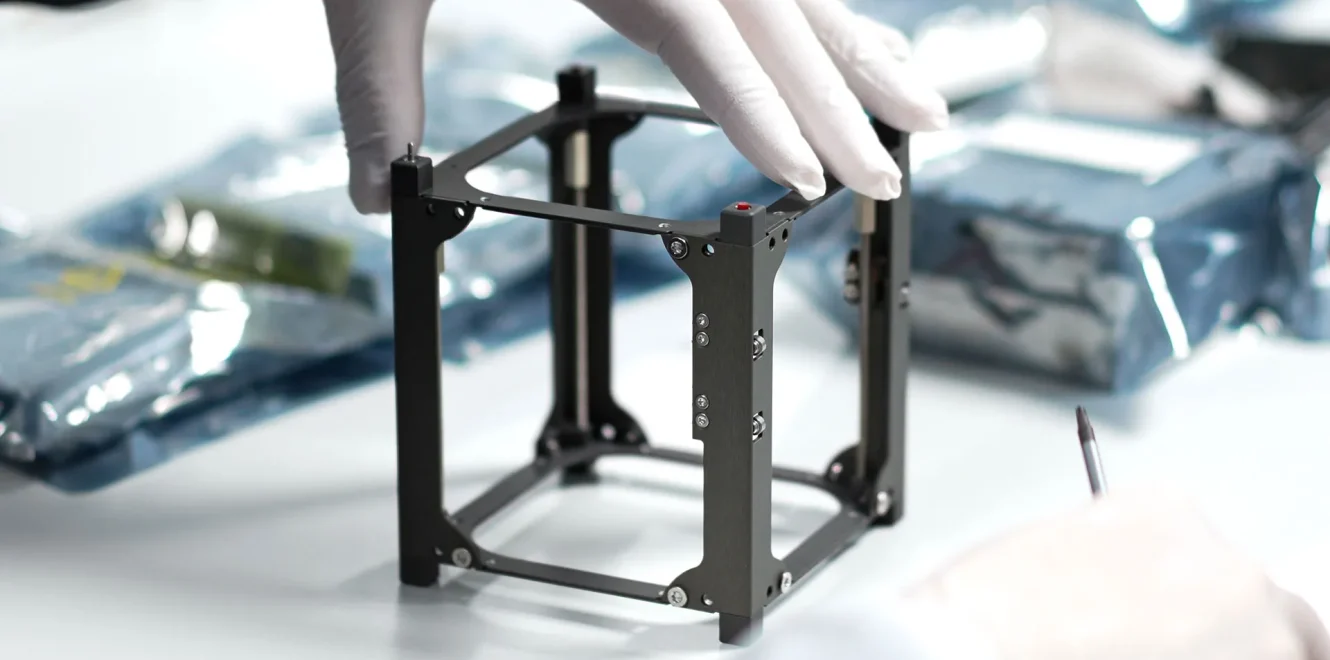

1U CubeSat Structure Web 9

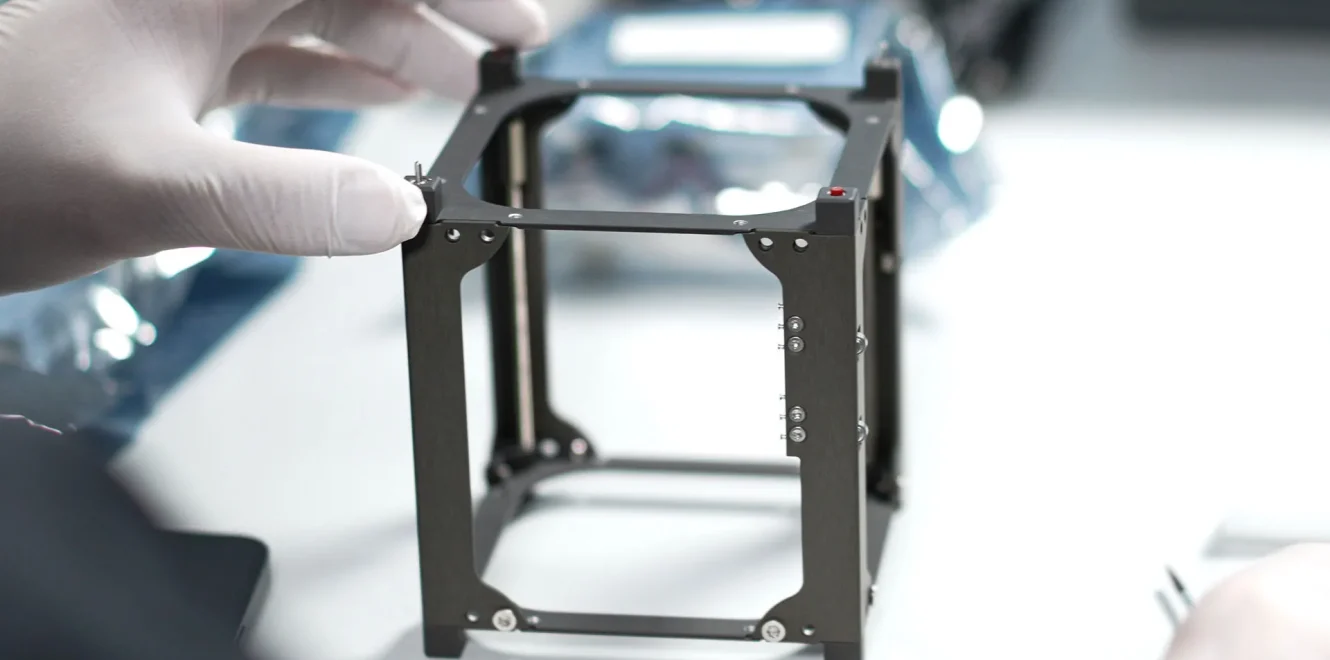

1U CubeSat Structure Web 6

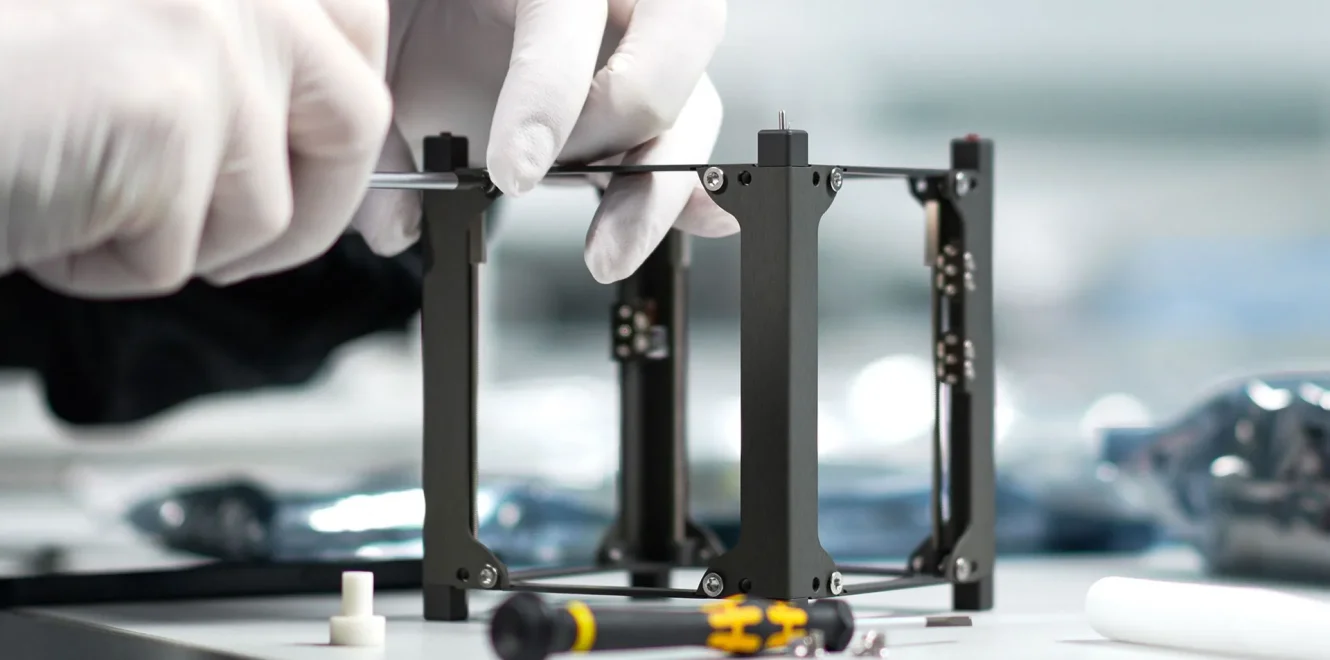

1U CubeSat Structure Web 2
Related Products
16U Structure
16U
Dimensions
226.3 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
< 3 kg
Discover
12U Structure
12U
Dimensions
226.3 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
2.44 kg
Discover
8U Structure
8U
Dimensions
100 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
1.3 kg
Discover
6U Structure
6U
Dimensions
100 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
850 g
Discover
3U Structure
3U
Dimensions
100x100x340.5 mm
Material
Aluminum 6082
Mass
340 g
Discover
1.5U Structure
1.5U
Dimensions
100x100x170.2 mm
Material
Aluminum 6082
Mass
152 g
Discover
2500
MODULES IN ORBIT
60
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
