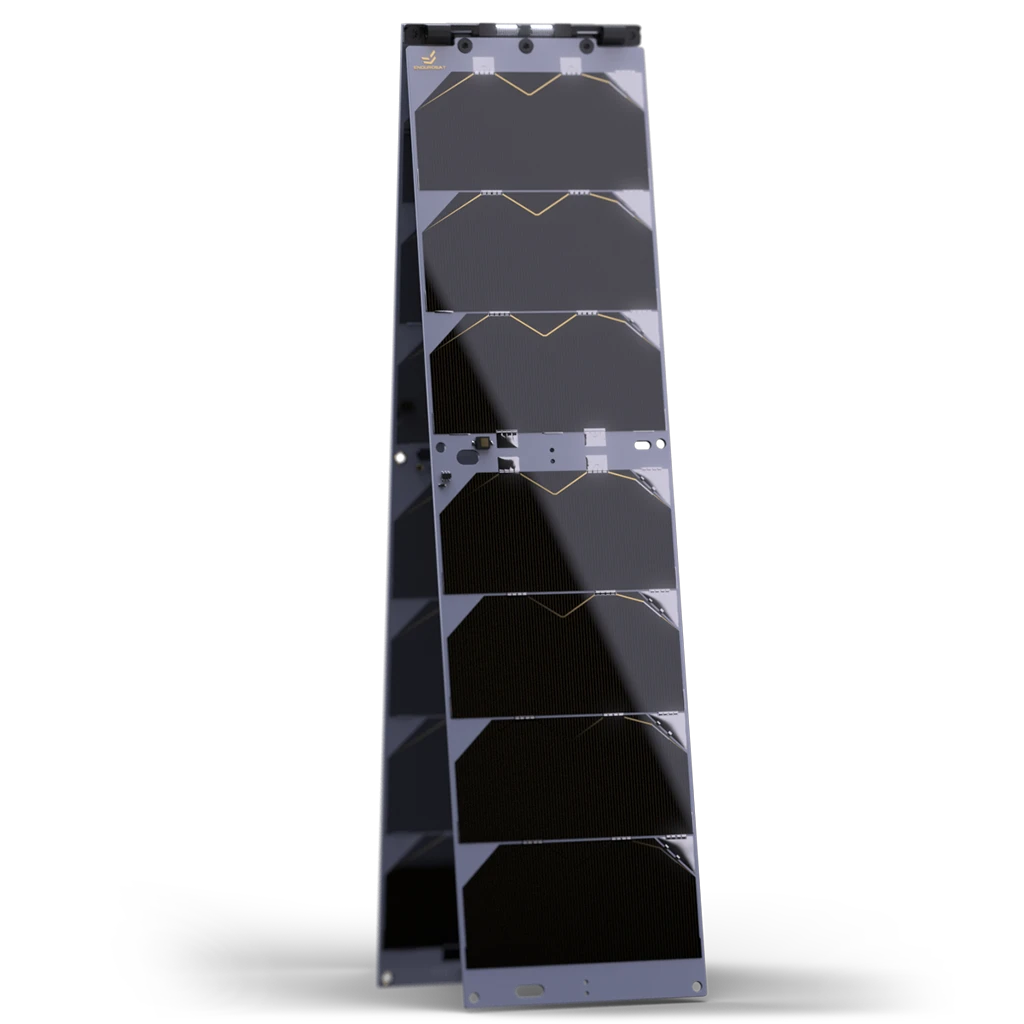

3U DEPLOYABLE SOLAR ARRAY

More Power For Your Mission
Cad file & datasheet
Select Options
Select Options
state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
29.5%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
8.4 W
IN LEO PER SIDE

Space-qualified deployable Solar Array

FEATURES
Power Efficiency At EOL
29+%
Max Power
8.4+W in LEO per side
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Connector for external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
285g (may depend on the configuration)
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
21.04 V (for 7 cells)
Max Current
512 mA
PCB Thickness
1.6 mm

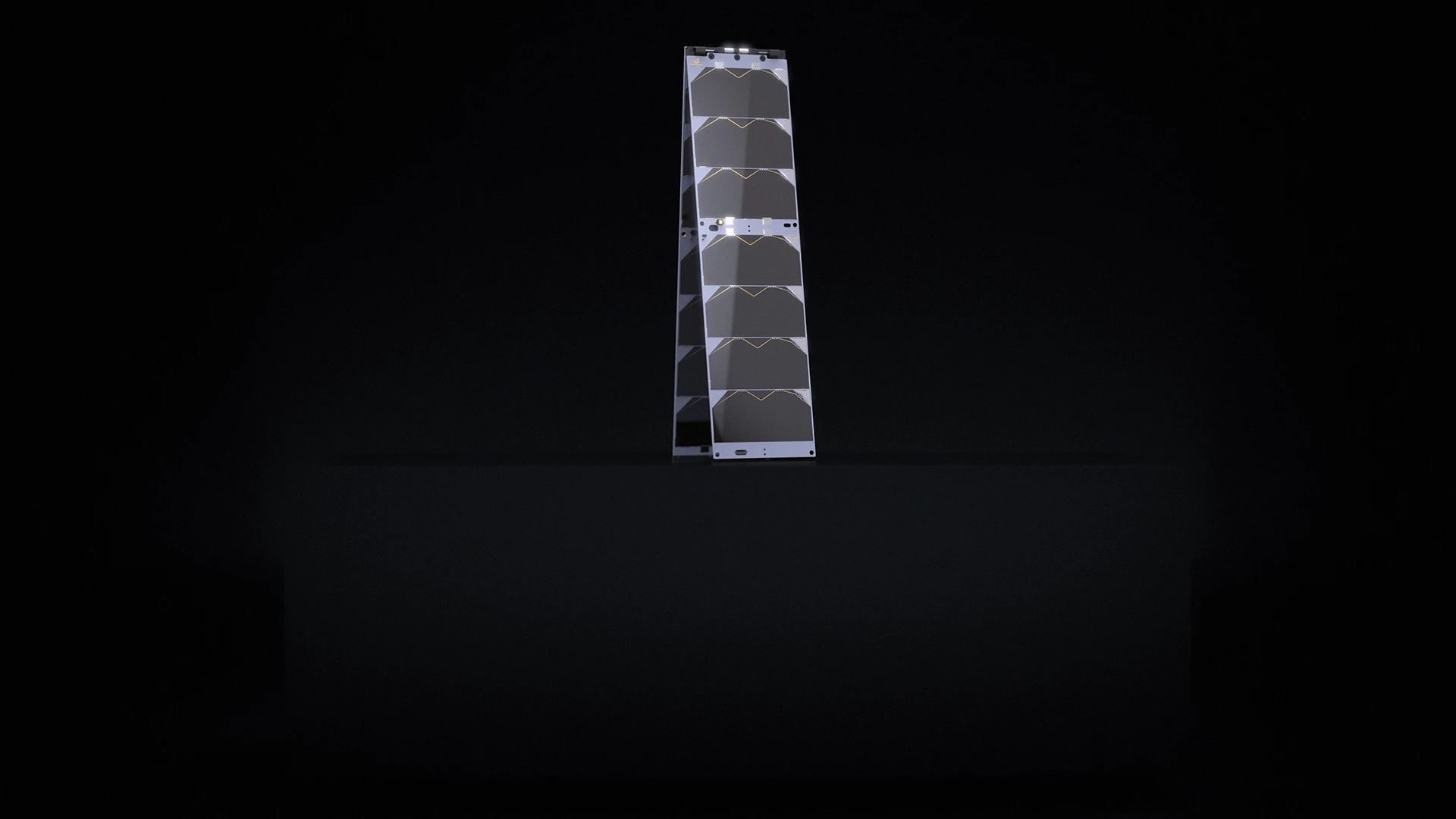

3U Z Depoloyable Solar Array web render 1
More Power for Your Mission

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Space-qualified deployable Solar Array
3U Z Depoloyable Solar Array web render 2

Triple Junction Solar Cells for Space Applications with efficiency higher than 29.5%

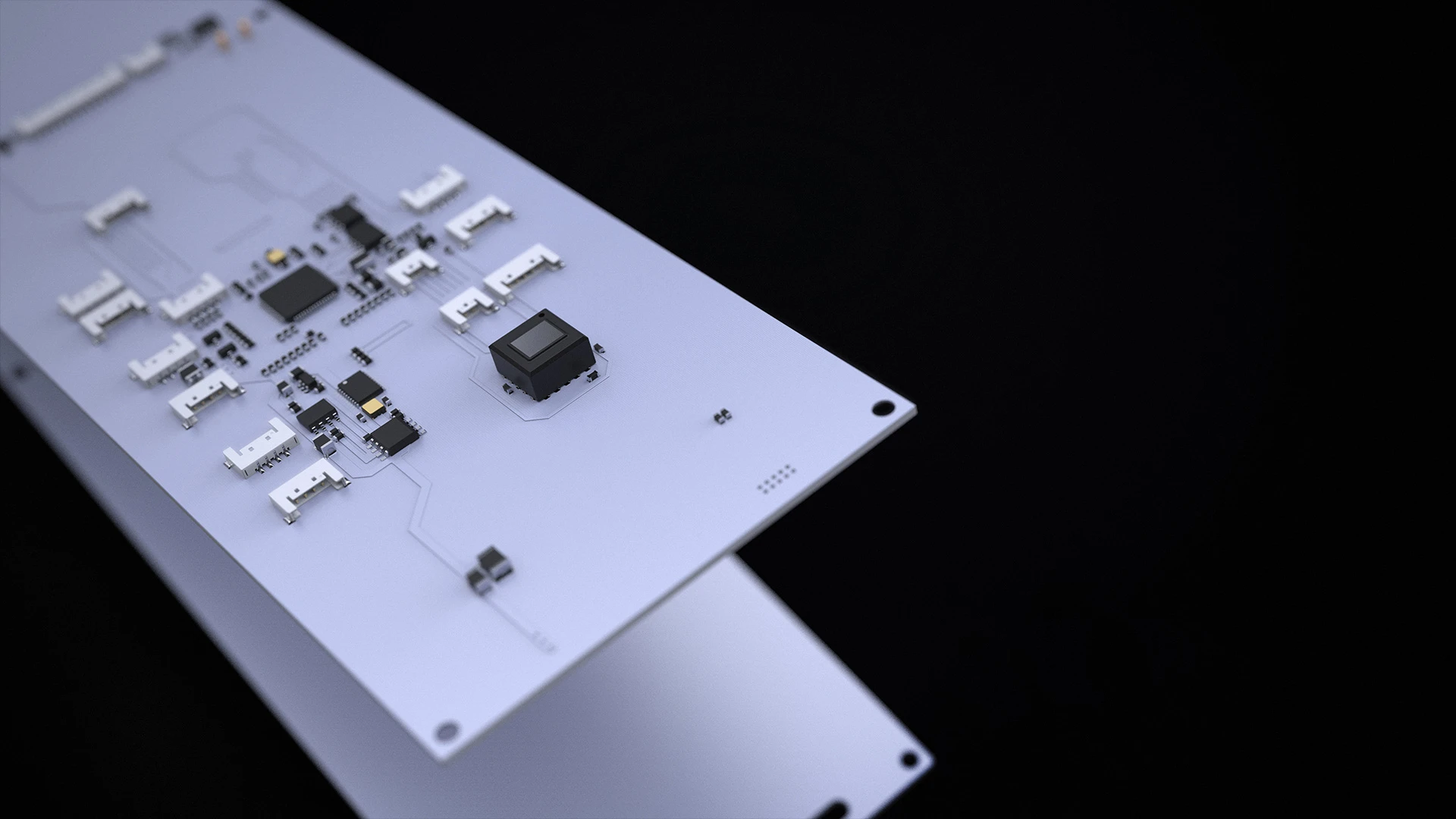

3U Z Depoloyable Solar Array web render 3

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO

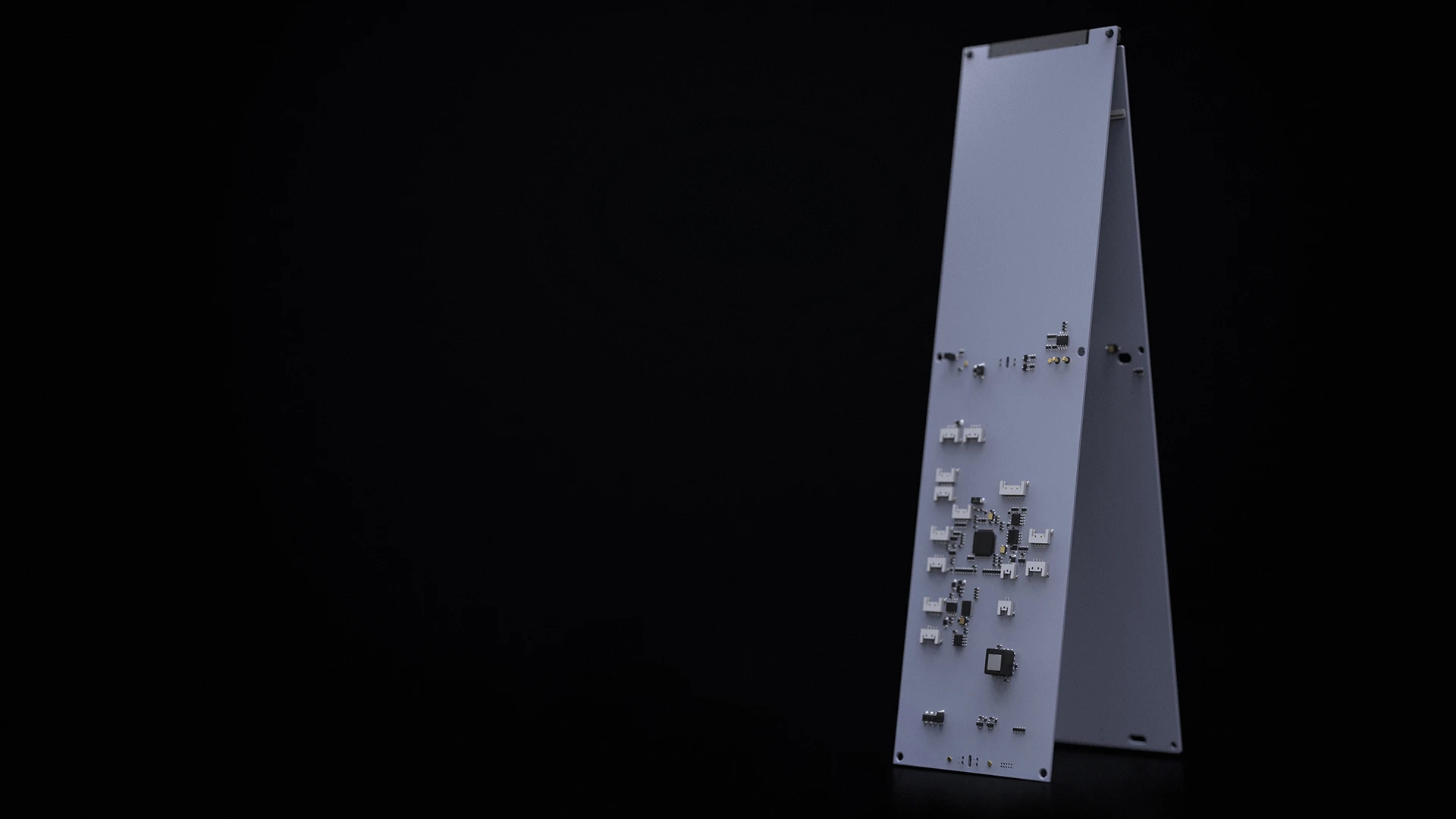

3U Z Depoloyable Solar Array web render 4

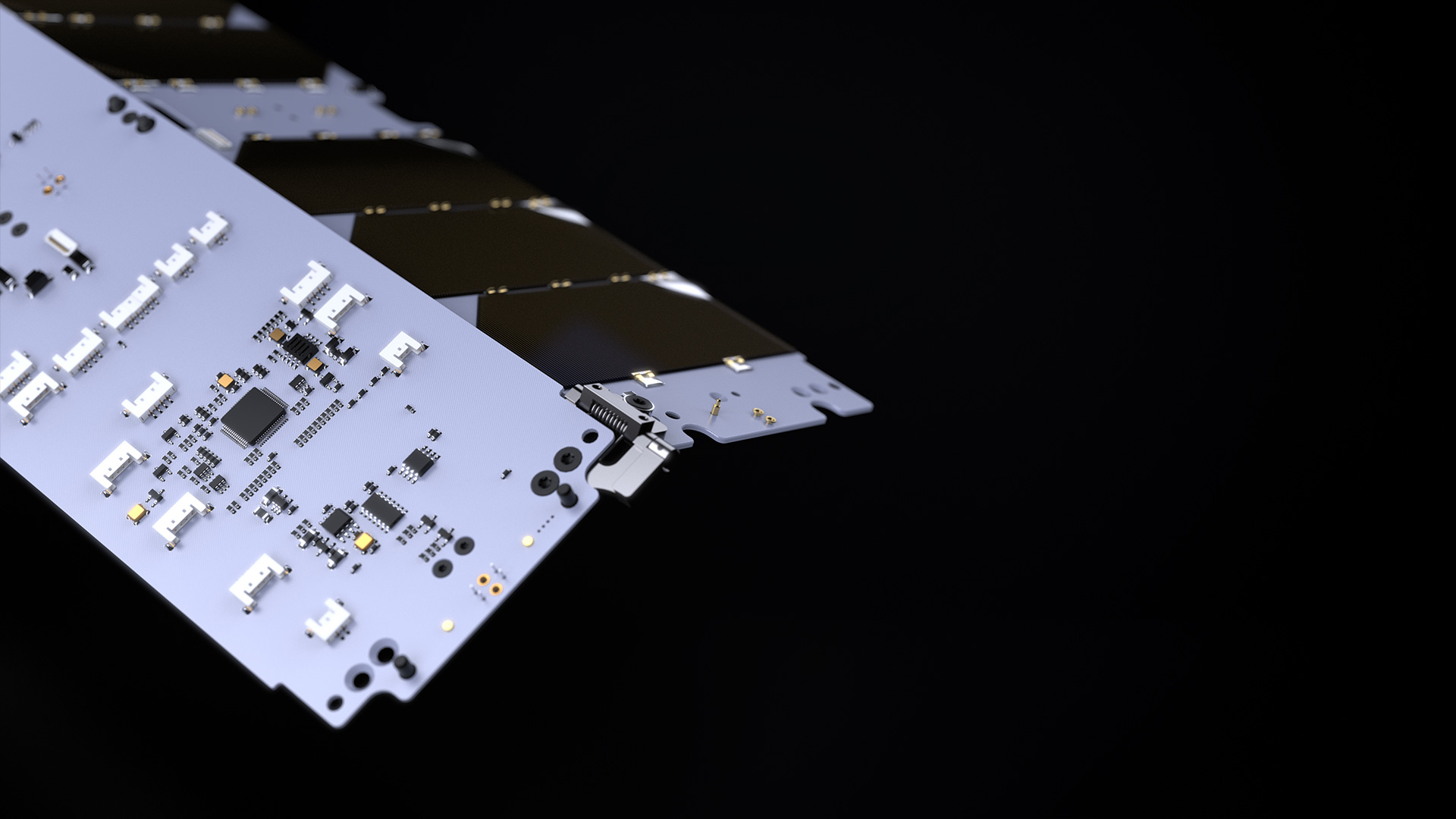

Integrated sun sensors & gyroscope option

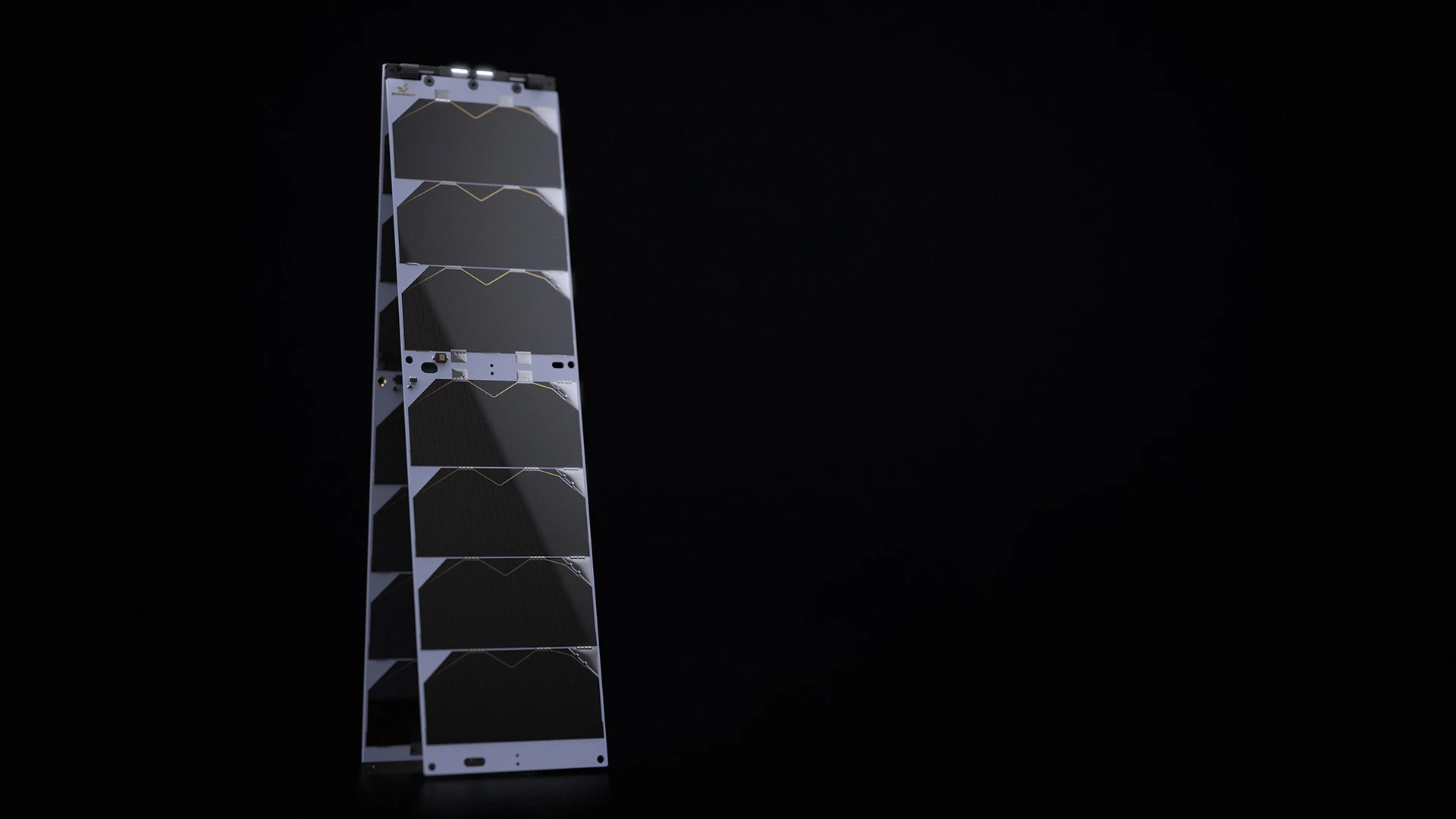

3U Z Depoloyable Solar Array web render 5

Series or parallel connection based on custom power system requirements

SERIES OR PARALLEL CONNECTIONS COMPATIBLE WITH DIVERSE POWER SYSTEM REQUIREMENTS

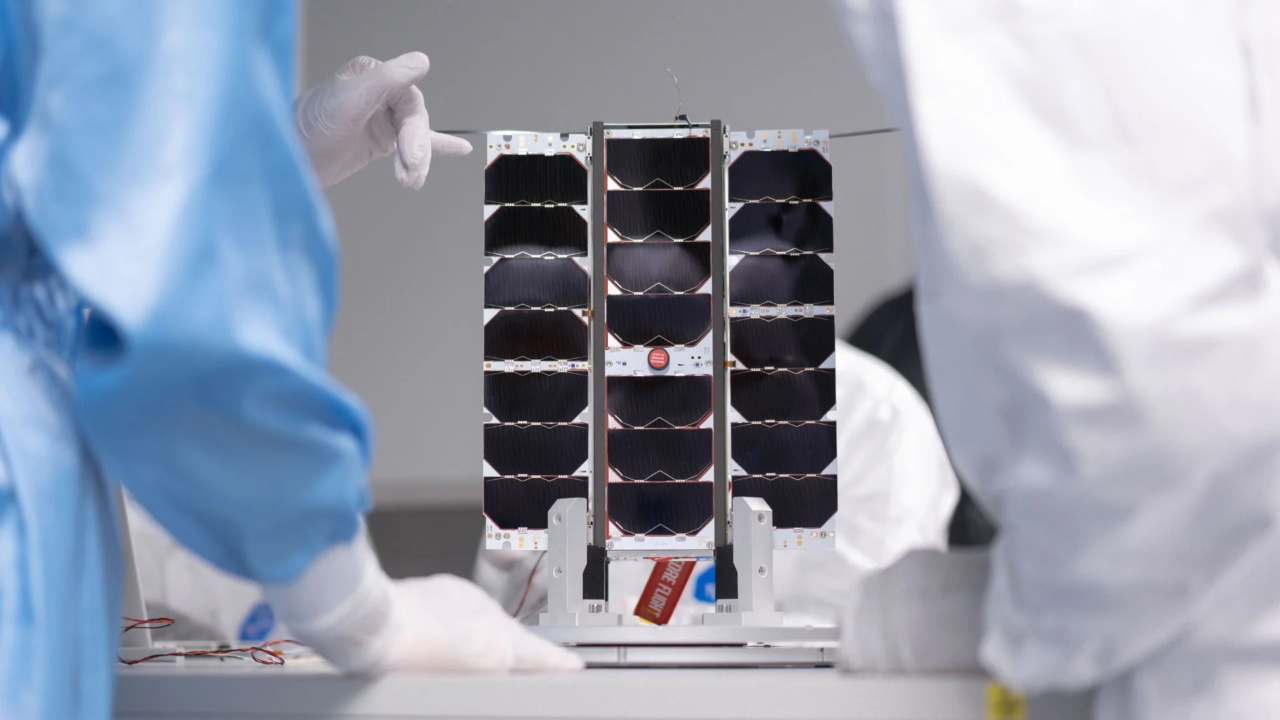

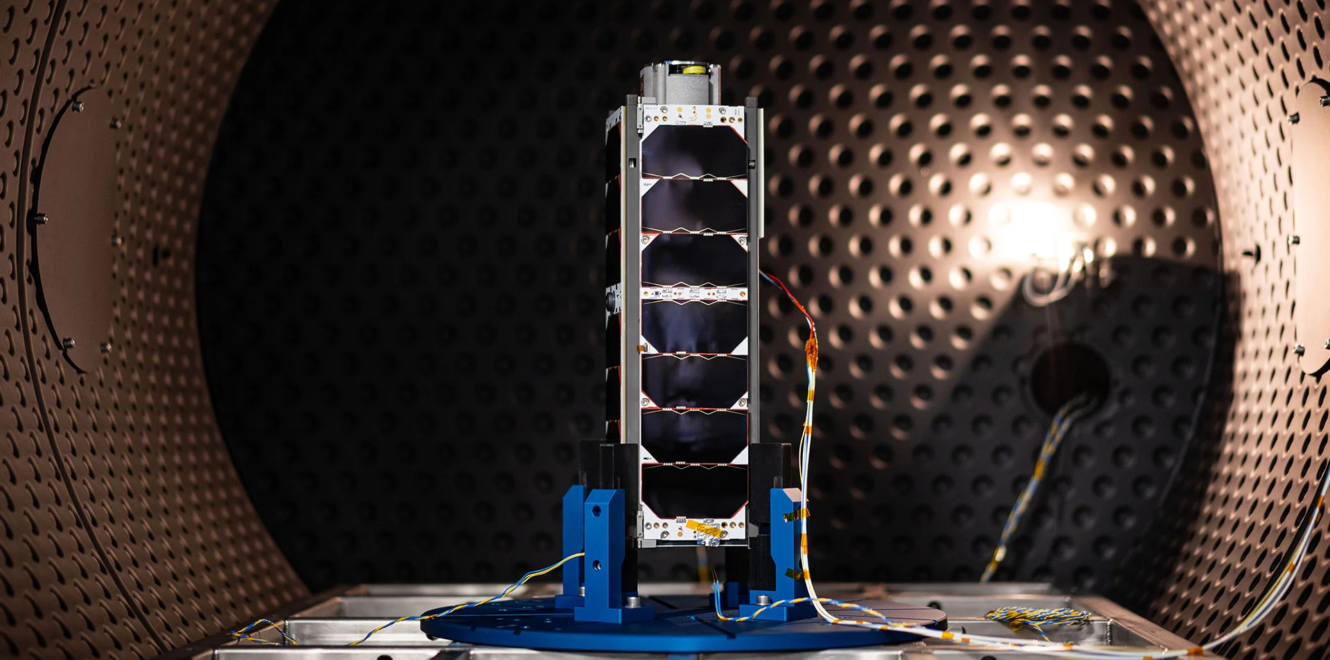

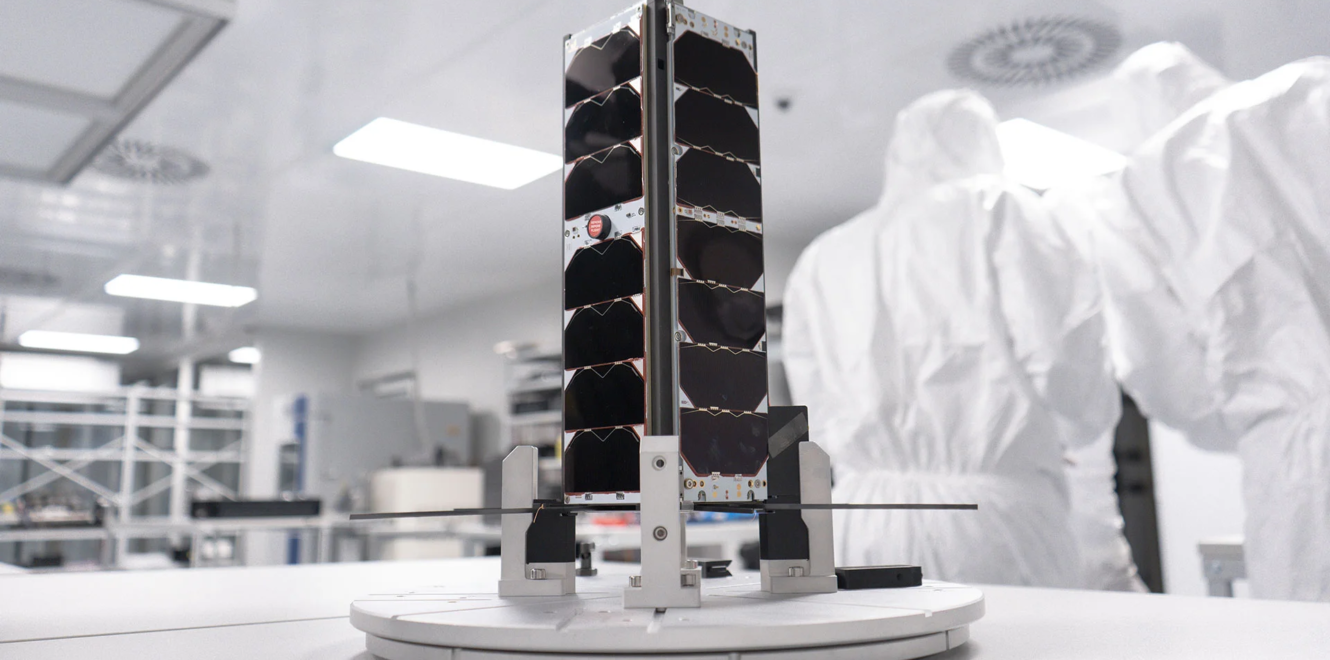

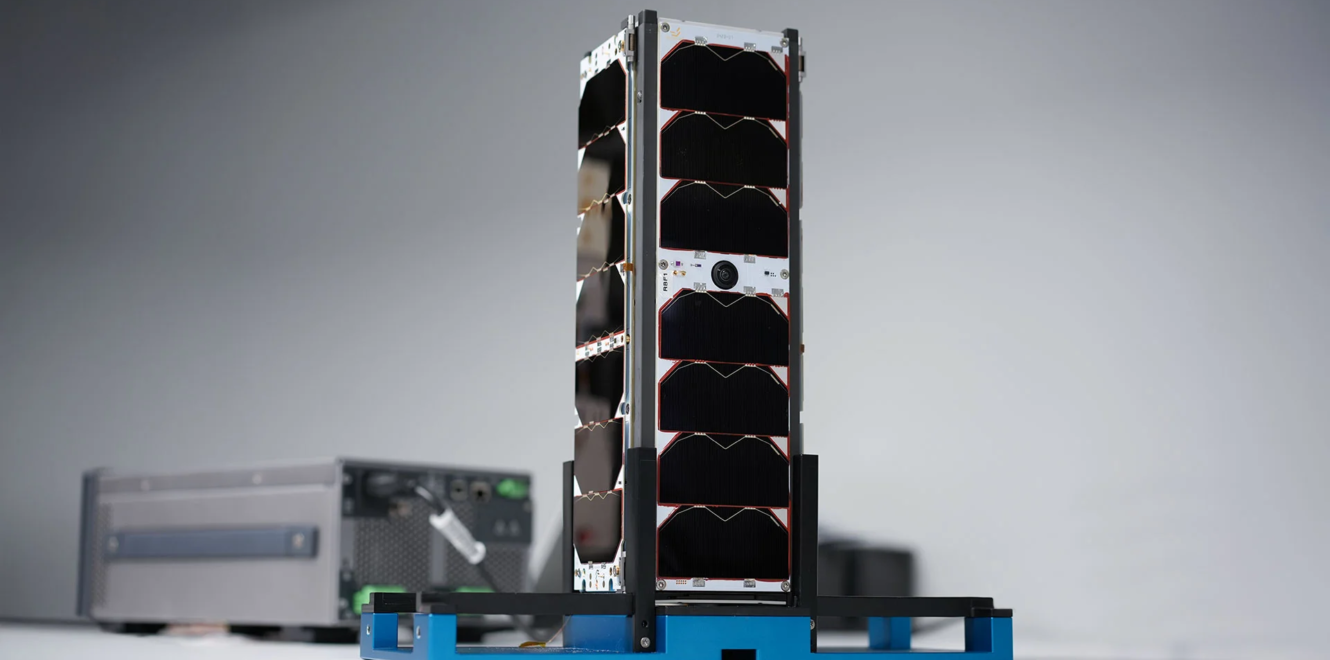

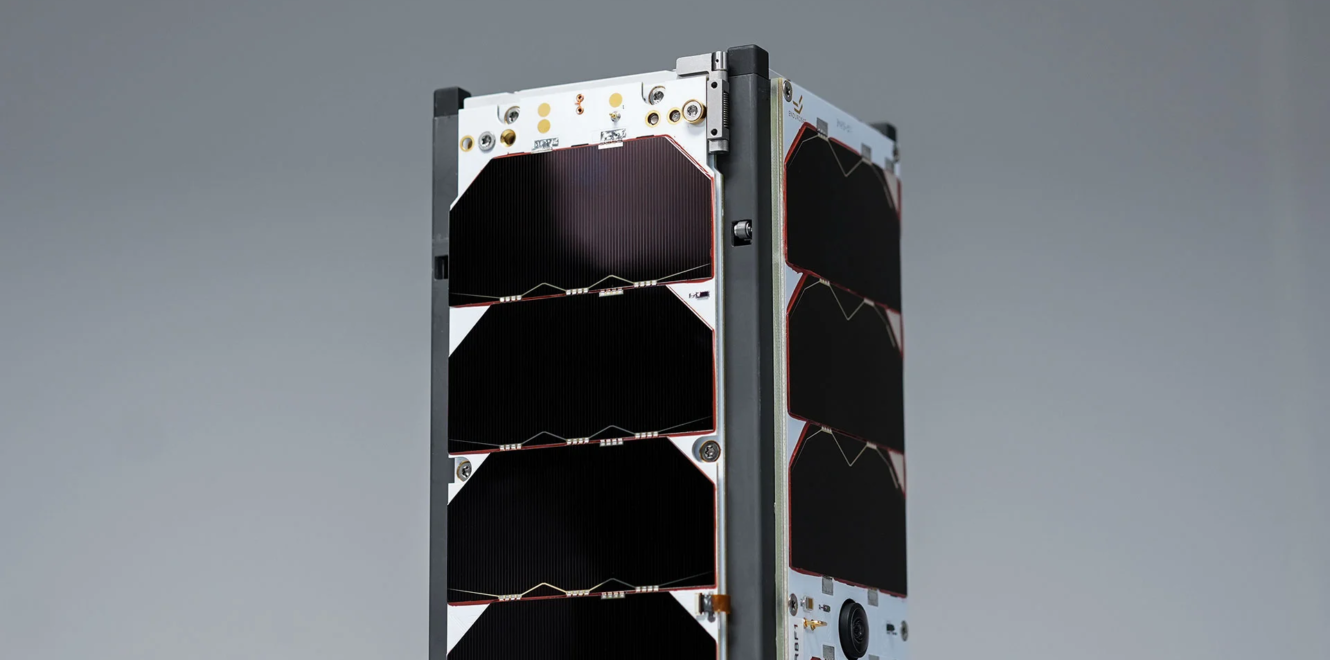

PRODUCT GALLERY
3U X Y Deployable Solar Array web 5
Related Products
8U Solar panel
8U Solar Panel
Power Efficiency At EOL
29+%
Max Power
Up to 24.0 W in LEO
Mass
470 g
Discover
6U Deployable Solar panel
6U Deployable Solar Array
Power Efficiency At EOL
29+%
Max Power
Up to 19.2 W in LEO per side
Mass
757 g
Discover
6U Double Deployable Solar Array
Power Efficiency At EOL
29+%
Max Power
38.4+W in LEO after deployment
Mass
1.1-1.2 kg
Discover
6U Solar panel
6U Solar Panel
Power Efficiency At EOL
29+%
Max Power
Up to 19.2 W in LEO
Mass
390 g
Discover
1.5U Double Deployable Solar panel

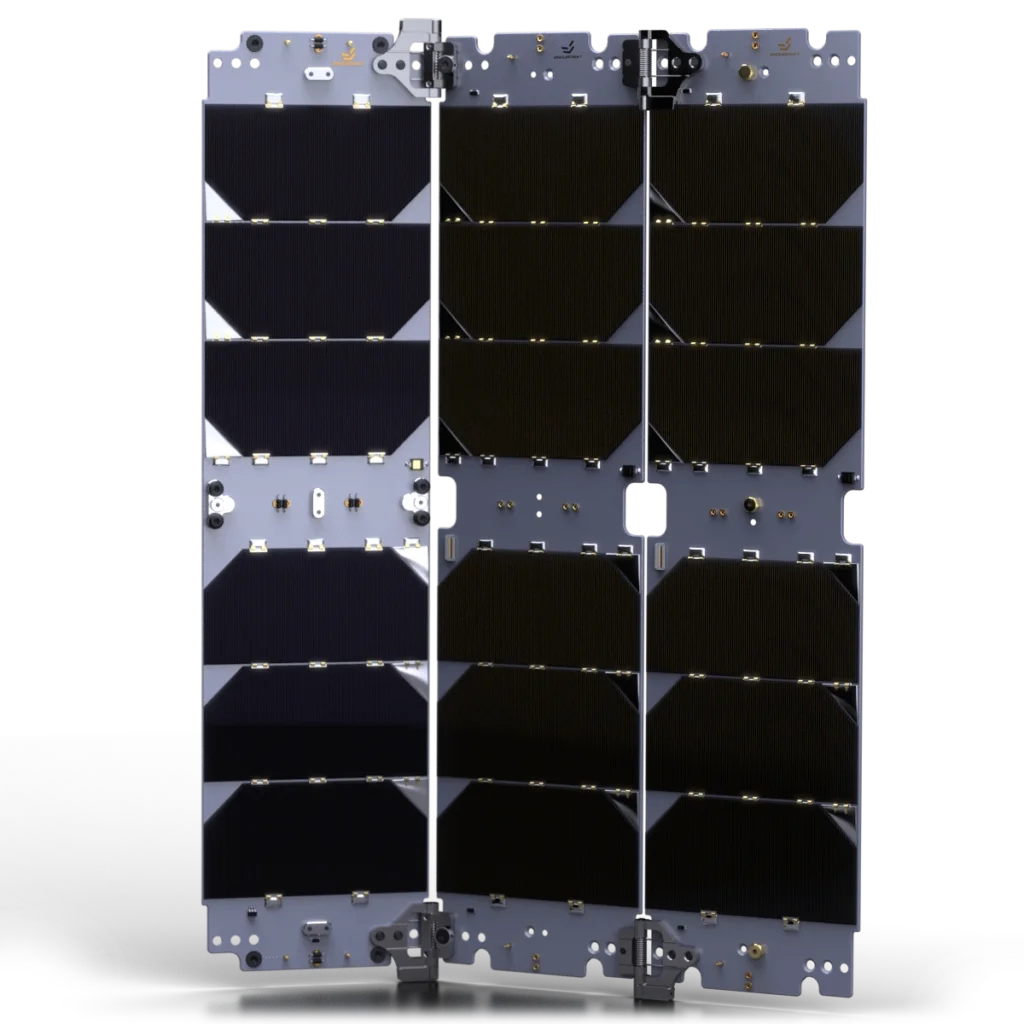

3U Double Deployable Solar Array
29.5+%
triple junction solar cells
Max Power
16.8+W in LEO per side
X/Y
hinge mounting options
Discover
3U Solar panel
3U Solar Panel
Power Efficiency At EOL
29+%
Max Power
8.4 W in LEO
Mass
146 g
Discover
1.5U Solar panel
1.5U Solar Panel
Power Efficiency At EOL
29+%
Max Power
3.6+W in LEO
Mass
65 g (79 g with MTQ)
Discover
1U Solar panel X Y
1U Solar Panel X/Y
Power Efficiency At EOL
29+%
Max Power
2.4+W in LEO
Mass
44 g (53 g with MTQ)
Discover
1U Solar panel Z
1U Solar Panel Z
Power Efficiency At EOL
29+%
Max Power
2.4+W in LEO
Mass
48 g (57.5 g with MTQ)
Discover
2500
MODULES IN ORBIT
60
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
