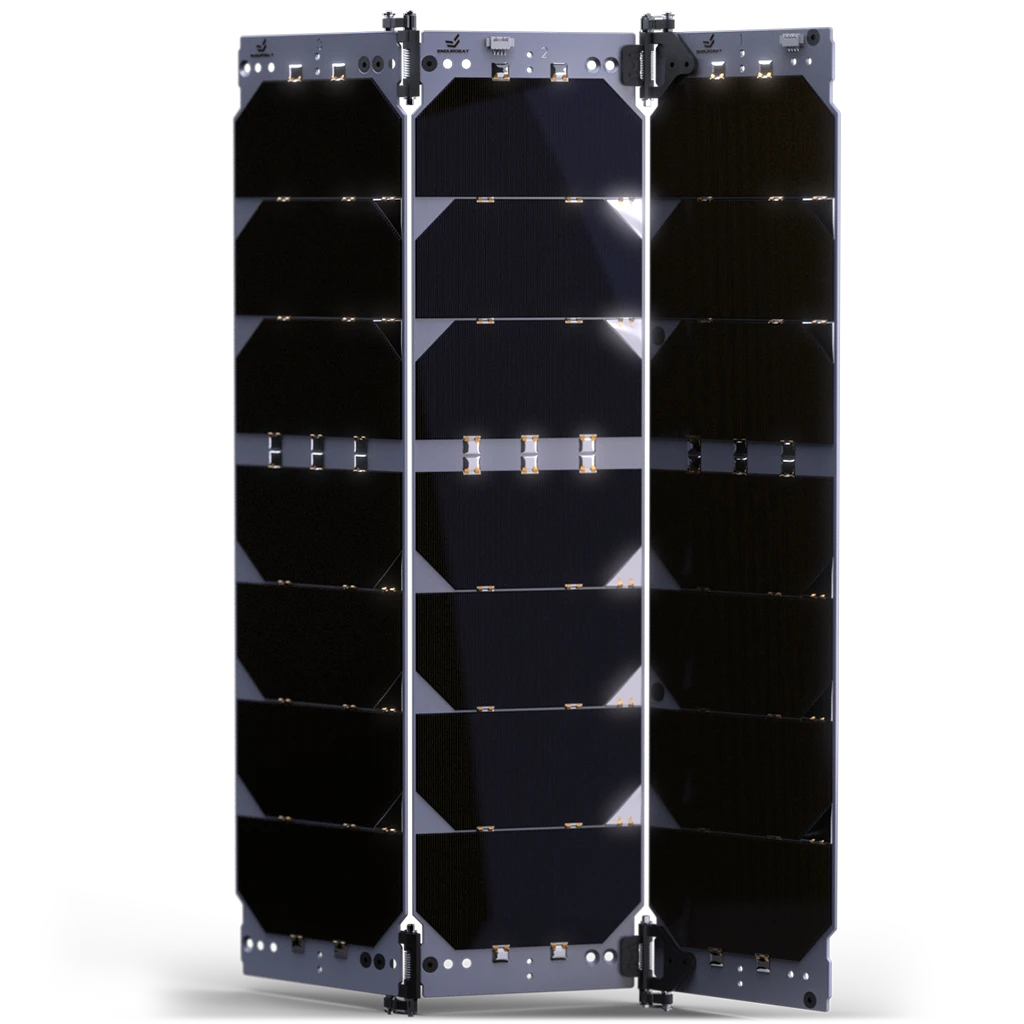

3U DOUBLE DEPLOYABLE SOLAR ARRAY

More power for CubeSat and SmallSat missions
Cad file & datasheet
buy
buy

3U DOUBLE DEPLOYABLE SOLAR ARRAY

Download
Cad file & datasheet
buy
buy
29.5%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
16.8+ W
IN LEO PER SIDE

Space-qualified double deployable Solar Array

FEATURES
Power Efficiency At EOL
29+%
Max Power
16.8+W in LEO per side
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Connector for external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
468g (configuration dependent)
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
21.04 V (for 7S2P cells)
Max Current
1024 mA
PCB Thickness
1.6 mm

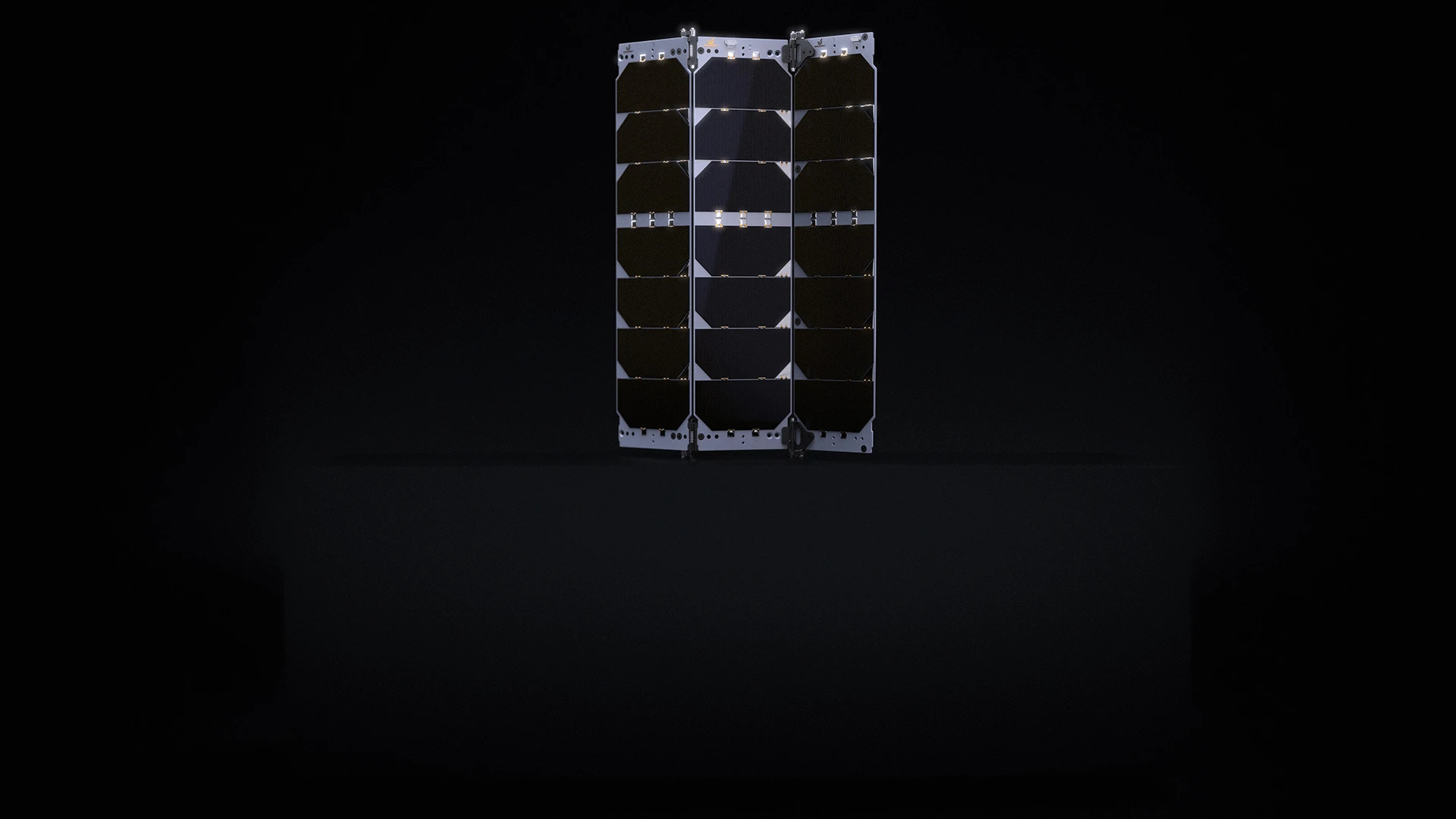

3U X Y Deployable Solar Array web render 4
More power for CubeSat and SmallSat missions

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Space-qualified deployable Solar Array

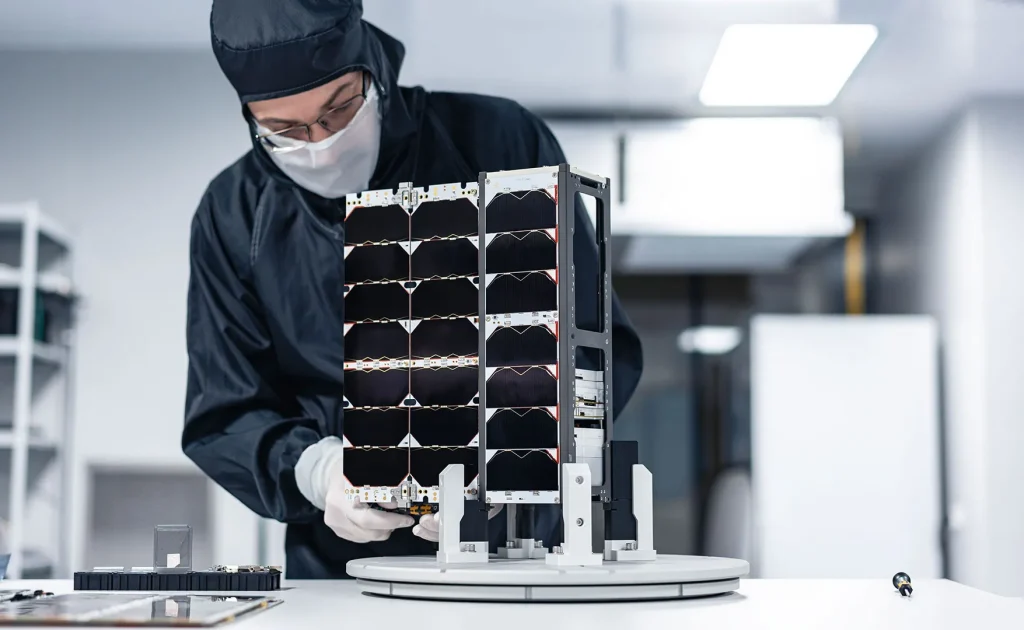

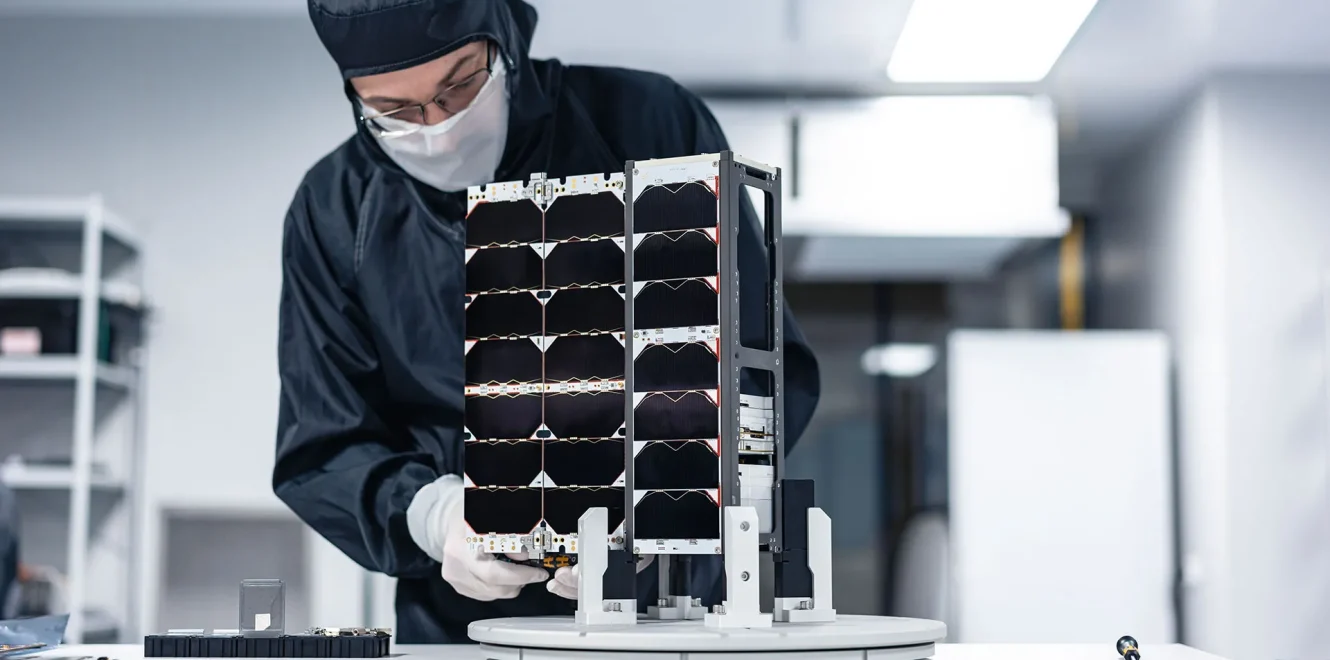

3U X Y Deployable Solar Array web 9

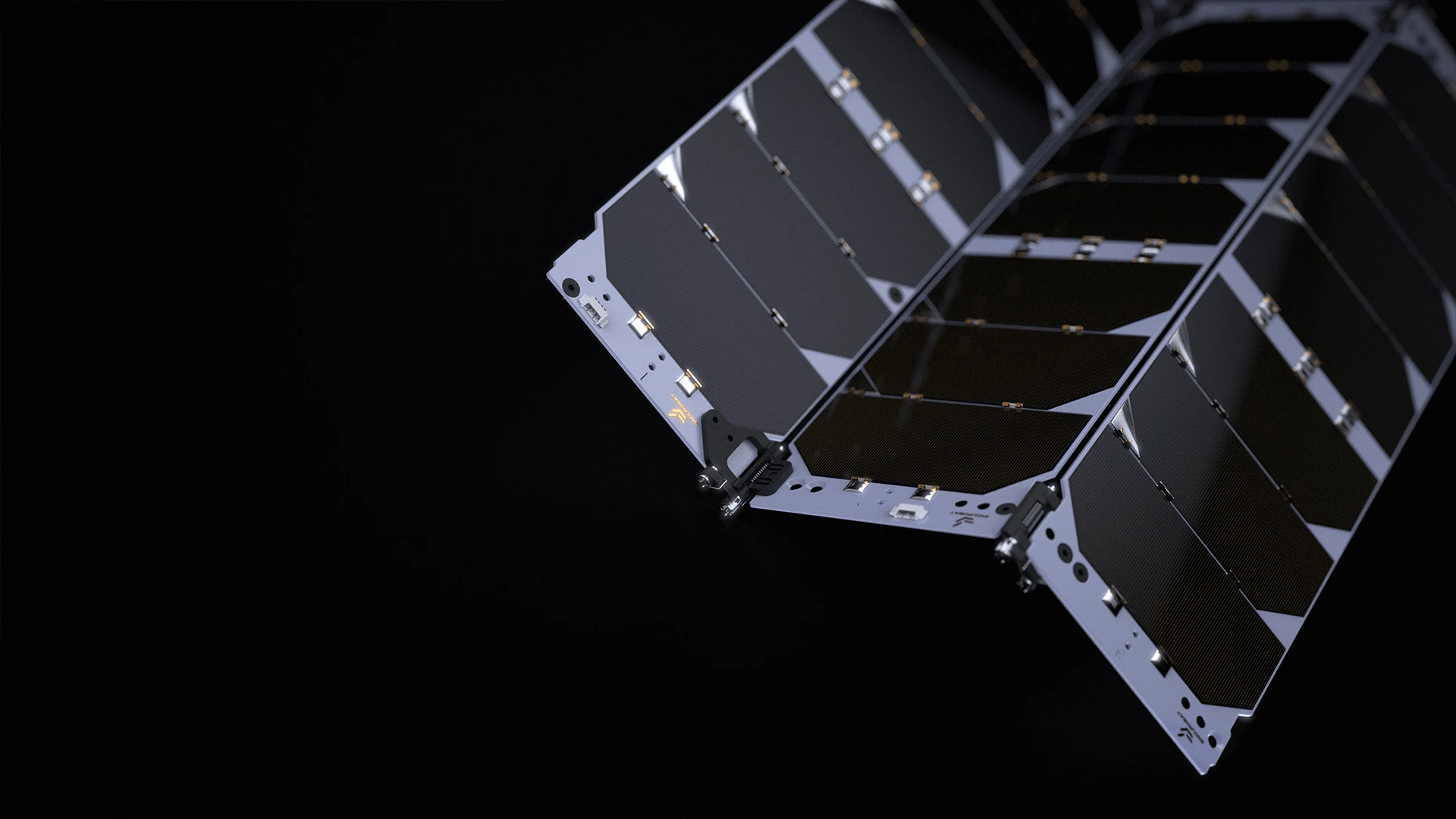

3U X Y Deployable Solar Array web render 5

Triple Junction Solar Cells for Space Applications with efficiency higher than 29.5%

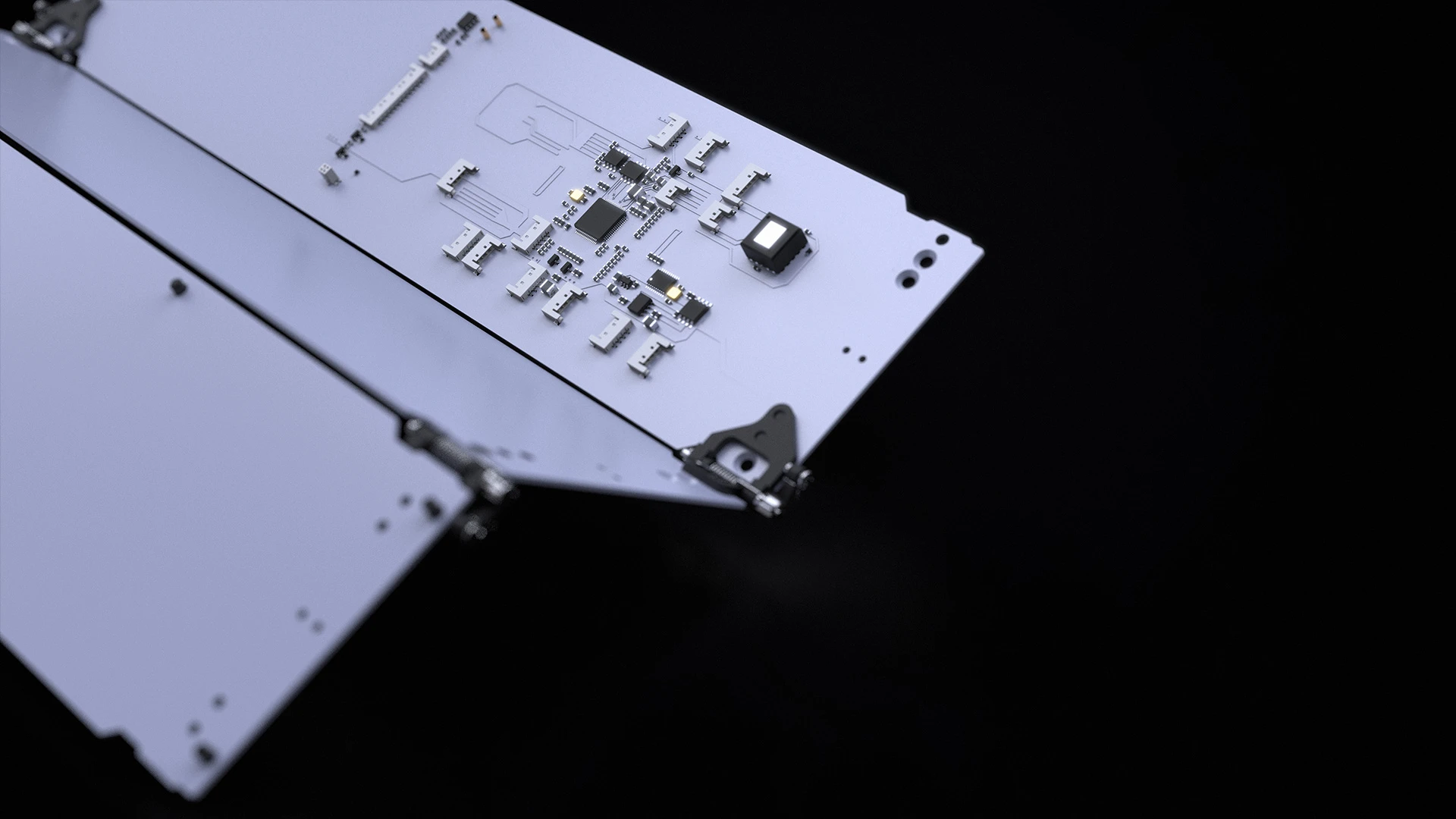

3U X Y Deployable Solar Array web render 1

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO

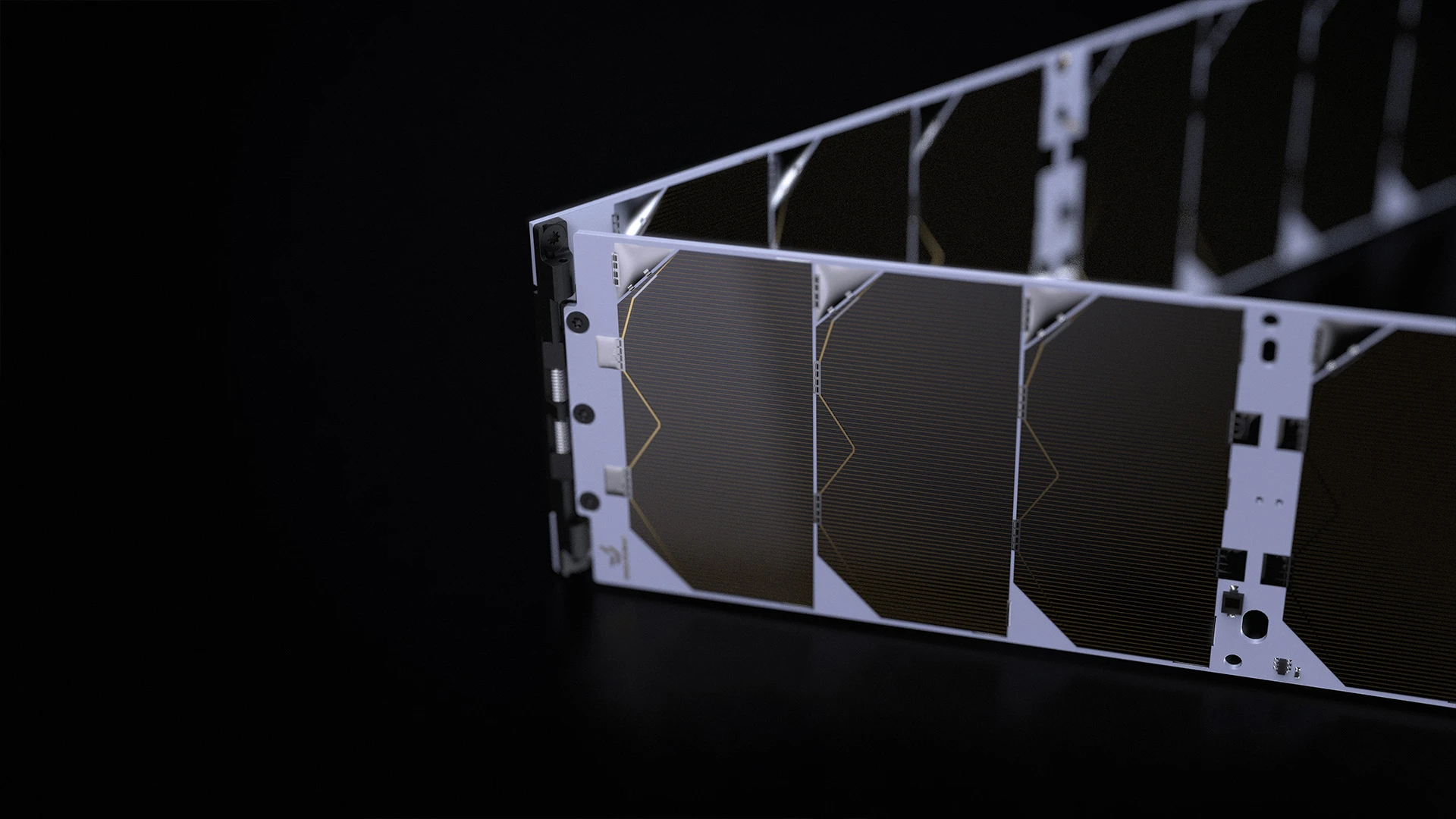

3U Z Depoloyable Solar Array web render 2

Integrated sun sensors & gyroscope option

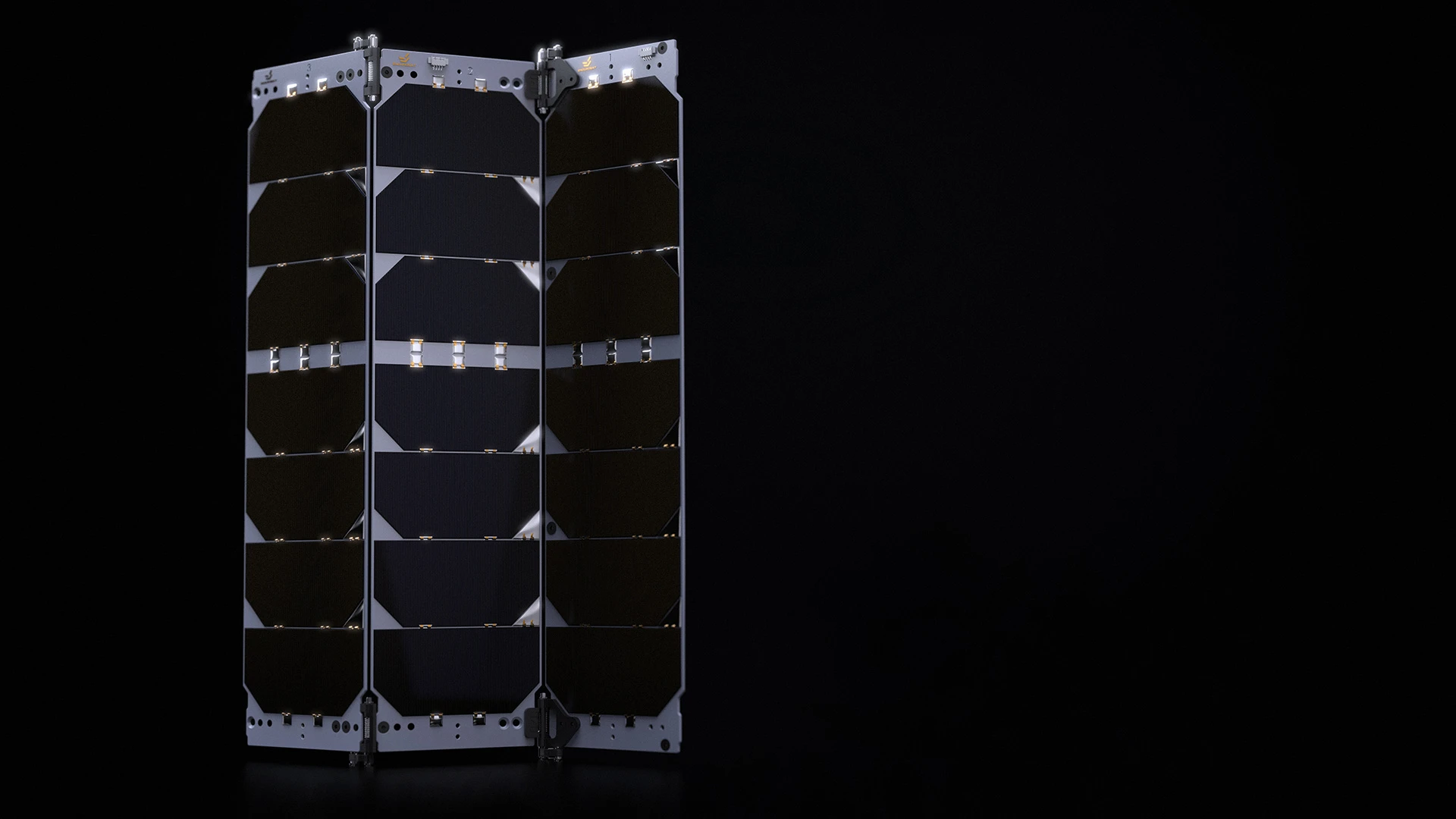

3U X Y Deployable Solar Array web render 3

Series or parallel connection based on customer power system requirements

SERIES OR PARALLEL CONNECTIONS COMPATIBLE WITH DIVERSE POWER SYSTEM REQUIREMENTS
PRODUCT GALLERY

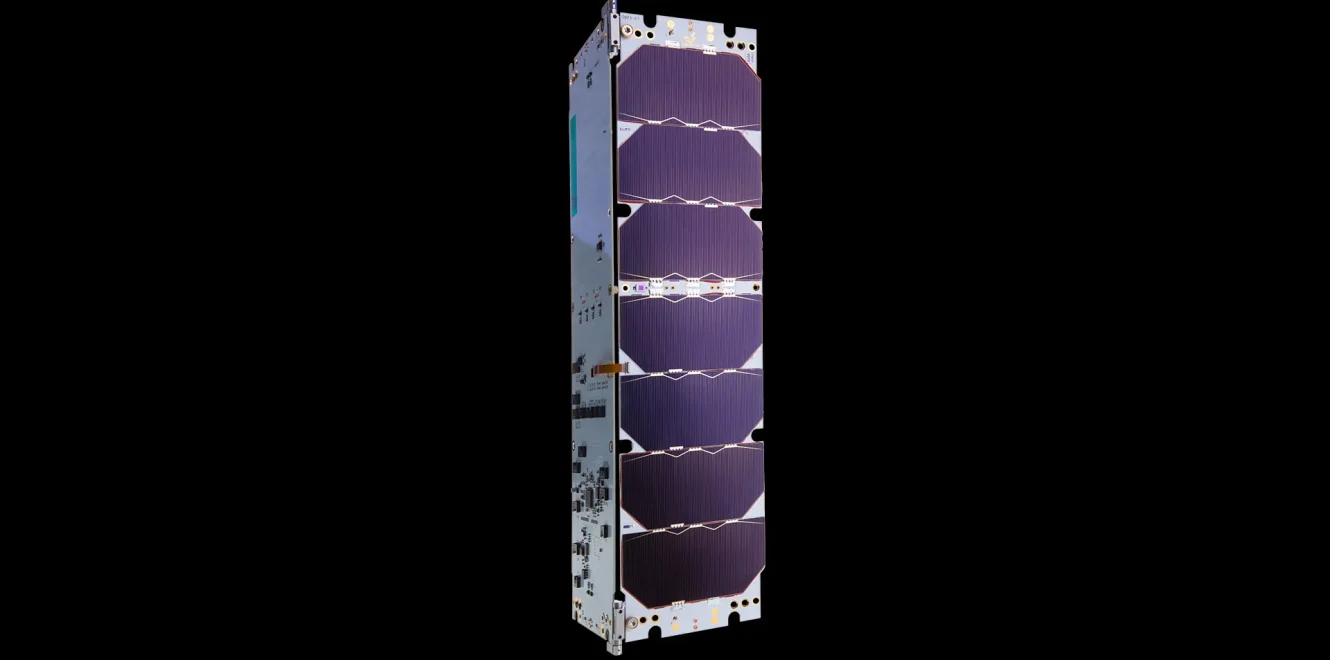

3U X Y Deployable Solar Array web 5

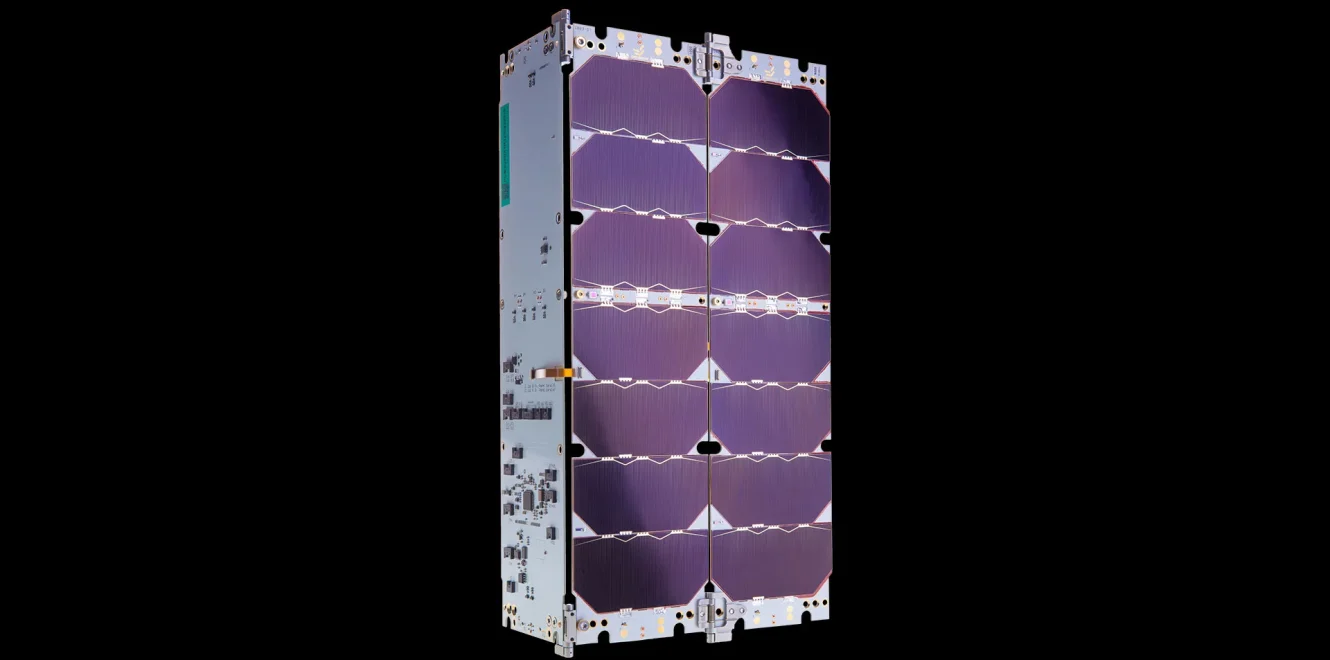

3U X Y Deployable Solar Array web 7
3U X Y Deployable Solar Array web 9

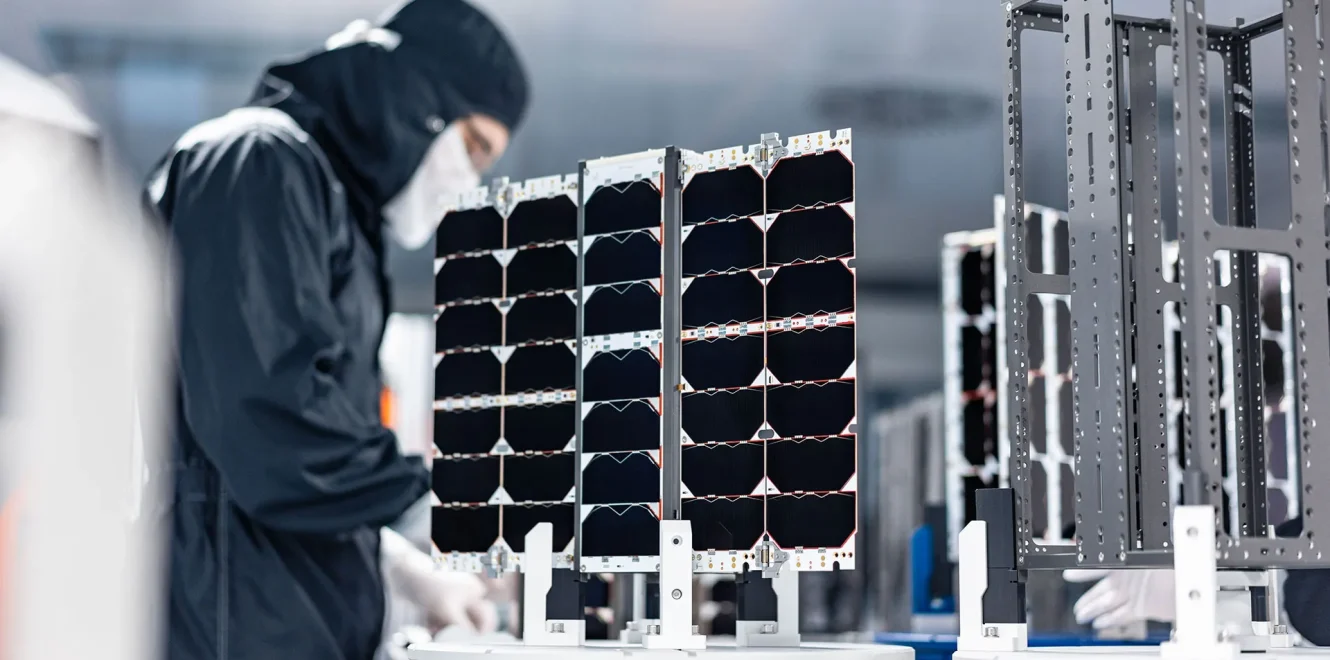

3U X Y Deployable Solar Array web 6

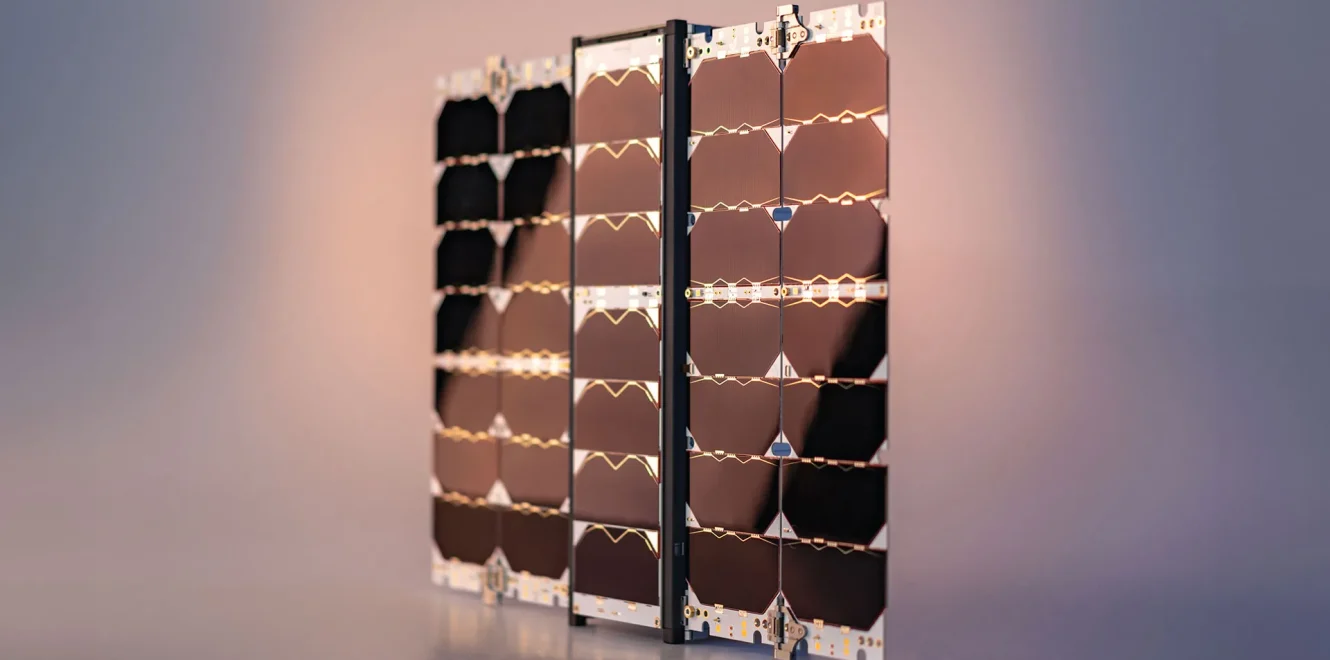

3U X Y Deployable Solar Array web 4

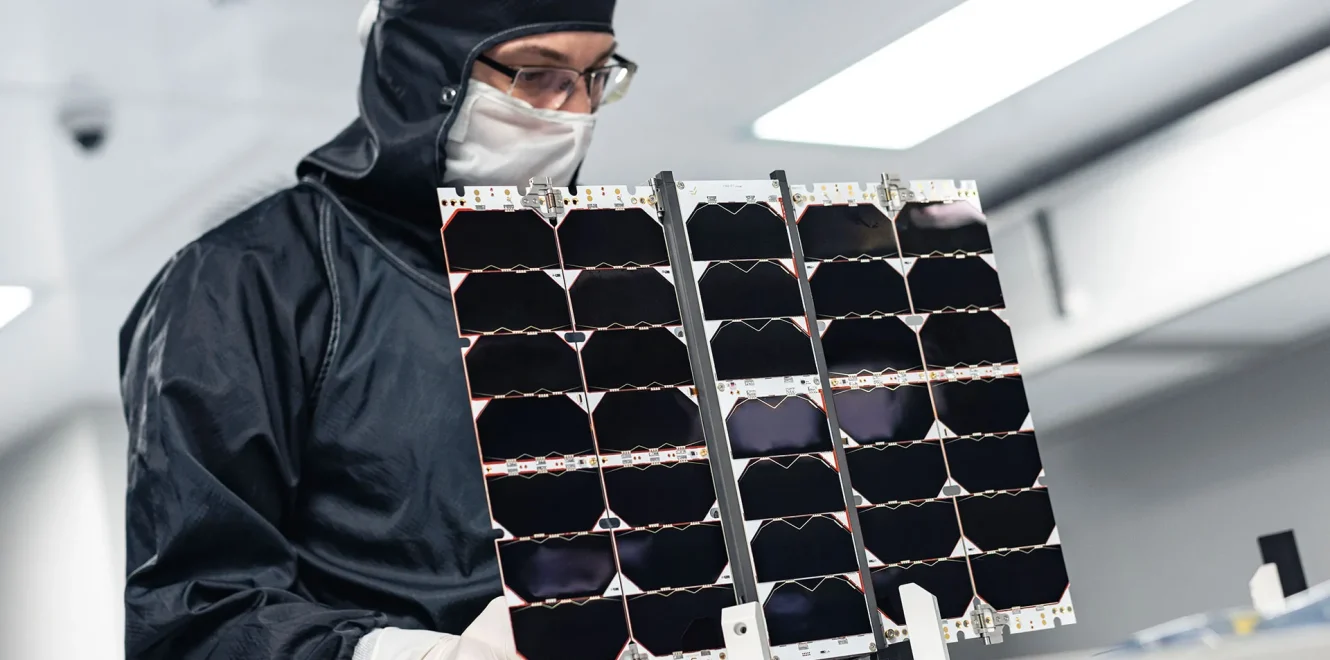

3U X Y Deployable Solar Array web 2

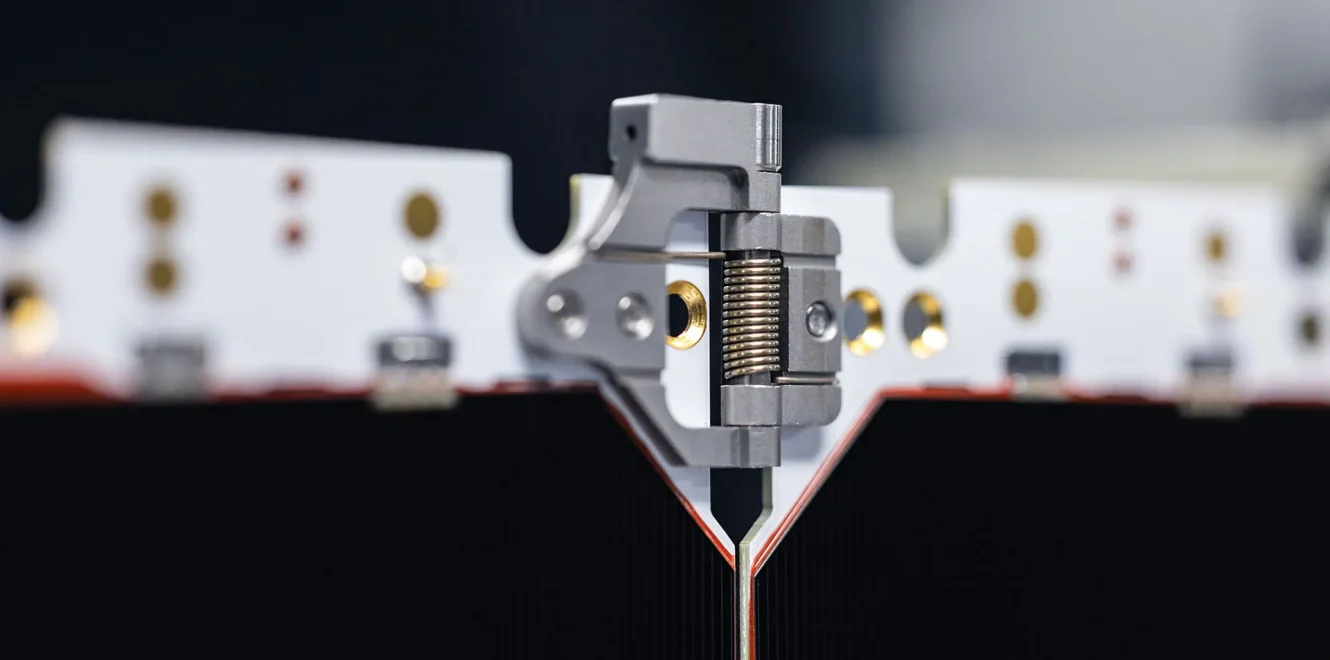

3U X Y Deployable Solar Array web 1
