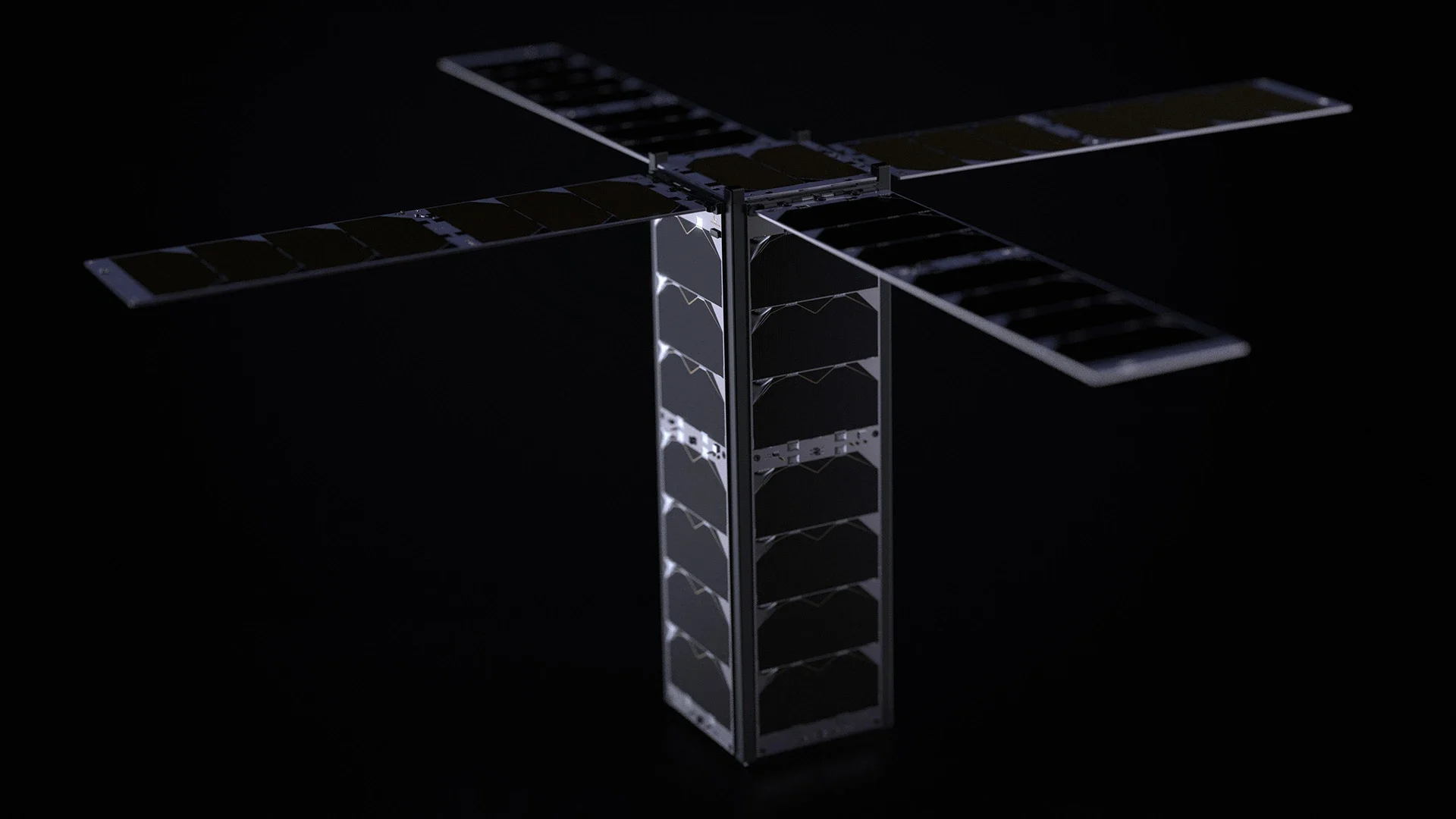

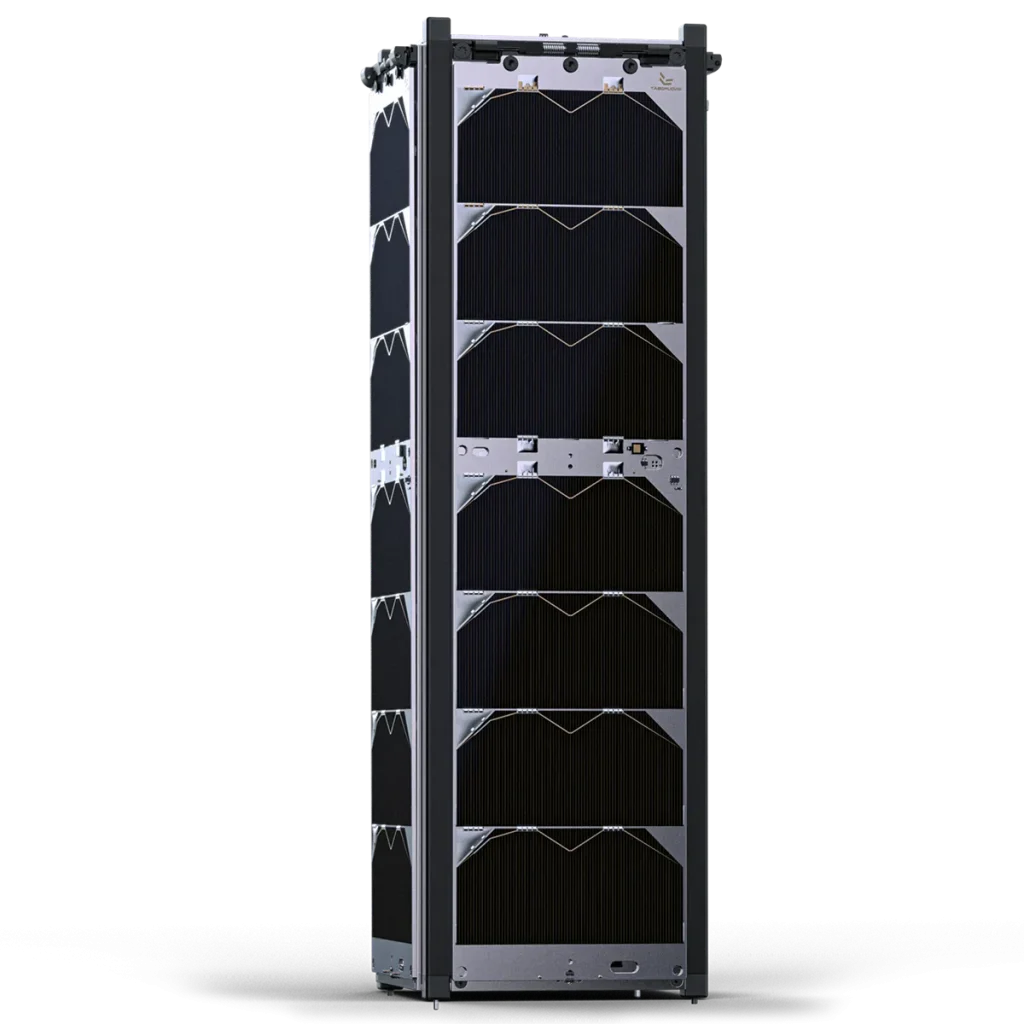

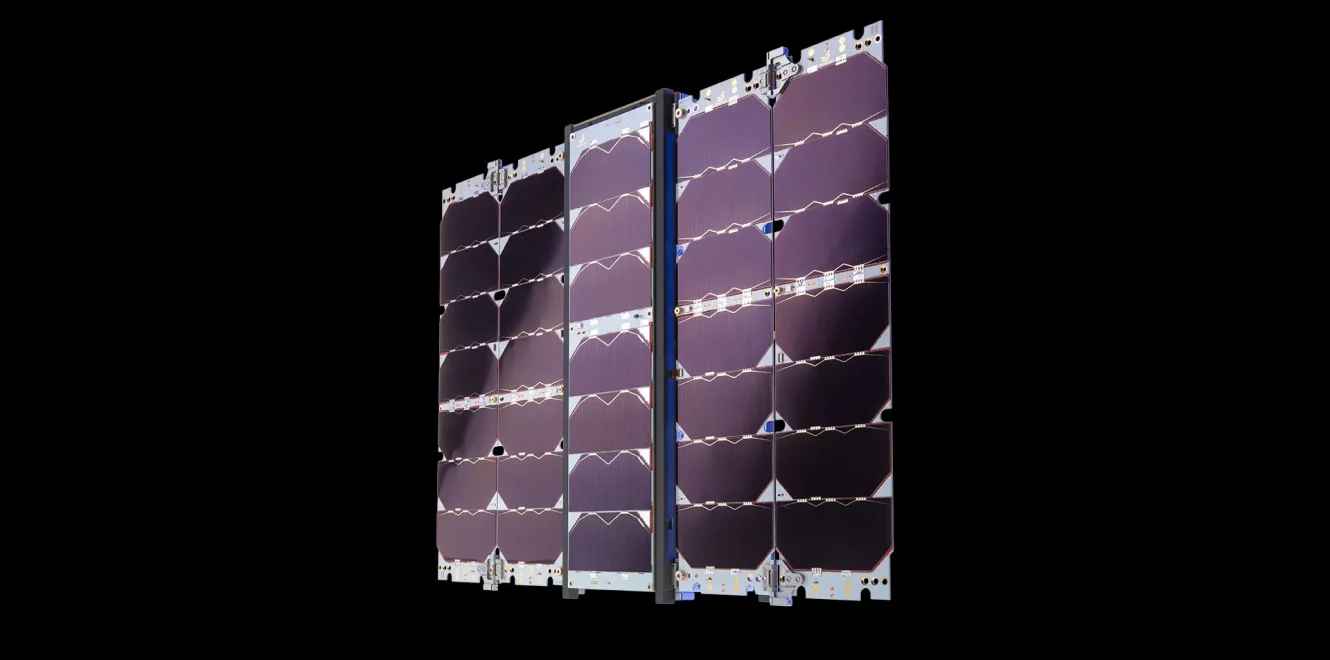

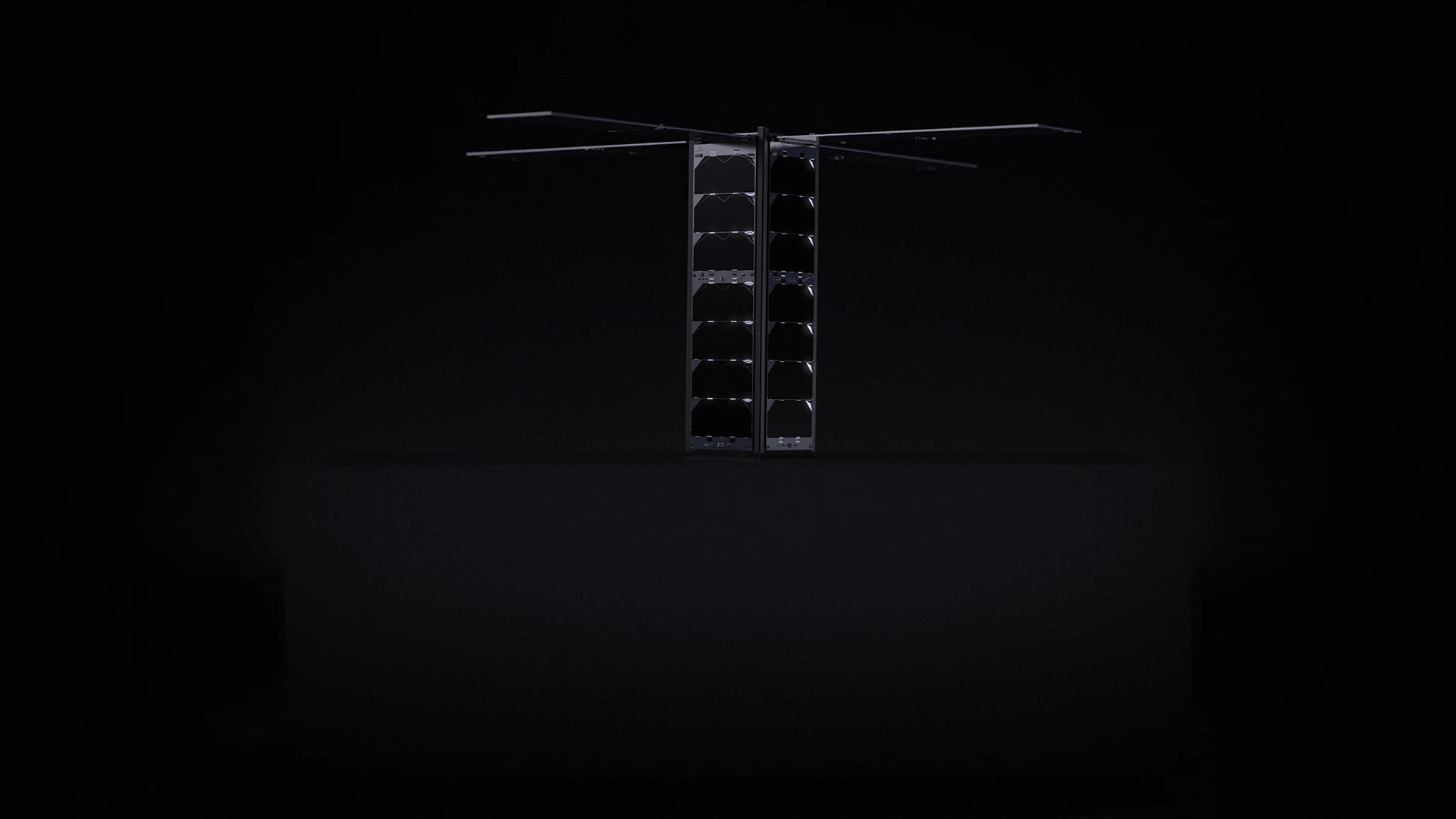

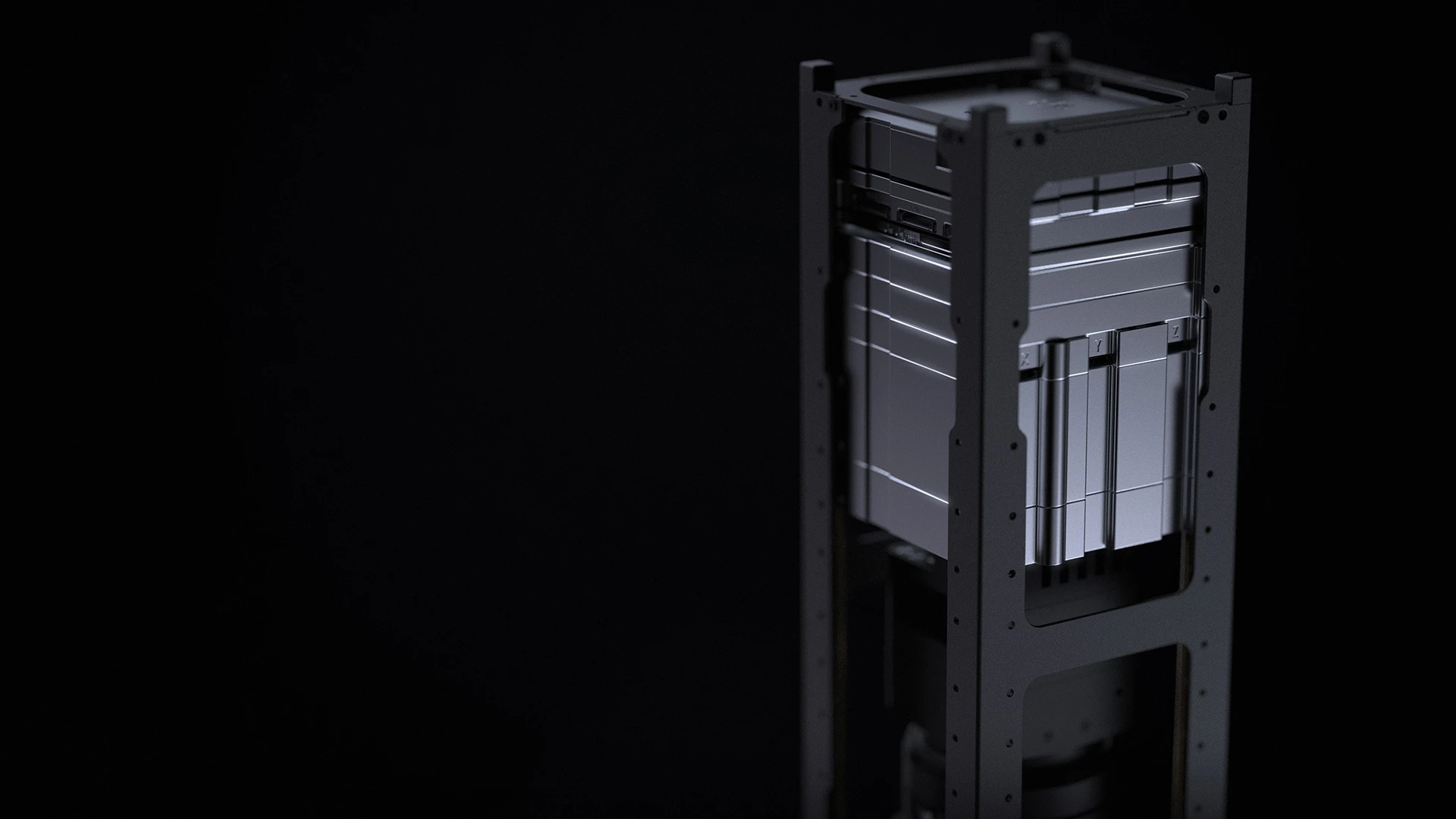

3U PLATFORM
Versatile & Redundant
1.7U
payload volume
Secure
TMTC & Payload Data Downlink
Easy
Payload integration
All Satellites include 1 year Subscription for SpaceDev & SpaceOps
FEATURES
Bus Mass
2.4-3.5 kg (configuration dependent)
Available Payload Mass
2.5-3.6 kg (configuration dependent)

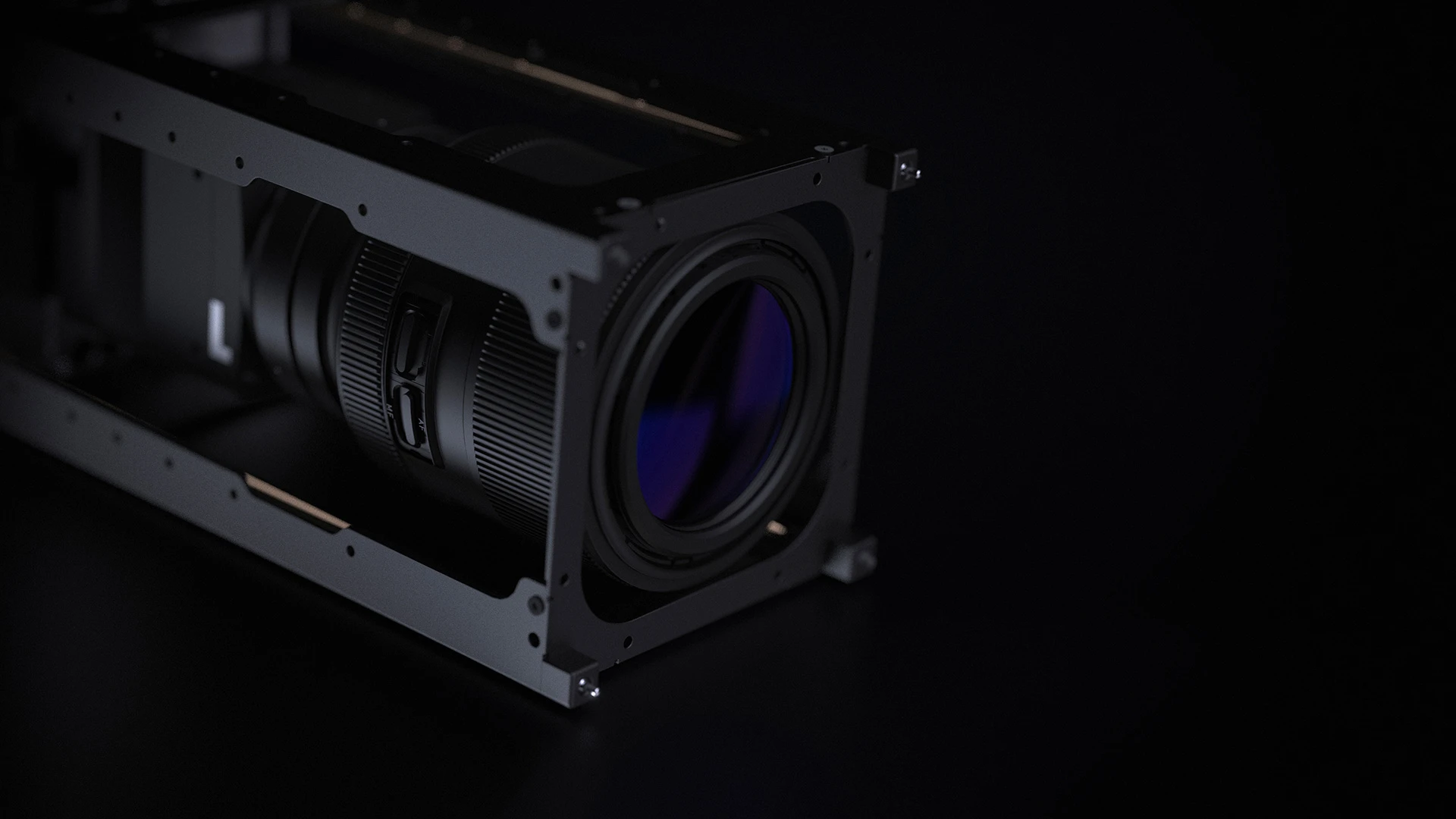

Available Payload Volume
up to 97 x 97 x 173 mm3
Average Payload Power Available
10 W
Available Power Buses
3.3 V, 5 V, customizable 6-12 V and "Battery raw"
Telemetry Data Rate
up to 125 kbps
Payload Data Rate
up to 125 Mbps
Payload Control Interfaces
RS-422/485, CAN, SPI, UART
Performance, Power and Volume
Included
Integration manual
Software Development Kit (SDK)
SpaceDev 1-year subscription
SpaceOps 1-year subscription
Complete set of bus cables
JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
Multi-purpose platform capable of supporting wide range of pointing, volume and power requirements
Preconfigured for your mission, including an option for complete payload integration provided by EnduroSat
MISSION LIFE: 3-5 YEARS (ORBIT DEPENDENT)
Robust data handling of payloads. Embedded operational modes framework at 4x better efficiency
MISSION LIFE: 3 TO 5 YEARS (ORBIT DEPENDENT)
Secure communication for telemetry, telecommands & payload
HIGH SPEED S-BAND AND X-BAND TRANSMITTERS FOR DATA-INTENSIVE PAYLOADS
Available with magnetic-only and three-axis reaction wheels attitude control
MEETING DIVERSE POINTING AND STABILITY REQUIREMENTS

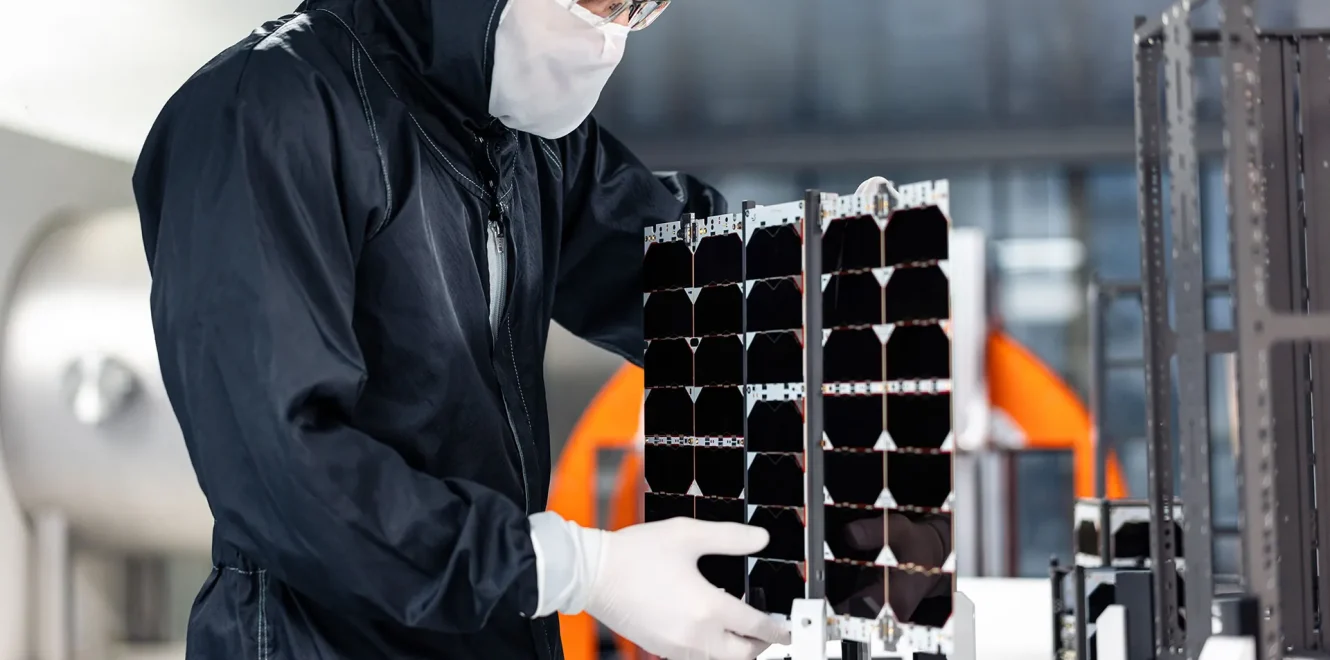

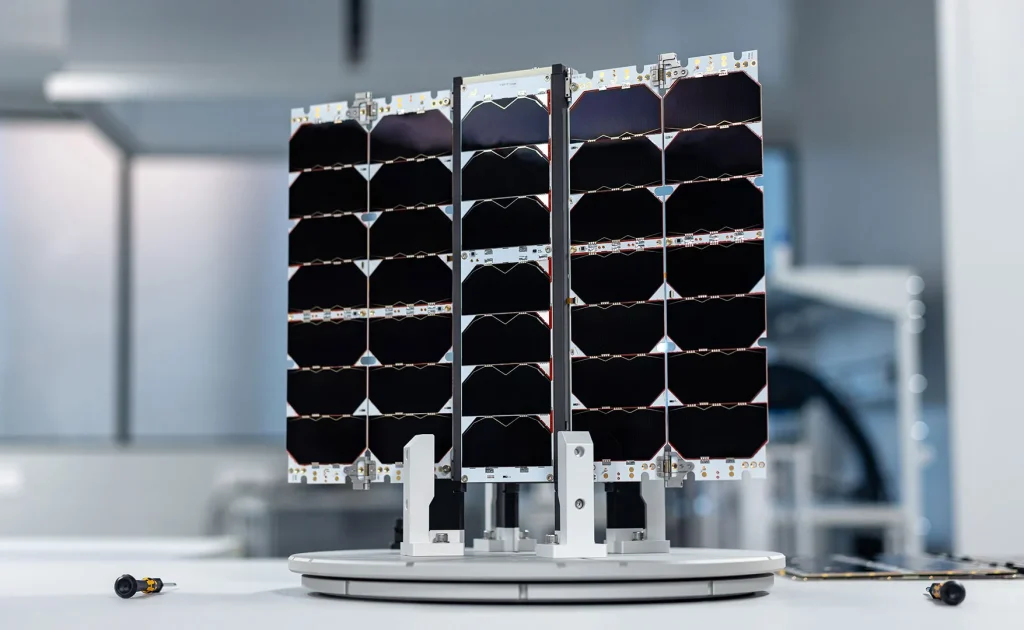

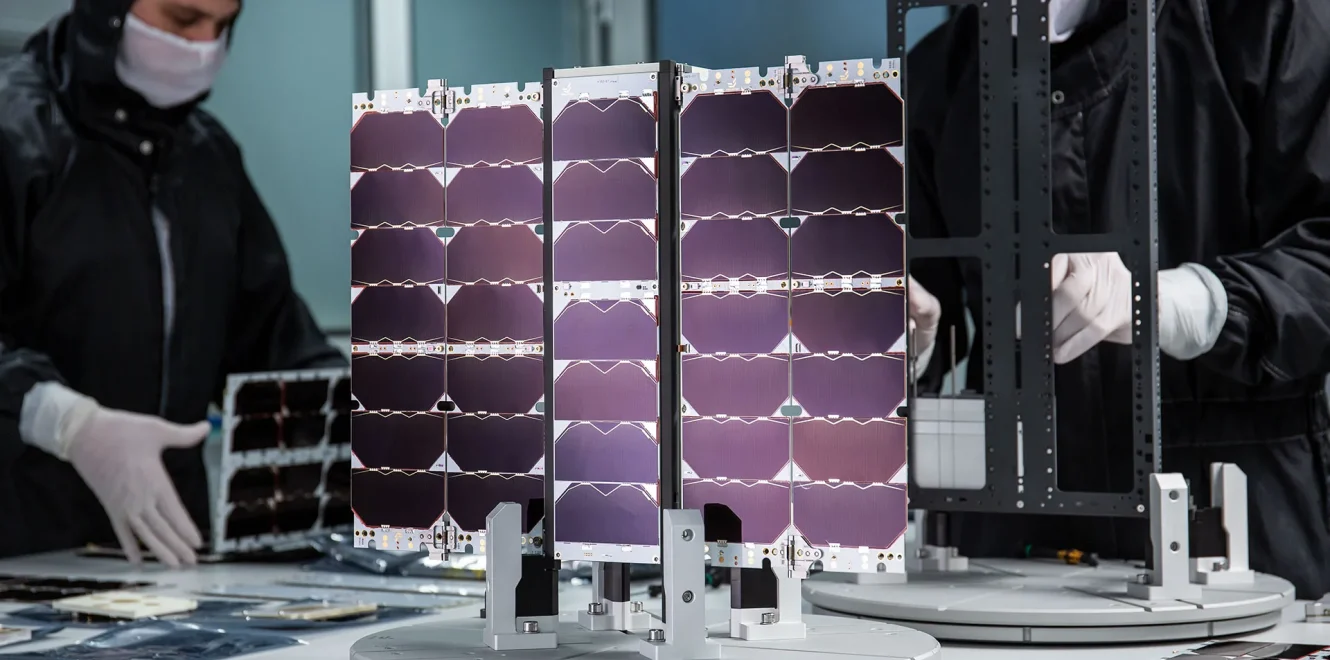

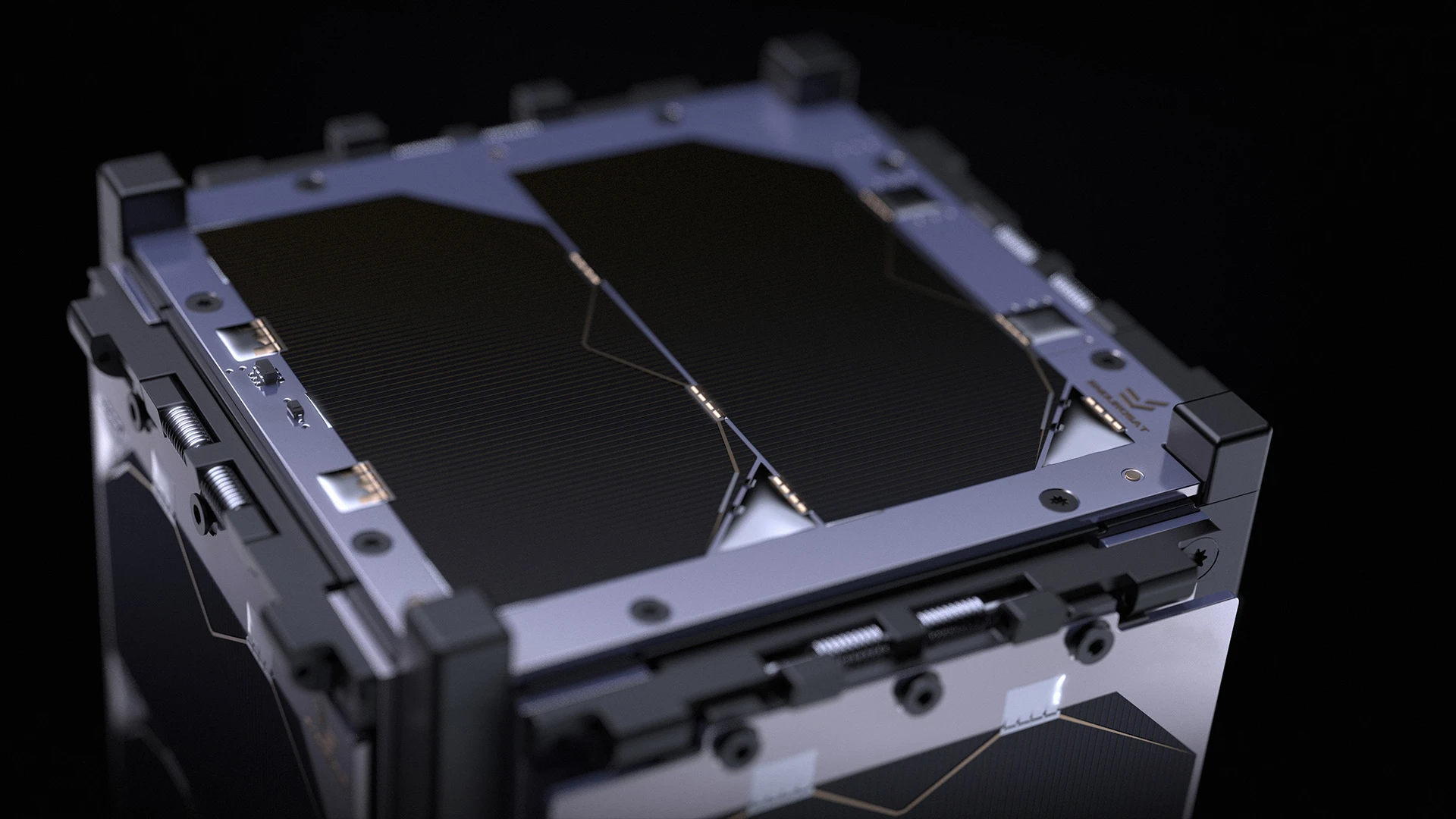

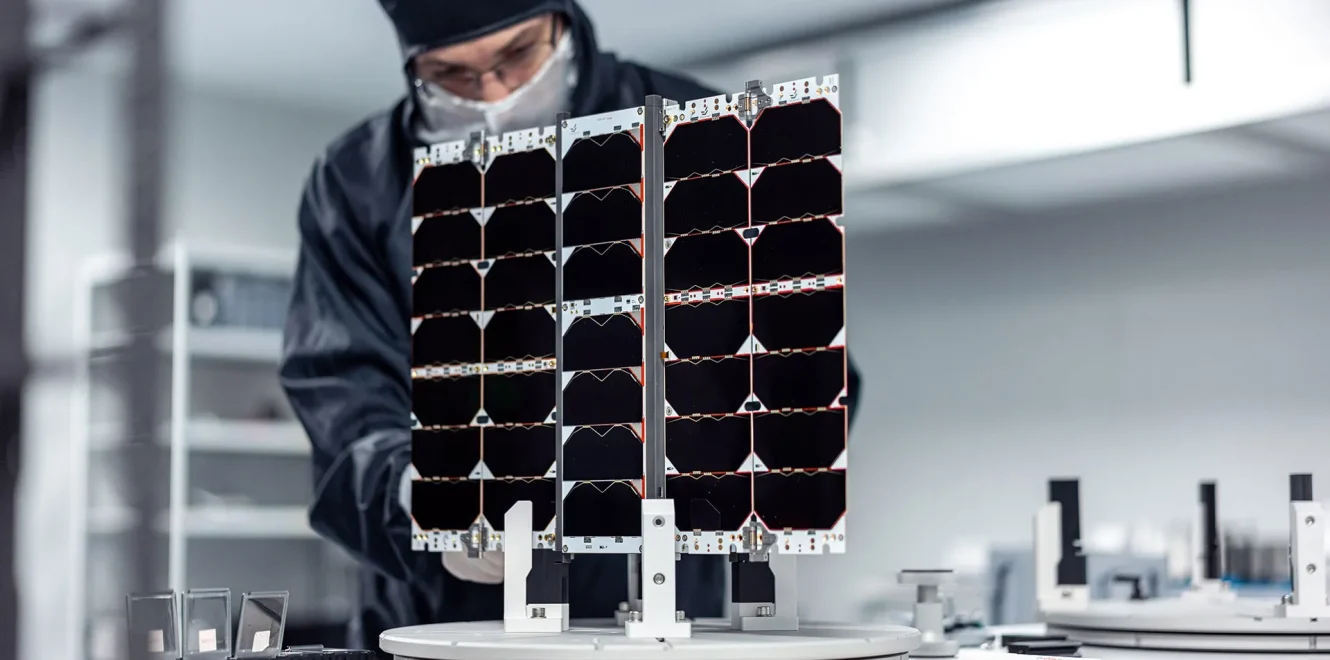

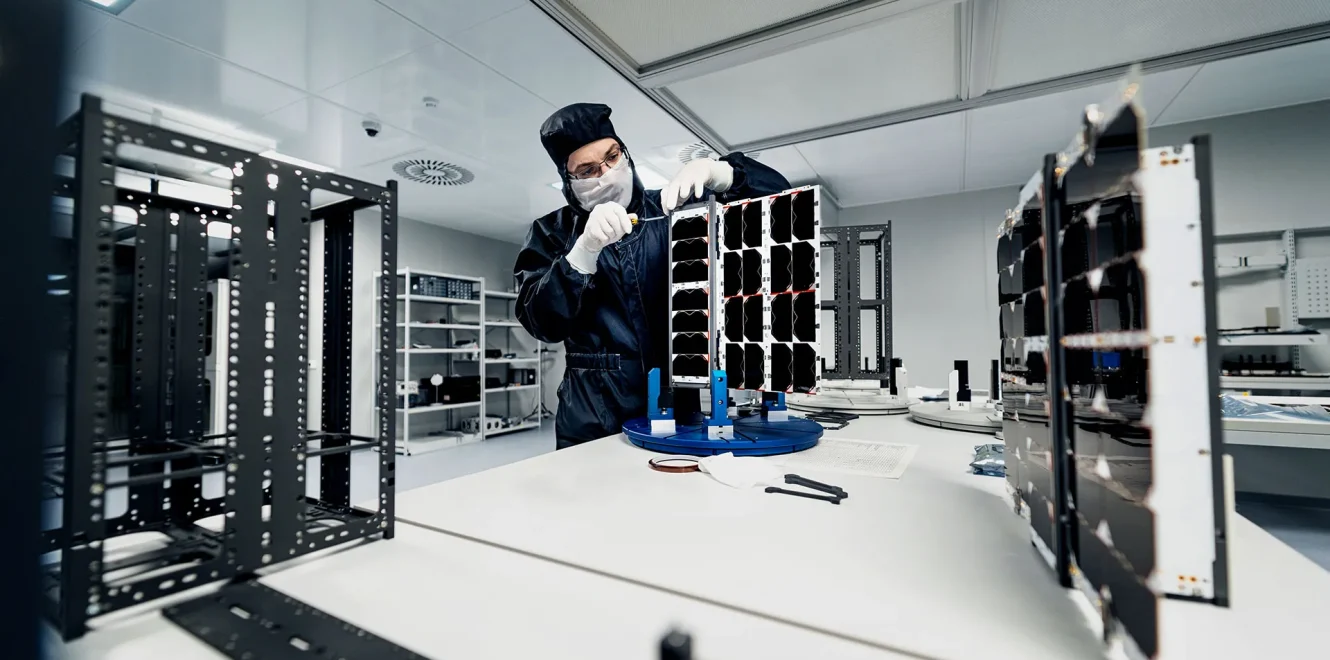

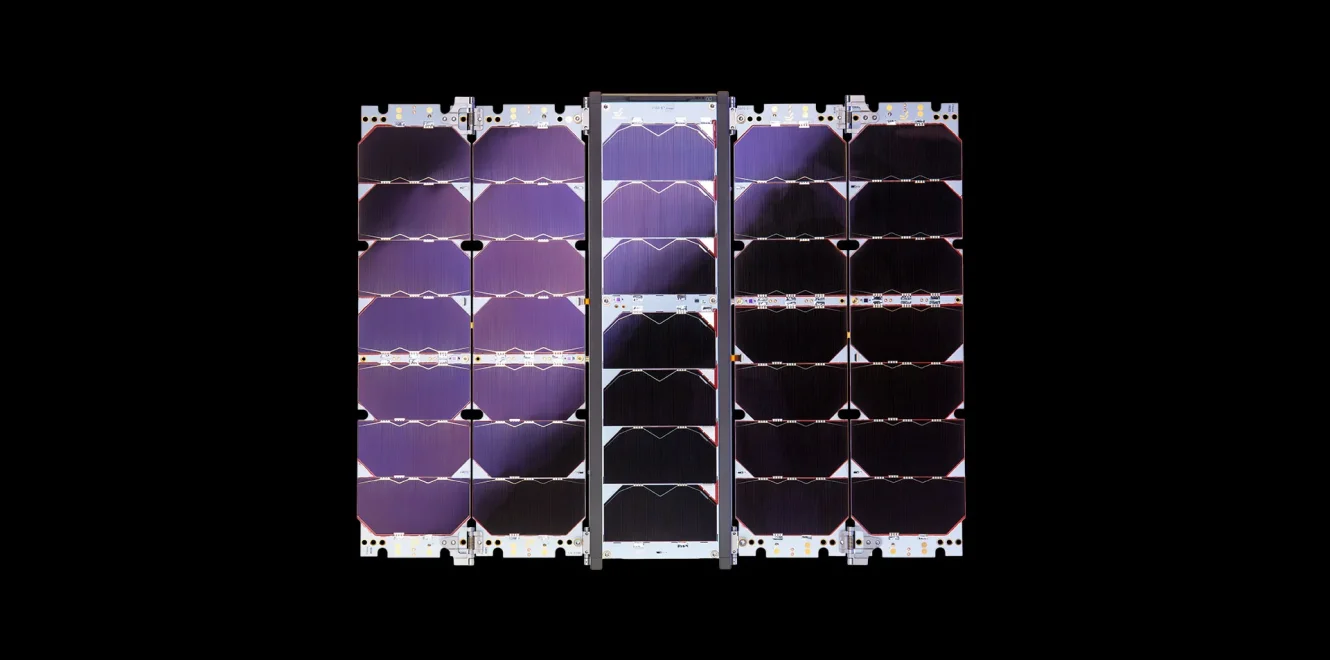

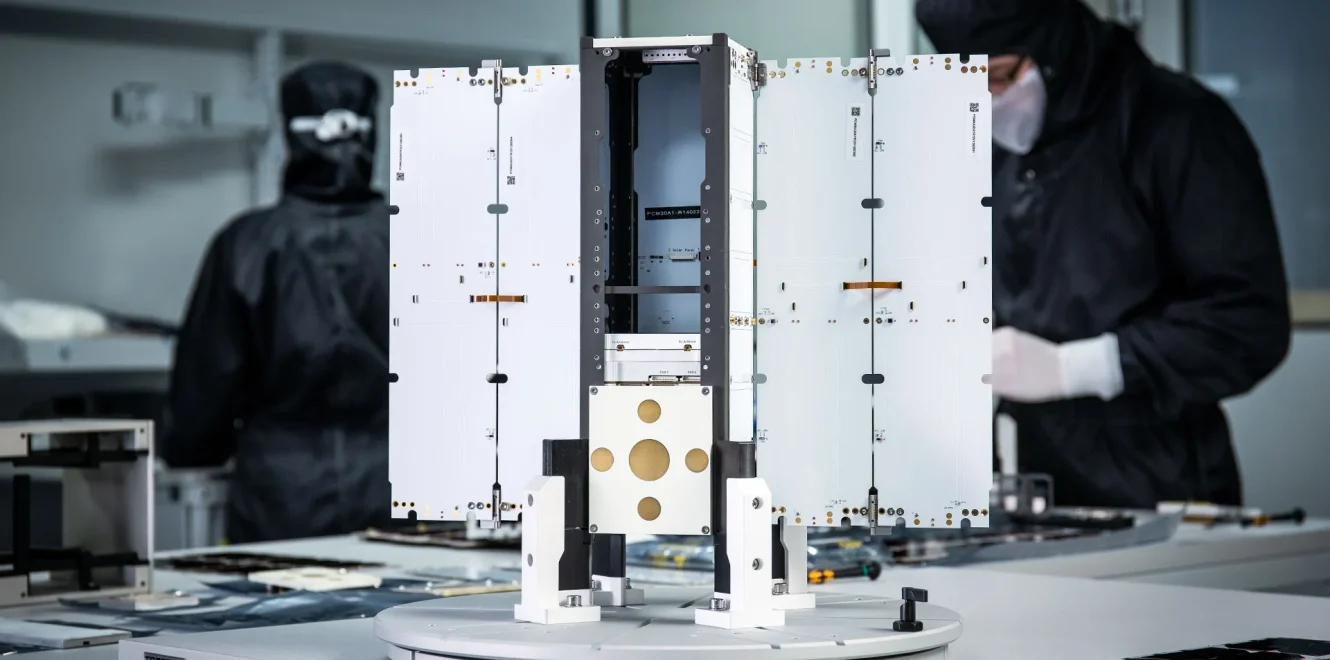

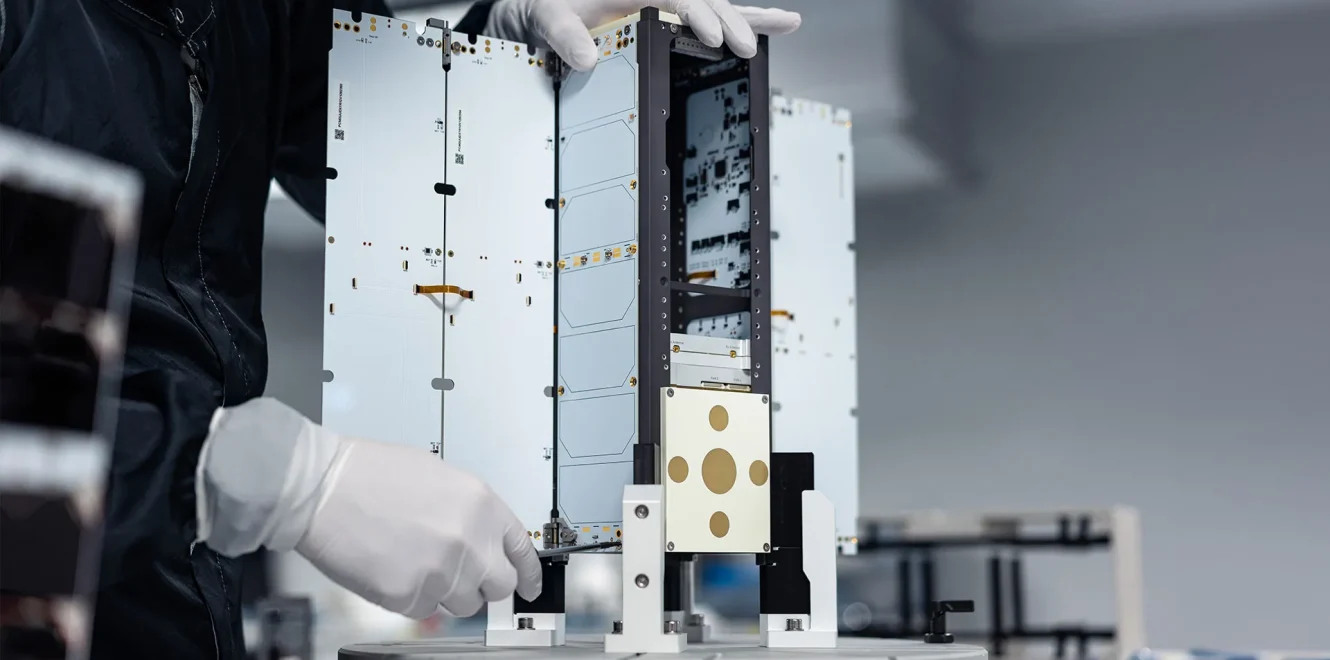

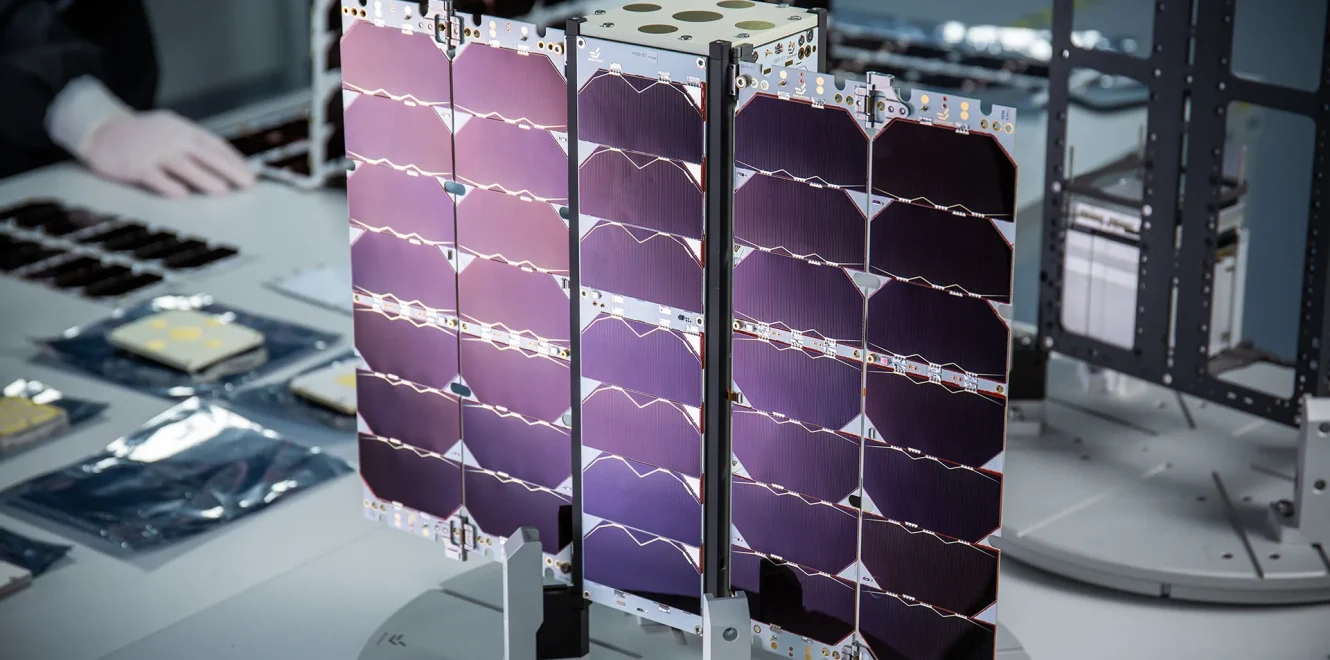

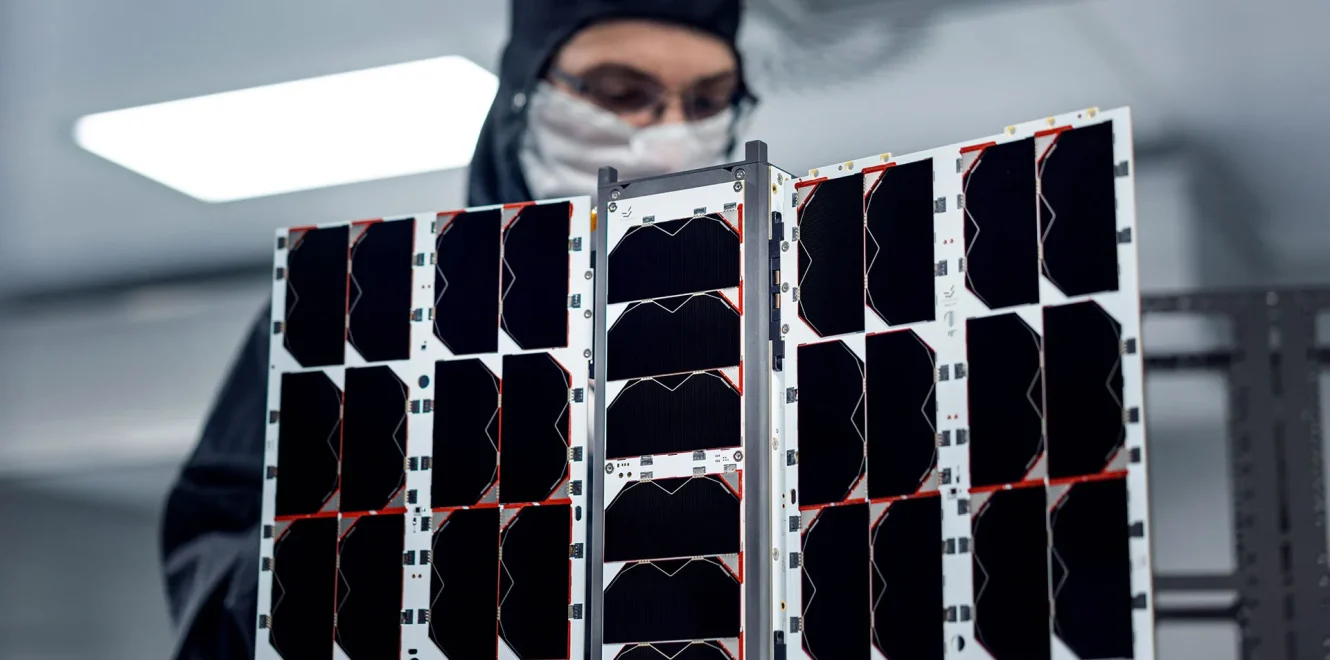

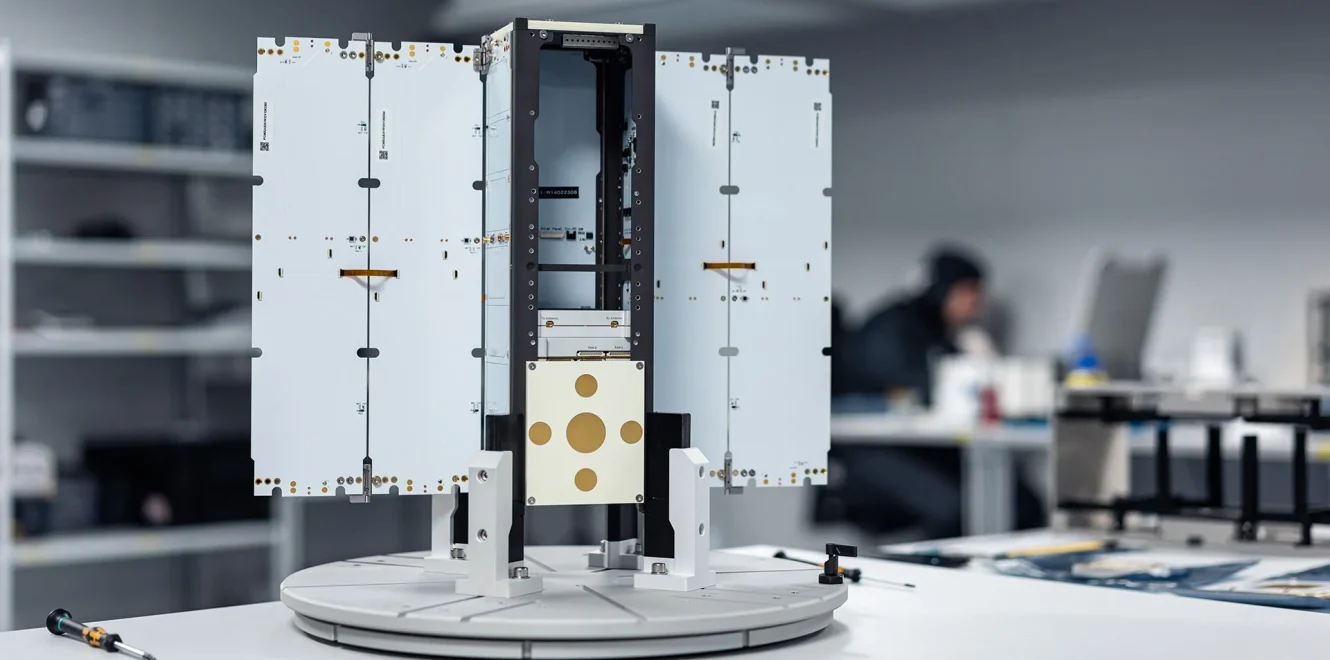

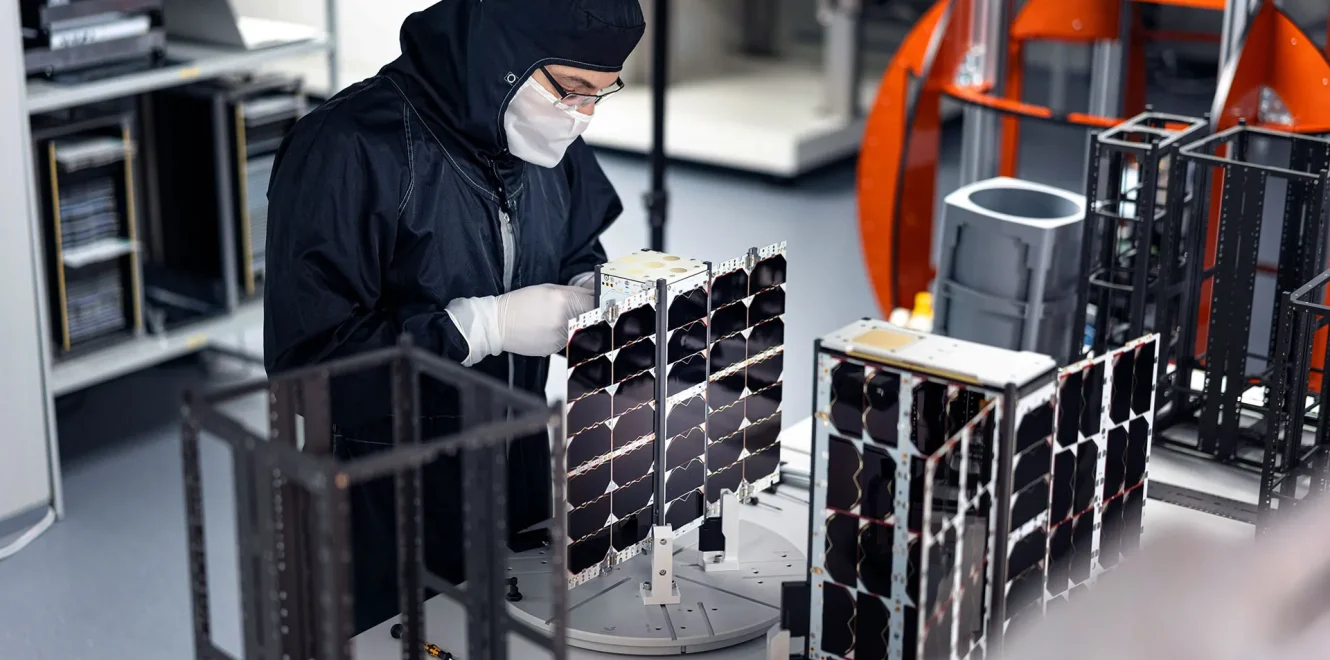

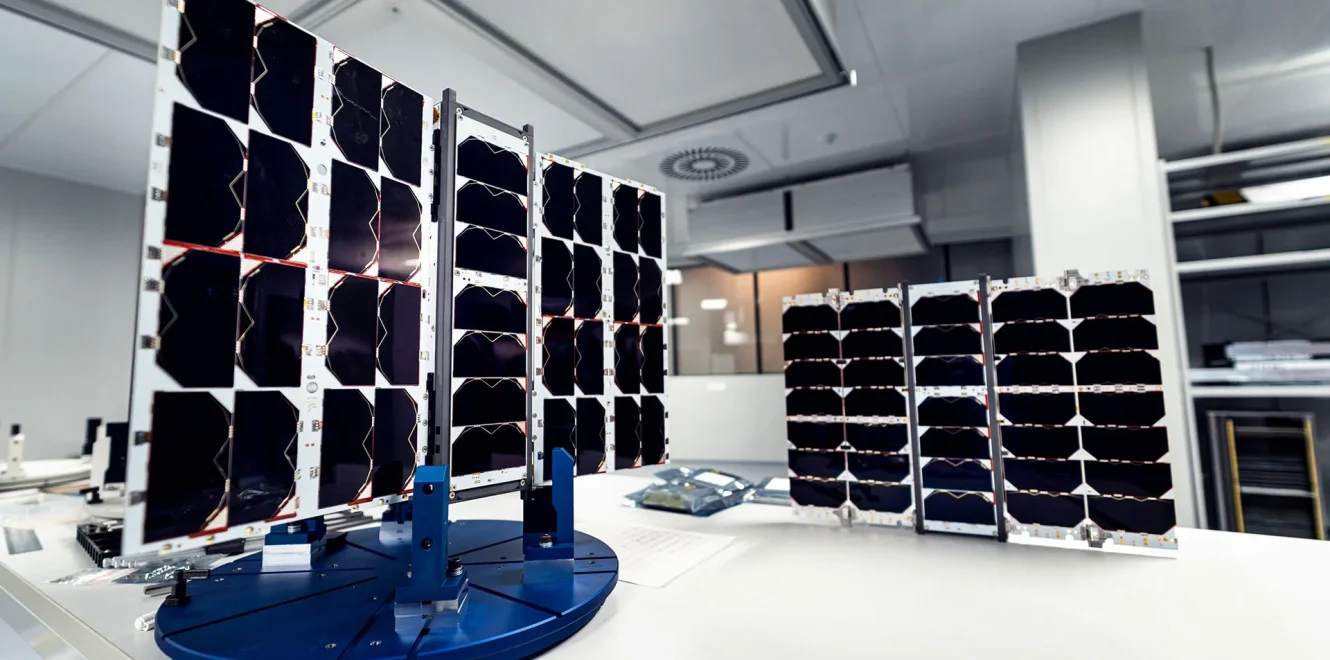

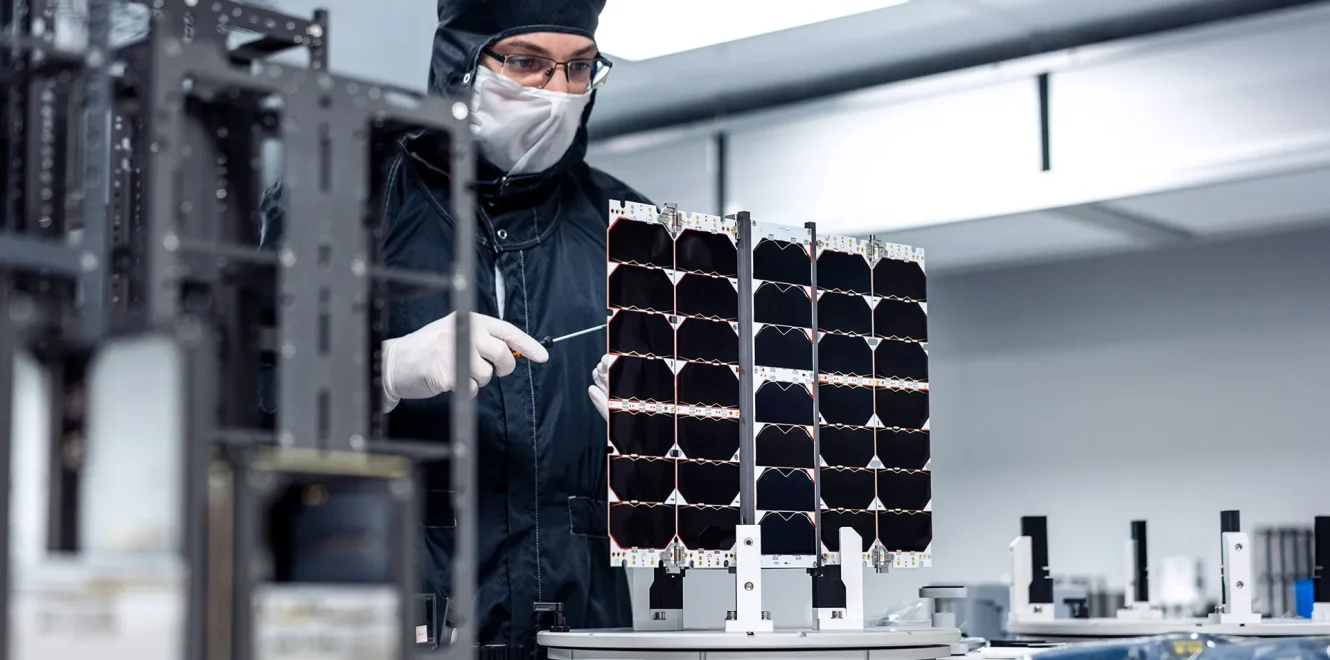

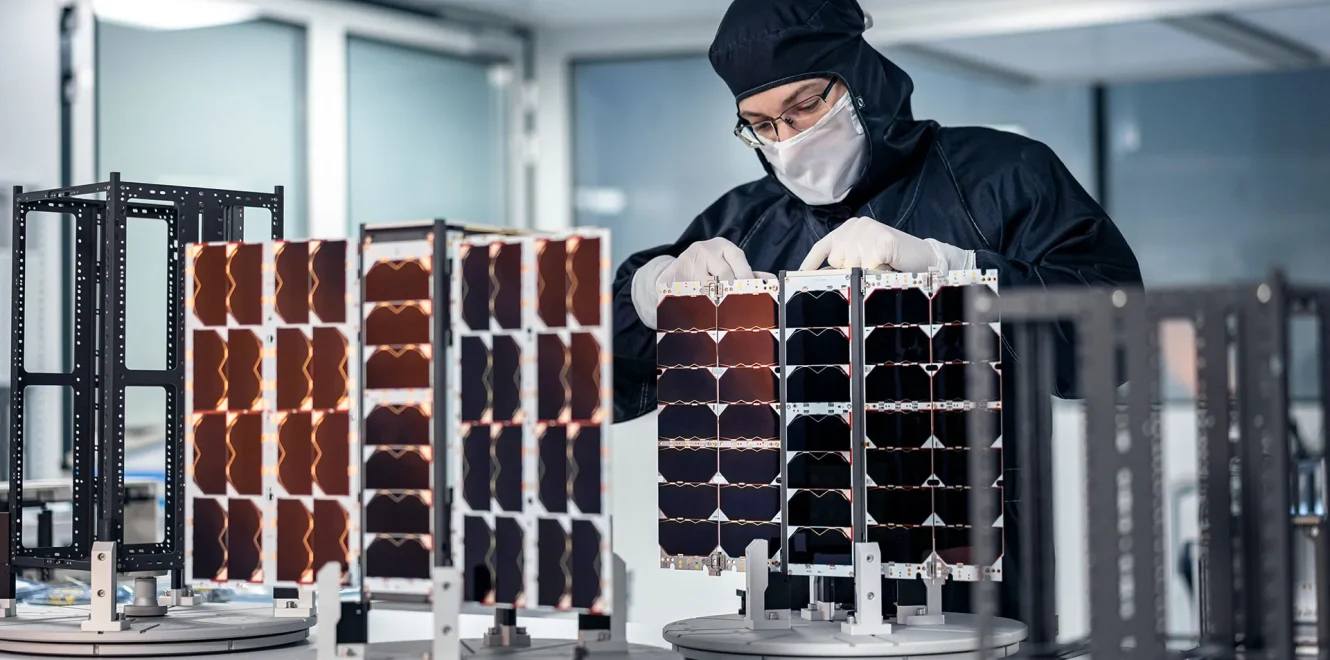

PRODUCT GALLERY
2500
MODULES IN ORBIT
60
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
LEARN MORE
Datasheet & CAD File
3U Platform
