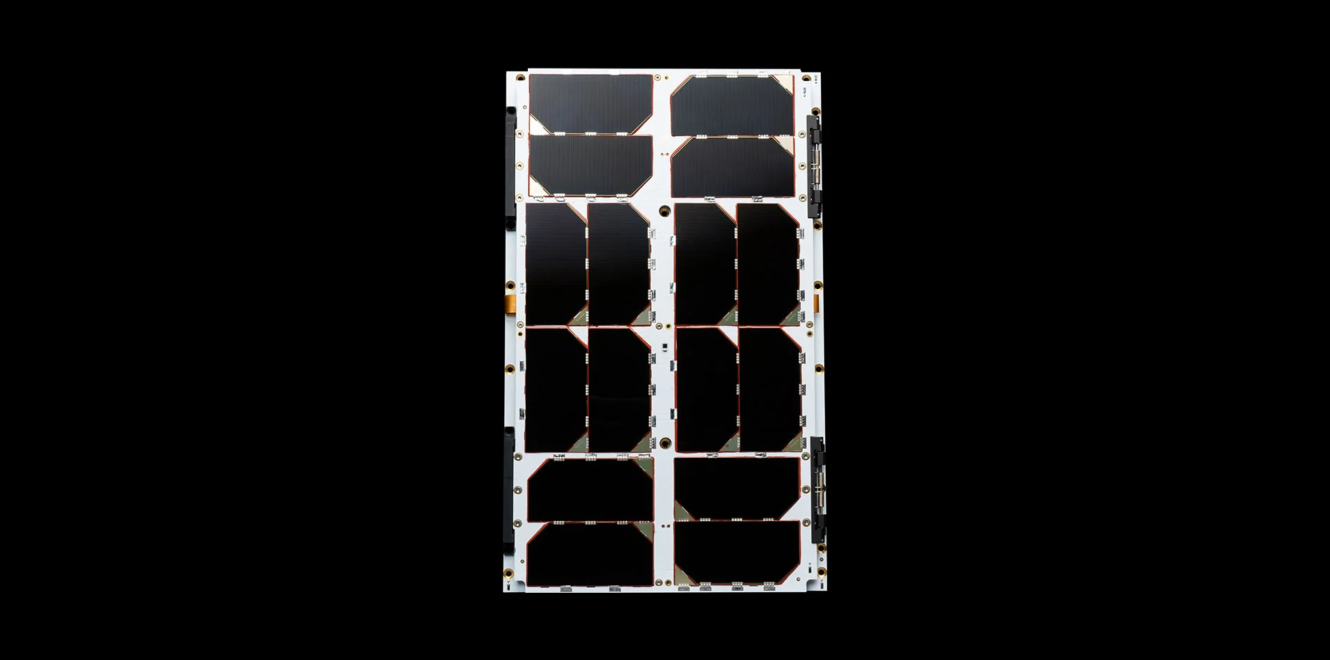

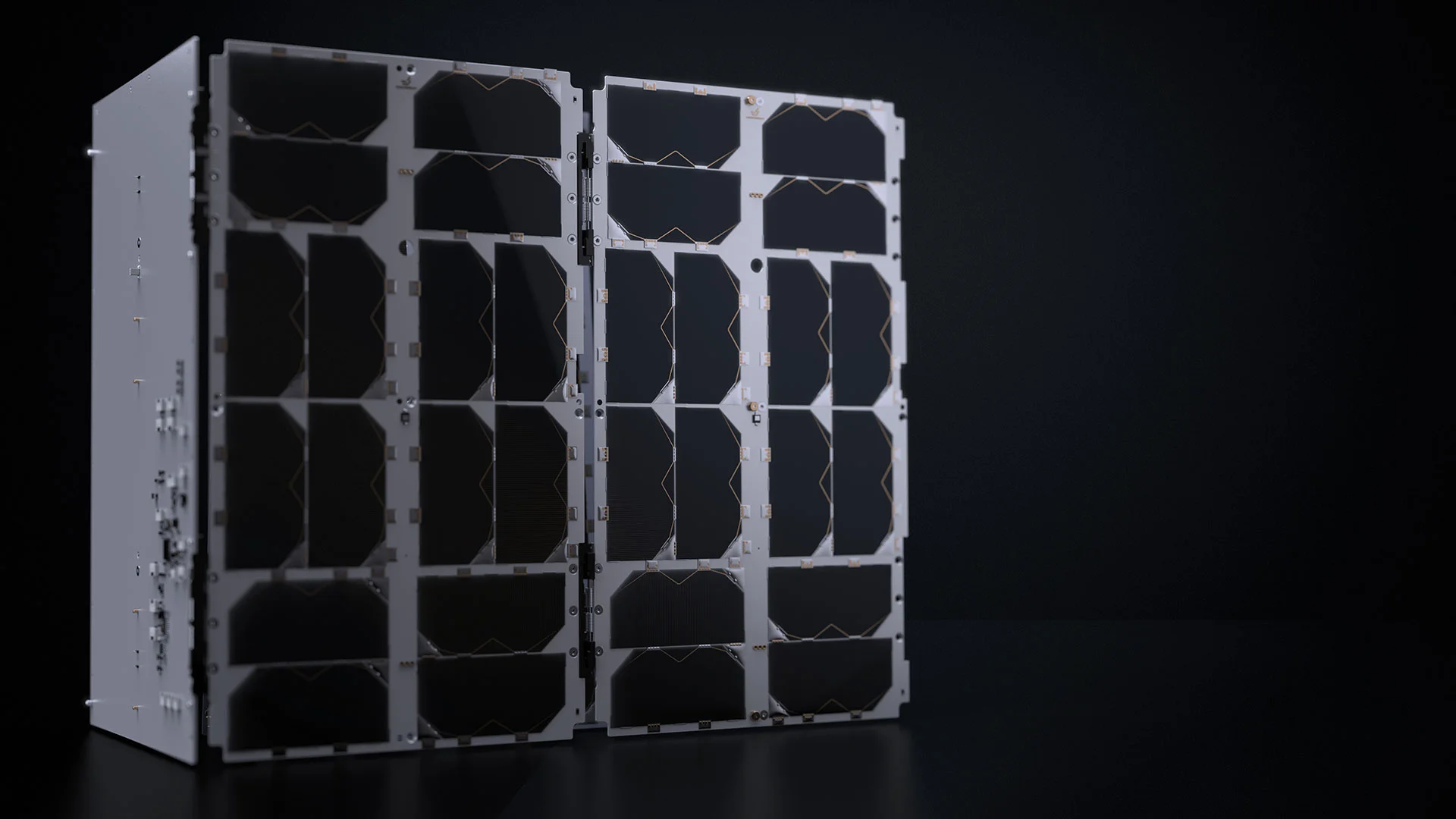

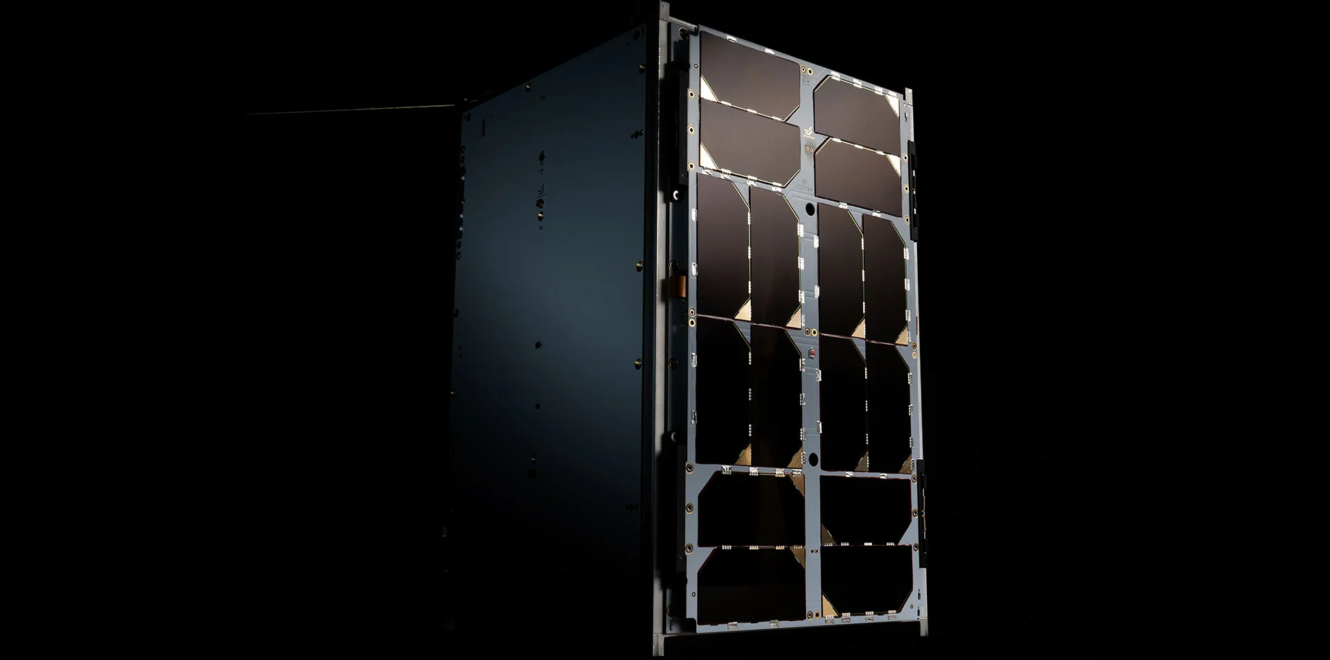

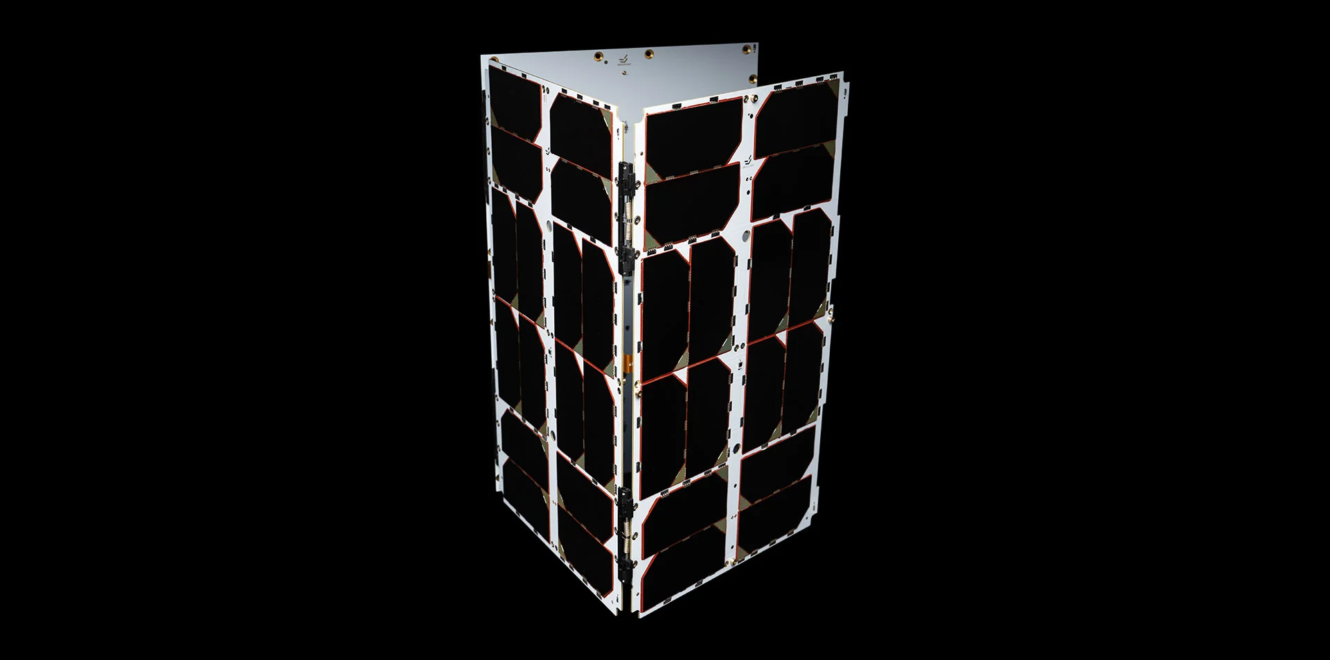

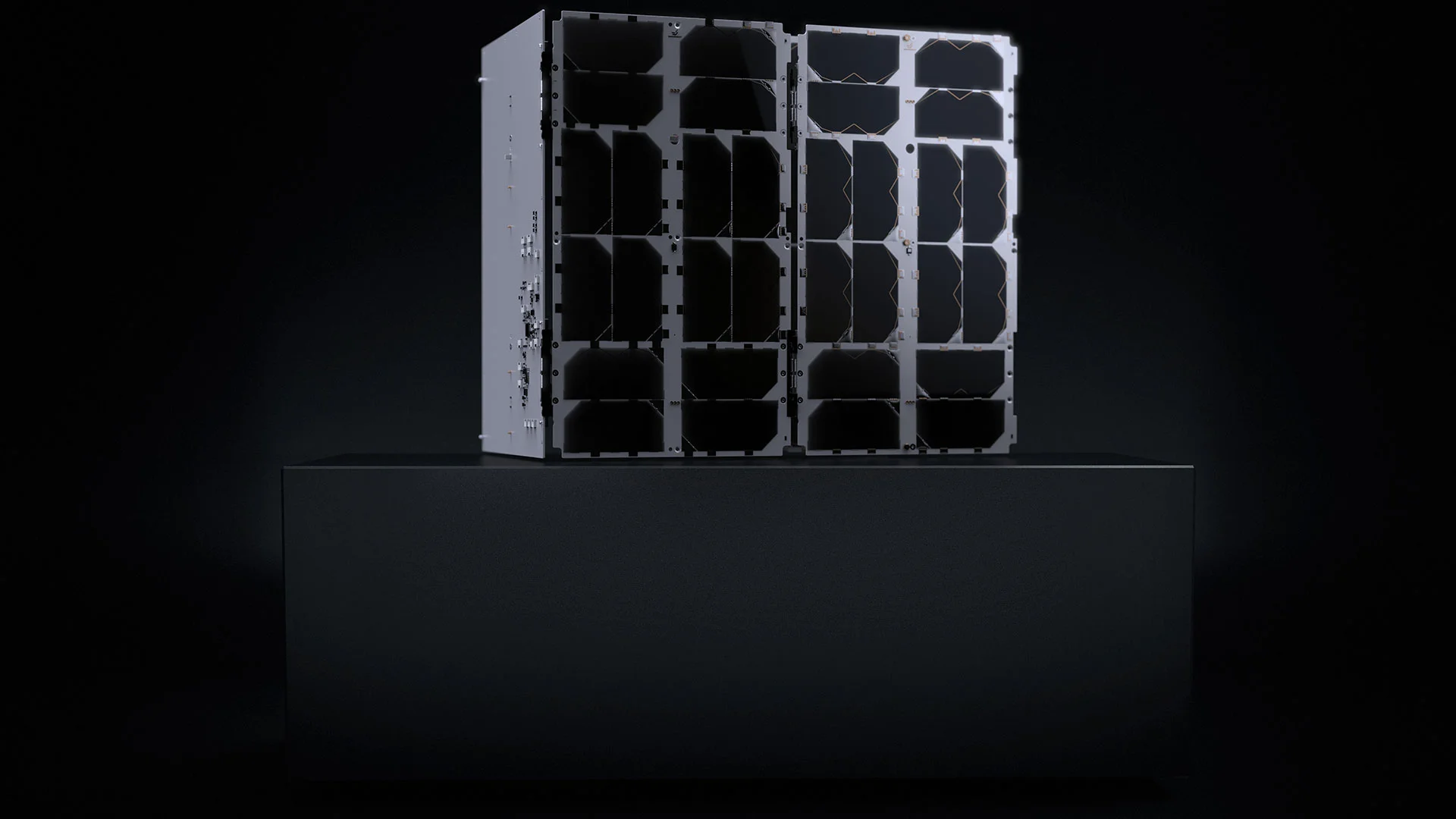

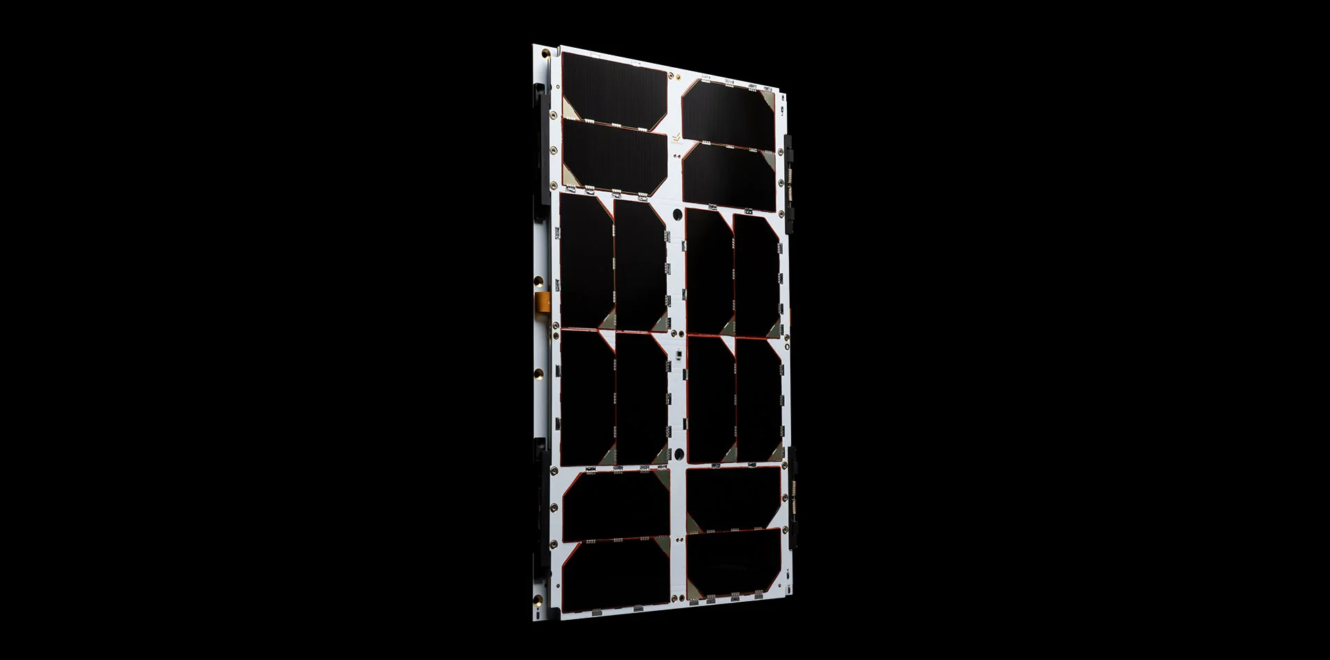

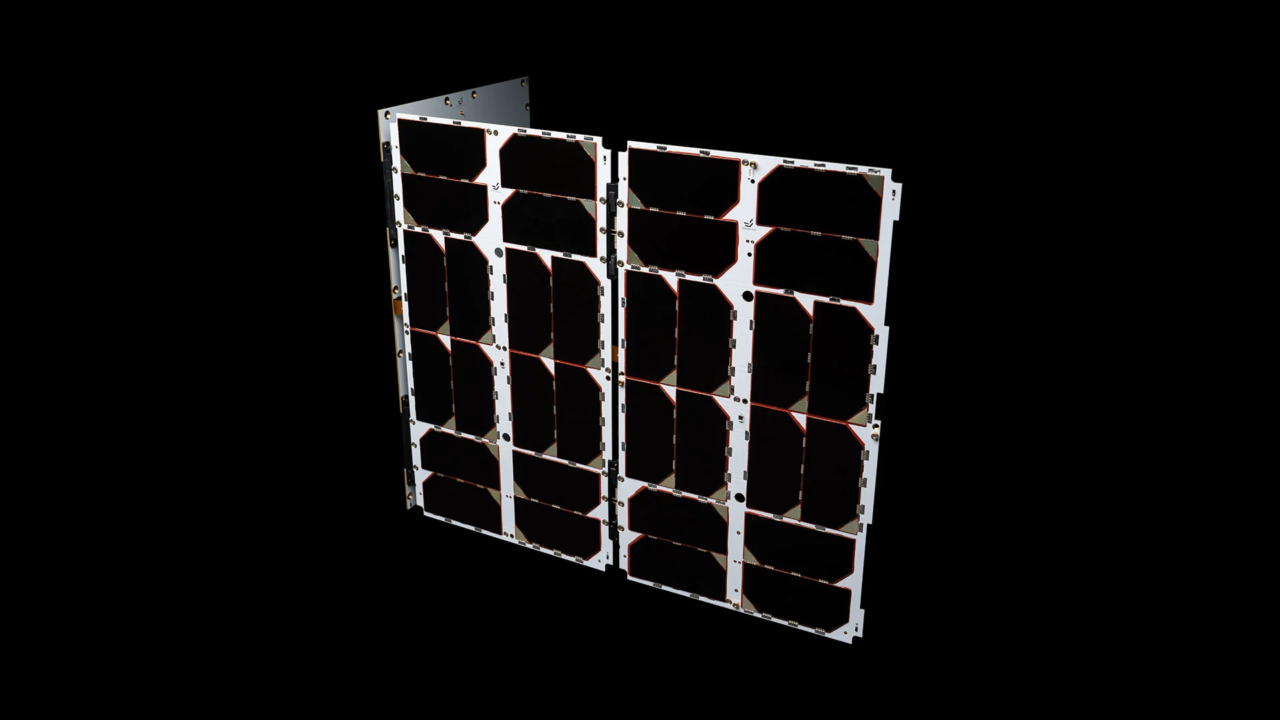

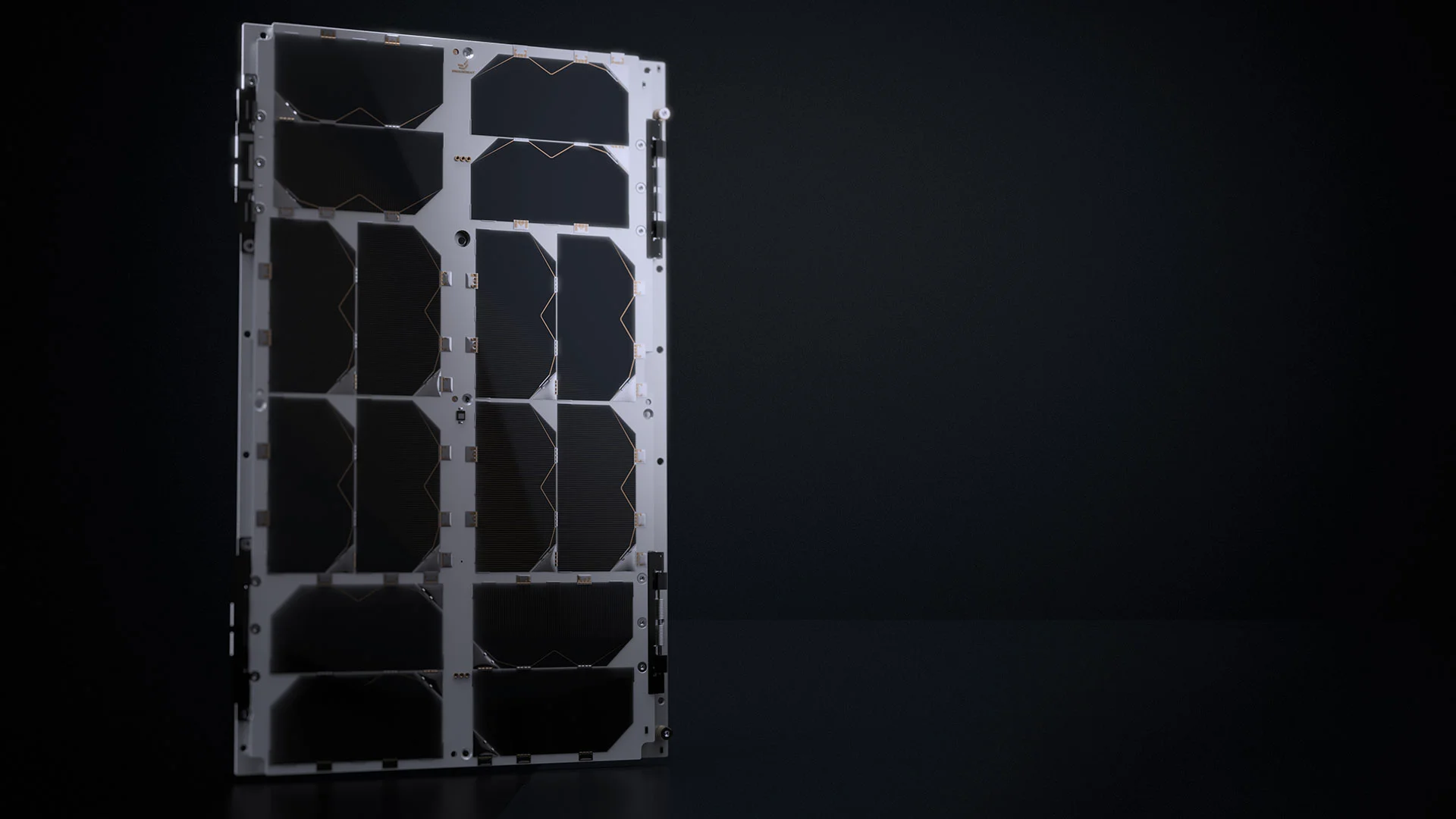

6U DOUBLE DEPLOYABLE SOLAR ARRAY

Generating power for advanced CubeSat and SmallSat missions
Cad file & datasheet
buy
buy

6U DOUBLE DEPLOYABLE SOLAR ARRAY

Download
Cad file & datasheet
buy
buy
29.5%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
38.4+W
PER SIDE PER SOLAR PANEL

Space-qualified double deployable Solar Array

FEATURES
Power Efficiency At EOL
29+%
Max Power
38.4+W in LEO after deployment
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Integrated H-Bridge for control of external magnetorquer
RBF
Available with Remove Before Flight pin
Mass
1.1-1.2 kg (configuration dependent)
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
24V (8s4p), 12V (4s8p)
Max Current
2А (8s4p), 4A (4s8p)
PCB Thickness
1.6 mm
Generating power for advanced CubeSat and SmallSat missions

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Space-qualified double deployable Solar Array

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

Industry-leading redundant burnwire mechanism with feedback configurable for X/Y side deployment

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO

Integrated sun sensors & gyroscope option

SERIES OR PARALLEL CONNECTIONS COVERING DIVERSE POWER SYSTEM REQUIREMENTS

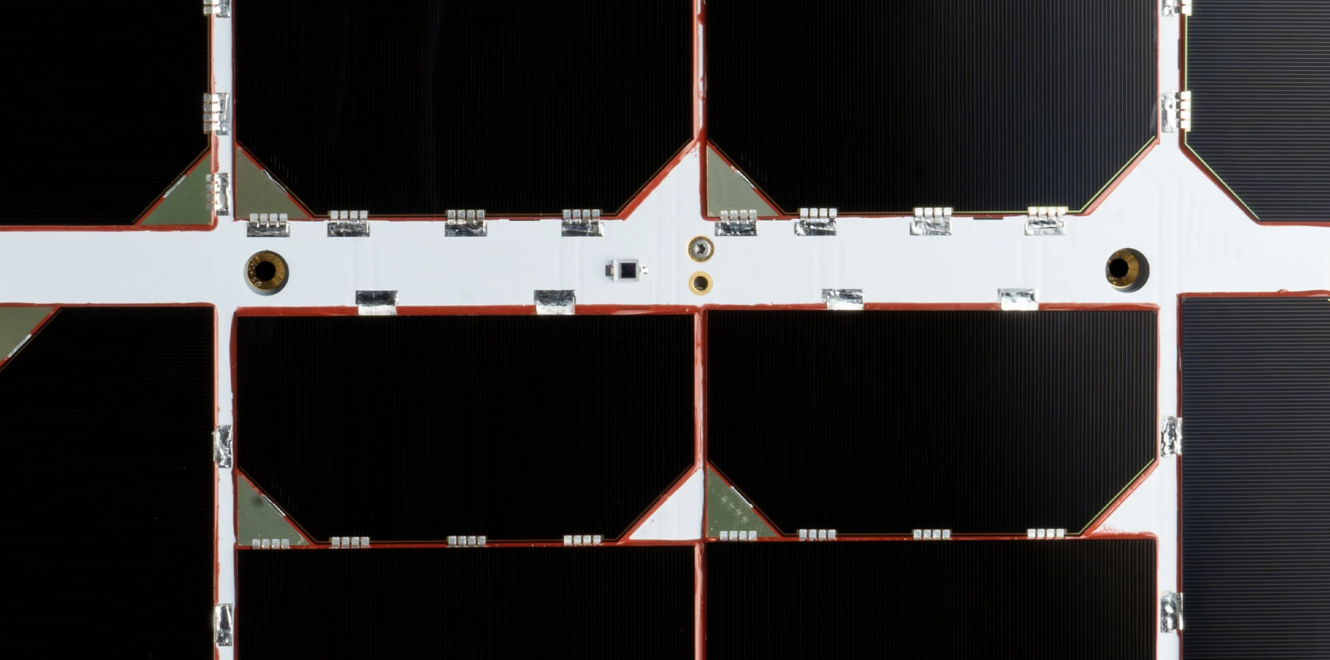

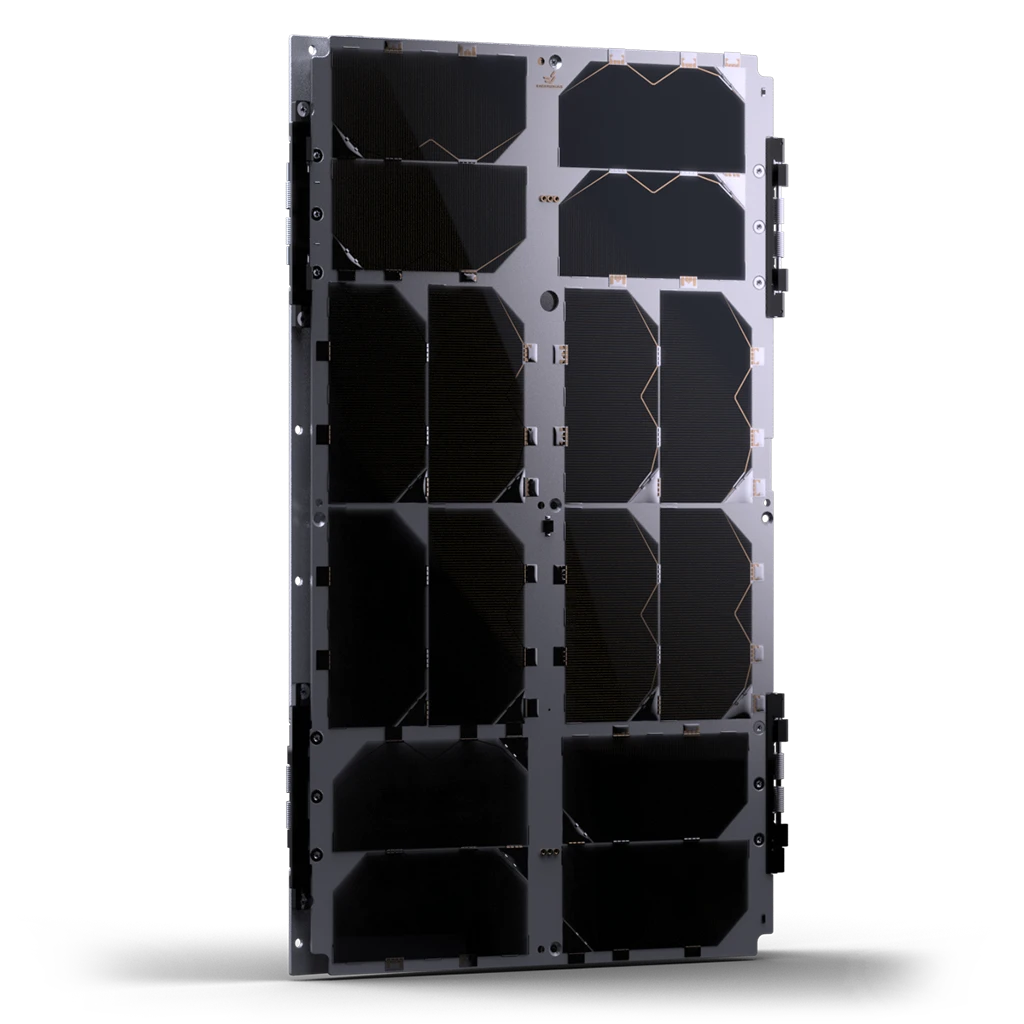

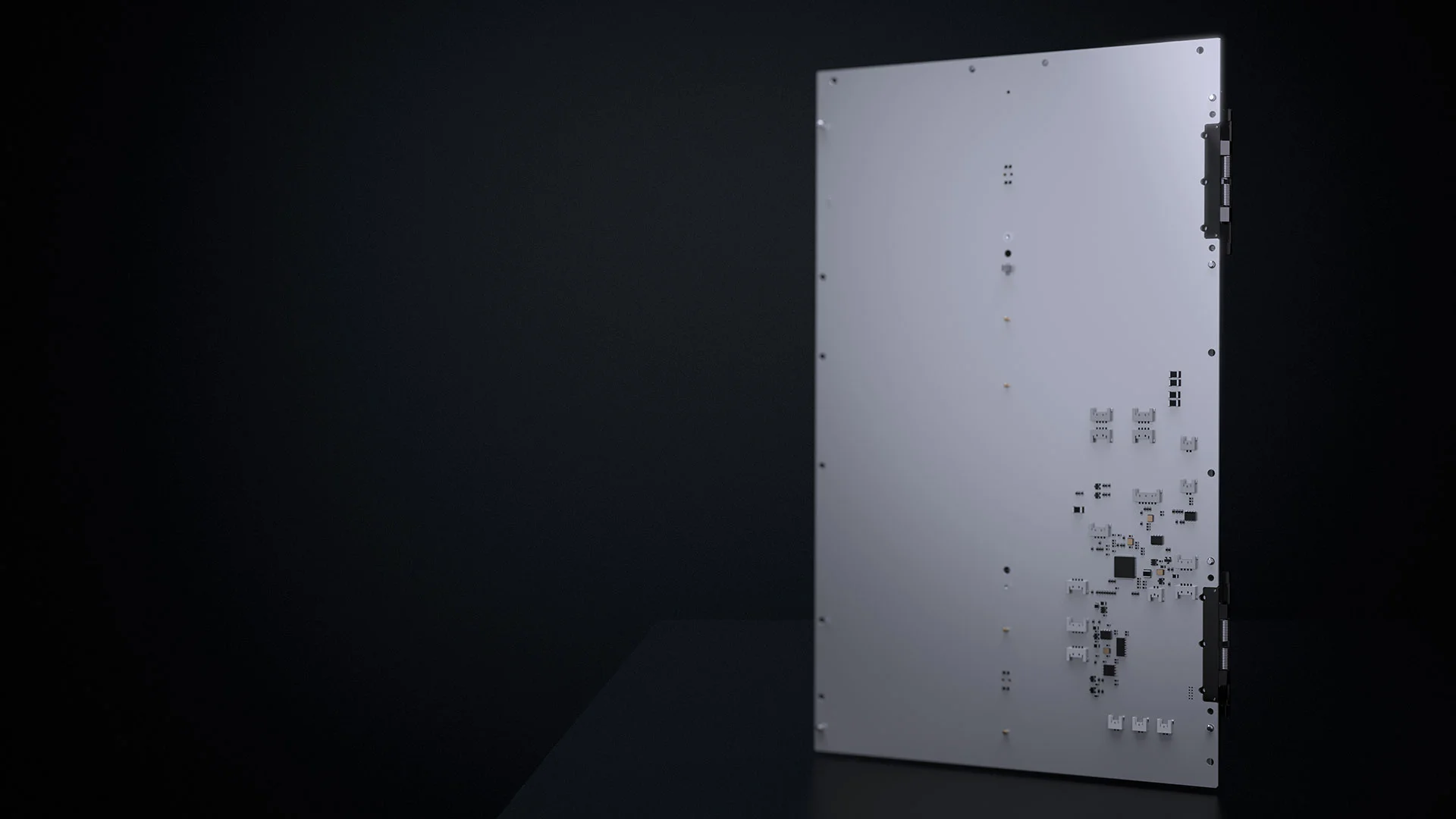

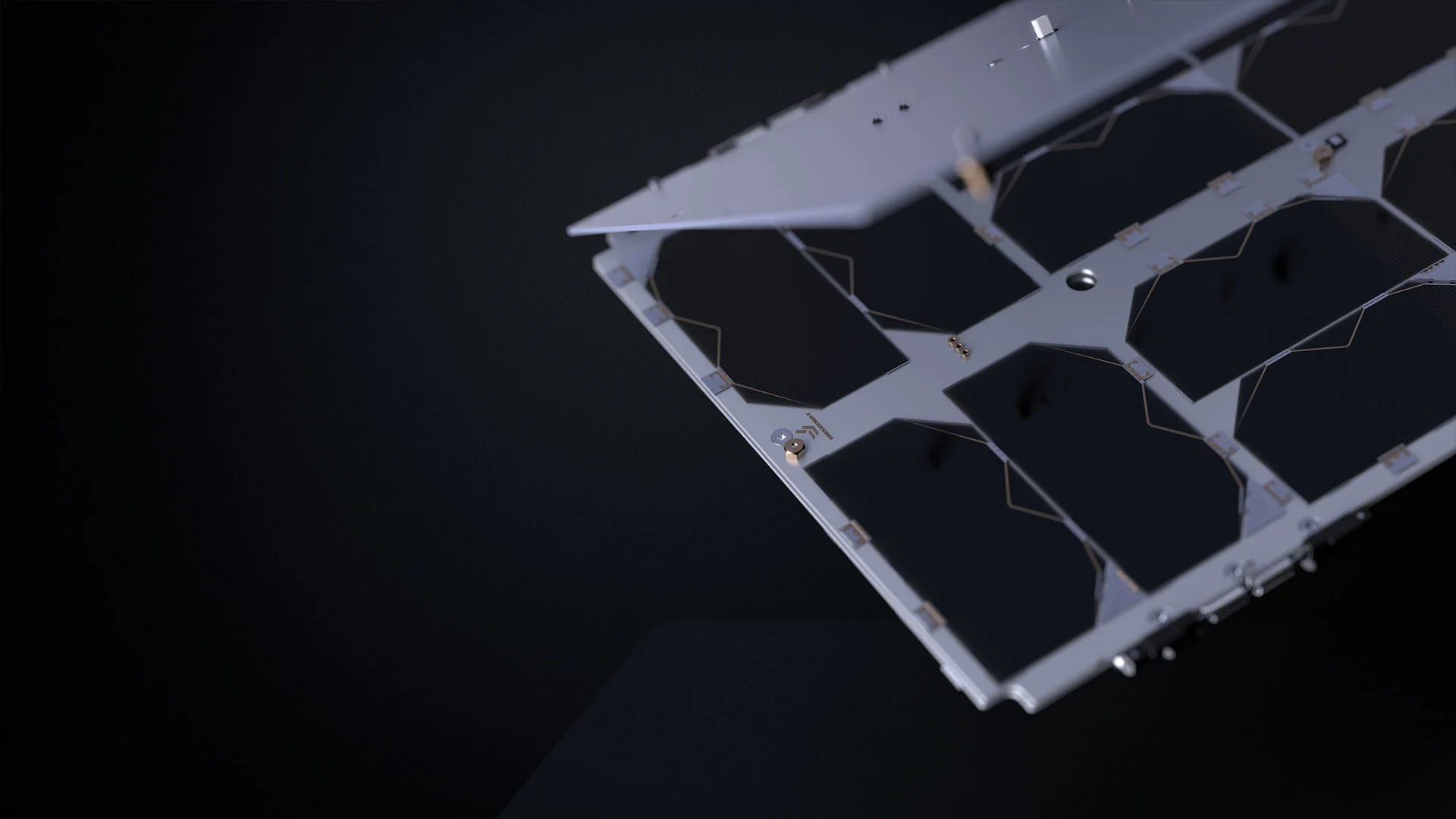

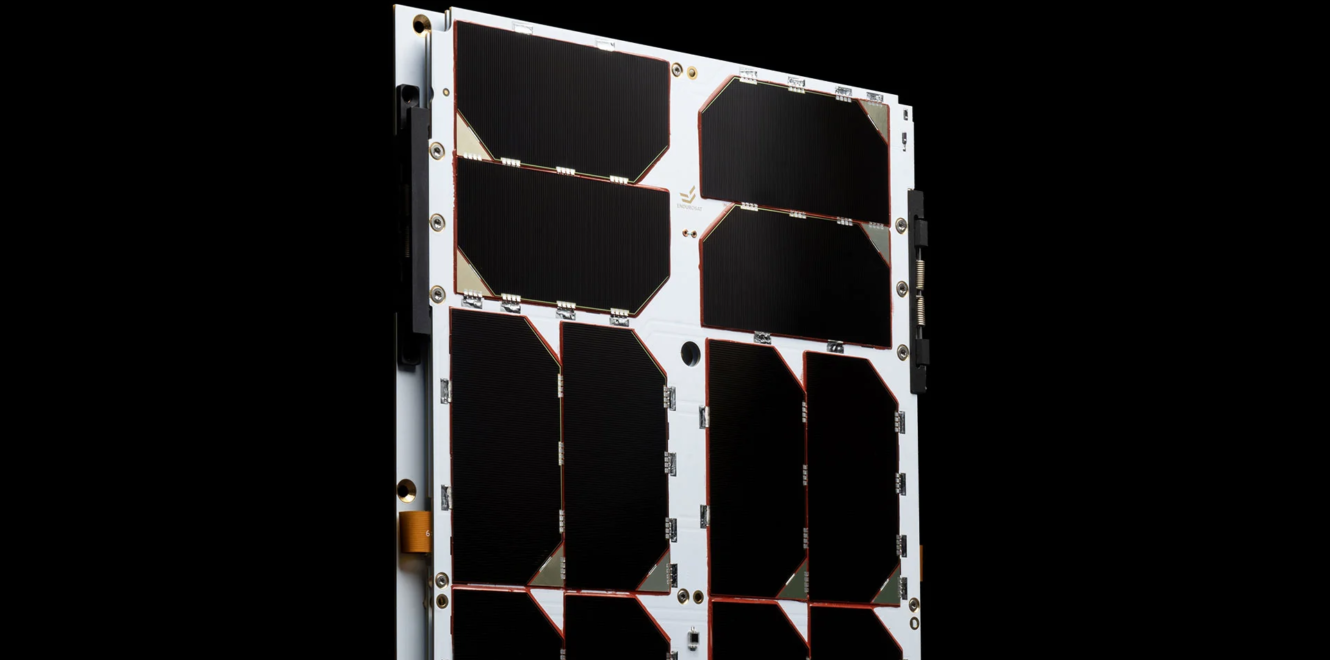

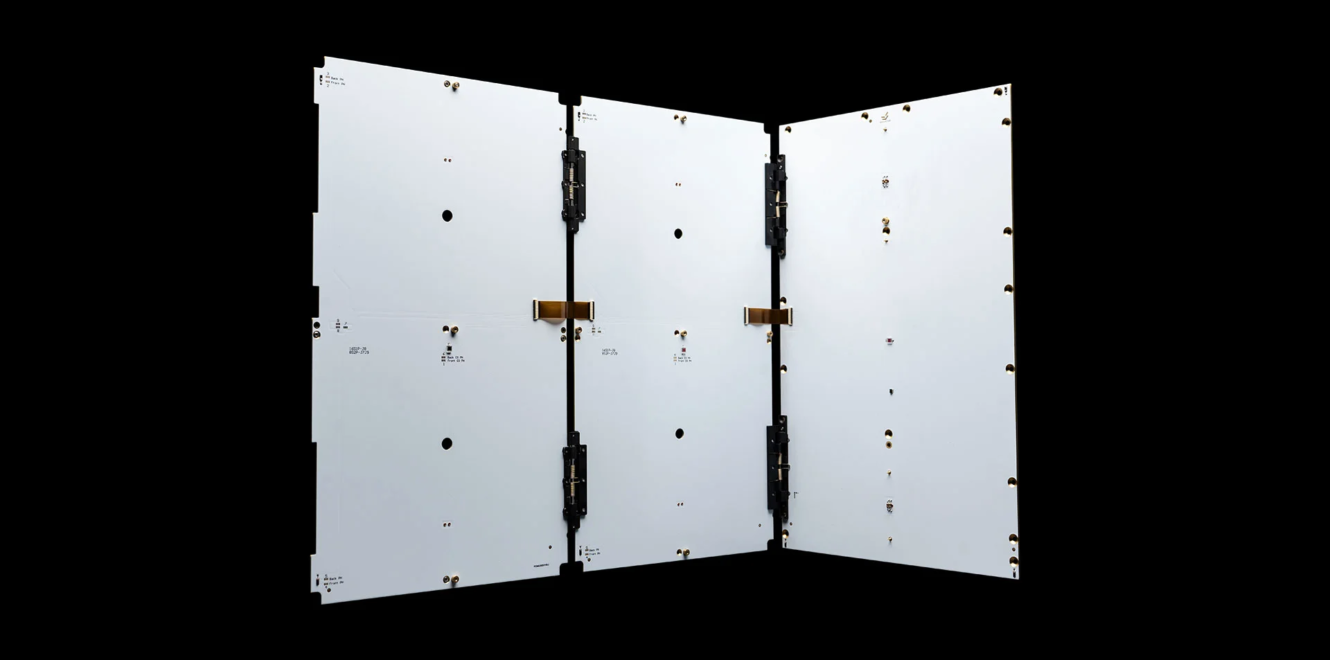

PRODUCT GALLERY
