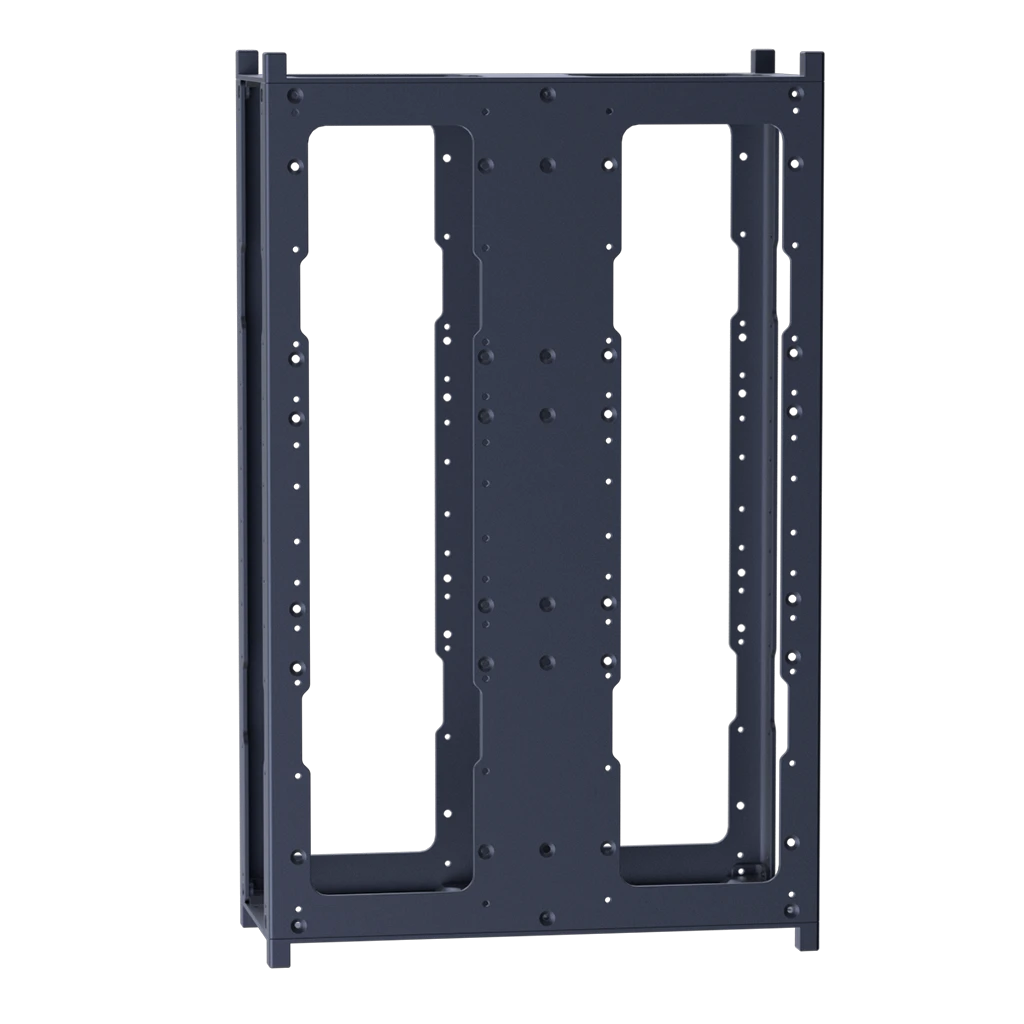

6U XL CUBESAT STRUCTURE

Simplicity and Precision

Cad file & datasheet

buy

buy

flight heritage badge

state of the art report badge

6U XL CUBESAT STRUCTURE

Download

Cad file & datasheet

buy

buy

<1 kg

LIGHTWEIGHT DESIGN

FINISH

HARD-ANODIZED SURFACE

1/2

KILL SWITCHES

Flight-proven 6U structure

FEATURES

Dimensions

100 x 226.3 x 366 mm

Material

Aluminum 6082

Mass

850 g (including fasteners, kill switches and 2 mounted rings)

Compliance

PC104 full compliance, CubeSat Standard

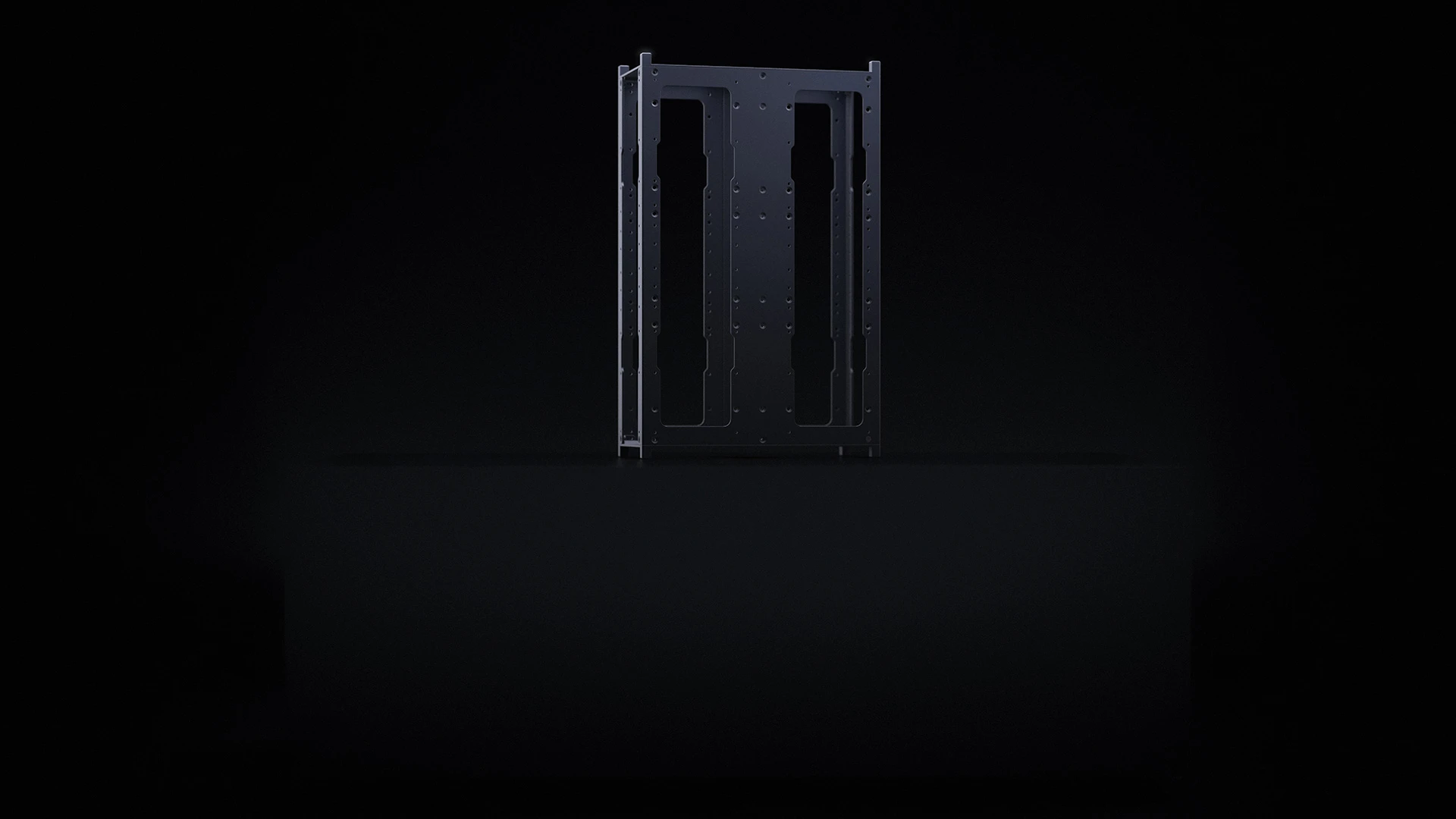

6U CubeSat Structure Web render 4

Simplicity and Precision

Included

Complete User Manual

1 hour engineering support

Delivery cost

Handling and administration costs

Flight-proven robust 6U structure

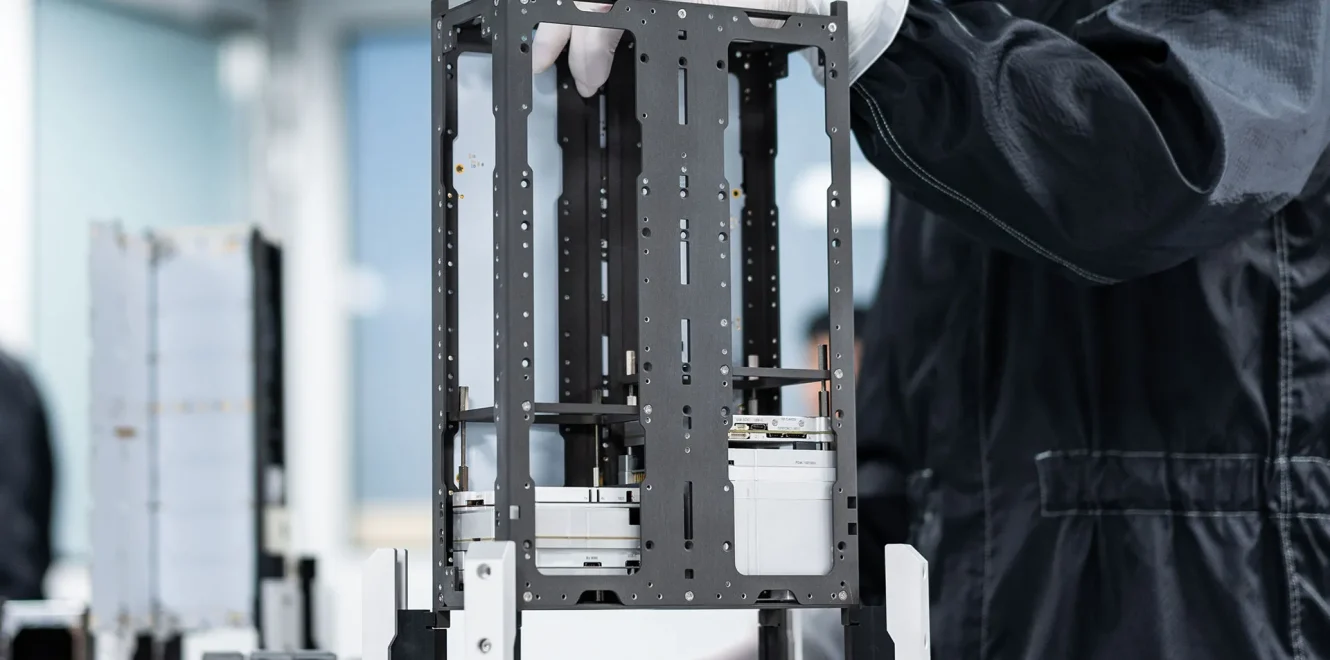

6U CubeSat Structure Web 18

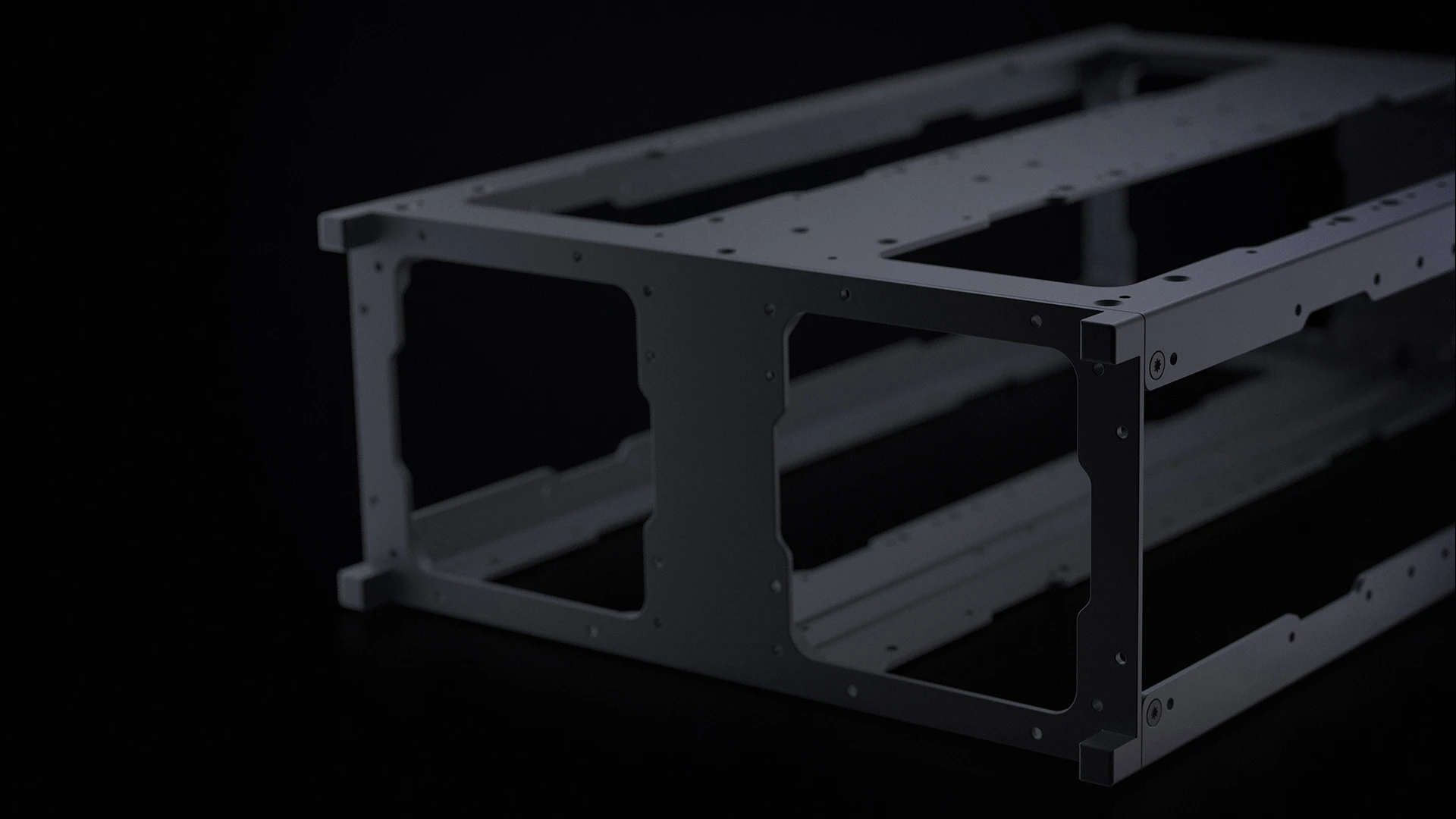

6U CubeSat Structure Web render 1

Simple modular design for easy assembly both vertically and horizontally

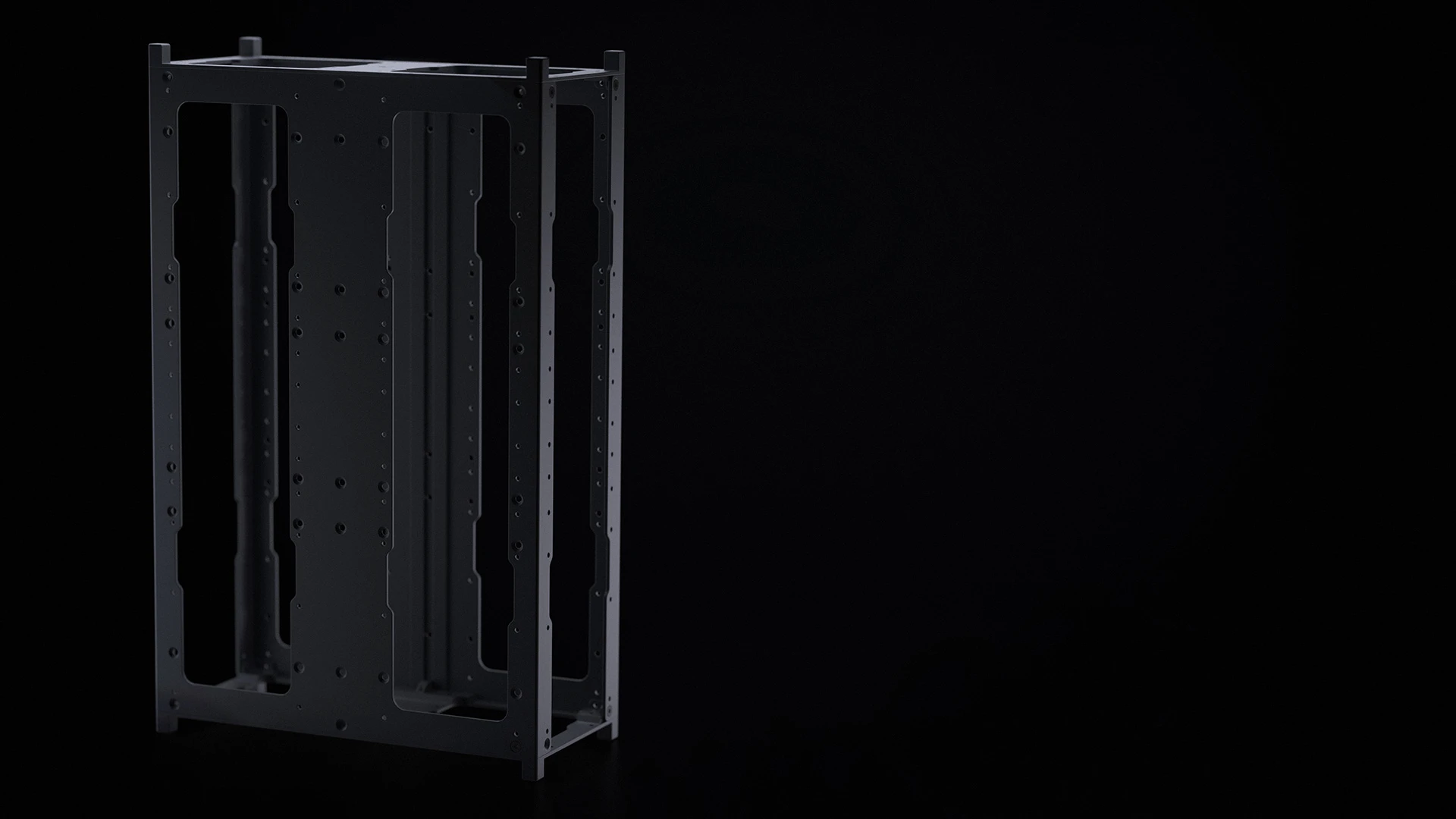

6U CubeSat Structure Web render 2

Four kill switches option

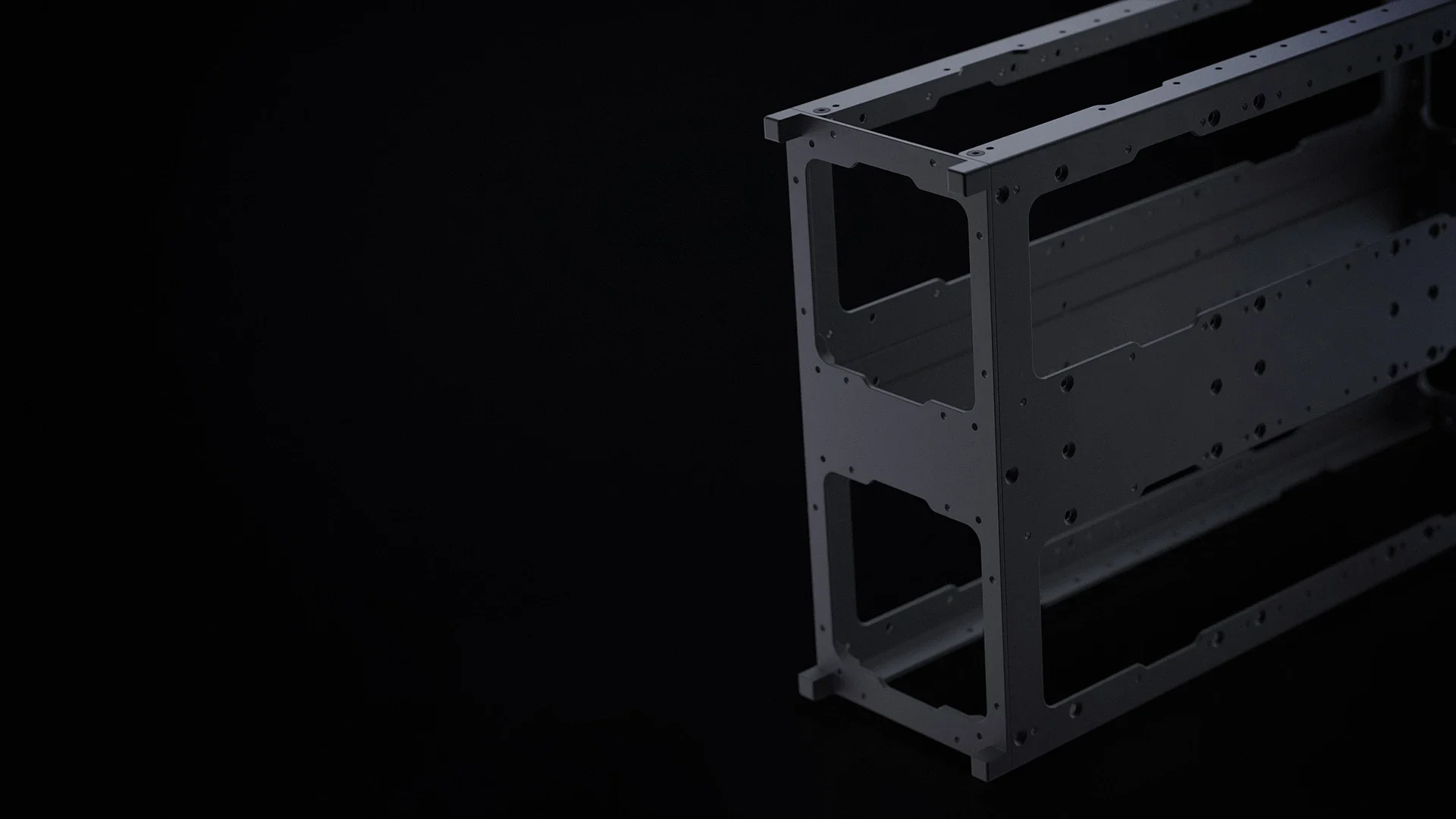

6U CubeSat Structure Web render 5 e1710935410664

Pearl-finished & hard anodized

PRODUCT GALLERY

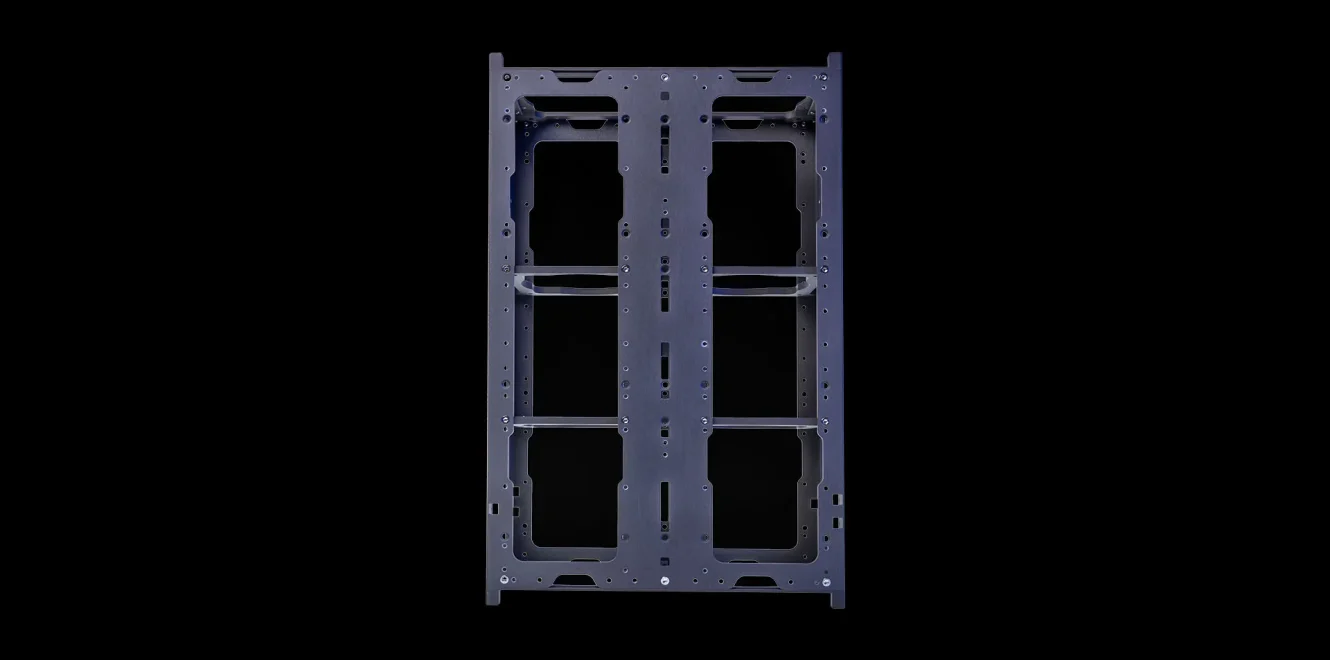

6U CubeSat Structure Web 4

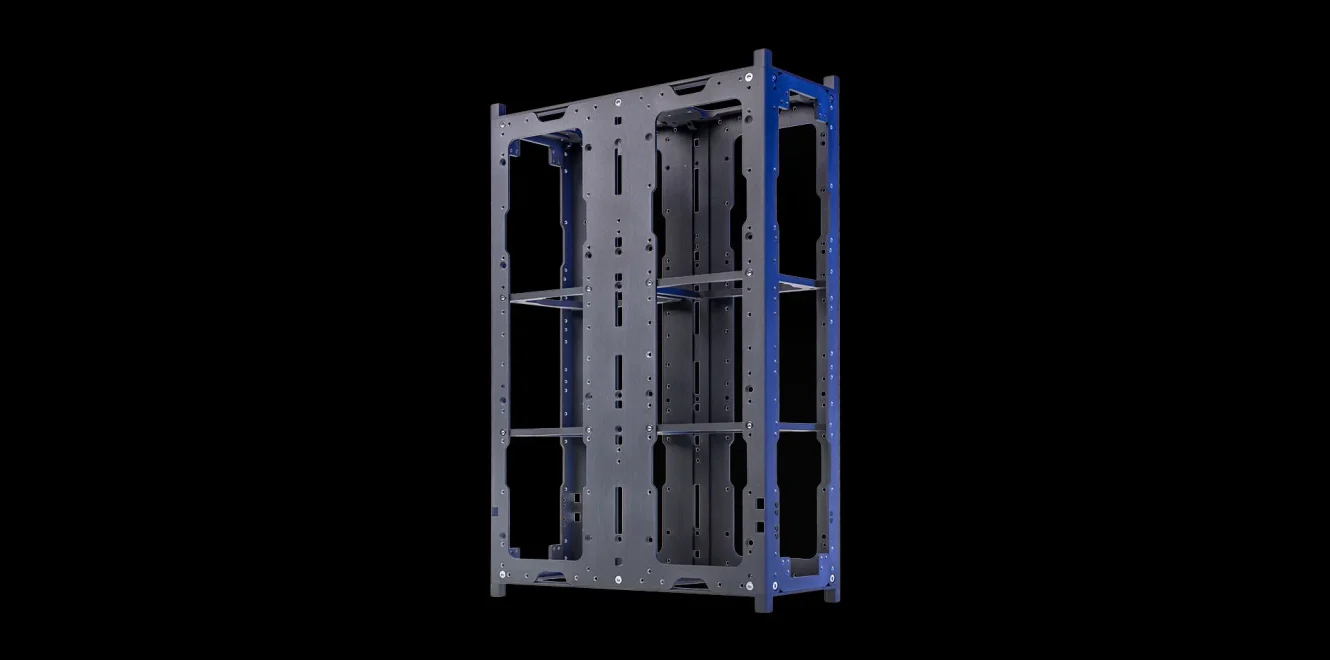

6U CubeSat Structure Web 2

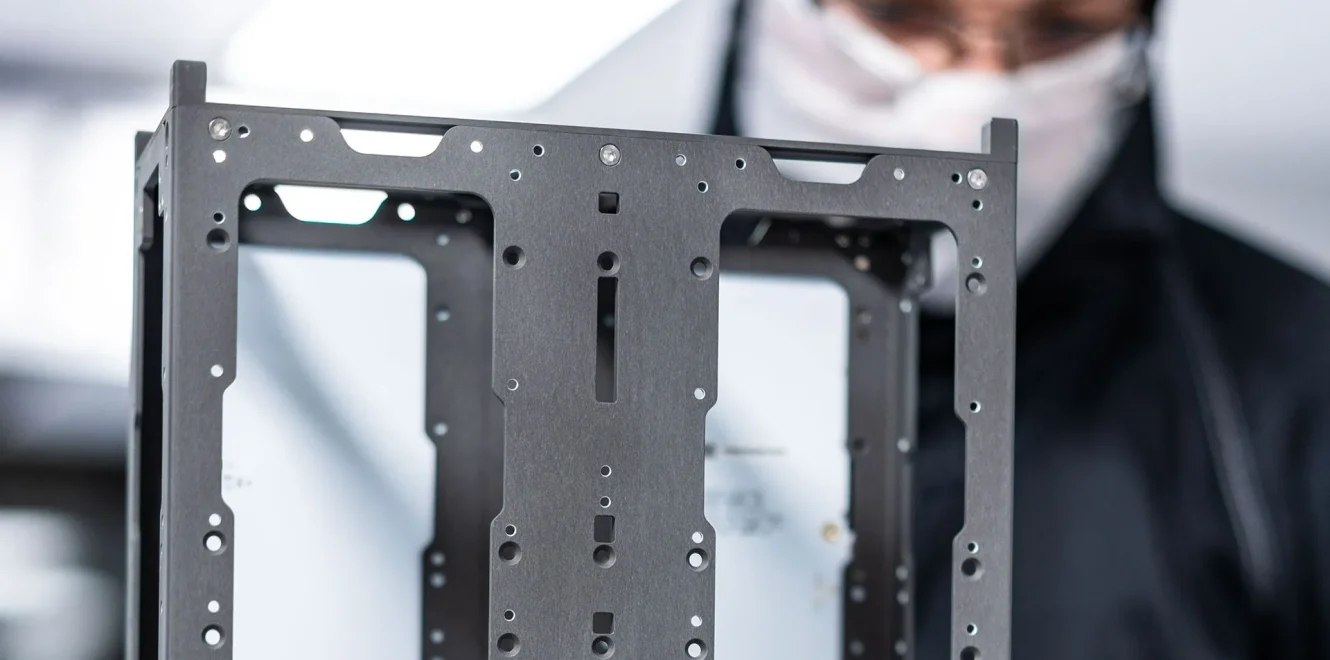

6U CubeSat Structure Web 5

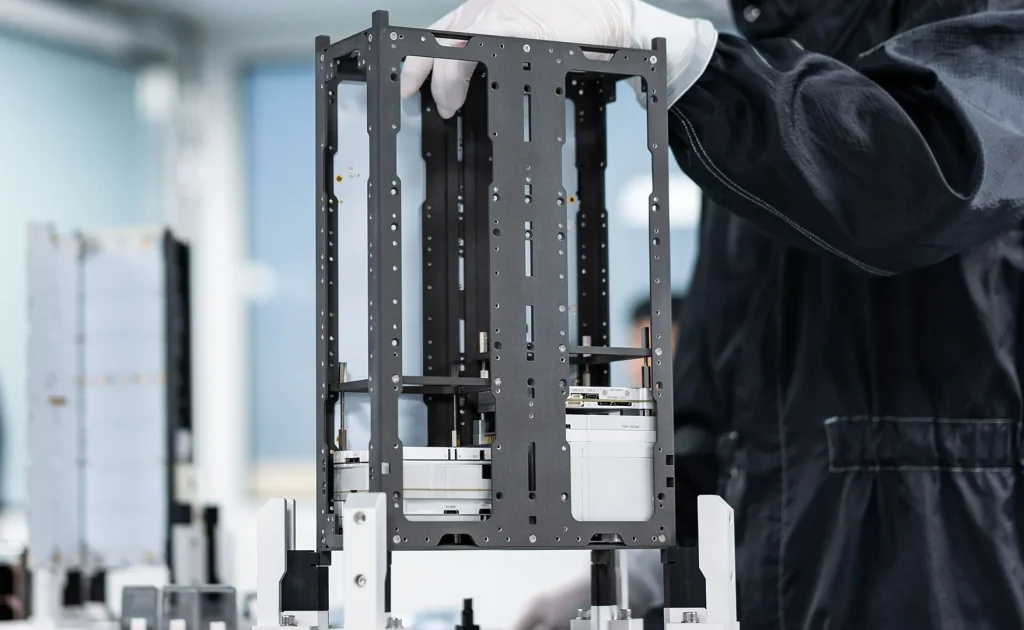

6U CubeSat Structure Web 18

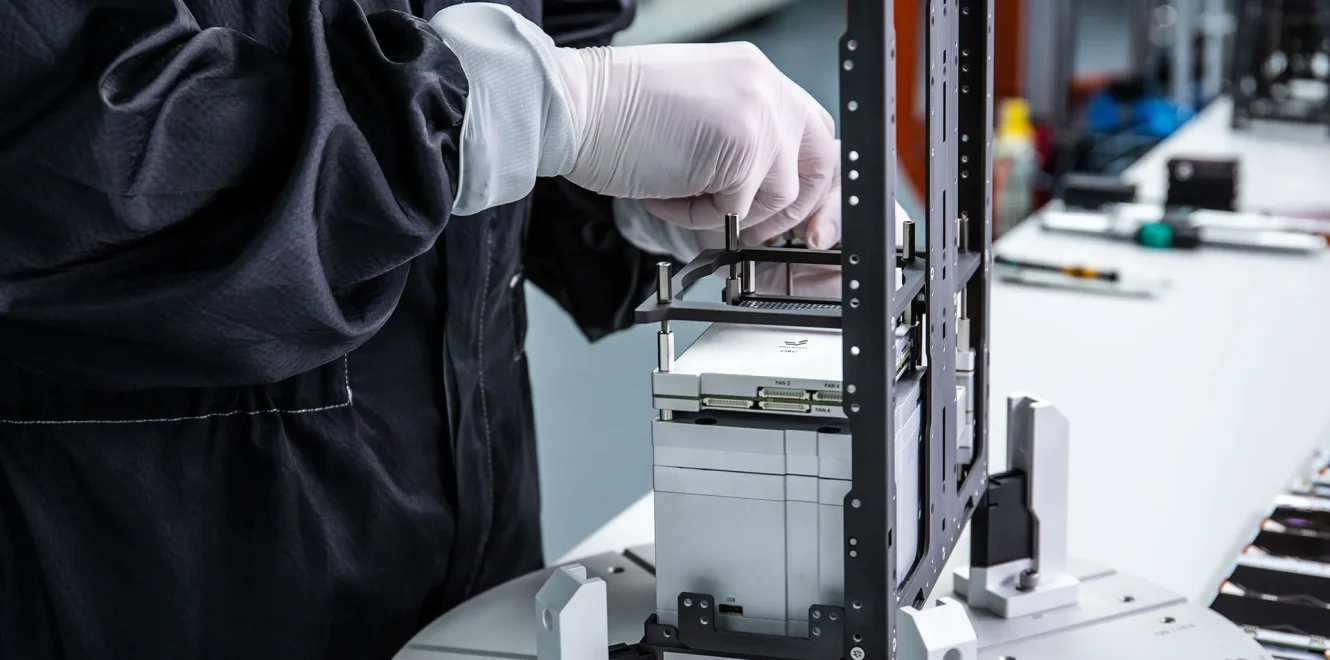

6U CubeSat Structure Web 17

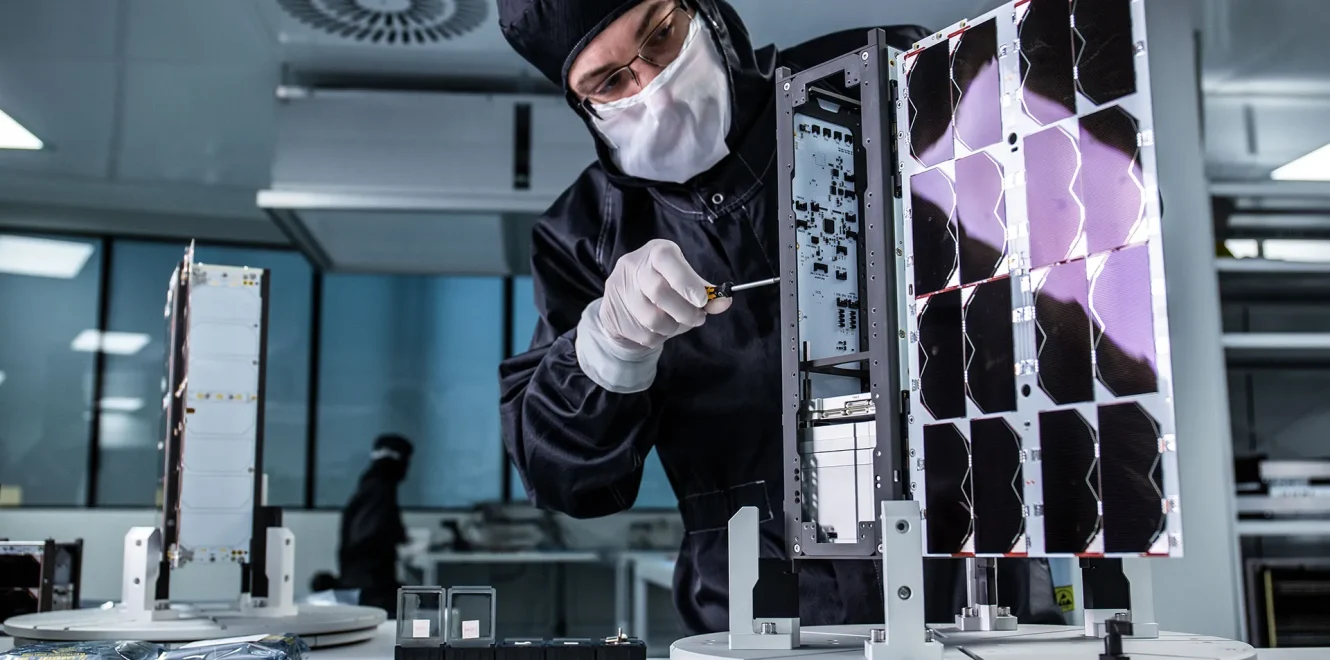

6U CubeSat Structure Web 10

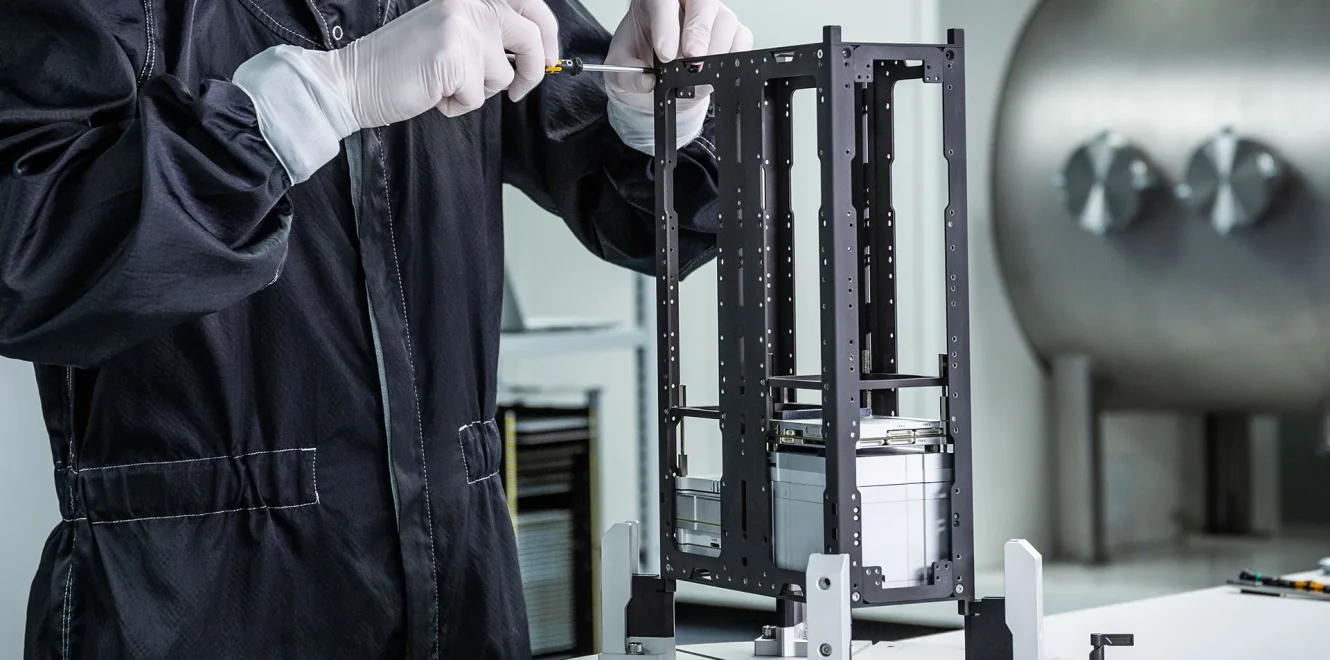

6U CubeSat Structure Web 14

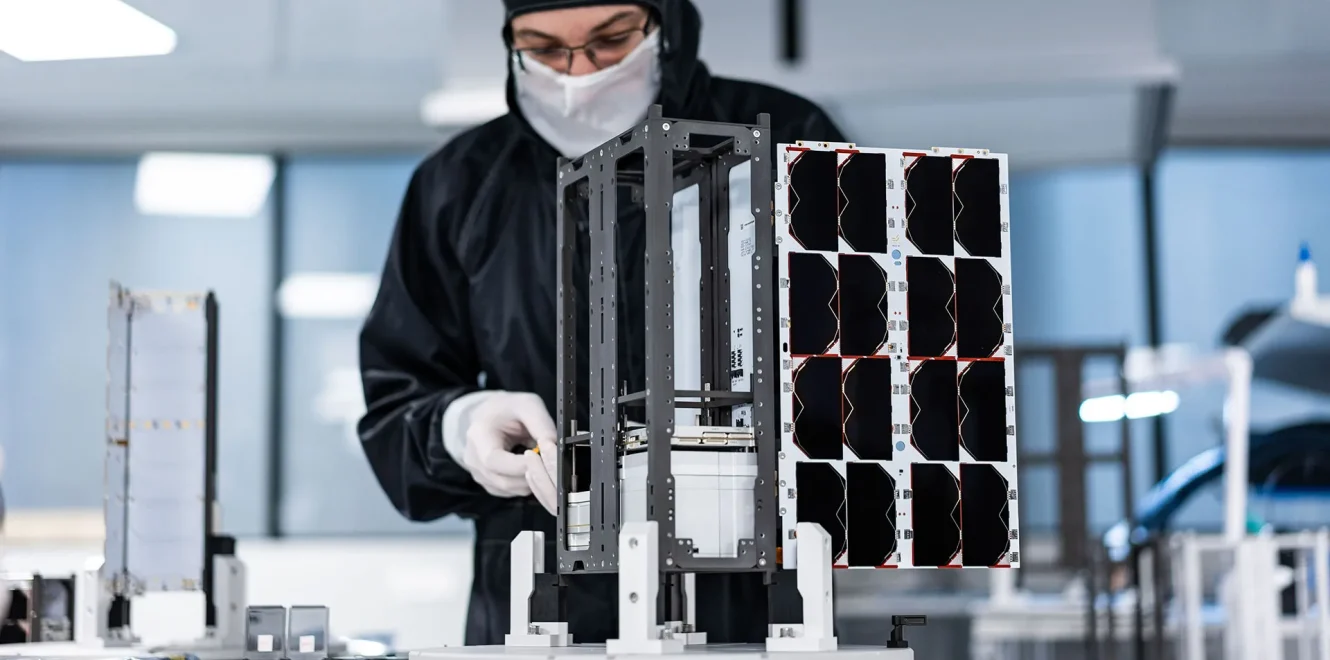

6U CubeSat Structure Web 13

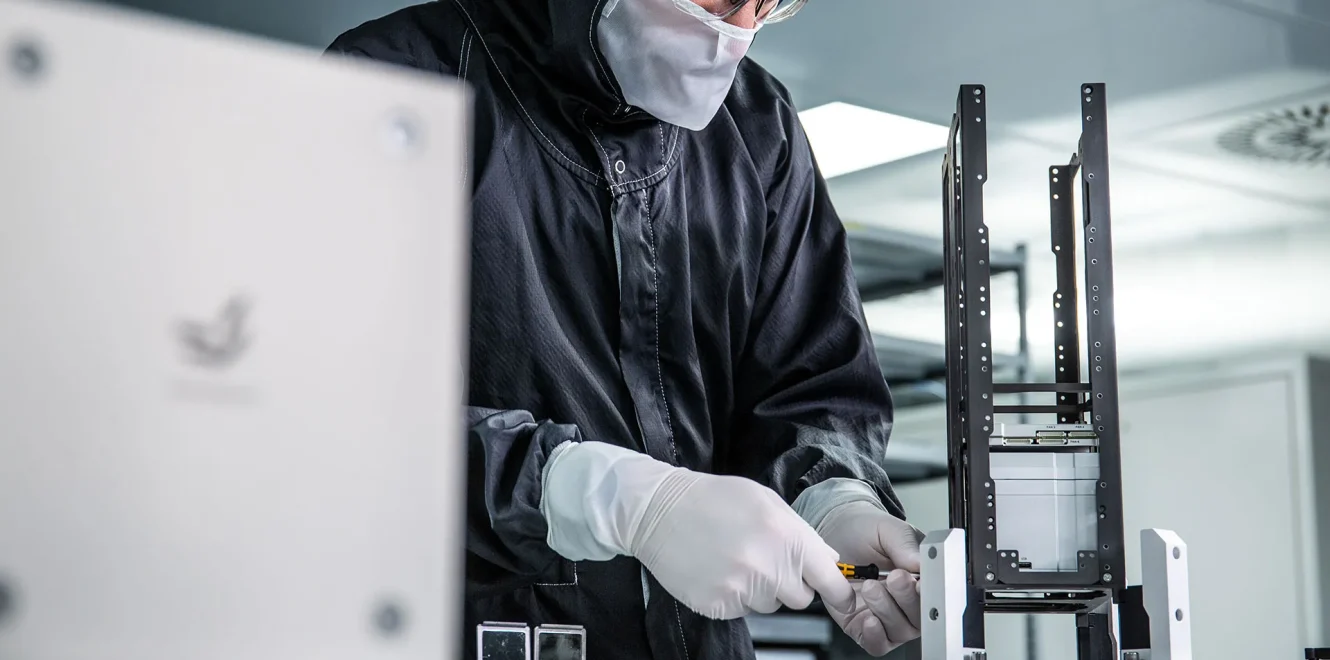

6U CubeSat Structure Web 16

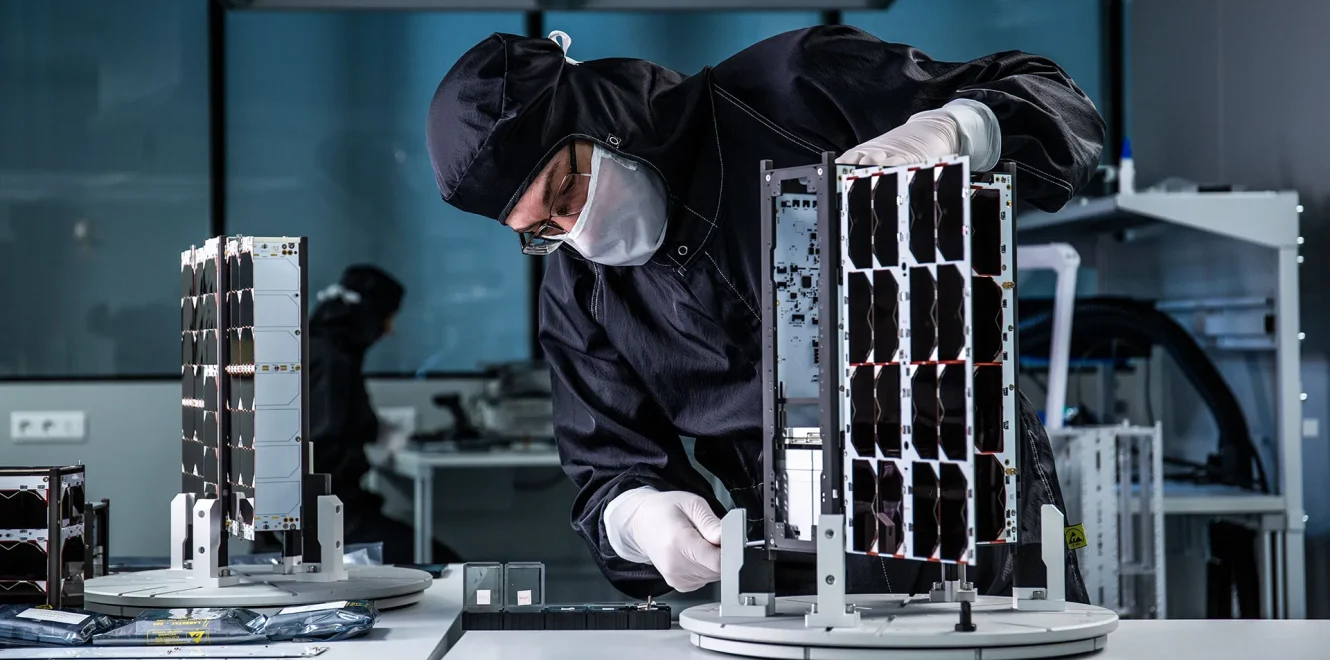

6U CubeSat Structure Web 6

Related Products

16U Structure

Dimensions

226.3 x 226.3 x 454 mm

Material

Aluminum 6082

Mass

< 3 kg

12U Structure

Dimensions

226.3 x 226.3 x 366 mm

Material

Aluminum 6082

Mass

2.44 kg

8U Structure

Dimensions

100 x 226.3 x 454 mm

Material

Aluminum 6082

Mass

1.3 kg

3U Structure

Dimensions

100x100x340.5 mm

Material

Aluminum 6082

Mass

340 g

1.5U Structure

Dimensions

100x100x170.2 mm

Material

Aluminum 6082

Mass

152 g

1U Structure

Dimensions

100x100x113.5 mm

Material

Aluminum 6082

Mass

120 g

2500

MODULES IN ORBIT

60

DELIVERED SATELLITES

200

TB DATA DOWNLINKED

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance

LEARN MORE

Datasheet & CAD File

6U XL Cubesat Structure
