8U CUBESAT

Nanosatellite bus for advanced missions in LEO
Cad file & datasheet
Add
Add
flight heritage badge
Download
Cad file & datasheet
Add
Add
4U
AVAILABLE VOLUME
Secure
TMTC & fast data downlink
Performance
advanced missions

All Satellites include 1 year Subscription for SpaceDev

Laptop Mockup for Video
Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE
Laptop Mockup for Video
IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE
FEATURES
Bus Mass
6.9-8.2 kg (configuration dependent)
Available Payload Mass
6.7-6.8 kg (configuration dependent)
Available Payload Volume
up to 96 x 210 x 222 mm3
Average Payload Power Available
13-40W (configuration dependent)
Available Power Buses
3.3V, 5V, 12V, 28V, Battery Bus (14.7-17.5V)
Telemetry Data Rate
up to 125 kbps (full duplex)
Payload Data Rate
up to 150 Mbps (gross data rate)
Payload Control Interfaces
CAN FD / RS-422 / RS-485 / UART/ SPI

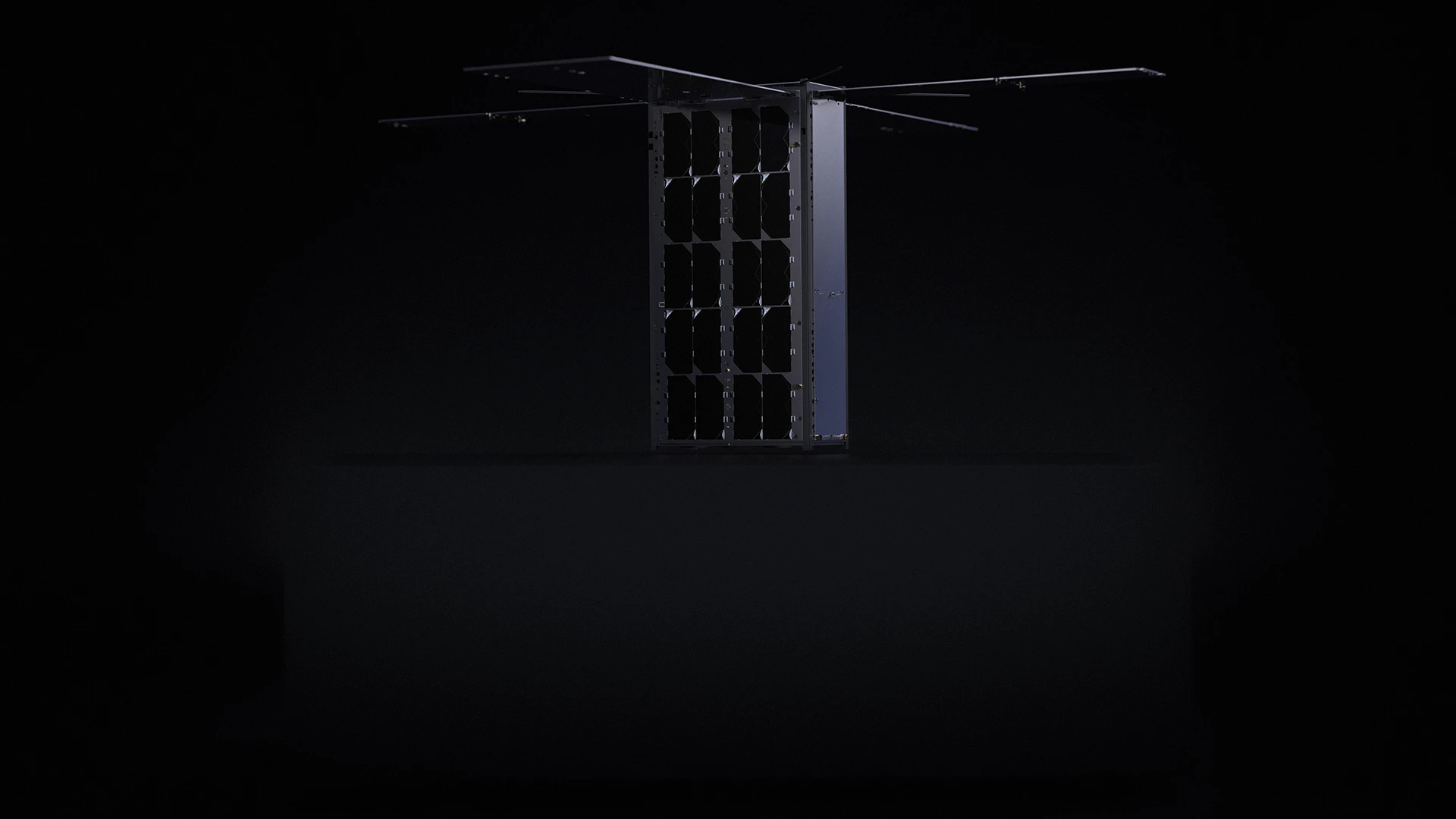

8U Platform renders features web 4
Advanced Nanosatellite offering power & volume

Included

Integration manual
Software Development Kit (SDK)
SpaceDev 1-year subscription
Complete set of bus cables
JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
High-performance CubeSat, with multiple payloads capacity. Easily adaptable to handle complex Earth Observation, communication, and science missions
EnduroSat 8u cubesat standing on test platform with integrated solar panels

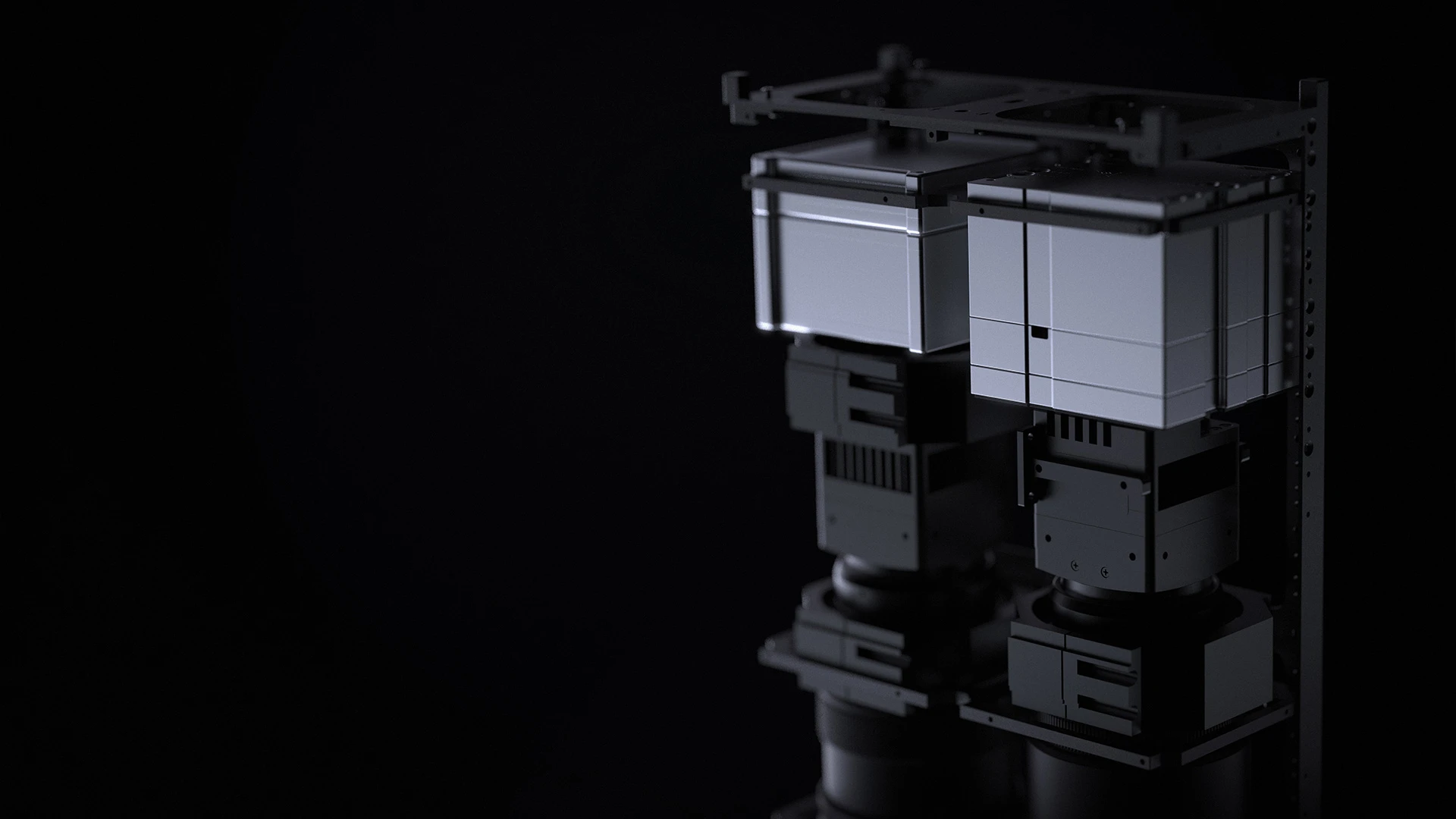

8U Platform renders features web 2

EnduroSat’s redundant architecture supports multiple payloads Freedom of flying complicated mission scenarios

MISSION LIFE: 3-5 YEARS (ORBIT DEPENDENT)

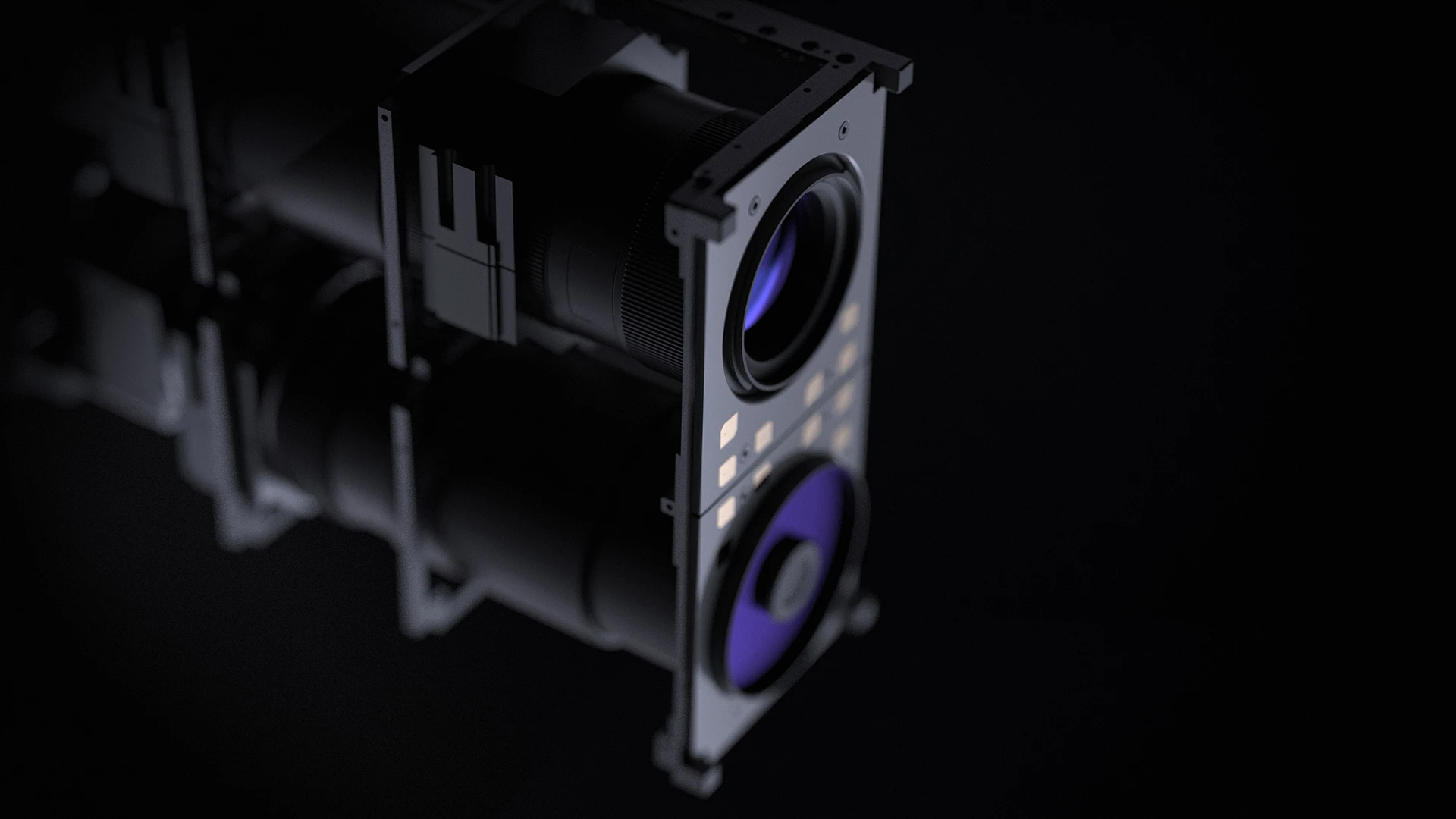

8U Platform renders features web 1

Robust data handling of diverse payloads. Embedded operational modes framework at 4x better efficiency

MISSION LIFE: 5 YEARS (ORBIT DEPENDENT)

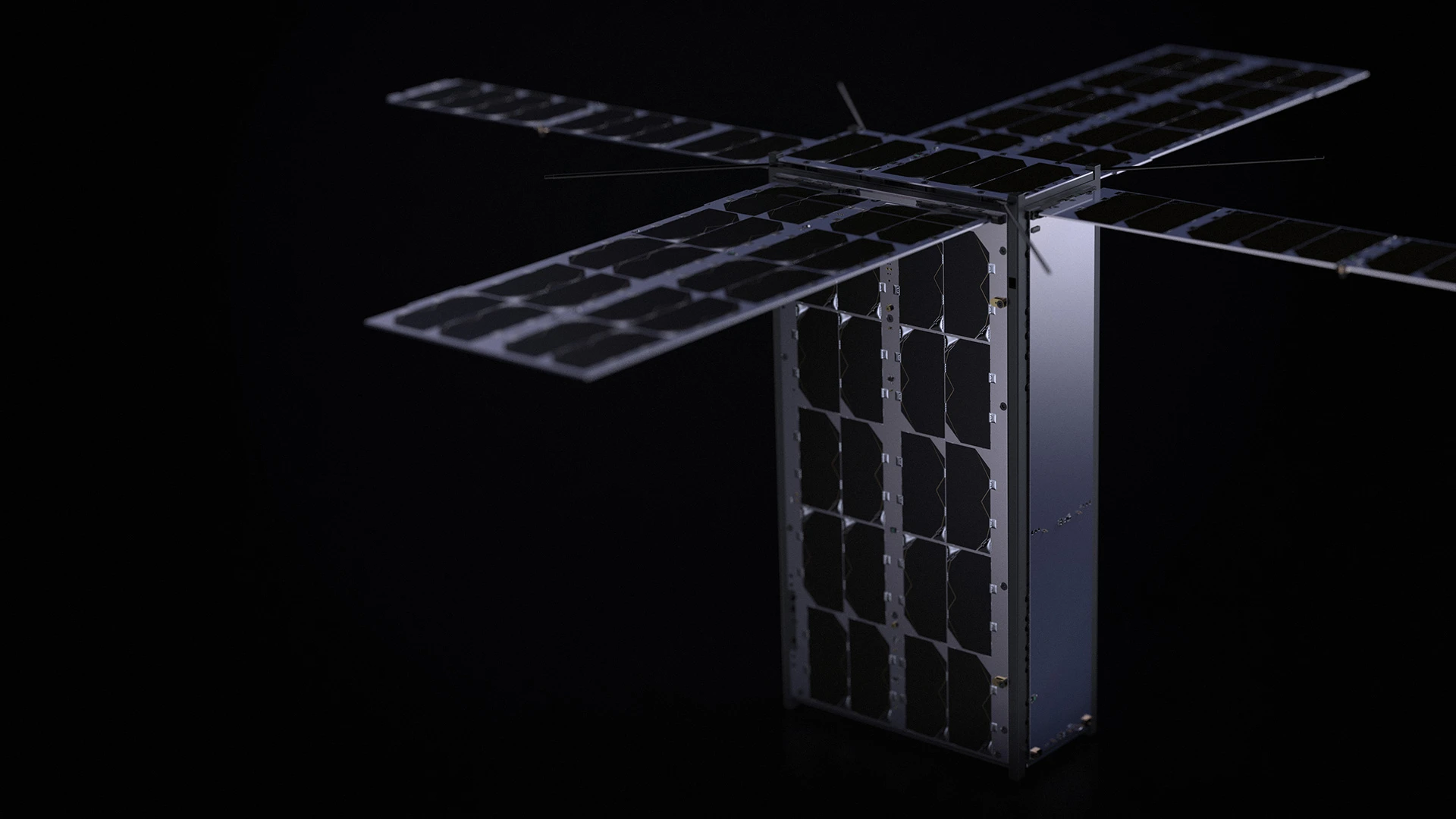

8U Platform renders features web 3

Secure communication for telemetry, telecommands, and payload data

TMTC, S-BAND & X-BAND payload downlink

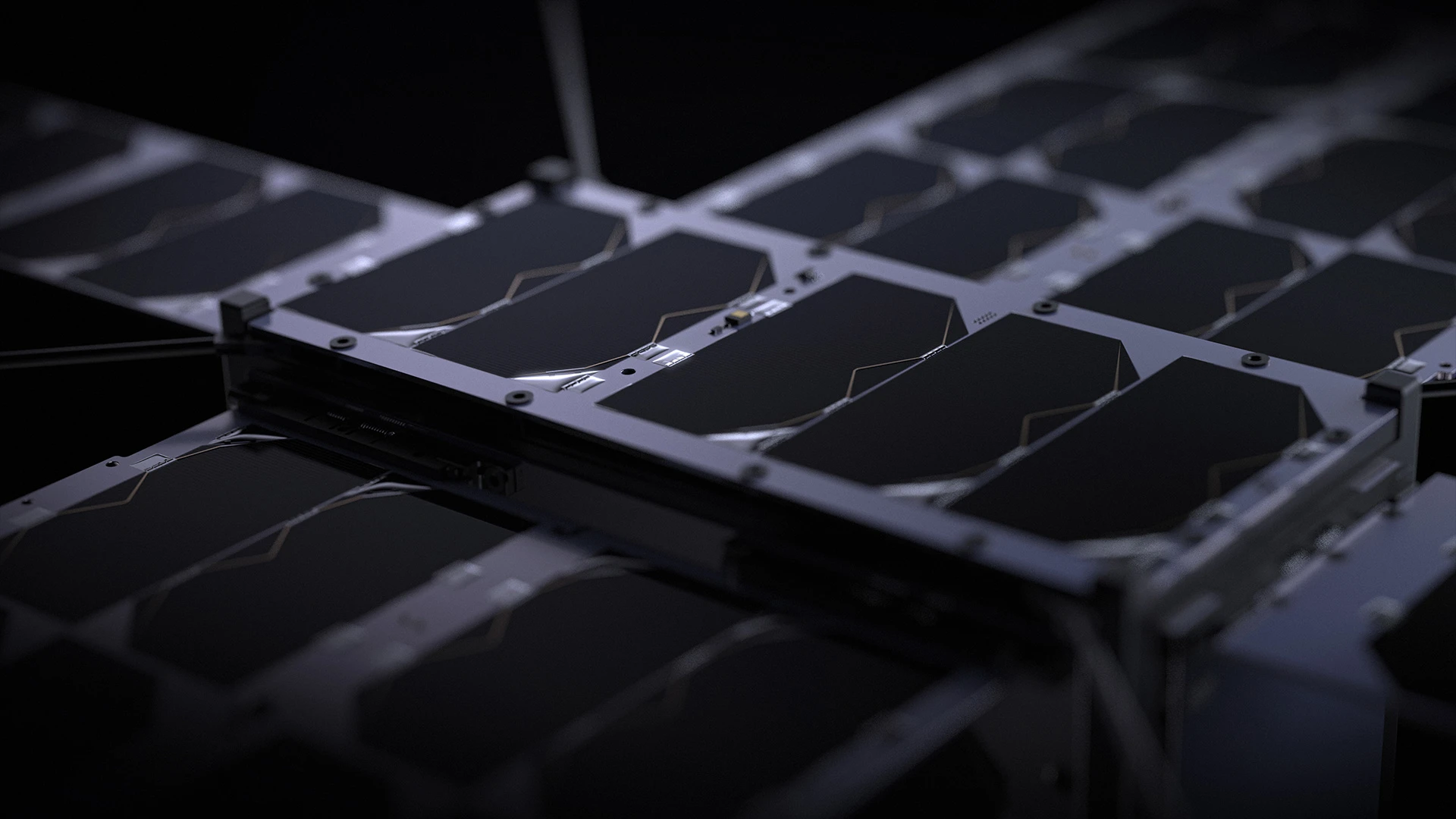

8U Platform renders features web 5

Available with advanced three-axis reaction wheels attitude control system

Focus on your results. We handle the rest
YOUR PAYLOAD IN
ORBIT IN 6 MONTHS
Explore Space Service
EnduroSat's end-to-end Space Service including satellite launch & mission commissioning
Configurable FlatSat for your mission success
DEVELOP & TEST WITH EASE
Discover DeskSat
PRODUCT GALLERY

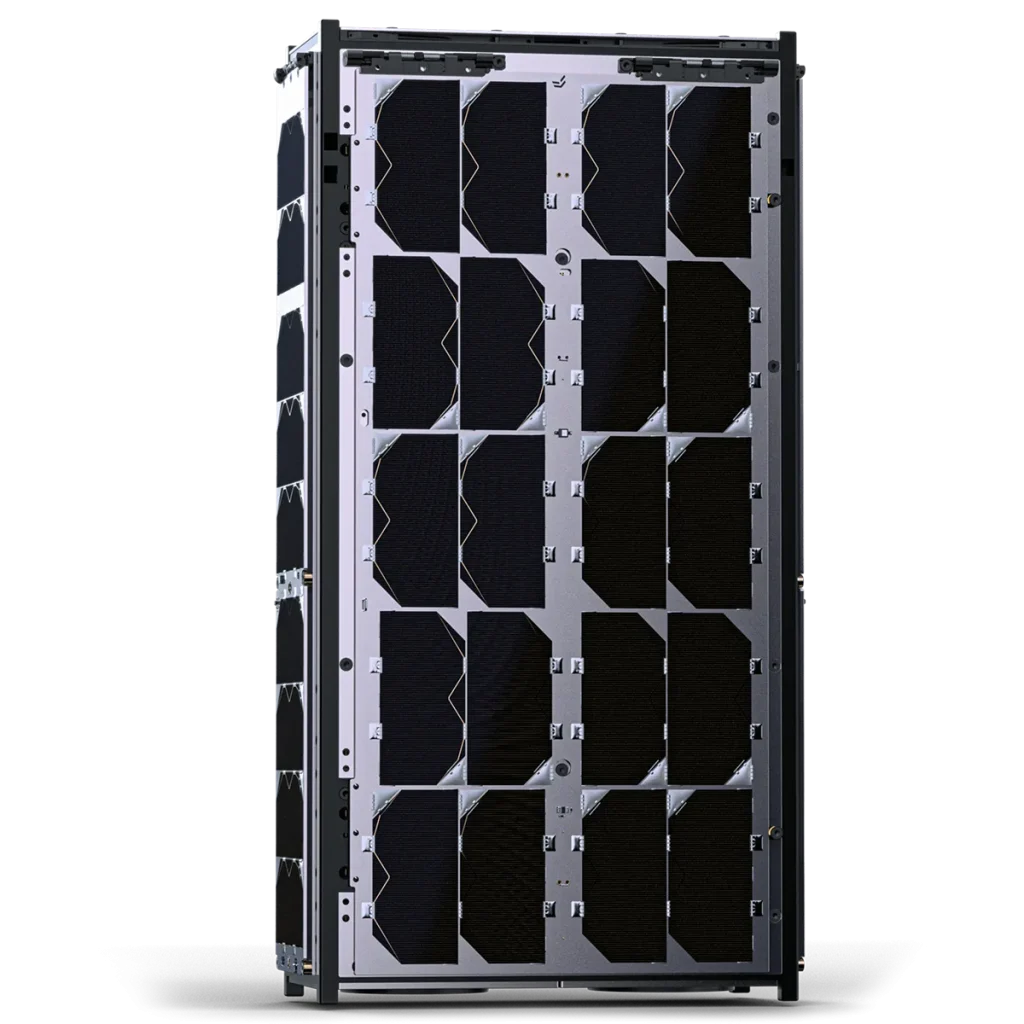

EnduroSat 8U CubeSat platform front view
High-resolution view of EnduroSat 8U CubeSat showcasing exterior structure
8U CubeSat platform being assembled in a lab

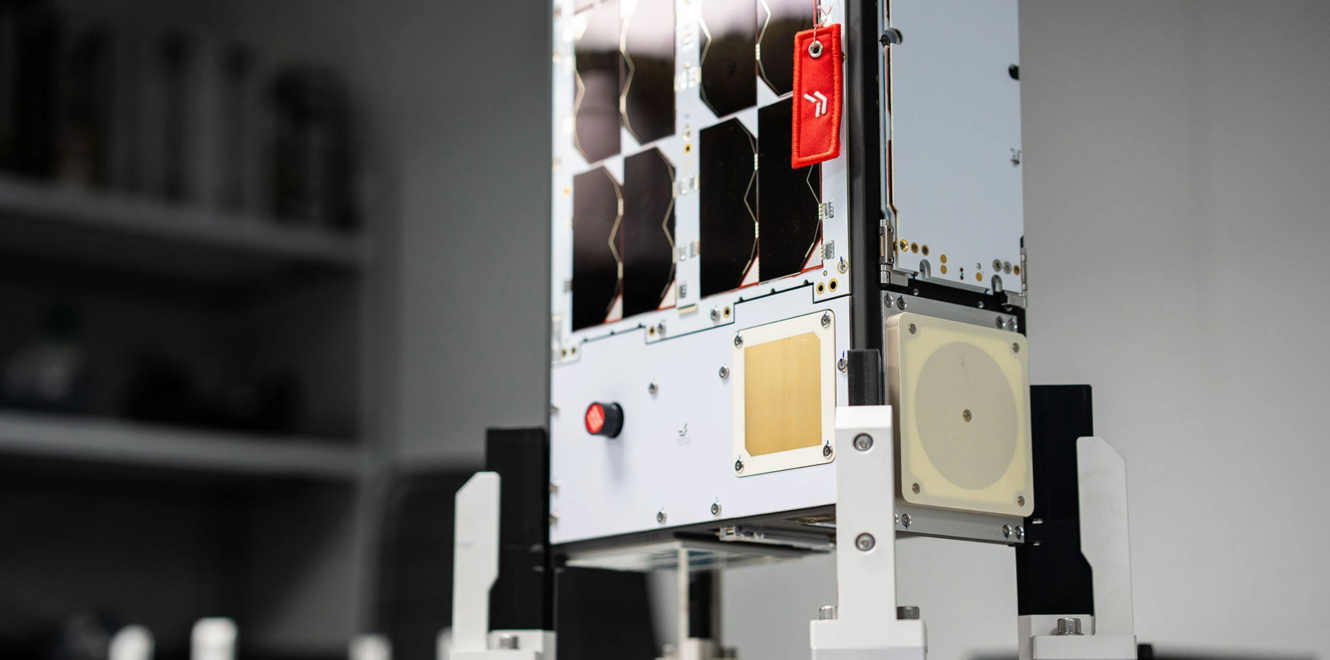

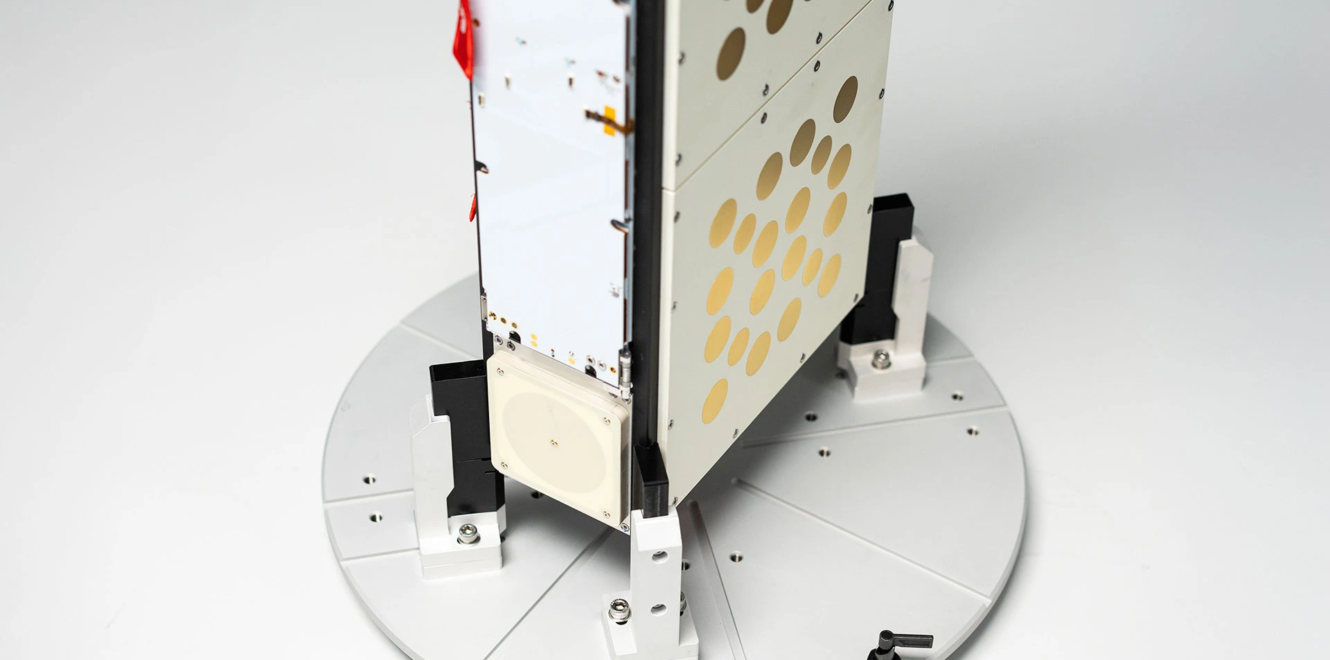

Base section of EnduroSat 8u cubesat mounted on precision test platform

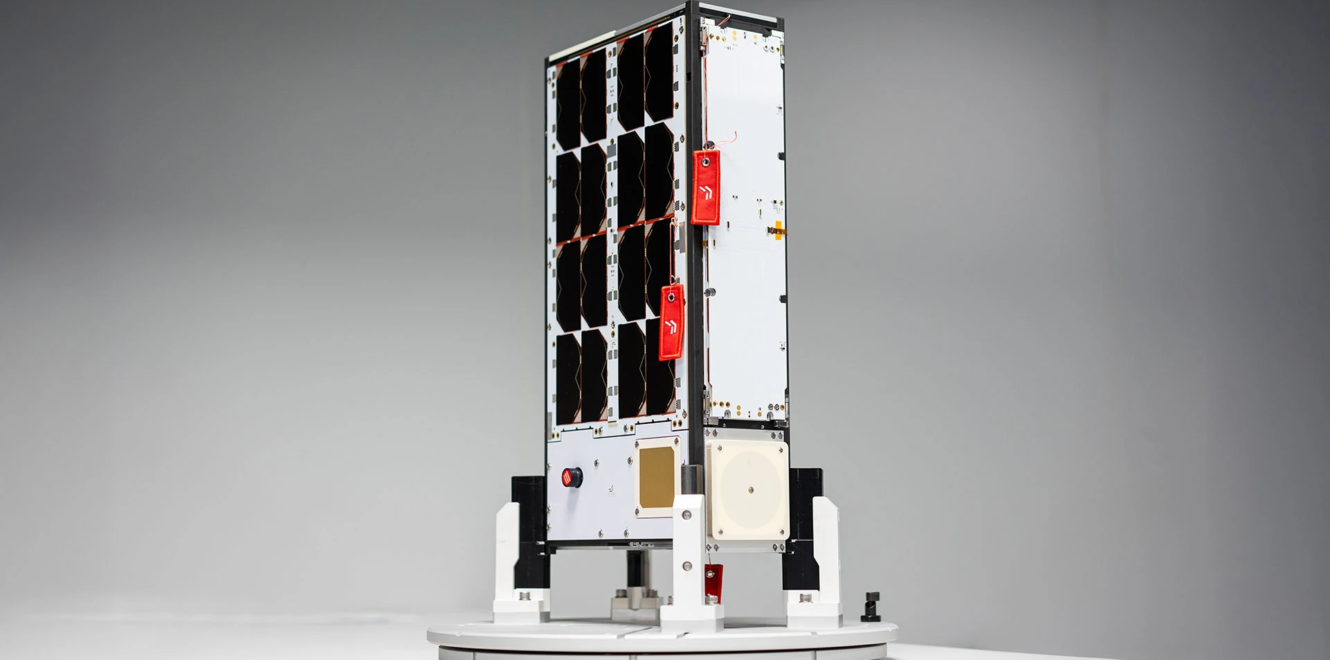

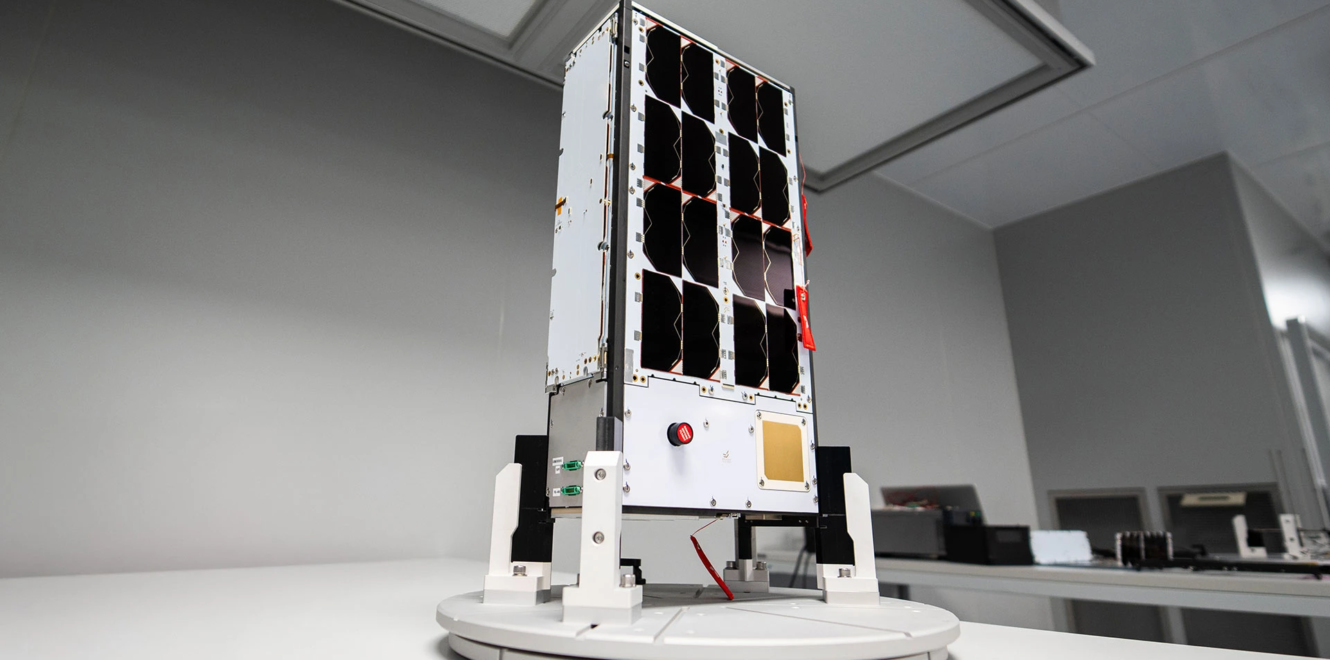

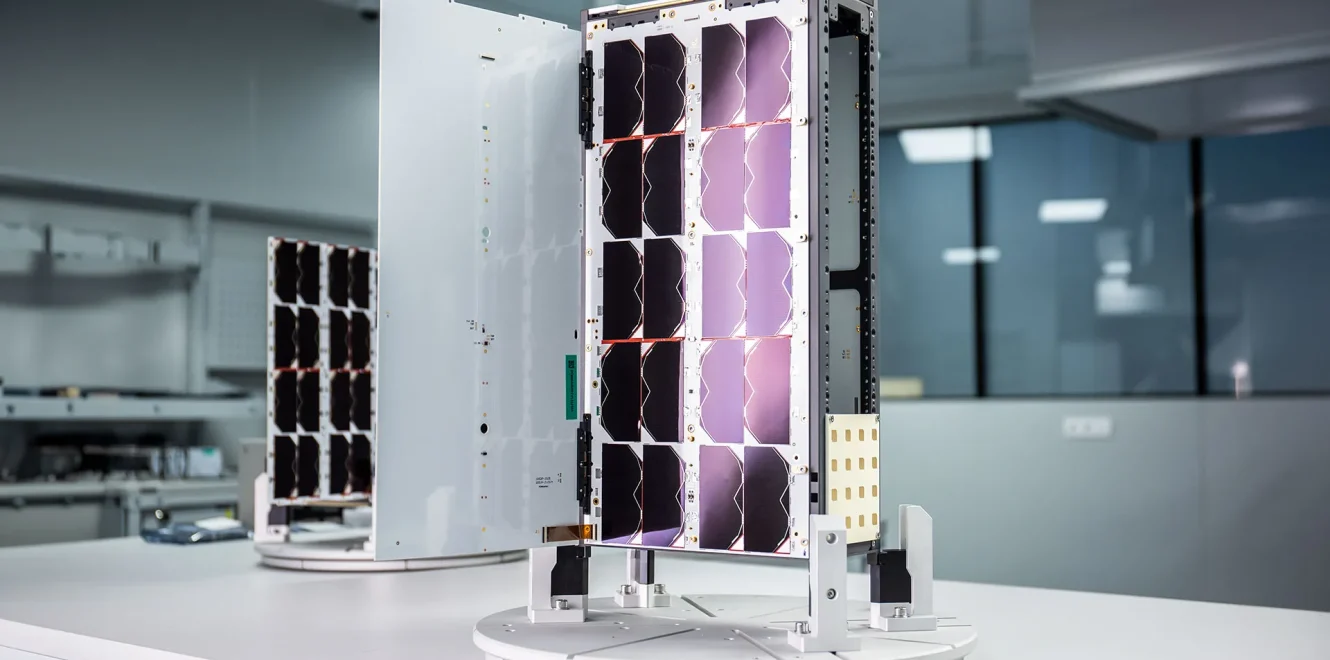

EnduroSat 8u cubesat standing on test platform with integrated solar panels

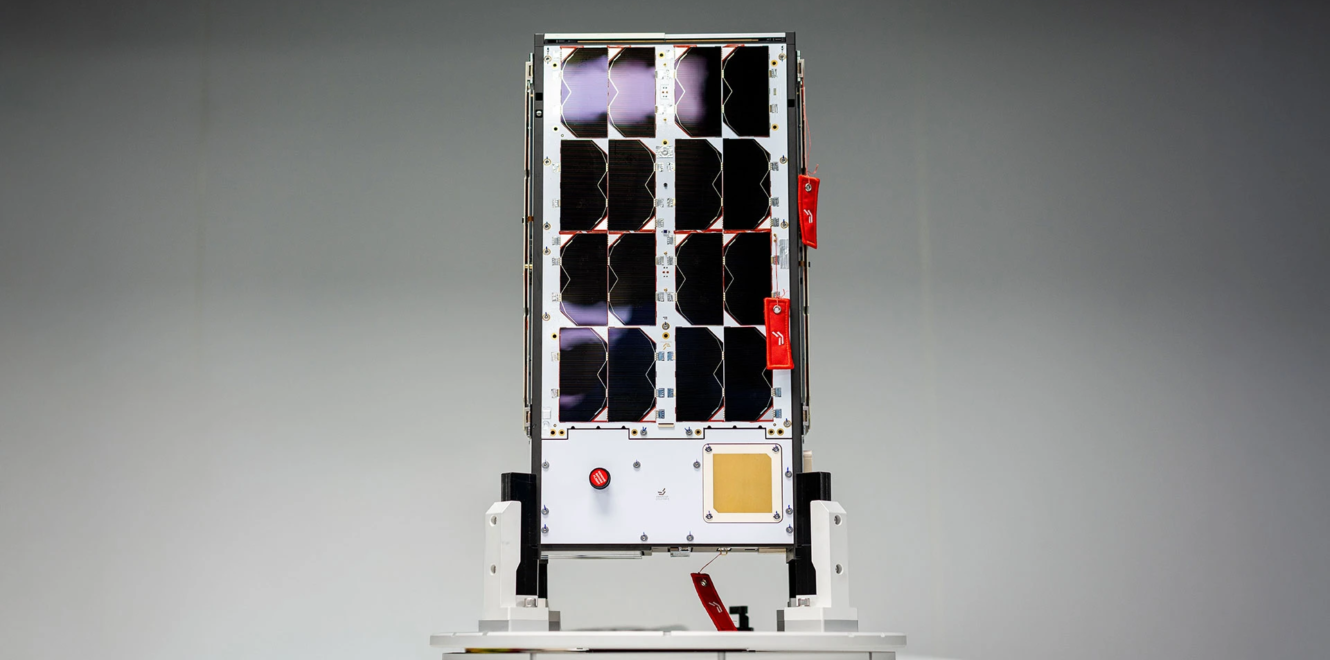

EnduroSat 8u cubesat front view

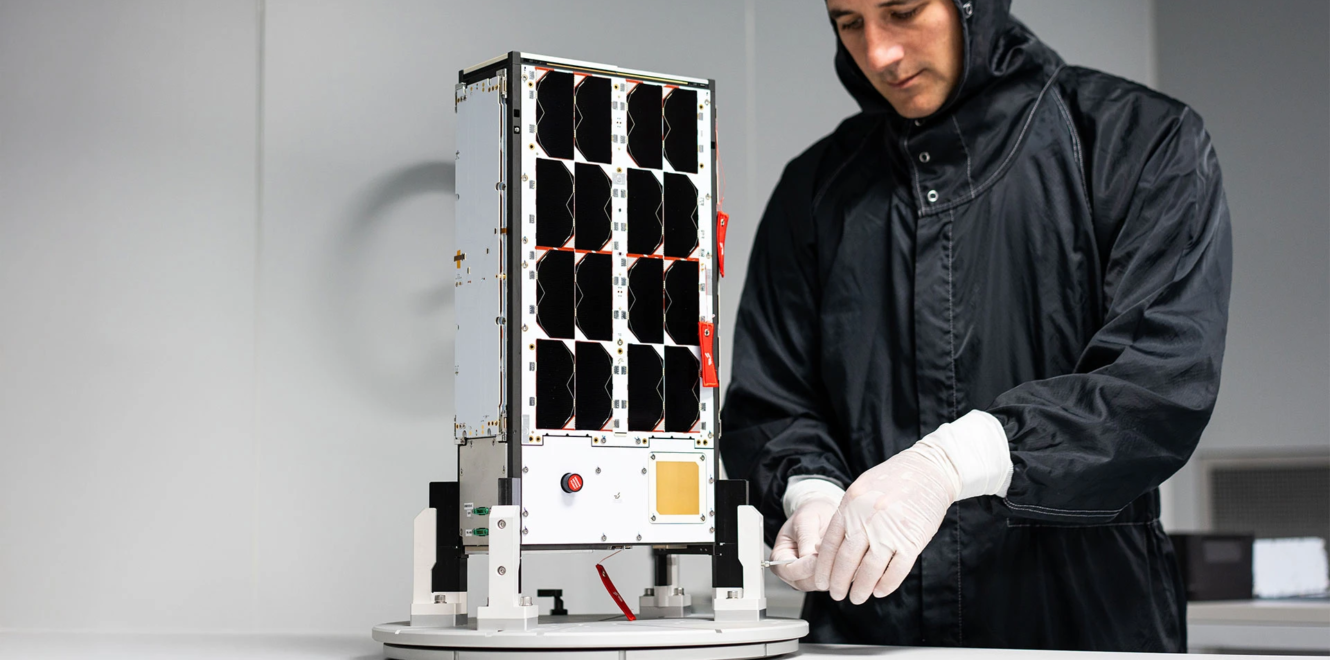

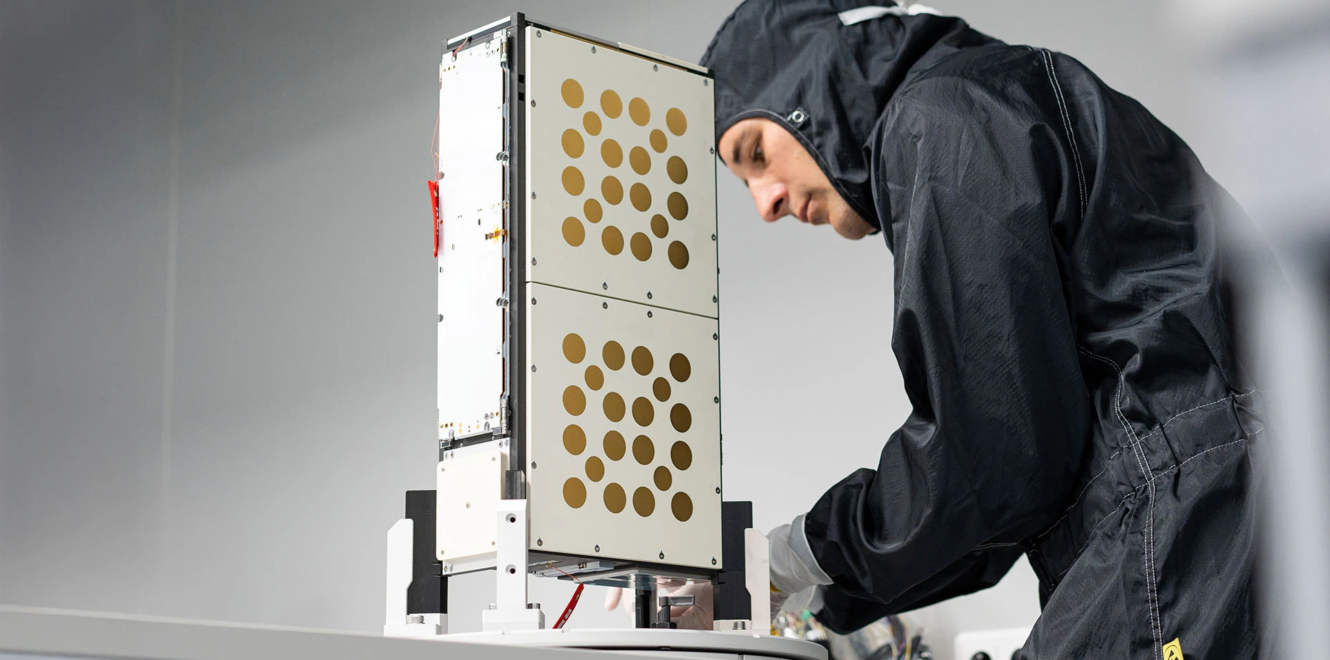

Engineer inspecting EnduroSat 8u cubesat during assembly in clean room
EnduroSat 8U CubeSat in a clean room
EnduroSat 8U CubeSat being assembled in a clean room

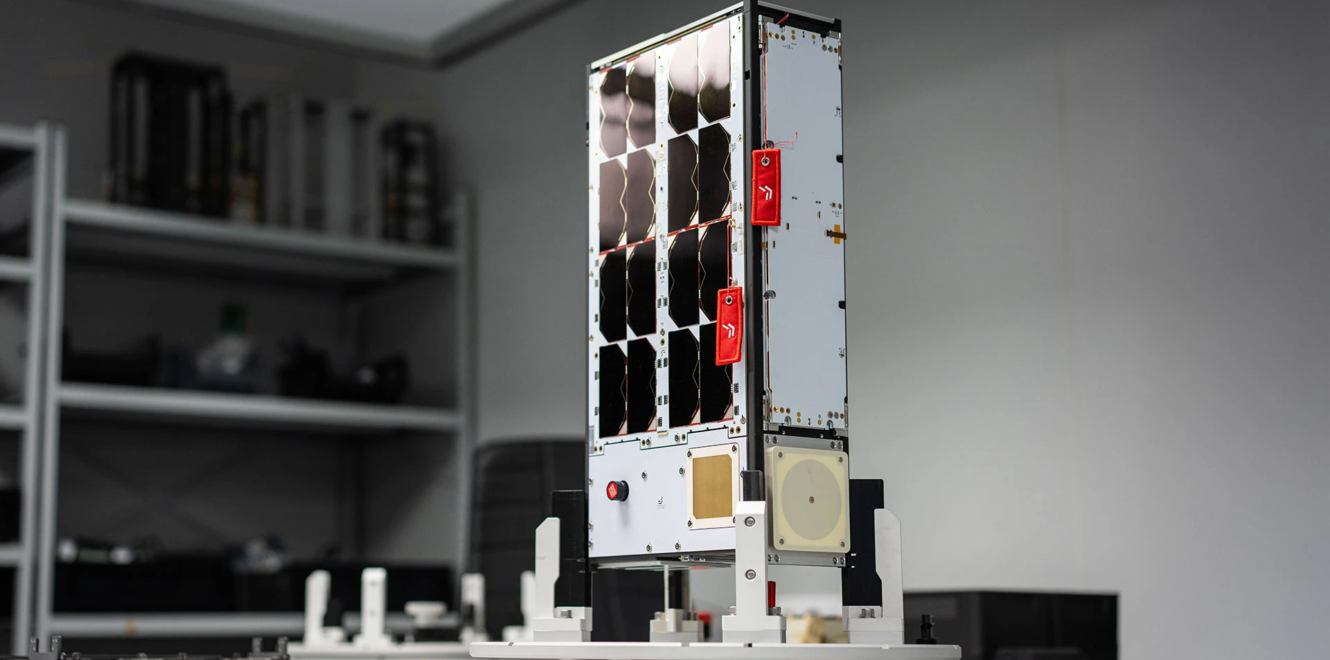

EnduroSat 8U CubeSat assembled in the lab

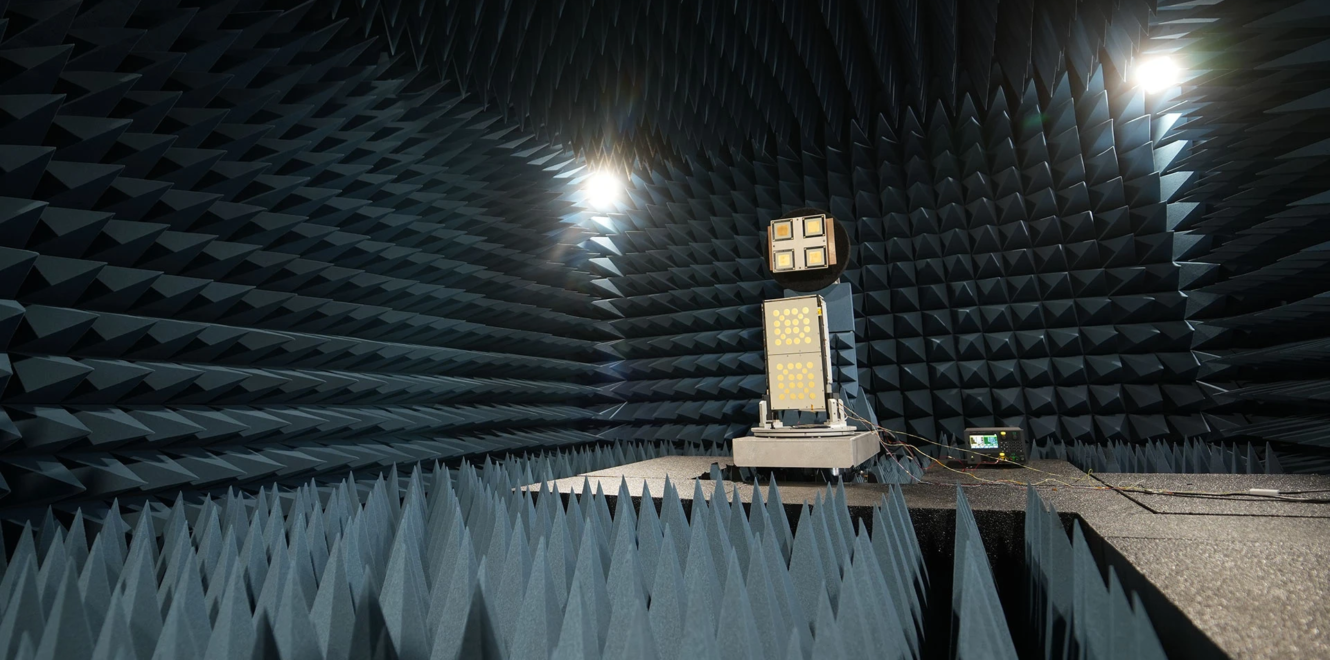

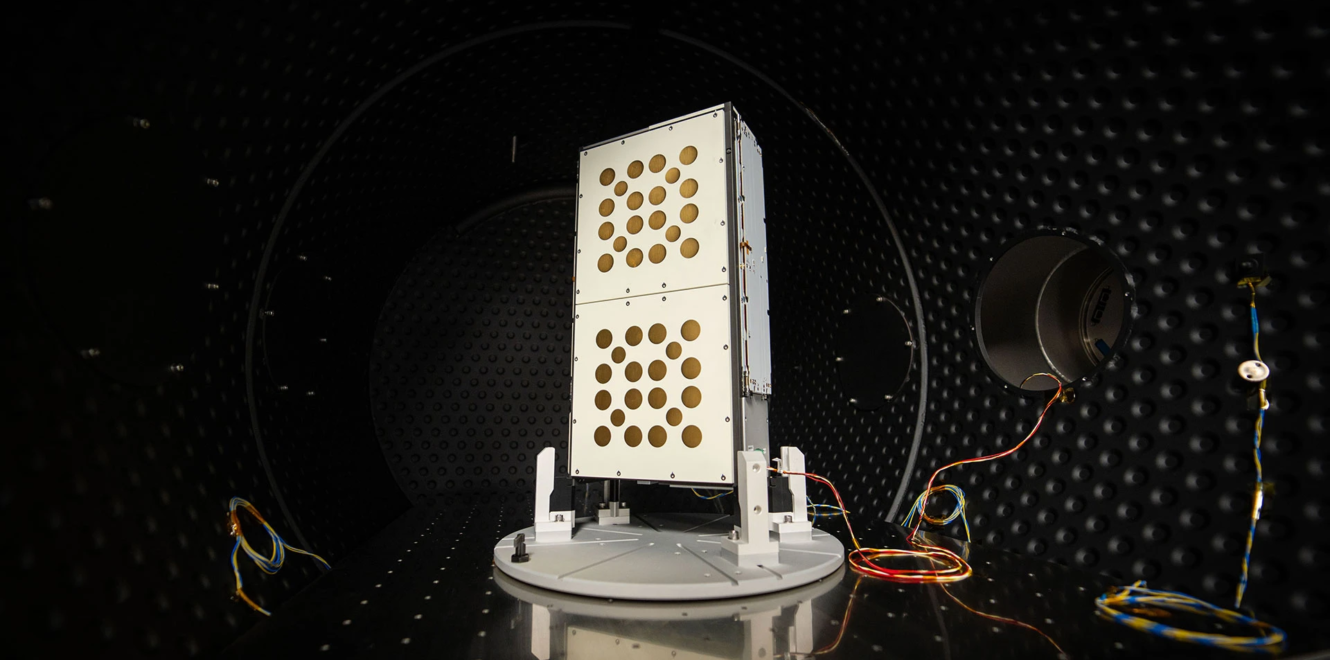

EnduroSat 8u cubesat undergoing antenna testing inside an anechoic chamber
EnduroSat 8u cubesat undergoing testing inside thermal vacuum chamber
EnduroSat 8u cubesat undergoing testing inside thermal vacuum chamber

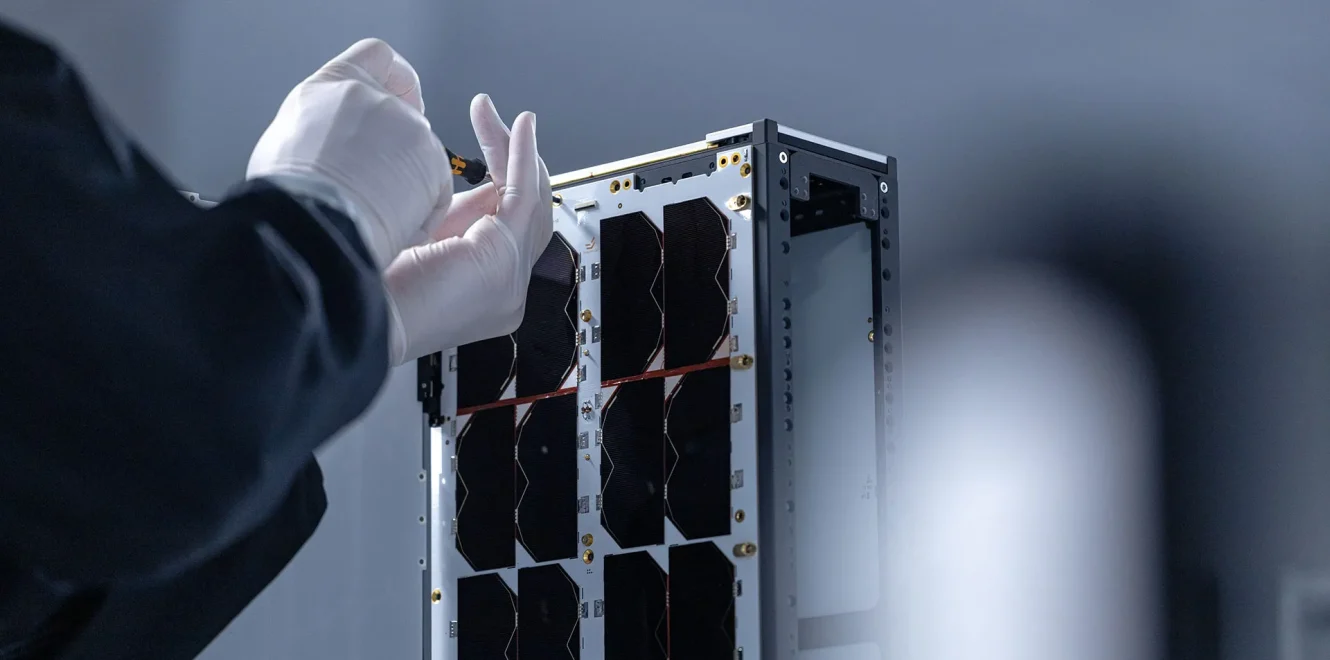

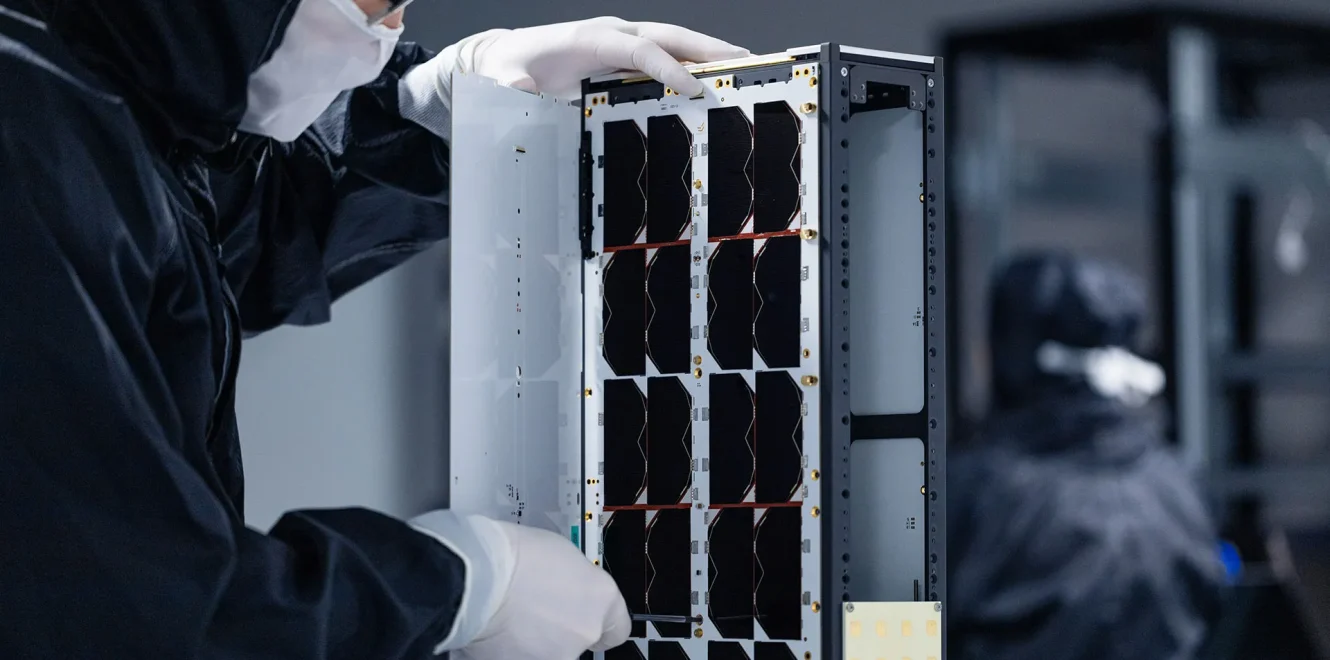

Engineer inspecting EnduroSat 8u cubesat during assembly in clean room

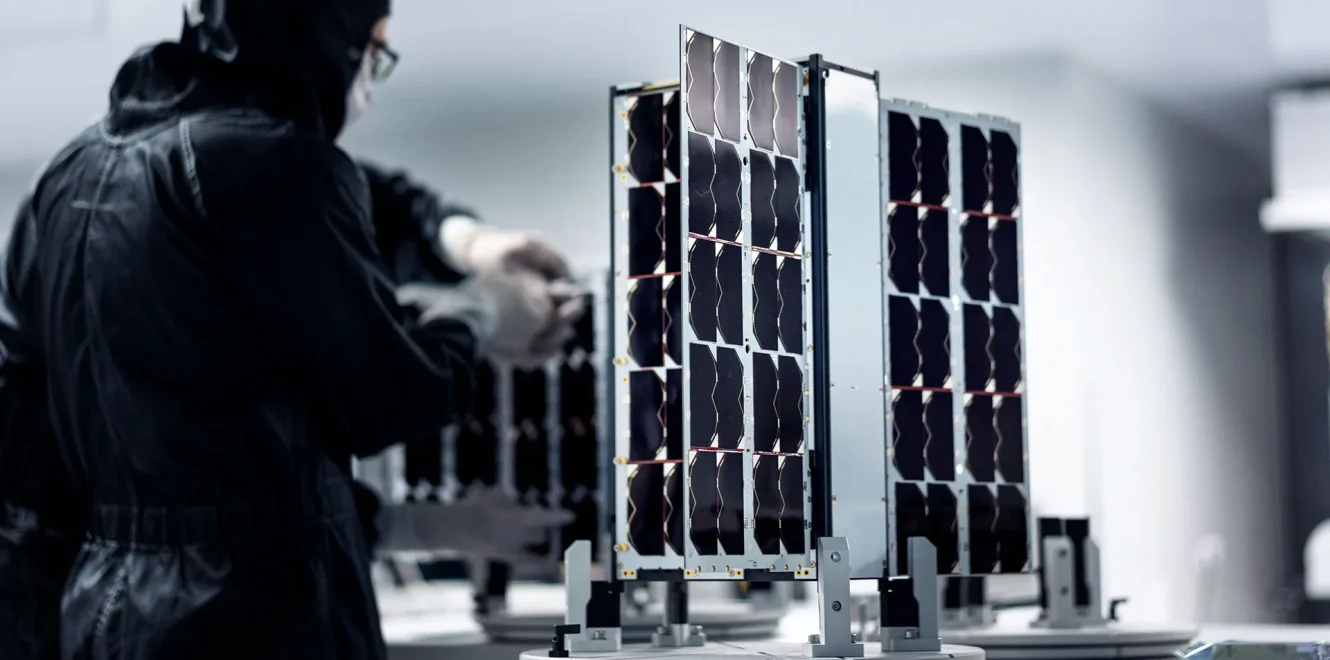

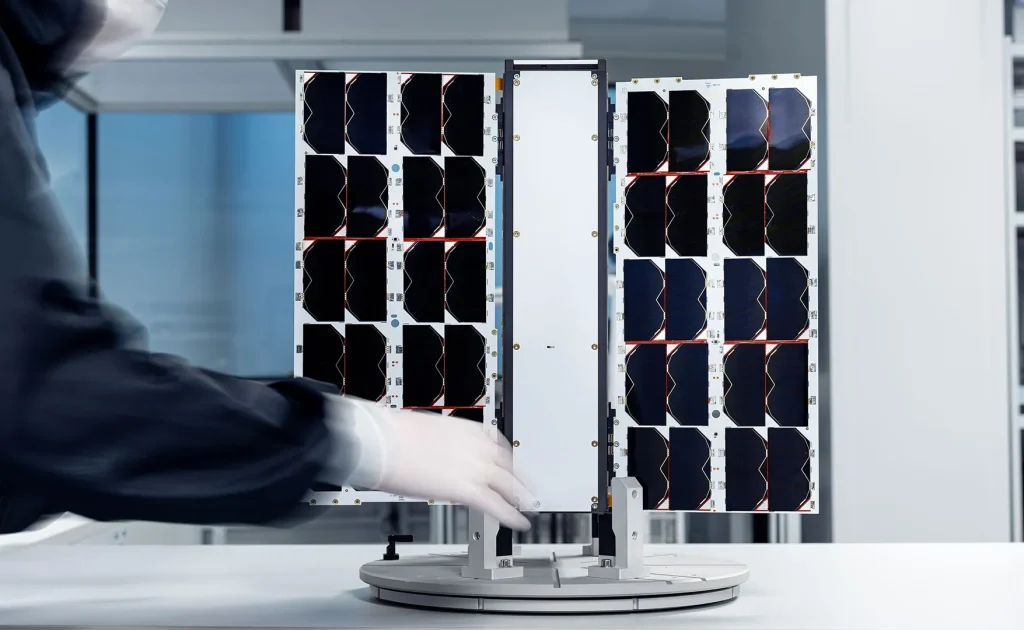

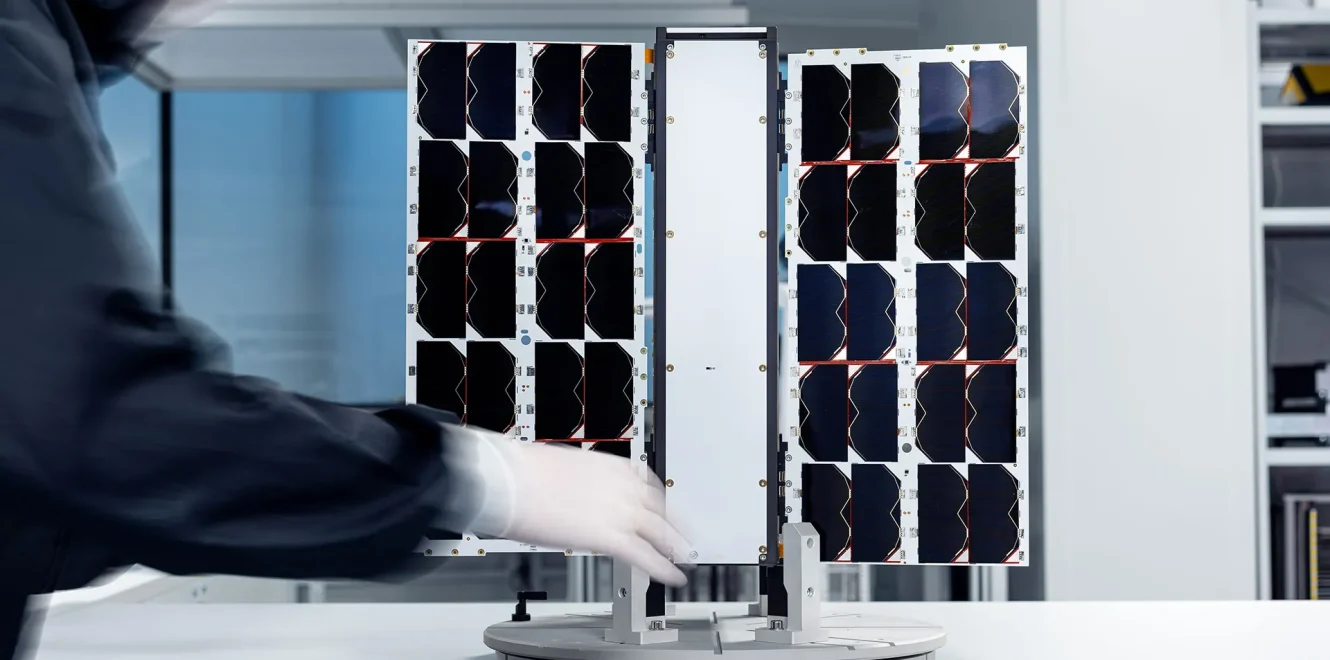

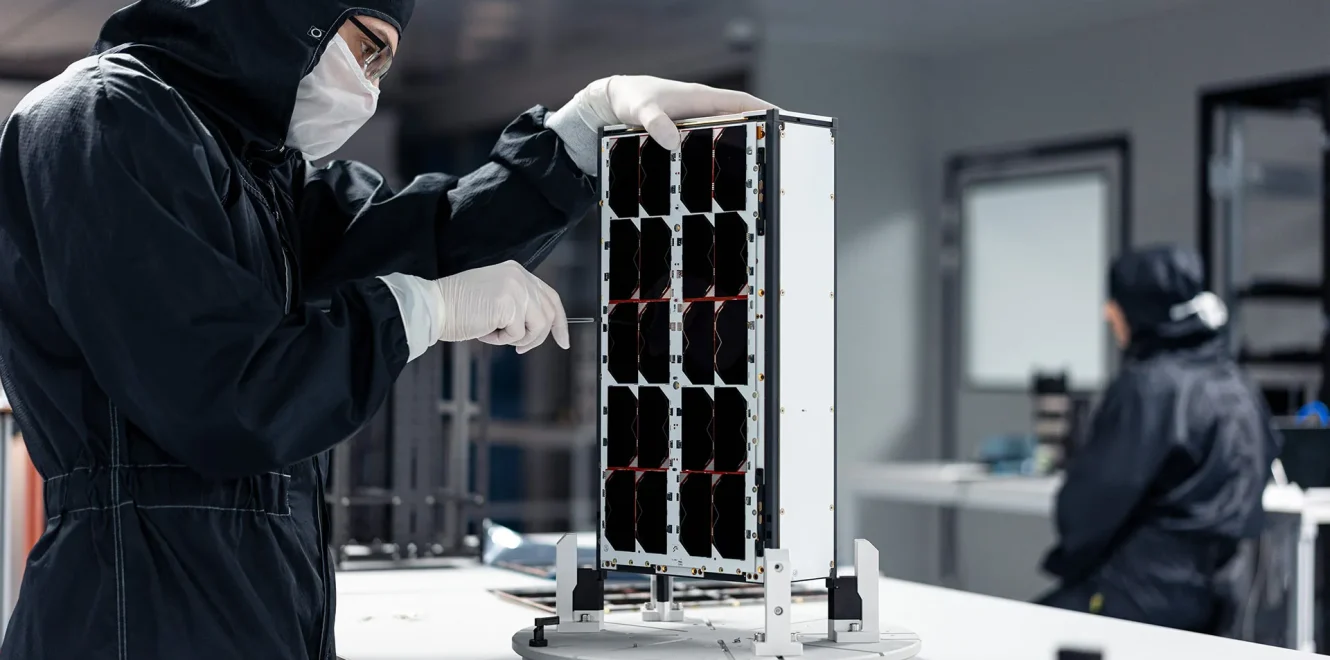

Engineer assembling EnduroSat 8u cubesat with integrated solar panel modules
EnduroSat 8u cubesat standing on test platform with integrated solar panels
Base section of EnduroSat 8u cubesat mounted on precision test platform
Isolated view of 8u cubesat during laboratory inspection on rotation platform

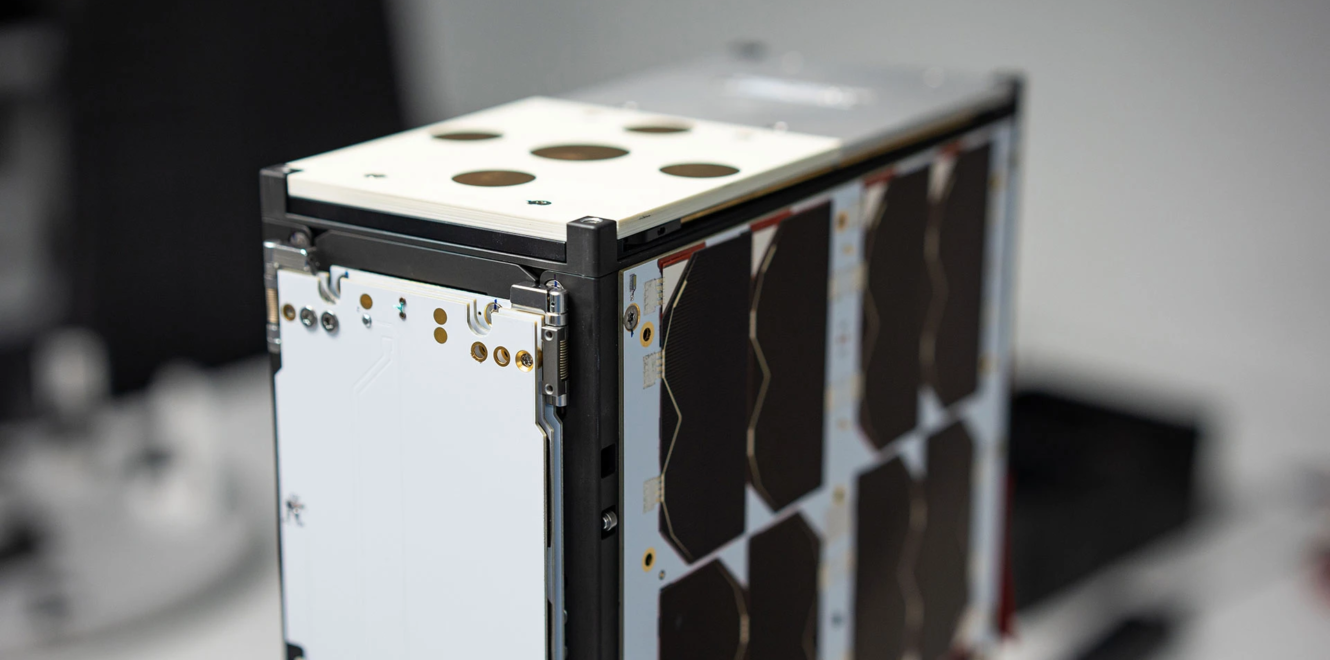

Detailed view of 8u cubesat assembly showing panel mounts and connectors
8u cubesat positioned on test stand displaying solar modules and subsystem interfaces

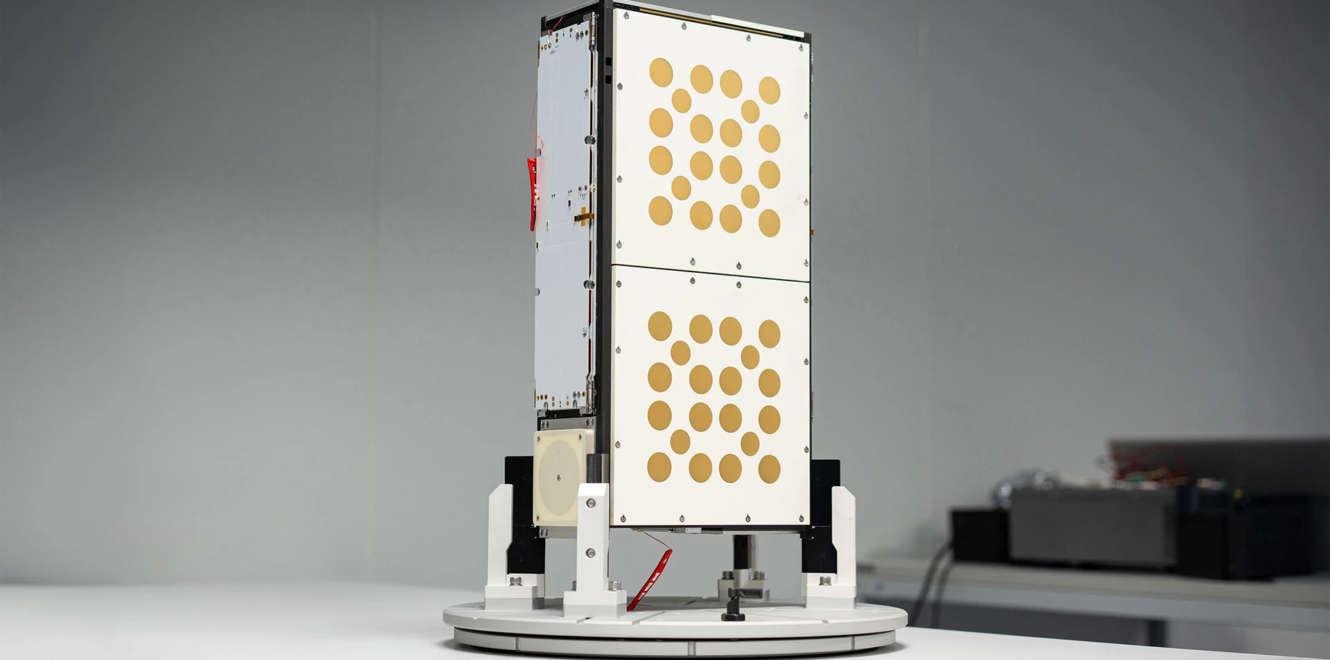

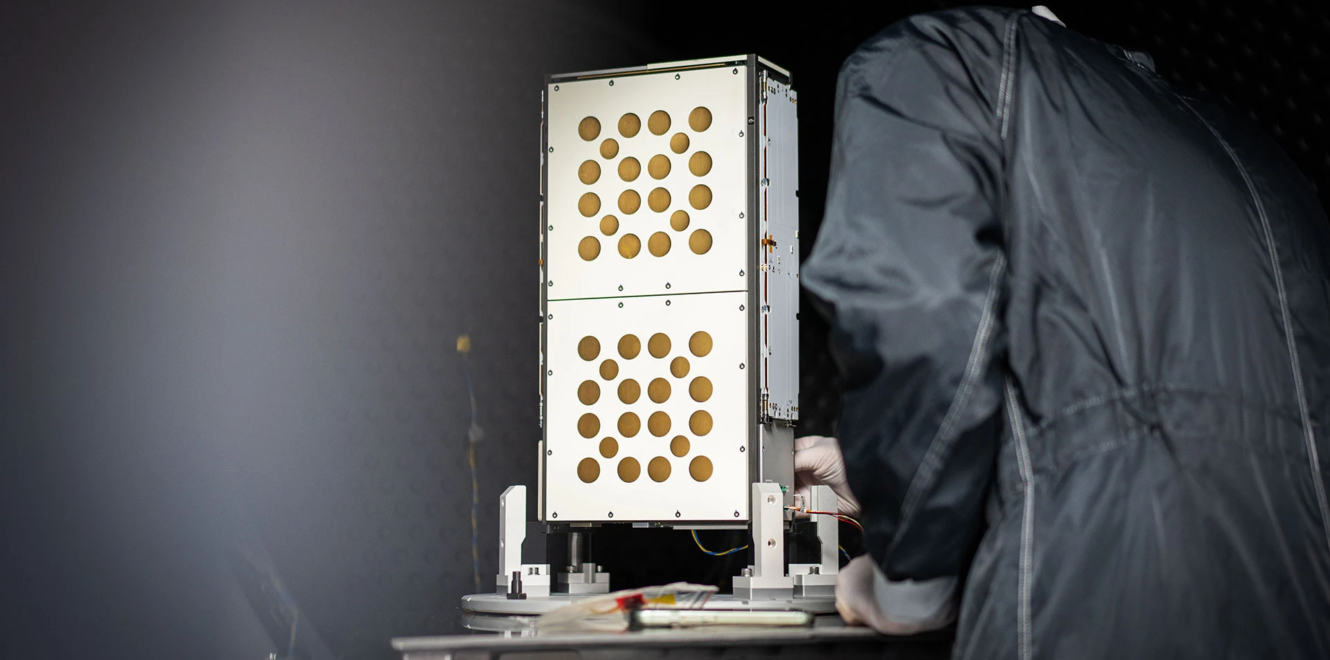

EnduroSat 8u cubesat mounted on test stand with visible payload and antenna panels
EnduroSat 8u cubesat positioned on mechanical stand with visible subsystem panels
EXPLORE OUR LARGER SATELLITES
16U Platform endurosat featured image nanosat 4024
16U
Bus Mass
11.2-11.7 kg
Payload Mass
24.0-24.5 kg
Payload Data Rate
up to 1 Gbps
Discover
FRAME-15
70 kg
AVAILABLE PAYLOAD MASS
3.4 kW
MAX CONTINUOUS POWER
2 Gbps
GROSS DATARATE
Discover
FRAME-24
300 kg
AVAILABLE PAYLOAD MASS
7 kW
MAX CONTINUOUS POWER
4 Gbps
GROSS DATARATE
Discover
3000
MODULES IN ORBIT
120
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
