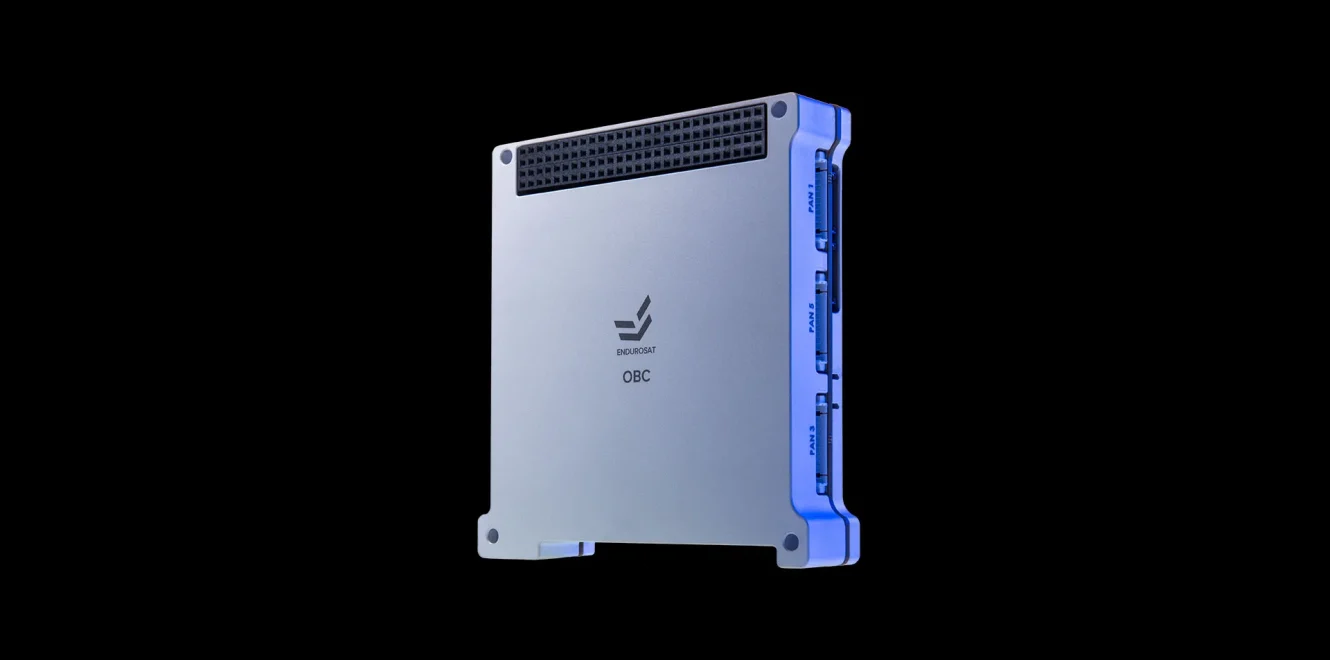

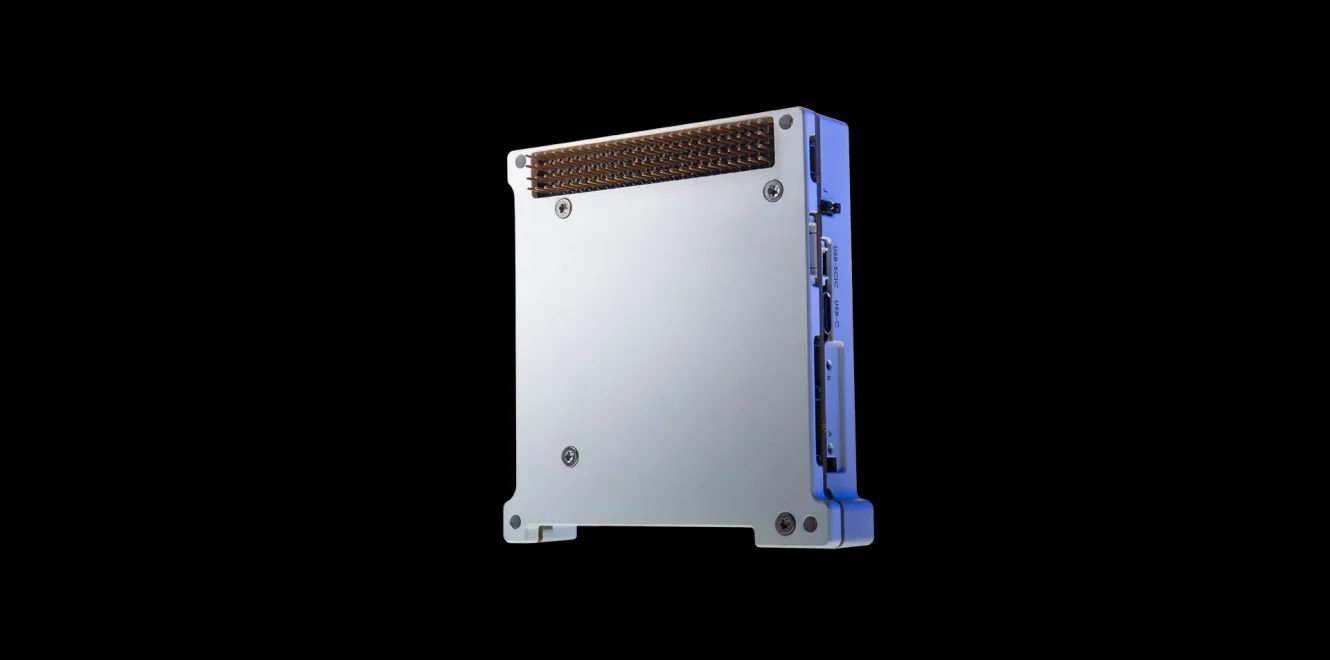

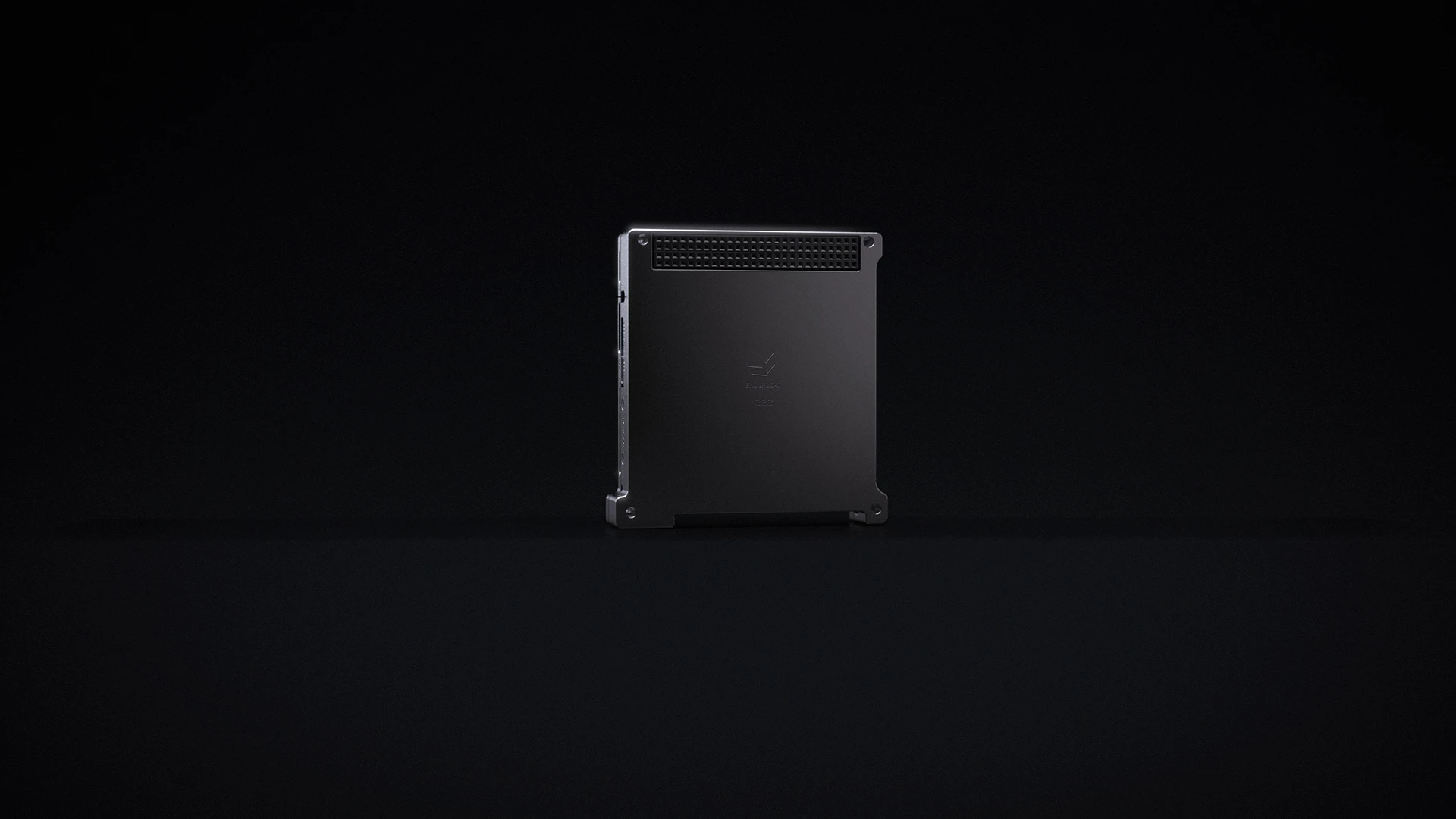

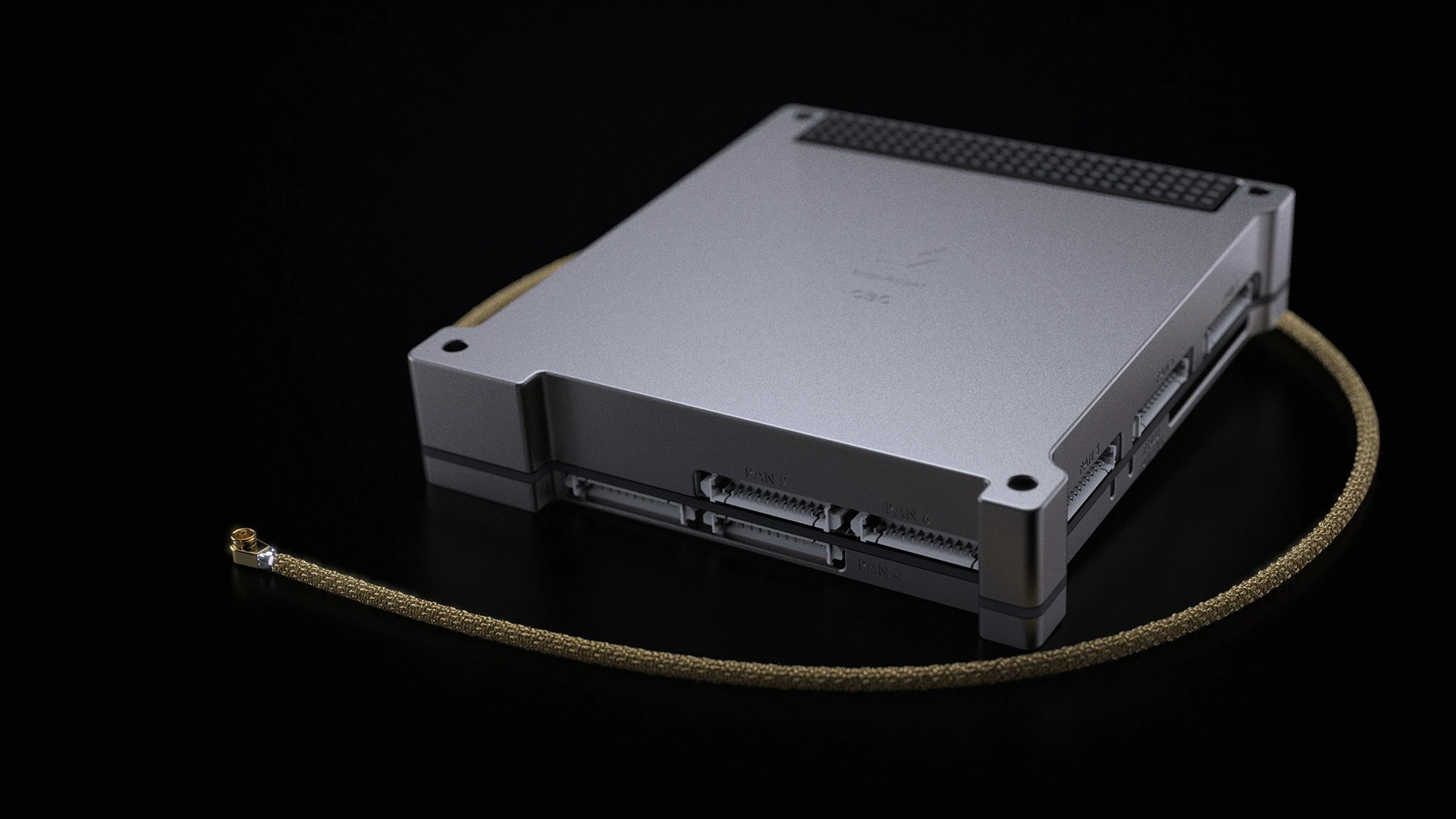

ONBOARD COMPUTER

Advanced command and control for CubeSats and SmallSats
Cad file & datasheet
Select Options
Select Options

ONBOARD COMPUTER

Download
Cad file & datasheet
Select Options
Select Options
LOW
POWER CONSUMPTION
SDK
FREERTOS DEVELOPMENT ENVIRONMENT
GNSS
OPTIONAL INTEGRATED SYSTEM

Automate time-based tasks beyond ground contact with MicroPython scripting

Optional integrated GNSS receiver for a wider range of applications

CONFIGURATION OPTIONS
OBC
  • ARM Cortex M7
  • 2x 16 GB mass storage
  • No GNSS receiver

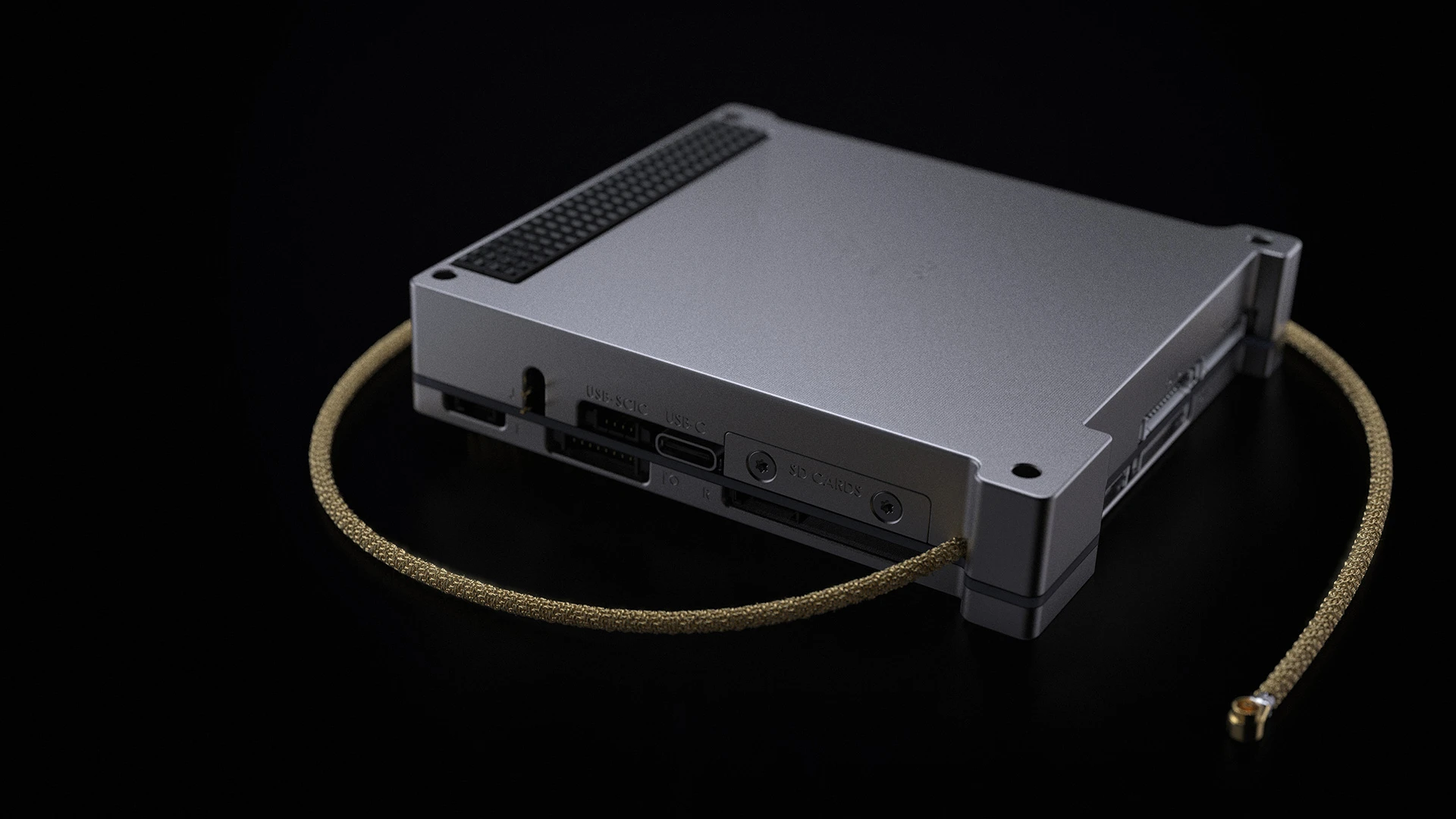

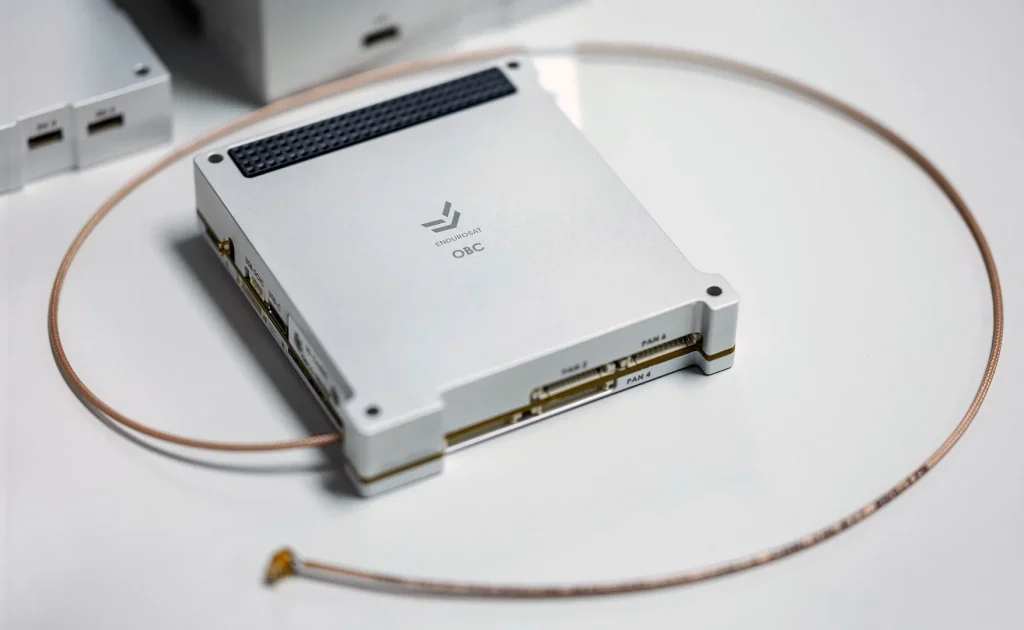

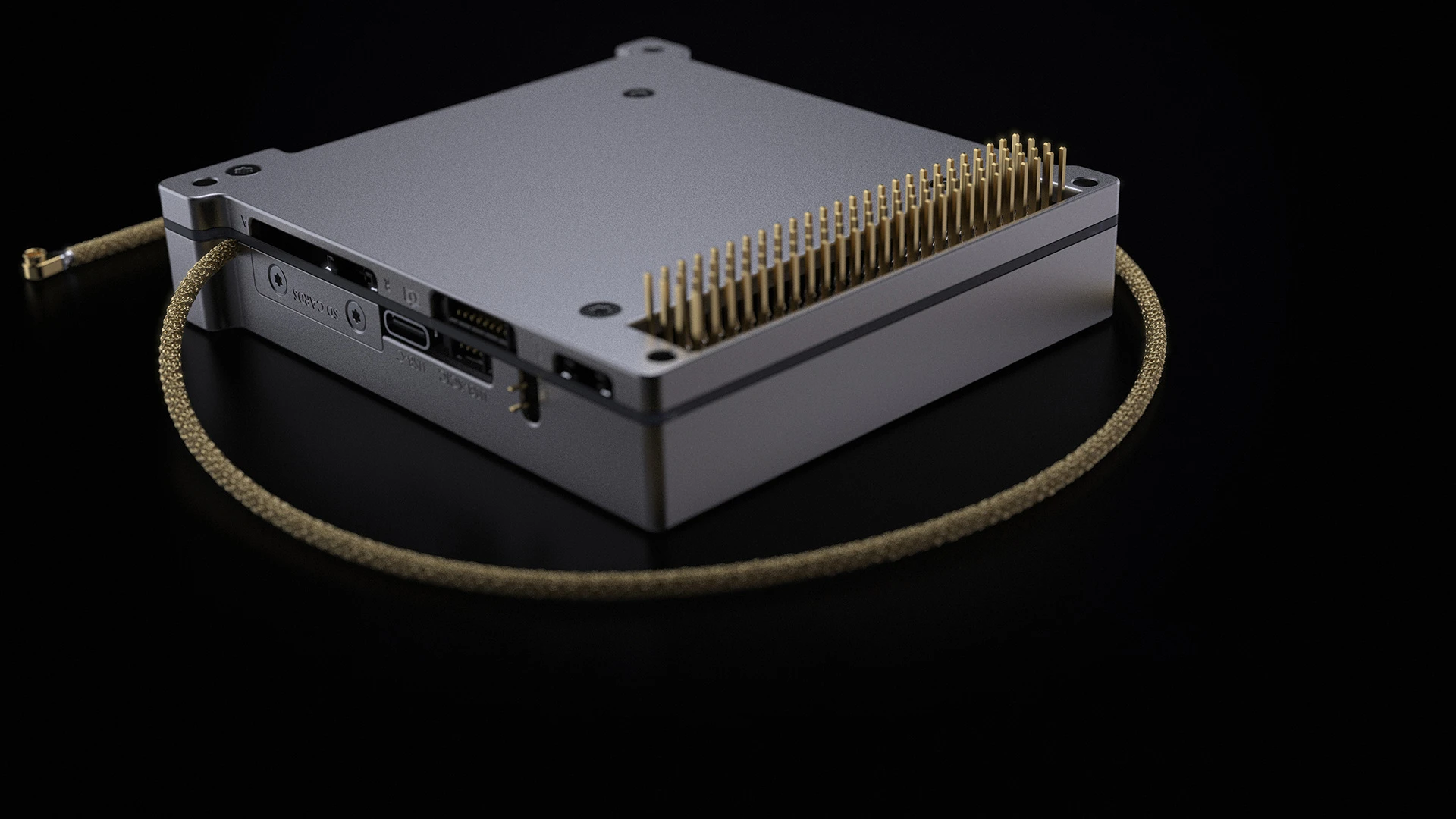

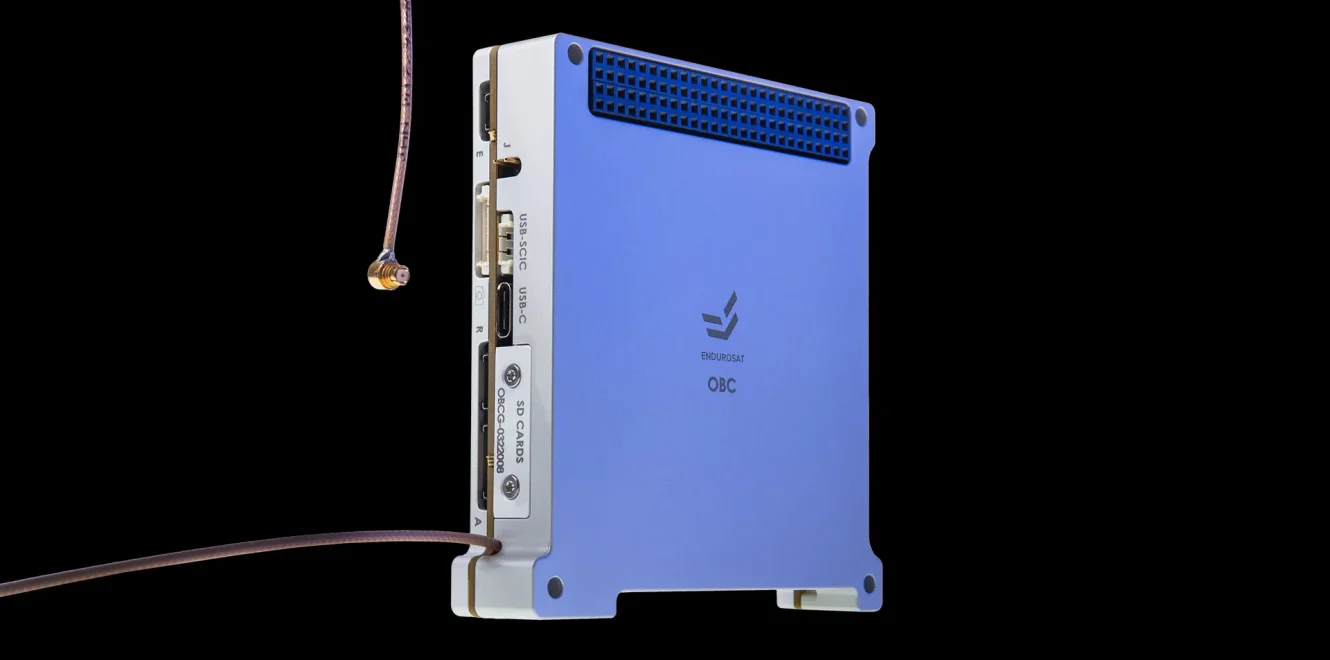

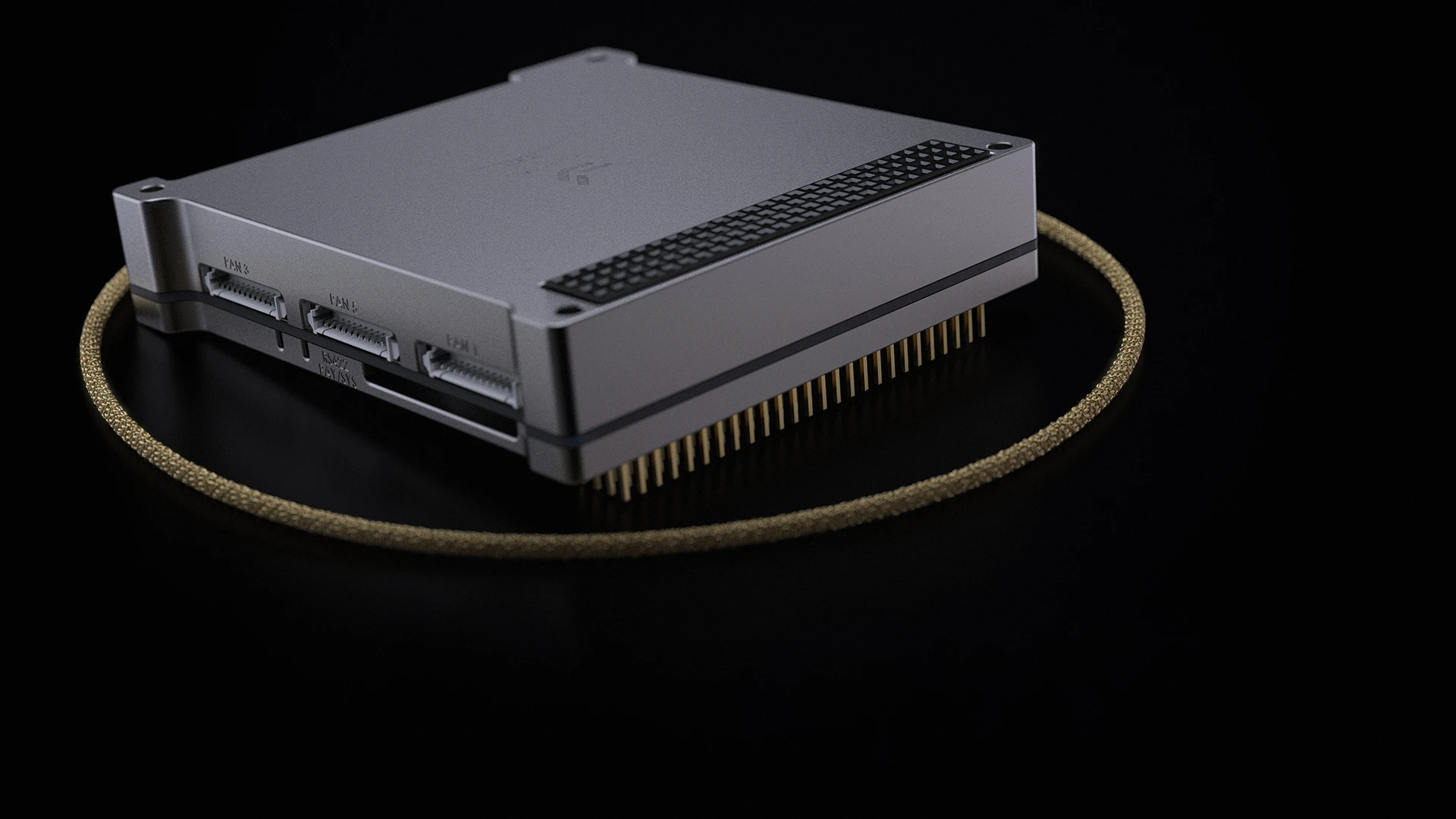

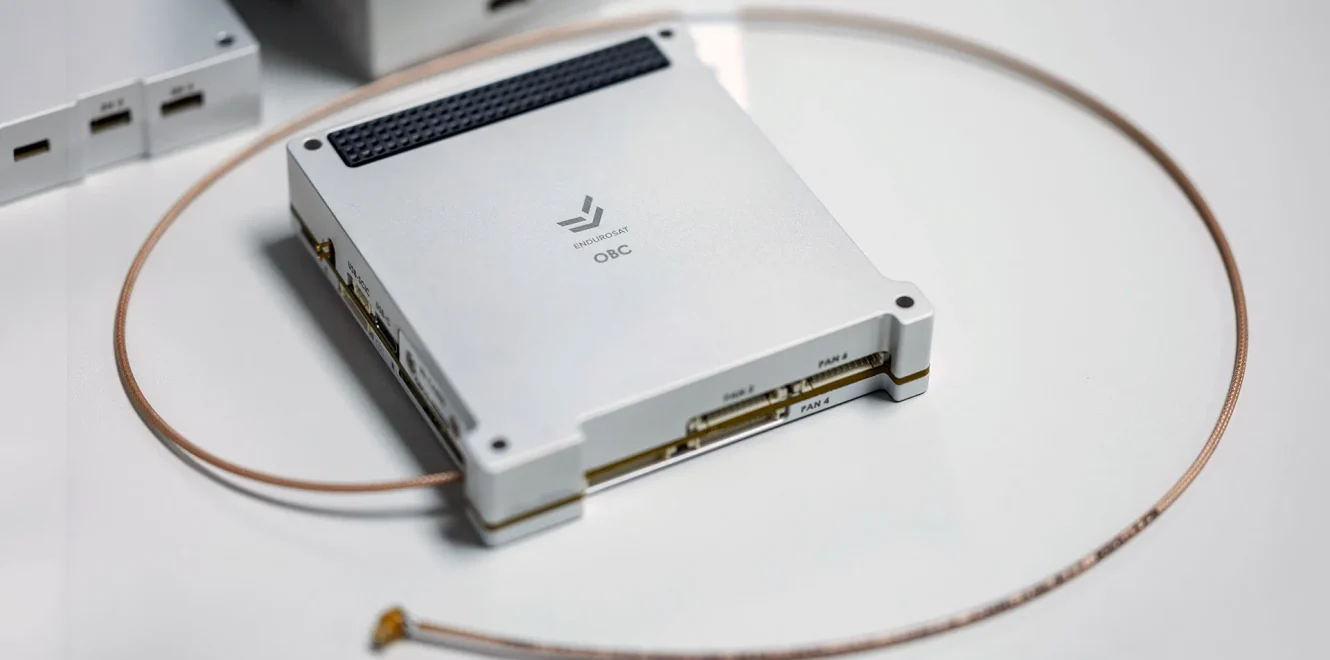

OBC WITH GNSS
  • ARM Cortex M7
  • 2x 16 GB mass storage
  • NovAtel OEM 719 GNSS receiver
TECHNICAL SPECS
Processor
ARM Cortex M7
Program Memory Size
2 MB Flash Memory
Mass Storage
2x 16 GB Embedded SD NAND Flash Memory
External FRAM Memory
2x 2MB FRAM with ECC capability
Compatibility
Full set of drivers for EnduroSat modules
Clock Type
Real Time Clock
Reading Temperature Interfaces
4x Digital and 4x Analog
PPS Signal
Single-Ended
GPIO Signals
16x Payload Enable / Disable / Feedback
Control Interfaces
2x CAN-FD with 1 Mbps Data Rate (CSP 2.0 over CAN)
Payload Interfaces
1x CAN-FD, 1x RS-422, 1x RS-485, 1x SPI, 1x UART, 1x 100BASE-TX Ethernet
Voltage Supply
12 V
Mass
123g / 173g (with GNSS Receiver)
Optional GNSS Receiver
NovAtel OEM 719
- Signal Tracking
from GPS L1, Galileo E1
- PPS Signal Error
±0.5 ppm
- Position accuracy (single frequency)
<20 m RMS
- Velocity Accuracy (single frequency)
<0.5 m RMS
- Time Accuracy
20 ns
CubeSat OBC integrates seamlessly with all EnduroSat systems

Included

Complete User Manual
USB cable
JTAG and debugging cables (with SDK)
5h engineering support
Delivery cost
Handling and administration costs
Flight computer featuring space-ready 2x 16 GB Embedded SD NAND Flash Memory

Encryption, compression and archiving included in the Flight Management System module

In-orbit firmware updates capability

Housekeeping data, logging, scheduling, tasking for smooth operations in-flight

Support for external digital and analogue temperature readings

3000
MODULES IN ORBIT
120
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
