S-BAND ANTENNA COMMERCIAL

High-speed Communication
Cad file & datasheet
buy
buy
Download
Cad file & datasheet
buy
buy
20%
HIGHER GAIN
7+
DBI GAIN
RH/LH
CIRCULAR POLARIZATION

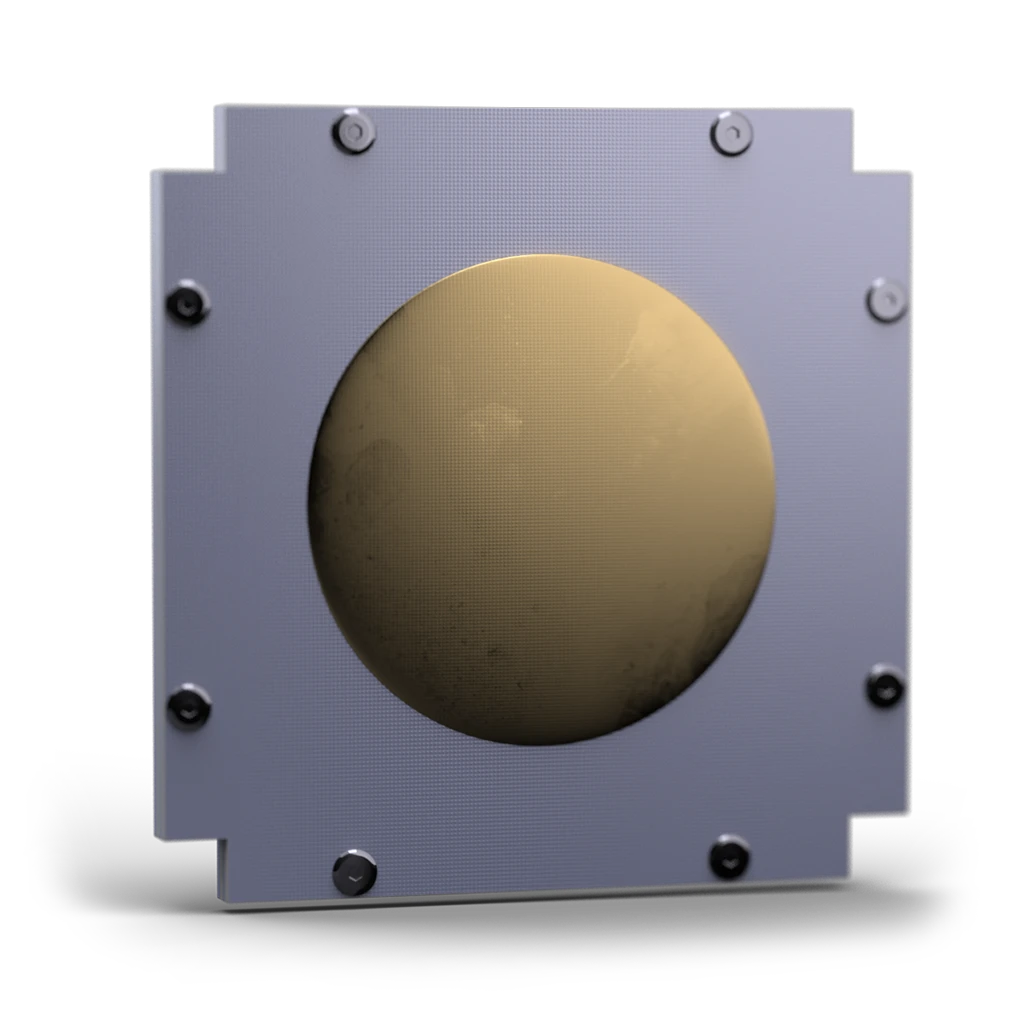

Flight-proven S-band patch antenna

FEATURES
Frequency Range
2025 - 2110 MHz
Half Power Beam Width (HPBW)
70 deg
Gain
7+ dBi over operational bandwidth
Polarization
Selectable Circular
Mass
81 g
Configurable Mounting
X/Y or Z CubeSat mounting
RF Power Handling
up to 4 W

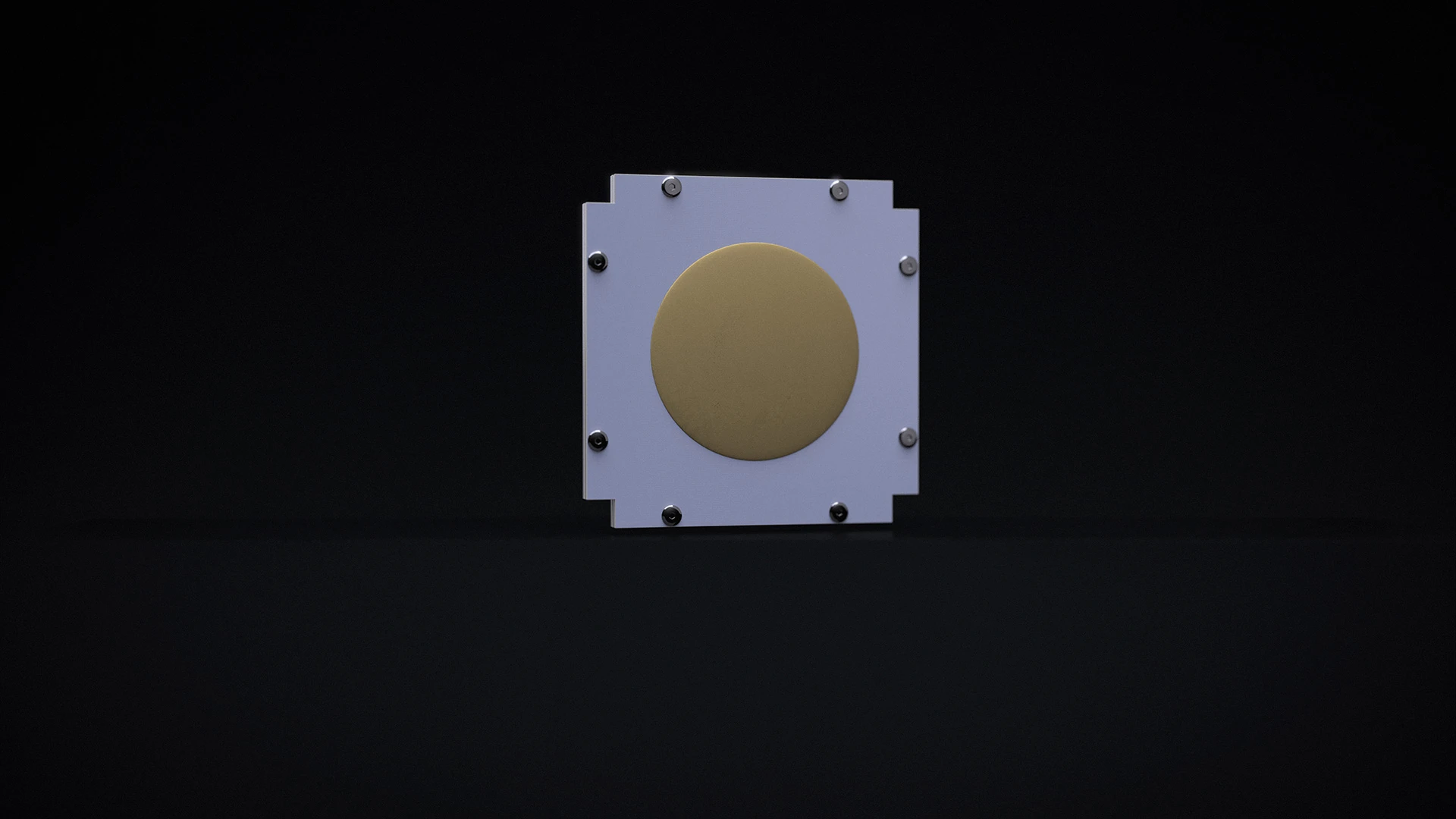

S Band Antenna Commercial web render 1 3
High-speed Communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs

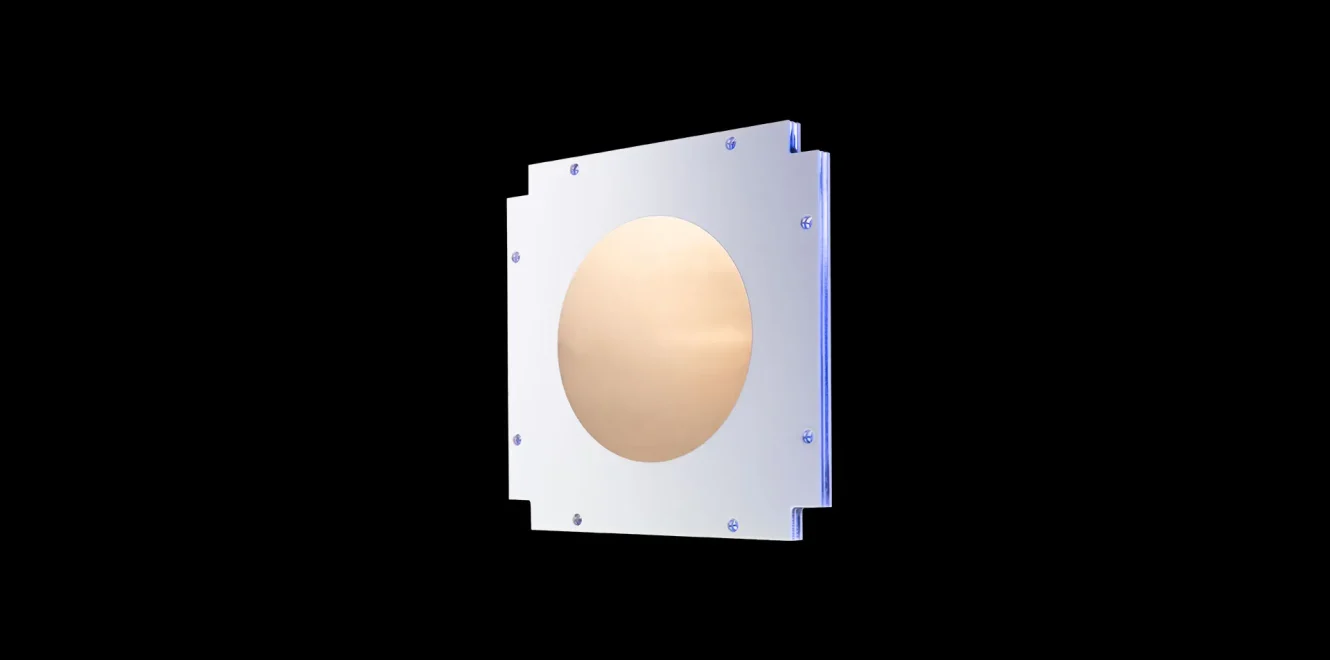

Flight-proven S-band patch antenna

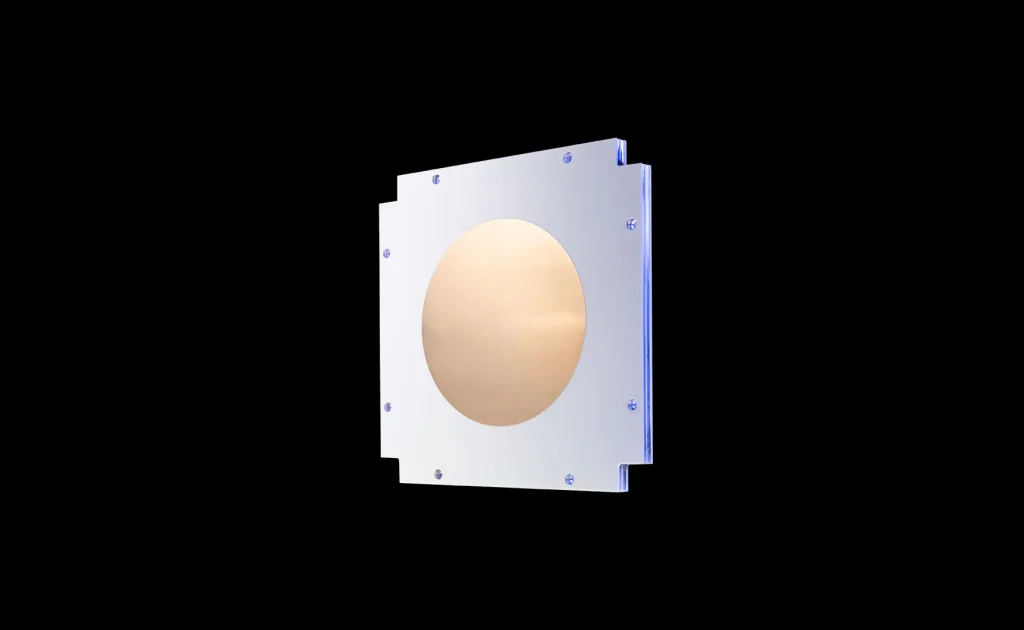

S Band Antenna Commercial web 4
S Band Antenna Commercial web render 1 5

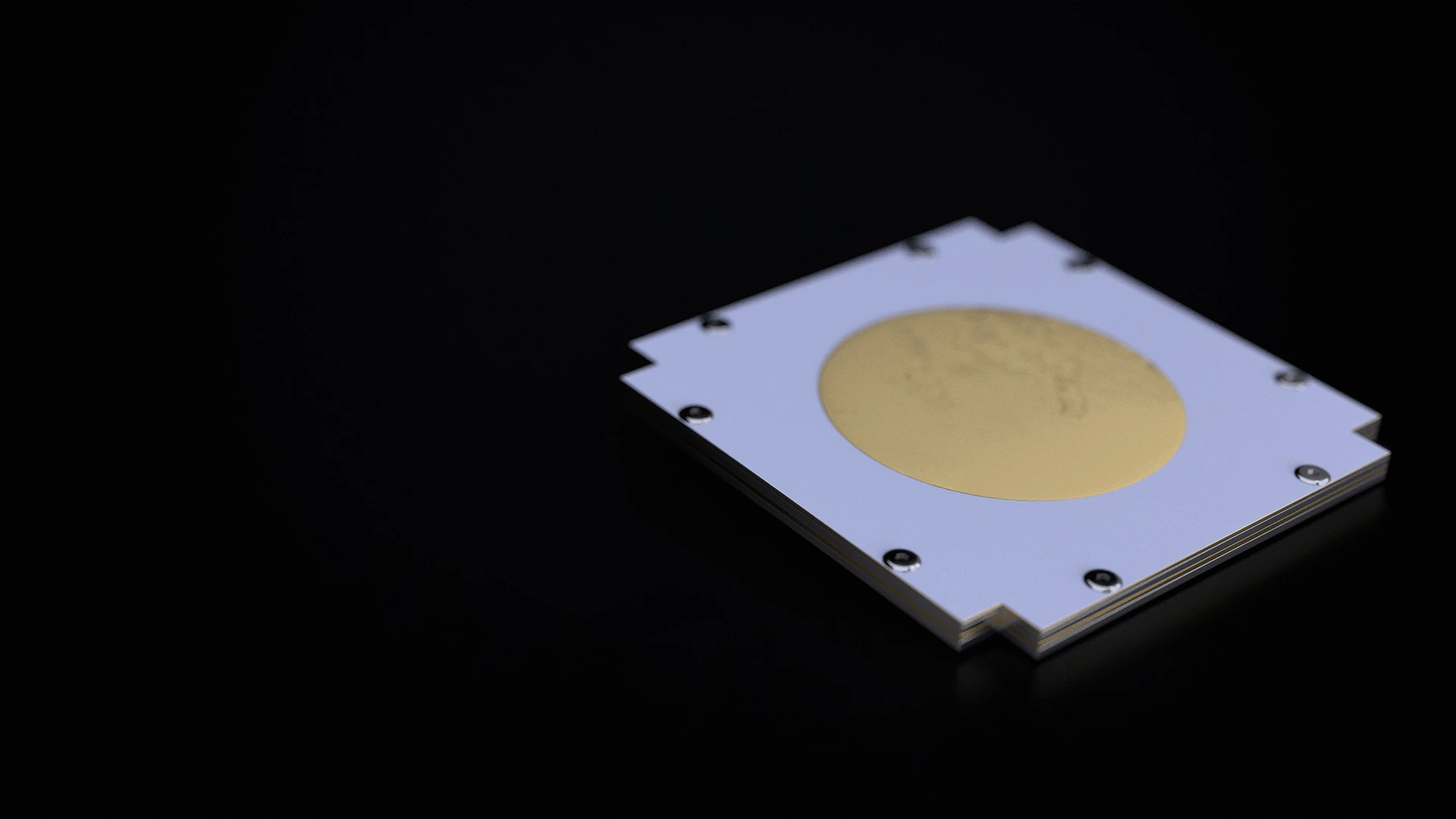

20% higher gain than the previous generation

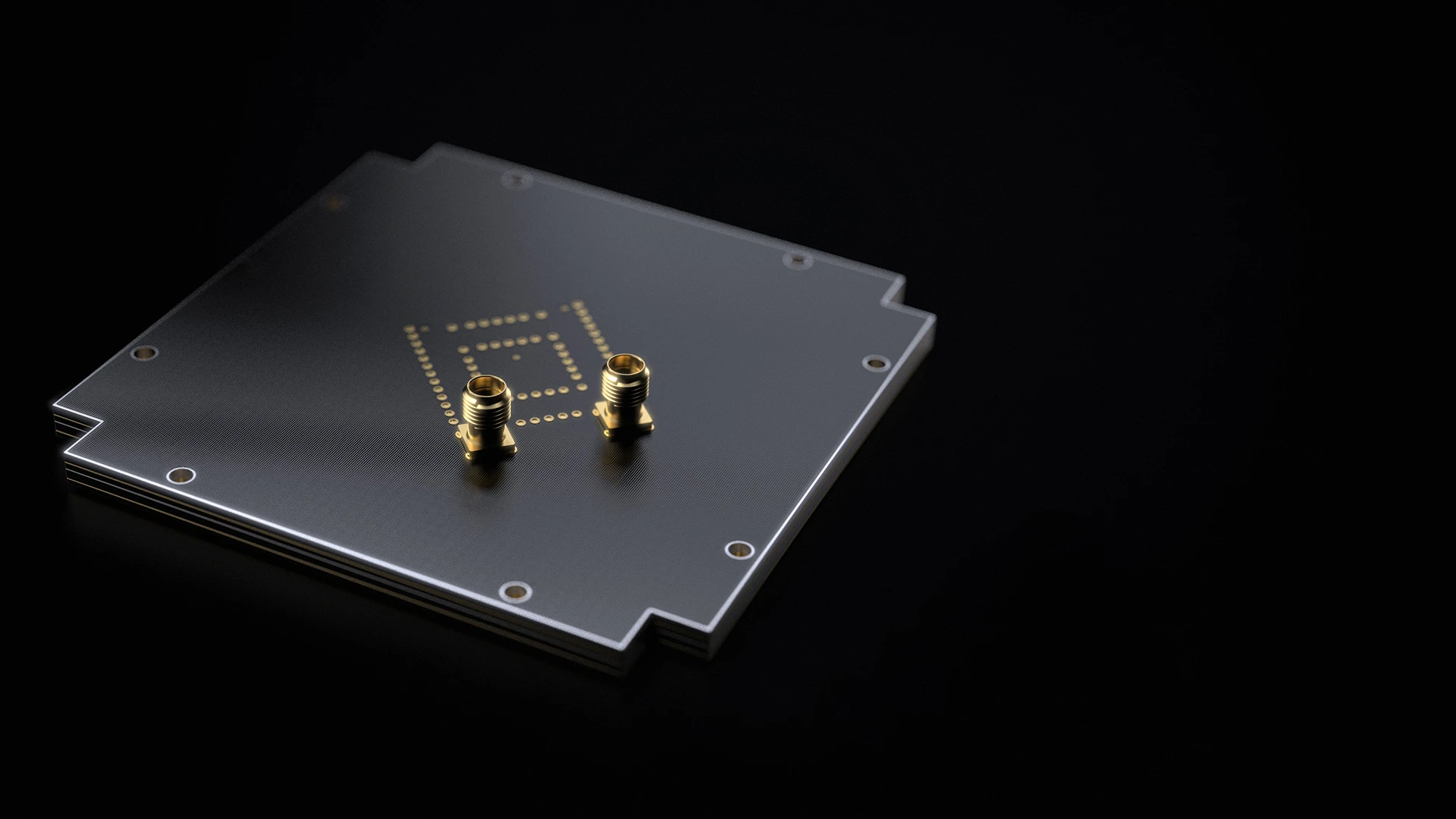

S Band Antenna Commercial web render 1 2

Circularly polarized for better reception

S Band Antenna Commercial web render 1 4

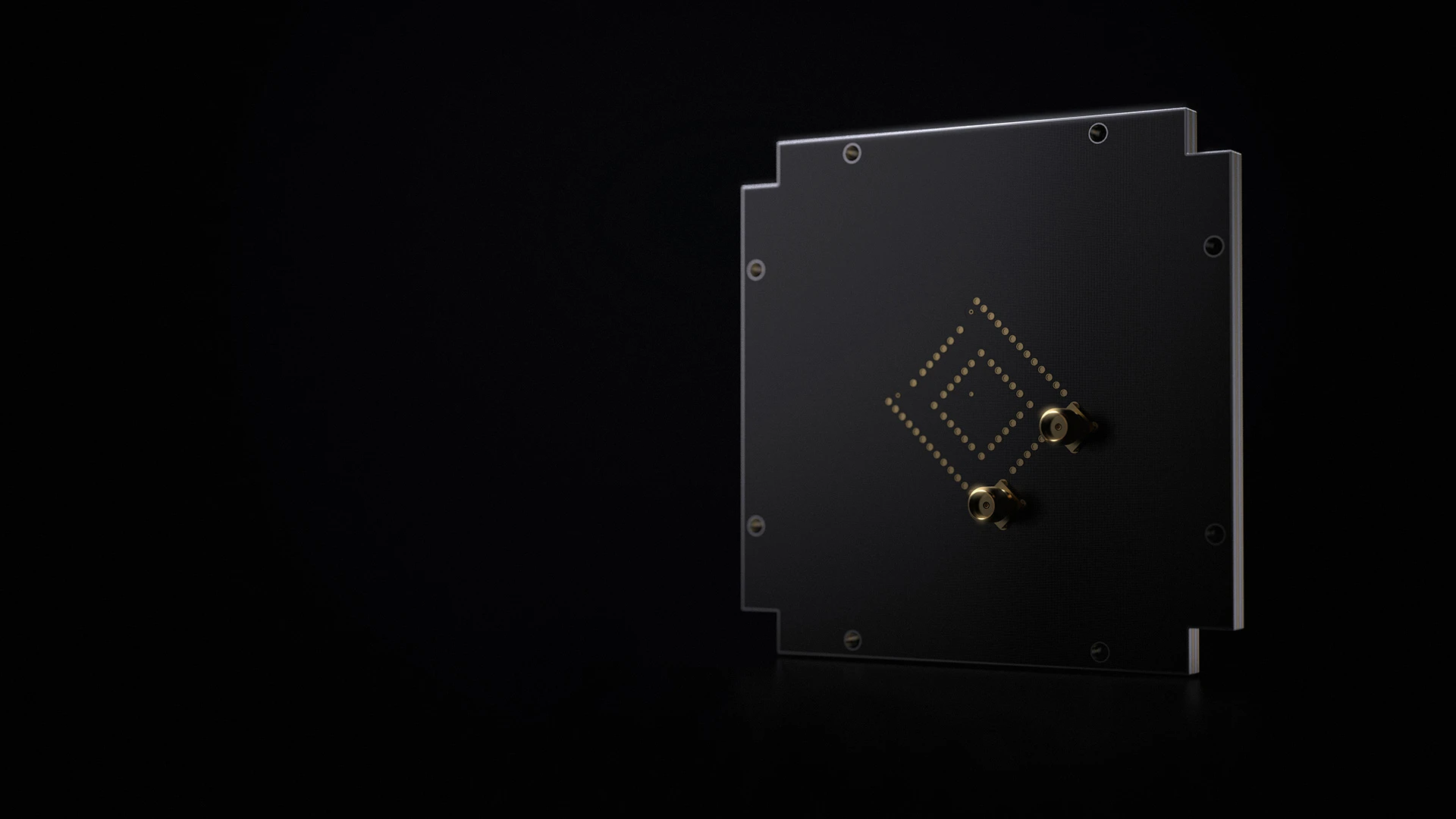

Customizable for easy mount, X/Y or Z

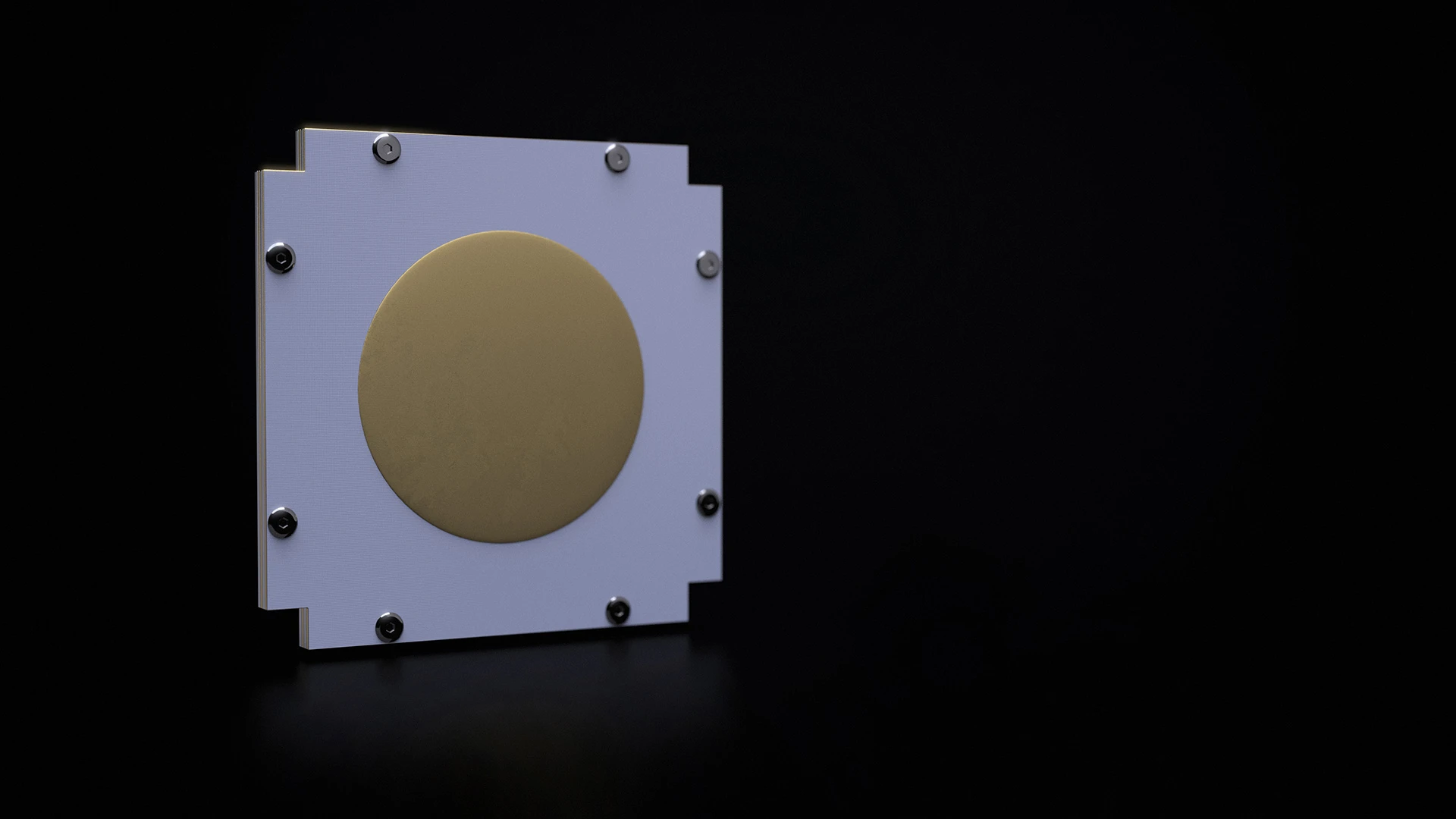

S Band Antenna Commercial web render 1

Selectable Right Hand (RH) or Left Hand (LH) Circular Polarization

PRODUCT GALLERY
S Band Antenna Commercial web 4

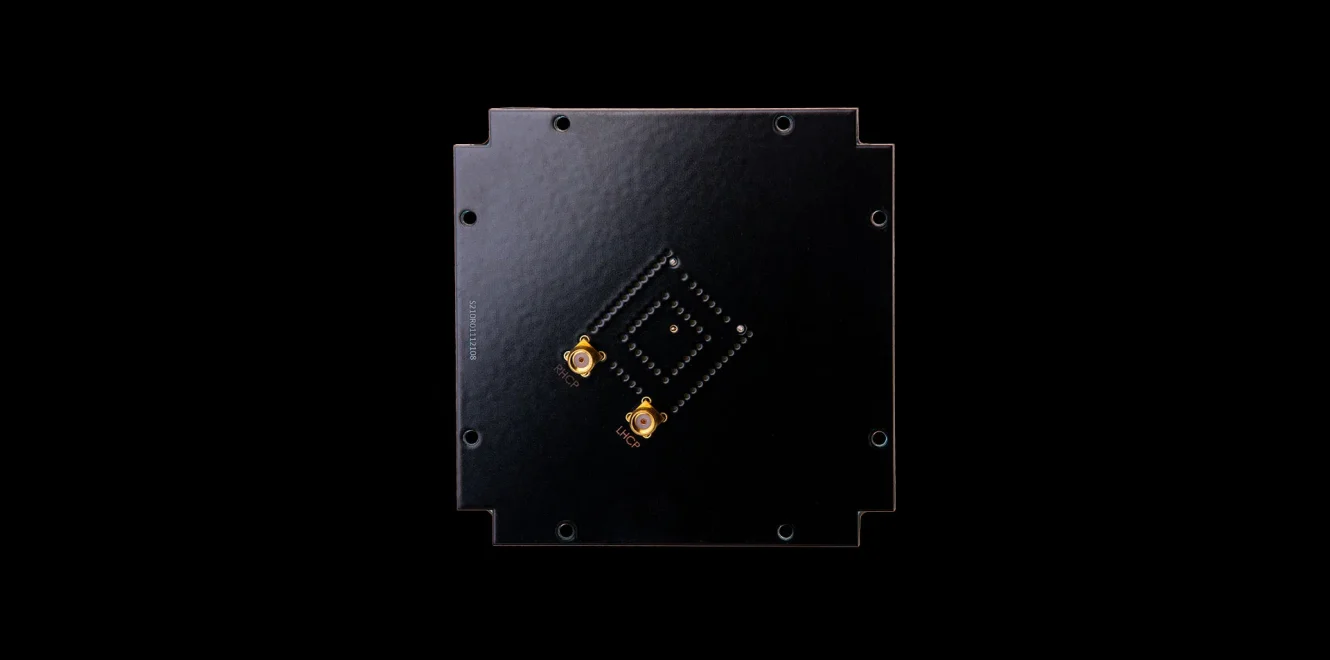

S Band Antenna Commercial web 3

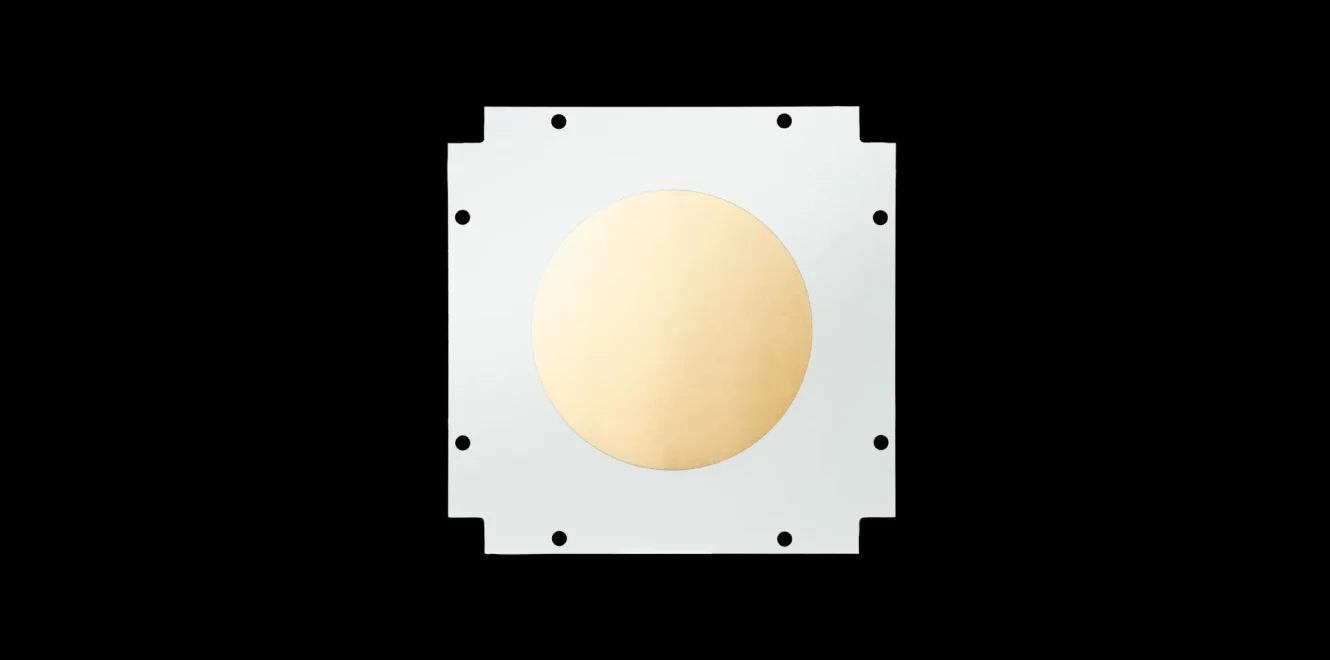

S Band Antenna Commercial web 2
S Band Antenna Commercial web 5
Related Products
X Band Patch Antenna
X-Band Patch Antenna
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
X Band 2×2 Patch Array
X-Band 2×2 Patch Array
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
X Band 4×4 Patch Array
X-Band 4×4 Patch Array
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
GNSS Patch Antenna
GNSS Patch Antenna
Operating Frequency
L1/E1 band
Polarization
Right Hand Circular
LNA Gain
34dB
Discover
V W band Patch Antenna
V/W-Band Patch Antenna
Discover
K Band 4x4 Patch Array
K-Band 4×4 Patch Array
Frequency Range
17.7 - 20.2 GHz
Polarization
Right/Left Hand Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna Wideband
S-Band Antenna Wideband
Frequency Range
2025-2110 MHz and 2200-2290 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna ISM
S-Band Antenna ISM
Frequency Range
2400 - 2450 MHz
Polarization
Left Hand Circular
RF Power Handling
up to 4 W
Discover
UHF Antenna III
UHF Antenna III
Frequency Range
435 - 438 MHz or 400 - 403 MHz
Polarization
Circular
Gain
> 0 dBi
Discover
UHF Antenna 2U
UHF Antenna 2U
Frequency Range
144 - 438 MHz
Polarization
Linear
RF Power Handling
2W
Discover
2500
MODULES IN ORBIT
60
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
