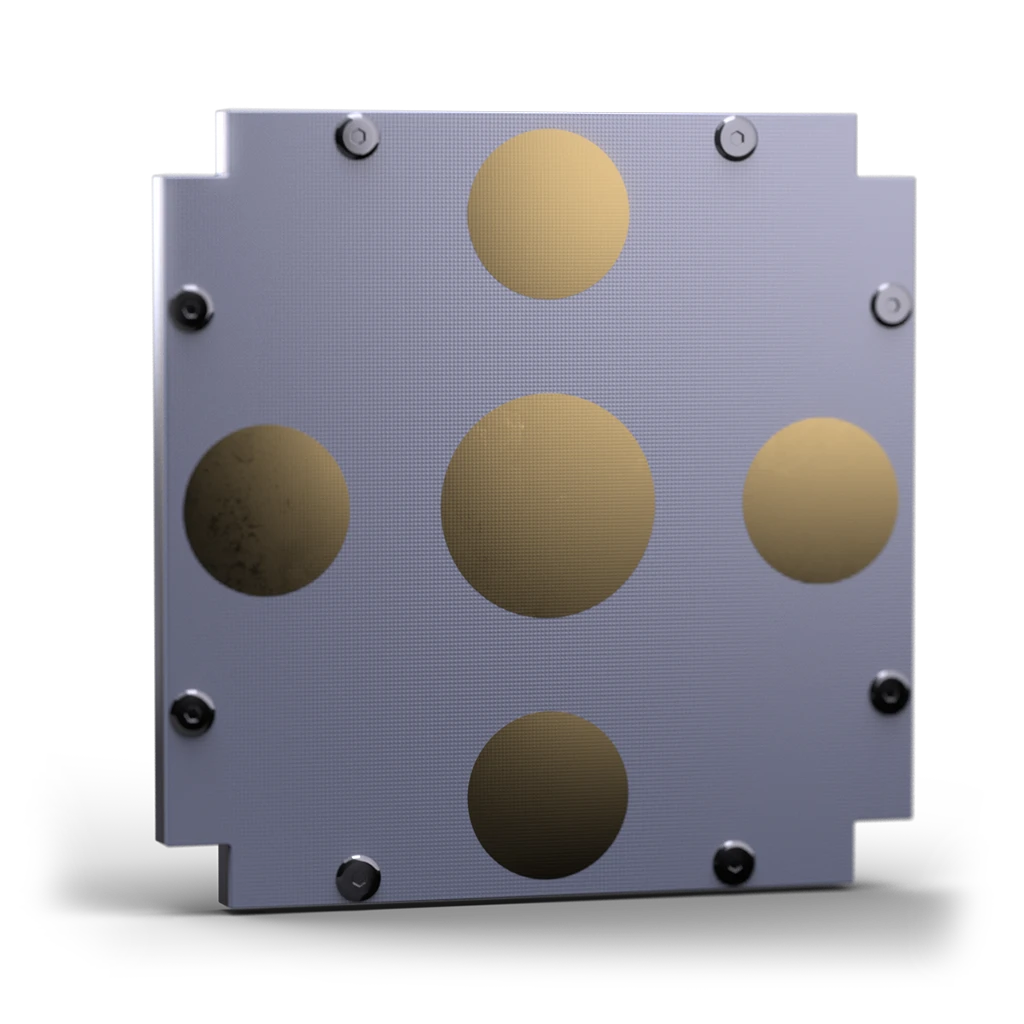

S-BAND ANTENNA WIDEBAND

High-speed Communication
Cad file & datasheet
buy
buy
Download
Cad file & datasheet
buy
buy
2
OPERATING BANDWIDTHS
5+
DBI GAIN
RH
CIRCULAR POLARIZATION

Wide frequency range in S-band

FEATURES
Frequency Range
2025-2110 MHz and 2200-2290 MHz
Half Power Beam Width (HPBW)
70 deg
Gain
5+ dBi
Polarization
Right Hand Circular
Mass
115 g
Configurable Mounting
X/Y or Z CubeSat mounting
RF Power Handling
up to 4 W

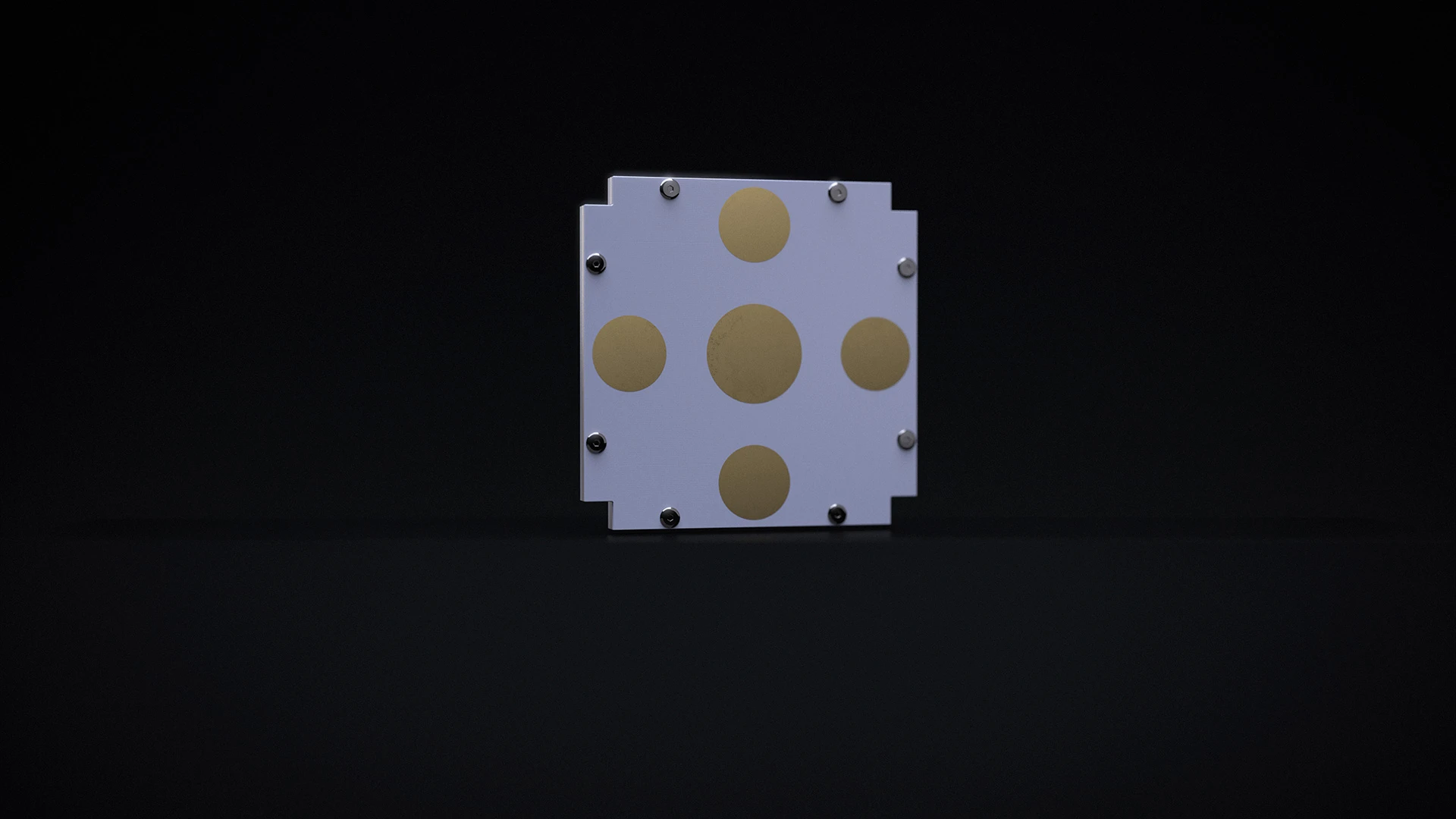

S Band Antenna Wideband web render 1 4
High-speed Communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Wide frequency range in S-band

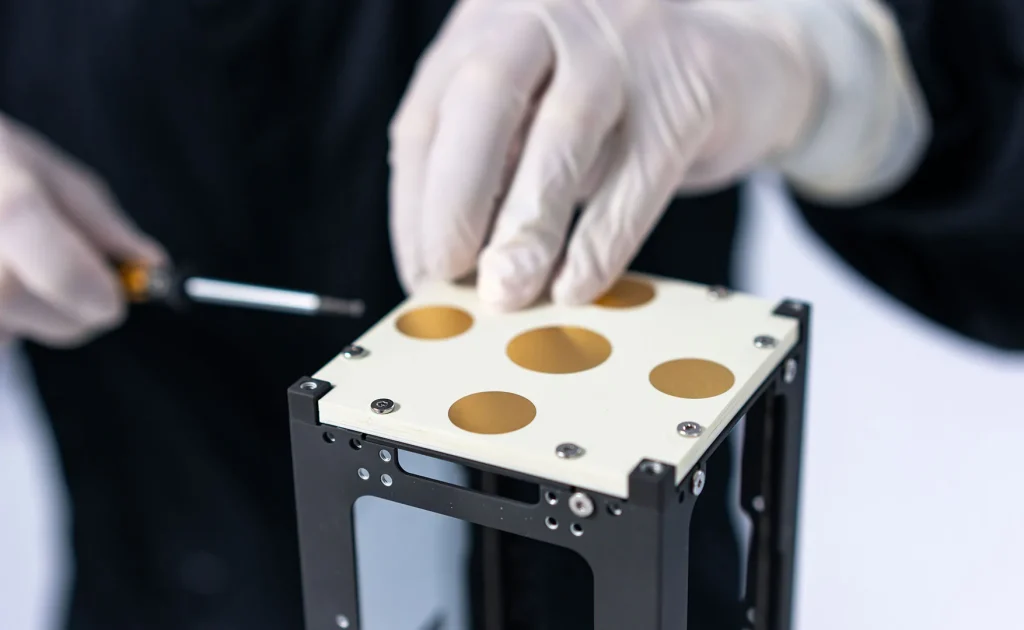

S Band Antenna Wideband web 7

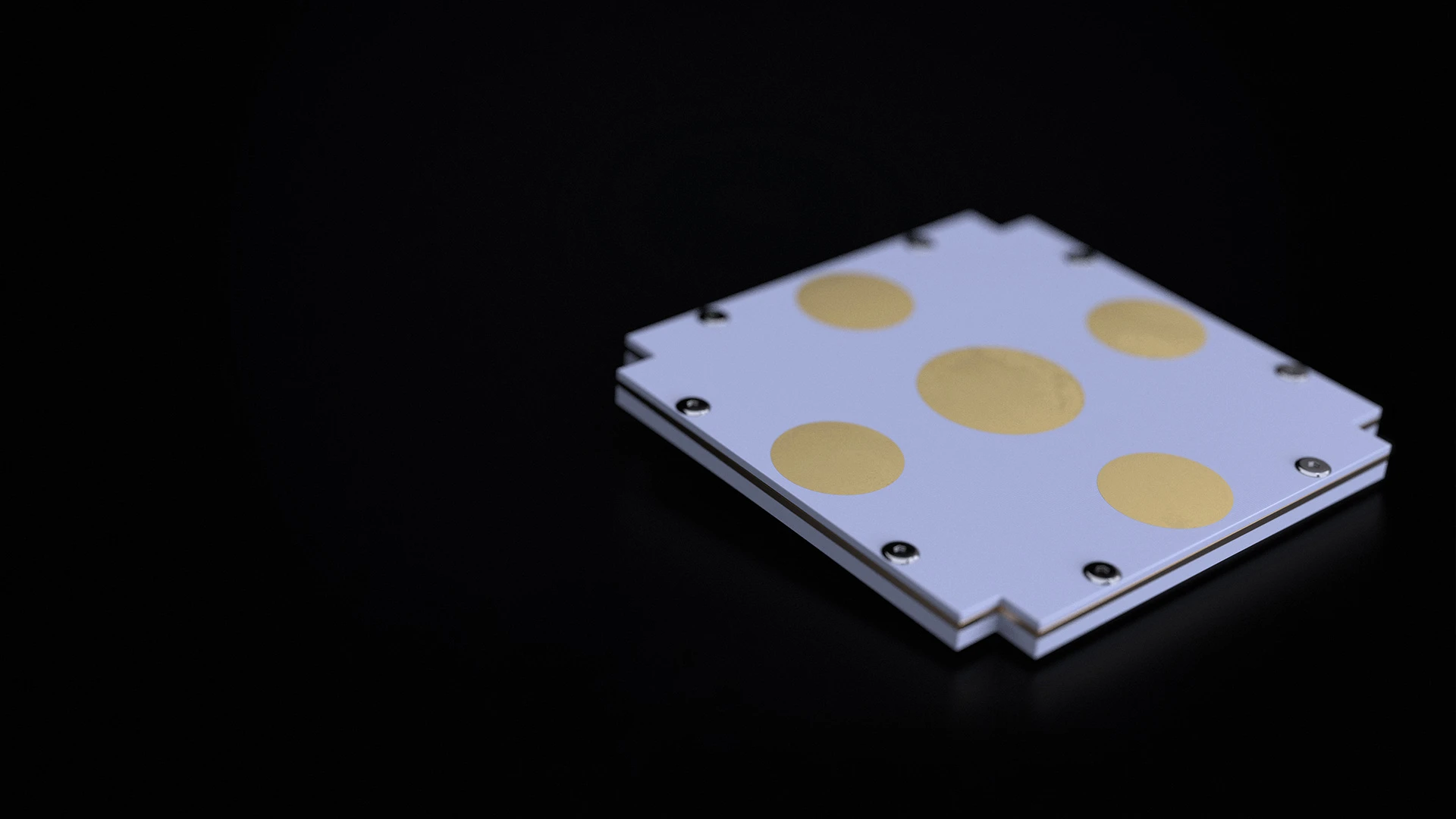

S Band Antenna Wideband web render 1 2

Two frequency bands at high gain

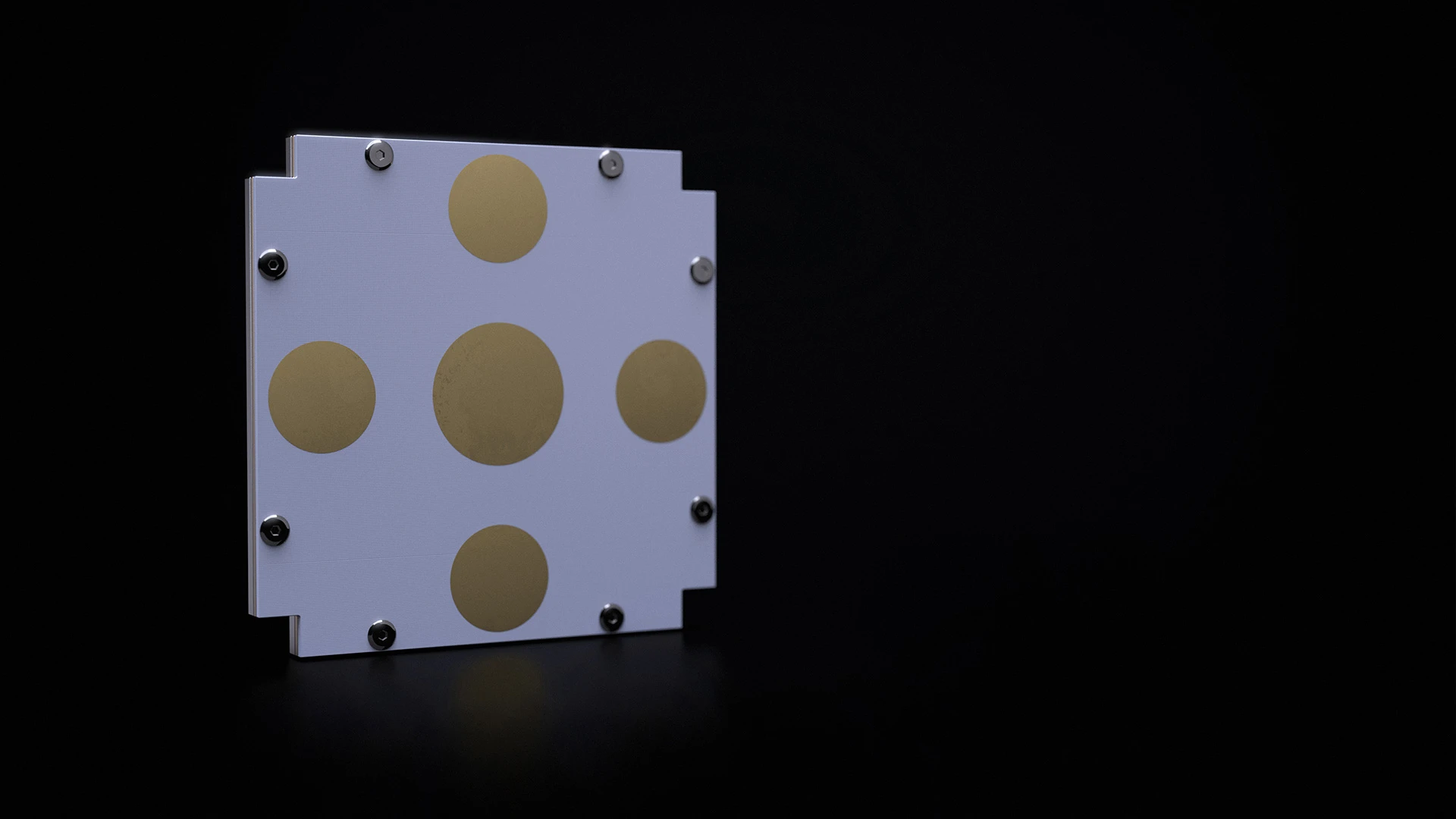

S Band Antenna Wideband web render 1 3

Circularly polarized for better reception

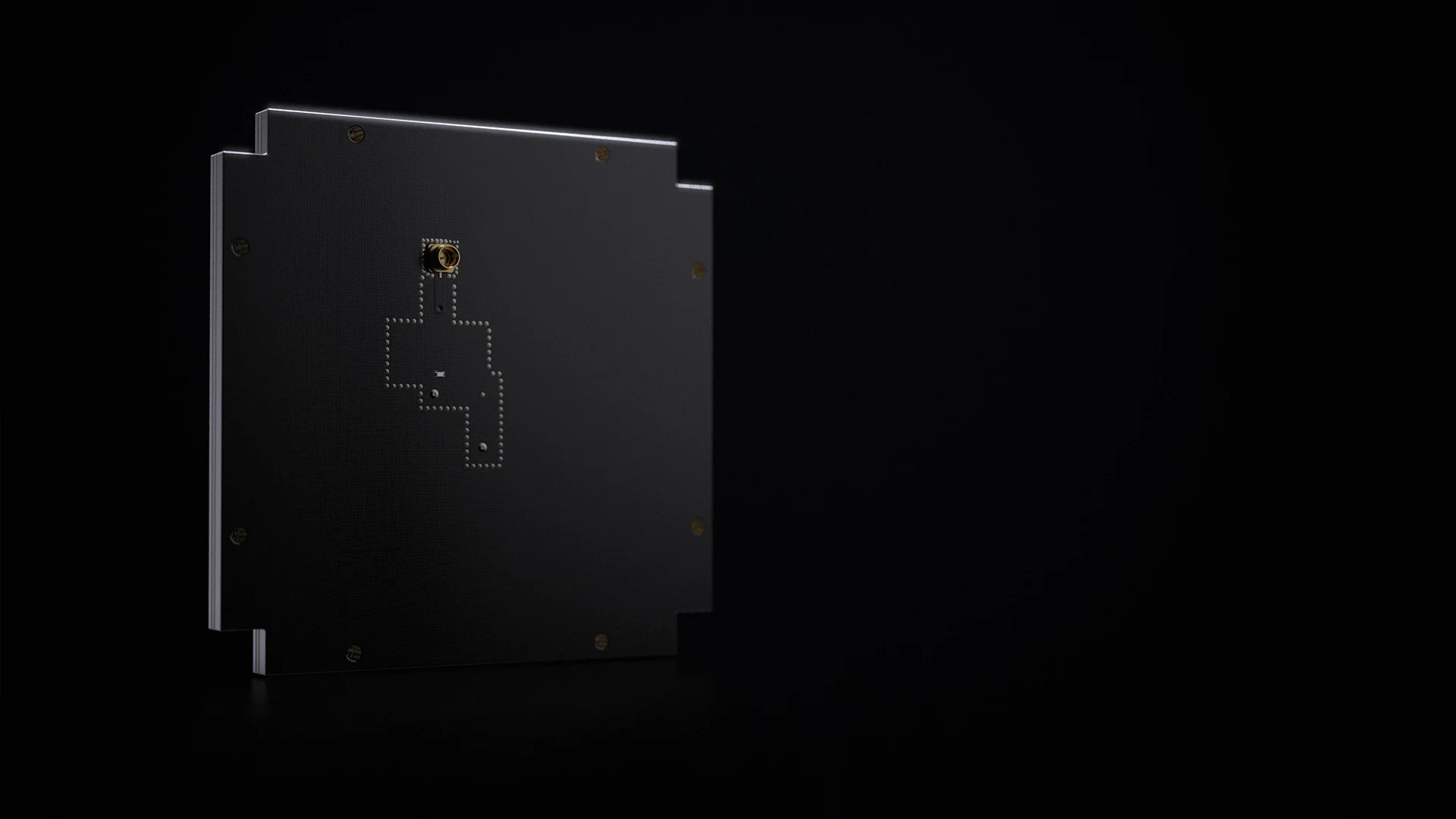

S Band Antenna Wideband web render 1 1 e1711099207669

Customizable for easy mount, X/Y or Z

PRODUCT GALLERY
S Band Antenna Wideband web 19

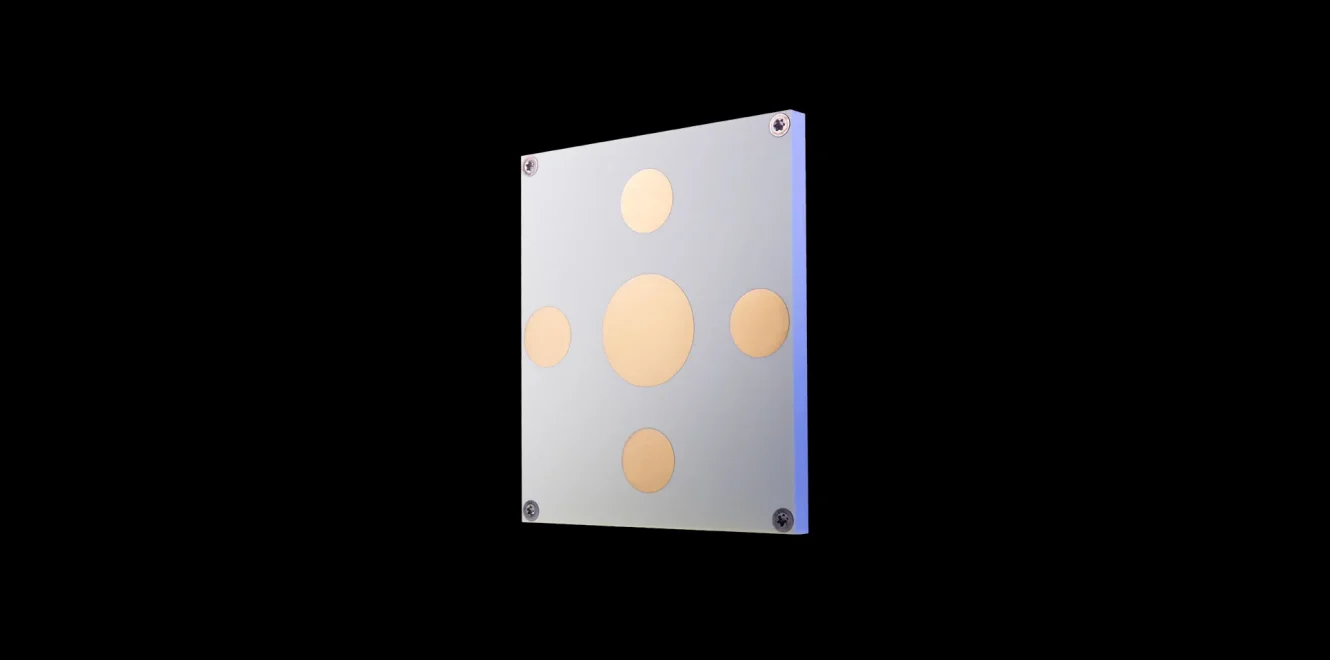

S Band Antenna Wideband web 18

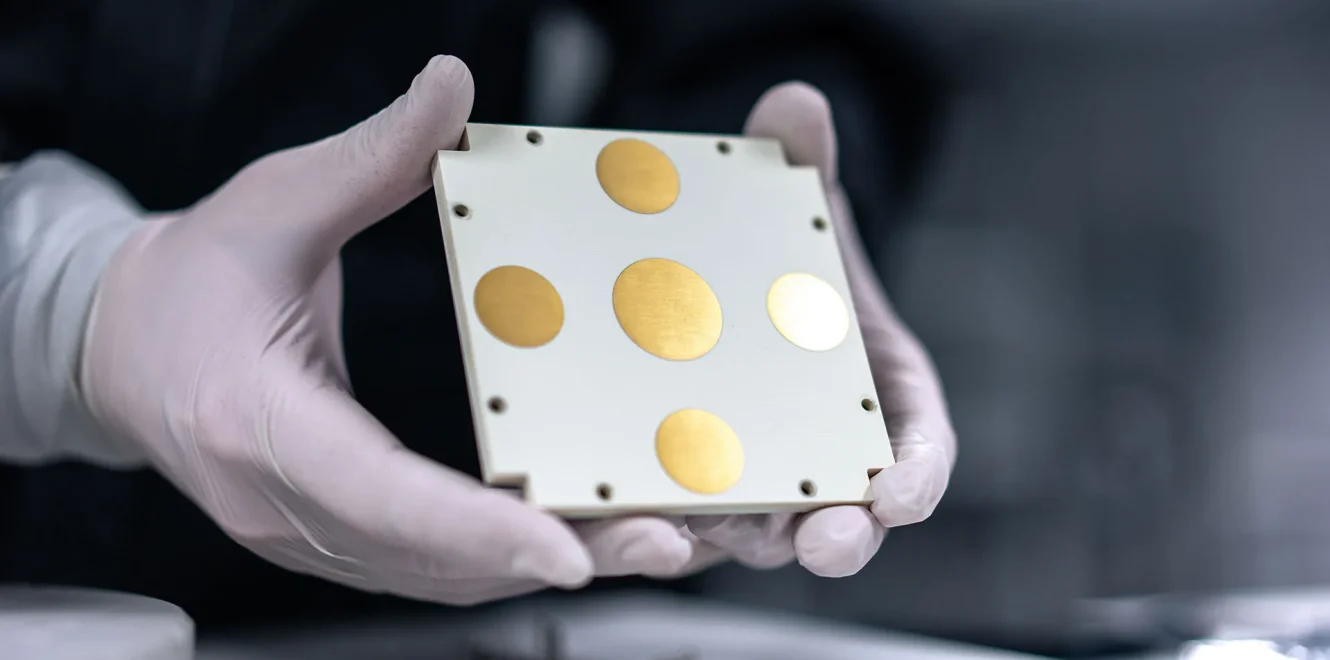

S Band Antenna Wideband web 13

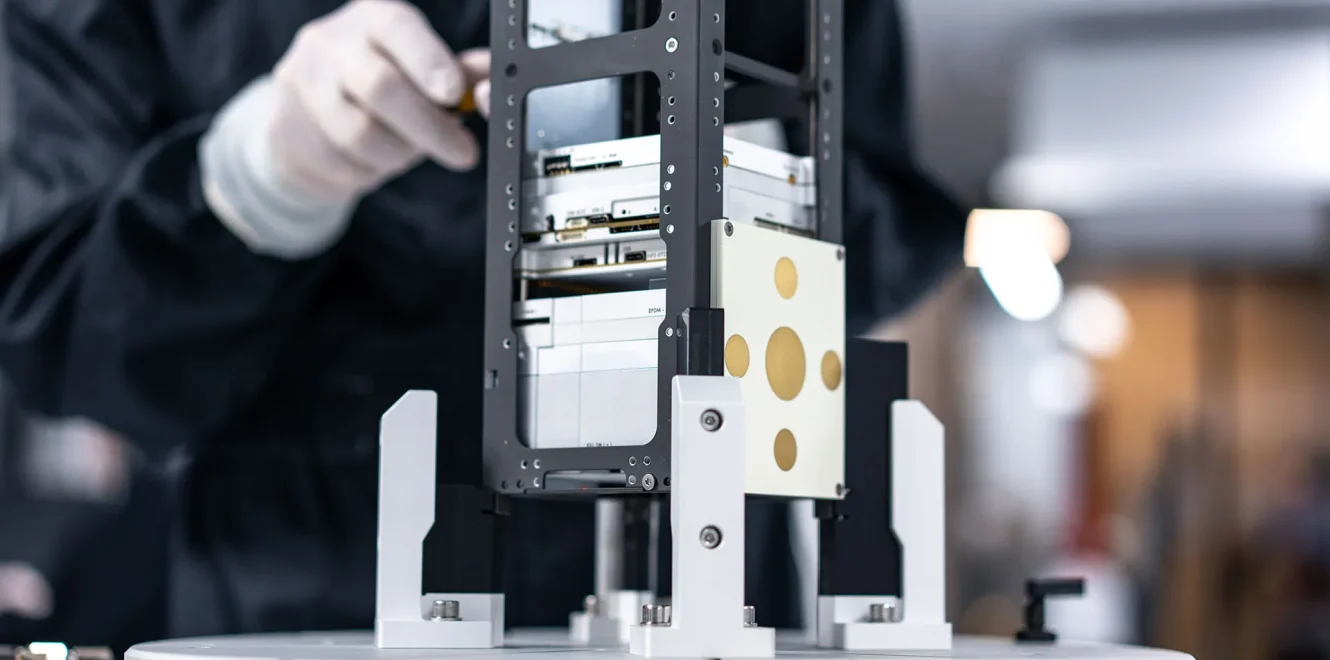

S Band Antenna Wideband web 9

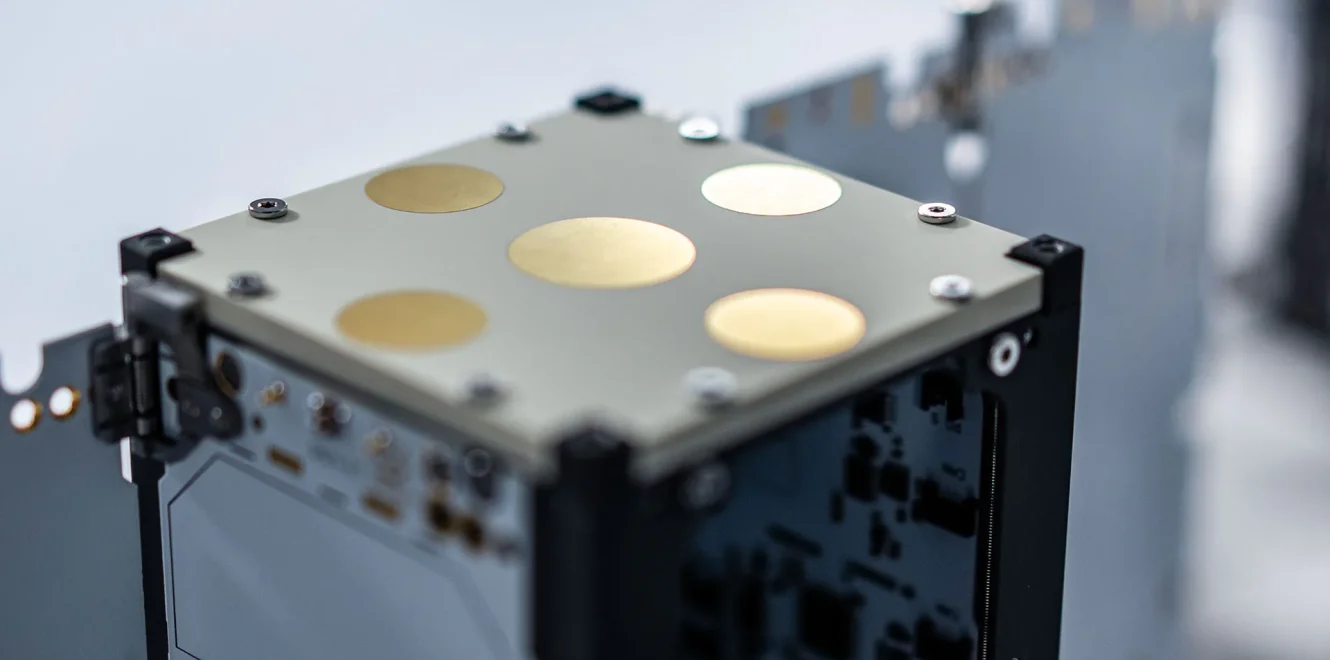

S Band Antenna Wideband web 4

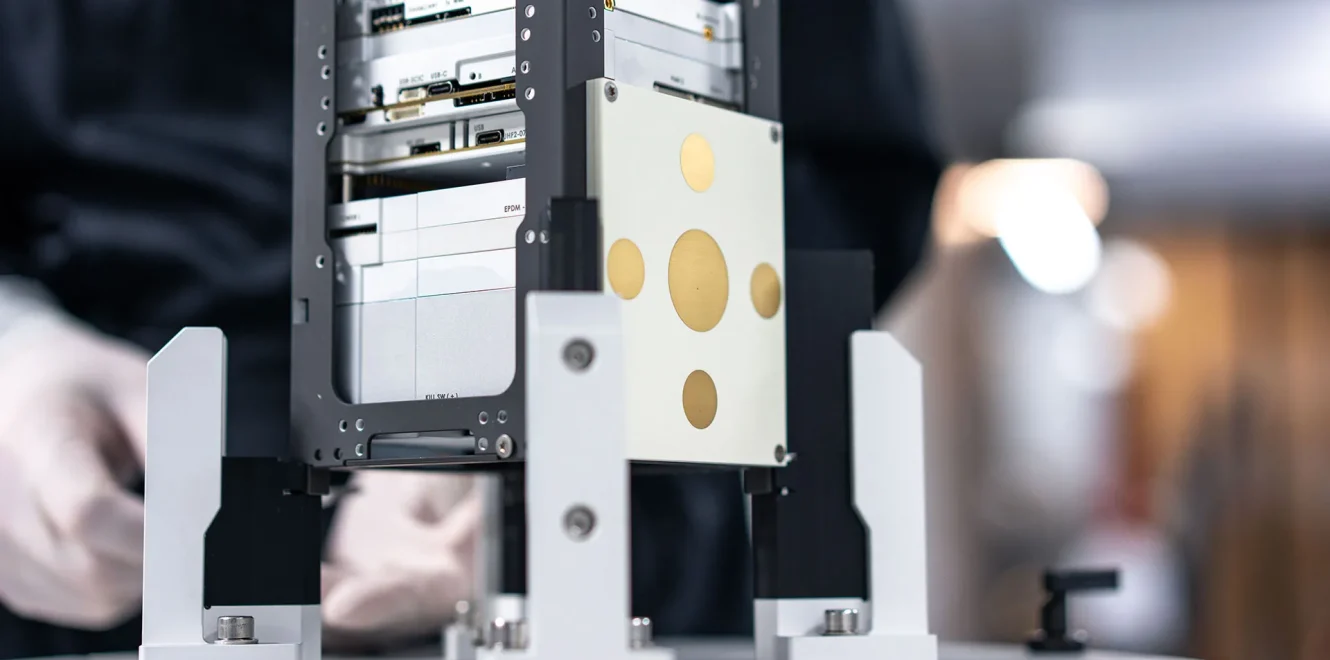

S Band Antenna Wideband web 8
