S-BAND TRANSCEIVER

Reliable TMTC
Cad file & datasheet
buy
buy
Download
Cad file & datasheet
buy
buy
HIGH
EFFICIENCY
FULL
DUPLEX
LOW
POWER IDLE MODE

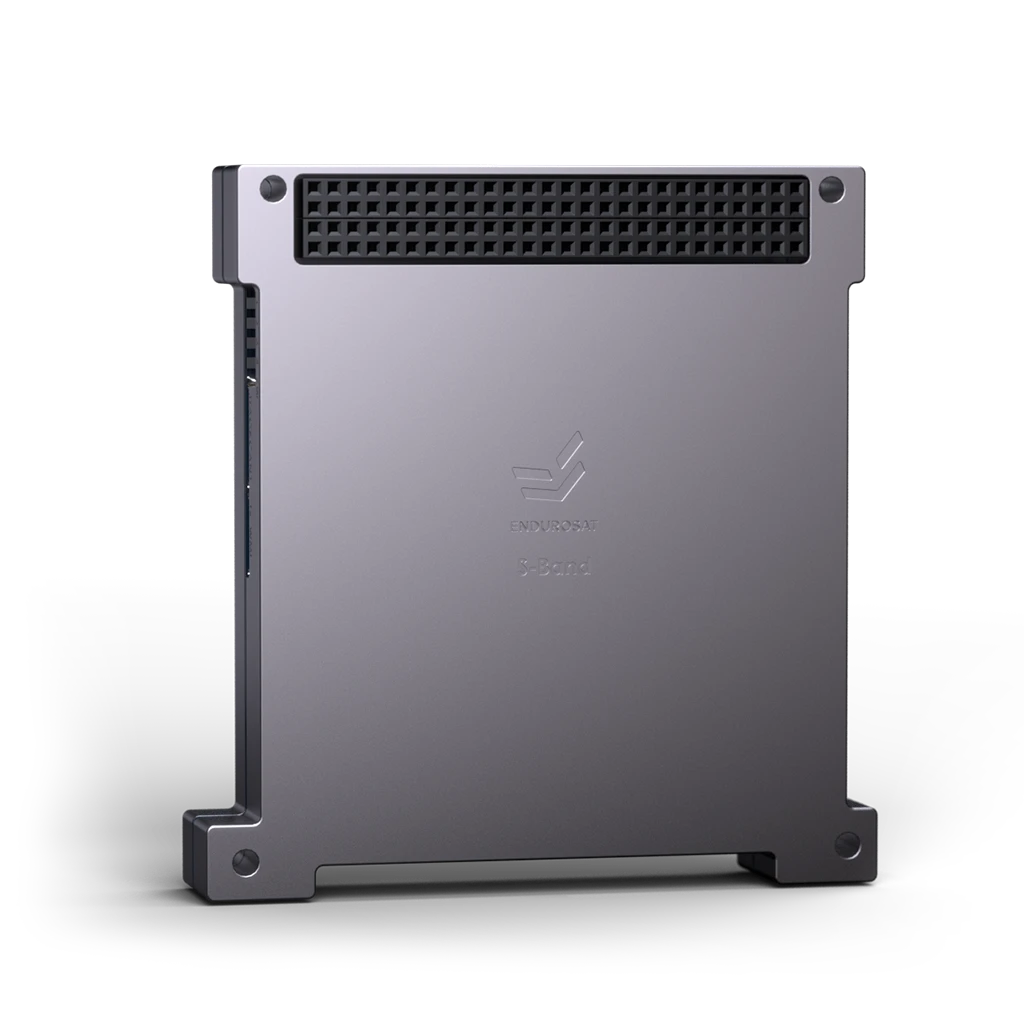

High efficiency full-duplex S-band Transceiver

FEATURES
Frequency Range (Tx)
2200 to 2290 MHz (commercial)
Frequency Range (Rx)
2025-2110 MHz (commercial)
Modulation
FSK/MSK/GFSK/GMSK
Configurable Data Rate
0.1-125 kbps
Mass
< 200 g
Firmware Updates
Local and remote (in-flight) secured application update
Tx Power
26-33 dBm configurable

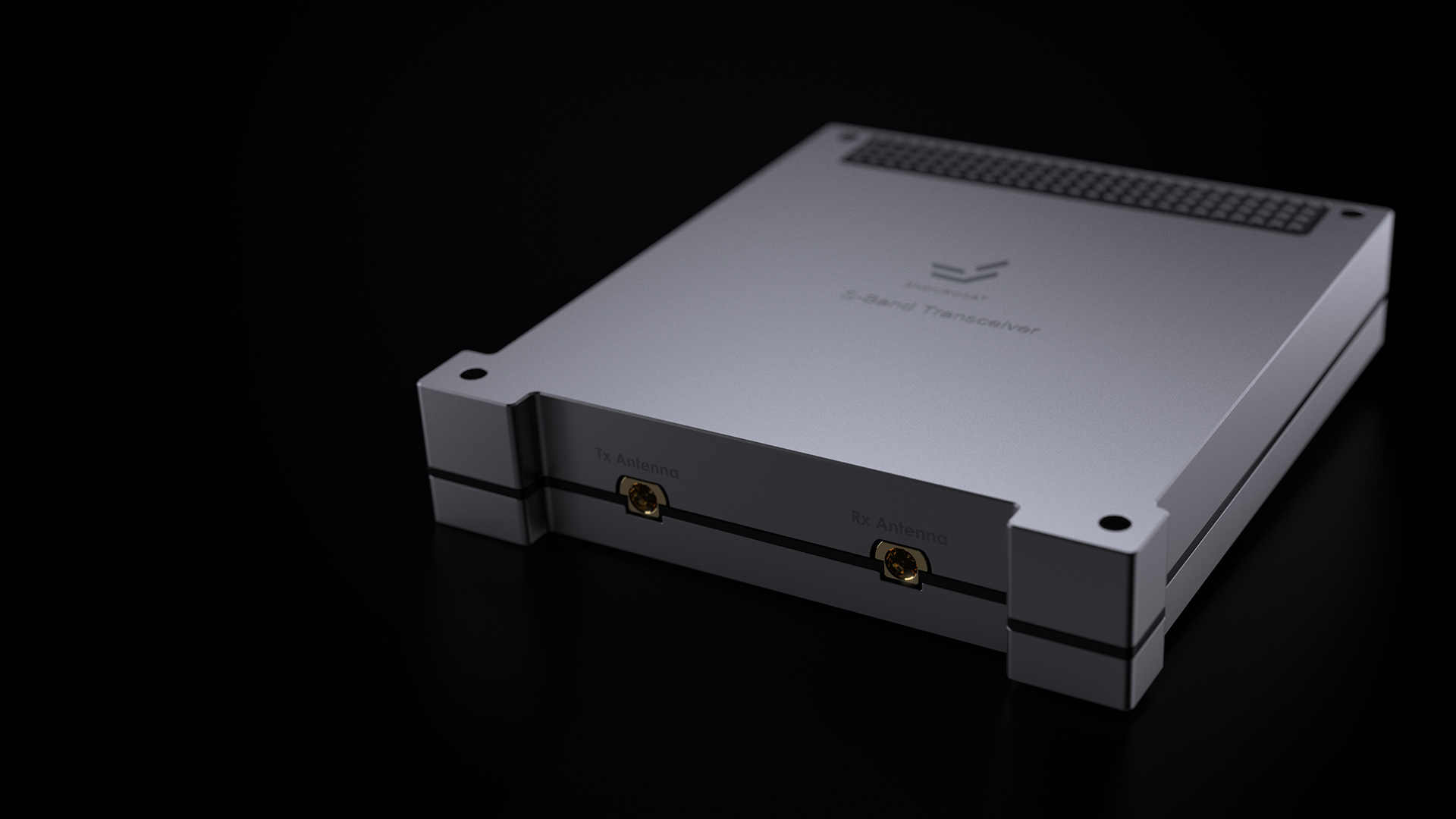

Antenna Connectors
SMP for Rx and Tx
Wide Power Supply Range
8.5-18 V
Interfaces
RS-485, RS-485/422, USB-C
Easy Set-Up

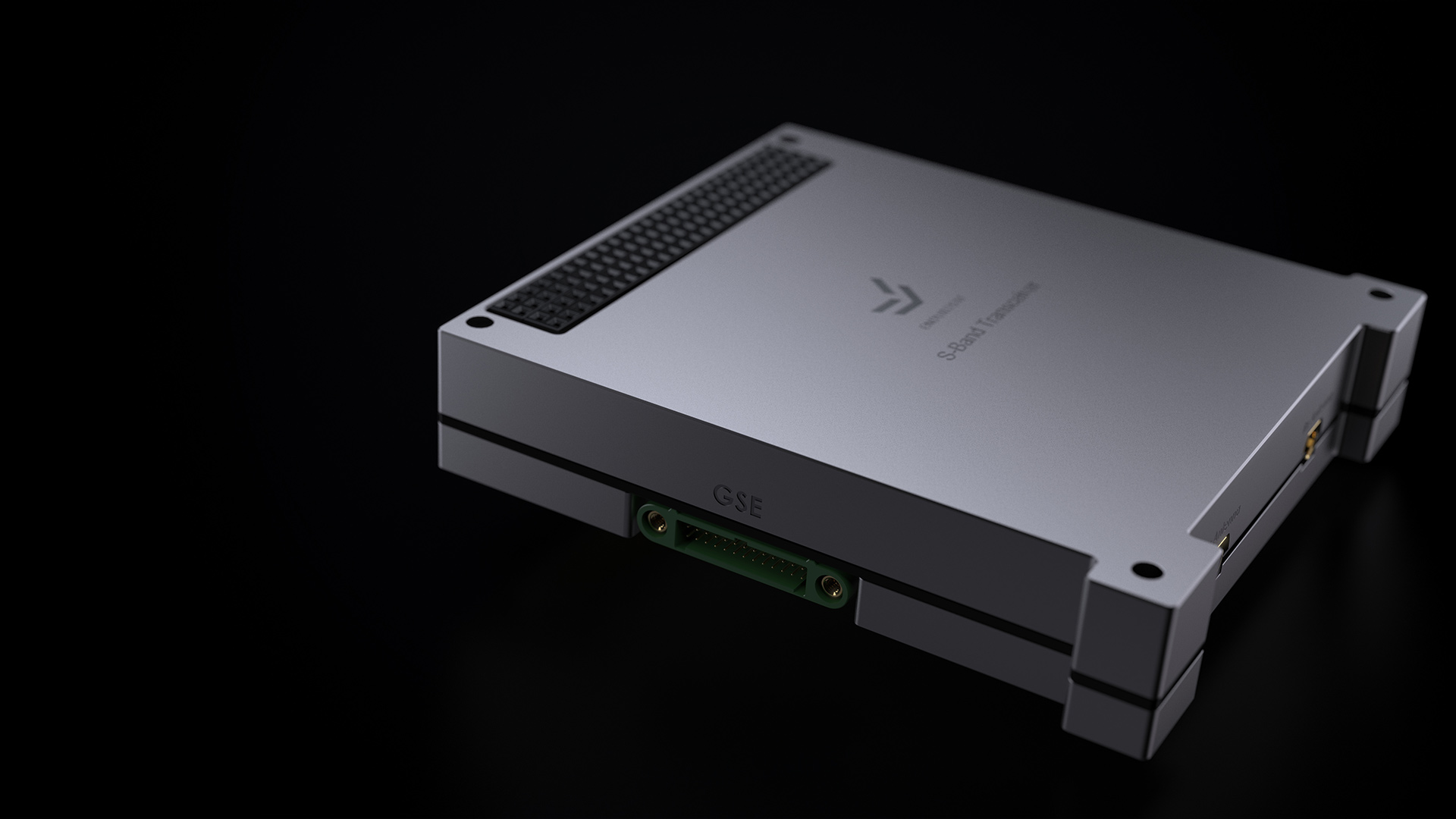

Dedicated connector for calibration and debugging
Reliable TMTC

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Fully qualified S-band transmitter with unmatched performance

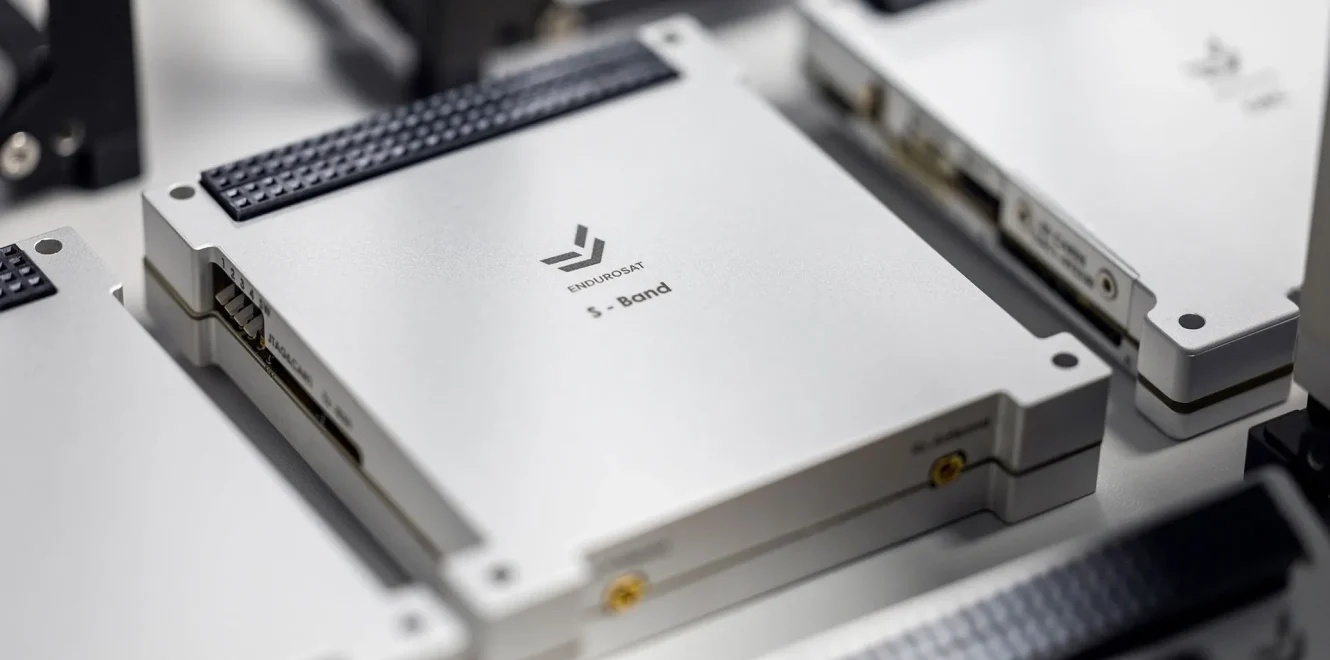

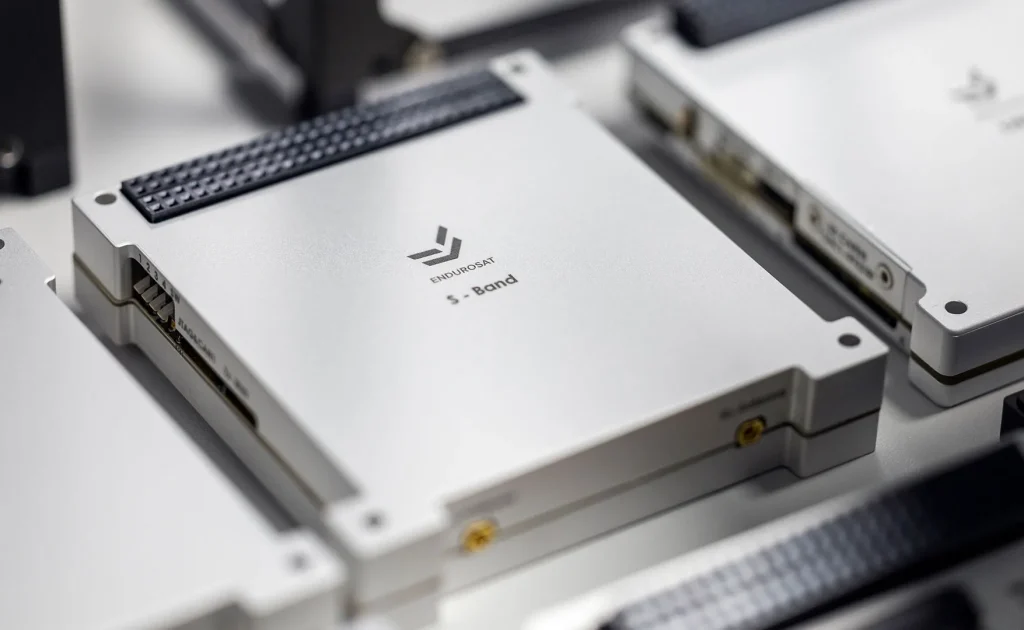

S Band Transceiver I web 11

Secure system for Telemetry and Telecommands (TMTC) and in-orbit updates applications

Next level of security based on the Advanced Encryption Standard (AES)-256

In-flight configurable parameters

FEATURES IN-ORBIT FIRMWARE UPDATE CAPABILITY

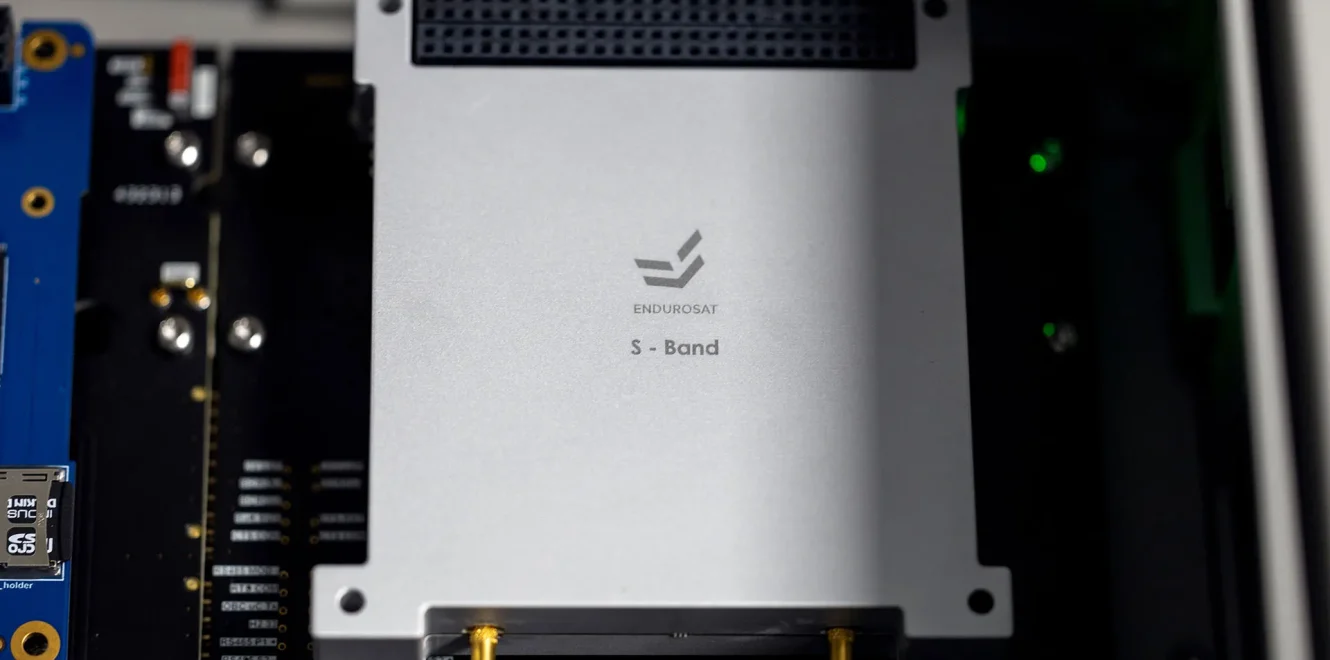

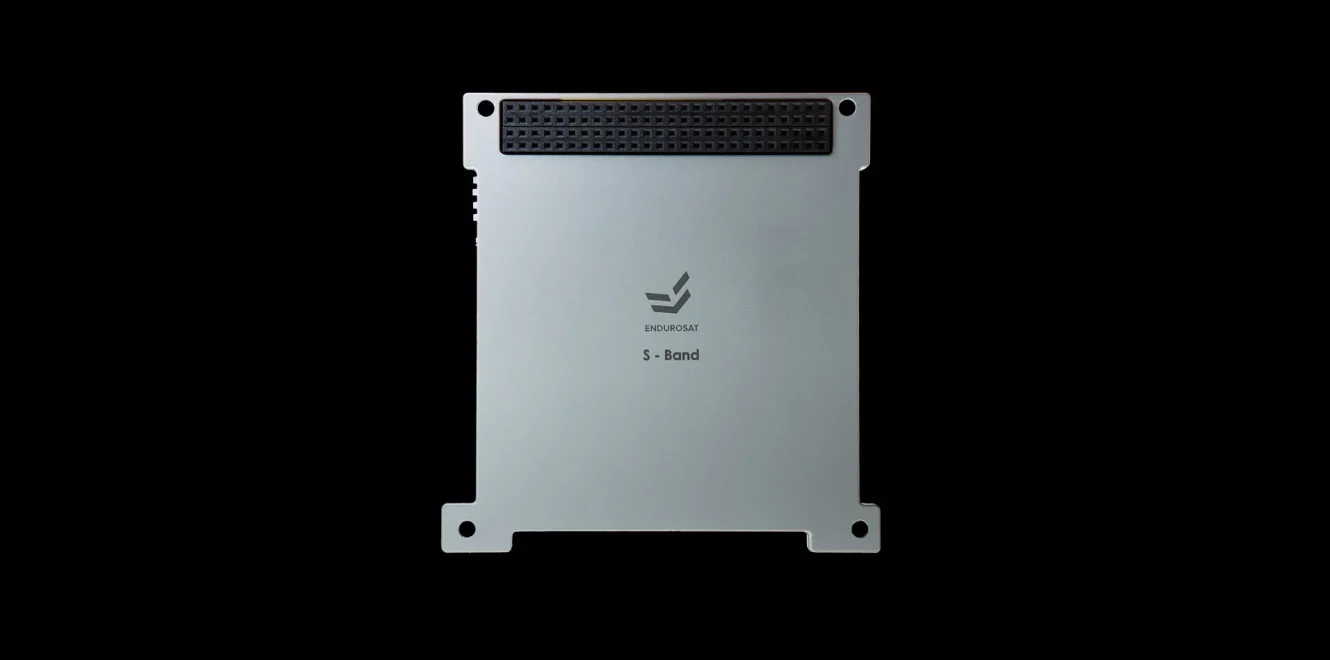

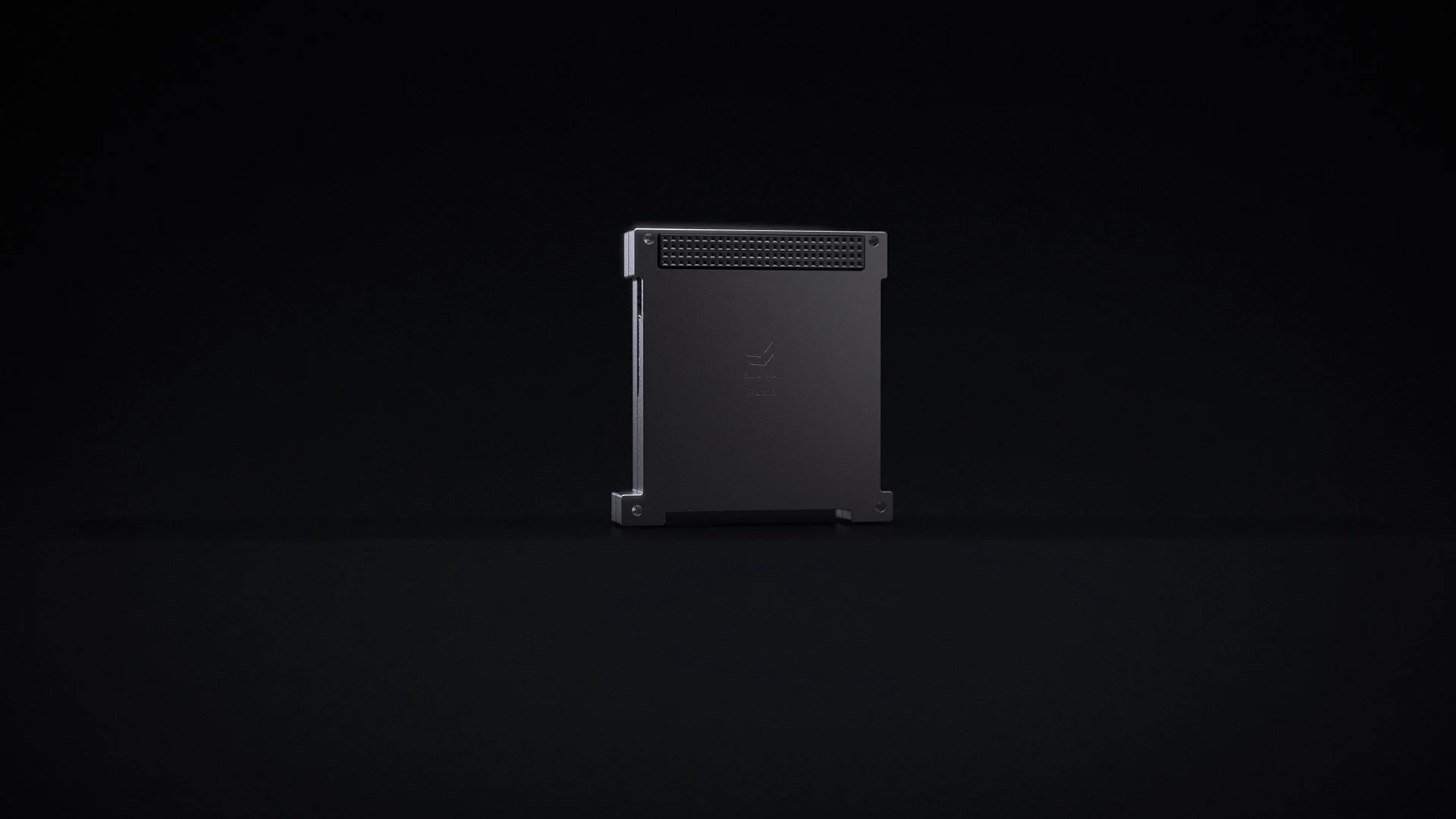

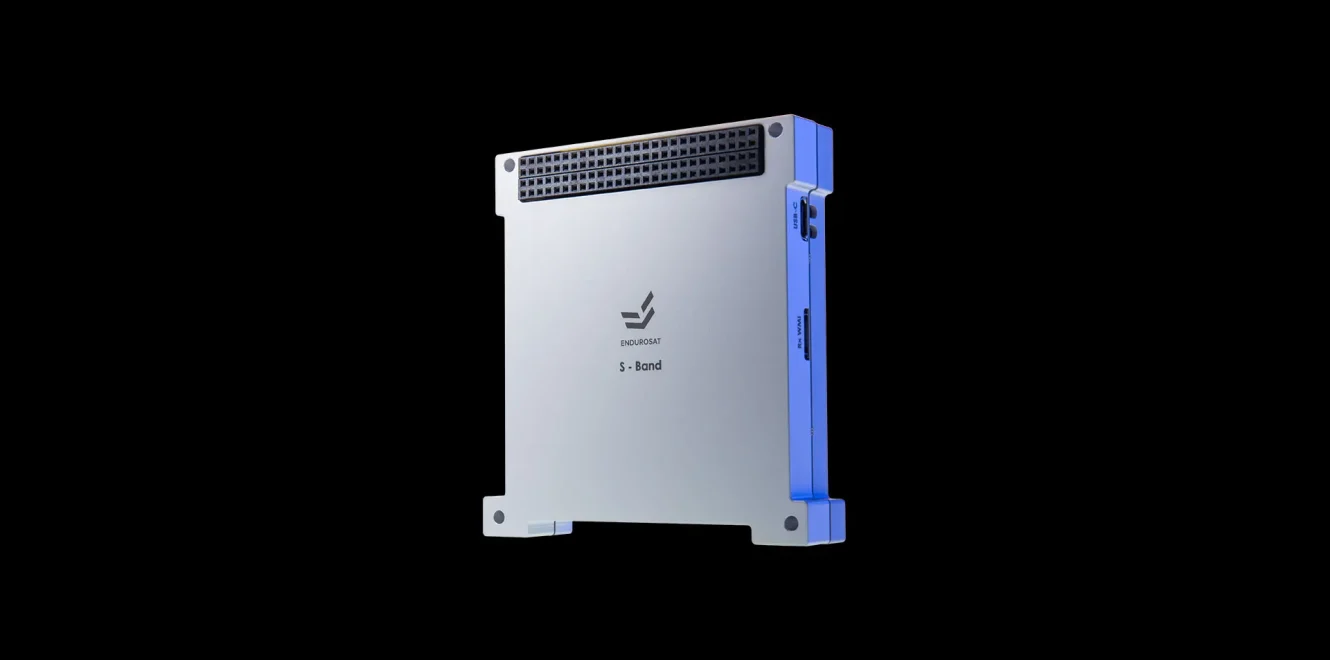

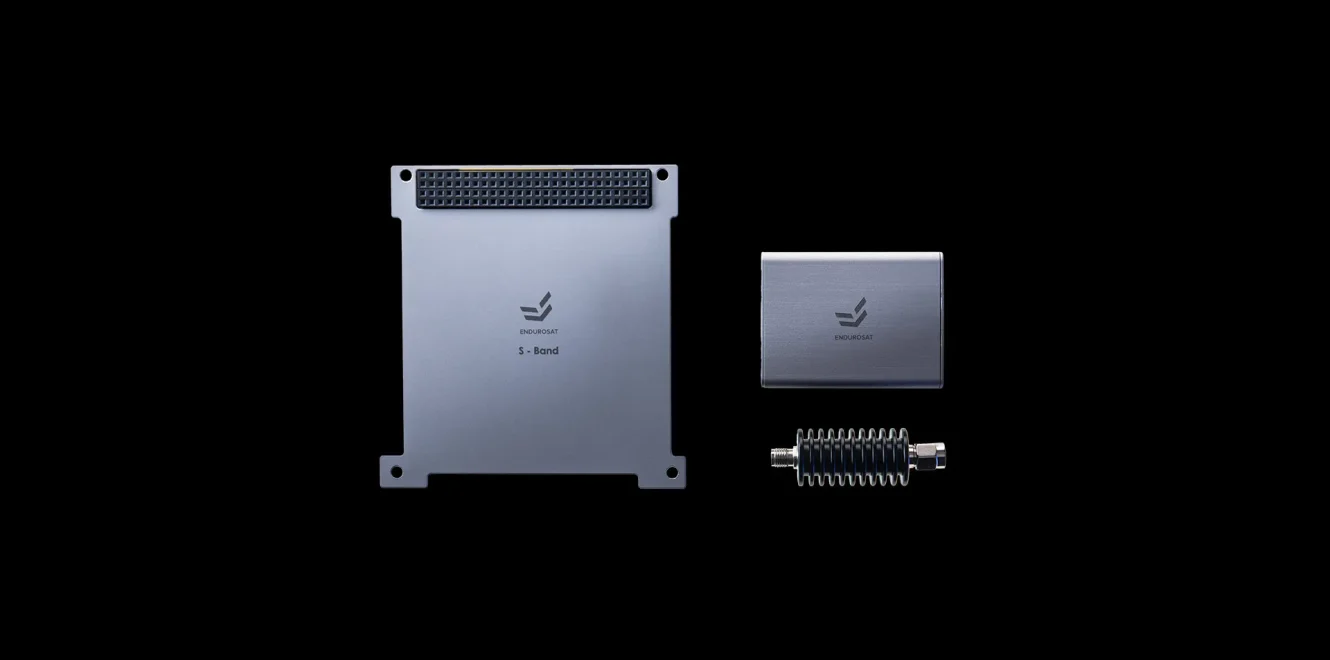

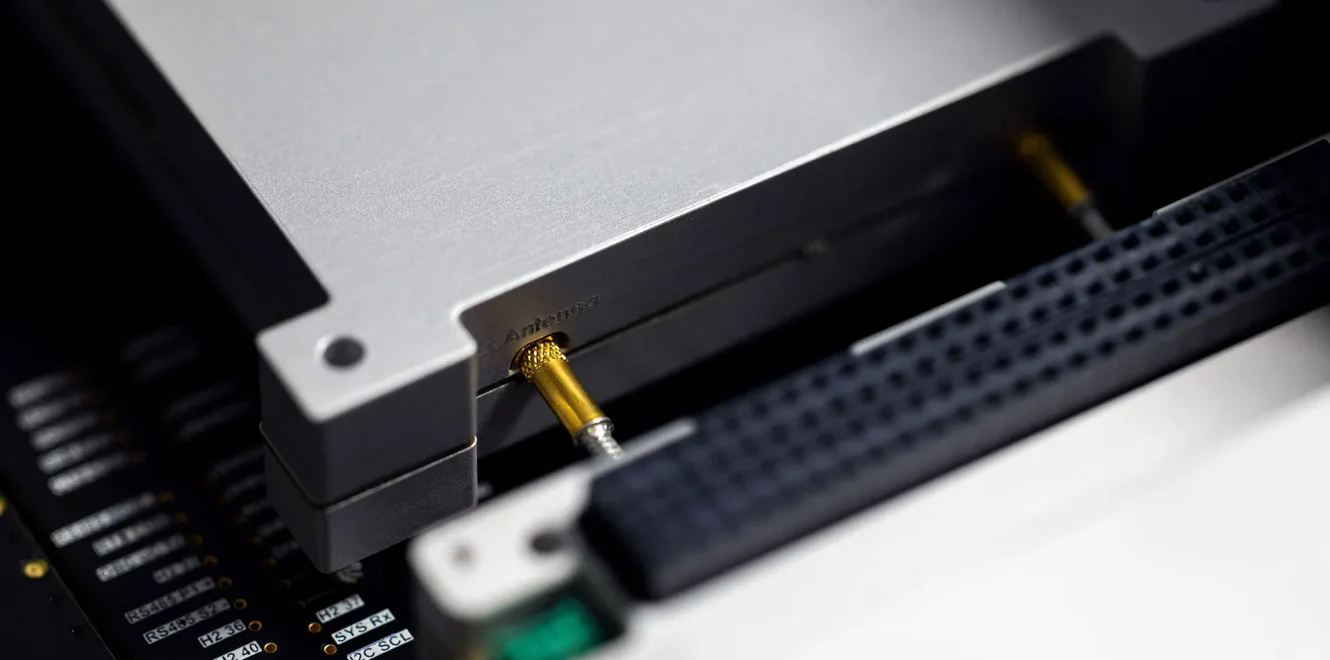

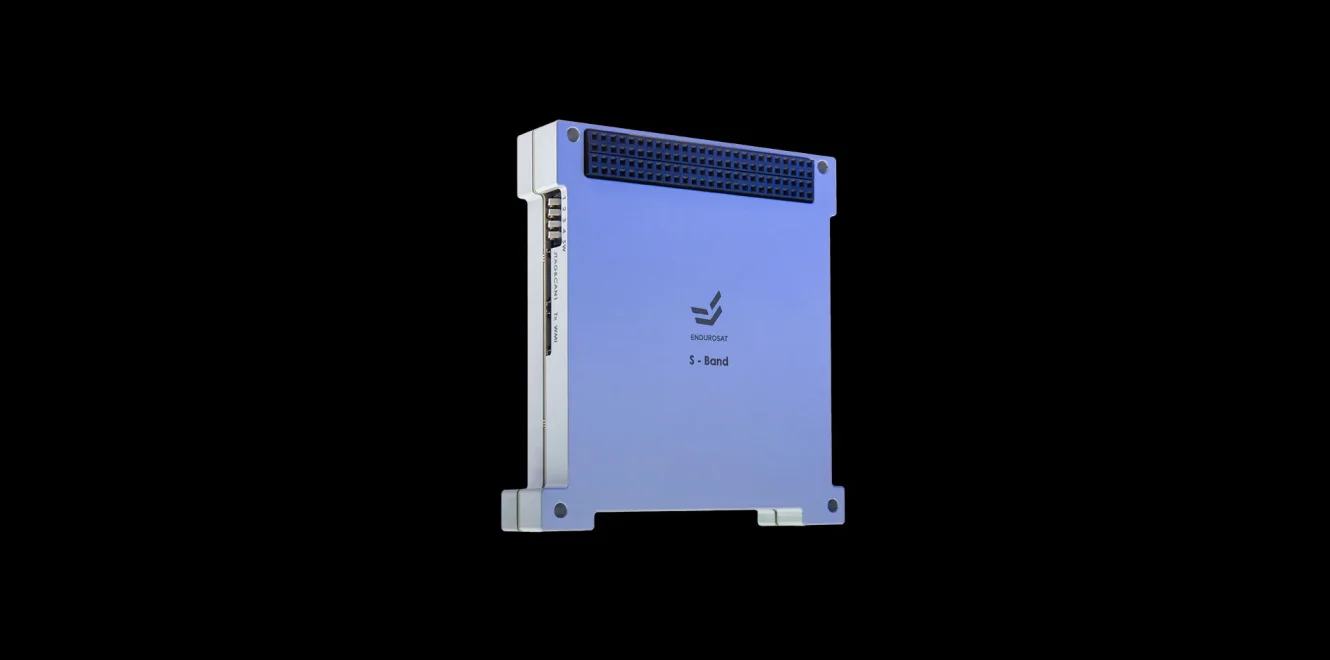

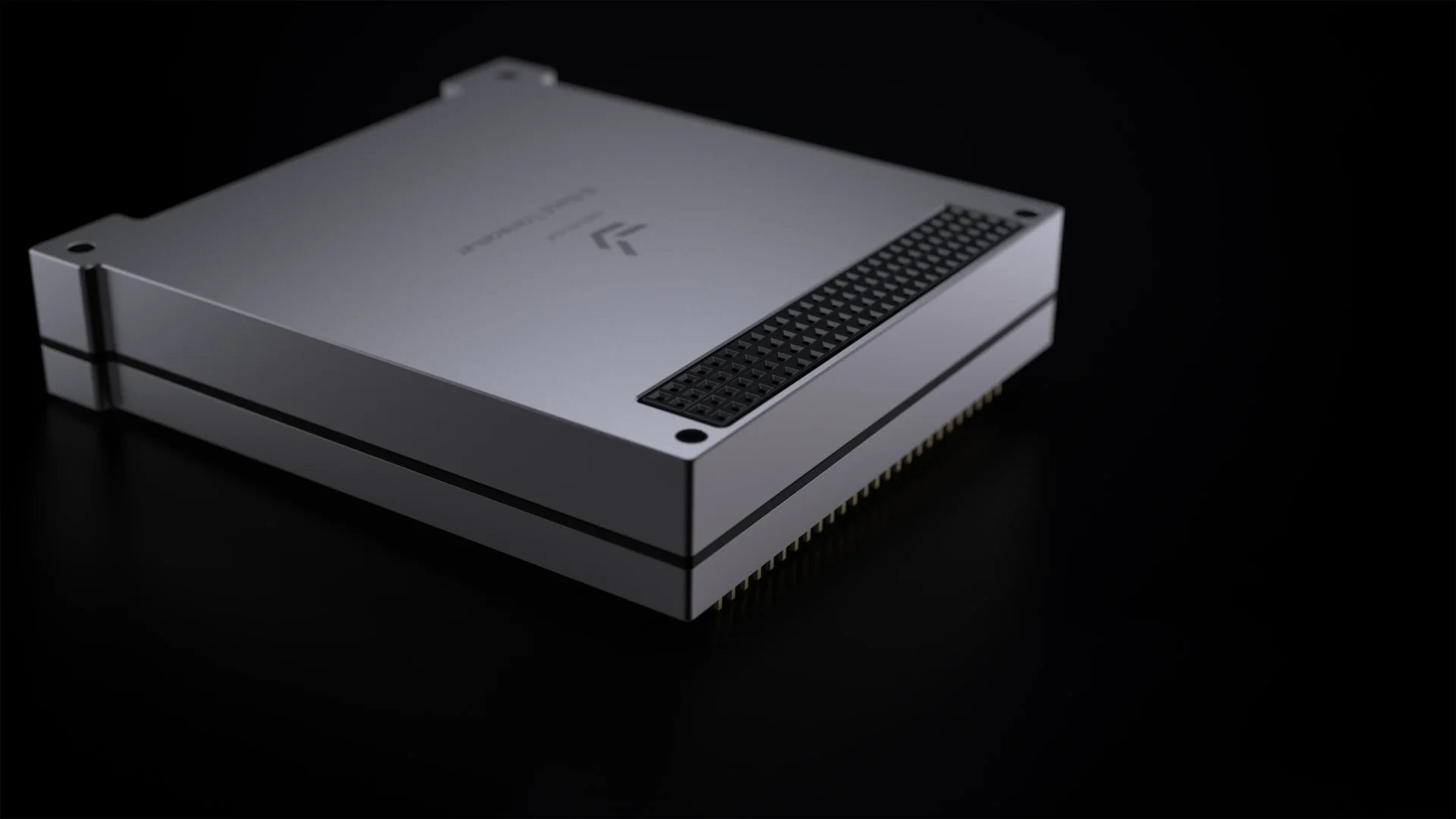

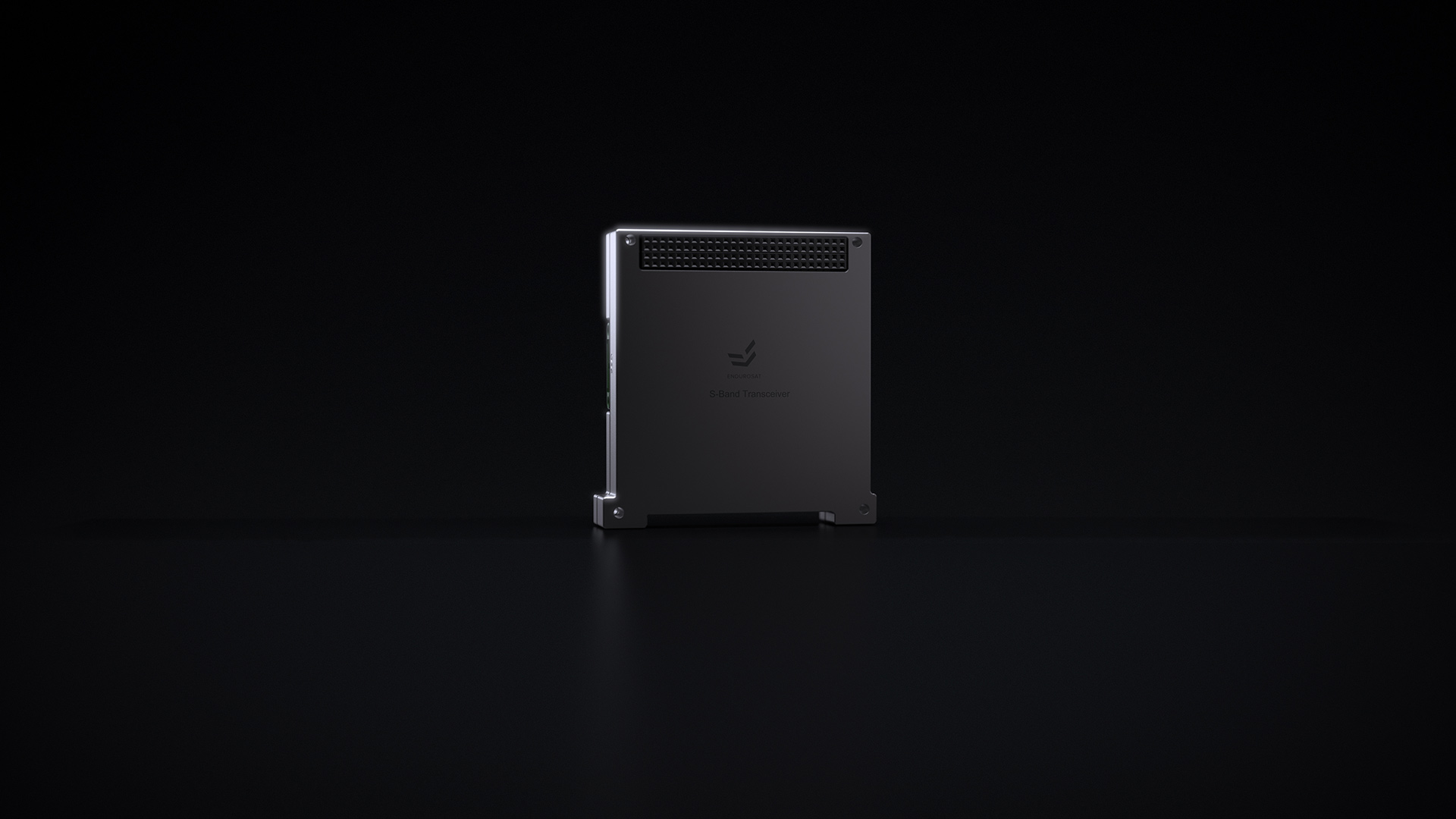

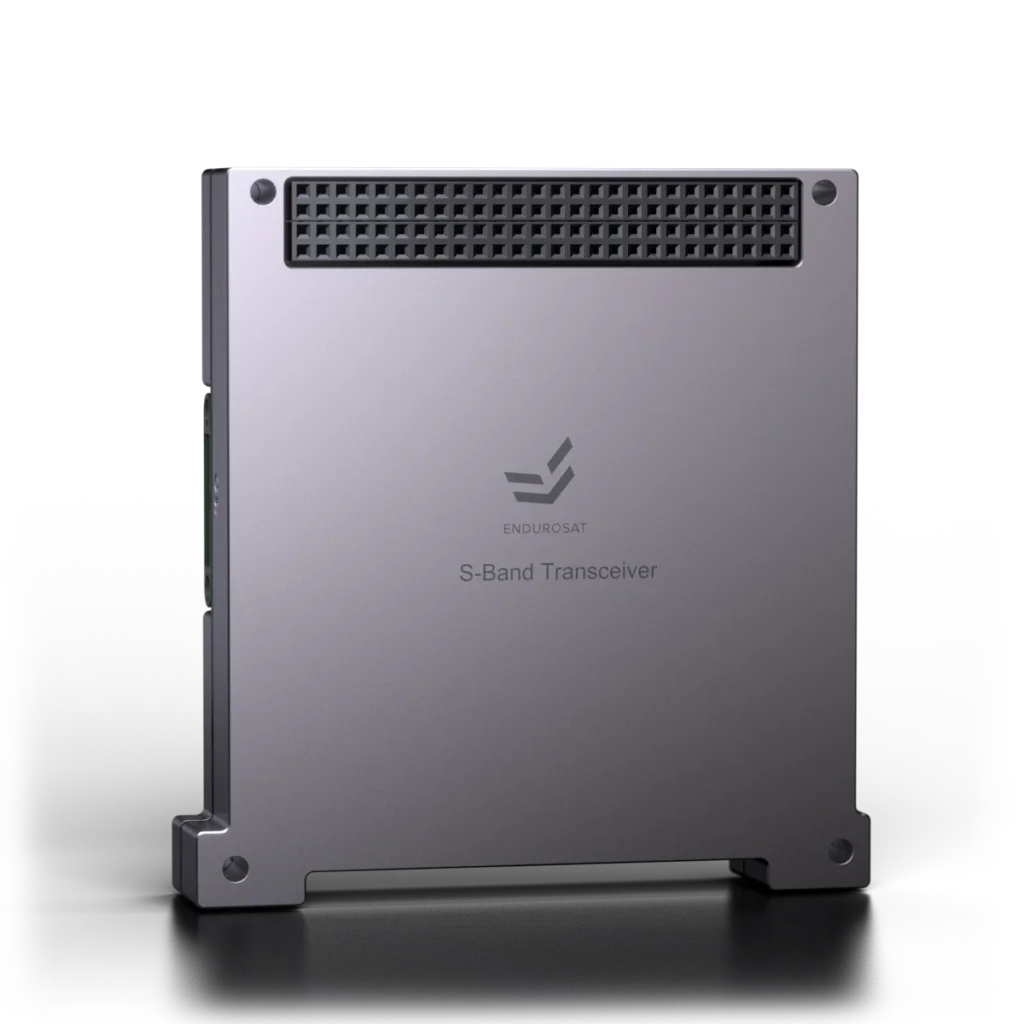

PRODUCT GALLERY

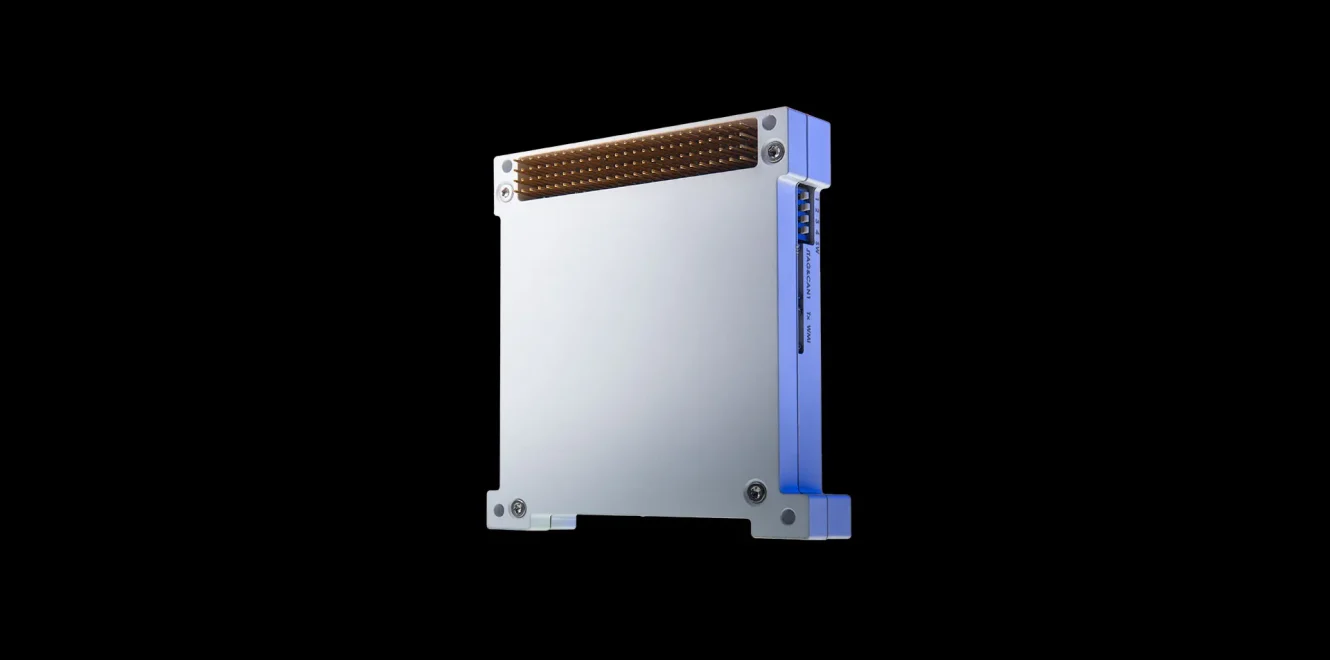

S Band Transceiver I web 1
S Band Transceiver I web 11

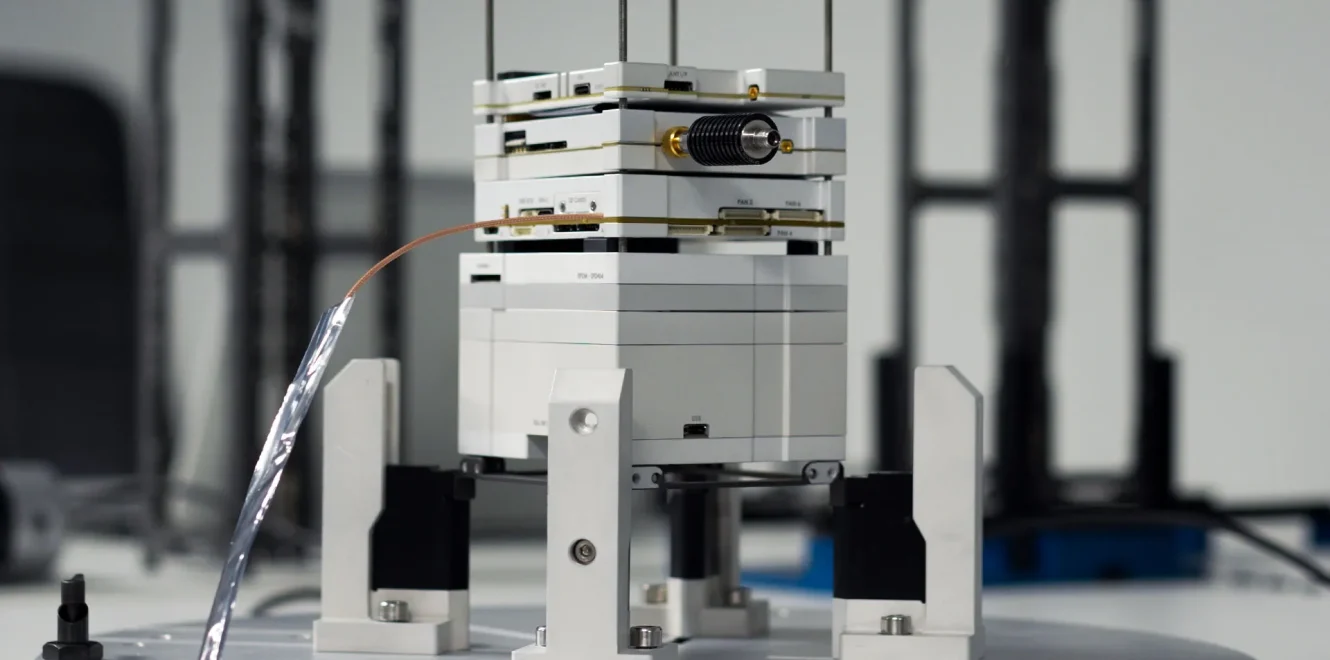

S Band Transceiver I web 10
S Band Transceiver I web 9

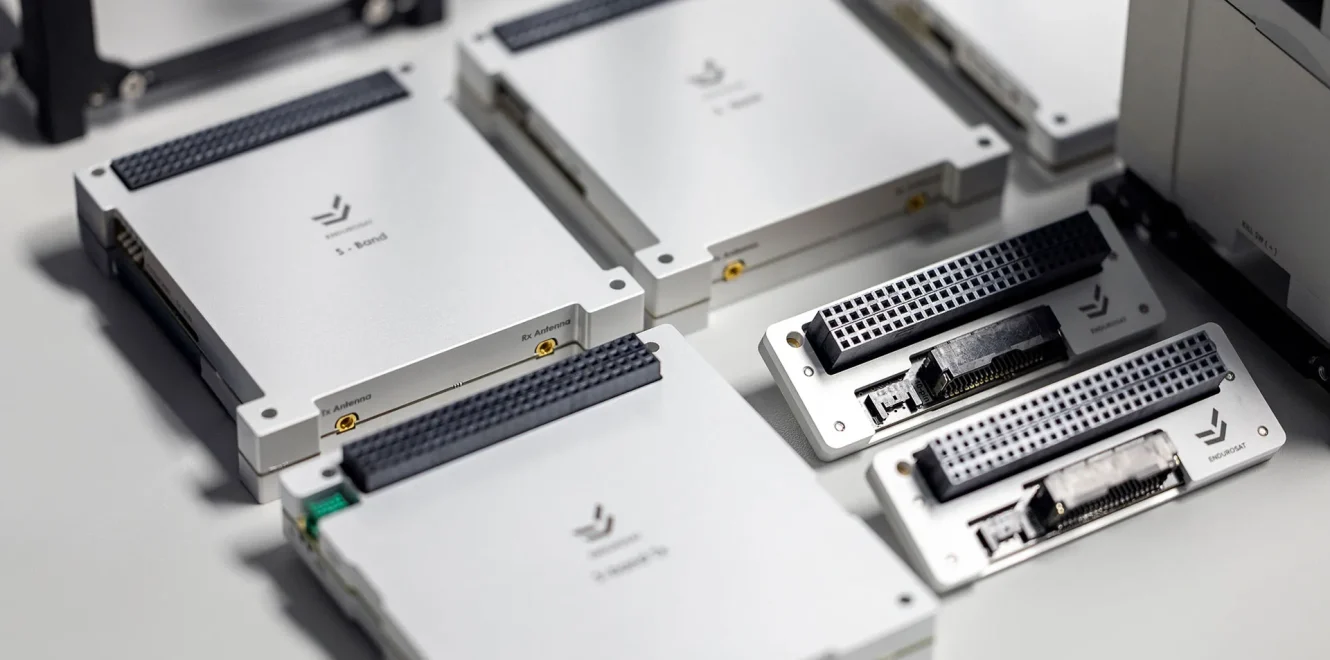

S Band Transceiver I web 8
S Band Transceiver I web 7
S Band Transceiver I web 6
S Band Transceiver I web 5
S Band Transceiver I web 4
S Band Transceiver I web 3
S Band Transceiver I web 2
Related Products
Versatile Wideband SDR
Frequency Range
75 to 6000 MHz
Maximum Gross Datarate
1+ GBPS
RAM
4 GB DDR4 + ECC
Discover
K-band Transmitter
Frequency range
25.5 to 27.0 GHz
Maximum Gross Datarate
1+ Gbps
Tx power
0.5-2 W
Discover
X-Band Front End
Output Frequency range
8000 to 8400 MHz
Input Frequency range
950-2150 MHz
Output power
0.5-2 W
Discover
X Band Transmitter endurosat cubesat radio 04 24
X-Band Transmitter
Frequency Range
7900 to 8400 MHz
Maximum Gross Datarate
150 Mbps
Tx Power
0.5-2 W
Discover
S Band Transmitter endurosat cubesat radio module 04 24
S-Band Transmitter
Frequency Range
2200 to 2290 MHz (commercial)
Maximum Gross Datarate
20 Mbps
Tx Power
0.5-2 W
Discover
UHF Transceiver II endurosat radio cubesat 04 24
UHF Transceiver II
Frequency Range (Tx/Rx)
400 to 403 MHz or 430 to 440 MHz
Configurable Data Rate
up to 19.2 kbps
Tx Power
1 W (up to 2 W upon request)
Discover
2500
MODULES IN ORBIT
60
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
