UHF ANTENNA 2U

Reliable Communication
Cad file & datasheet
Select Options
Select Options
Download
Cad file & datasheet
Select Options
Select Options
3X
REDUNDANT BURNWIRE MECHANISM
H/V
LINEAR POLARIZATION
0+
DBI GAIN

Flight-proven Deployable 2U UHF Antenna fully compliant with the 6U CubeSat standard

FEATURES
Amateur UHF Frequency Range
435-438 MHz
Commercial UHF Frequency Range
400-403 MHz
VHF Frequency Range
144-148 MHz
Type
Omnidirectional
Gain
> 0 dBi
Polarization
Linear
RF Power Handling
2W
Mass
210 g
Monitoring And Control Interfaces
RS-485, I2C, UART

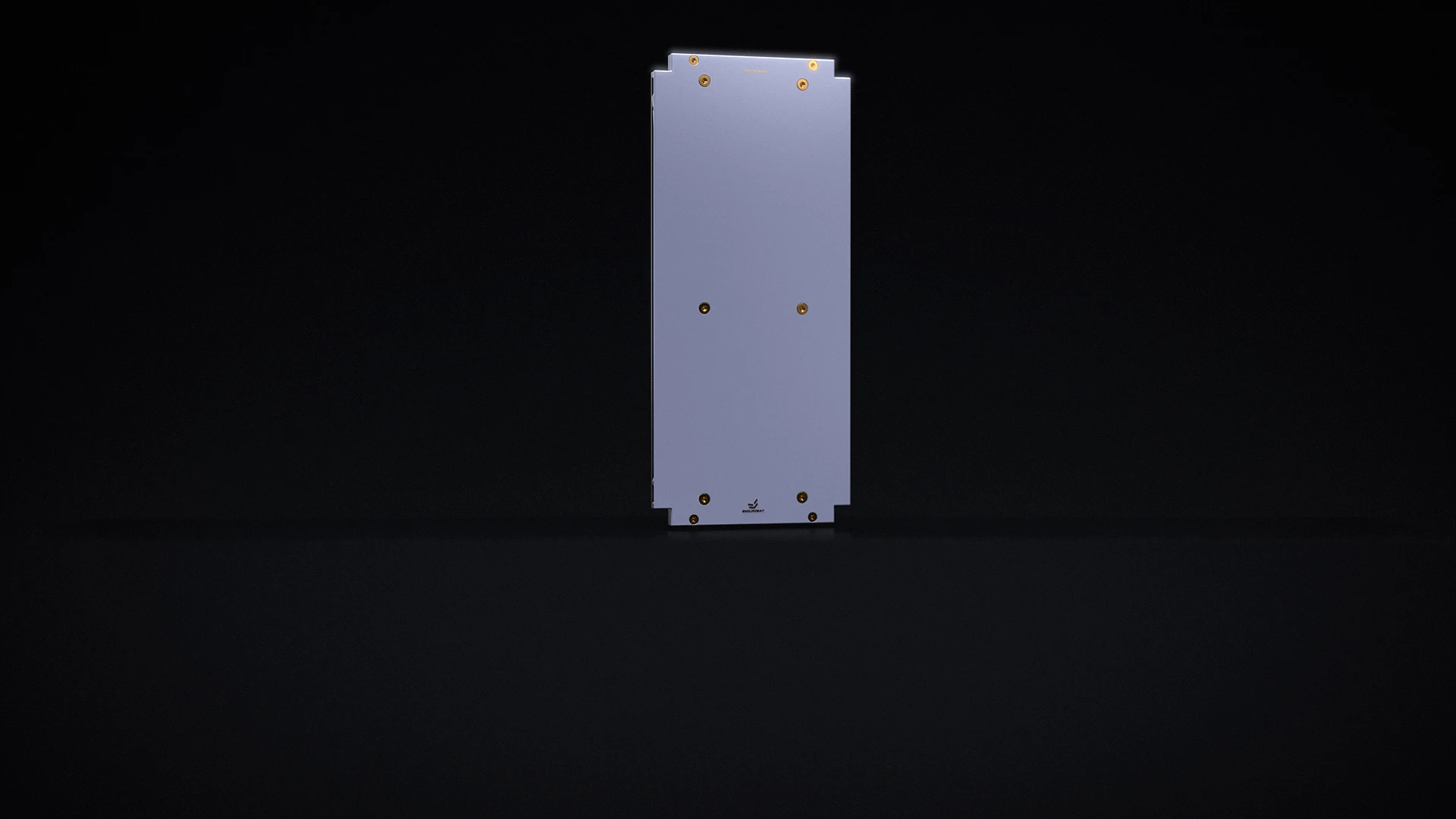

UHF Antenna 2U web render 1 4
Ultra High-Speed Communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Flight-proven Deployable 2U UHF Antenna fully compliant with the 6U CubeSat standard

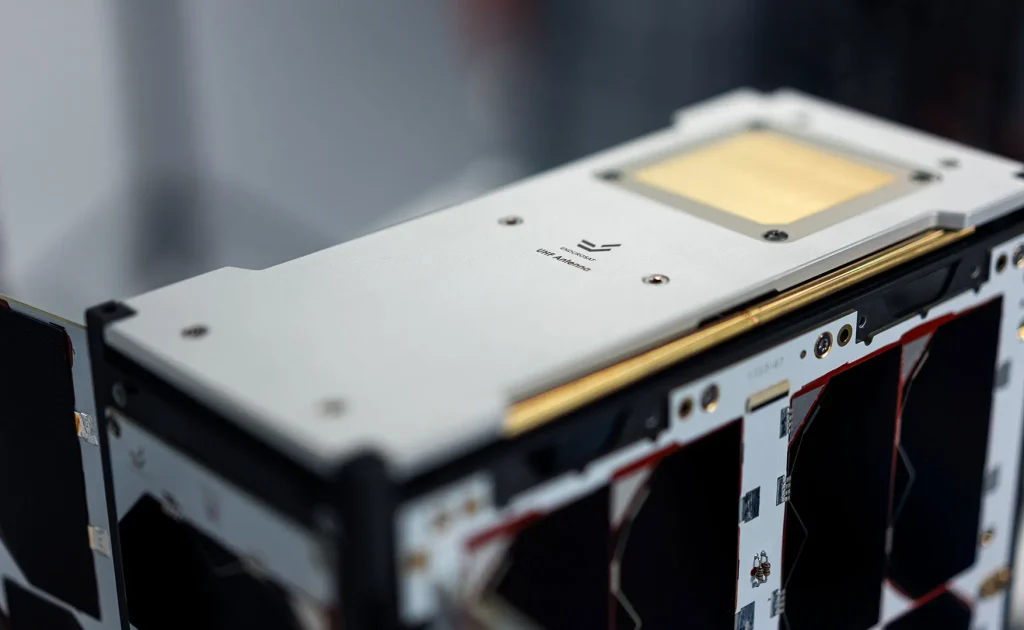

UHF Antenna 2U web 6

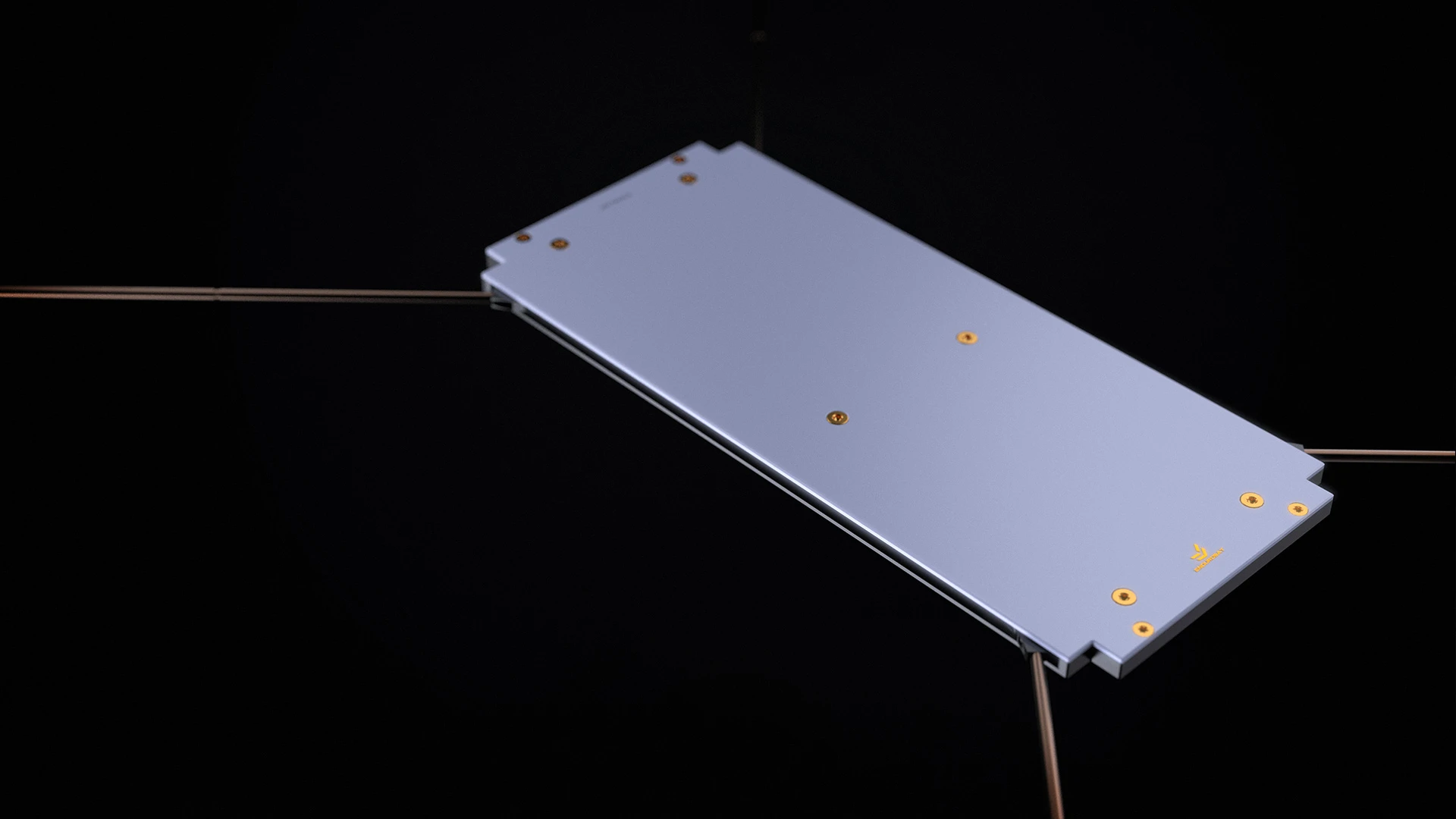

UHF Antenna 2U web render 1 2

Triple redundant burnwire mechanism with feedback, based on flight-proven technology

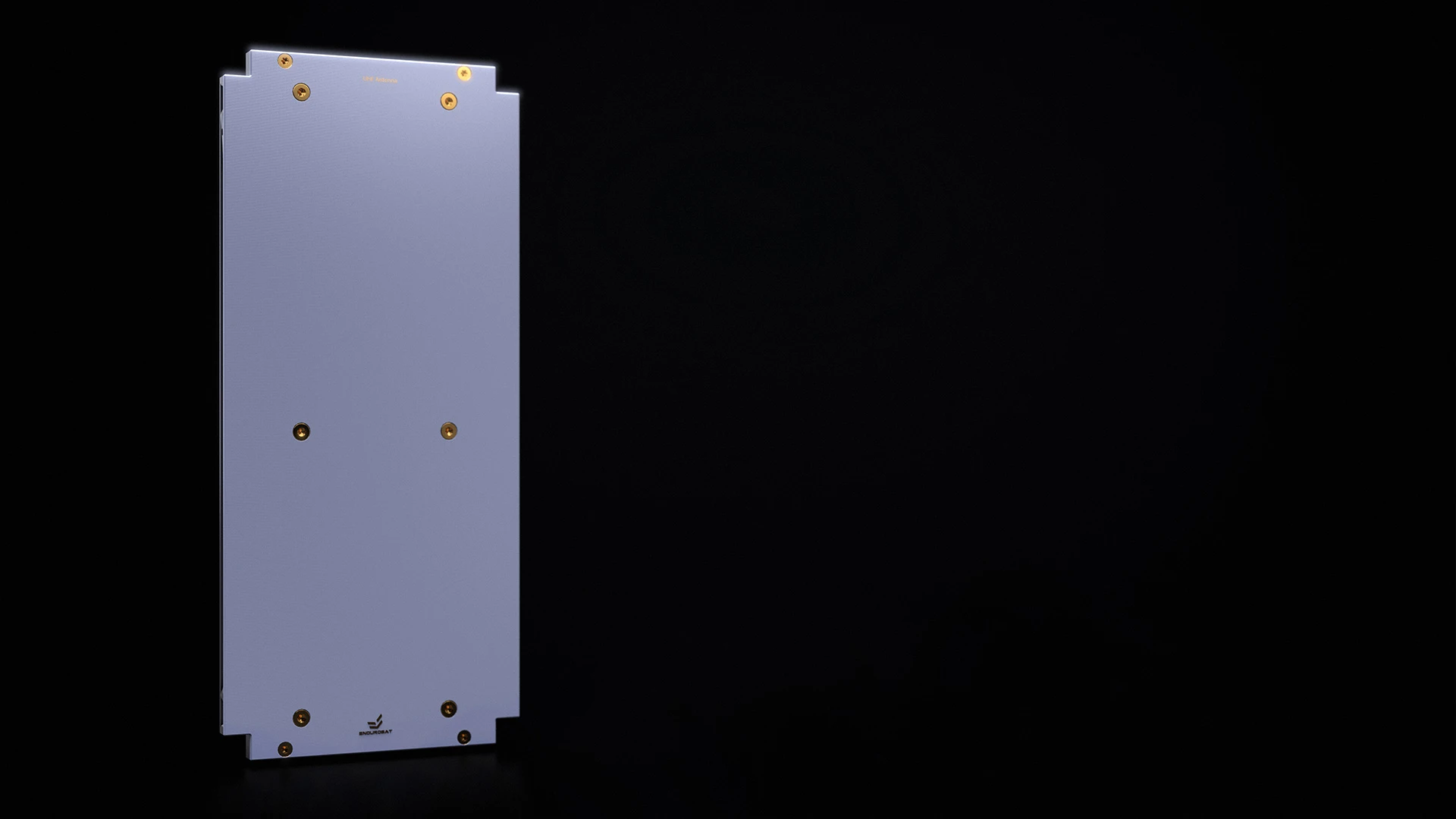

UHF Antenna 2U web render 1 3

Linear polarization for better reception

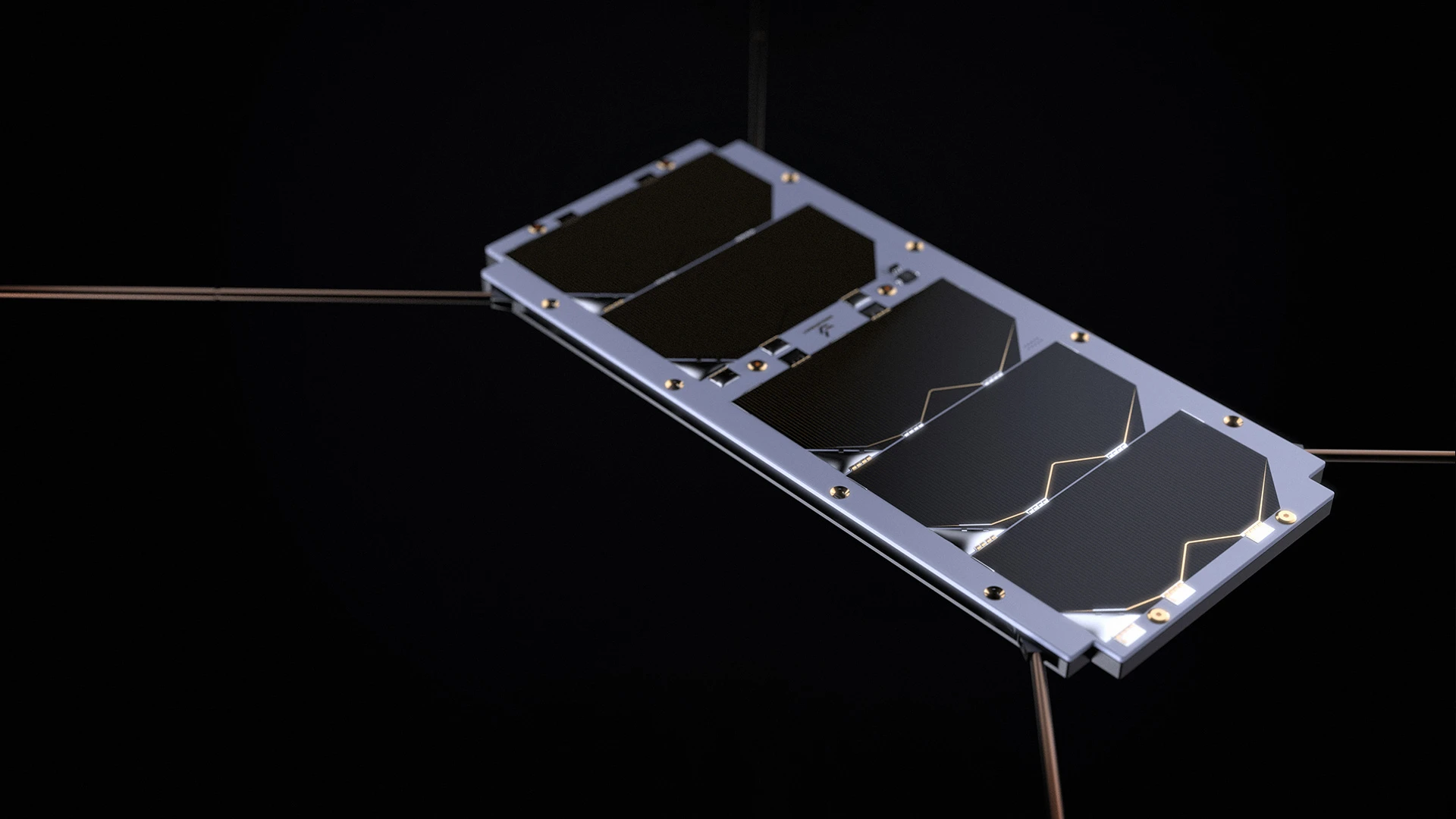

UHF Antenna 2U web render 1 1

2-in-1 Antenna & Power System with EnduroSat’s solar panel

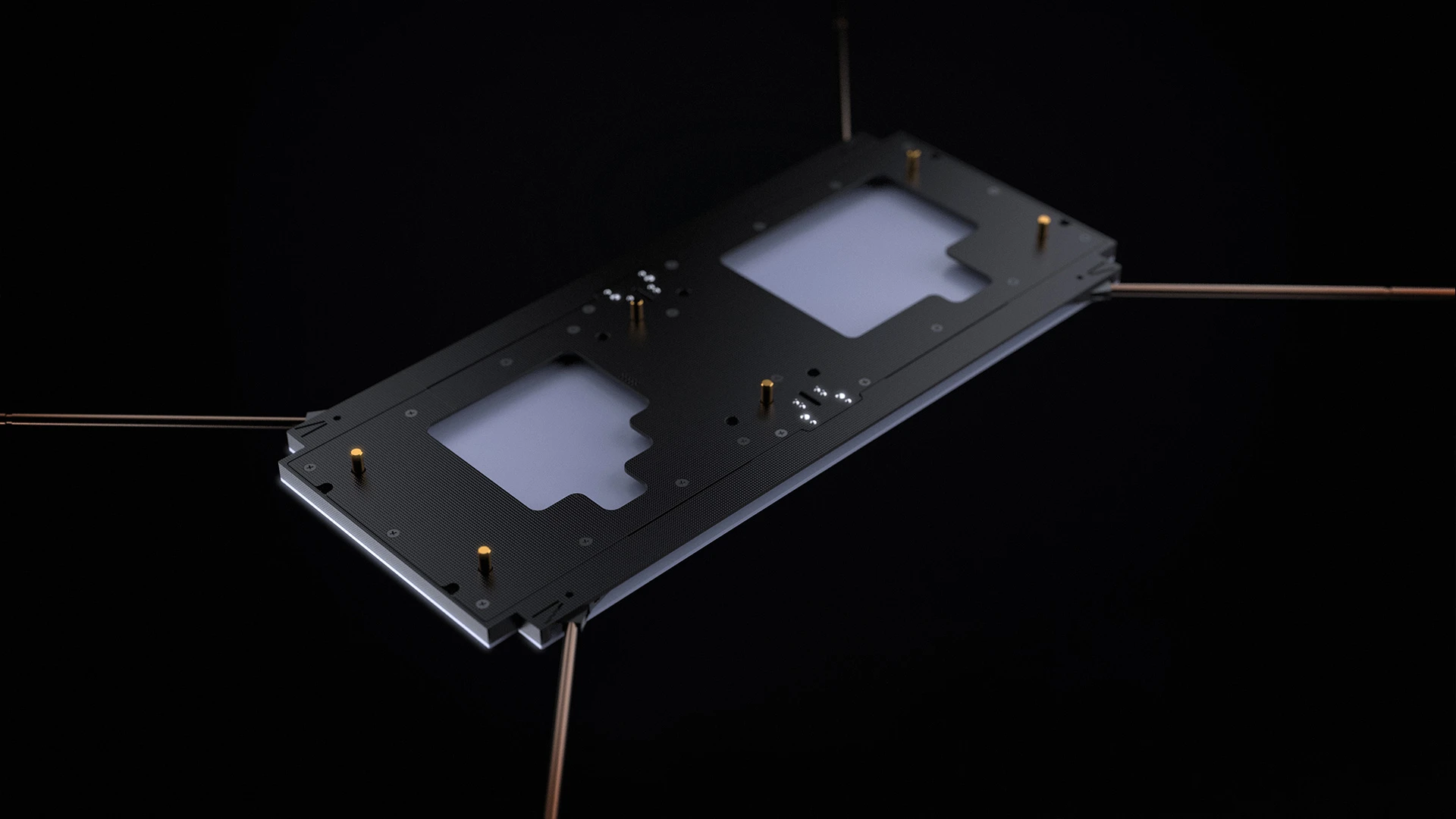

UHF Antenna 2U web render 1

Mechanical compatibility with 6U CubeSat structures

PRODUCT GALLERY

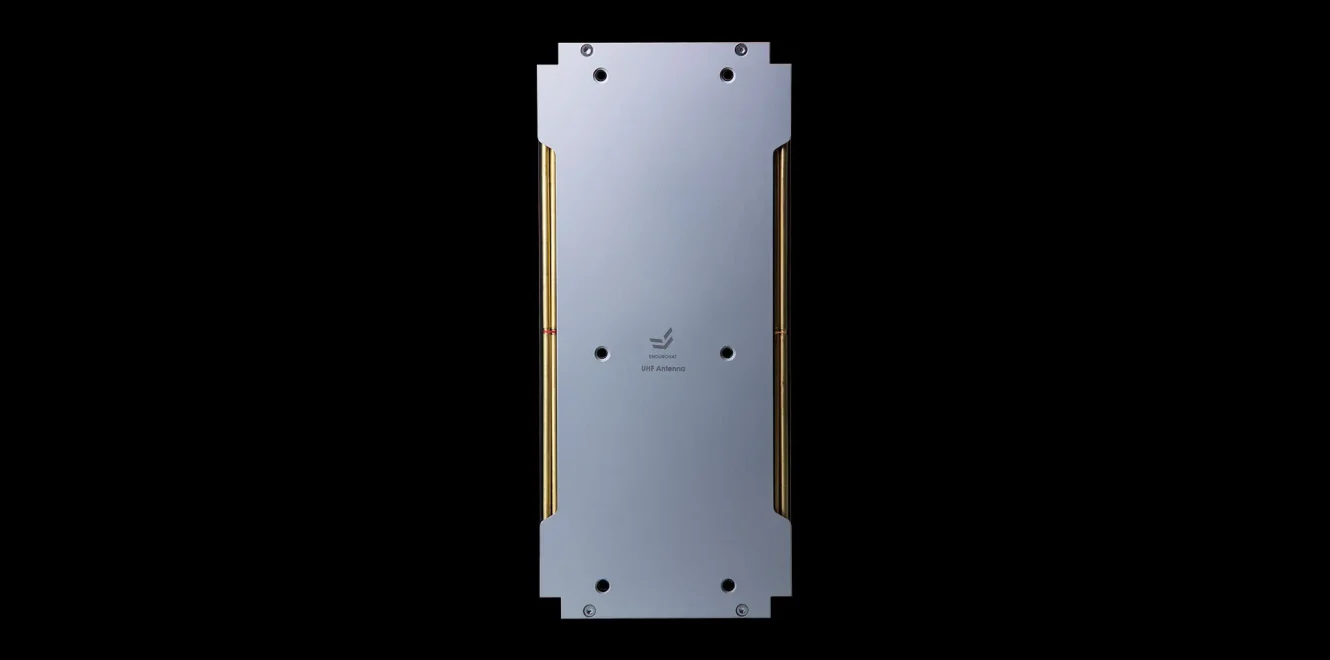

UHF Antenna 2U web 2

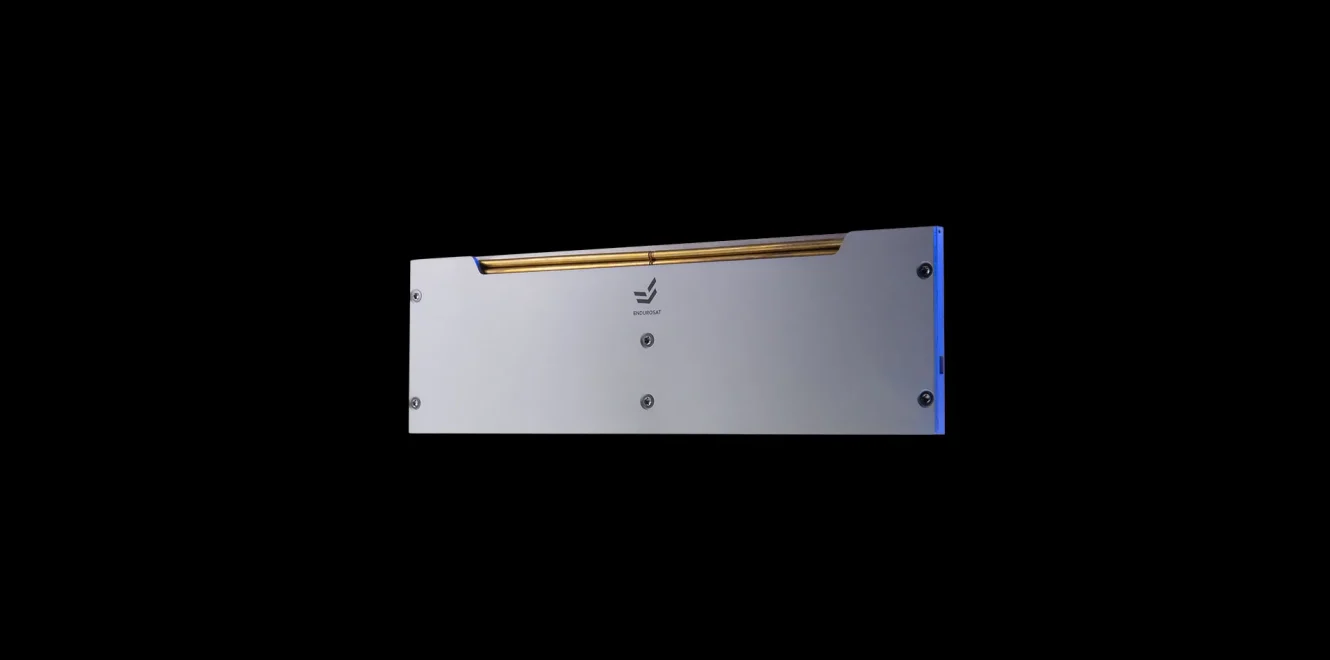

UHF Antena 2U 12 16U web 7

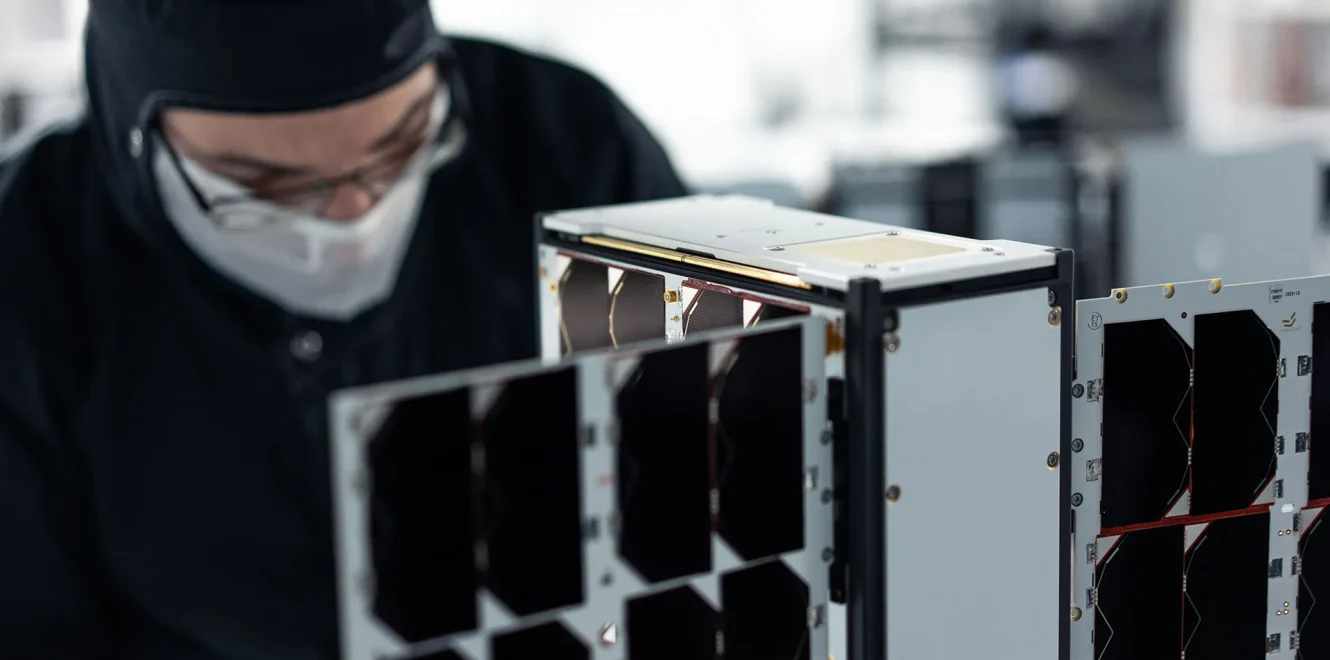

UHF Antenna 2U web 9

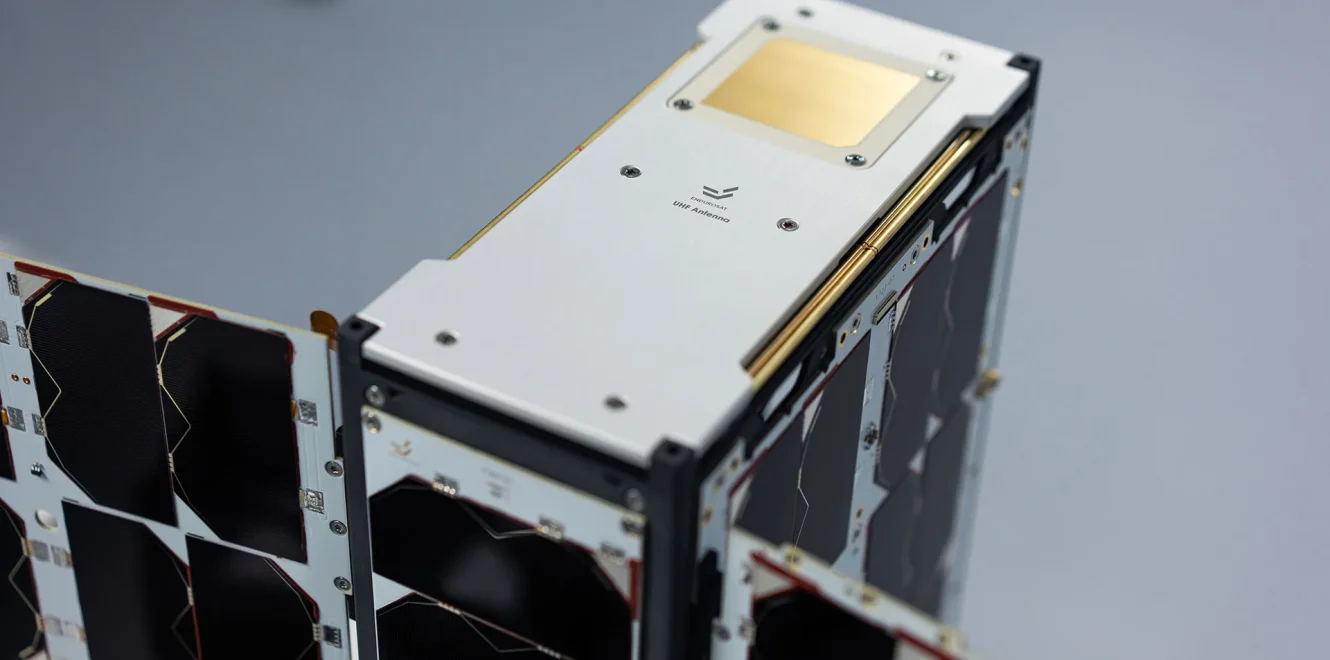

UHF Antenna 2U web 4

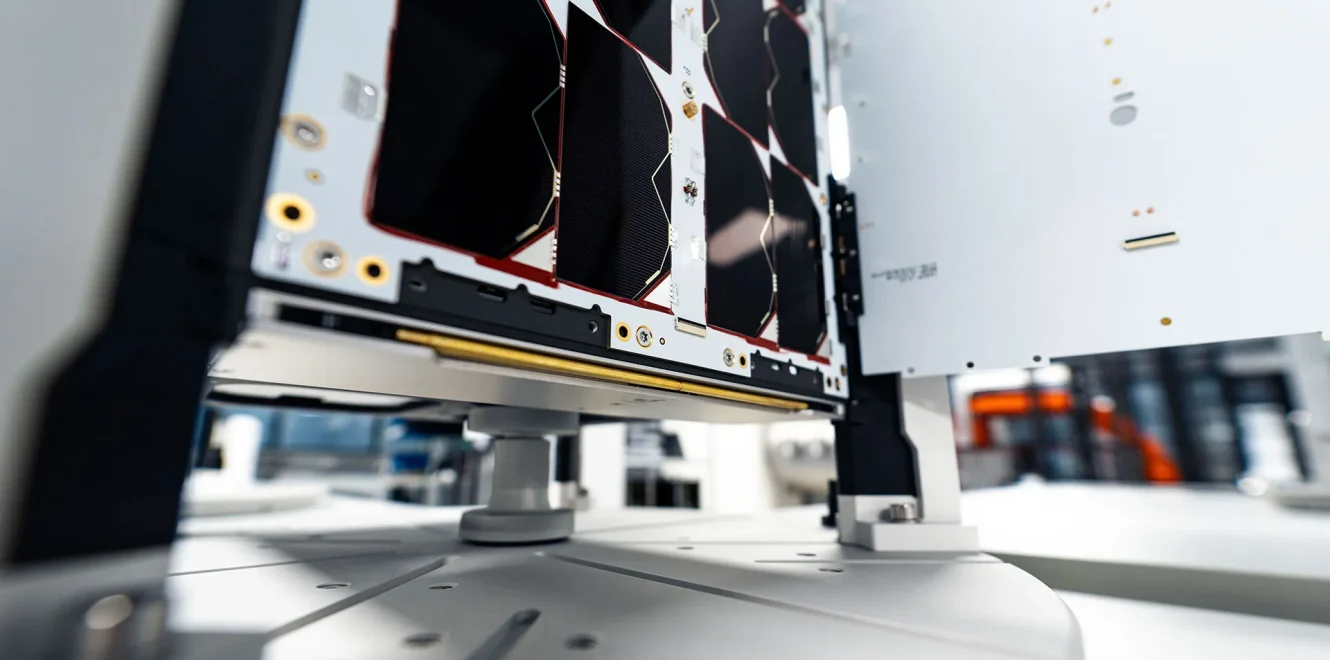

UHF Antena 2U 12 16U web 6
