VERSATILE WIDEBAND SDR

Versatility & Speed
Cad file & datasheet
buy
buy

VERSATILE WIDEBAND SDR

Download
Cad file & datasheet
buy
buy
200 MHZ
BANDWIDTH
DVB-S2X
AVAILABLE
1+ GBPS
GROSS DATARATE

The VW-SDR deliveries start in Q2 of 2024

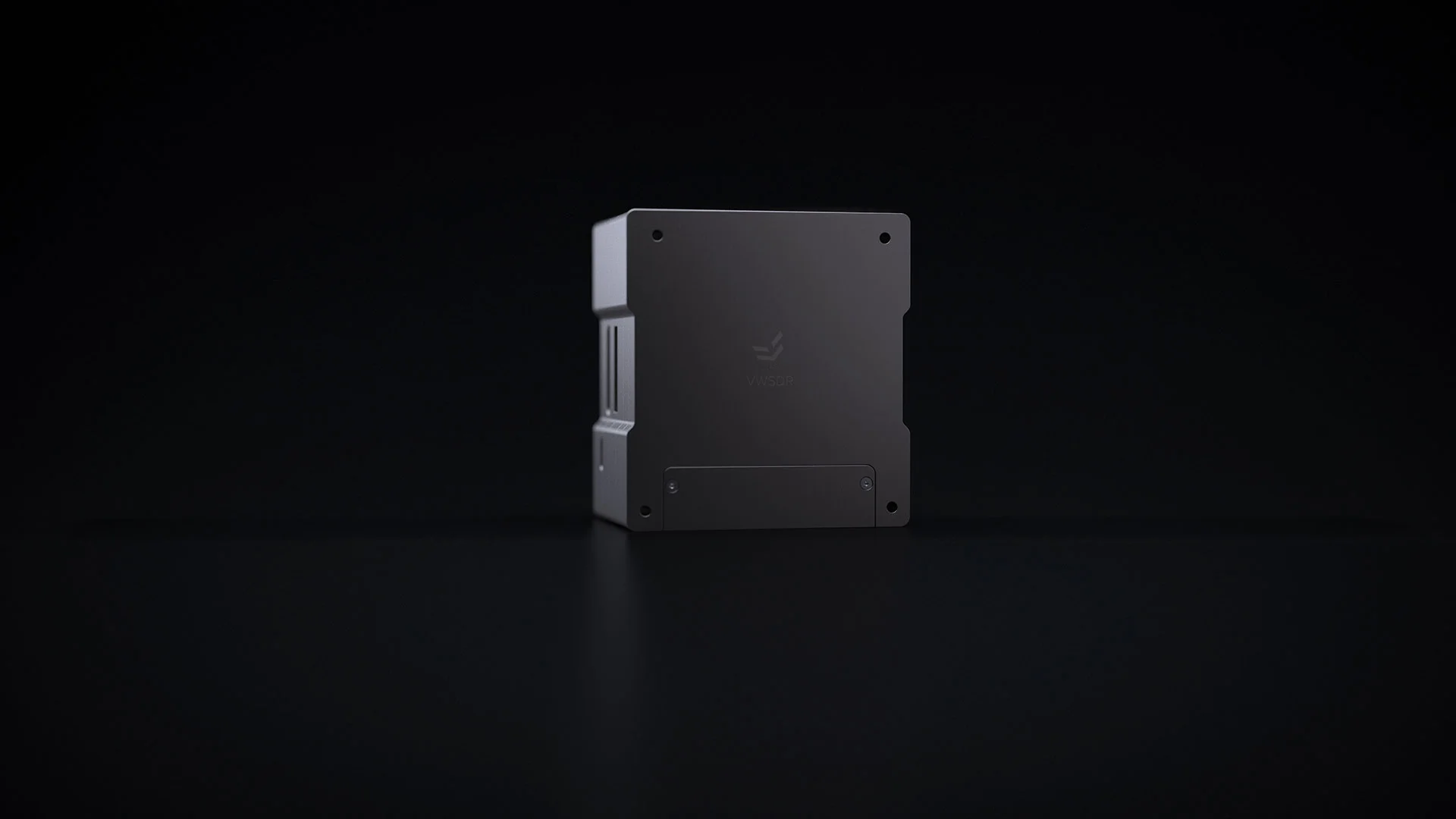

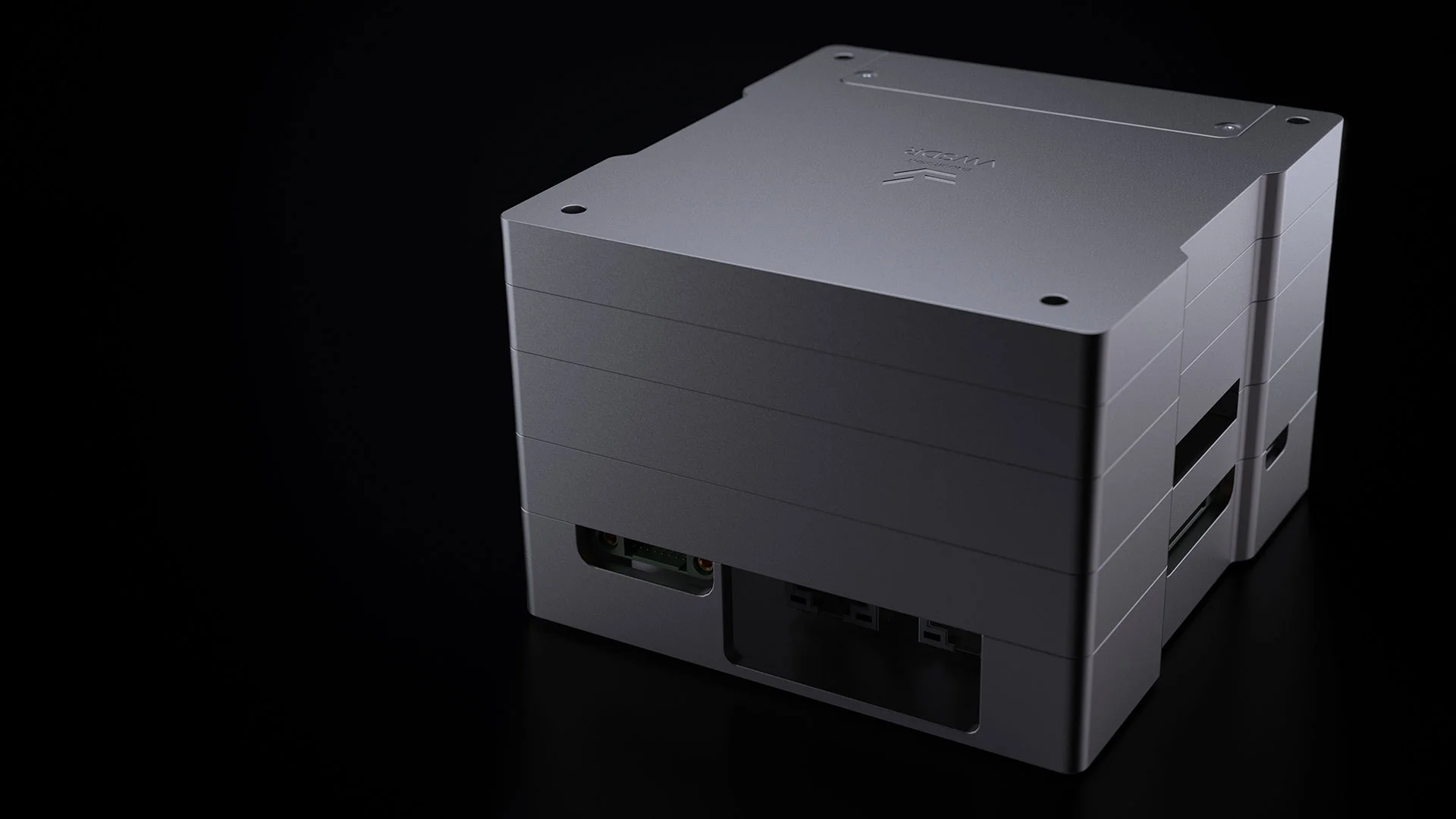

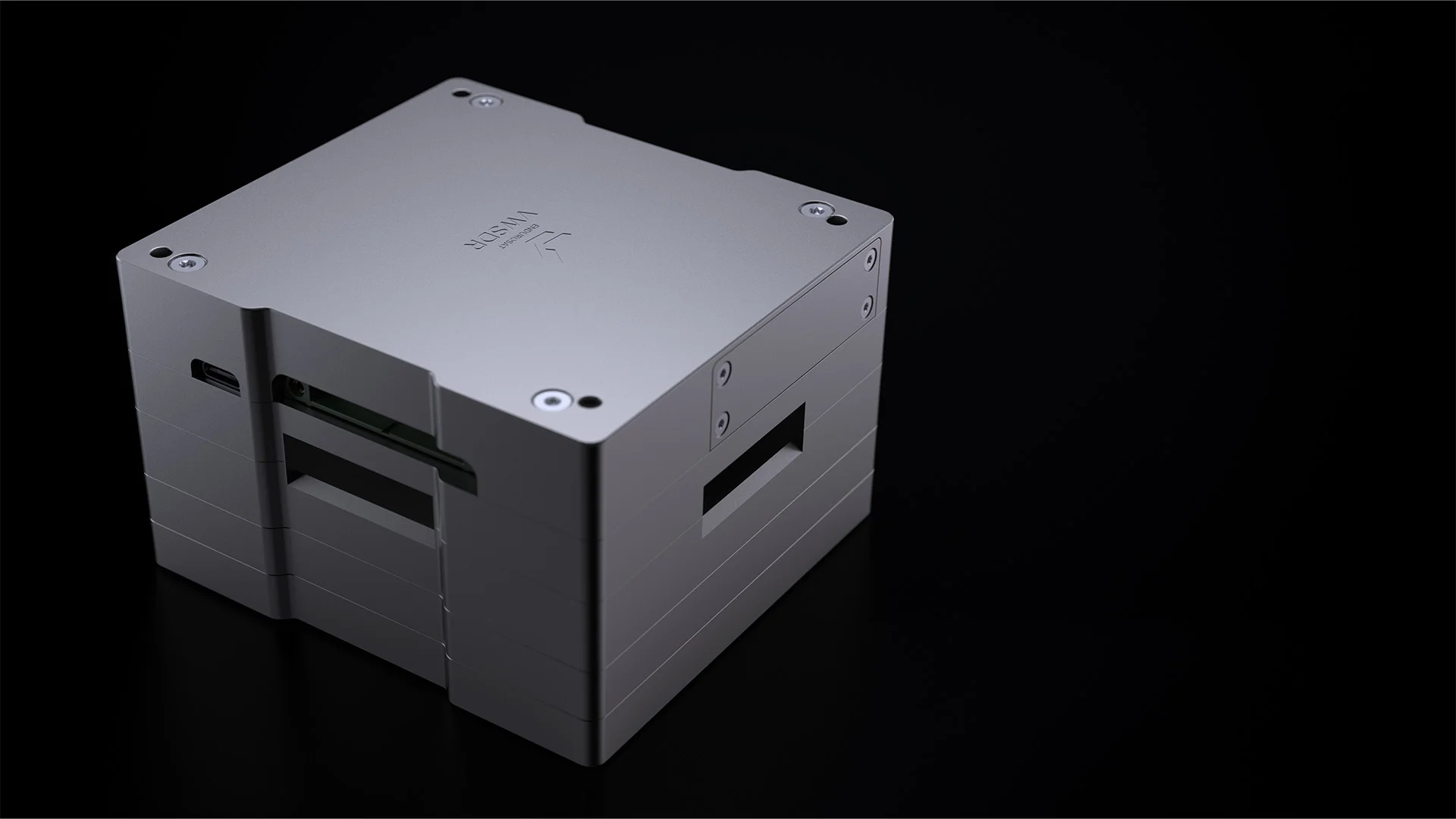

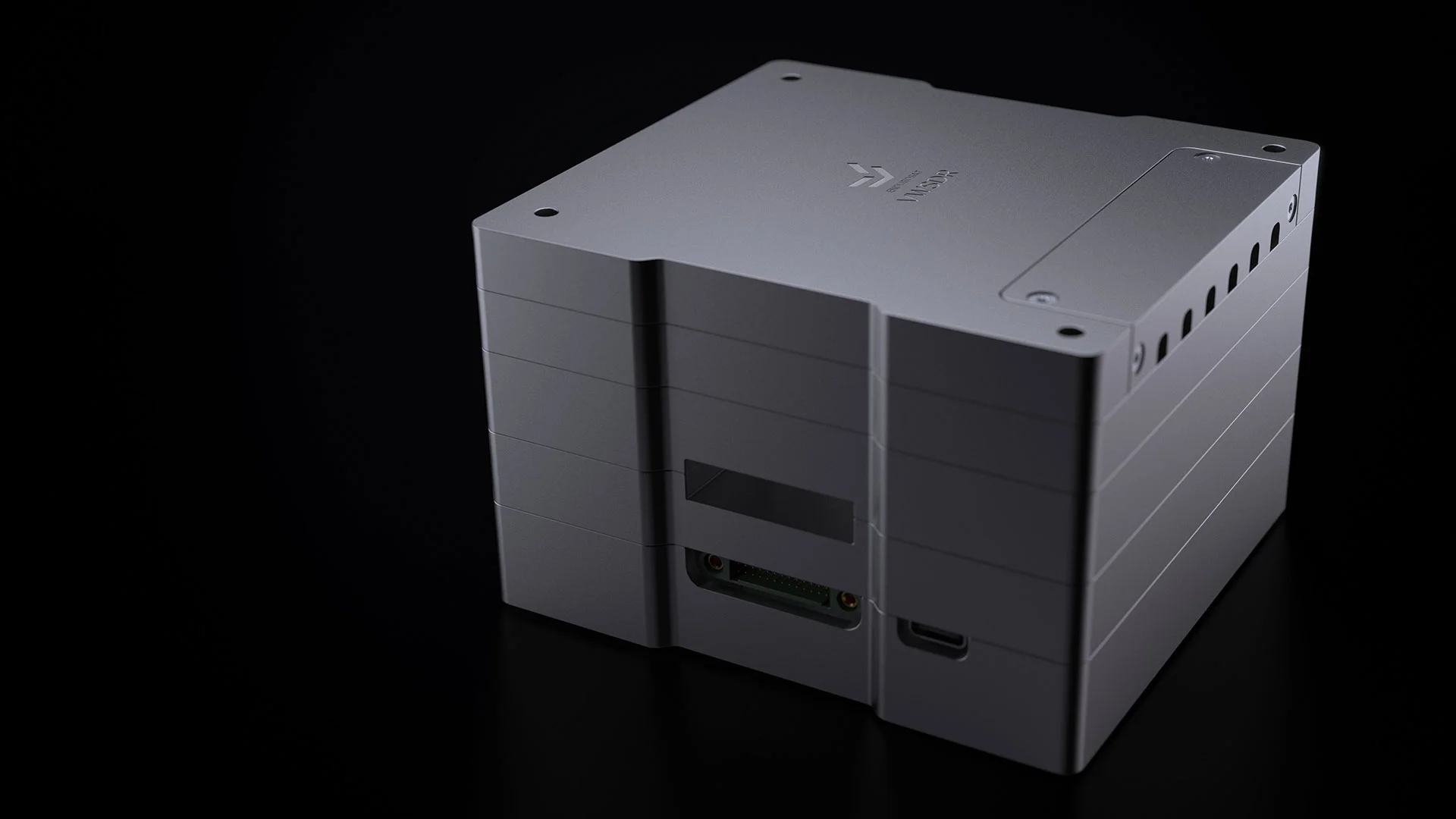

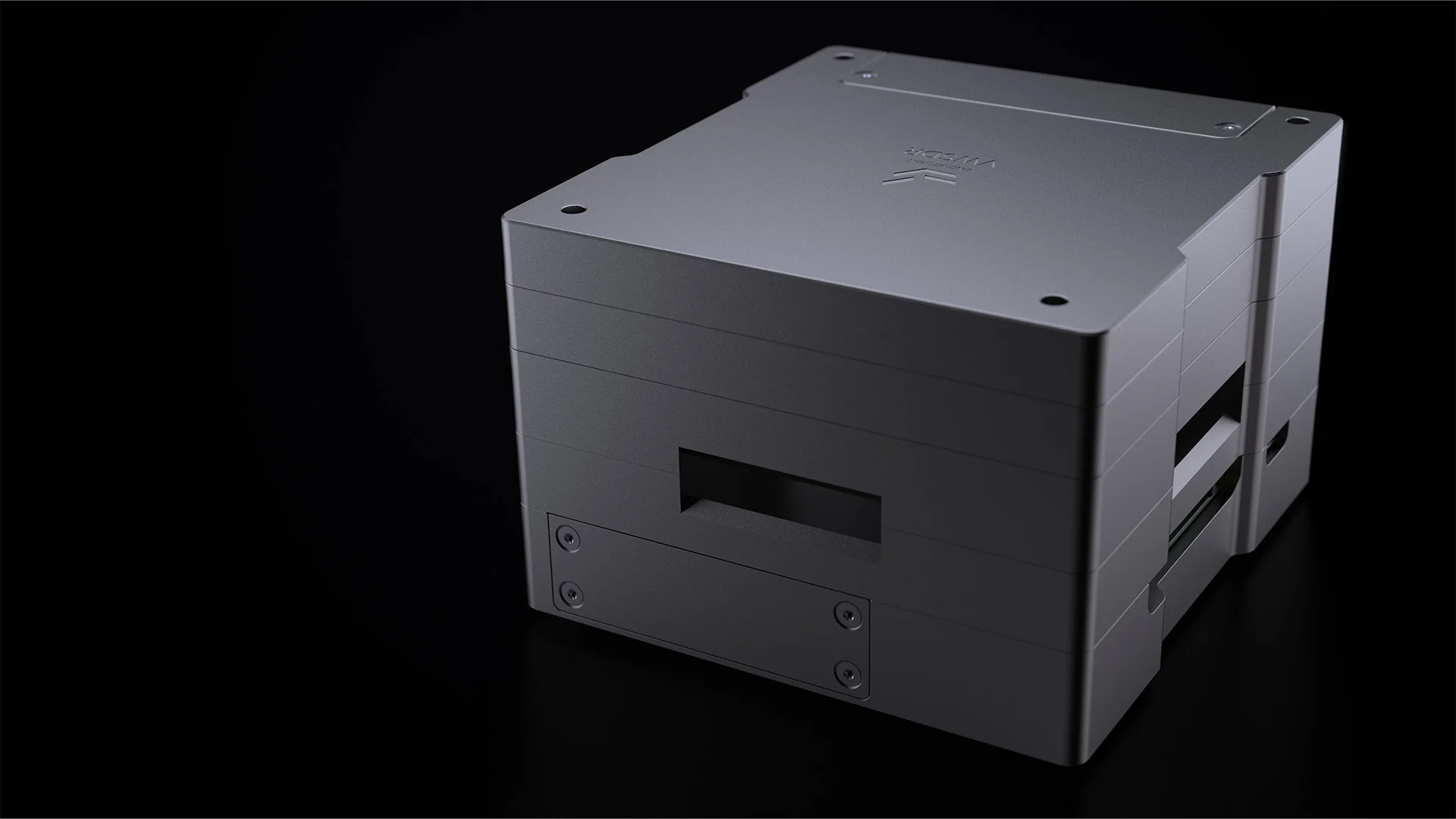

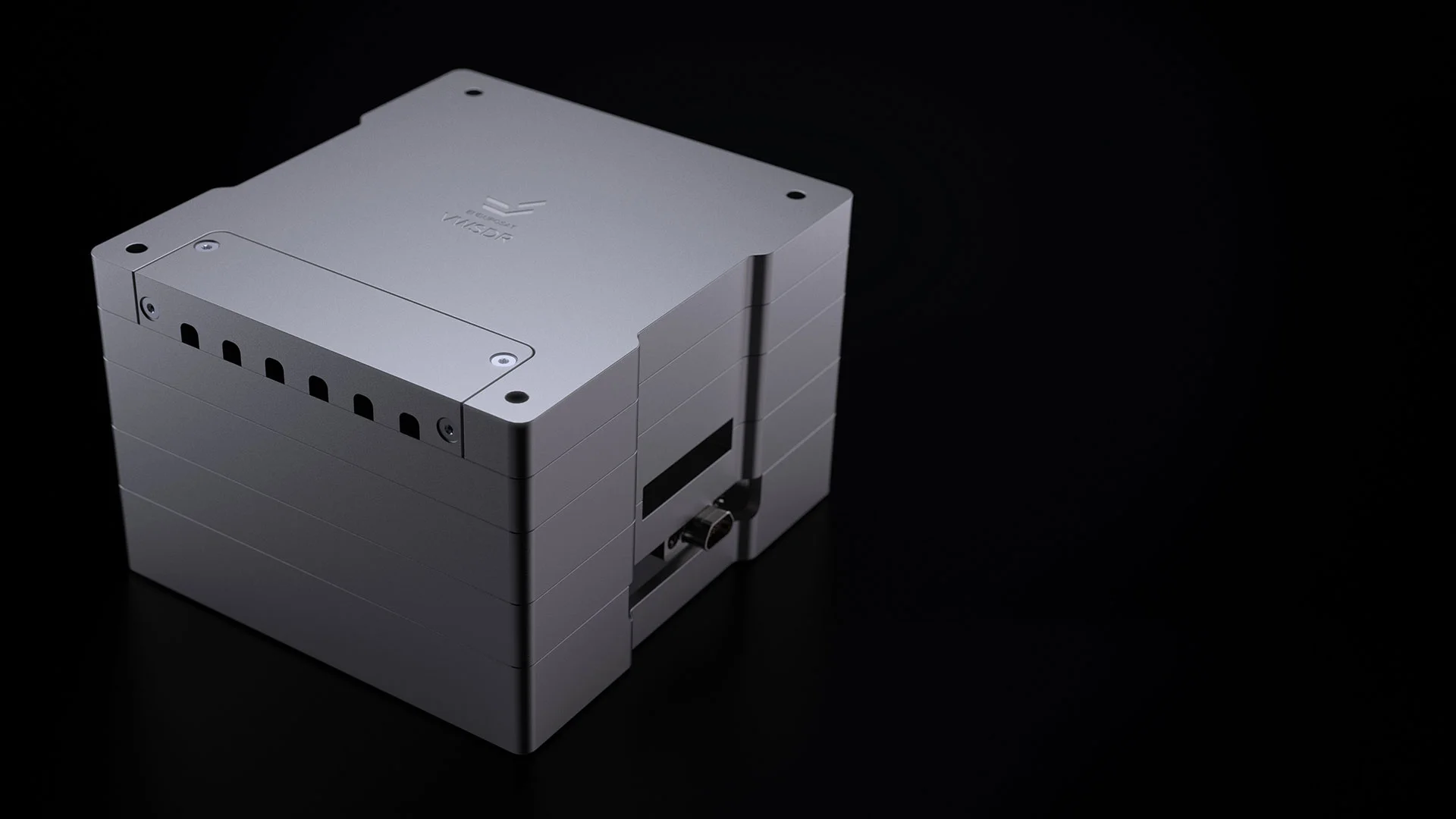

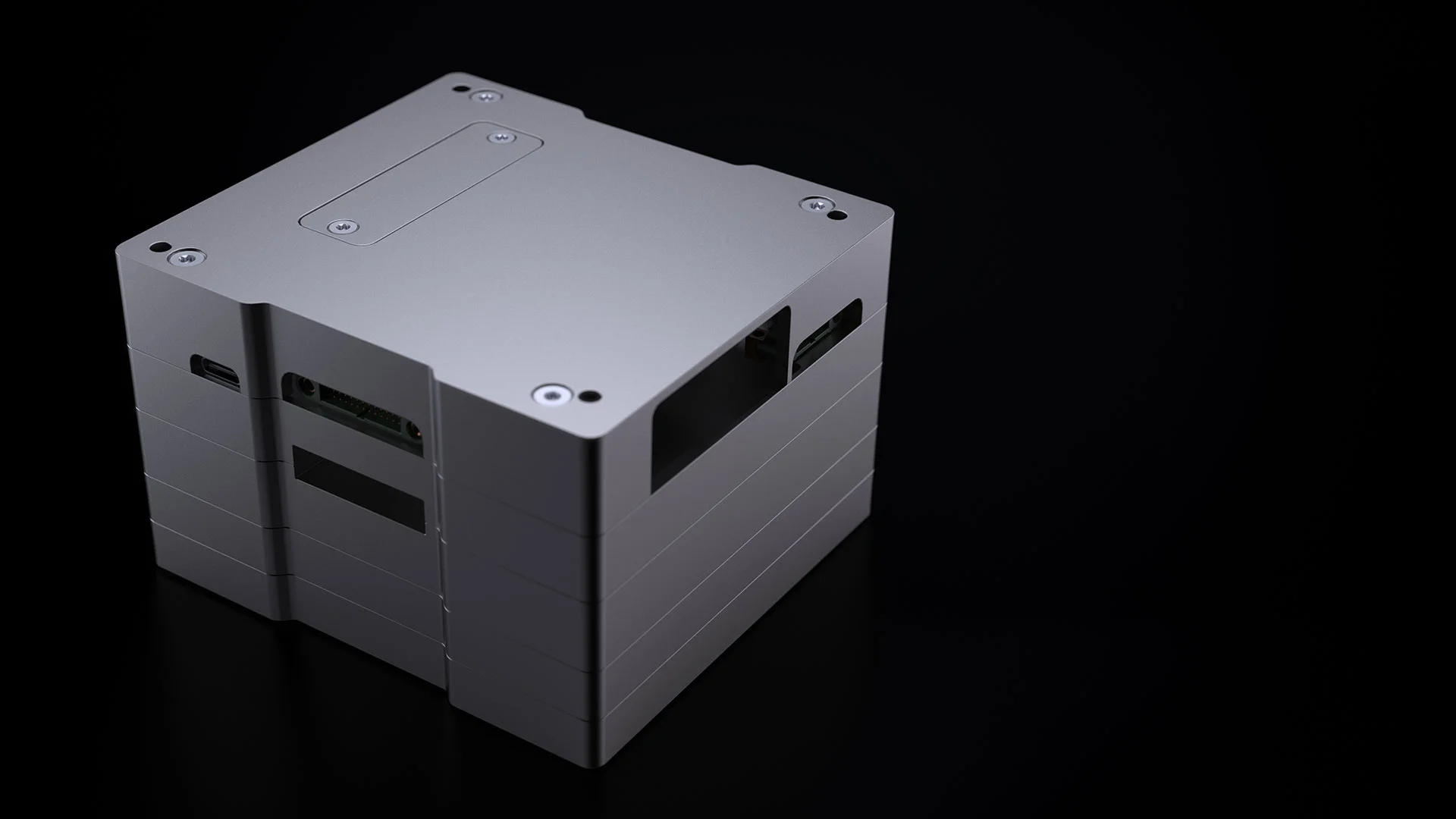

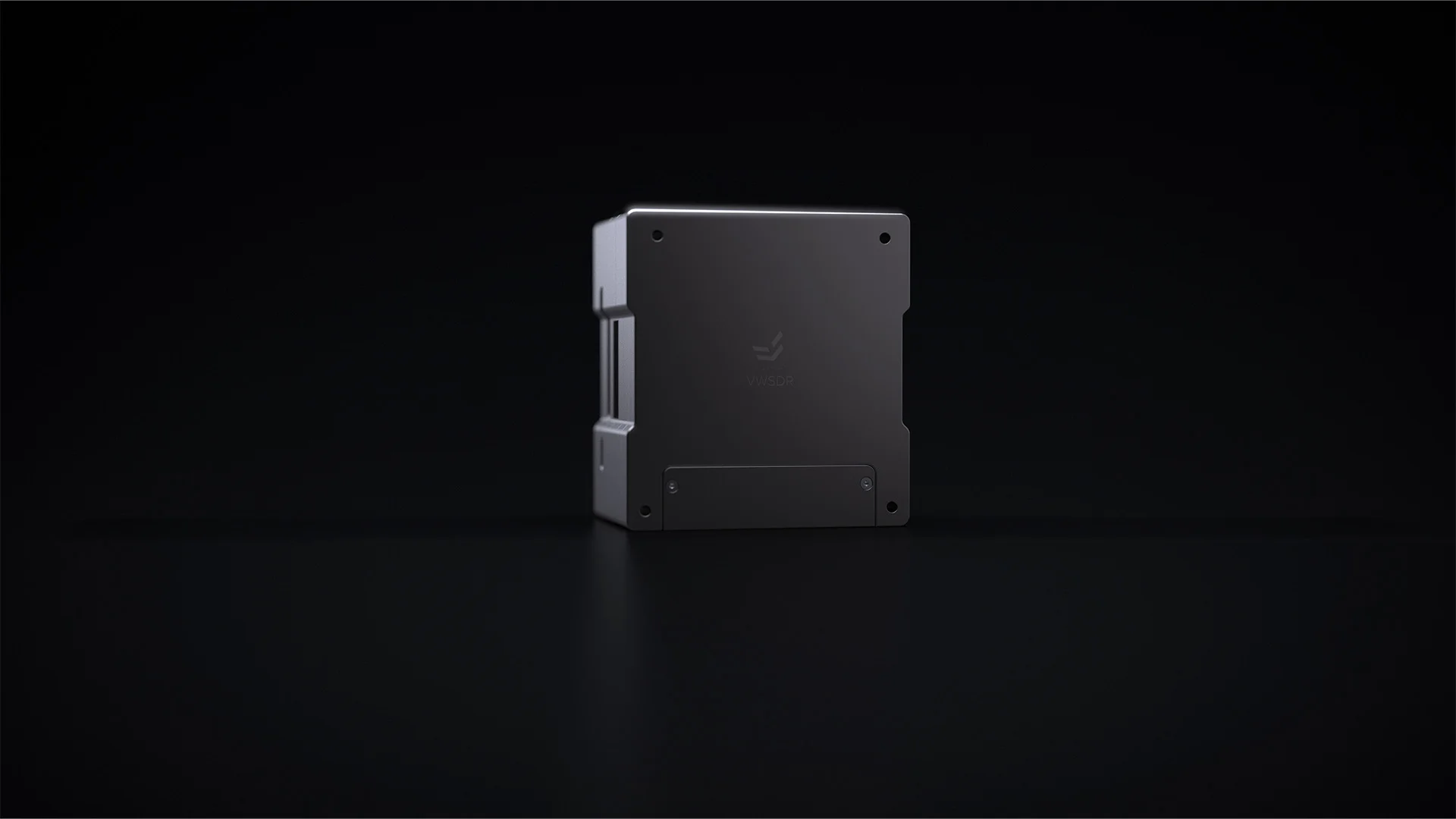

Versatile Wideband Software Defined Radio (SDR) featuring two full duplex channels for demanding data-intensive payloads

FEATURES
Frequency Range
75 to 6000 MHz
Tx Modulations (DVB-S2X)
up to 256-APSK + VLSNR MODCODs
Rx Demodulations
CCSDS compliant
Custom Modulations
integration of customer protocols upon request
Maximum Gross Datarate
1+ Gbps
Modulation Interfaces
3 dBm (carrier)
RAM
4 GB DDR4 + ECC
Non-Volatile Memory
QSPI NOR Flash
Mass Storage
up to 128 GB SSD with ECC and CRC
Wide Power Supply Range
12 to 28 V
Control Interfaces
CSP over CAN, Gigabit Ethernet, ESPS over RS-485
Data Interfaces
Gigabit Ethernet, LVDS
Other Interfaces
UART, SPI, I2C
Versatility & Speed

Included

Complete User Manual
Sample applications in python3 / C
Linux API for command & control
Complete set of cables
5h engineering support
Delivery cost
Handling and administration costs

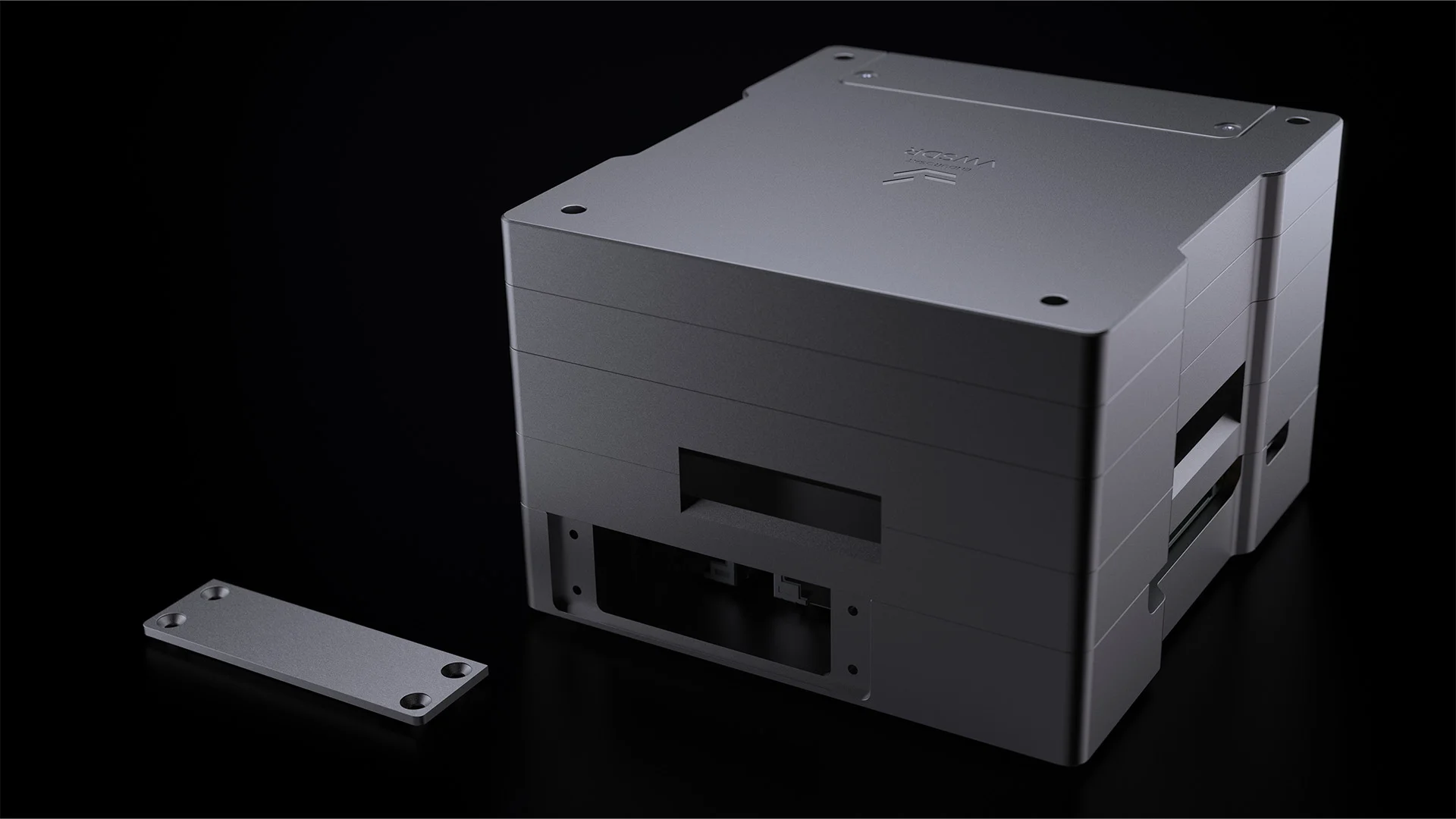

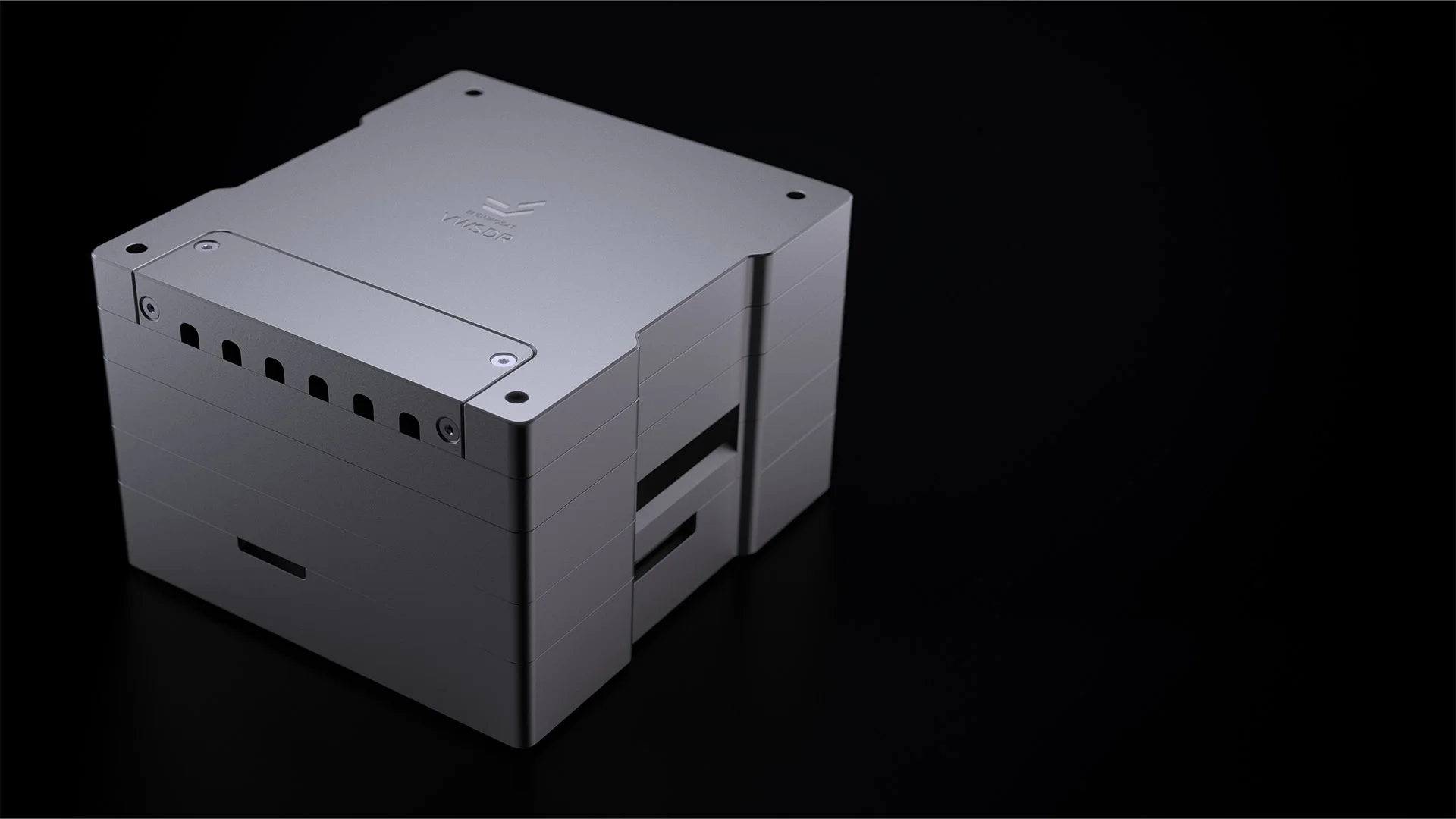

Versatile Wideband Software Defined Radio (SDR) featuring two full duplex channels for demanding data-intensive payloads

Flexible system based on Xilinx UltraScale+ System on a Chip (SoC)

Compact design. CubeSat form factor

Custom enclosure with thermal strap slots for prolonged operations

In-flight reconfigurable SDR. Selectable modulation & RF parameters. FPGA reconfiguration flexibility
