X-BAND FRONT END

Speed Matters

Cad file & datasheet

Request A Quote

Request A Quote

X-BAND FRONT END

Download

Cad file & datasheet

Request A Quote

Request A Quote

2X

WIDER BAND

DVB-S2X

MODCODs TESTED

DPD

COMPATIBLE

Space-qualified X-band RF front end for data-intensive payloads

FEATURES

Output Frequency range

8000 to 8400 MHz

Input Frequency range

950-2150 MHz

Input Power Range

-20 to -5 dBm

Linear Gain

45 dB

Spurious and harmonic emissions

< -48 dBc

Digital Pre-Distortion (DPD) Output

950-2150 MHz at maximum power level -15 dBm

Added EVM

< 3% at maximum output linear power

Mass

<300 g

Output power

0.5-2 W (in-flight configurable)

Firmware updates

Local and remote (in-flight) secured application update

Wide Power Supply Range

11 to 28 V

Control Interfaces

CSP over CAN and ESUP over UART

Input and Output RF interfaces

SMP

DPD RF interface (IF out)

SMP

Operational Temperature

-40 to +65 degC

Speed Matters

Included

Complete User Manual

Complete set of cables

5h of engineering support

Space-qualified X-band RF front end for data-intensive payloads

High gain with minimum noise to support 2x higher performance than previous X-band generation

Compact and robust design - fully compatible with EnduroSat VW-SDR

High efficiency amplifiers and excellent conduction to enclosure ensure prolonged operations

In-flight reconfigurable radio front end. Selectable output power and digital pre-distortion (DPD) option for improved performance at high MODCODs

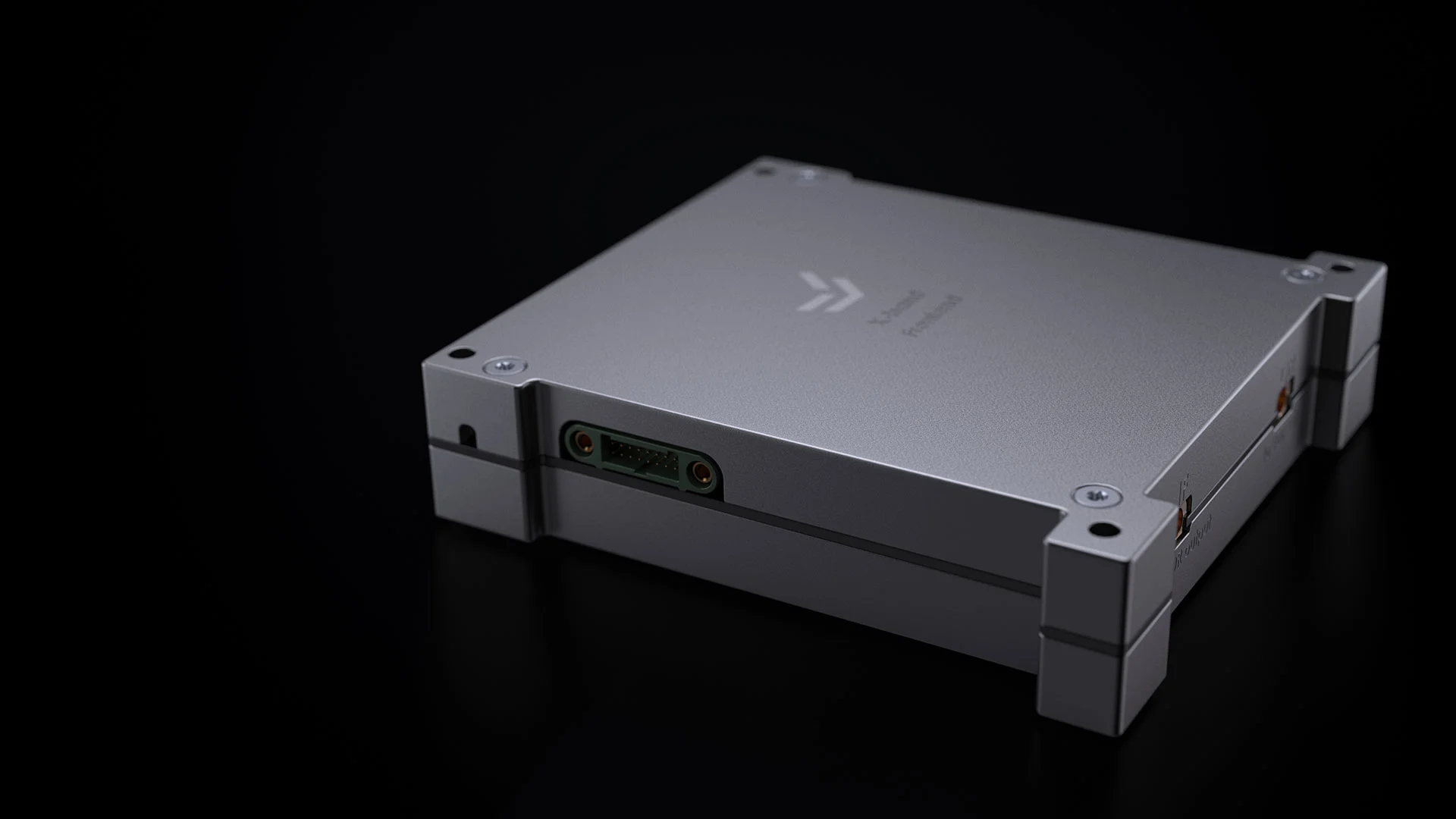

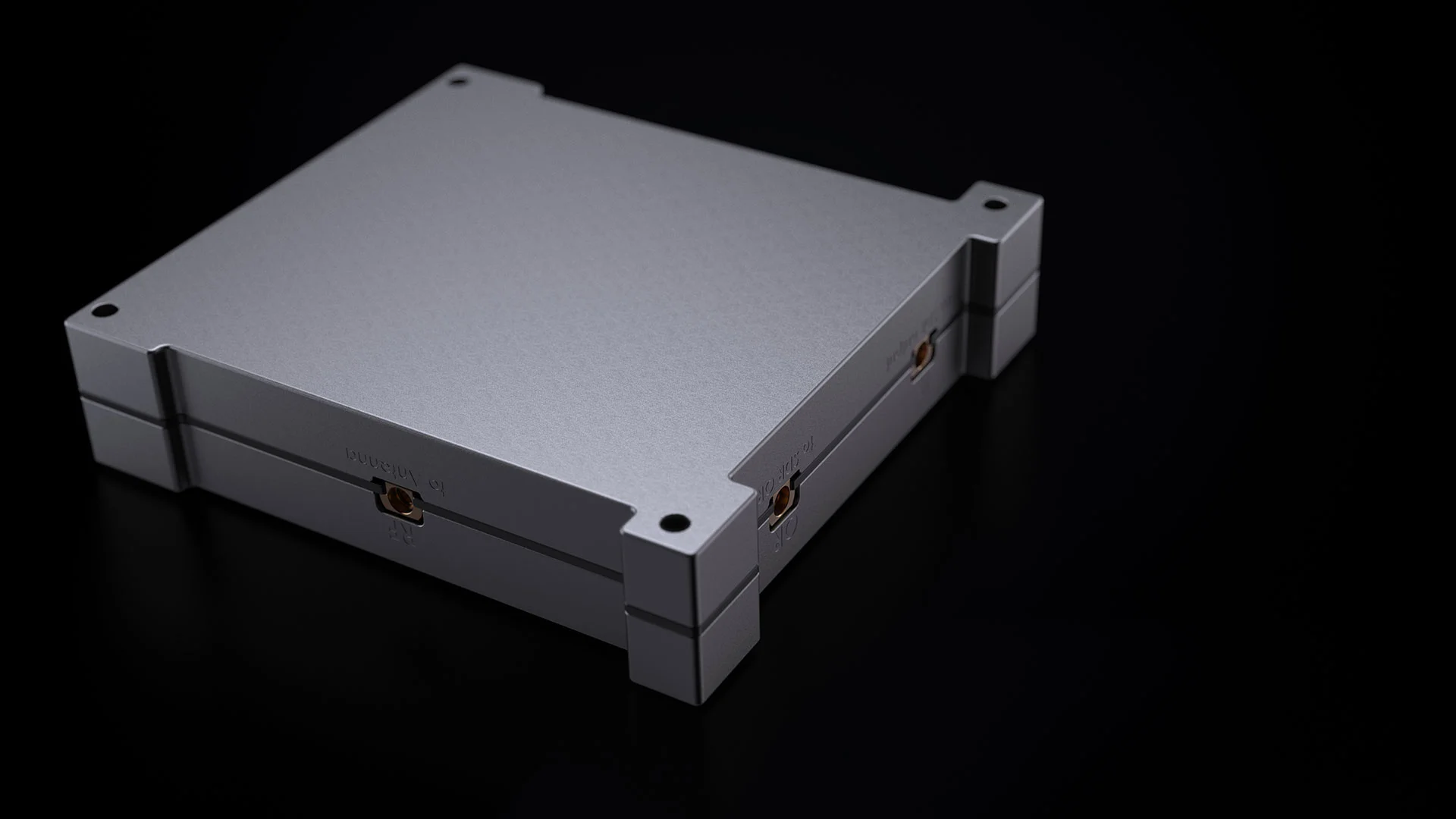

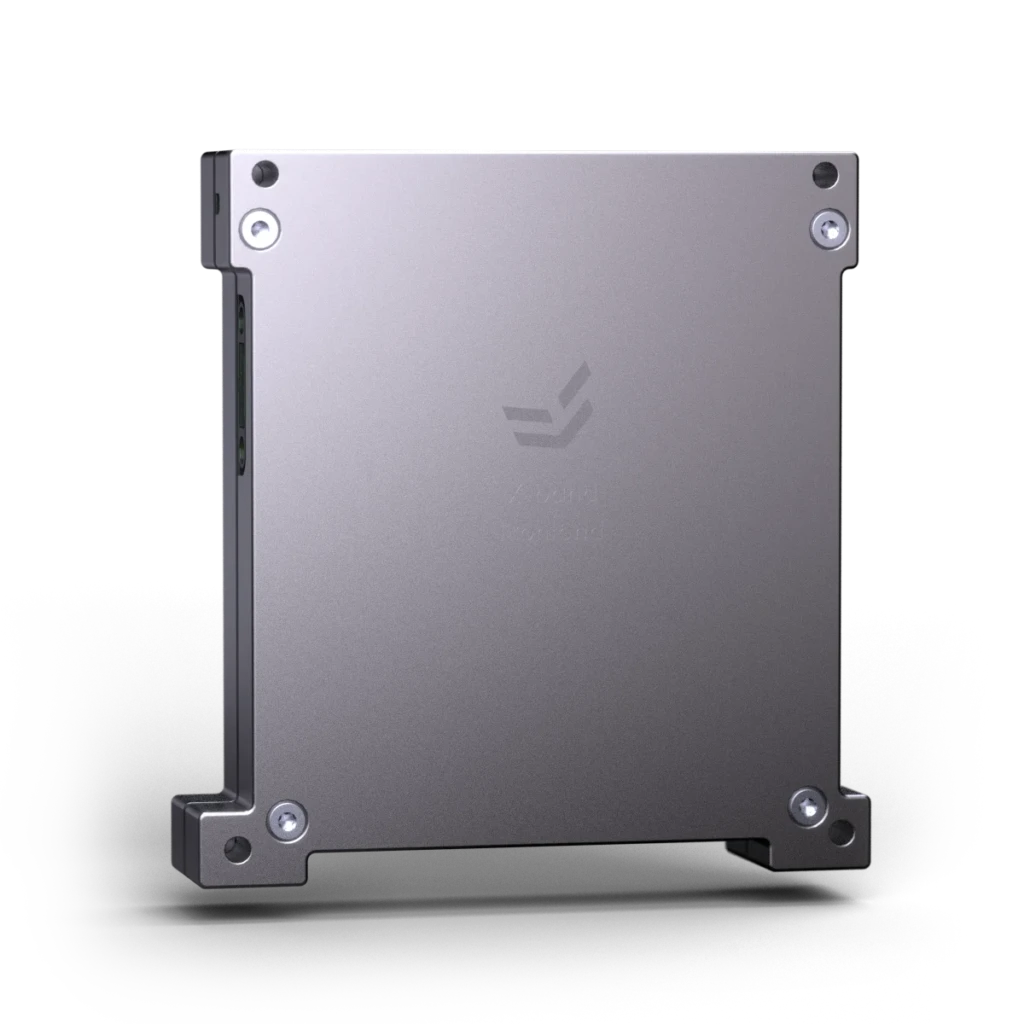

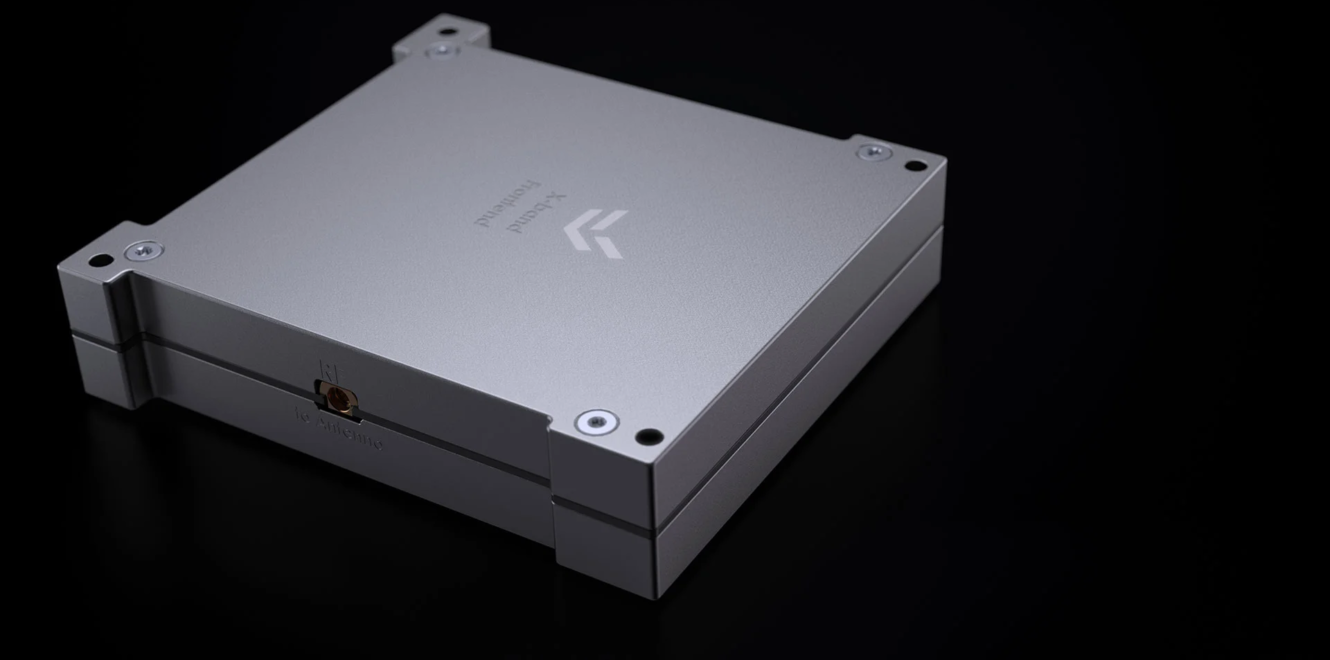

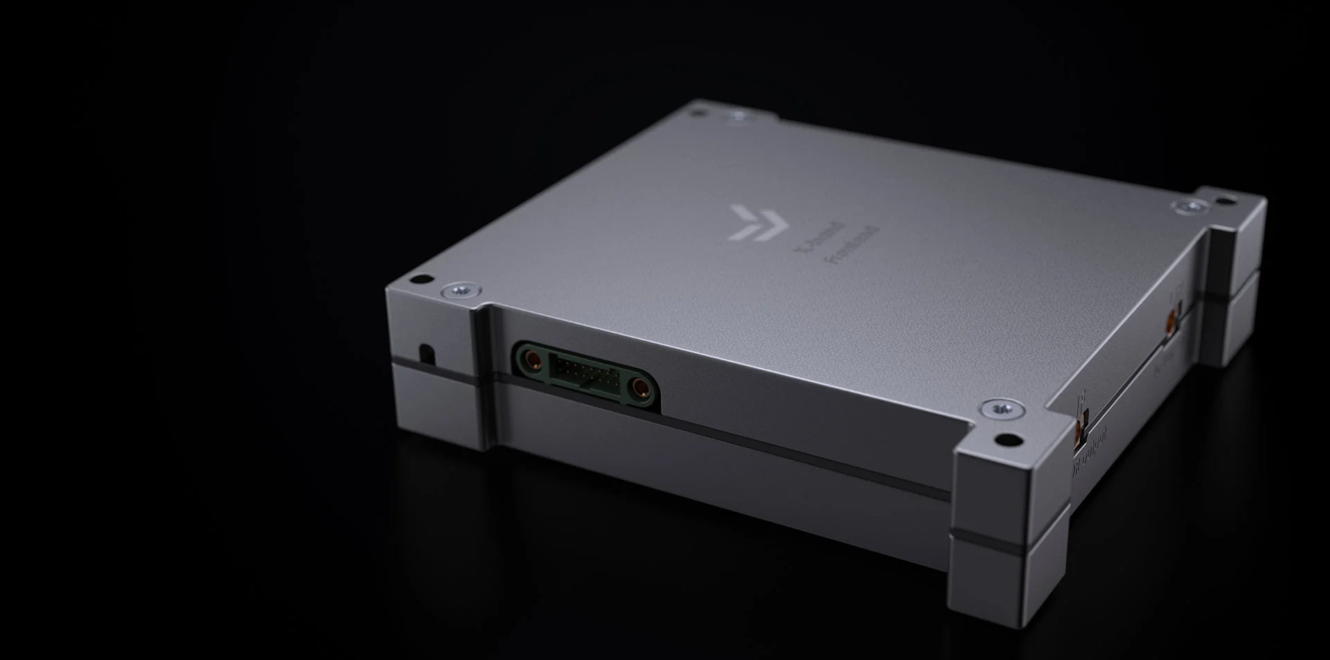

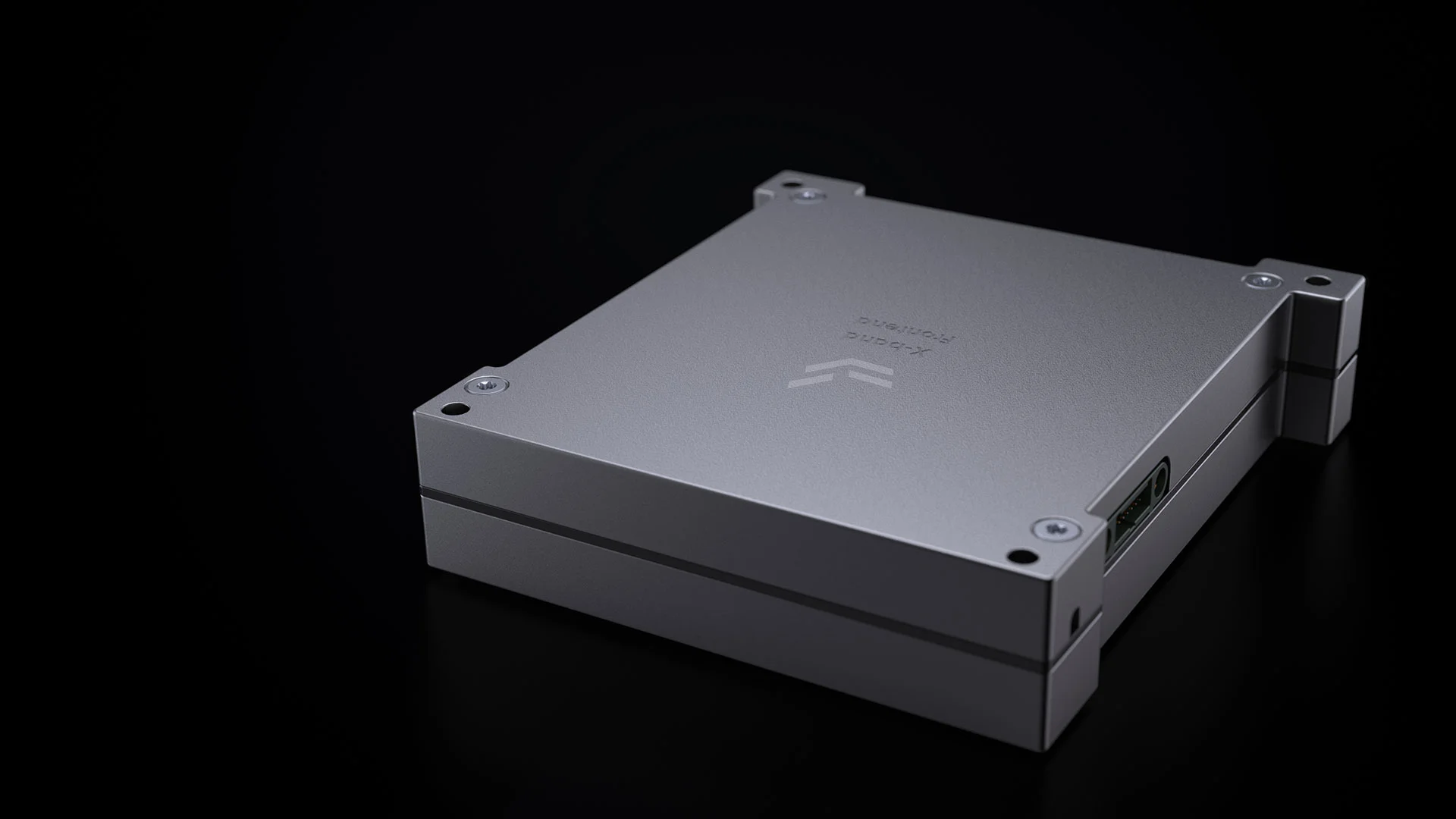

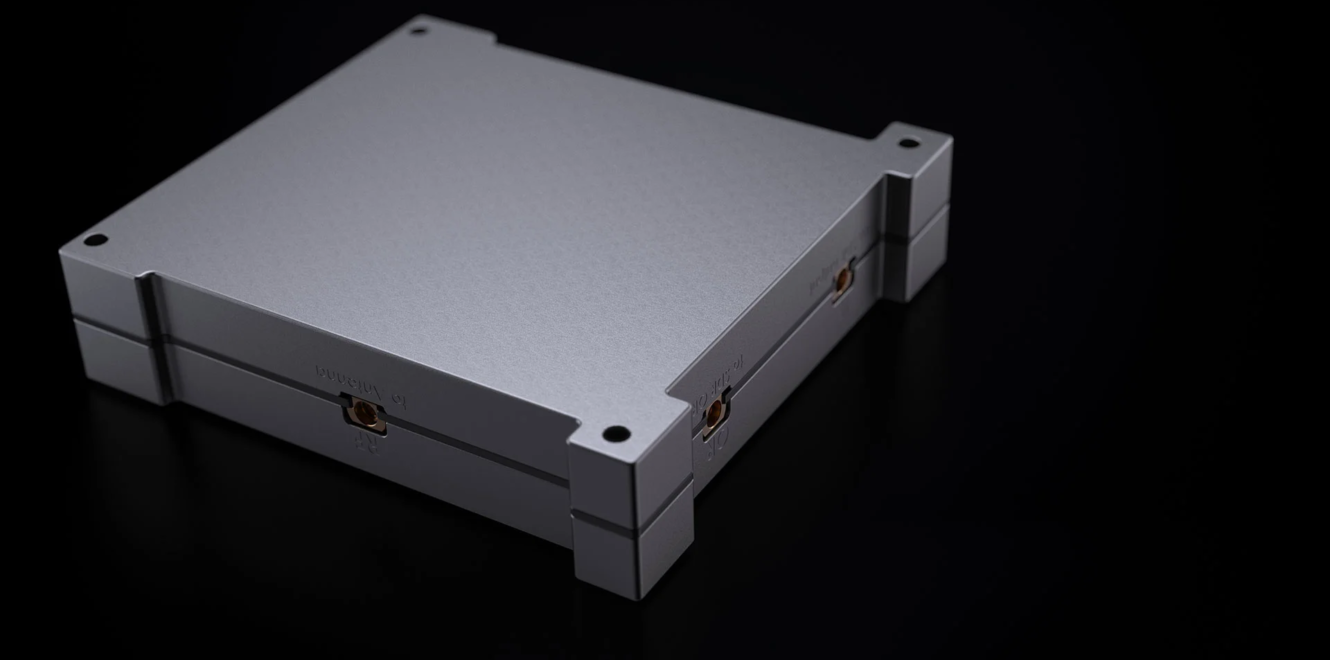

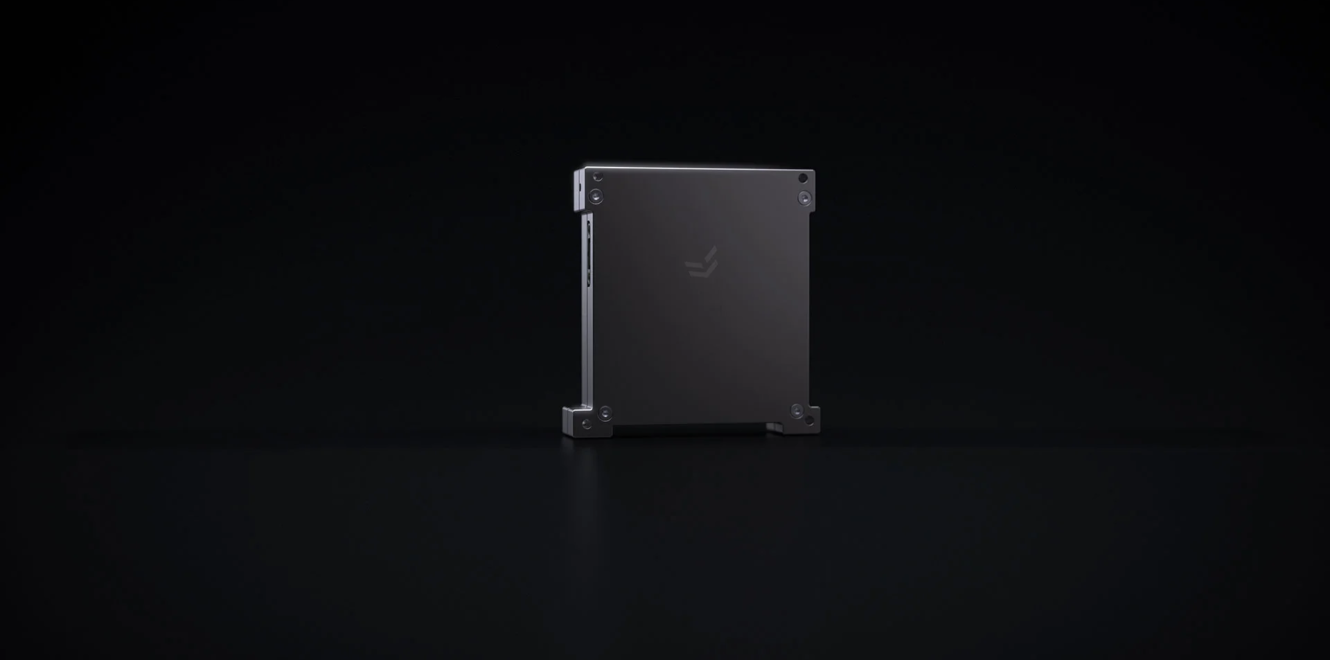

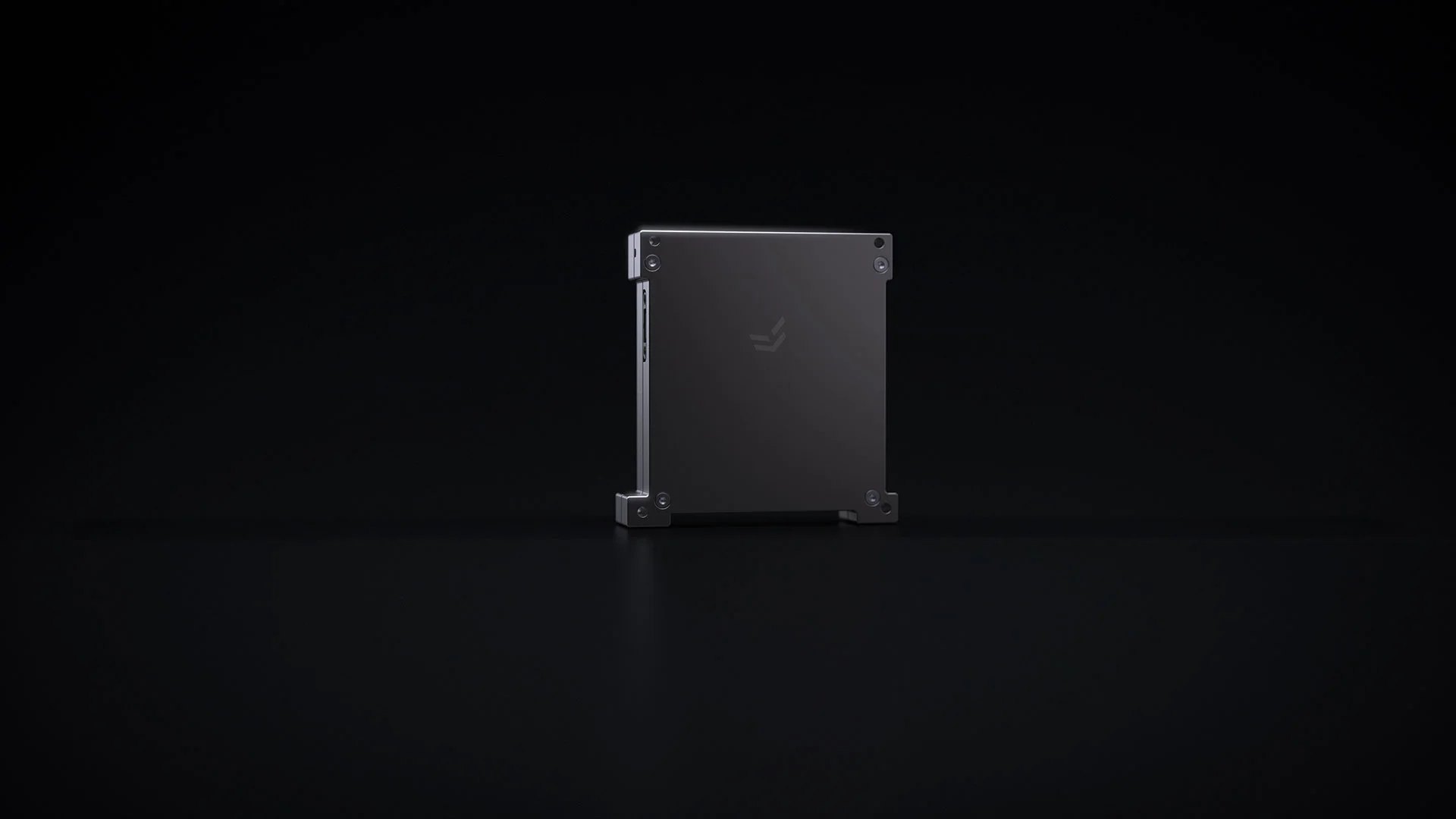

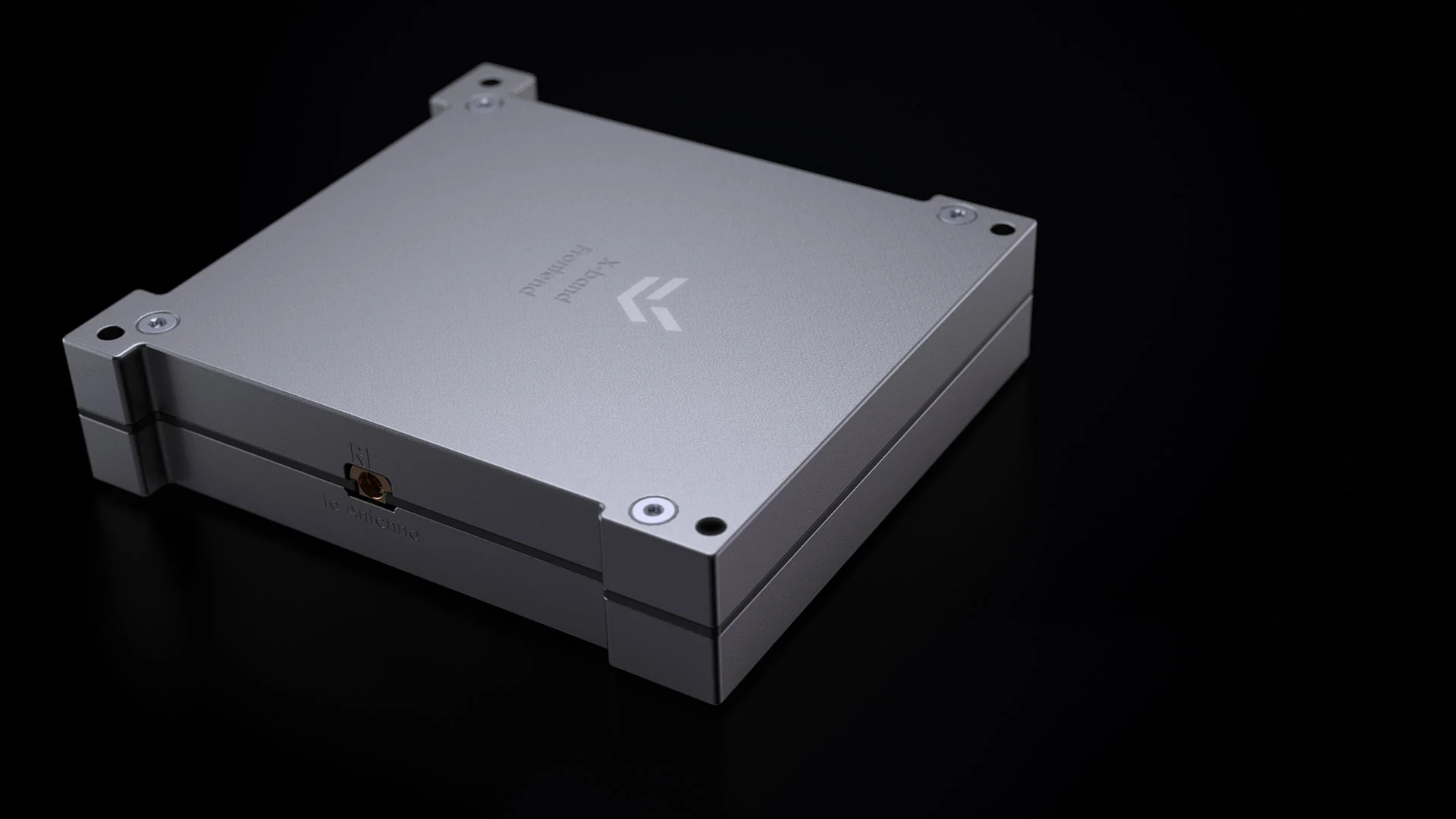

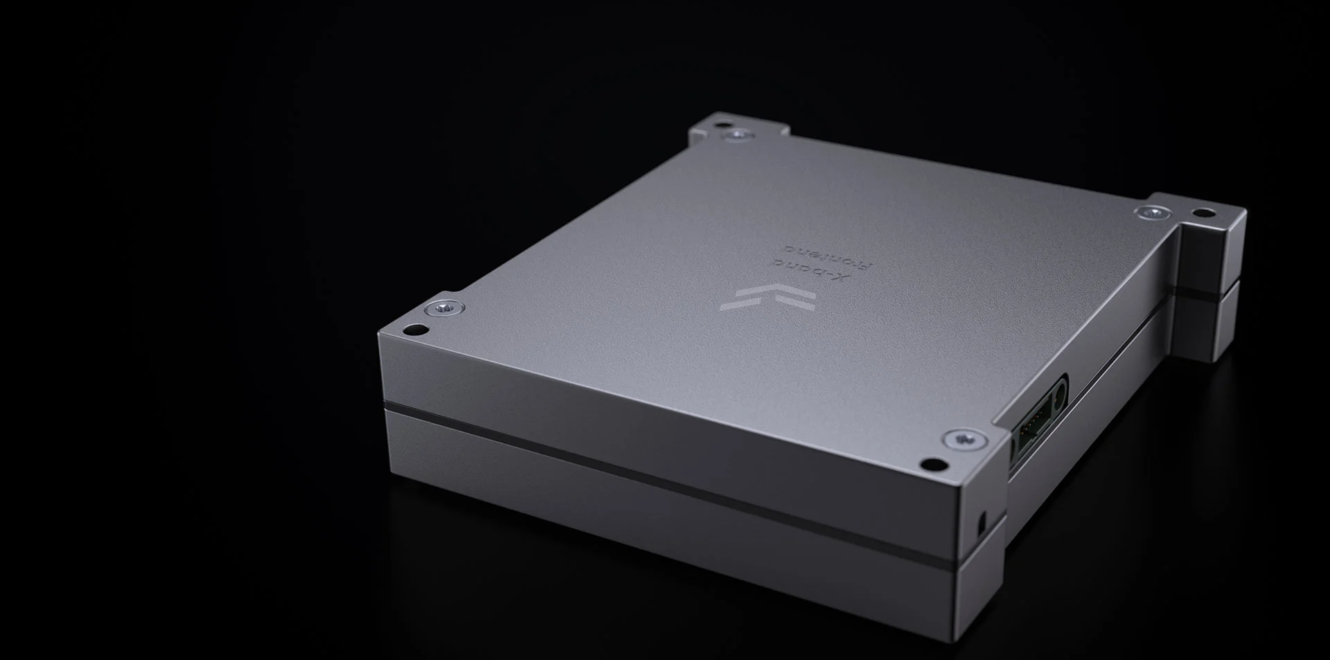

PRODUCT GALLERY
