X-BAND TRANSMITTER

Speed Matters

Cad file & datasheet

buy

buy

flight heritage badge

state of the art report badge

X-BAND TRANSMITTER

Download

Cad file & datasheet

buy

buy

10X

PERFORMANCE/PRICE

DVB-S2

COMPLIANT

150 MBPS

MAXIMUM DATARATE

Space-qualified X-band transmitter for data-intensive payloads

FEATURES

Frequency Range

7900 to 8400 MHz

Modulations

QPSK, 8-PSK, 16-APSK, 32-APSK

Spurious Emissions

< -60 dBc

Frequency Stability

+/- 1.0 ppm

Maximum Gross Datarate

150 Mbps

Mass

270 g

Tx Power

0.5-2 W (in-flight configurable)

Firmware Updates

Local and remote (in-flight) secured application update

SD Card Slot

up to 32 GB

Wide Power Supply Range

12 to 24 V

Interfaces

UART/RS-485 for control and LVDS for data

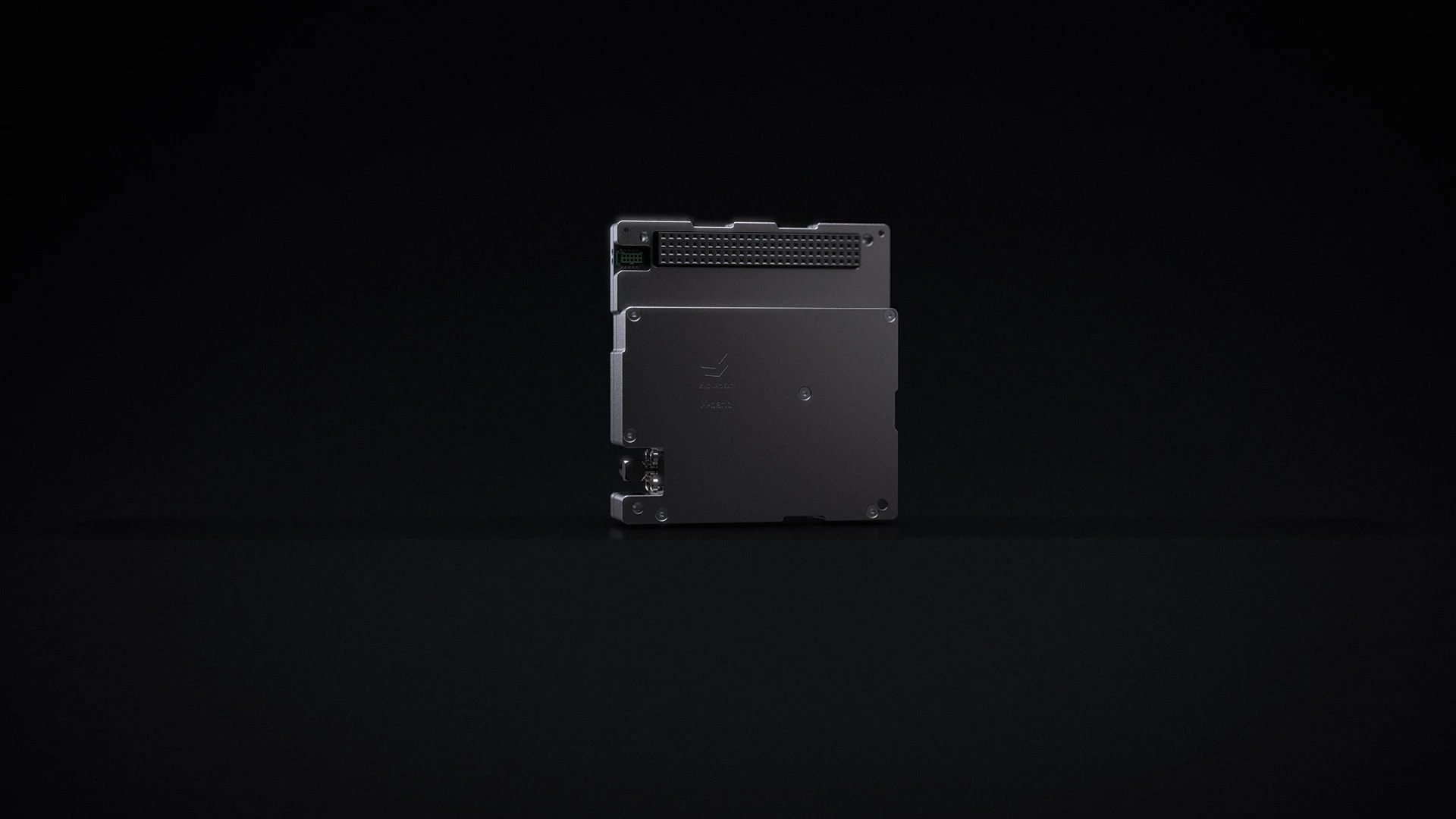

X Band Transmitter web render 5

Speed Matters

Included

Complete User Manual

5h engineering support

Delivery cost

Handling and administration costs

Fully qualified X-band transmitter for data-intensive payloads

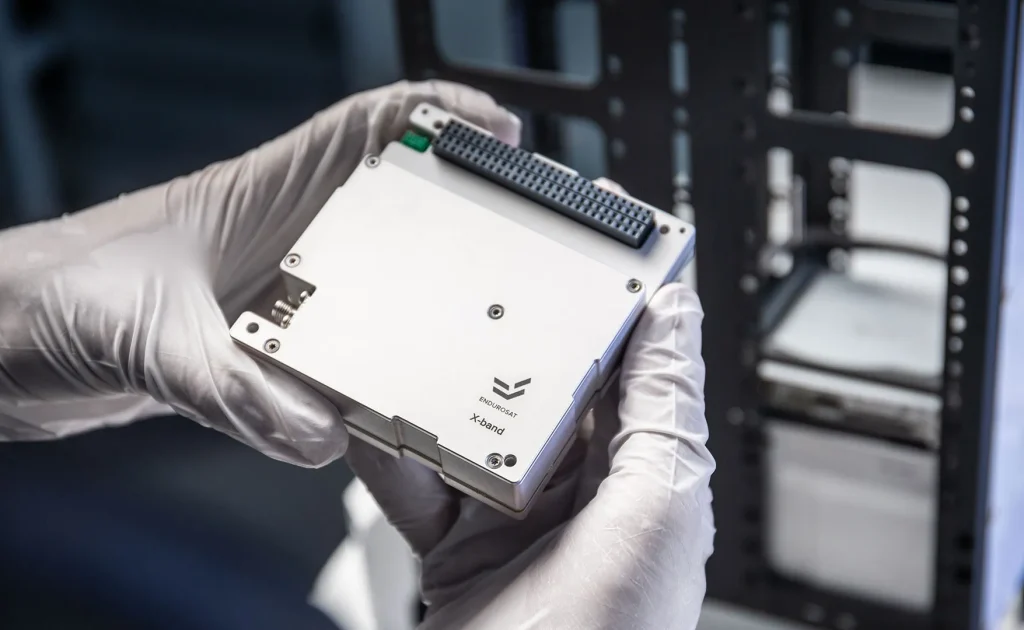

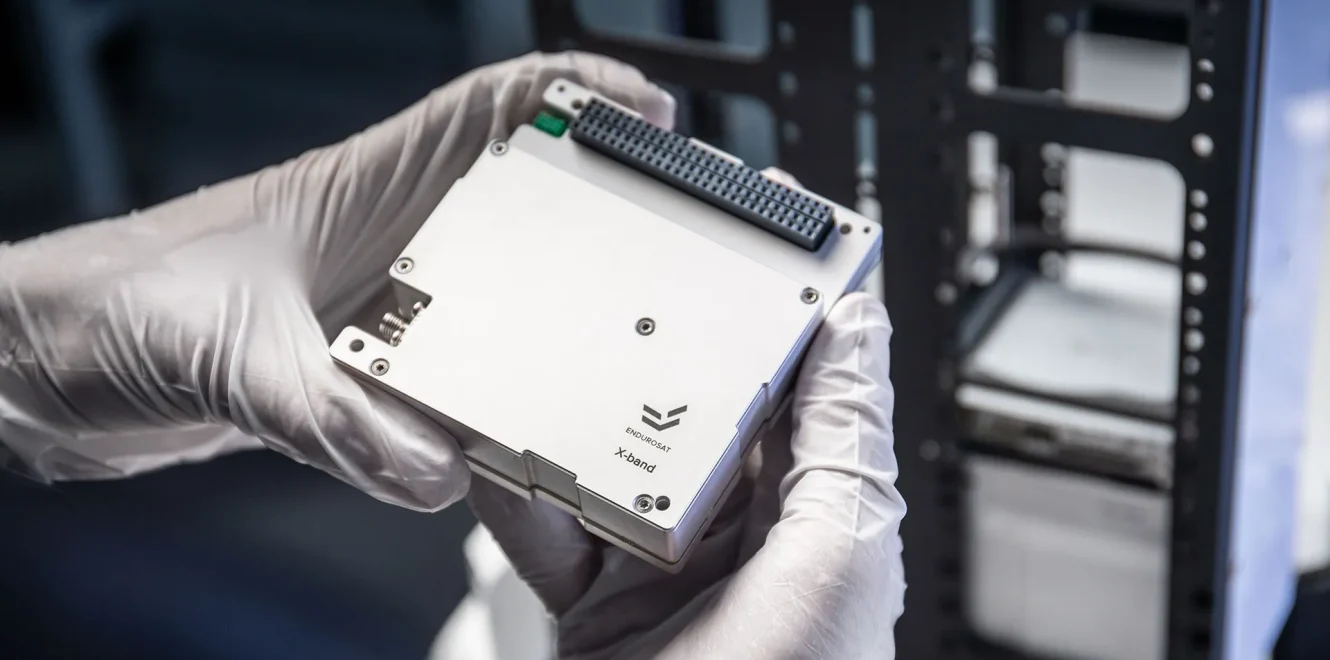

X Band Transmitter web 8

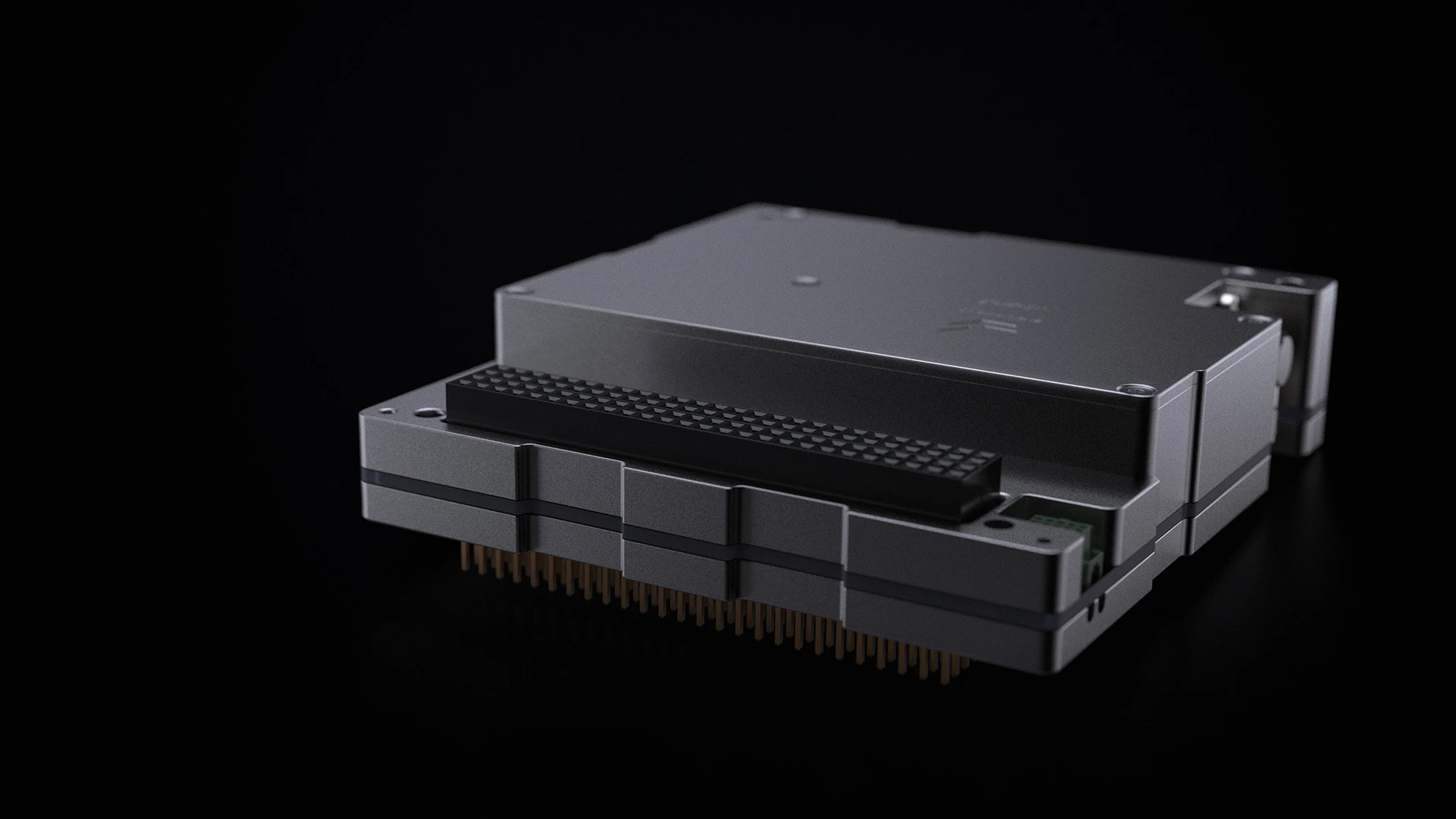

X Band Transmitter web render 3

High speed of transmission. 5x performance/price than the existing alternatives

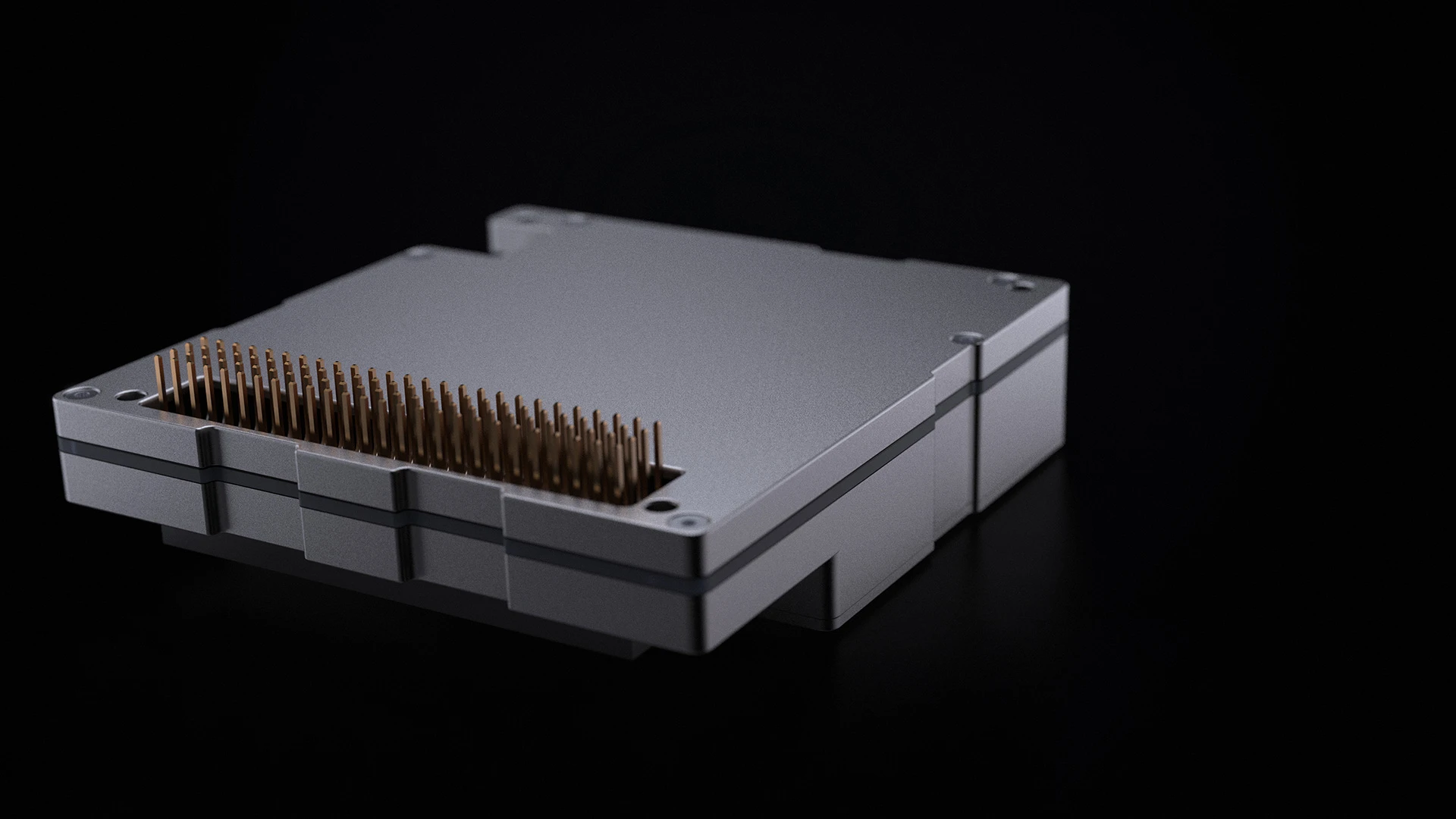

X Band Transmitter web render 1

Compact and robust design

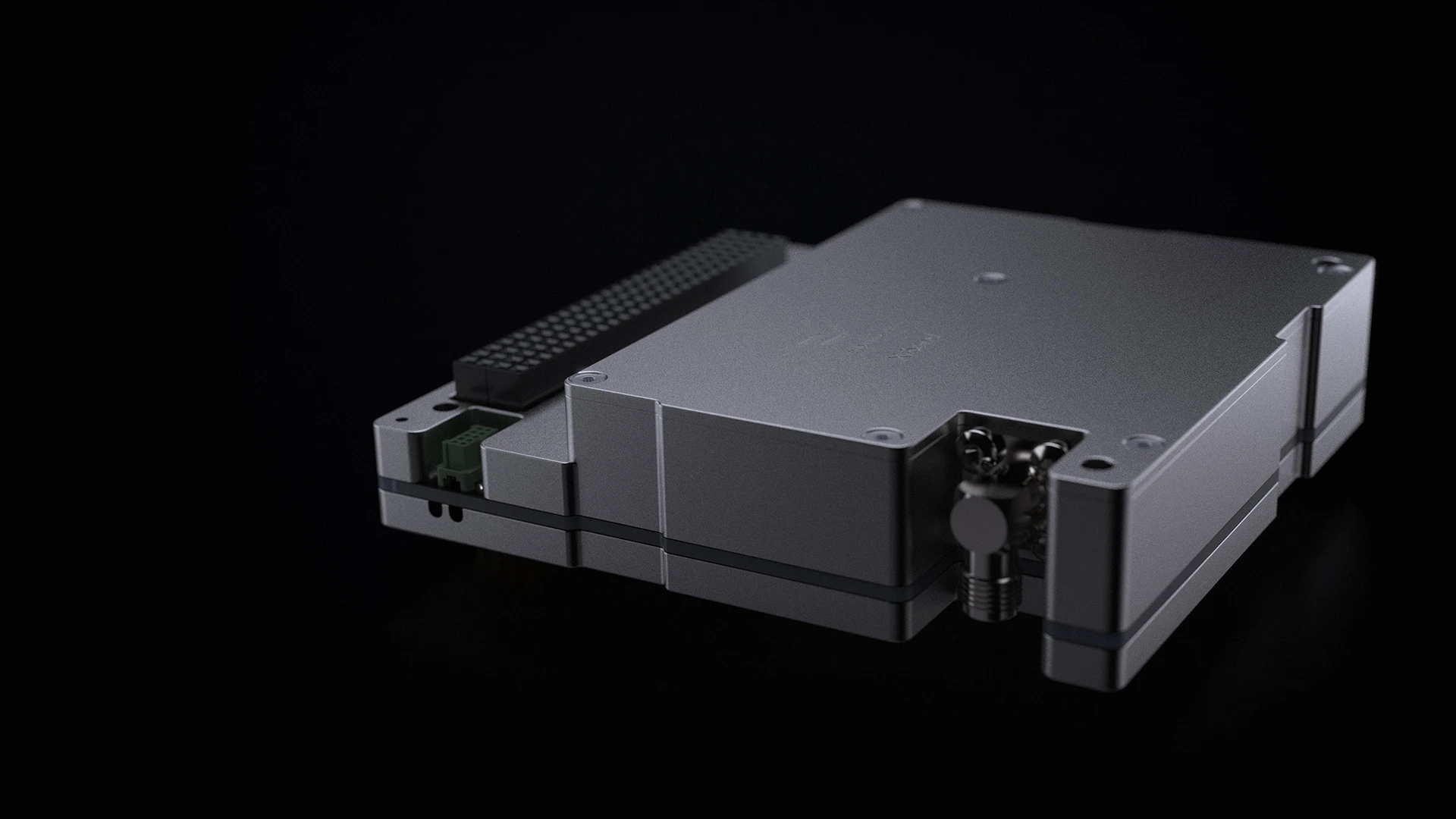

X Band Transmitter web render 4

Embedded Heat sinks control heating & ensure prolonged operations

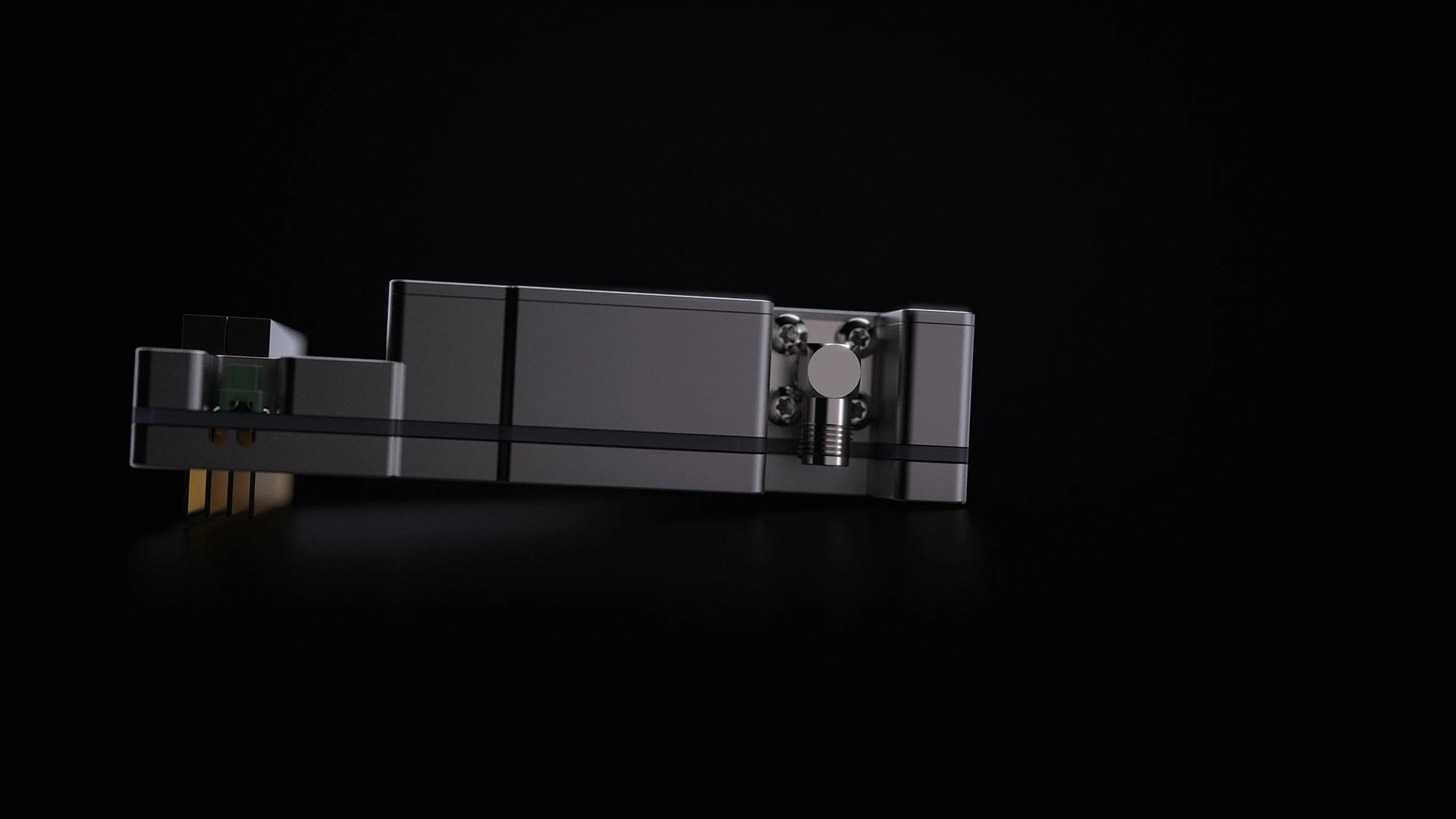

X Band Transmitter web render 2

In-flight reconfigurable SDR. Selectable modulation & transmission parameters and in-flight firmware updates

PRODUCT GALLERY

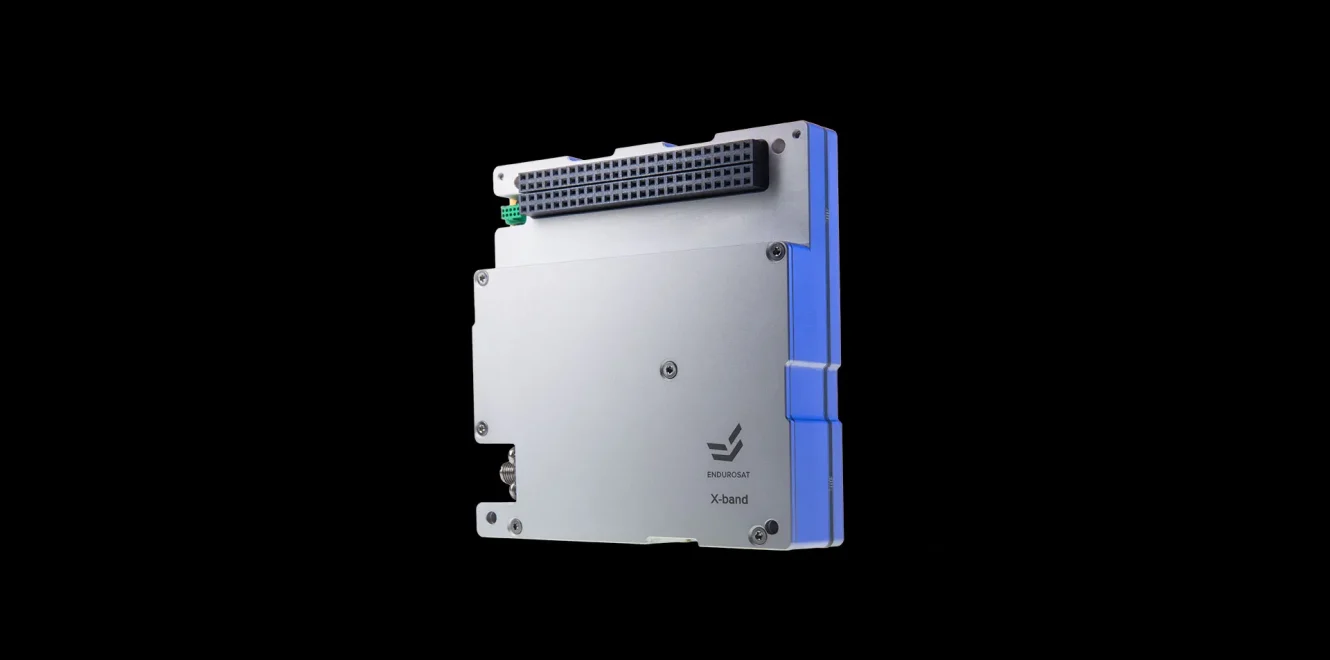

X Band Transmitter web 9

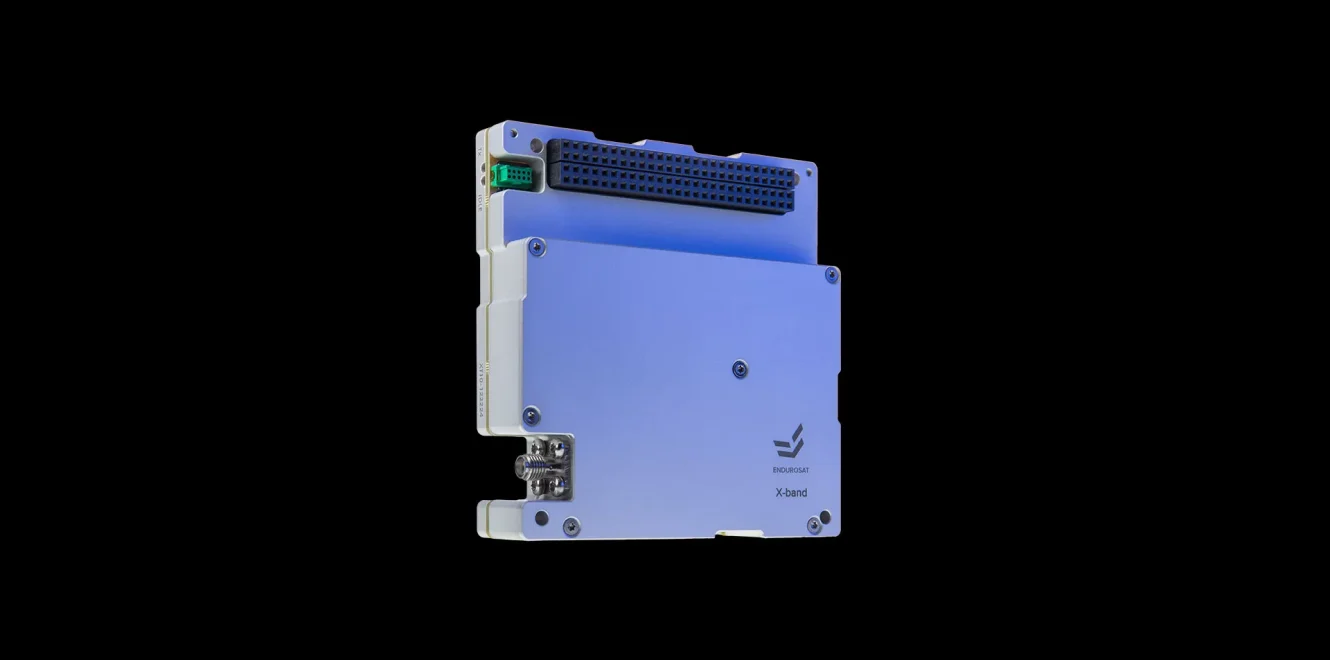

X Band Transmitter web 1

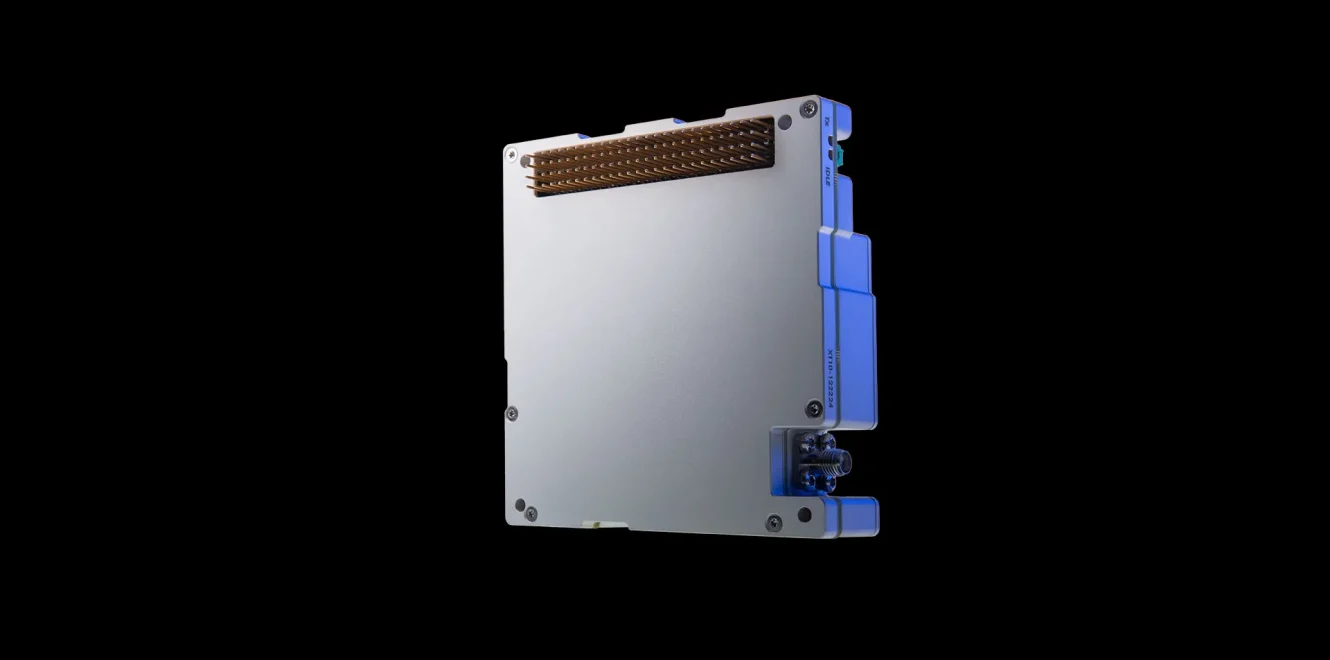

X Band Transmitter web 11

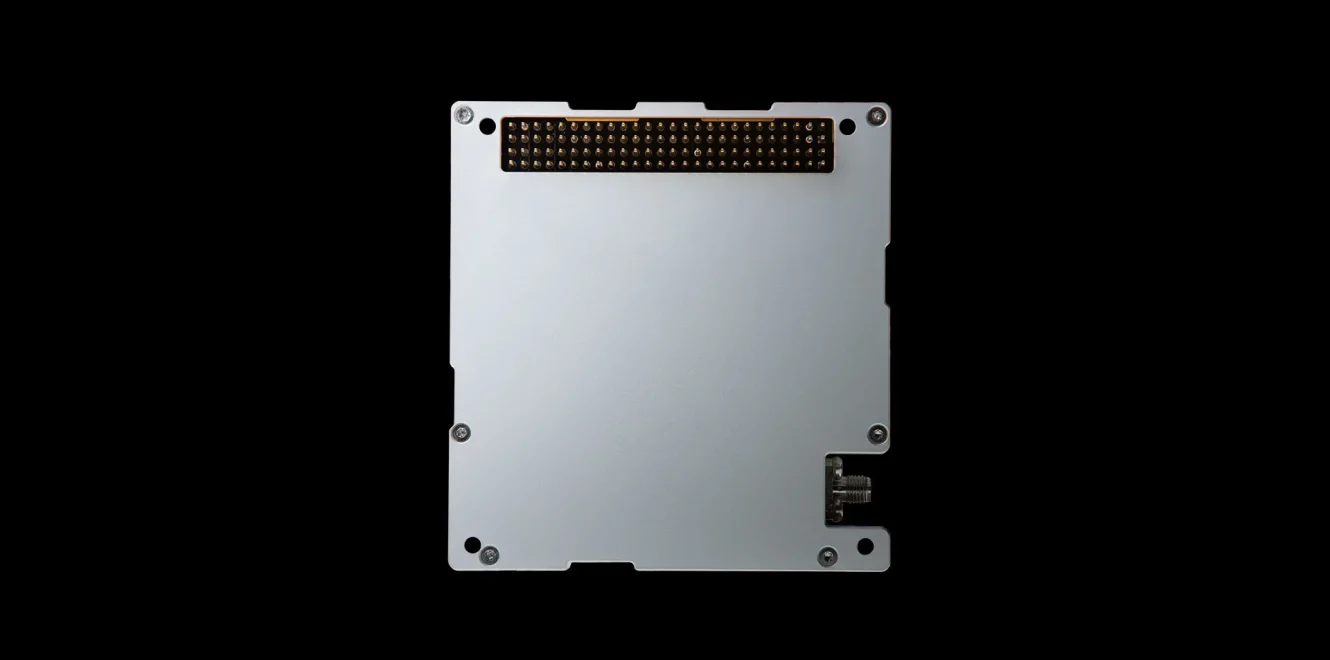

X Band Transmitter web 3

X Band Transmitter web 8

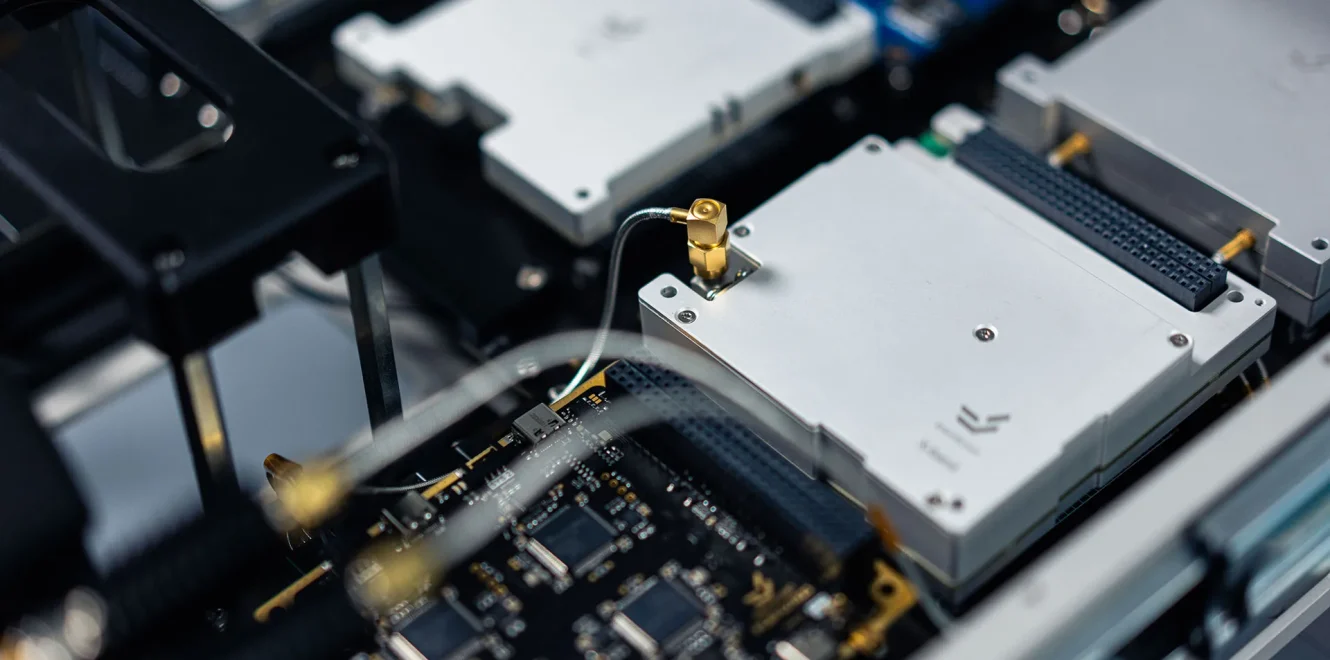

X Band Transmitter web 6

Related Products

Versatile Wideband SDR

Frequency Range

75 to 6000 MHz

Maximum Gross Datarate

1+ GBPS

RAM

4 GB DDR4 + ECC

K-band Transmitter

Frequency range

25.5 to 27.0 GHz

Maximum Gross Datarate

1+ Gbps

Tx power

0.5-2 W

X-Band Front End

Output Frequency range

8000 to 8400 MHz

Input Frequency range

950-2150 MHz

Output power

0.5-2 W

S Band Transmitter endurosat cubesat radio module 04 24

S-Band Transmitter

Frequency Range

2200 to 2290 MHz (commercial)

Maximum Gross Datarate

20 Mbps

Tx Power

0.5-2 W

S band Transceiver endurosat cuebsat radio module 04 24

S-band Transceiver

Frequency Range (Tx)

2200 to 2290 MHz (commercial

Configurable Data Rate

0.1-125 kbps

Tx Power

26-33 dBm configurable

UHF Transceiver II endurosat radio cubesat 04 24

UHF Transceiver II

Frequency Range (Tx/Rx)

400 to 403 MHz or 430 to 440 MHz

Configurable Data Rate

up to 19.2 kbps

Tx Power

1 W (up to 2 W upon request)

2500

MODULES IN ORBIT

60

DELIVERED SATELLITES

200

TB DATA DOWNLINKED

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance

LEARN MORE

Datasheet & CAD File

X-Band Transmitter
